| Part No.： | LTC4151 |
| Page： | 18 Pages |
| Size： | 268 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-11-02 11:15:19 |
| DataSheet： | Download |

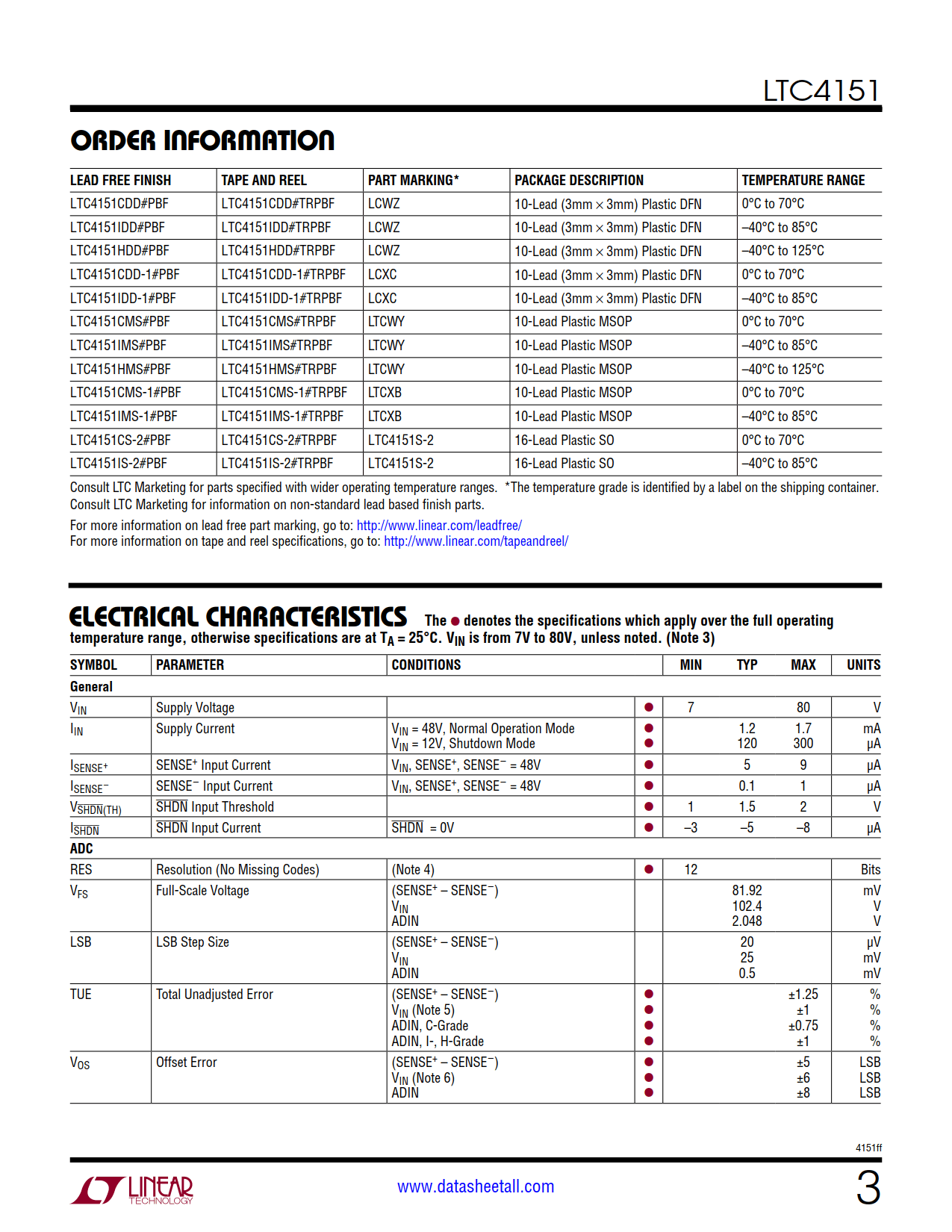

| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC4151CDD#PBF | Tube | 121 | LCWZ | 1 | 10 | 0°C ~ 70°C | 10-Lead (3mm × 3mm) Plastic DFN | |
| LTC4151CDD#TRPBF | Reel | 2500 | LCWZ | 1 | 10 | 0°C ~ 70°C | 10-Lead (3mm × 3mm) Plastic DFN | |
| LTC4151CDD#TRMPBF | Reel | 500 | LCWZ | 1 | 10 | 0°C ~ 70°C | 10-Lead (3mm × 3mm) Plastic DFN | |
| LTC4151IDD#PBF | Tube | 121 | LCWZ | 1 | 10 | -40°C ~ 85°C | 10-Lead (3mm × 3mm) Plastic DFN | |
| LTC4151IDD#TRPBF | Reel | 2500 | LCWZ | 1 | 10 | -40°C ~ 85°C | 10-Lead (3mm × 3mm) Plastic DFN | |
| LTC4151IDD#TRMPBF | Reel | 500 | LCWZ | 1 | 10 | -40°C ~ 85°C | 10-Lead (3mm × 3mm) Plastic DFN | |
| LTC4151HDD#PBF | Tube | 121 | LCWZ | 1 | 10 | -40°C ~ 125°C | 10-Lead (3mm × 3mm) Plastic DFN | |
| LTC4151HDD#TRPBF | Reel | 2500 | LCWZ | 1 | 10 | -40°C ~ 125°C | 10-Lead (3mm × 3mm) Plastic DFN | |
| LTC4151HDD#TRMPBF | Reel | 500 | LCWZ | 1 | 10 | -40°C ~ 125°C | 10-Lead (3mm × 3mm) Plastic DFN | |
| LTC4151CDD-1#PBF | Tube | 121 | LCXC | 1 | 10 | 0°C ~ 70°C | 10-Lead (3mm × 3mm) Plastic DFN | |
| LTC4151CDD-1#TRPBF | Reel | 2500 | LCXC | 1 | 10 | 0°C ~ 70°C | 10-Lead (3mm × 3mm) Plastic DFN | |
| LTC4151CDD-1#TRMPBF | Reel | 500 | LCXC | 1 | 10 | 0°C ~ 70°C | 10-Lead (3mm × 3mm) Plastic DFN | |
| LTC4151IDD-1#PBF | Tube | 121 | LCXC | 1 | 10 | -40°C ~ 85°C | 10-Lead (3mm × 3mm) Plastic DFN | |
| LTC4151IDD-1#TRPBF | Reel | 2500 | LCXC | 1 | 10 | -40°C ~ 85°C | 10-Lead (3mm × 3mm) Plastic DFN | |
| LTC4151IDD-1#TRMPBF | Reel | 500 | LCXC | 1 | 10 | -40°C ~ 85°C | 10-Lead (3mm × 3mm) Plastic DFN | |
| LTC4151CMS#PBF | Tube | 50 | LTCWY | 1 | 10 | 0°C ~ 70°C | 10-Lead Plastic MSOP | |
| LTC4151CMS#TRPBF | Reel | 2500 | LTCWY | 1 | 10 | 0°C ~ 70°C | 10-Lead Plastic MSOP | |
| LTC4151CMS#TRMPBF | Reel | 500 | LTCWY | 1 | 10 | 0°C ~ 70°C | 10-Lead Plastic MSOP | |
| LTC4151IMS#PBF | Tube | 50 | LTCWY | 1 | 10 | -40°C ~ 85°C | 10-Lead Plastic MSOP | |
| LTC4151IMS#TRPBF | Reel | 2500 | LTCWY | 1 | 10 | -40°C ~ 85°C | 10-Lead Plastic MSOP | |
| LTC4151IMS#TRMPBF | Reel | 500 | LTCWY | 1 | 10 | -40°C ~ 85°C | 10-Lead Plastic MSOP | |
| LTC4151HMS#PBF | Tube | 50 | LTCWY | 1 | 10 | -40°C ~ 125°C | 10-Lead Plastic MSOP | |
| LTC4151HMS#TRPBF | Reel | 2500 | LTCWY | 1 | 10 | -40°C ~ 125°C | 10-Lead Plastic MSOP | |
| LTC4151HMS#TRMPBF | Reel | 500 | LTCWY | 1 | 10 | -40°C ~ 125°C | 10-Lead Plastic MSOP | |
| LTC4151CMS-1#PBF | Tube | 50 | LTCXB | 1 | 10 | 0°C ~ 70°C | 10-Lead Plastic MSOP | |
| LTC4151CMS-1#TRPBF | Reel | 2500 | LTCXB | 1 | 10 | 0°C ~ 70°C | 10-Lead Plastic MSOP | |
| LTC4151CMS-1#TRMPBF | Reel | 500 | LTCXB | 1 | 10 | 0°C ~ 70°C | 10-Lead Plastic MSOP | |
| LTC4151IMS-1#PBF | Tube | 50 | LTCXB | 1 | 10 | -40°C ~ 85°C | 10-Lead Plastic MSOP | |
| LTC4151IMS-1#TRPBF | Reel | 2500 | LTCXB | 1 | 10 | -40°C ~ 85°C | 10-Lead Plastic MSOP | |
| LTC4151IMS-1#TRMPBF | Reel | 500 | LTCXB | 1 | 10 | -40°C ~ 85°C | 10-Lead Plastic MSOP | |
| LTC4151CS-2#PBF | Tube | 50 | LTC4151S-2 | 1 | 16 | 0°C ~ 70°C | 16-Lead Plastic SO | |
| LTC4151CS-2#TRPBF | Reel | 2500 | LTC4151S-2 | 1 | 16 | 0°C ~ 70°C | 16-Lead Plastic SO | |
| LTC4151CS-2#TRMPBF | Reel | 500 | LTC4151S-2 | 1 | 16 | 0°C ~ 70°C | 16-Lead Plastic SO | |
| LTC4151IS-2#PBF | Tube | 50 | LTC4151S-2 | 1 | 16 | -40°C ~ 85°C | 16-Lead Plastic SO | |
| LTC4151IS-2#TRPBF | Reel | 2500 | LTC4151S-2 | 1 | 16 | -40°C ~ 85°C | 16-Lead Plastic SO | |
| LTC4151IS-2#TRMPBF | Reel | 500 | LTC4151S-2 | 1 | 16 | -40°C ~ 85°C | 16-Lead Plastic SO |

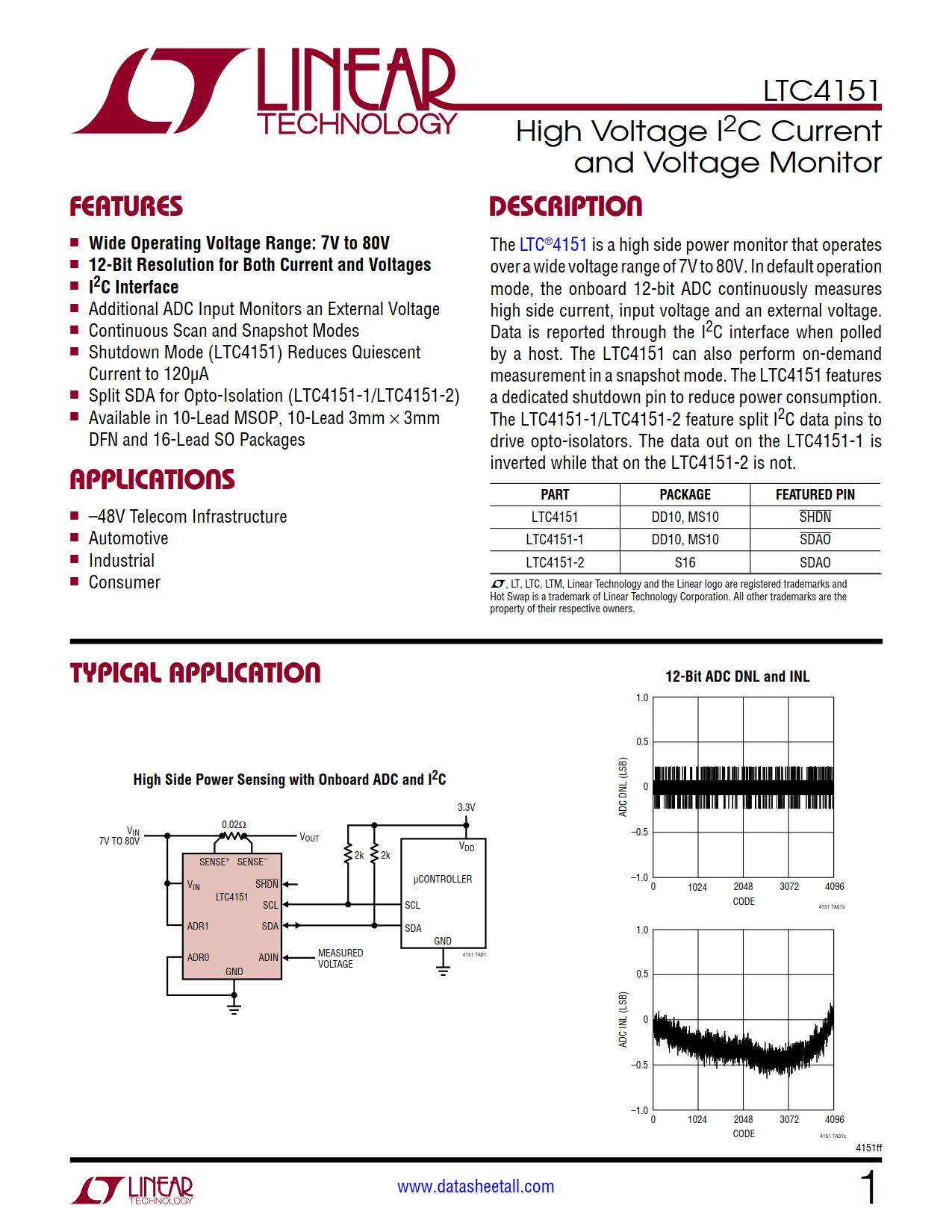

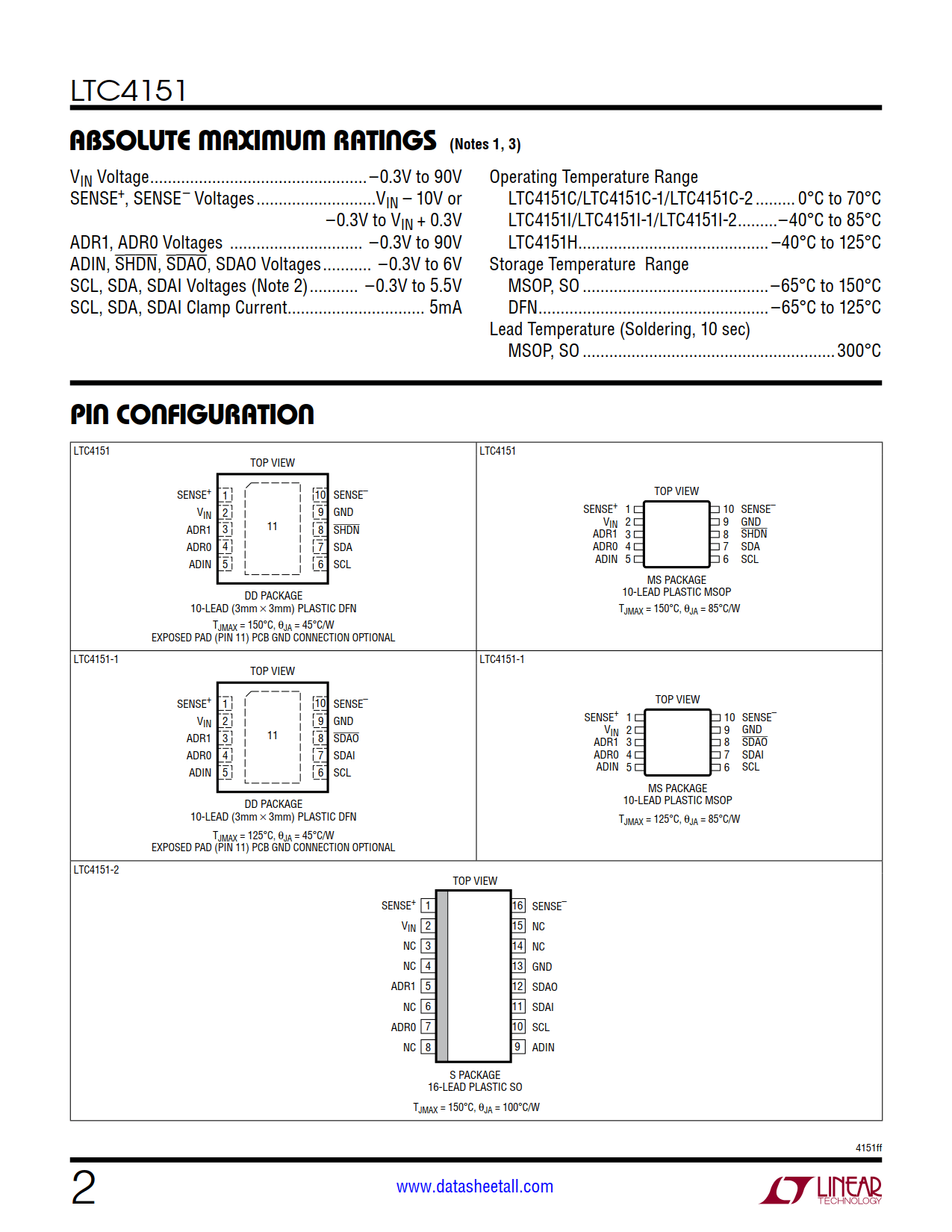

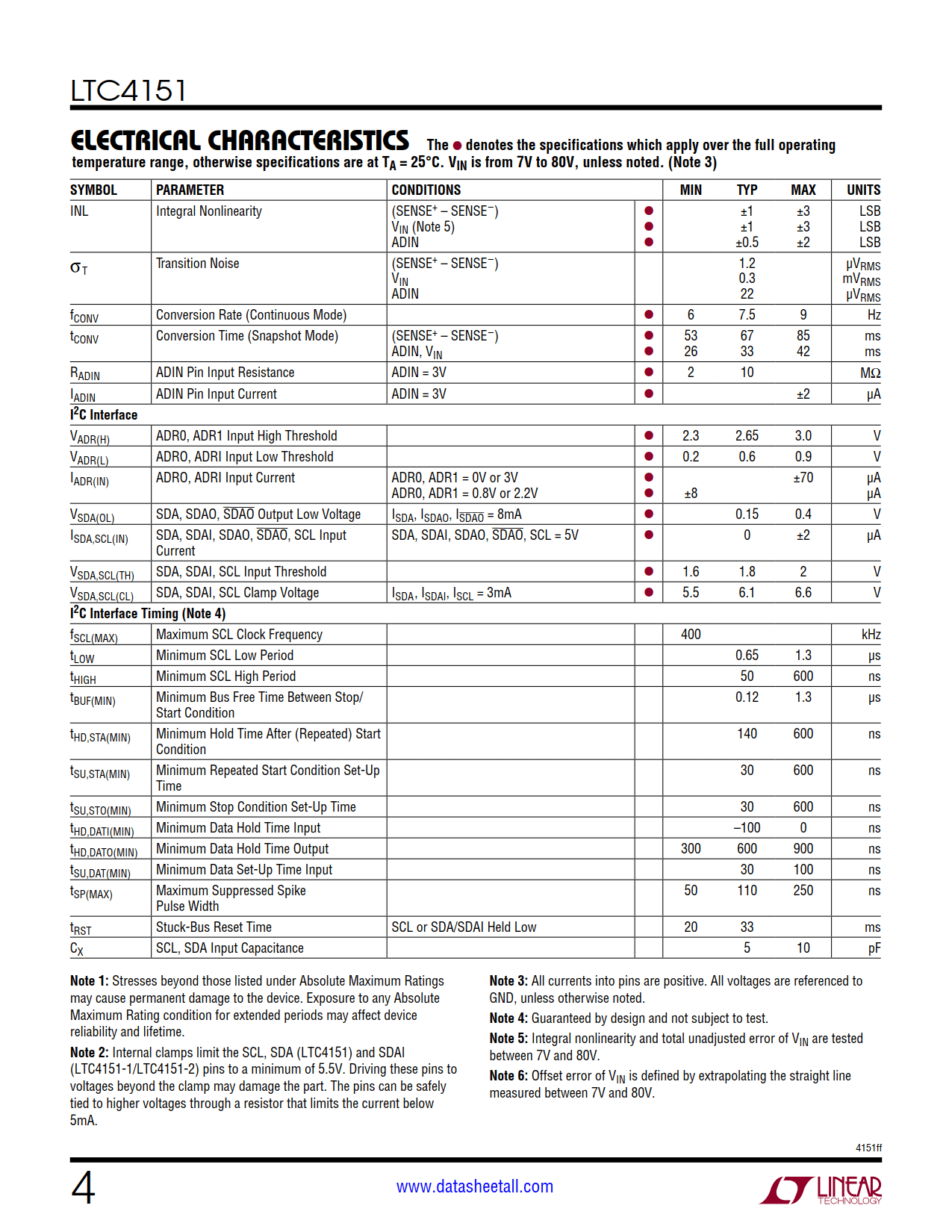

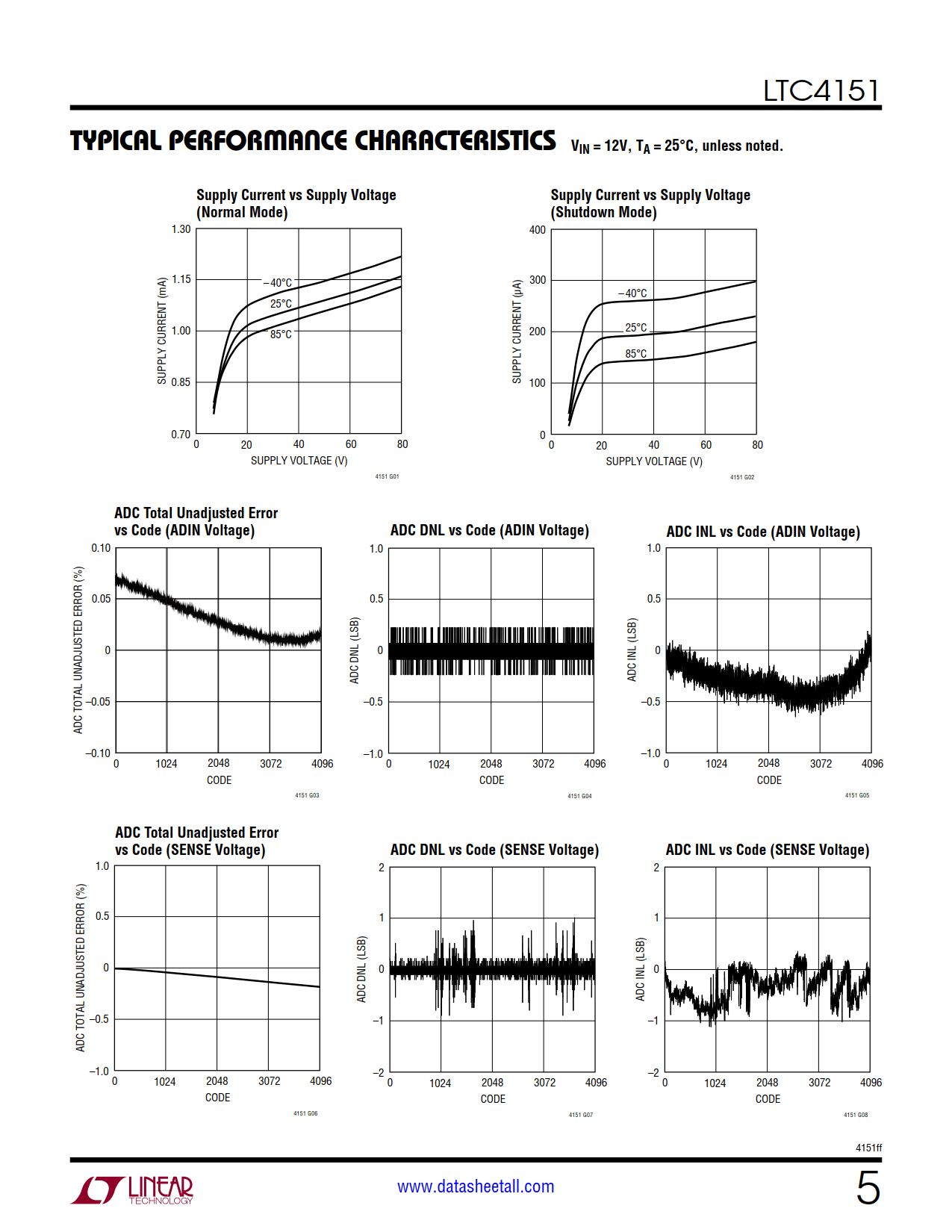

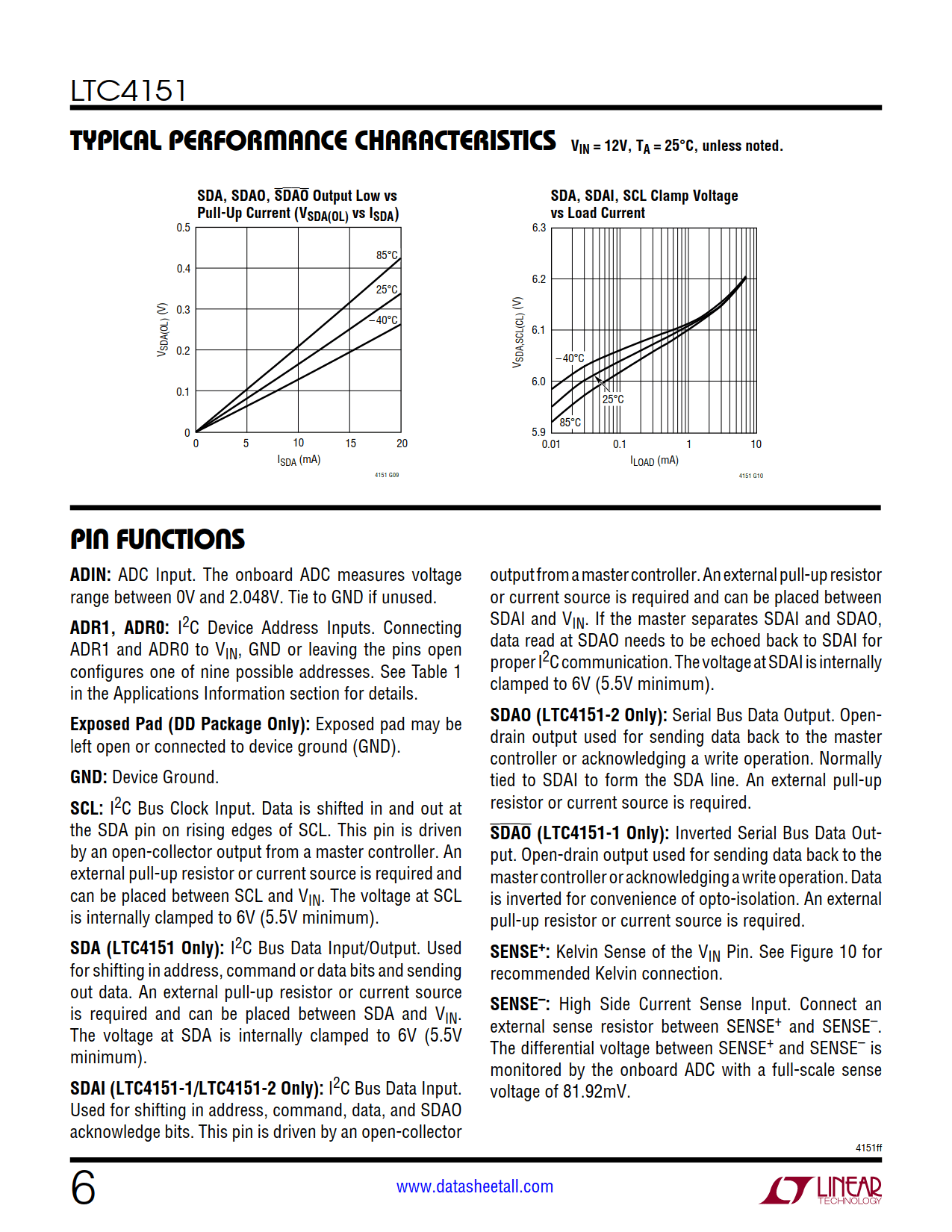

The LTC4151 is a high side power monitor that operates over a wide voltage range of 7V to 80V. In default operation mode, the on-board 12-bit ADC continuously measures high side current, input voltage and an external voltage. Data is reported through the I2C interface when polled by a host. The LTC4151 can also perform on-demand measurement in a snapshot mode. The LTC4151 features a dedicated shutdown pin to reduce power consumption.
The LTC4151‑1/LTC4151-2 feature split I2C data pins to drive opto-isolators. The data out on the LTC4151-1 is inverted while that on the LTC4151-2 is not.
