LTC4000 Datasheet

LTC4000 Datasheet

High Voltage High Current Controller for Battery Charging and Power Management
Part No.: LTC4000
Page: 40 Pages
Size: 461 KB
Manufacturer: Linear Technology
Logo:
Views: 0
Update Time: 2024-12-05 20:55:23
DataSheet: Download

LTC4000 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC4000EUFD#PBF Tube 73 4000 1 28 -40°C ~ 125°C 28-Lead (4mm × 5mm) Plastic QFN
LTC4000EUFD#TRPBF Reel 2500 4000 1 28 -40°C ~ 125°C 28-Lead (4mm × 5mm) Plastic QFN
LTC4000IUFD#PBF Tube 73 4000 1 28 -40°C ~ 125°C 28-Lead (4mm × 5mm) Plastic QFN
LTC4000IUFD#TRPBF Reel 2500 4000 1 28 -40°C ~ 125°C 28-Lead (4mm × 5mm) Plastic QFN
LTC4000EGN#PBF Tube 49 LTC4000GN 1 28 -40°C ~ 125°C 28-Lead Plastic SSOP
LTC4000EGN#TRPBF Reel 2500 LTC4000GN 1 28 -40°C ~ 125°C 28-Lead Plastic SSOP
LTC4000IGN#PBF Tube 49 LTC4000GN 1 28 -40°C ~ 125°C 28-Lead Plastic SSOP
LTC4000IGN#TRPBF Reel 2500 LTC4000GN 1 28 -40°C ~ 125°C 28-Lead Plastic SSOP
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC4000 Datasheet(PDF)

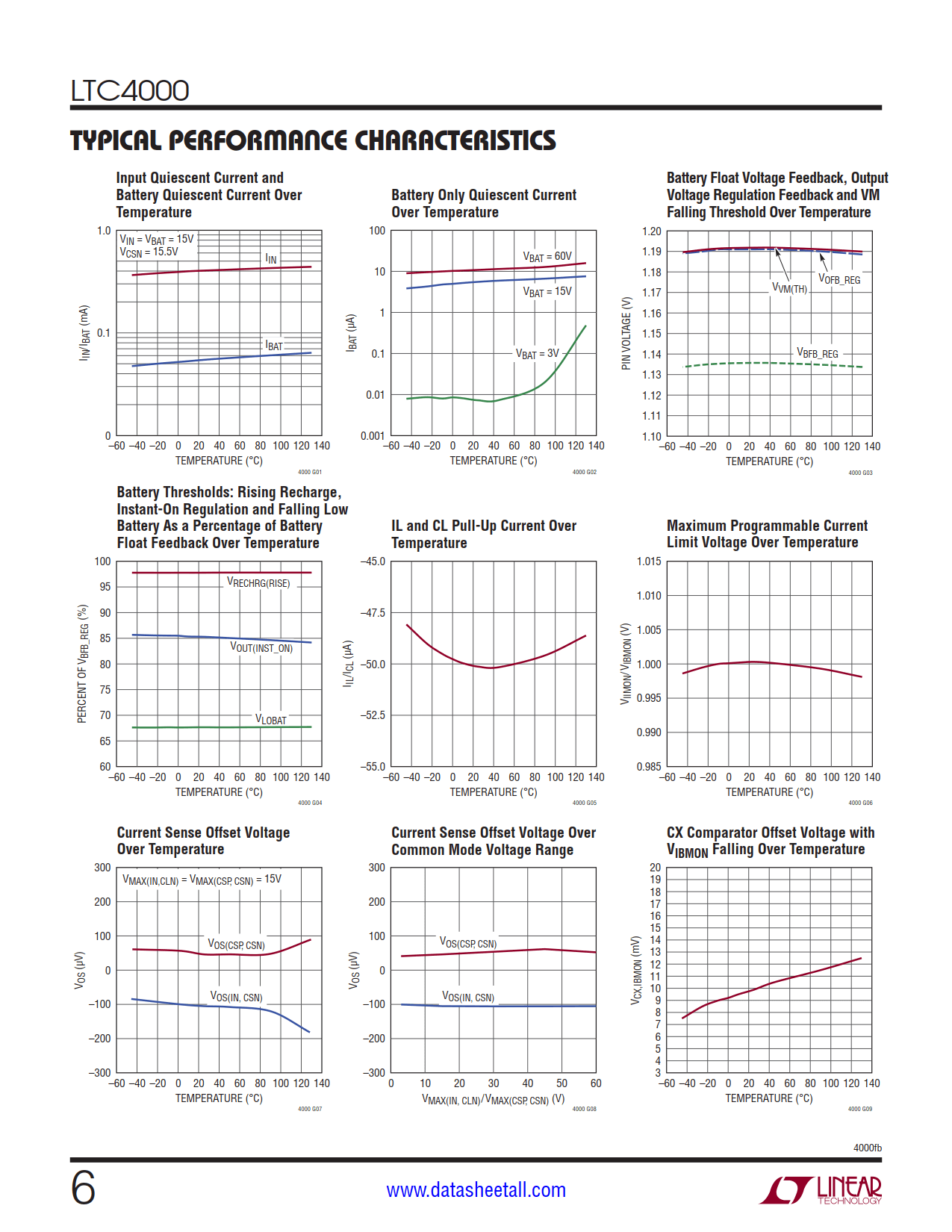

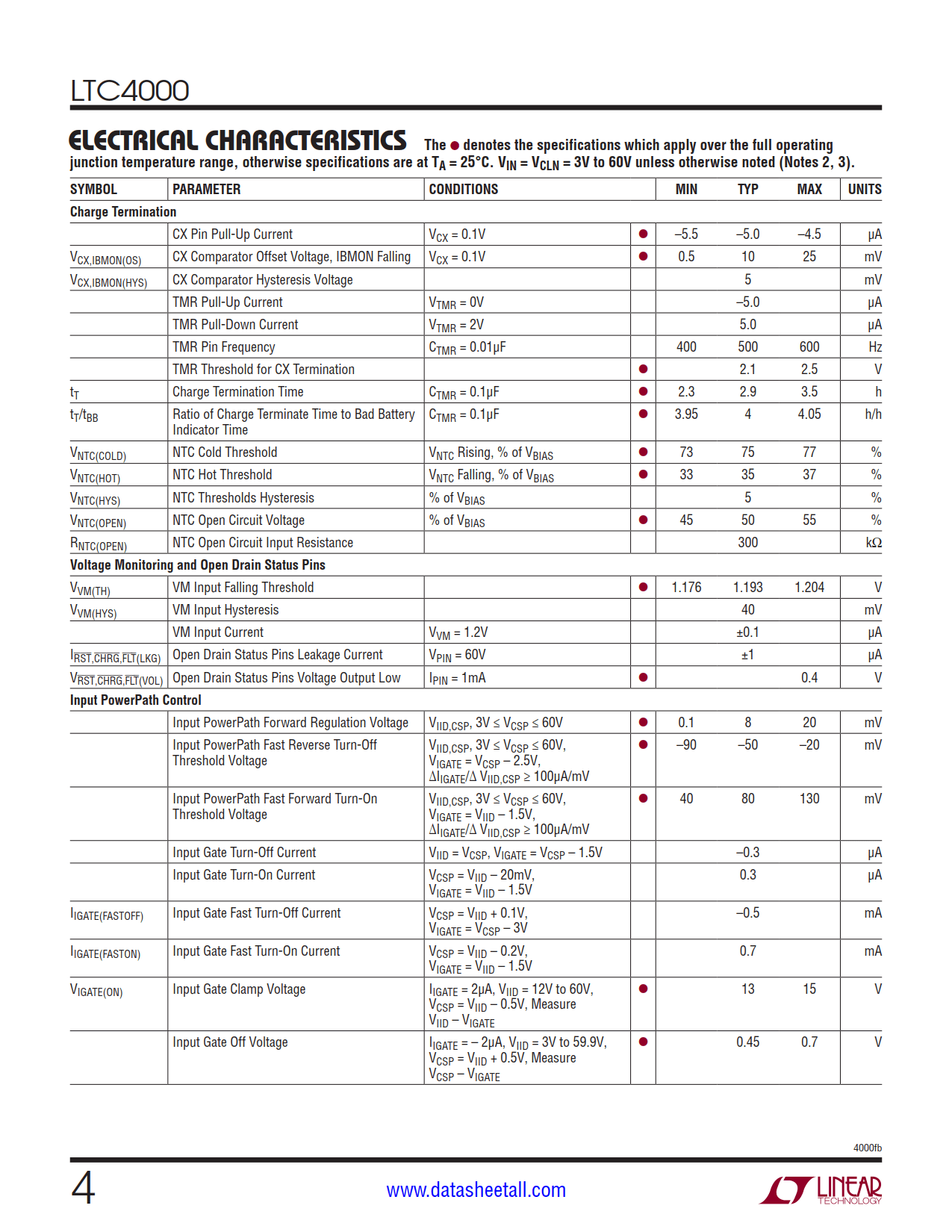

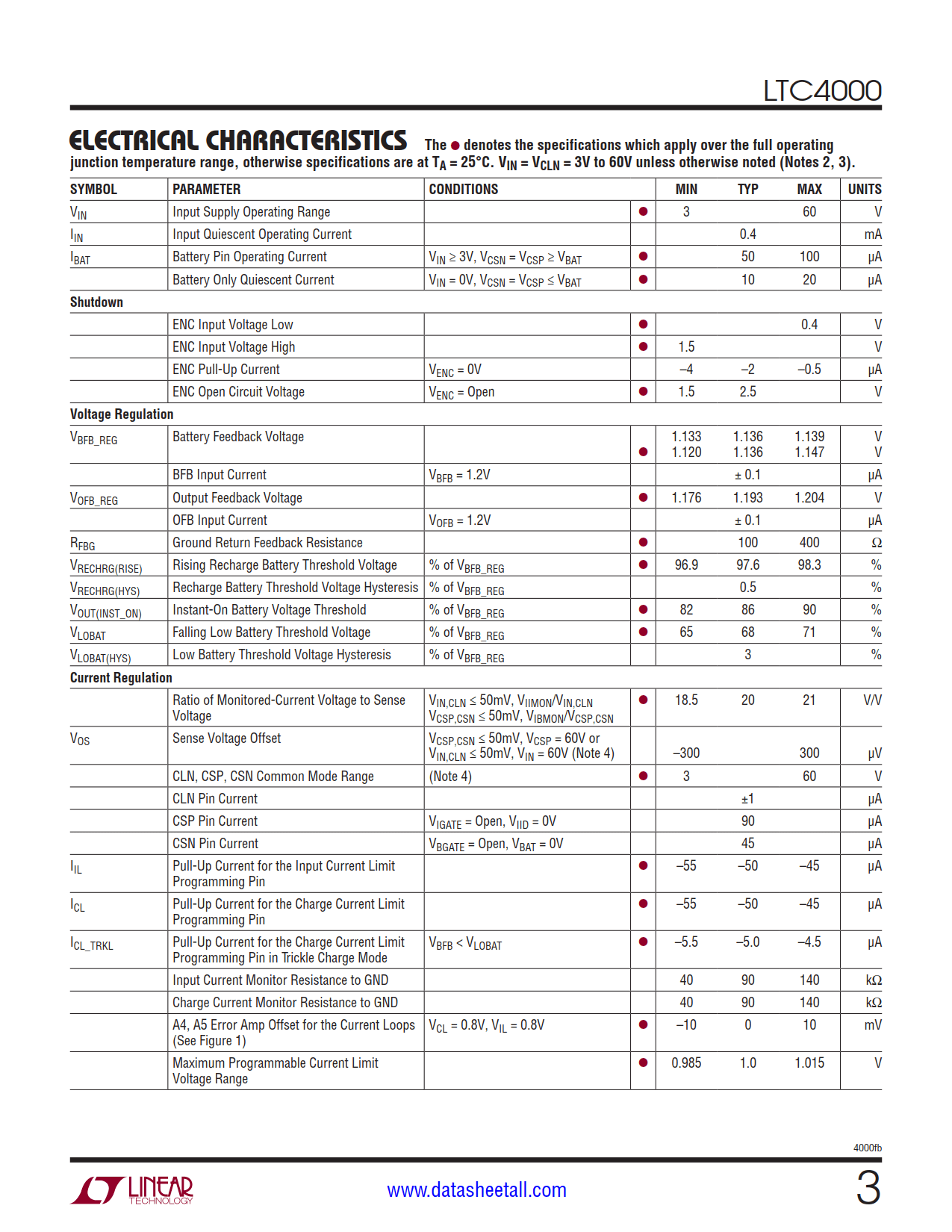

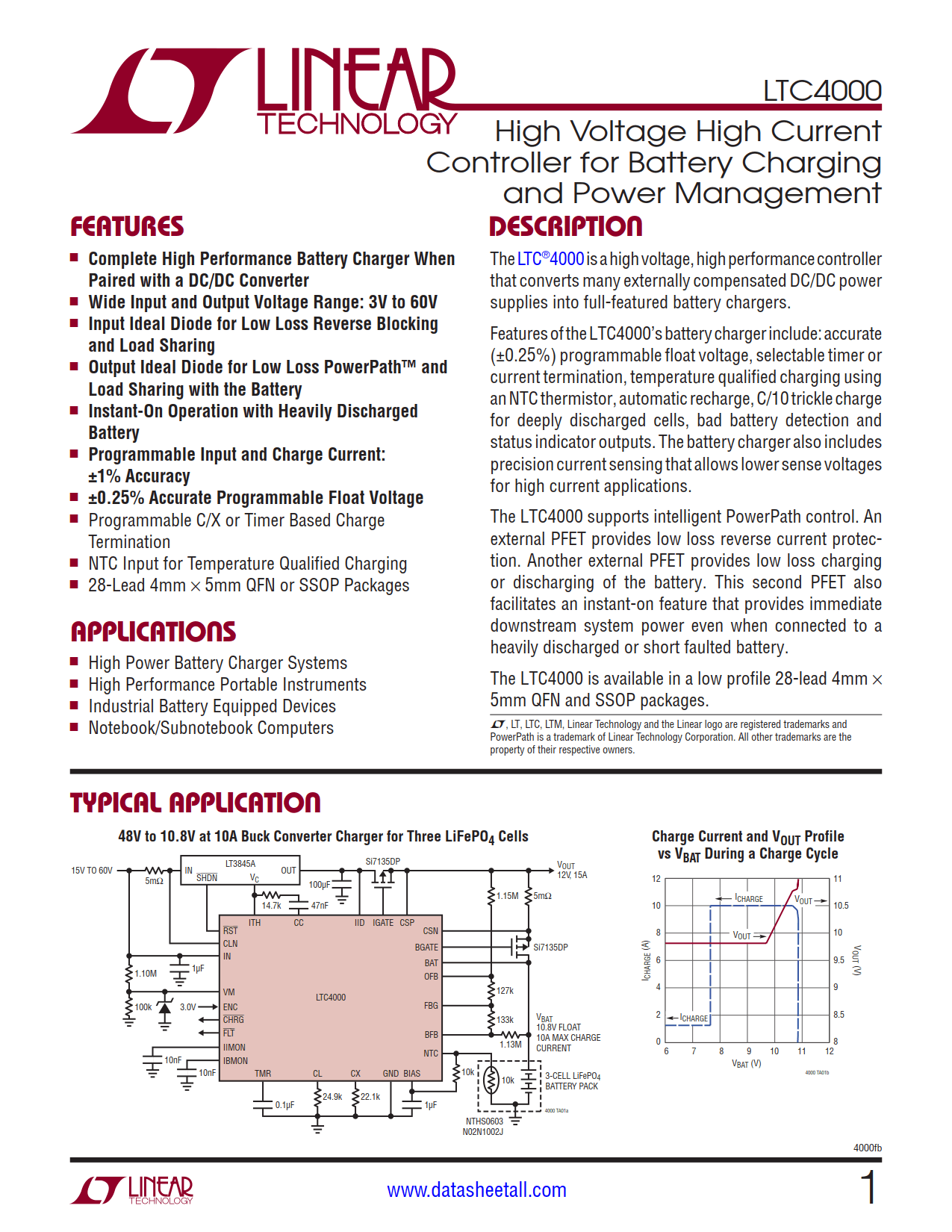

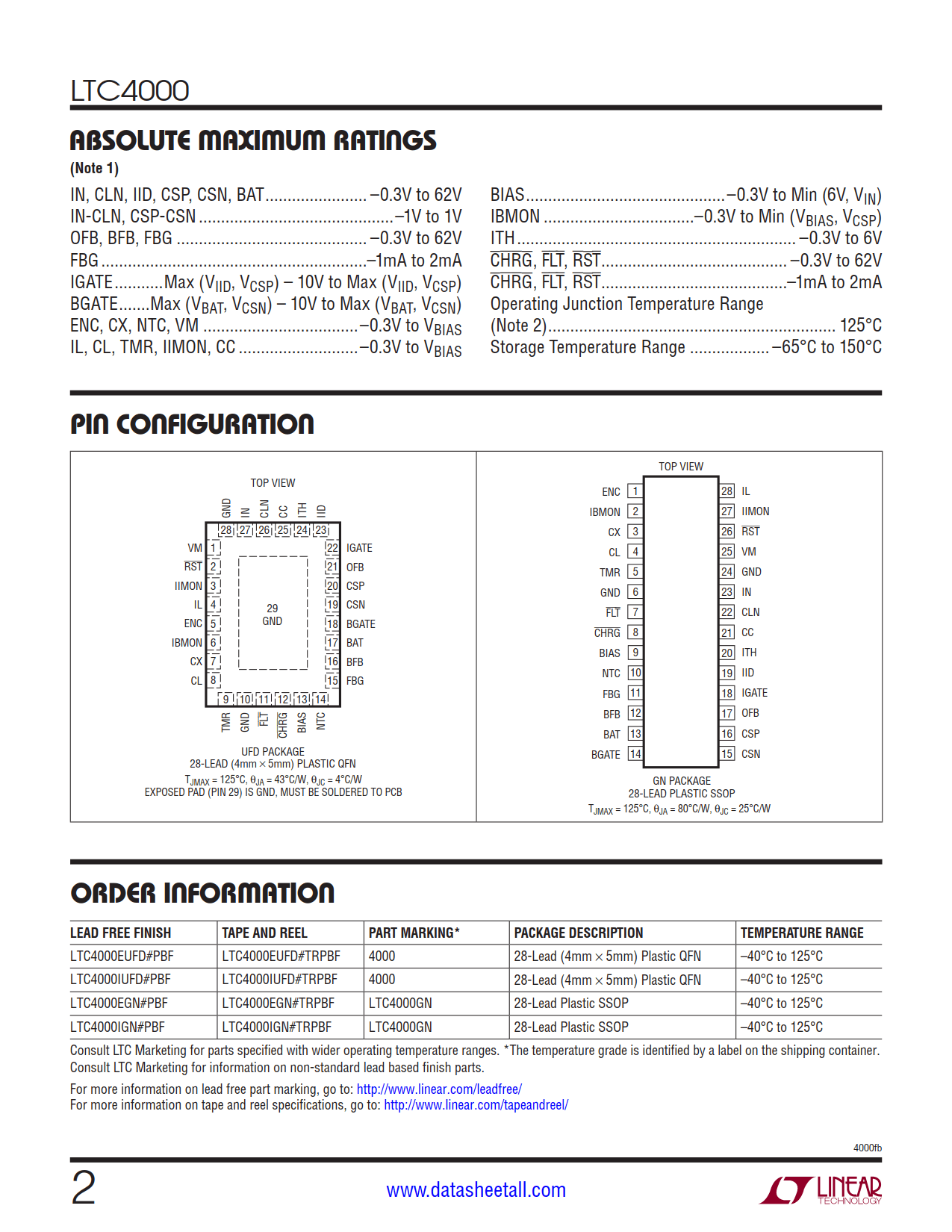

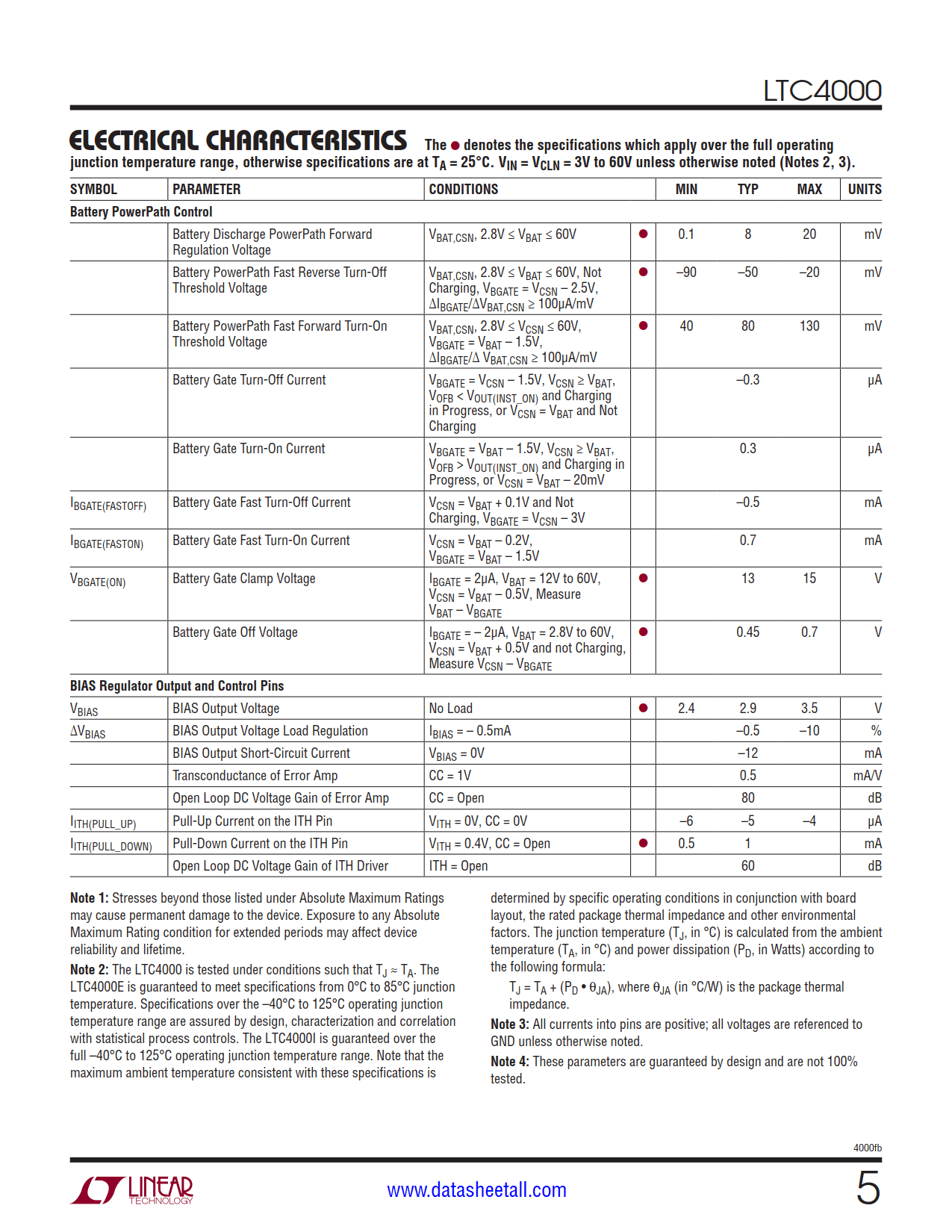

LTC4000 Datasheet(Picture)

LTC4000 Features

  • Complete High Performance Battery Charger When Paired with a DC/DC Converter
  • Wide Input and Output Voltage Range: 3V to 60V
  • Input Ideal Diode for Low Loss Reverse Blocking and Load Sharing
  • Output Ideal Diode for Low Loss PowerPath and Load Sharing with the Battery
  • Instant-On Operation with Heavily Discharged Battery
  • Programmable Input and Charge Current: ±1% Accuracy
  • ±0.25% Accurate Programmable Float Voltage
  • Programmable C/X or Timer Based Charge Termination
  • NTC Input for Temperature Qualified Charging
  • 28-Lead 4mm × 5mm QFN or SSOP Packages

LTC4000 Applications

  • High Power Battery Charger Systems
  • High Performance Portable Instruments
  • Industrial Battery Equipped Devices
  • Notebook/Subnotebook Computers

LTC4000 Description

The LTC4000 is a high voltage, high performance controller that converts many externally compensated DC/DC power supplies into full-featured battery chargers.

Features of the LTC4000’s battery charger include: accurate (±0.25%) programmable float voltage, selectable timer or current termination, temperature qualified charging using an NTC thermistor, automatic recharge, C/10 trickle charge for deeply discharged cells, bad battery detection and status indicator outputs. The battery charger also includes precision current sensing that allows lower sense voltages for high current applications.

The LTC4000 supports intelligent PowerPath control. An external PFET provides low loss reverse current protection. Another external PFET provides low loss charging or discharging of the battery. This second PFET also facilitates an instant-on feature that provides immediate downstream system power even when connected to a heavily discharged or short faulted battery.

The LTC4000 is available in a low profile 28-lead 4mm × 5mm QFN and SSOP packages.
