| Part No.： | LTC3888 |
| Page： | 100 Pages |
| Size： | 3025 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 0 |
| Update Time： | 2025-04-03 16:35:52 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC3888IUHG#PBF | Tube | 45 | 3888 | 1 | 52 | -40°C ~ 125°C | 52-Lead Plastic QFN (5mm × 8mm) | |
| LTC3888IUHG#TRPBF | Reel | 2500 | 3888 | 1 | 52 | -40°C ~ 125°C | 52-Lead Plastic QFN (5mm × 8mm) | |
| LTC3888IUHG#WPBF | Tube | 45 | 3888 | 1 | 52 | -40°C ~ 125°C | 52-Lead Plastic QFN (5mm × 8mm) | |
| LTC3888IUHG#WTRPBF | Reel | 2500 | 3888 | 1 | 52 | -40°C ~ 125°C | 52-Lead Plastic QFN (5mm × 8mm) |

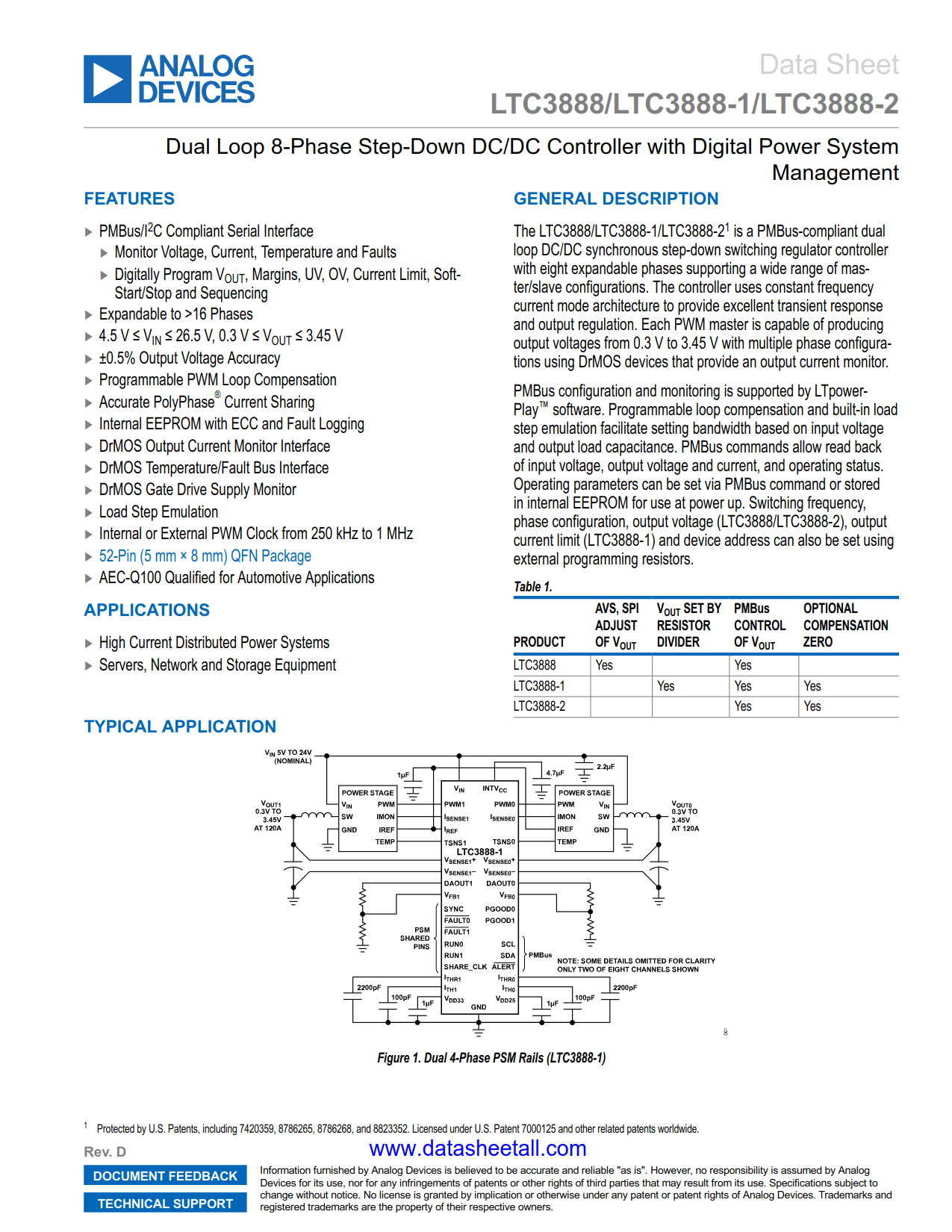

The LTC3888 is a PMBus-compliant dual loop DC/DC synchronous step-down switching regulator controller with eight expandable phases supporting a wide range of master/slave configurations. The controller uses constant frequency current mode architecture to provide excellent transient response and output regulation. Each PWM master is capable of producing output voltages from 0.3V to 3.45V with multiple phase configurations using DrMOS devices that provide an output current monitor.
PMBus configuration and monitoring is supported by LTpowerPlay™ software. Programmable loop compensation and built-in load step emulation facilitate setting bandwidth based on input voltage and output load capacitance. PMBus commands allow read back of input voltage, output voltage and current, and operating status. Operating parameters can be set via PMBus command or stored in internal EEPROM for use at power up. Switching frequency, phase configuration, output voltage (LTC3888/LTC3888-2), output current limit (LTC3888-1) and device address can also be set using external programming resistors.
