LTC3887-1 Datasheet

LTC3887-1 Datasheet

Dual Output PolyPhase Step-Down DC/DC Controller with Digital Power System Management
Part No.: LTC3887-1
Page: 116 Pages
Size: 1961 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-11-28 11:51:59
DataSheet: Download

LTC3887-1 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC3887EUJ-1#PBF Tube 61 LTC3887UJ-1 1 40 -40°C ~125°C 40-Lead (6mm × 6mm) Plastic QFN
LTC3887EUJ-1#TRPBF Reel 2000 LTC3887UJ-1 1 40 -40°C ~125°C 40-Lead (6mm × 6mm) Plastic QFN
LTC3887EUJ-1#TRMPBF Reel 500 LTC3887UJ-1 1 40 -40°C ~125°C 40-Lead (6mm × 6mm) Plastic QFN
LTC3887IUJ-1#PBF Tube 61 LTC3887UJ-1 1 40 -40°C ~125°C 40-Lead (6mm × 6mm) Plastic QFN
LTC3887IUJ-1#TRPBF Reel 2000 LTC3887UJ-1 1 40 -40°C ~125°C 40-Lead (6mm × 6mm) Plastic QFN
LTC3887IUJ-1#TRMPBF Reel 500 LTC3887UJ-1 1 40 -40°C ~125°C 40-Lead (6mm × 6mm) Plastic QFN
LTC3887EUJ-1#WPBF Tube 61 LTC3887UJ-1 1 40 -40°C ~125°C 40-Lead (6mm × 6mm) Plastic QFN
LTC3887EUJ-1#WTRPBF Reel 2000 LTC3887UJ-1 1 40 -40°C ~125°C 40-Lead (6mm × 6mm) Plastic QFN
LTC3887EUJ-1#WTRMPBF Reel 500 LTC3887UJ-1 1 40 -40°C ~125°C 40-Lead (6mm × 6mm) Plastic QFN
LTC3887IUJ-1#WPBF Tube 61 LTC3887UJ-1 1 40 -40°C ~125°C 40-Lead (6mm × 6mm) Plastic QFN
LTC3887IUJ-1#WTRPBF Reel 2000 LTC3887UJ-1 1 40 -40°C ~125°C 40-Lead (6mm × 6mm) Plastic QFN
LTC3887IUJ-1#WTRMPBF Reel 500 LTC3887UJ-1 1 40 -40°C ~125°C 40-Lead (6mm × 6mm) Plastic QFN
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC3887-1 Datasheet(PDF)

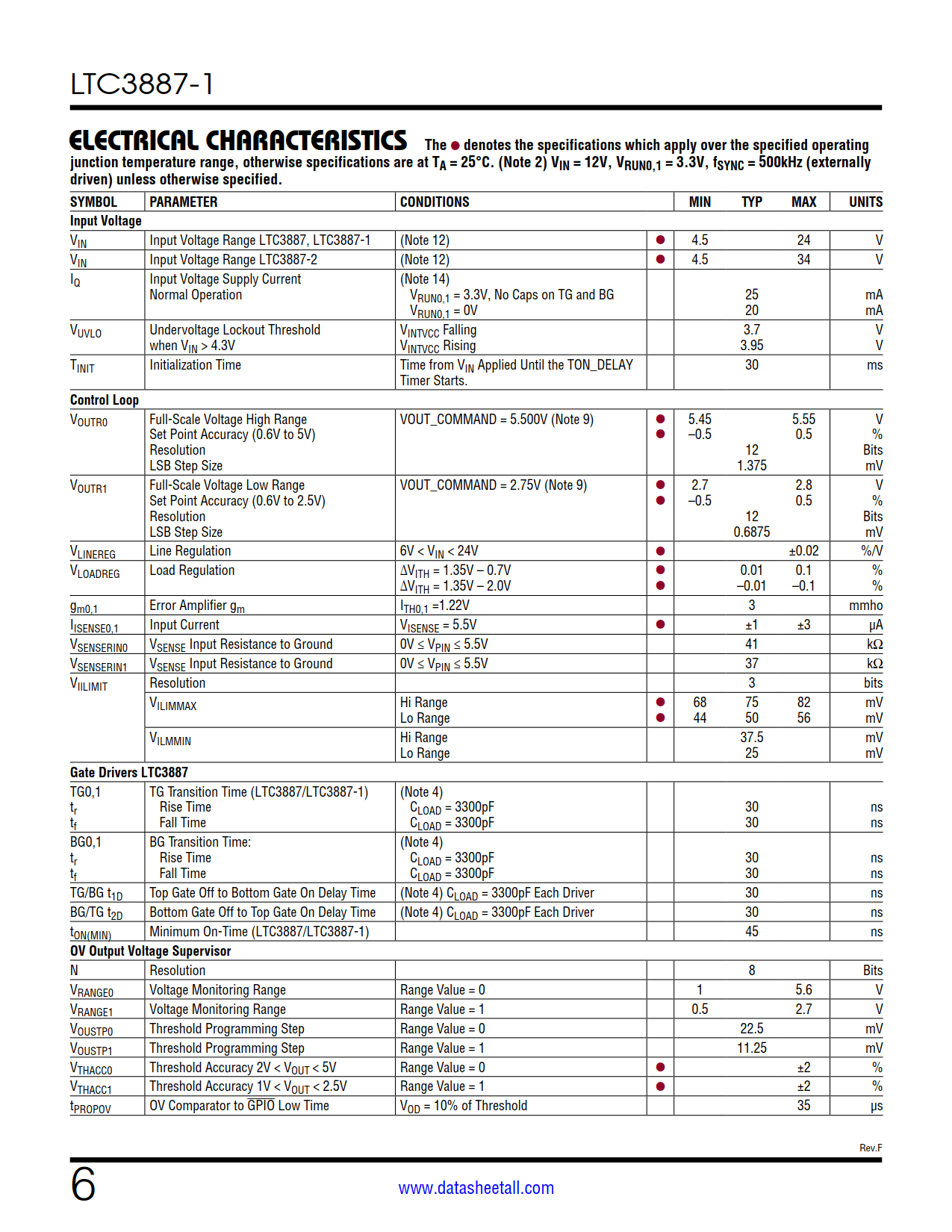

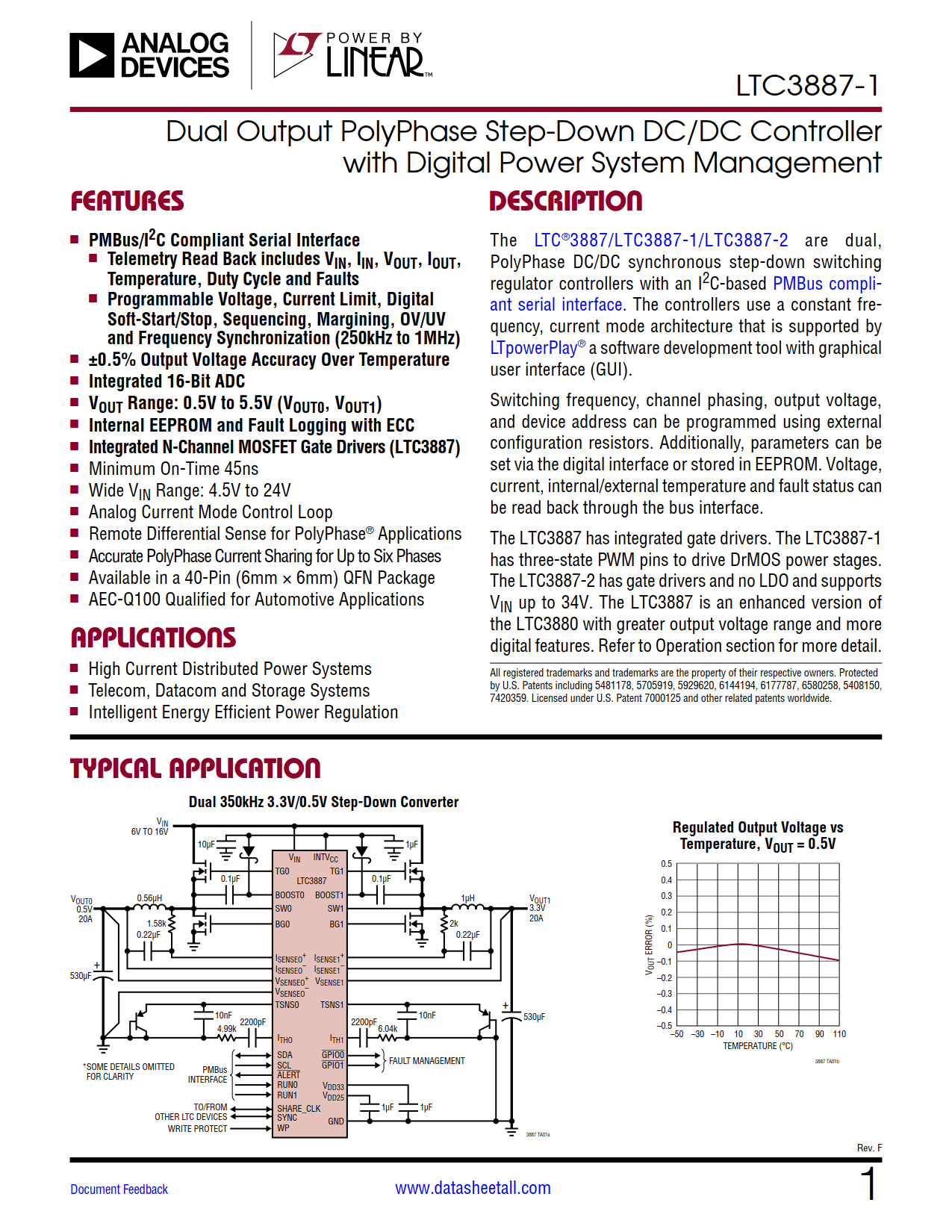

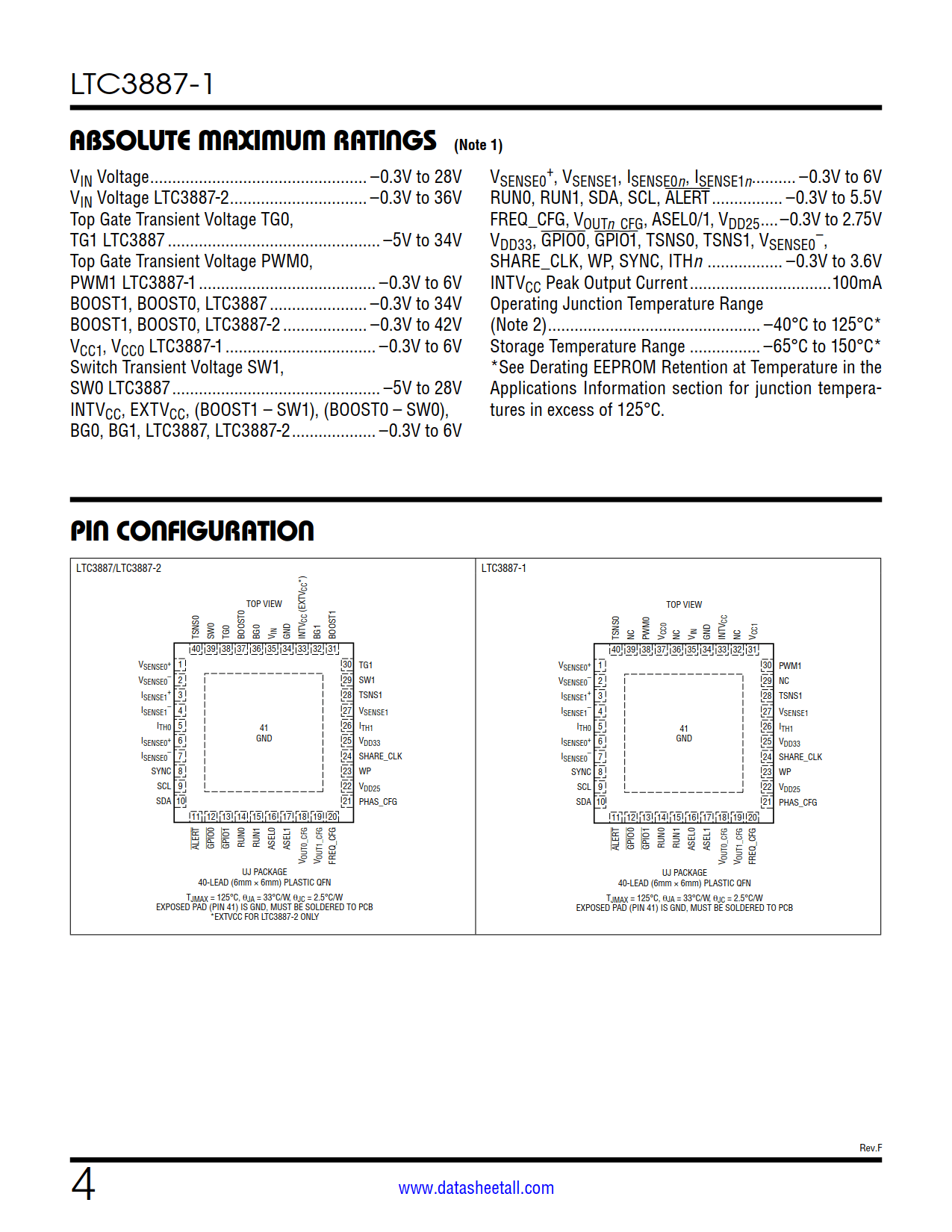

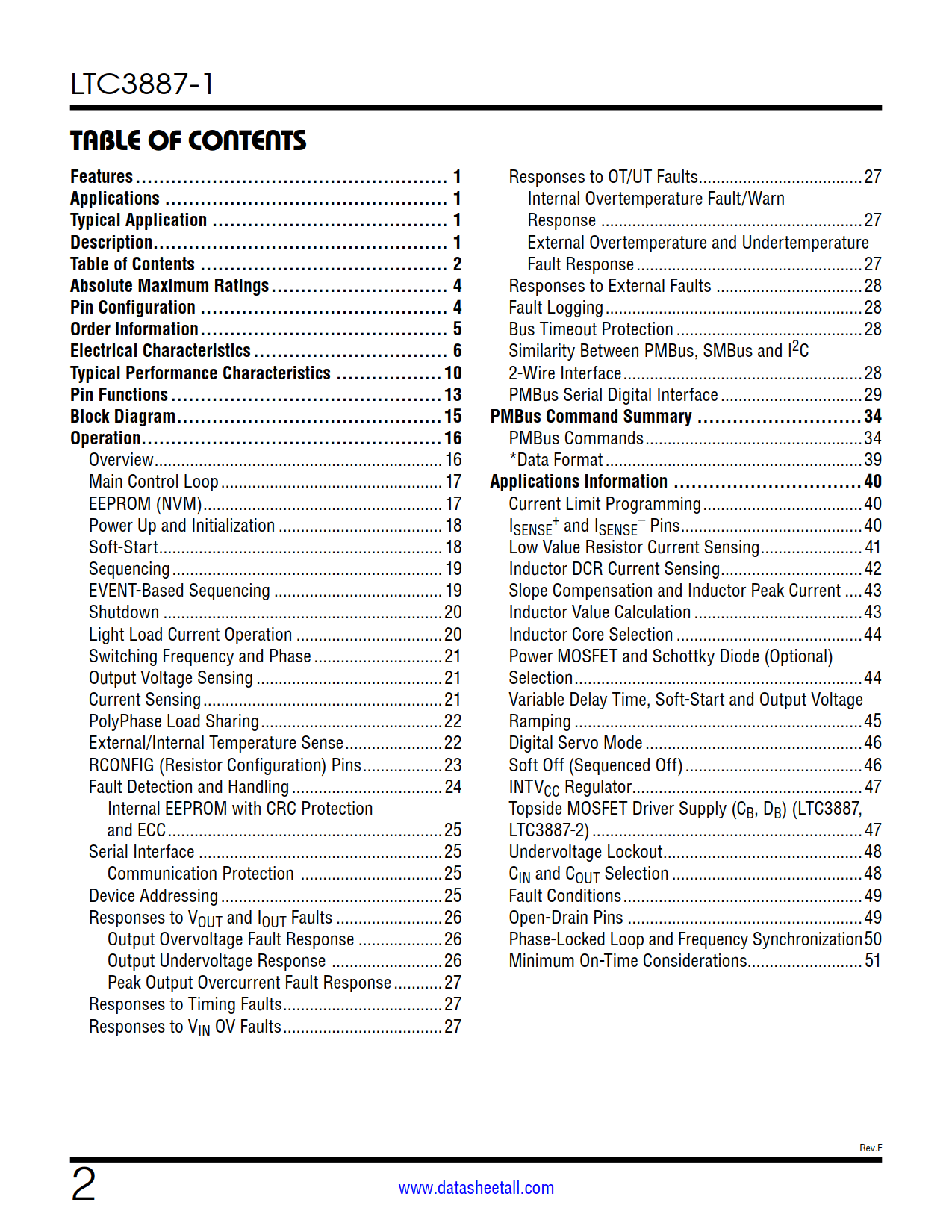

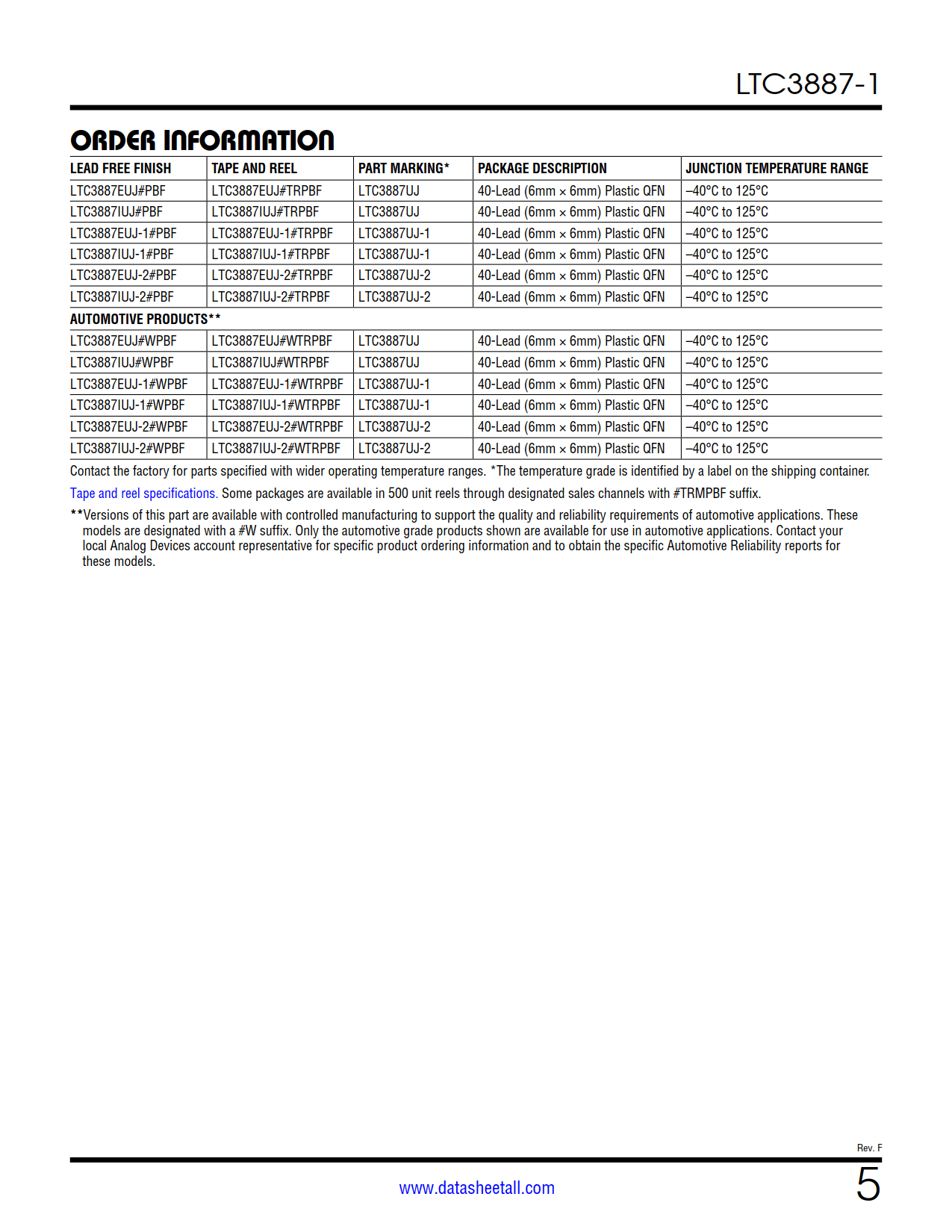

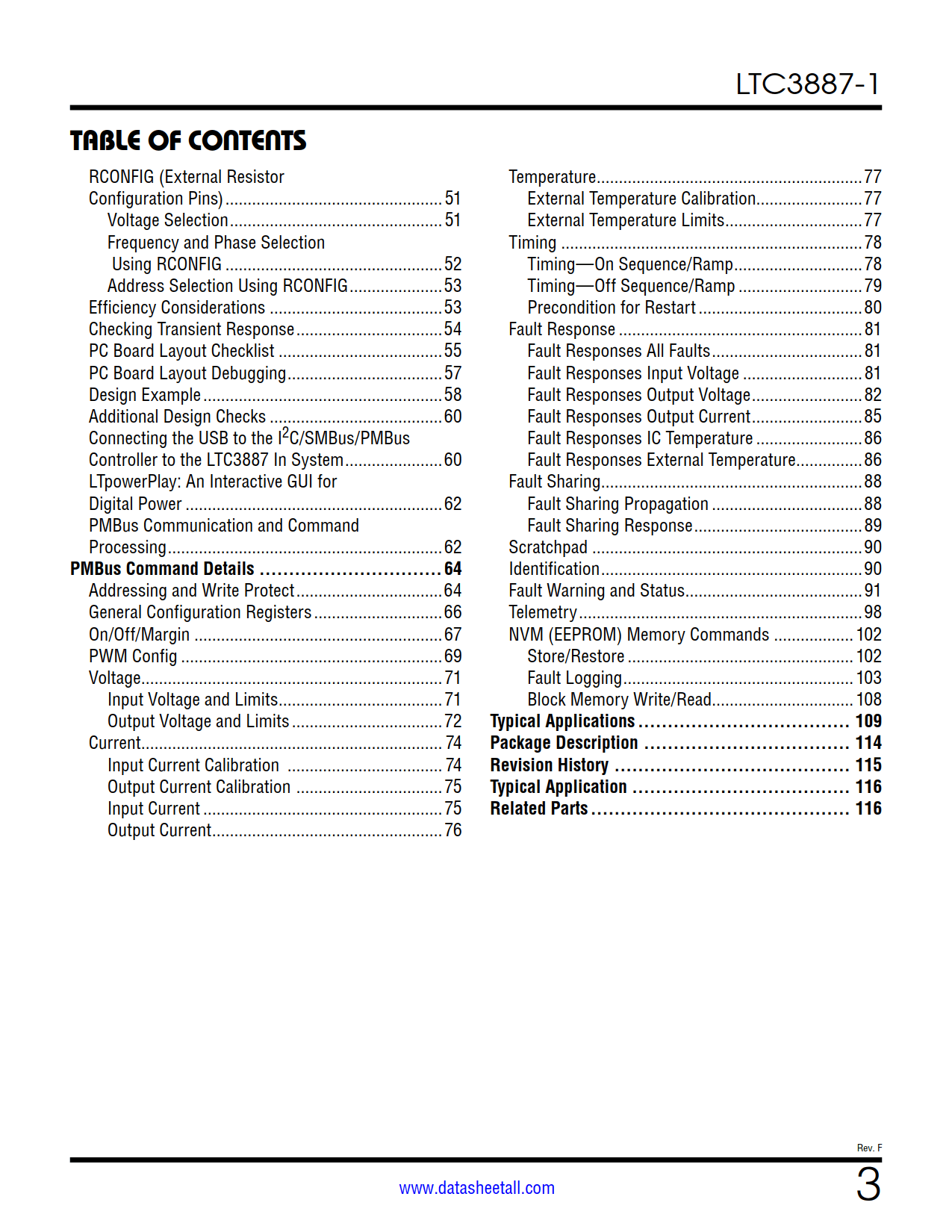

LTC3887-1 Datasheet(Picture)

LTC3887-1 Features

  • PMBus/I2C Compliant Serial Interface
    • Telemetry Read Back includes VIN, IIN, VOUT, IOUT, Temperature, Duty Cycle and Faults
    • Programmable Voltage, Current Limit, Digital Soft-Start/Stop, Sequencing, Margining, OV/UV and Frequency Synchronization (250kHz to 1MHz)
  • ±0.5% Output Voltage Accuracy Over Temperature
  • Integrated 16-Bit ADC
  • VOUT Range: 0.5V to 5.5V (VOUT0, VOUT1)
  • Internal EEPROM and Fault Logging with ECC
  • Minimum On-Time 45ns
  • Wide VIN Range: 4.5V to 24V
  • Analog Current Mode Control Loop
  • Remote Differential Sense for PolyPhase® Applications
  • Accurate PolyPhase Current Sharing for Up to Six Phases
  • Available in a 40-Pin (6mm × 6mm) QFN Package
  • AEC-Q100 Qualified for Automotive Applications

LTC3887-1 Applications

  • High Current Distributed Power Systems
  • Telecom, Datacom and Storage Systems
  • Intelligent Energy Efficient Power Regulation

LTC3887-1 Description

The LTC3887-1 are dual, PolyPhase DC/DC synchronous step-down switching regulator controllers with an I2C-based PMBus compliant serial interface. The controllers use a constant frequency, current mode architecture that is supported by LTpowerPlay® a software development tool with graphical user interface (GUI).

Switching frequency, channel phasing, output voltage, and device address can be programmed using external configuration resistors. Additionally, parameters can be set via the digital interface or stored in EEPROM. Voltage, current, internal/external temperature and fault status can be read back through the bus interface.

The LTC3887-1 has three-state PWM pins to drive DrMOS power stages.
