LTC3883-1 Datasheet

LTC3883-1 Datasheet

Single Phase Step-Down DC/DC Controller with Digital Power System Management
Part No.: LTC3883-1
Page: 116 Pages
Size: 1633 KB
Manufacturer: Linear Technology
Logo:
Views: 2
Update Time: 2024-11-28 14:18:03
DataSheet: Download

LTC3883-1 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC3883EUH-1#PBF Tube 73 38831 1 32 -40°C ~105°C 32-Lead (5mm × 5mm) Plastic QFN
LTC3883EUH-1#TRPBF Reel 2500 38831 1 32 -40°C ~105°C 32-Lead (5mm × 5mm) Plastic QFN
LTC3883EUH-1#TRMPBF Reel 500 38831 1 32 -40°C ~105°C 32-Lead (5mm × 5mm) Plastic QFN
LTC3883IUH-1#PBF Tube 73 38831 1 32 -40°C ~125°C 32-Lead (5mm × 5mm) Plastic QFN
LTC3883IUH-1#TRPBF Reel 2500 38831 1 32 -40°C ~125°C 32-Lead (5mm × 5mm) Plastic QFN
LTC3883IUH-1#TRMPBF Reel 500 38831 1 32 -40°C ~125°C 32-Lead (5mm × 5mm) Plastic QFN
LTC3883EUH-1#WPBF Tube 73 38831 1 32 -40°C ~105°C 32-Lead (5mm × 5mm) Plastic QFN
LTC3883EUH-1#WTRPBF Reel 2500 38831 1 32 -40°C ~105°C 32-Lead (5mm × 5mm) Plastic QFN
LTC3883EUH-1#WTRMPBF Reel 500 38831 1 32 -40°C ~105°C 32-Lead (5mm × 5mm) Plastic QFN
LTC3883IUH-1#WPBF Tube 73 38831 1 32 -40°C ~125°C 32-Lead (5mm × 5mm) Plastic QFN
LTC3883IUH-1#WTRPBF Reel 2500 38831 1 32 -40°C ~125°C 32-Lead (5mm × 5mm) Plastic QFN
LTC3883IUH-1#WTRMPBF Reel 500 38831 1 32 -40°C ~125°C 32-Lead (5mm × 5mm) Plastic QFN
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC3883-1 Datasheet(PDF)

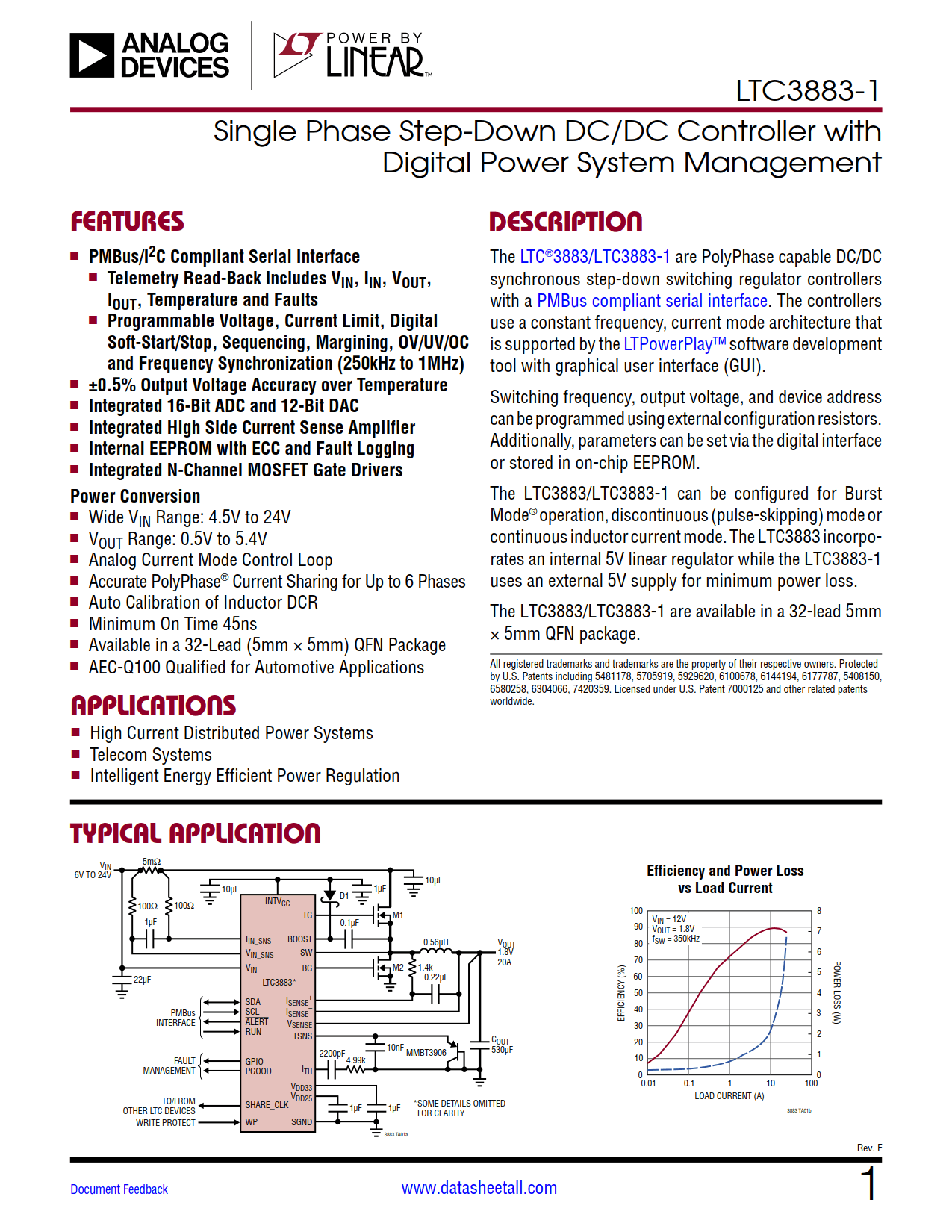

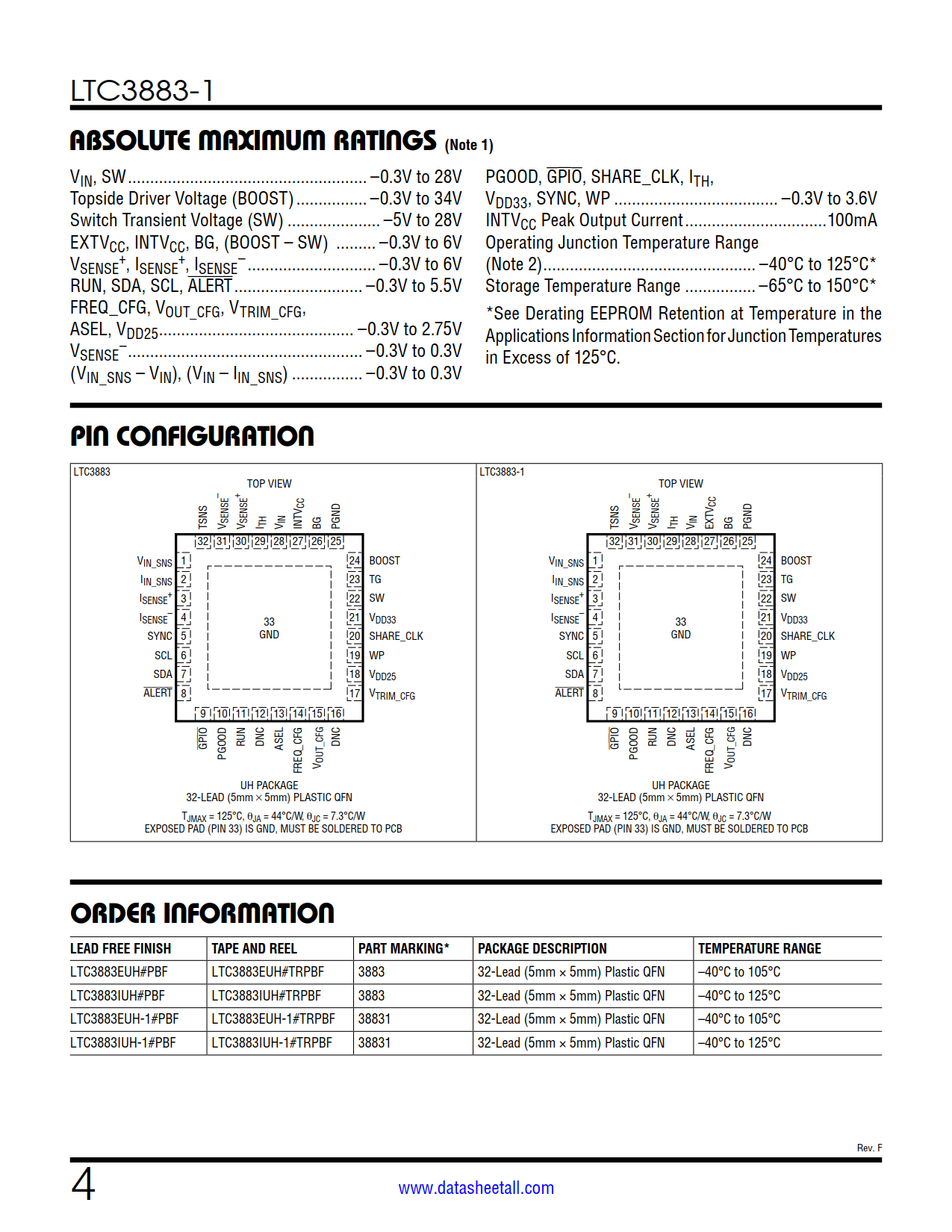

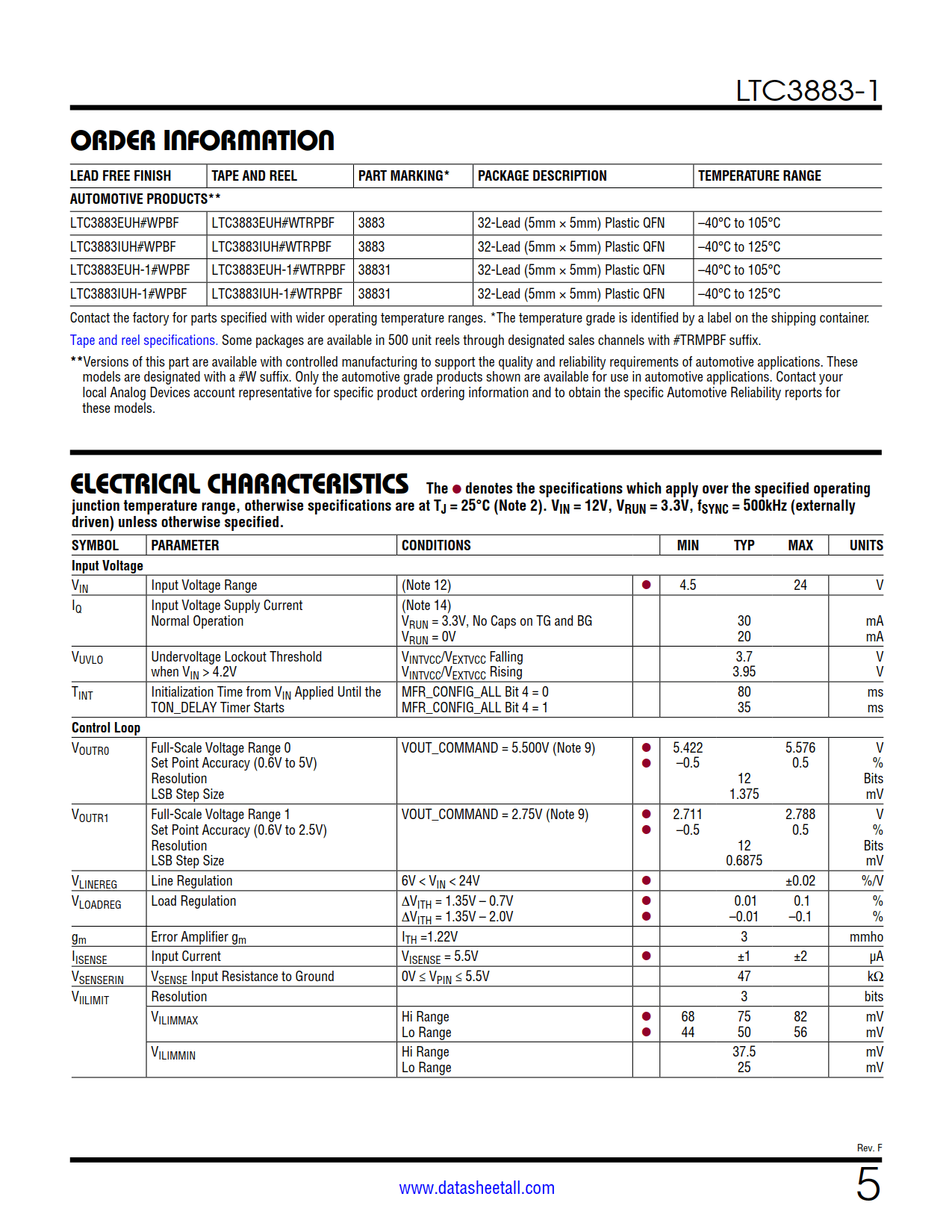

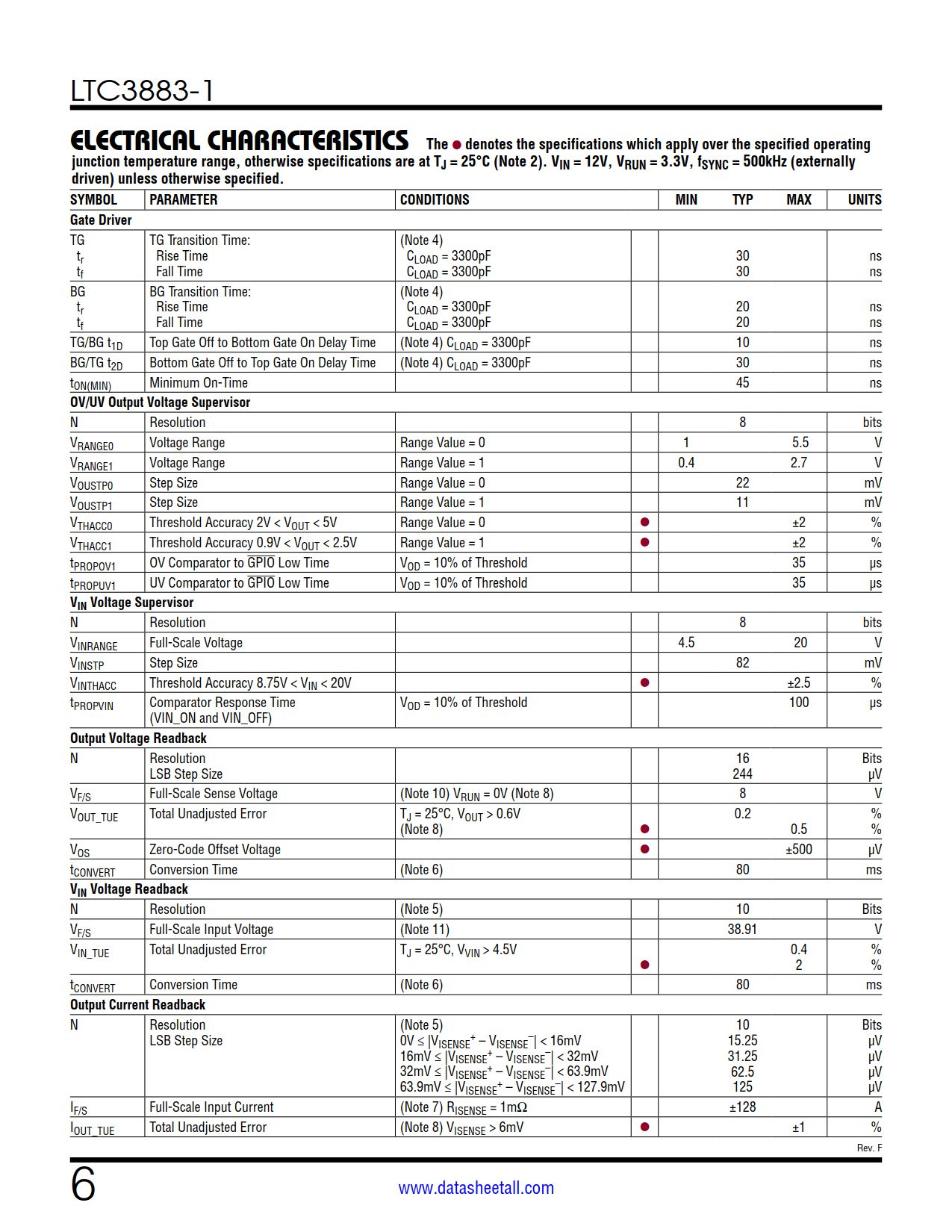

LTC3883-1 Datasheet(Picture)

LTC3883-1 Features

  • PMBus/I2C Compliant Serial Interface
    • Telemetry Read-Back Includes VIN, IIN, VOUT, IOUT, Temperature and Faults
    • Programmable Voltage, Current Limit, Digital Soft-Start/Stop, Sequencing, Margining, OV/UV/OC and Frequency Synchronization (250kHz to 1MHz)
  • ±0.5% Output Voltage Accuracy over Temperature
  • Integrated 16-Bit ADC and 12-Bit DAC
  • Integrated High Side Current Sense Amplifier
  • Internal EEPROM with ECC and Fault Logging
  • Integrated N-Channel MOSFET Gate Drivers

LTC3883-1 Applications

  • High Current Distributed Power Systems
  • Telecom Systems
  • Intelligent Energy Efficient Power Regulation

LTC3883-1 Description

The LTC3883-1 are PolyPhase capable DC/DC synchronous step-down switching regulator controllers with a PMBus compliant serial interface. The controllers use a constant frequency, current mode architecture that is supported by the LTPowerPlay software development tool with graphical user interface (GUI).

Switching frequency, output voltage, and device address can be programmed using external configuration resistors. Additionally, parameters can be set via the digital interface or stored in on-chip EEPROM.

The LTC3883-1 can be configured for Burst Mode® operation, discontinuous (pulse-skipping) mode or continuous inductor current mode. The LTC3883-1 uses an external 5V supply for minimum power loss.

The LTC3883-1 are available in a 32-lead 5mm × 5mm QFN package.
