LTC3882 Datasheet

LTC3882 Datasheet

Dual Output PolyPhase Step-Down DC/DC Voltage Mode Controller with Digital Power System Management
Part No.: LTC3882
Page: 106 Pages
Size: 2831 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2023-11-02 13:50:43
DataSheet: Download

LTC3882 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC3882EUJ#PBF Tube 61 LTC3882UJ 1 40 -40°C ~ 125°C 40-Lead (6mm × 6mm) Plastic QFN
LTC3882EUJ#TRPBF Reel 2000 LTC3882UJ 1 40 -40°C ~ 125°C 40-Lead (6mm × 6mm) Plastic QFN
LTC3882EUJ#TRMPBF Reel 500 LTC3882UJ 1 40 -40°C ~ 125°C 40-Lead (6mm × 6mm) Plastic QFN
LTC3882IUJ#PBF Tube 61 LTC3882UJ 1 40 -40°C ~ 125°C 40-Lead (6mm × 6mm) Plastic QFN
LTC3882IUJ#TRPBF Reel 2000 LTC3882UJ 1 40 -40°C ~ 125°C 40-Lead (6mm × 6mm) Plastic QFN
LTC3882IUJ#TRMPBF Reel 500 LTC3882UJ 1 40 -40°C ~ 125°C 40-Lead (6mm × 6mm) Plastic QFN
LTC3882EUJ#WPBF Tube 61 LTC3882UJ 1 40 -40°C ~ 125°C 40-Lead (6mm × 6mm) Plastic QFN
LTC3882EUJ#WTRPBF Reel 2000 LTC3882UJ 1 40 -40°C ~ 125°C 40-Lead (6mm × 6mm) Plastic QFN
LTC3882EUJ#WTRMPBF Reel 500 LTC3882UJ 1 40 -40°C ~ 125°C 40-Lead (6mm × 6mm) Plastic QFN
LTC3882IUJ#WPBF Tube 61 LTC3882UJ 1 40 -40°C ~ 125°C 40-Lead (6mm × 6mm) Plastic QFN
LTC3882IUJ#WTRPBF Reel 2000 LTC3882UJ 1 40 -40°C ~ 125°C 40-Lead (6mm × 6mm) Plastic QFN
LTC3882IUJ#WTRMPBF Reel 500 LTC3882UJ 1 40 -40°C ~ 125°C 40-Lead (6mm × 6mm) Plastic QFN
LTC3882CIUJ#TRPBF Reel 2000   1 40 -40°C ~ 125°C 40-Lead (6mm × 6mm) Plastic QFN
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC3882 Datasheet(PDF)

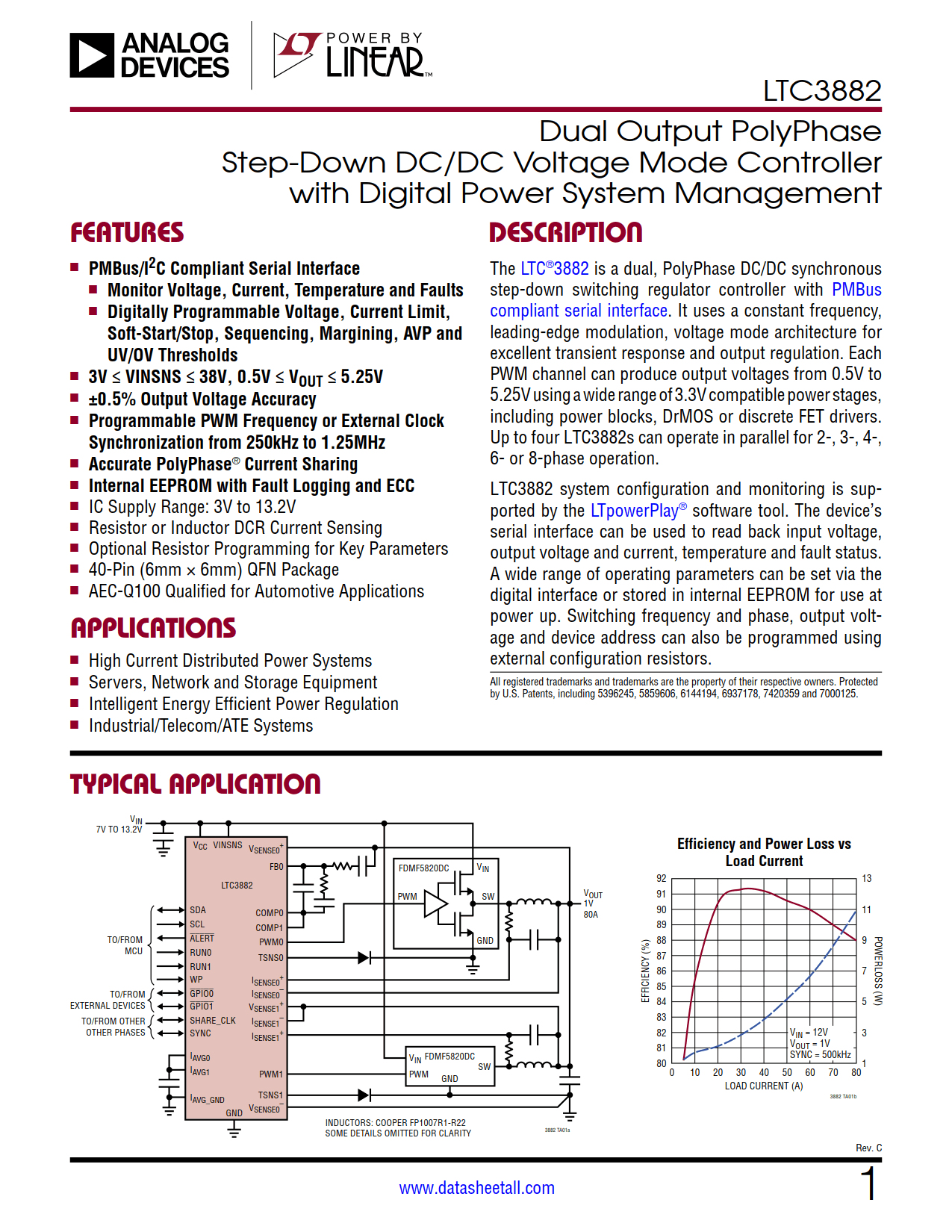

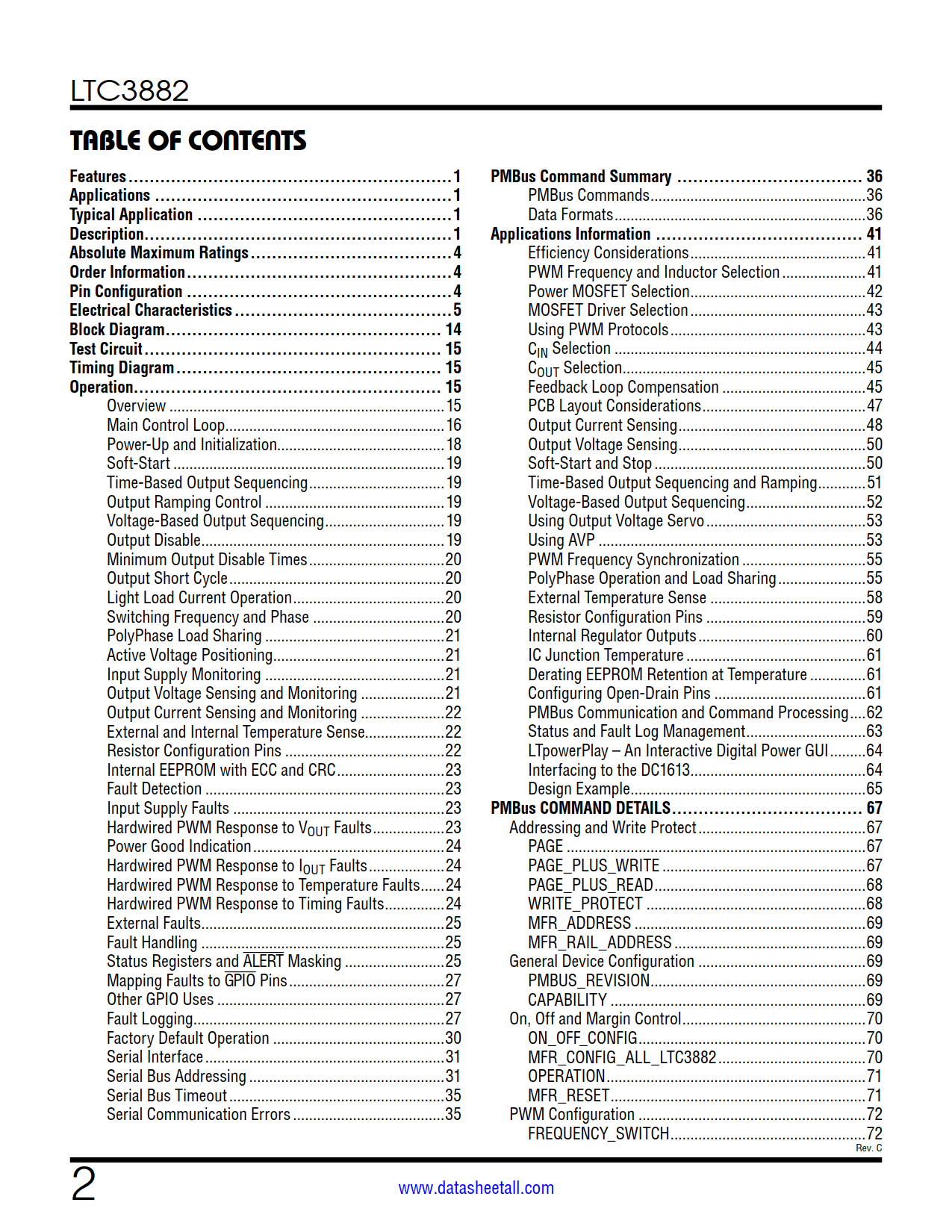

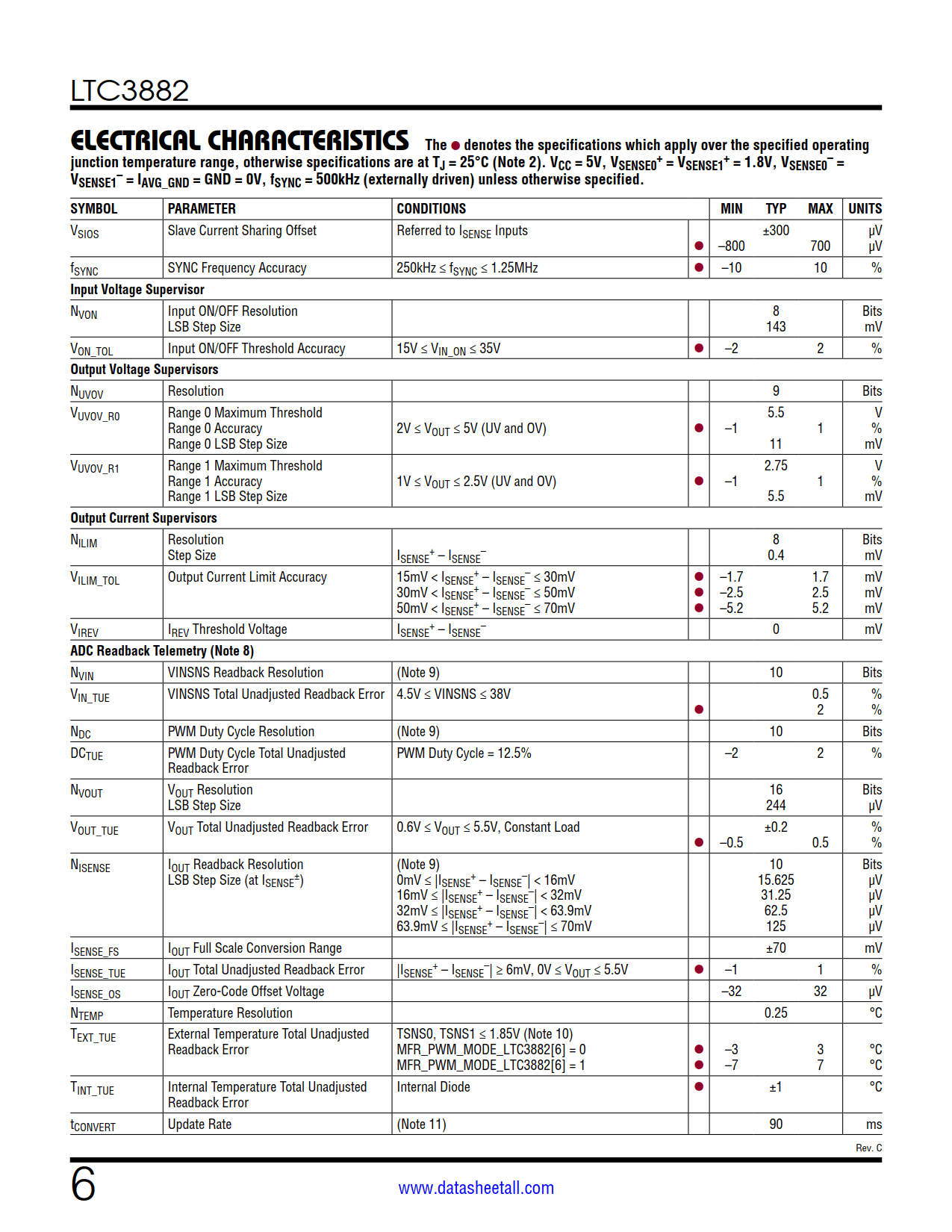

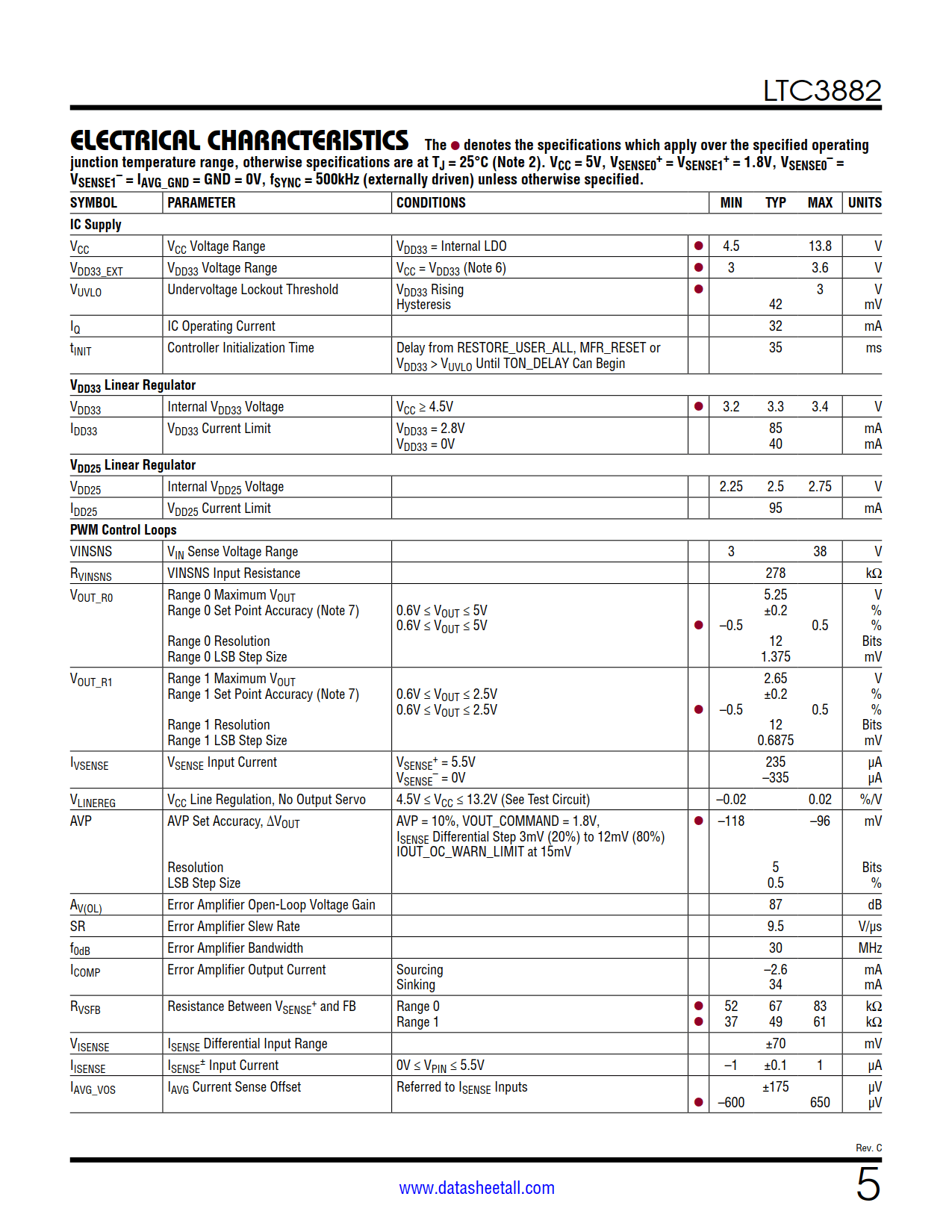

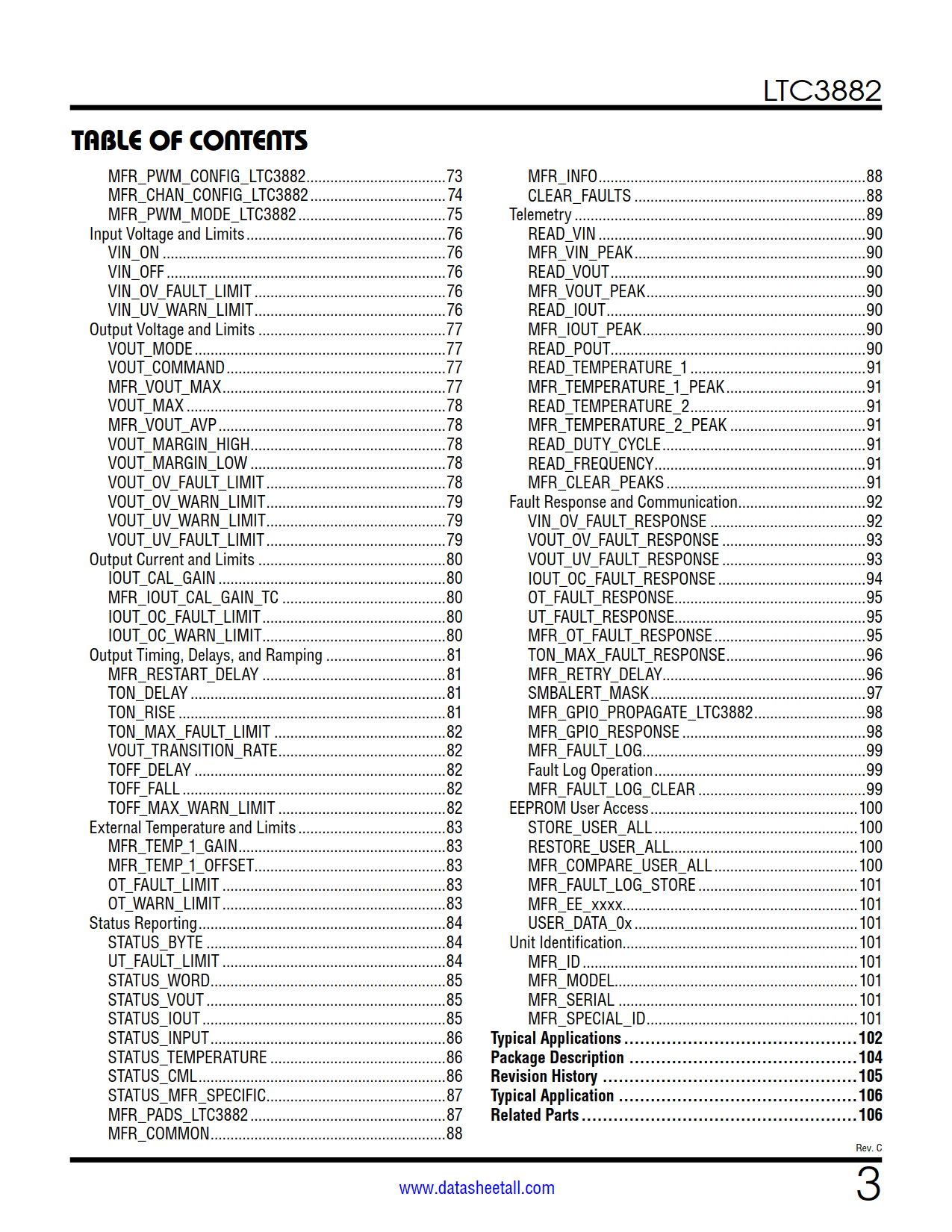

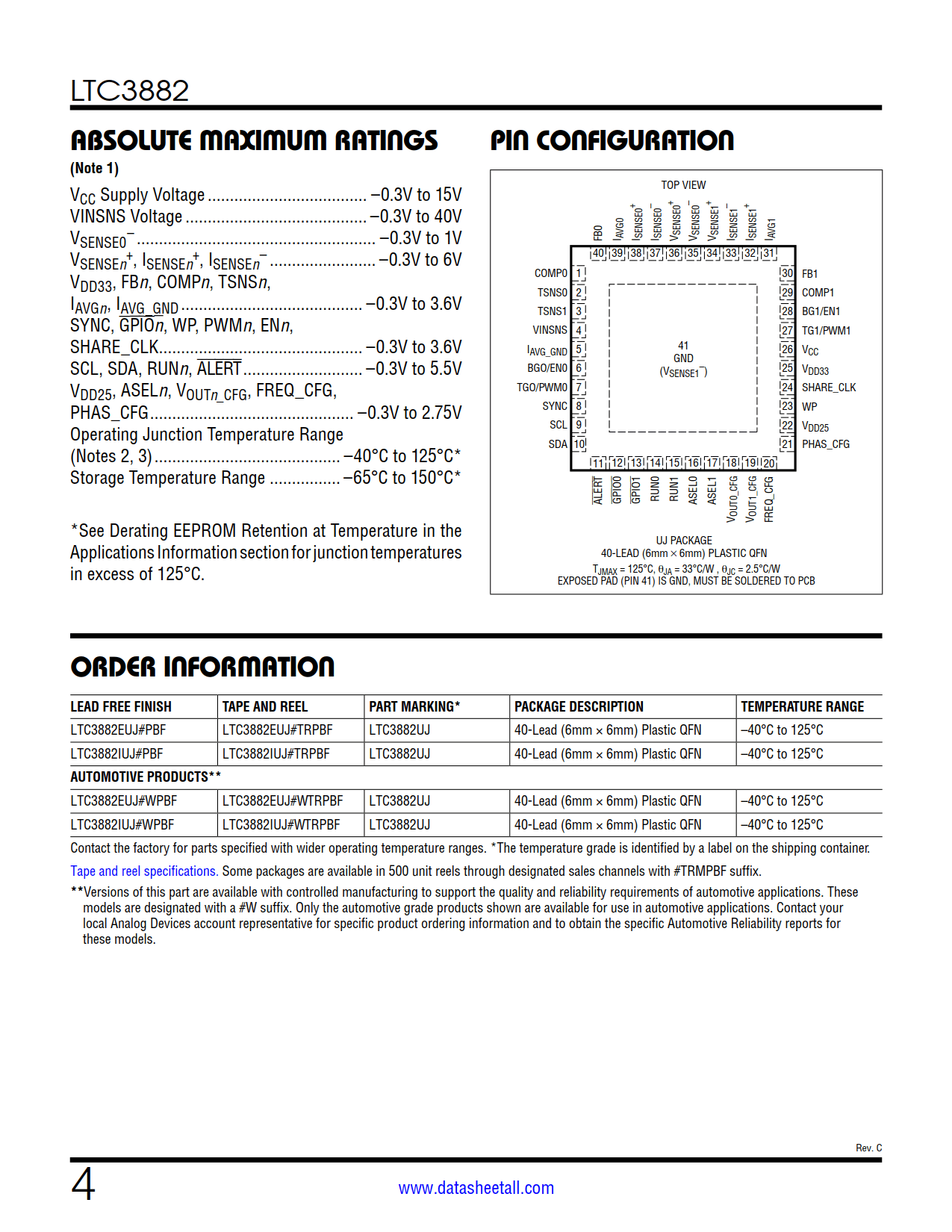

LTC3882 Datasheet(Picture)

LTC3882 Features

  • PMBus/I2C Compliant Serial Interface
    • Monitor Voltage, Current, Temperature and Faults
    • Digitally Programmable Voltage, Current Limit, Soft-Start/Stop, Sequencing, Margining, AVP and UV/OV Thresholds
  • 3V ≤ VINSNS ≤ 38V, 0.5V ≤ VOUT ≤ 5.25V
  • ±0.5% Output Voltage Accuracy
  • Programmable PWM Frequency or External Clock Synchronization from 250kHz to 1.25MHz
  • Accurate PolyPhase® Current Sharing
  • Internal EEPROM with Fault Logging and ECC
  • IC Supply Range: 3V to 13.2V
  • Resistor or Inductor DCR Current Sensing
  • Optional Resistor Programming for Key Parameters
  • 40-Pin (6mm × 6mm) QFN Package
  • AEC-Q100 Qualified for Automotive Applications

LTC3882 Applications

  • High Current Distributed Power Systems
  • Servers, Network and Storage Equipment
  • Intelligent Energy Efficient Power Regulation
  • Industrial/Telecom/ATE Systems

LTC3882 Description

The LTC3882 is a dual, PolyPhase DC/DC synchronous step-down switching regulator controller with PMBus compliant serial interface. It uses a constant frequency, leading-edge modulation, voltage mode architecture for excellent transient response and output regulation. Each PWM channel can produce output voltages from 0.5V to 5.25V using a wide range of 3.3V compatible power stages, including power blocks, DrMOS or discrete FET drivers. Up to four LTC3882s can operate in parallel for 2-, 3-, 4-, 6- or 8-phase operation.

LTC3882 system configuration and monitoring is supported by the LTpowerPlay® software tool. The device’s serial interface can be used to read back input voltage, output voltage and current, temperature and fault status. A wide range of operating parameters can be set via the digital interface or stored in internal EEPROM for use at power up. Switching frequency and phase, output voltage and device address can also be programmed using external configuration resistors.

LTC3882 Datasheet Related Parts
