LTC3862-2 Datasheet

LTC3862-2 Datasheet

Multi-Phase Current Mode Step-Up DC/DC Controller
Part No.: LTC3862-2
Page: 46 Pages
Size: 768 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-01-19 10:31:14
DataSheet: Download

LTC3862-2 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC3862EFE-2#PBF Tube 62 LTC3862FE-2 1 24 -40°C ~85°C 24-Lead Plastic TSSOP
LTC3862EFE-2#TRPBF Reel 2500 LTC3862FE-2 1 24 -40°C ~85°C 24-Lead Plastic TSSOP
LTC3862EFE-2#TRMPBF Reel 500 LTC3862FE-2 1 24 -40°C ~85°C 24-Lead Plastic TSSOP
LTC3862IFE-2#PBF Tube 62 LTC3862FE-2 1 24 -40°C ~125°C 24-Lead Plastic TSSOP
LTC3862IFE-2#TRPBF Reel 2500 LTC3862FE-2 1 24 -40°C ~125°C 24-Lead Plastic TSSOP
LTC3862IFE-2#TRMPBF Reel 500 LTC3862FE-2 1 24 -40°C ~125°C 24-Lead Plastic TSSOP
LTC3862HFE-2#PBF Tube 62 LTC3862FE-2 1 24 -40°C ~150°C 24-Lead Plastic TSSOP
LTC3862HFE-2#TRPBF Reel 2500 LTC3862FE-2 1 24 -40°C ~150°C 24-Lead Plastic TSSOP
LTC3862HFE-2#TRMPBF Reel 500 LTC3862FE-2 1 24 -40°C ~150°C 24-Lead Plastic TSSOP
LTC3862EGN-2#PBF Tube 55 LTC3862GN-2 1 24 -40°C ~85°C 24-Lead Plastic SSOP
LTC3862EGN-2#TRPBF Reel 2500 LTC3862GN-2 1 24 -40°C ~85°C 24-Lead Plastic SSOP
LTC3862EGN-2#TRMPBF Reel 500 LTC3862GN-2 1 24 -40°C ~85°C 24-Lead Plastic SSOP
LTC3862IGN-2#PBF Tube 55 LTC3862GN-2 1 24 -40°C ~125°C 24-Lead Plastic SSOP
LTC3862IGN-2#TRPBF Reel 2500 LTC3862GN-2 1 24 -40°C ~125°C 24-Lead Plastic SSOP
LTC3862IGN-2#TRMPBF Reel 500 LTC3862GN-2 1 24 -40°C ~125°C 24-Lead Plastic SSOP
LTC3862HGN-2#PBF Tube 55 LTC3862GN-2 1 24 -40°C ~150°C 24-Lead Plastic SSOP
LTC3862HGN-2#TRPBF Reel 2500 LTC3862GN-2 1 24 -40°C ~150°C 24-Lead Plastic SSOP
LTC3862HGN-2#TRMPBF Reel 500 LTC3862GN-2 1 24 -40°C ~150°C 24-Lead Plastic SSOP
LTC3862EUH-2#PBF Tube 73 38622 1 24 -40°C ~85°C 24-Lead (5mm × 5mm) Plastic QFN
LTC3862EUH-2#TRPBF Reel 2500 38622 1 24 -40°C ~85°C 24-Lead (5mm × 5mm) Plastic QFN
LTC3862EUH-2#TRMPBF Reel 500 38622 1 24 -40°C ~85°C 24-Lead (5mm × 5mm) Plastic QFN
LTC3862IUH-2#PBF Tube 73 38622 1 24 -40°C ~125°C 24-Lead (5mm × 5mm) Plastic QFN
LTC3862IUH-2#TRPBF Reel 2500 38622 1 24 -40°C ~125°C 24-Lead (5mm × 5mm) Plastic QFN
LTC3862IUH-2#TRMPBF Reel 500 38622 1 24 -40°C ~125°C 24-Lead (5mm × 5mm) Plastic QFN
LTC3862HUH-2#PBF Tube 73 38622 1 24 -40°C ~150°C 24-Lead (5mm × 5mm) Plastic QFN
LTC3862HUH-2#TRPBF Reel 2500 38622 1 24 -40°C ~150°C 24-Lead (5mm × 5mm) Plastic QFN
LTC3862HUH-2#TRMPBF Reel 500 38622 1 24 -40°C ~150°C 24-Lead (5mm × 5mm) Plastic QFN
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC3862-2 Datasheet(PDF)

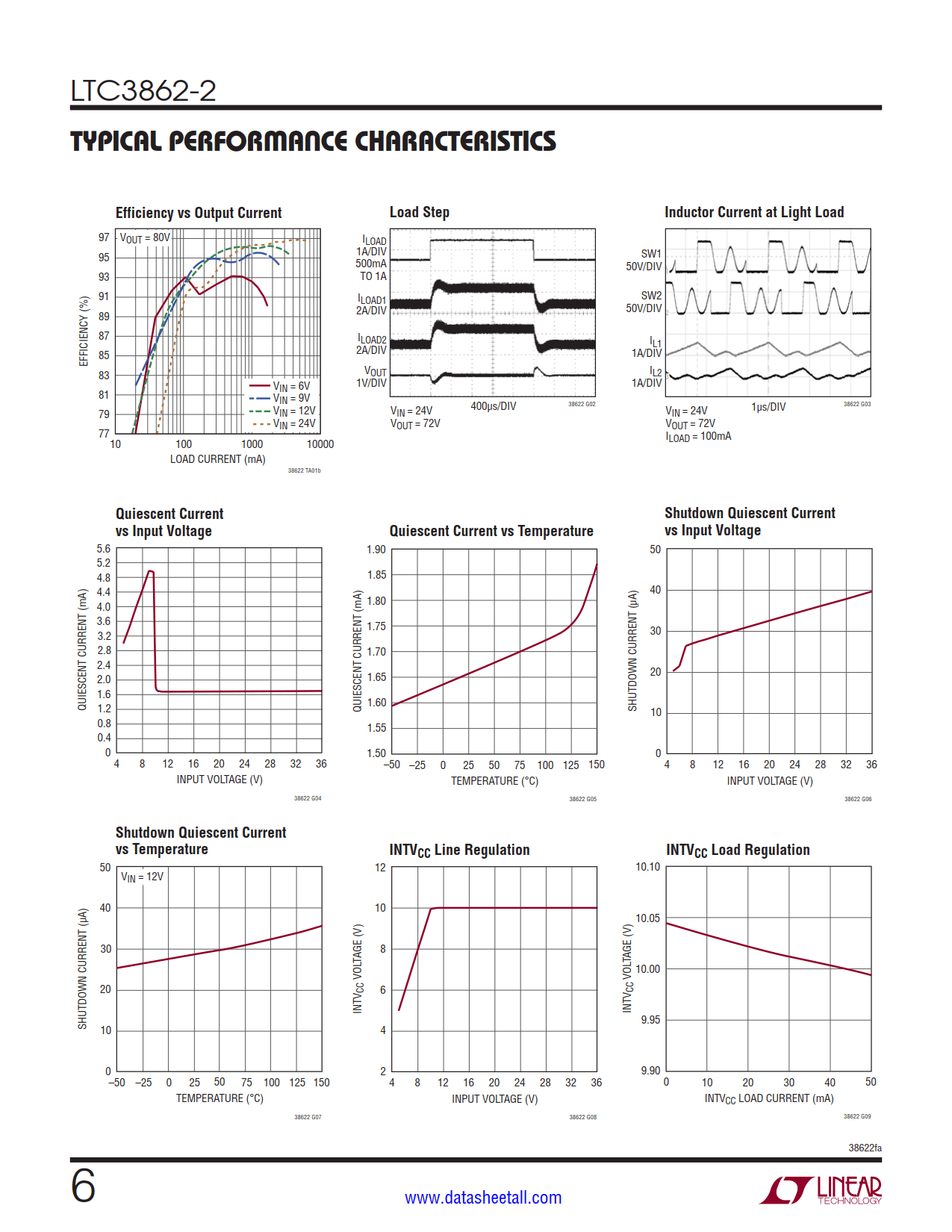

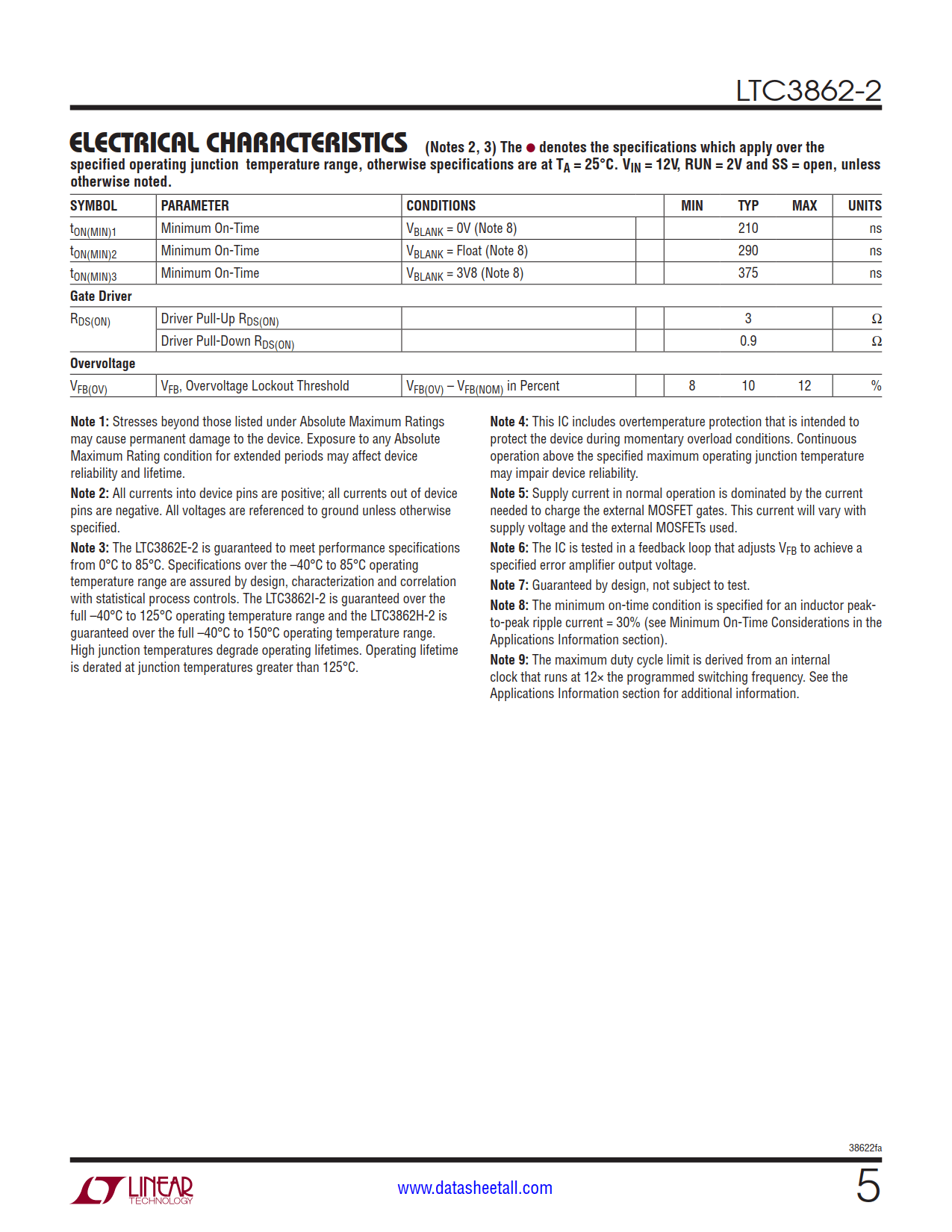

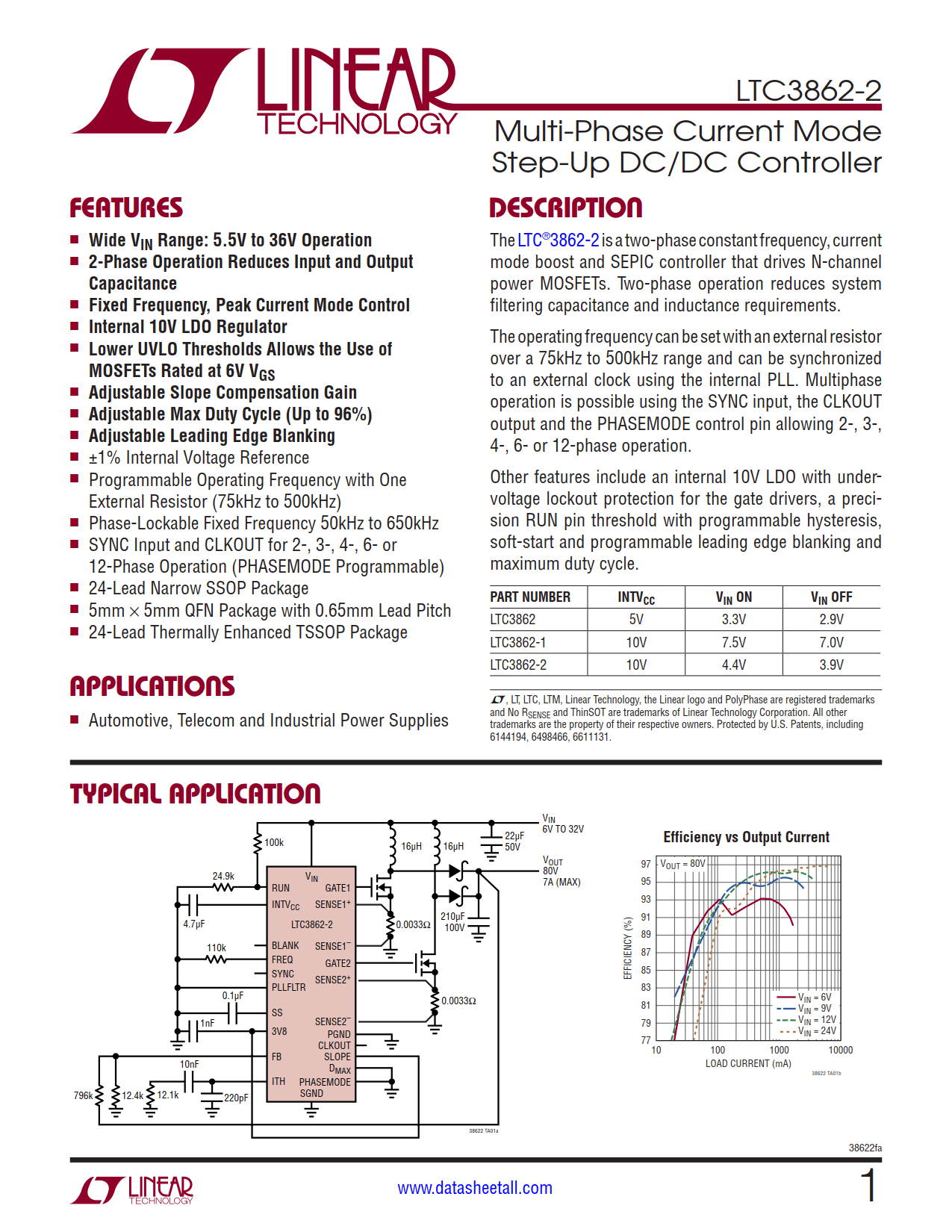

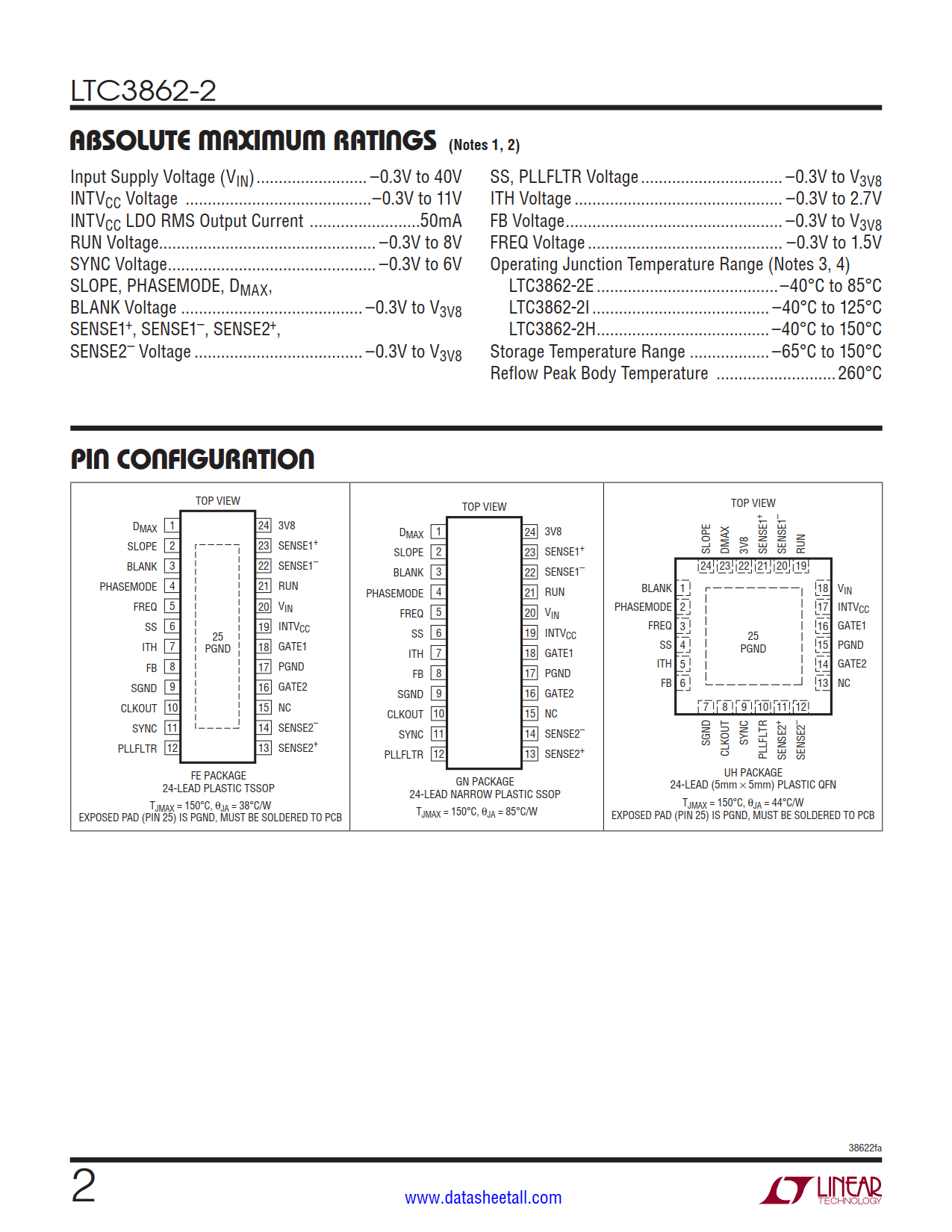

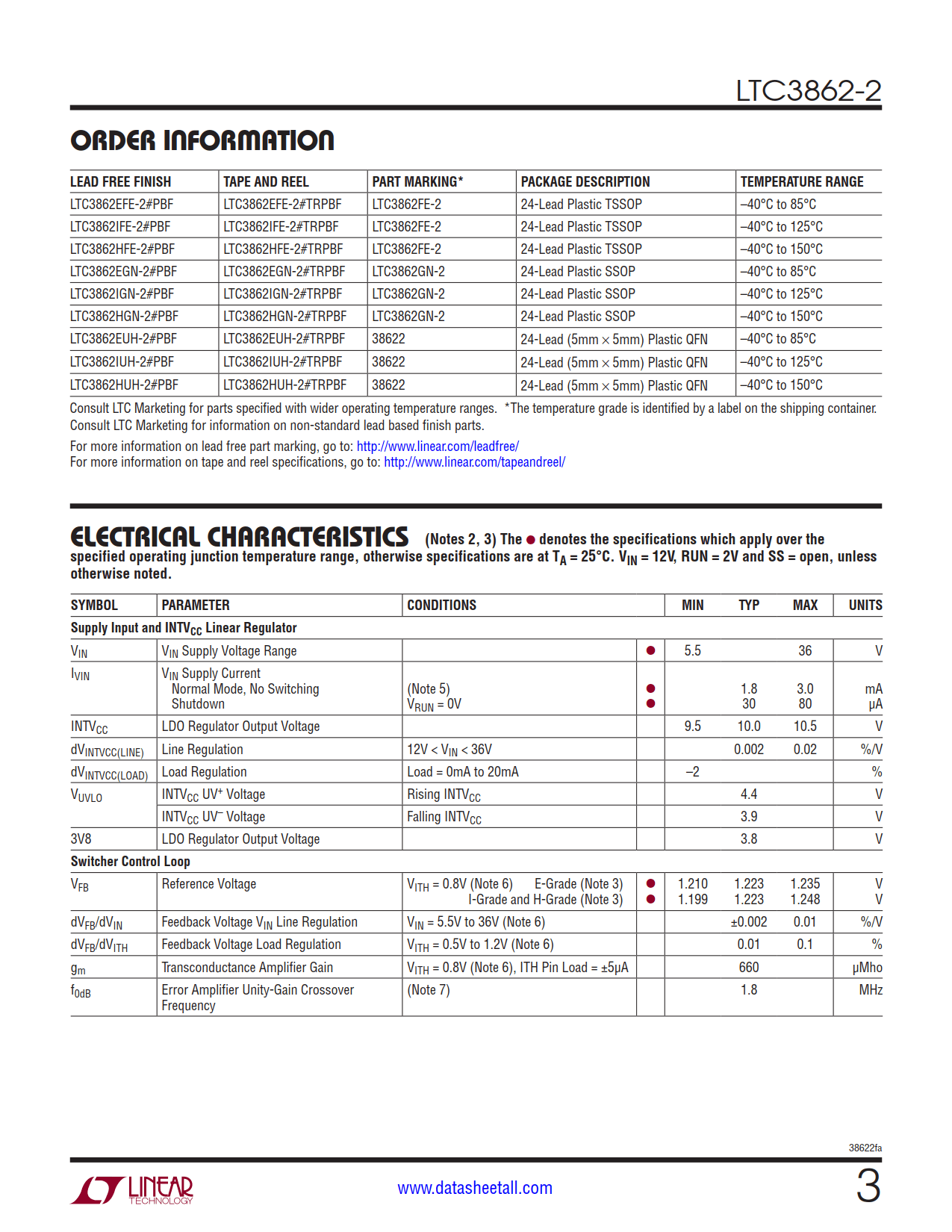

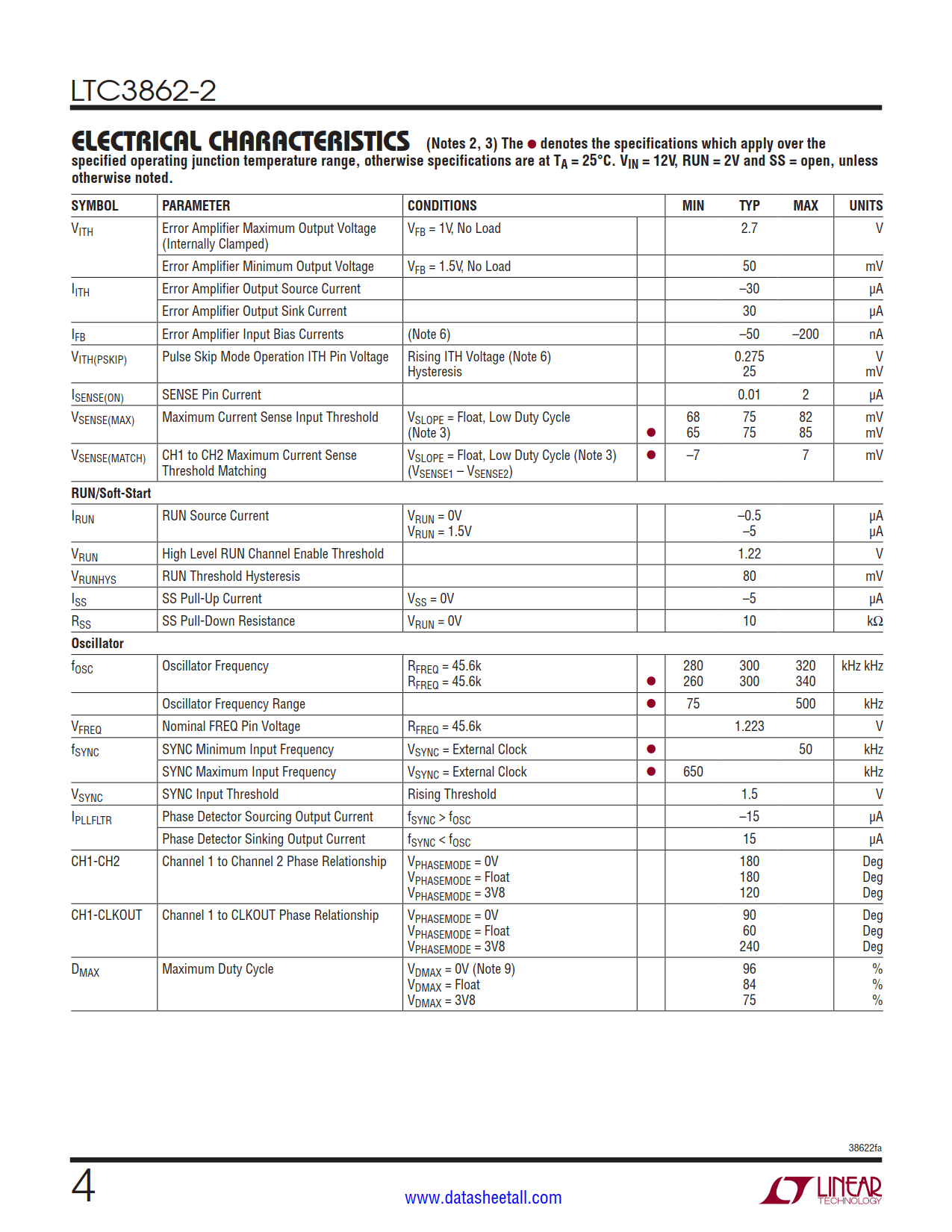

LTC3862-2 Datasheet(Picture)

LTC3862-2 Features

  • Wide VIN Range: 5.5V to 36V Operation
  • 2-Phase Operation Reduces Input and Output Capacitance
  • Fixed Frequency, Peak Current Mode Control
  • Internal 10V LDO Regulator
  • Lower UVLO Thresholds Allows the Use of MOSFETs Rated at 6V VGS
  • Adjustable Slope Compensation Gain
  • Adjustable Max Duty Cycle (Up to 96%)
  • Adjustable Leading Edge Blanking
  • ±1% Internal Voltage Reference
  • Programmable Operating Frequency with One External Resistor (75kHz to 500kHz)
  • Phase-Lockable Fixed Frequency 50kHz to 650kHz
  • SYNC Input and CLKOUT for 2-, 3-, 4-, 6- or 12-Phase Operation (PHASEMODE Programmable)
  • 24-Lead Narrow SSOP Package
  • 5mm × 5mm QFN Package with 0.65mm Lead Pitch
  • 24-Lead Thermally Enhanced TSSOP Package

LTC3862-2 Applications

  • Automotive, Telecom and Industrial Power Supplies

LTC3862-2 Description

The LTC3862-2 is a two-phase constant frequency, current mode boost and SEPIC controller that drives N-channel power MOSFETs. Two-phase operation reduces system filtering capacitance and inductance requirements.

The operating frequency can be set with an external resistor over a 75kHz to 500kHz range and can be synchronized to an external clock using the internal PLL. Multiphase operation is possible using the SYNC input, the CLKOUT output and the PHASEMODE control pin allowing 2-, 3-, 4-, 6- or 12-phase operation.

Other features include an internal 10V LDO with undervoltage lockout protection for the gate drivers, a precision RUN pin threshold with programmable hysteresis, soft-start and programmable leading edge blanking and maximum duty cycle.
