LTC3862 Datasheet

LTC3862 Datasheet

Multi-Phase Current Mode Step-Up DC/DC Controller
Part No.: LTC3862
Page: 42 Pages
Size: 2552 KB
Manufacturer: Linear Technology
Logo:
Views: 2
Update Time: 2024-01-19 15:24:40
DataSheet: Download

LTC3862 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC3862EFE#PBF Tube 62 3862FE 1 24 -40°C ~85°C 24-Lead Plastic TSSOP
LTC3862EFE#TRPBF Reel 2500 3862FE 1 24 -40°C ~85°C 24-Lead Plastic TSSOP
LTC3862EFE#TRMPBF Reel 500 3862FE 1 24 -40°C ~85°C 24-Lead Plastic TSSOP
LTC3862IFE#PBF Tube 62 3862FE 1 24 -40°C ~125°C 24-Lead Plastic TSSOP
LTC3862IFE#TRPBF Reel 2500 3862FE 1 24 -40°C ~125°C 24-Lead Plastic TSSOP
LTC3862IFE#TRMPBF Reel 500 3862FE 1 24 -40°C ~125°C 24-Lead Plastic TSSOP
LTC3862HFE#PBF Tube 62 3862FE 1 24 -40°C ~150°C 24-Lead Plastic TSSOP
LTC3862HFE#TRPBF Reel 2500 3862FE 1 24 -40°C ~150°C 24-Lead Plastic TSSOP
LTC3862HFE#TRMPBF Reel 500 3862FE 1 24 -40°C ~150°C 24-Lead Plastic TSSOP
LTC3862EGN#PBF Tube 55 LTC3862GN 1 24 -40°C ~85°C 24-Lead Plastic SSOP
LTC3862EGN#TRPBF Reel 2500 LTC3862GN 1 24 -40°C ~85°C 24-Lead Plastic SSOP
LTC3862EGN#TRMPBF Reel 500 LTC3862GN 1 24 -40°C ~85°C 24-Lead Plastic SSOP
LTC3862IGN#PBF Tube 55 LTC3862GN 1 24 -40°C ~125°C 24-Lead Plastic SSOP
LTC3862IGN#TRPBF Reel 2500 LTC3862GN 1 24 -40°C ~125°C 24-Lead Plastic SSOP
LTC3862IGN#TRMPBF Reel 500 LTC3862GN 1 24 -40°C ~125°C 24-Lead Plastic SSOP
LTC3862HGN#PBF Tube 55 LTC3862GN 1 24 -40°C ~150°C 24-Lead Plastic SSOP
LTC3862HGN#TRPBF Reel 2500 LTC3862GN 1 24 -40°C ~150°C 24-Lead Plastic SSOP
LTC3862HGN#TRMPBF Reel 500 LTC3862GN 1 24 -40°C ~150°C 24-Lead Plastic SSOP
LTC3862EUH#PBF Tube 73 3862 1 24 -40°C ~85°C 24-Lead (5mm × 5mm) Plastic QFN
LTC3862EUH#TRPBF Reel 2500 3862 1 24 -40°C ~85°C 24-Lead (5mm × 5mm) Plastic QFN
LTC3862EUH#TRMPBF Reel 500 3862 1 24 -40°C ~85°C 24-Lead (5mm × 5mm) Plastic QFN
LTC3862IUH#PBF Tube 73 3862 1 24 -40°C ~125°C 24-Lead (5mm × 5mm) Plastic QFN
LTC3862IUH#TRPBF Reel 2500 3862 1 24 -40°C ~125°C 24-Lead (5mm × 5mm) Plastic QFN
LTC3862IUH#TRMPBF Reel 500 3862 1 24 -40°C ~125°C 24-Lead (5mm × 5mm) Plastic QFN
LTC3862HUH#PBF Tube 73 3862 1 24 -40°C ~150°C 24-Lead (5mm × 5mm) Plastic QFN
LTC3862HUH#TRPBF Reel 2500 3862 1 24 -40°C ~150°C 24-Lead (5mm × 5mm) Plastic QFN
LTC3862HUH#TRMPBF Reel 500 3862 1 24 -40°C ~150°C 24-Lead (5mm × 5mm) Plastic QFN
LTC3862IFE#WPBF Tube 62 3862FE 1 24 -40°C ~125°C 24-Lead Plastic TSSOP
LTC3862IFE#WTRPBF Reel 2500 3862FE 1 24 -40°C ~125°C 24-Lead Plastic TSSOP
LTC3862IFE#WTRMPBF Reel 500 3862FE 1 24 -40°C ~125°C 24-Lead Plastic TSSOP
LTC3862HFE#WPBF Tube 62 3862FE 1 24 -40°C ~150°C 24-Lead Plastic TSSOP
LTC3862HFE#WTRPBF Reel 2500 3862FE 1 24 -40°C ~150°C 24-Lead Plastic TSSOP
LTC3862HFE#WTRMPBF Reel 500 3862FE 1 24 -40°C ~150°C 24-Lead Plastic TSSOP
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC3862 Datasheet(PDF)

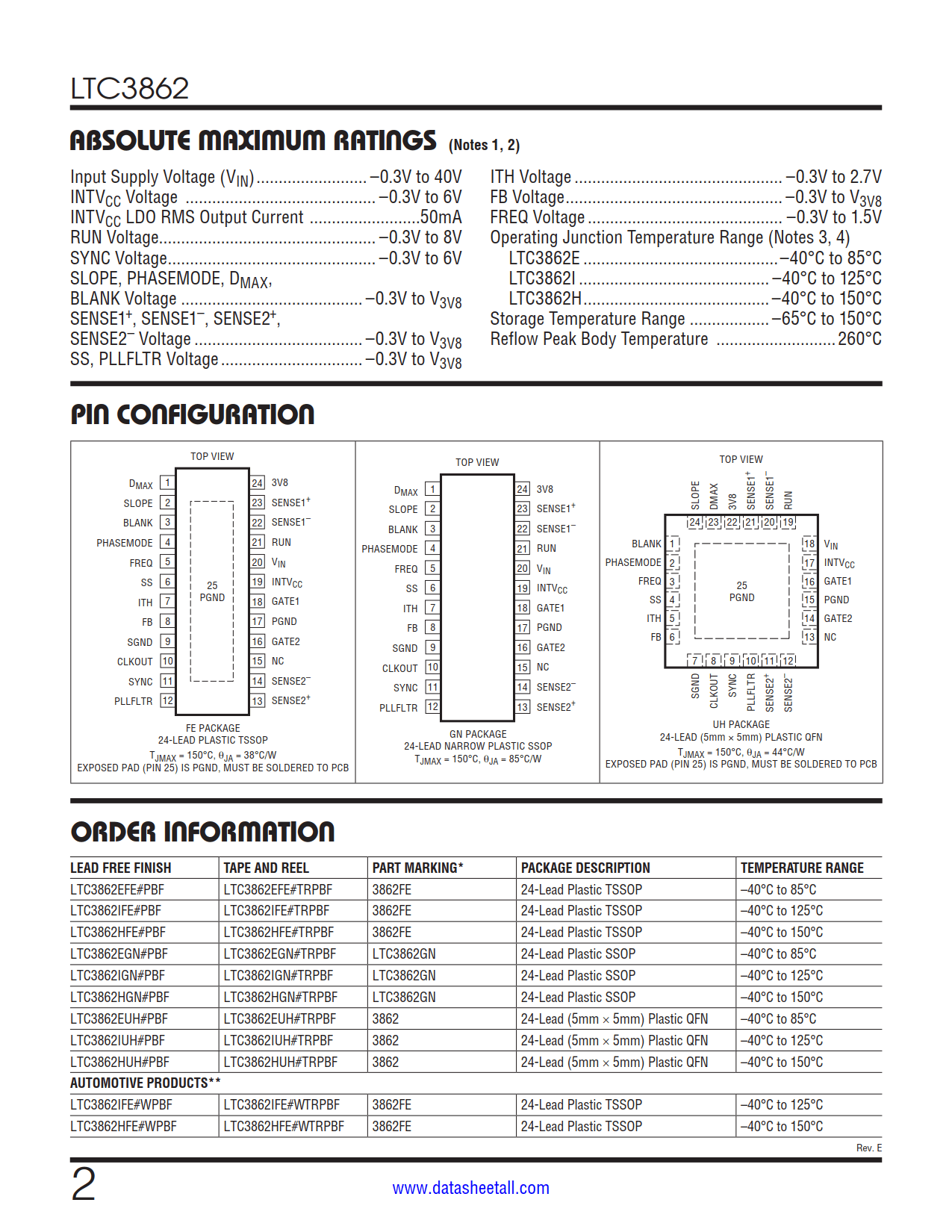

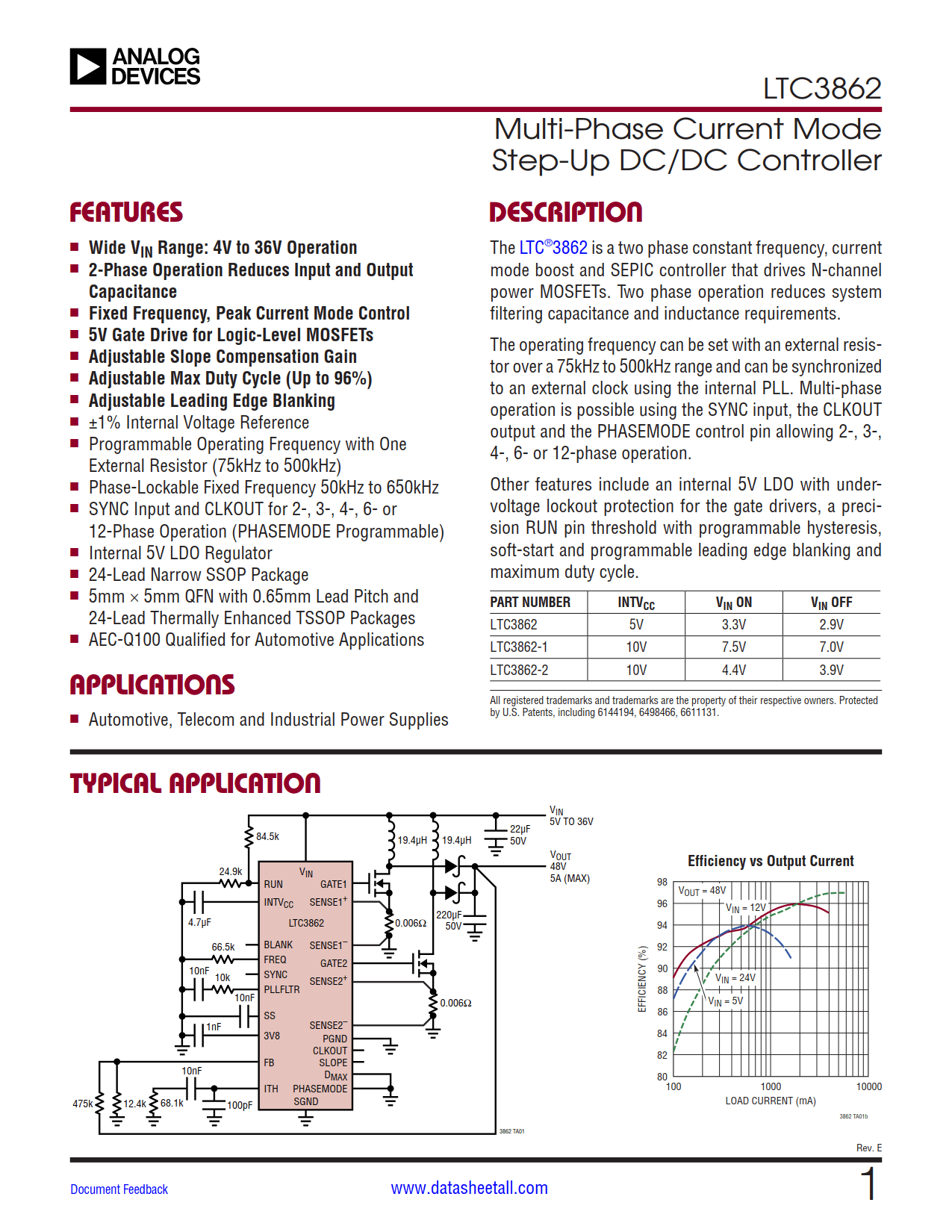

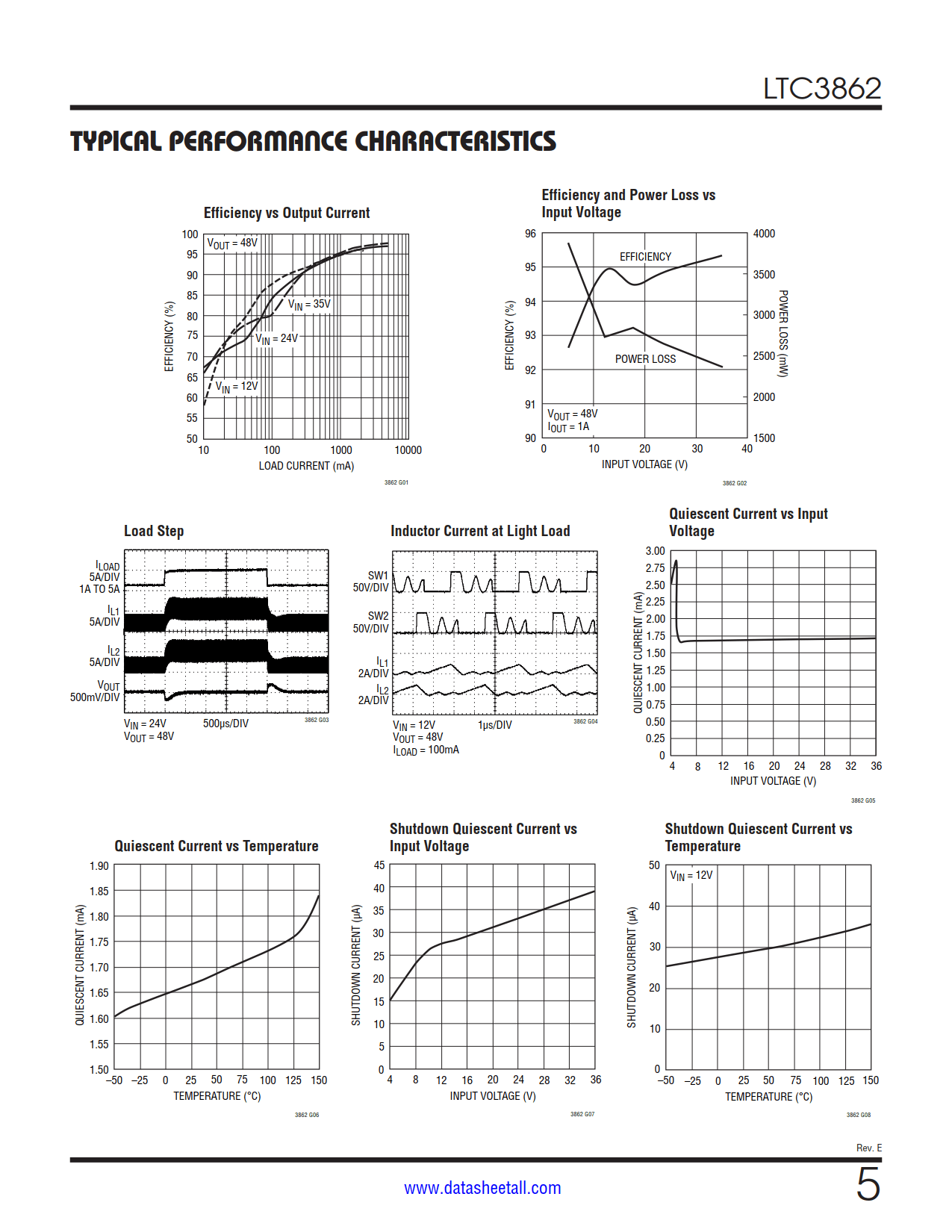

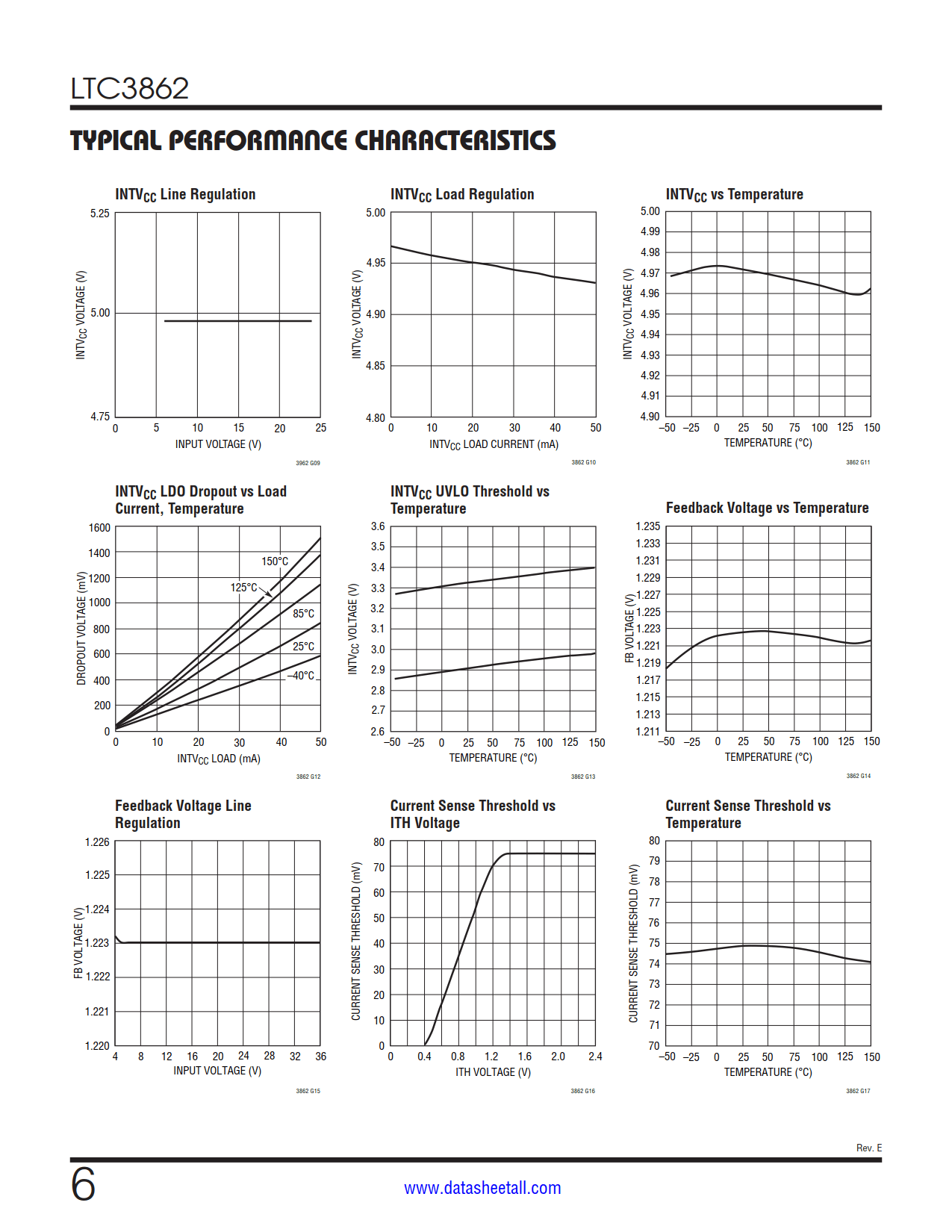

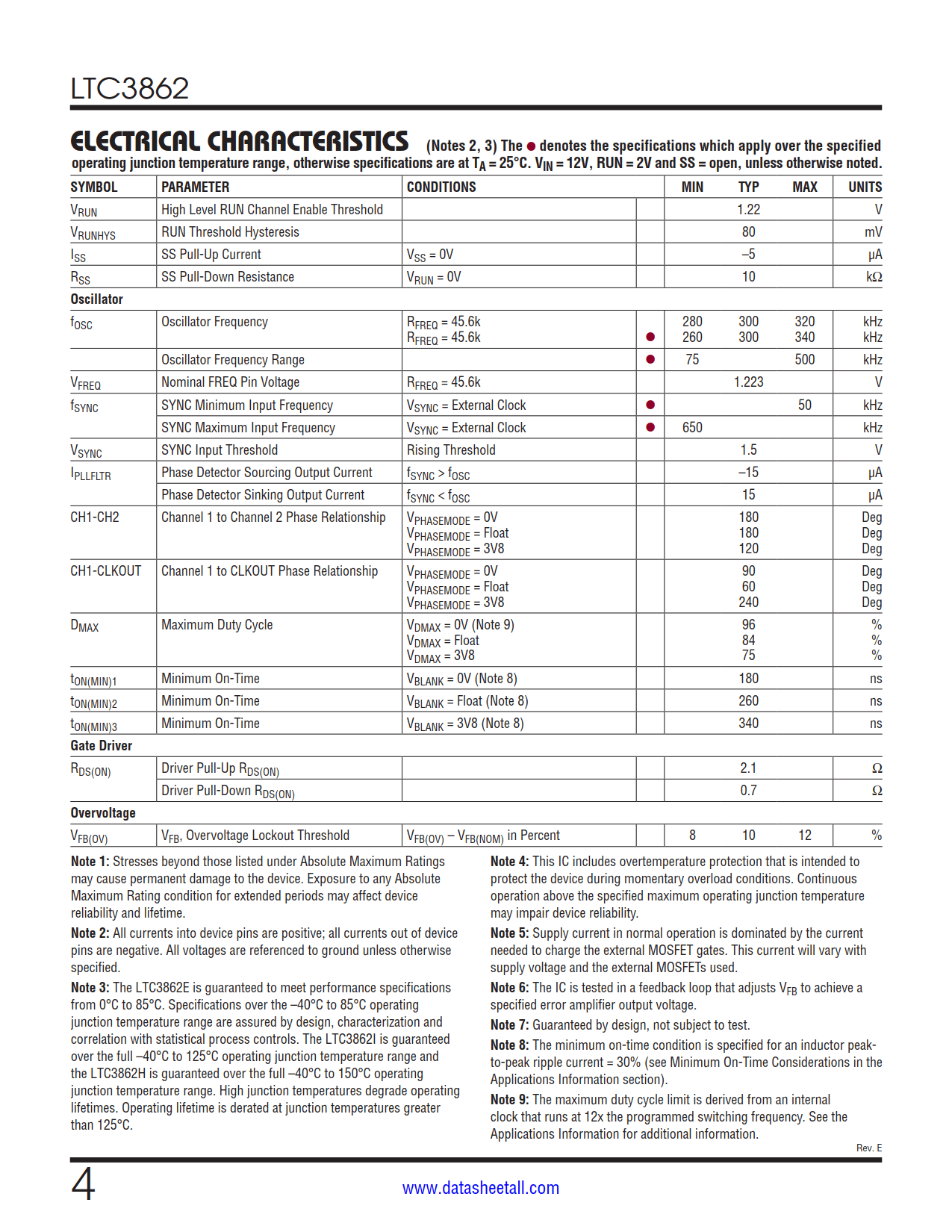

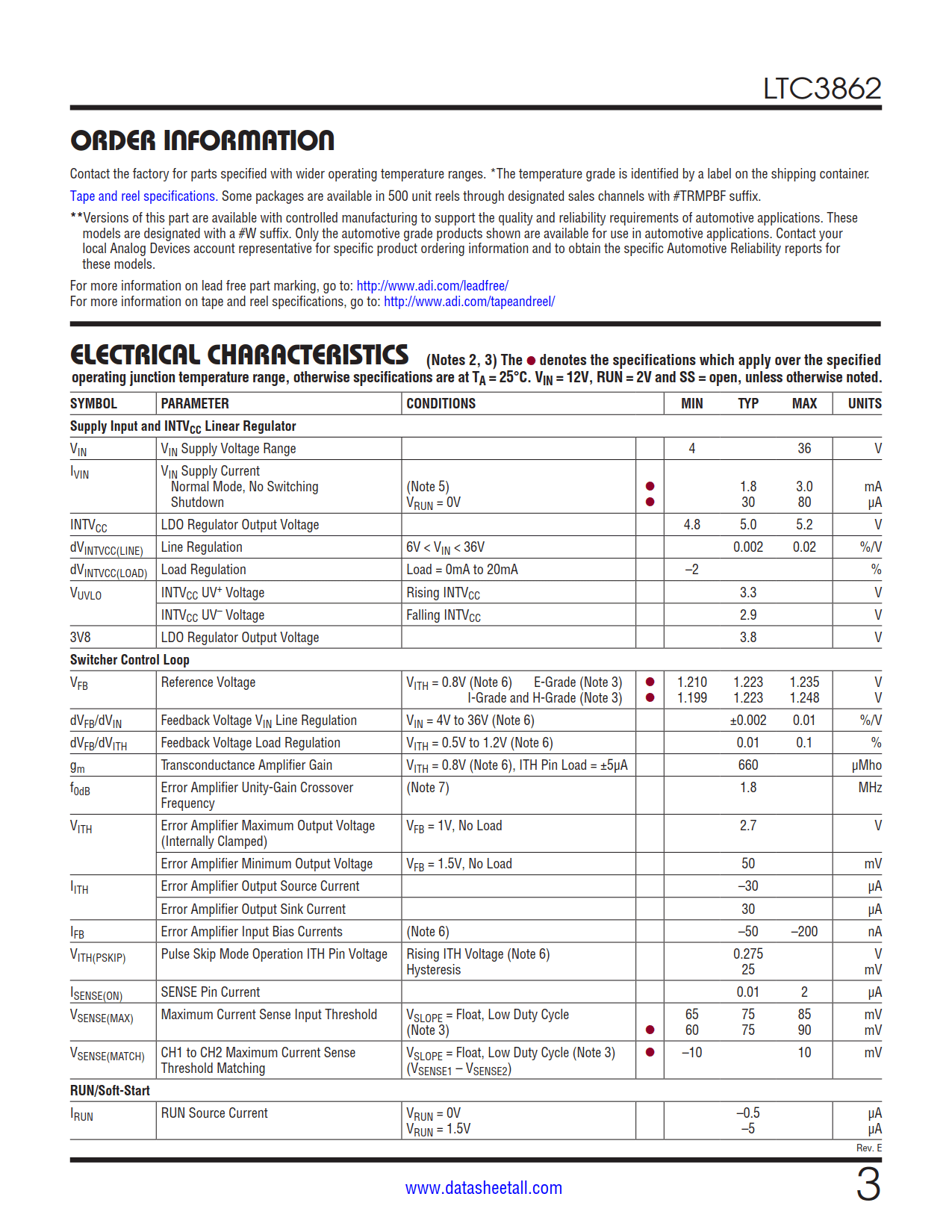

LTC3862 Datasheet(Picture)

LTC3862 Features

  • Wide VIN Range: 4V to 36V Operation
  • 2-Phase Operation Reduces Input and Output Capacitance
  • Fixed Frequency, Peak Current Mode Control
  • 5V Gate Drive for Logic-Level MOSFETs
  • Adjustable Slope Compensation Gain
  • Adjustable Max Duty Cycle (Up to 96%)
  • Adjustable Leading Edge Blanking
  • ±1% Internal Voltage Reference
  • Programmable Operating Frequency with One External Resistor (75kHz to 500kHz)
  • Phase-Lockable Fixed Frequency 50kHz to 650kHz
  • SYNC Input and CLKOUT for 2-, 3-, 4-, 6- or 12-Phase Operation (PHASEMODE Programmable)
  • Internal 5V LDO Regulator
  • 24-Lead Narrow SSOP Package
  • 5mm × 5mm QFN with 0.65mm Lead Pitch and 24-Lead Thermally Enhanced TSSOP Packages
  • AEC-Q100 Qualified for Automotive Applications

LTC3862 Applications

  • Automotive, Telecom and Industrial Power Supplies

LTC3862 Description

The LTC3862 is a two phase constant frequency, current mode boost and SEPIC controller that drives N-channel power MOSFETs. Two phase operation reduces system filtering capacitance and inductance requirements.

The operating frequency can be set with an external resistor over a 75kHz to 500kHz range and can be synchronized to an external clock using the internal PLL. Multi-phase operation is possible using the SYNC input, the CLKOUT output and the PHASEMODE control pin allowing 2-, 3-, 4-, 6- or 12-phase operation.

Other features include an internal 5V LDO with undervoltage lockout protection for the gate drivers, a precision RUN pin threshold with programmable hysteresis, soft-start and programmable leading edge blanking and maximum duty cycle.
