Dual, Multiphase Step-Down Voltage Mode DC/DC Controller with Accurate Current Sharing
Part No.: LTC3861
Page: 38 Pages
Size: 862 KB
Manufacturer: Linear Technology
Logo:
Views: 2
Update Time: 2023-11-02 15:25:54
DataSheet: Download

LTC3861 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC3861EUHE#PBF Tube 61 3861 1 36 -40°C ~ 125°C 36-Lead (5mm × 6mm) Plastic QFN
LTC3861EUHE#TRPBF Reel 2500 3861 1 36 -40°C ~ 125°C 36-Lead (5mm × 6mm) Plastic QFN
LTC3861EUHE#TRMPBF Reel 500 3861 1 36 -40°C ~ 125°C 36-Lead (5mm × 6mm) Plastic QFN
LTC3861IUHE#PBF Tube 61 3861 1 36 -40°C ~ 125°C 36-Lead (5mm × 6mm) Plastic QFN
LTC3861IUHE#TRPBF Reel 2500 3861 1 36 -40°C ~ 125°C 36-Lead (5mm × 6mm) Plastic QFN
LTC3861IUHE#TRMPBF Reel 500 3861 1 36 -40°C ~ 125°C 36-Lead (5mm × 6mm) Plastic QFN
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC3861 Datasheet(PDF)

LTC3861 Datasheet(Picture)

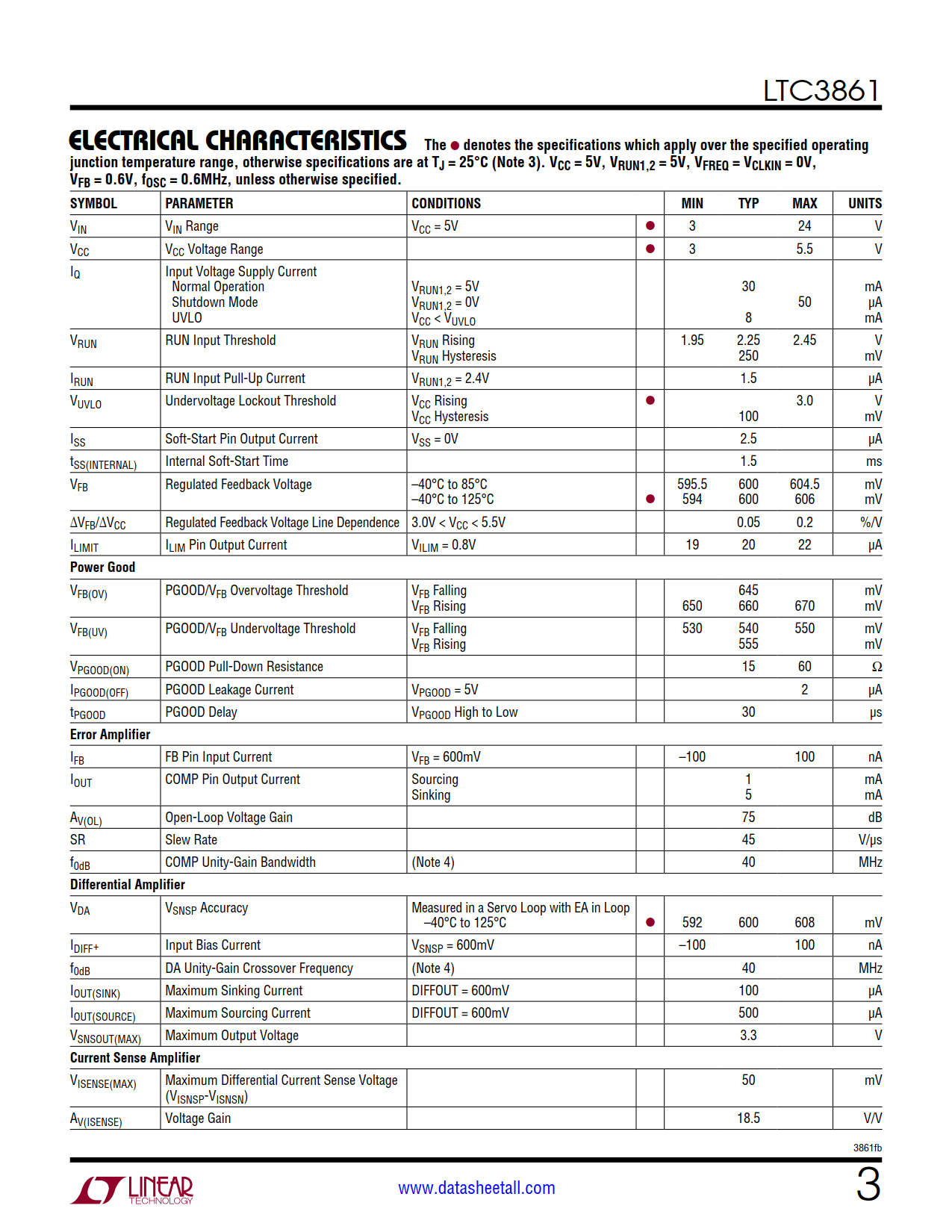

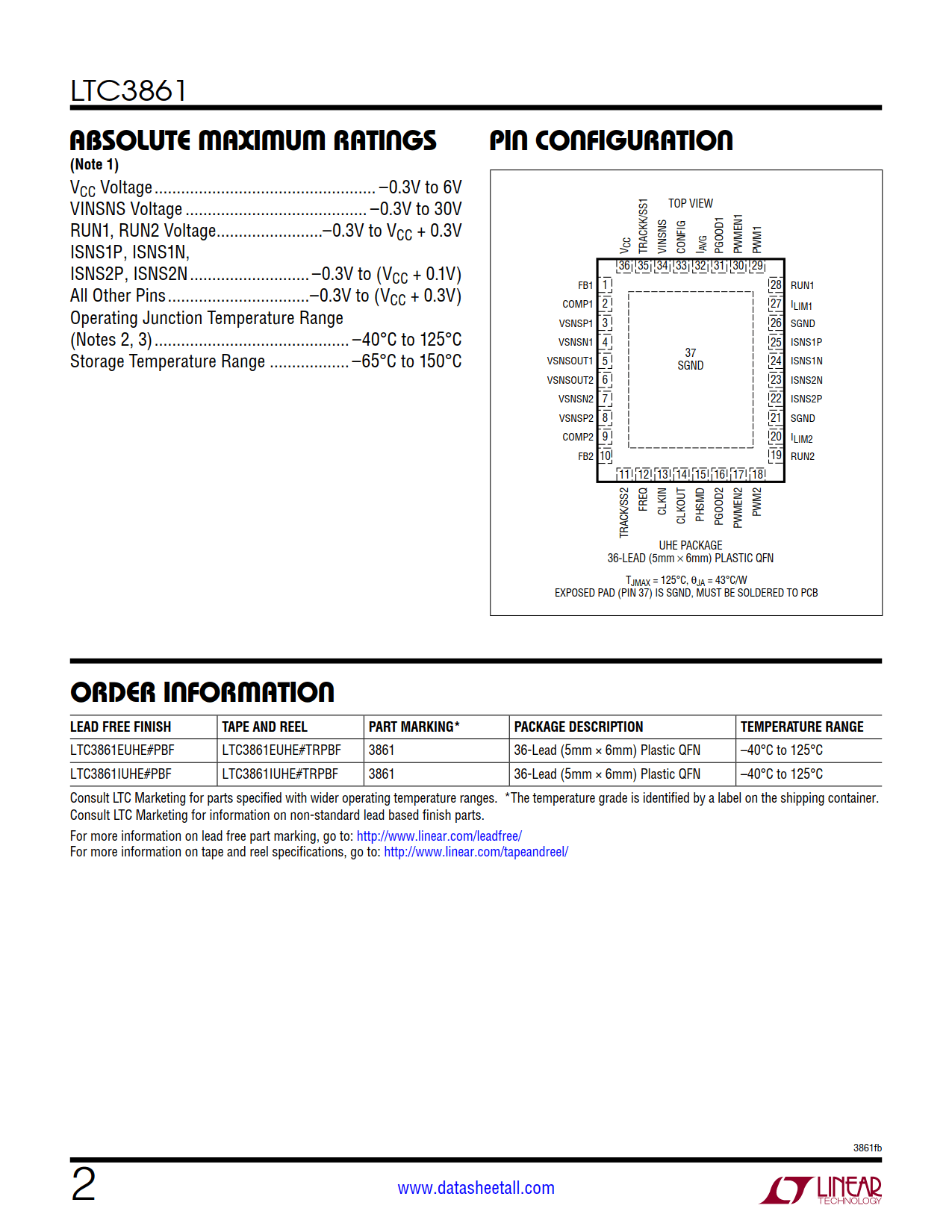

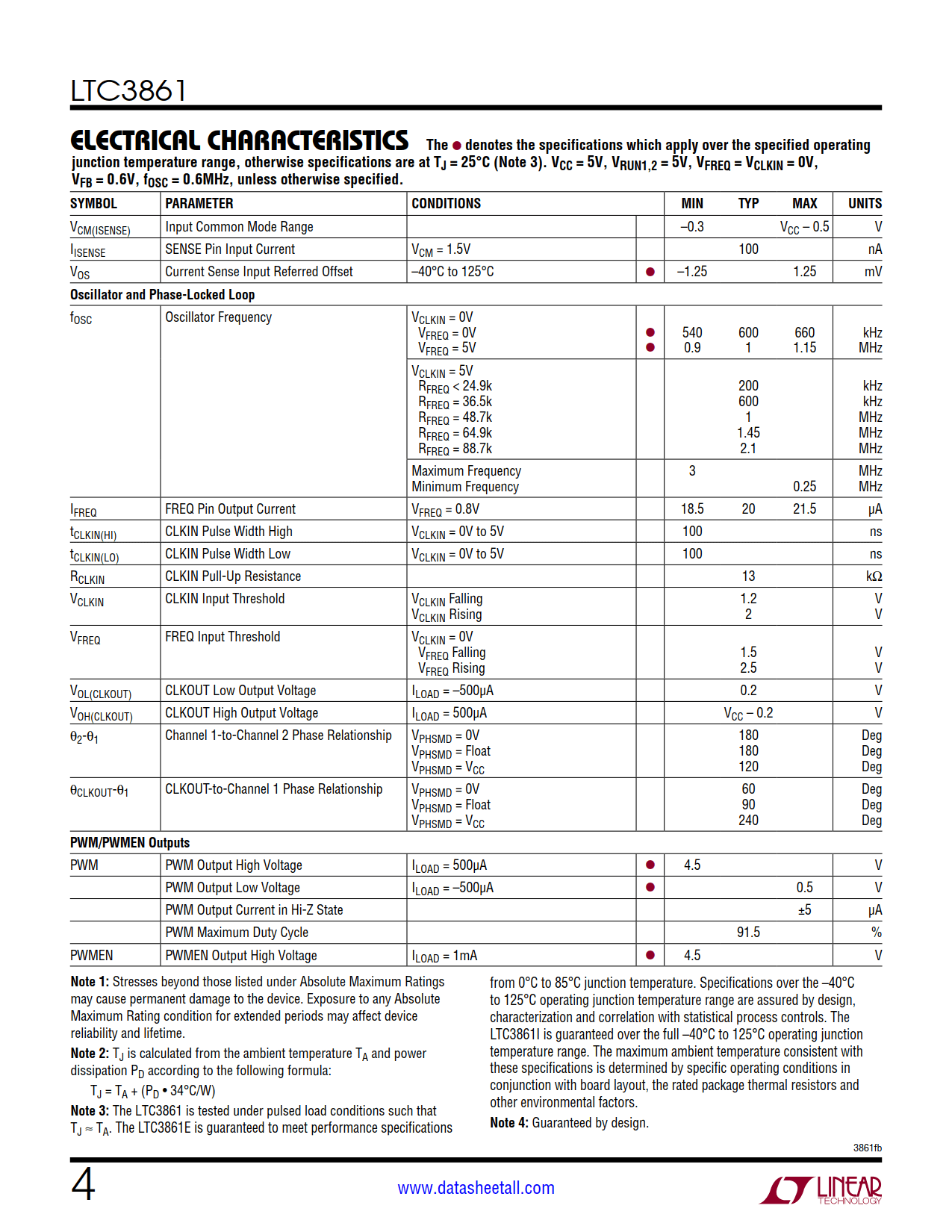

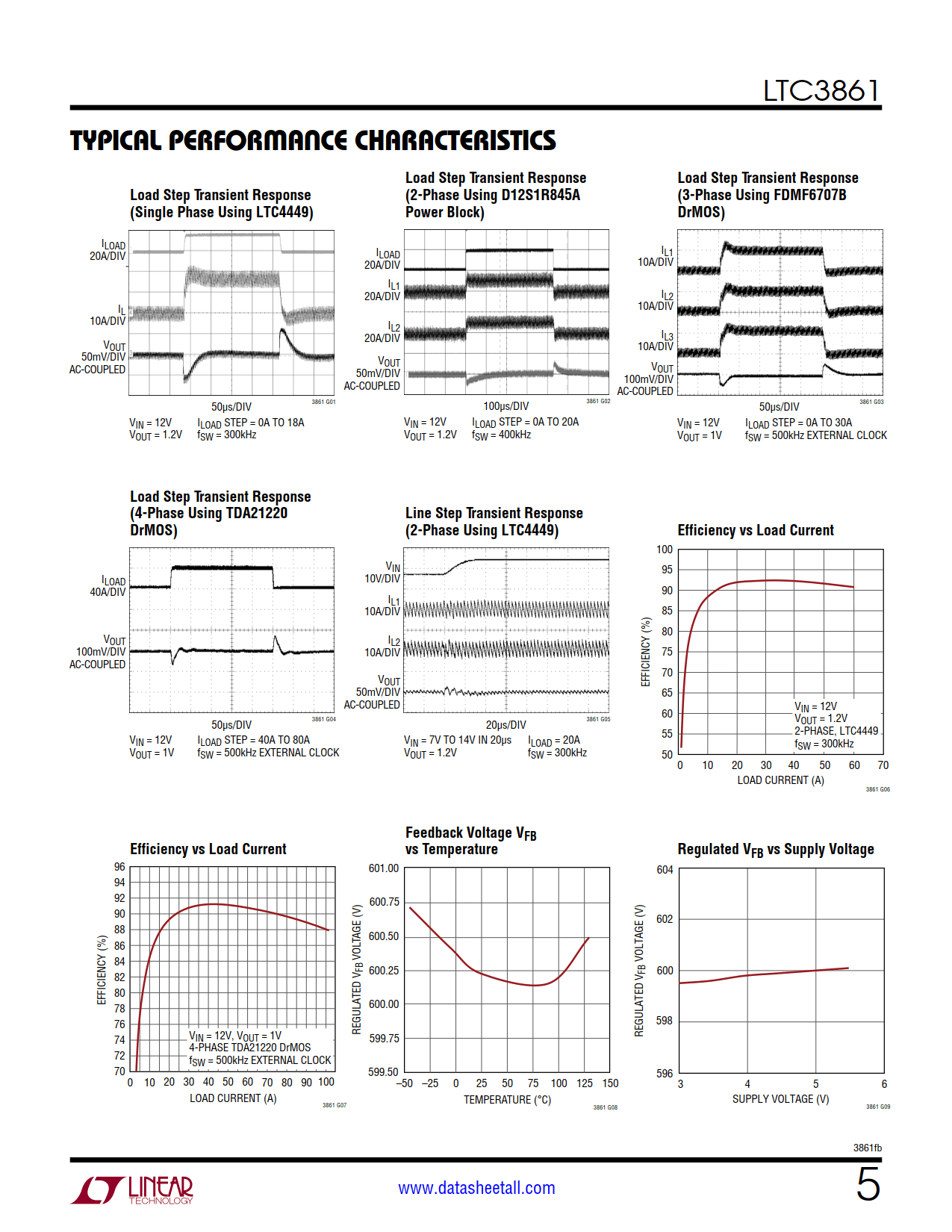

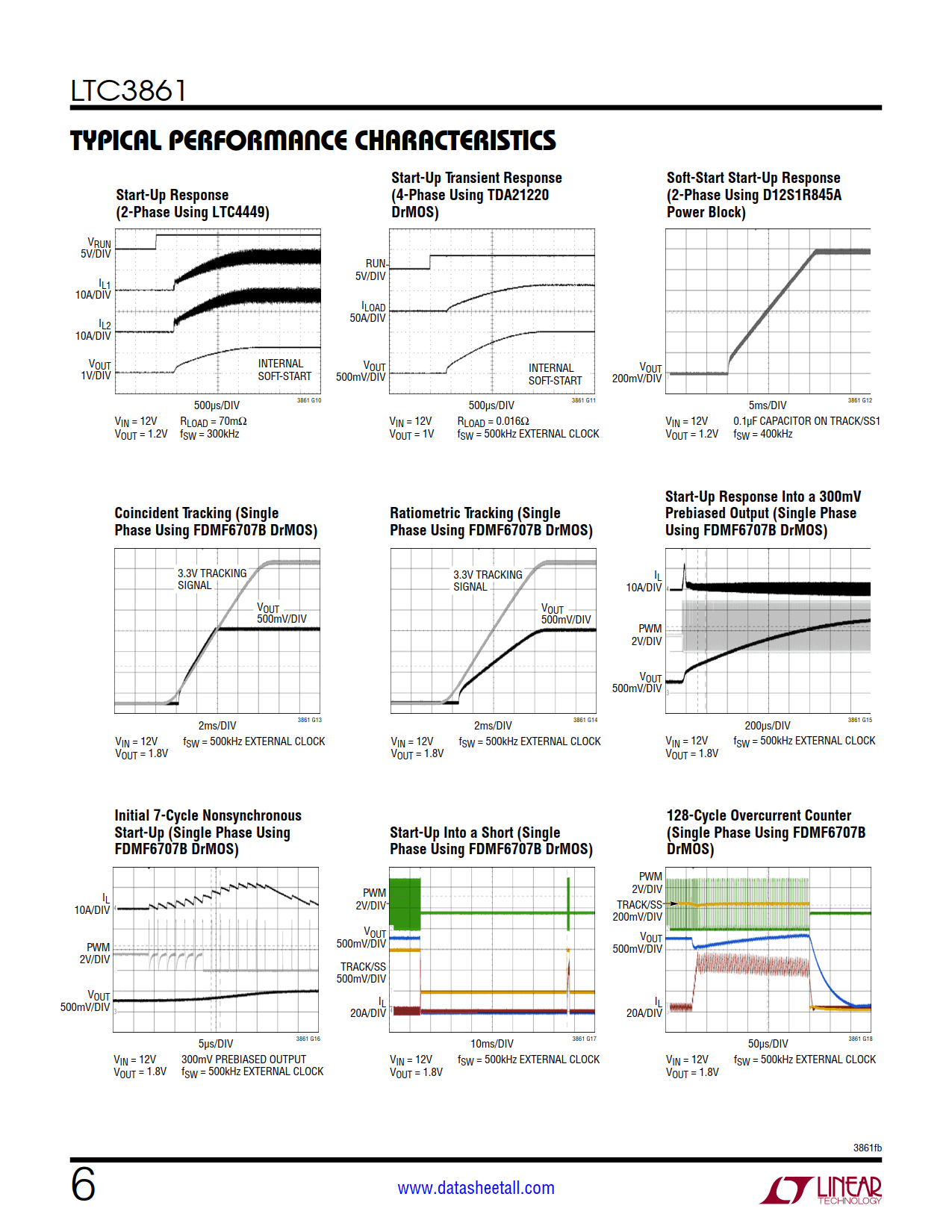

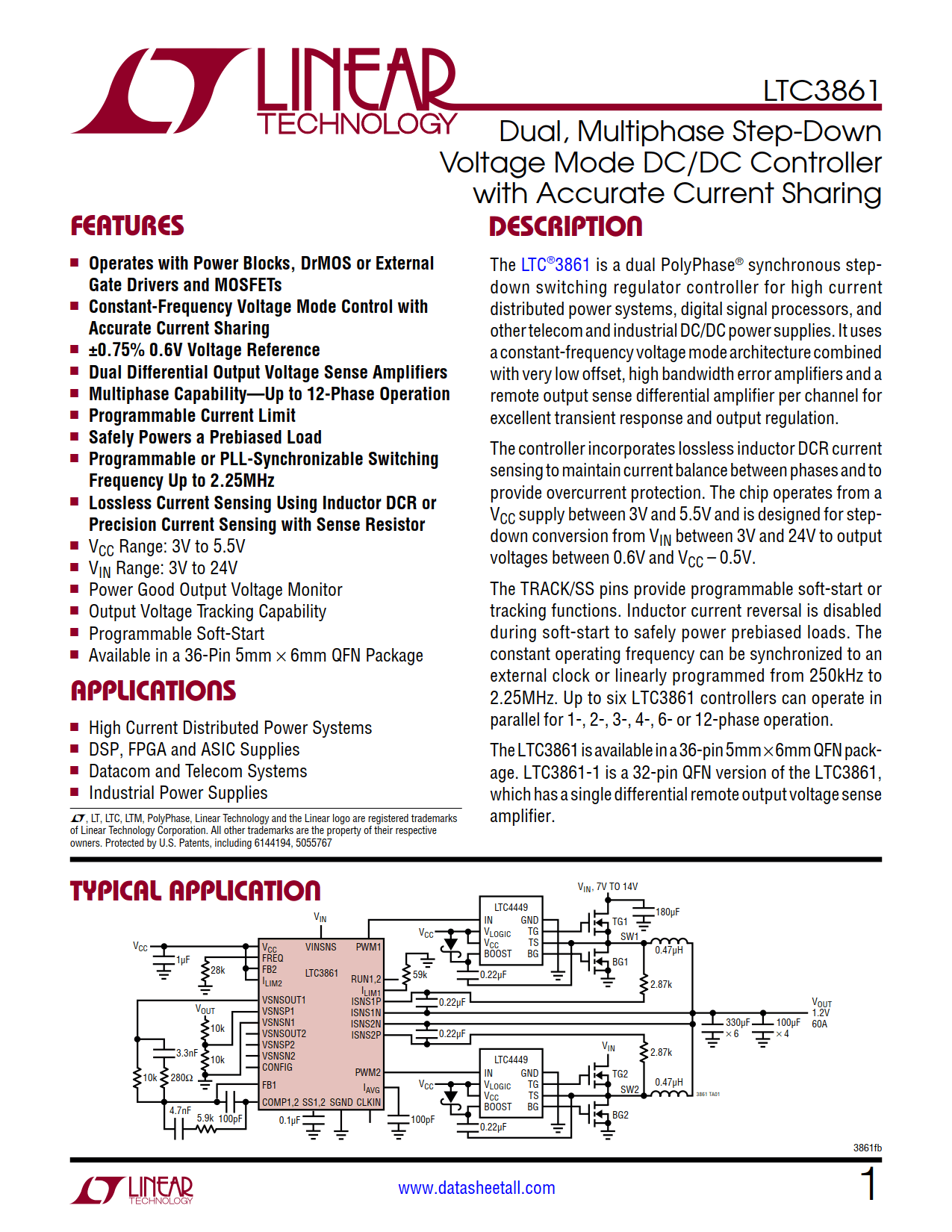

LTC3861 Features

  • Operates with Power Blocks, DrMOS or External Gate Drivers and MOSFETs
  • Constant-Frequency Voltage Mode Control with Accurate Current Sharing
  • ±0.75% 0.6V Voltage Reference
  • Dual Differential Output Voltage Sense Amplifiers
  • Multiphase Capability—Up to 12-Phase Operation
  • Programmable Current Limit
  • Safely Powers a Prebiased Load
  • Programmable or PLL-Synchronizable Switching Frequency Up to 2.25MHz
  • Lossless Current Sensing Using Inductor DCR or Precision Current Sensing with Sense Resistor
  • VCC Range: 3V to 5.5V
  • VIN Range: 3V to 24V
  • Power Good Output Voltage Monitor
  • Output Voltage Tracking Capability
  • Programmable Soft-Start
  • Available in a 36-Pin 5mm × 6mm QFN Package

LTC3861 Applications

  • High Current Distributed Power Systems
  • DSP, FPGA and ASIC Supplies
  • Datacom and Telecom Systems
  • Industrial Power Supplies

LTC3861 Description

The LTC3861 is a dual PolyPhase® synchronous stepdown switching regulator controller for high current distributed power systems, digital signal processors, and other telecom and industrial DC/DC power supplies. It uses a constant-frequency voltage mode architecture combined with very low offset, high bandwidth error amplifiers and a remote output sense differential amplifier per channel for excellent transient response and output regulation.

The controller incorporates lossless inductor DCR current sensing to maintain current balance between phases and to provide overcurrent protection. The chip operates from a VCC supply between 3V and 5.5V and is designed for stepdown conversion from VIN between 3V and 24V to output voltages between 0.6V and VCC – 0.5V.

The TRACK/SS pins provide programmable soft-start or tracking functions. Inductor current reversal is disabled during soft-start to safely power prebiased loads. The constant operating frequency can be synchronized to an external clock or linearly programmed from 250kHz to 2.25MHz. Up to six LTC3861 controllers can operate in parallel for 1-, 2-, 3-, 4-, 6- or 12-phase operation.

The LTC3861 is available in a 36-pin 5mm × 6mm QFN package. LTC3861-1 is a 32-pin QFN version of the LTC3861, which has a single differential remote output voltage sense amplifier.
