LTC3858-2 Datasheet

LTC3858-2 Datasheet

Low IQ, Dual 2-Phase Synchronous Step-Down Controller
Part No.: LTC3858-2
Page: 40 Pages
Size: 422 KB
Manufacturer: Linear Technology
Logo:
Views: 0
Update Time: 2024-12-17 13:40:54
DataSheet: Download

LTC3858-2 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC3858EUH-2#PBF Tube 73 38582 1 32 -40°C ~ 125°C 32-Lead (5mm × 5mm) Plastic QFN
LTC3858EUH-2#TRPBF Reel 2500 38582 1 32 -40°C ~ 125°C 32-Lead (5mm × 5mm) Plastic QFN
LTC3858IUH-2#PBF Tube 73 38582 1 32 -40°C ~ 125°C 32-Lead (5mm × 5mm) Plastic QFN
LTC3858IUH-2#TRPBF Reel 2500 38582 1 32 -40°C ~ 125°C 32-Lead (5mm × 5mm) Plastic QFN
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC3858-2 Datasheet(PDF)

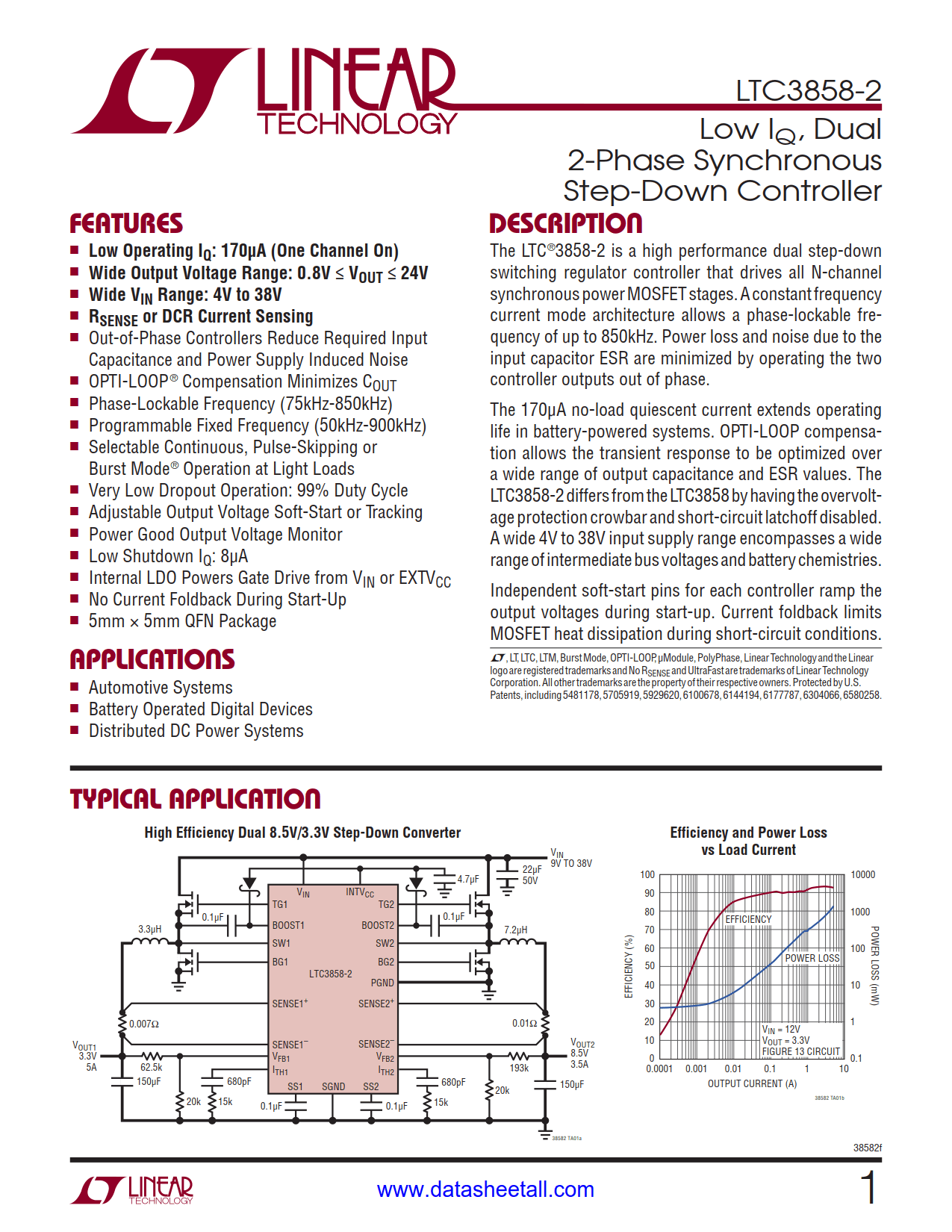

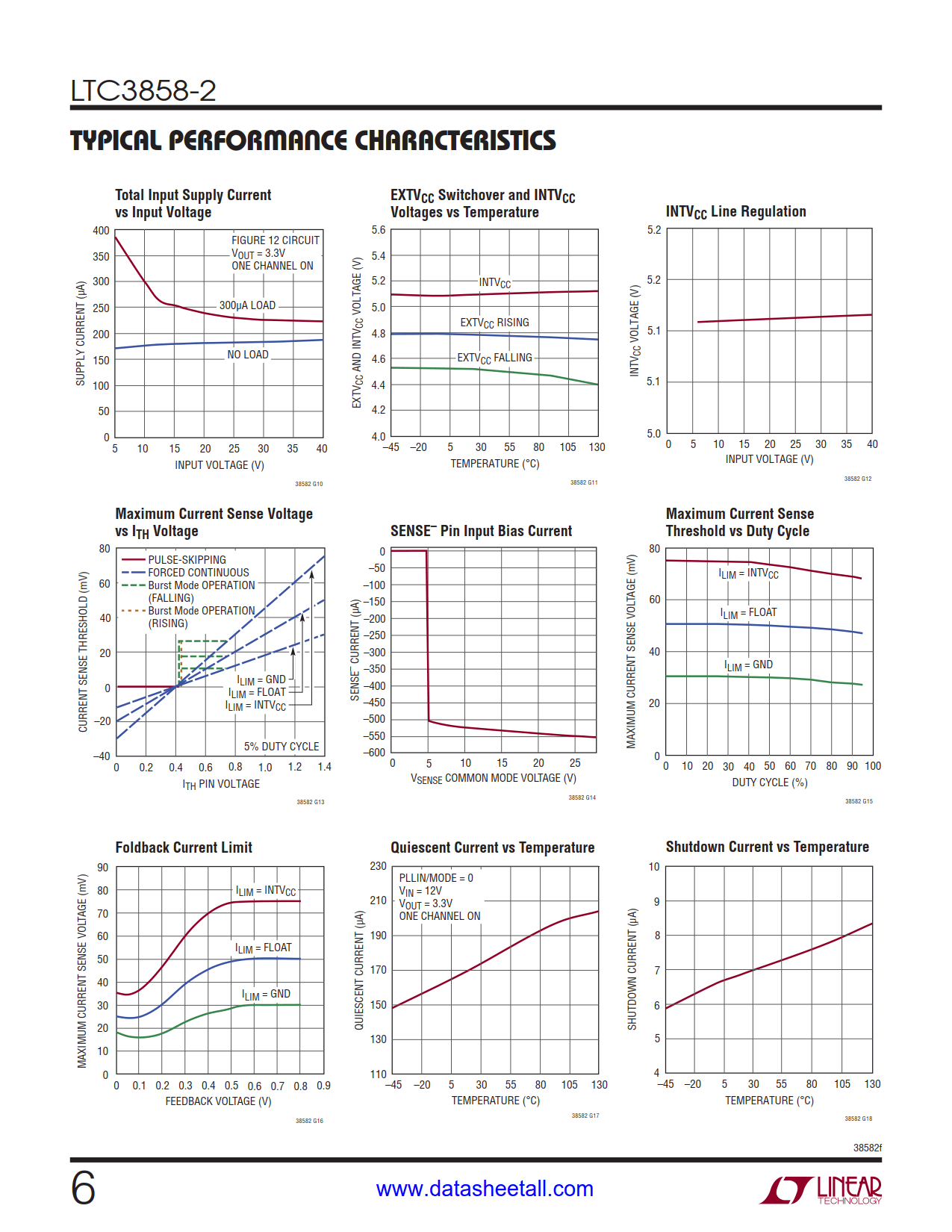

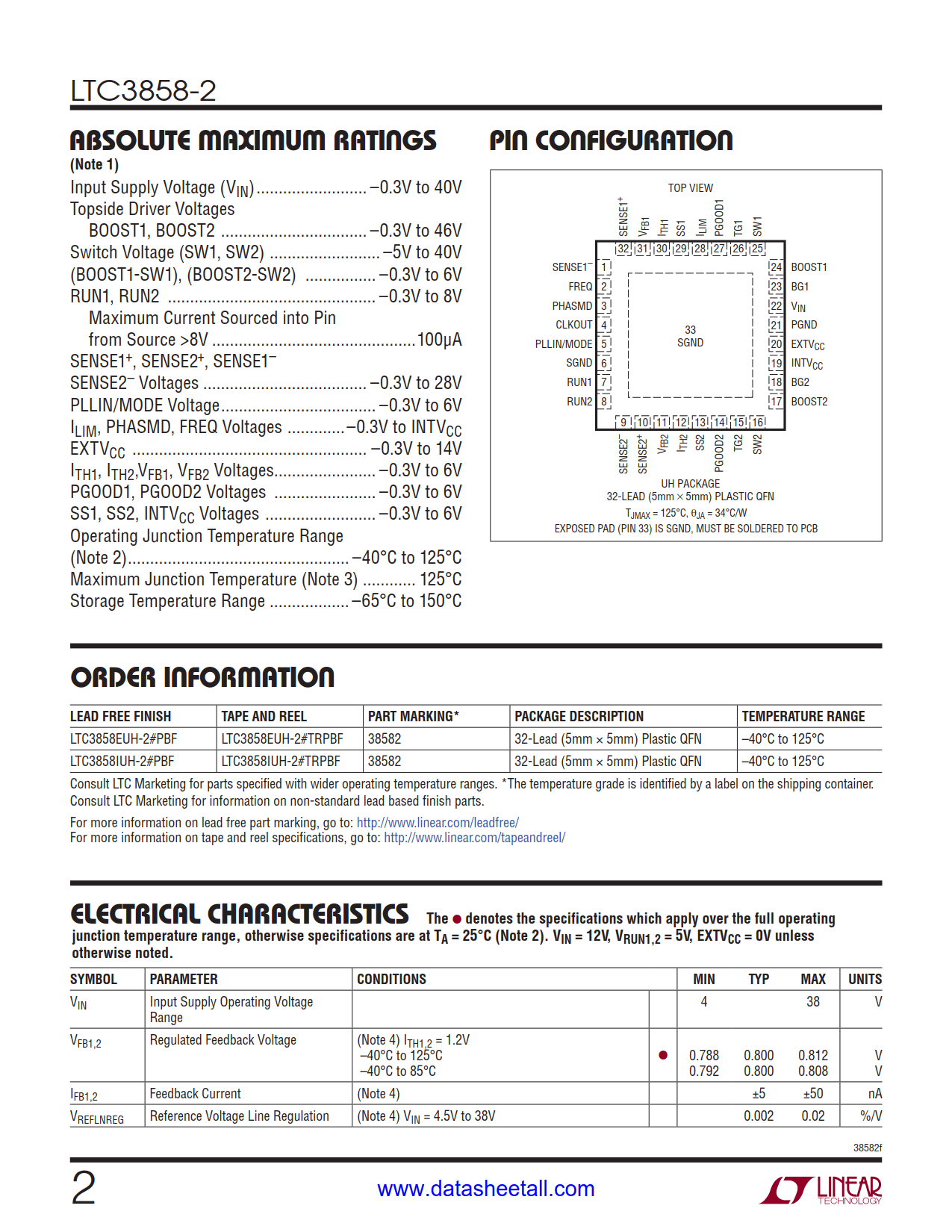

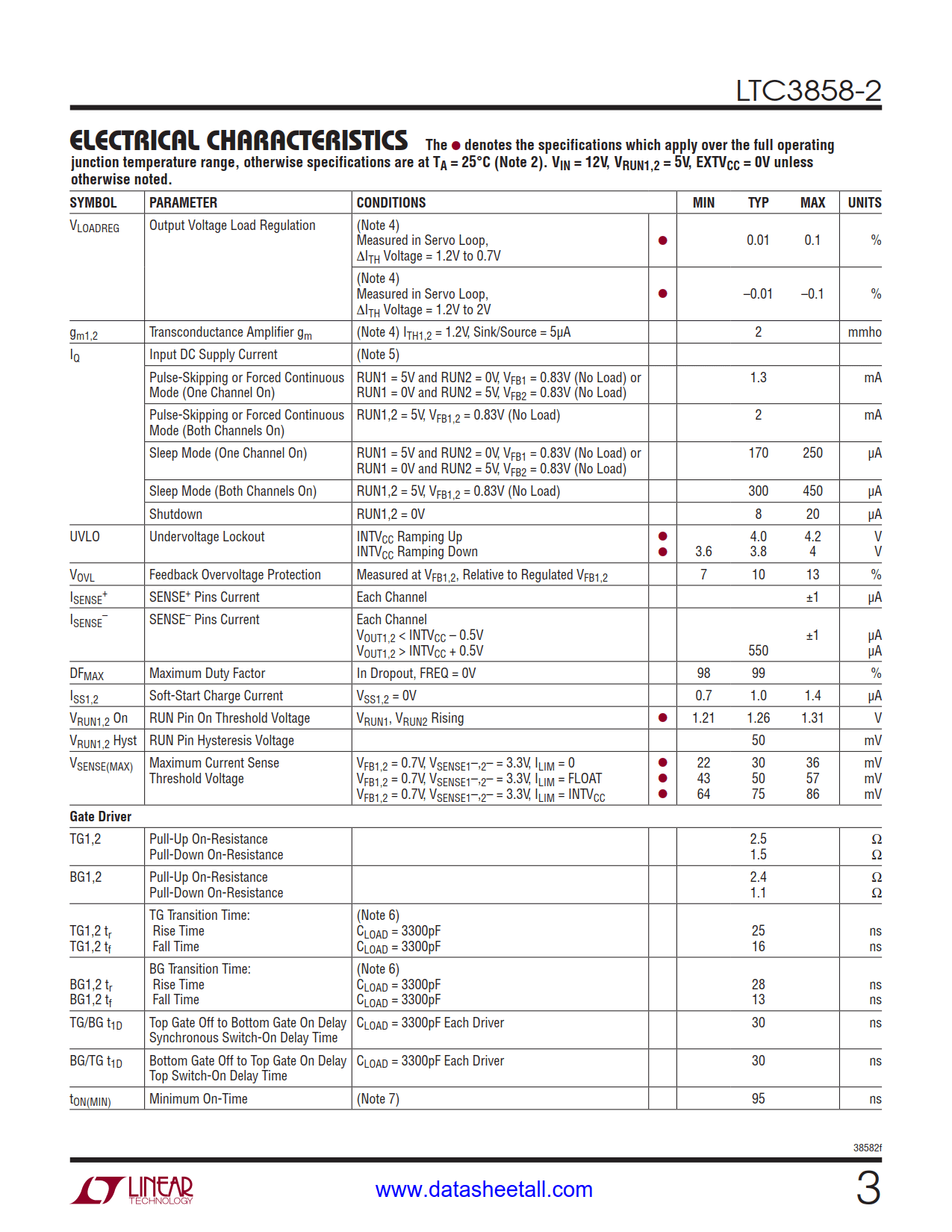

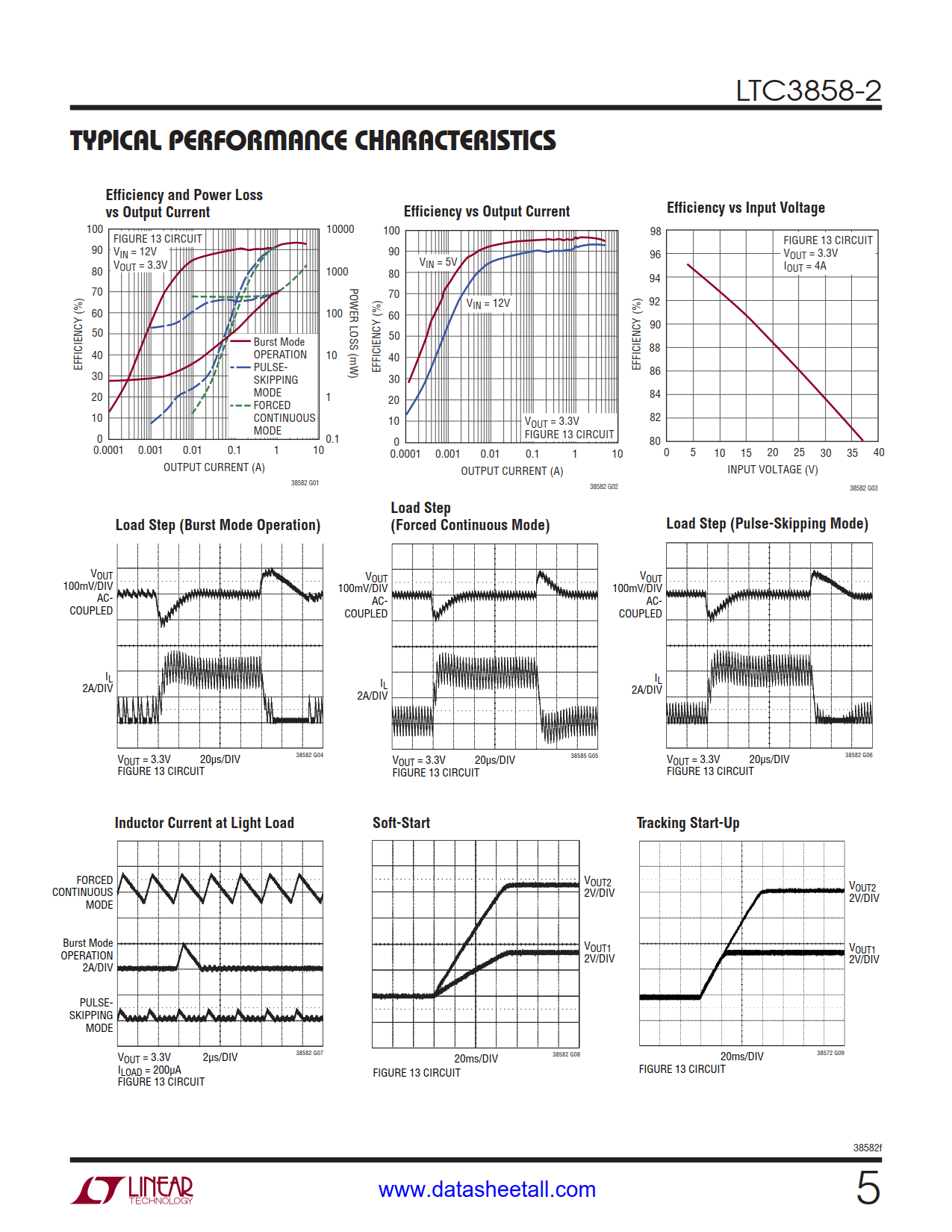

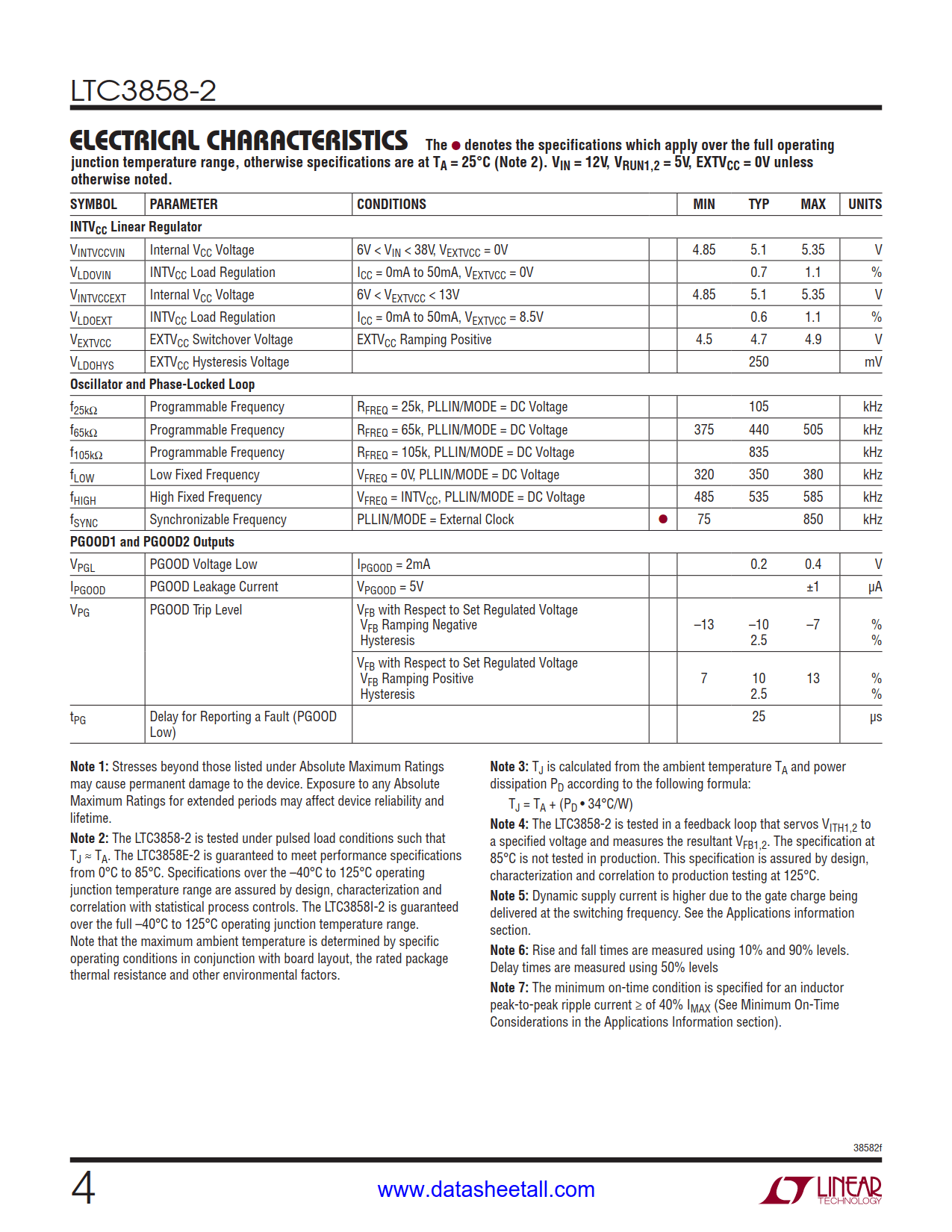

LTC3858-2 Datasheet(Picture)

LTC3858-2 Features

  • Low Operating IQ: 170μA (One Channel On)
  • Wide Output Voltage Range: 0.8V ≤ VOUT ≤ 24V
  • Wide VIN Range: 4V to 38V
  • RSENSE or DCR Current Sensing
  • Out-of-Phase Controllers Reduce Required Input Capacitance and Power Supply Induced Noise
  • OPTI-LOOP® Compensation Minimizes COUT
  • Phase-Lockable Frequency (75kHz-850kHz)
  • Programmable Fixed Frequency (50kHz-900kHz)
  • Selectable Continuous, Pulse-Skipping or Burst Mode® Operation at Light Loads
  • Very Low Dropout Operation: 99% Duty Cycle
  • Adjustable Output Voltage Soft-Start or Tracking
  • Power Good Output Voltage Monitor
  • Low Shutdown IQ: 8μA
  • Internal LDO Powers Gate Drive from VIN or EXTVCC
  • No Current Foldback During Start-Up
  • 5mm × 5mm QFN Package

LTC3858-2 Applications

  • Automotive Systems
  • Battery Operated Digital Devices
  • Distributed DC Power Systems

LTC3858-2 Description

The LTC3858-2 is a high performance dual step-down switching regulator controller that drives all N-channel synchronous power MOSFET stages. A constant frequency current mode architecture allows a phase-lockable frequency of up to 850kHz. Power loss and noise due to the input capacitor ESR are minimized by operating the two controller outputs out of phase.

The 170μA no-load quiescent current extends operating life in battery-powered systems. OPTI-LOOP compensation allows the transient response to be optimized over a wide range of output capacitance and ESR values. The LTC3858-2 differs from the LTC3858 by having the overvoltage protection crowbar and short-circuit latchoff disabled. A wide 4V to 38V input supply range encompasses a wide range of intermediate bus voltages and battery chemistries.

Independent soft-start pins for each controller ramp the output voltages during start-up. Current foldback limits MOSFET heat dissipation during short-circuit conditions.
