| Part No.： | LTC3850 |
| Page： | 38 Pages |
| Size： | 907 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2024-01-15 17:33:36 |
| DataSheet： | Download |

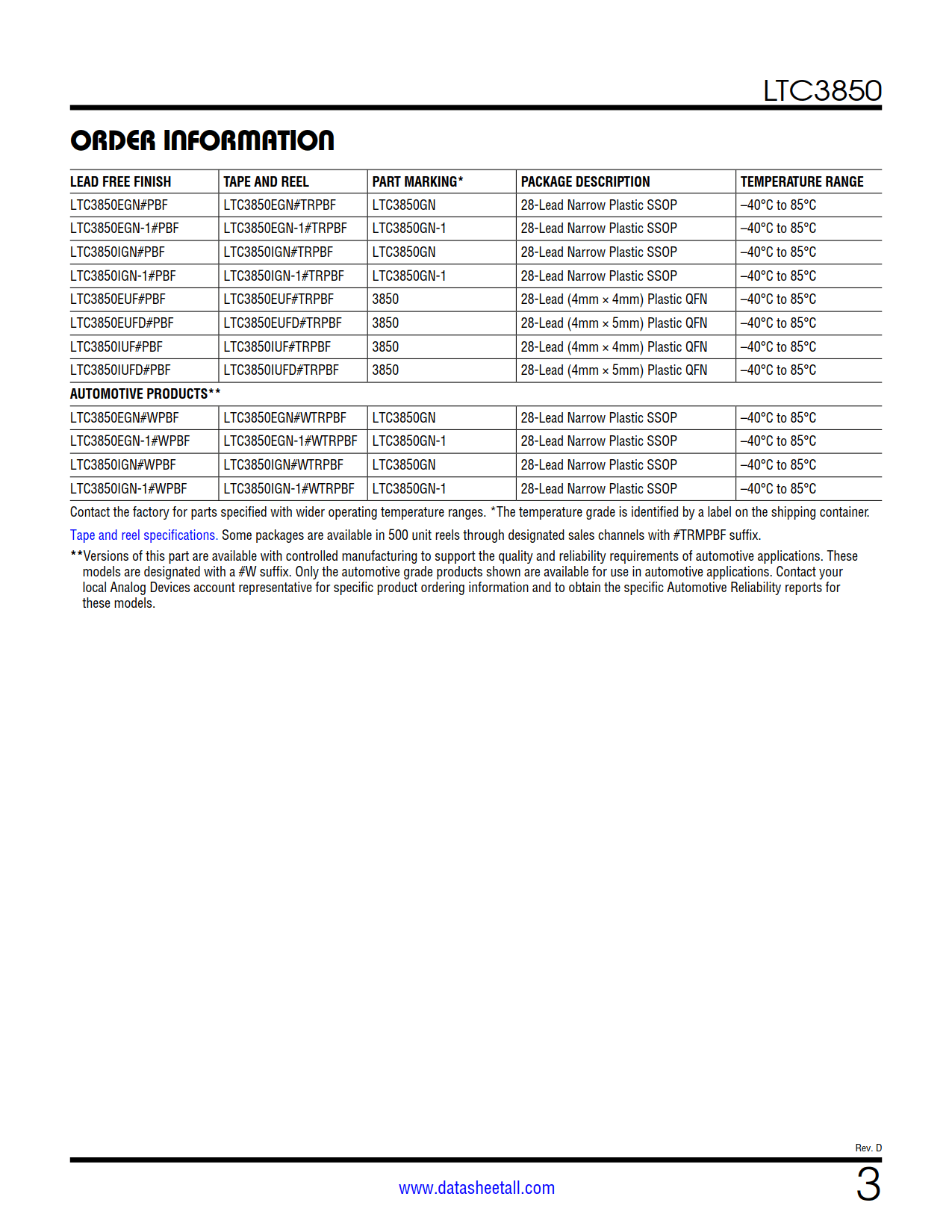

| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC3850EGN#PBF | Tube | 49 | LTC3850GN | 1 | 28 | -40°C ~85°C | 28-Lead Narrow Plastic SSOP | |
| LTC3850EGN#TRPBF | Reel | 2500 | LTC3850GN | 1 | 28 | -40°C ~85°C | 28-Lead Narrow Plastic SSOP | |
| LTC3850EGN#TRMPBF | Reel | 500 | LTC3850GN | 1 | 28 | -40°C ~85°C | 28-Lead Narrow Plastic SSOP | |
| LTC3850IGN#PBF | Tube | 49 | LTC3850GN | 1 | 28 | -40°C ~85°C | 28-Lead Narrow Plastic SSOP | |
| LTC3850IGN#TRPBF | Reel | 2500 | LTC3850GN | 1 | 28 | -40°C ~85°C | 28-Lead Narrow Plastic SSOP | |
| LTC3850IGN#TRMPBF | Reel | 500 | LTC3850GN | 1 | 28 | -40°C ~85°C | 28-Lead Narrow Plastic SSOP | |
| LTC3850EUF#PBF | Tube | 91 | 3850 | 1 | 28 | -40°C ~85°C | 28-Lead (4mm × 4mm) Plastic QFN | |
| LTC3850EUF#TRPBF | Reel | 2500 | 3850 | 1 | 28 | -40°C ~85°C | 28-Lead (4mm × 4mm) Plastic QFN | |
| LTC3850EUF#TRMPBF | Reel | 500 | 3850 | 1 | 28 | -40°C ~85°C | 28-Lead (4mm × 4mm) Plastic QFN | |
| LTC3850EUFD#PBF | Tube | 73 | 3850 | 1 | 28 | -40°C ~85°C | 28-Lead (4mm × 5mm) Plastic QFN | |
| LTC3850EUFD#TRPBF | Reel | 2500 | 3850 | 1 | 28 | -40°C ~85°C | 28-Lead (4mm × 5mm) Plastic QFN | |
| LTC3850EUFD#TRMPBF | Reel | 500 | 3850 | 1 | 28 | -40°C ~85°C | 28-Lead (4mm × 5mm) Plastic QFN | |
| LTC3850IUF#PBF | Tube | 91 | 3850 | 1 | 28 | -40°C ~85°C | 28-Lead (4mm × 4mm) Plastic QFN | |
| LTC3850IUF#TRPBF | Reel | 2500 | 3850 | 1 | 28 | -40°C ~85°C | 28-Lead (4mm × 4mm) Plastic QFN | |
| LTC3850IUF#TRMPBF | Reel | 500 | 3850 | 1 | 28 | -40°C ~85°C | 28-Lead (4mm × 4mm) Plastic QFN | |
| LTC3850IUFD#PBF | Tube | 73 | 3850 | 1 | 28 | -40°C ~85°C | 28-Lead (4mm × 5mm) Plastic QFN | |
| LTC3850IUFD#TRPBF | Reel | 2500 | 3850 | 1 | 28 | -40°C ~85°C | 28-Lead (4mm × 5mm) Plastic QFN | |
| LTC3850IUFD#TRMPBF | Reel | 500 | 3850 | 1 | 28 | -40°C ~85°C | 28-Lead (4mm × 5mm) Plastic QFN | |
| LTC3850EGN#WPBF | Tube | 49 | LTC3850GN | 1 | 28 | -40°C ~85°C | 28-Lead Narrow Plastic SSOP | |
| LTC3850EGN#WTRPBF | Reel | 2500 | LTC3850GN | 1 | 28 | -40°C ~85°C | 28-Lead Narrow Plastic SSOP | |
| LTC3850EGN#WTRMPBF | Reel | 500 | LTC3850GN | 1 | 28 | -40°C ~85°C | 28-Lead Narrow Plastic SSOP | |
| LTC3850IGN#WPBF | Tube | 49 | LTC3850GN | 1 | 28 | -40°C ~85°C | 28-Lead Narrow Plastic SSOP | |
| LTC3850IGN#WTRPBF | Reel | 2500 | LTC3850GN | 1 | 28 | -40°C ~85°C | 28-Lead Narrow Plastic SSOP | |
| LTC3850IGN#WTRMPBF | Reel | 500 | LTC3850GN | 1 | 28 | -40°C ~85°C | 28-Lead Narrow Plastic SSOP |

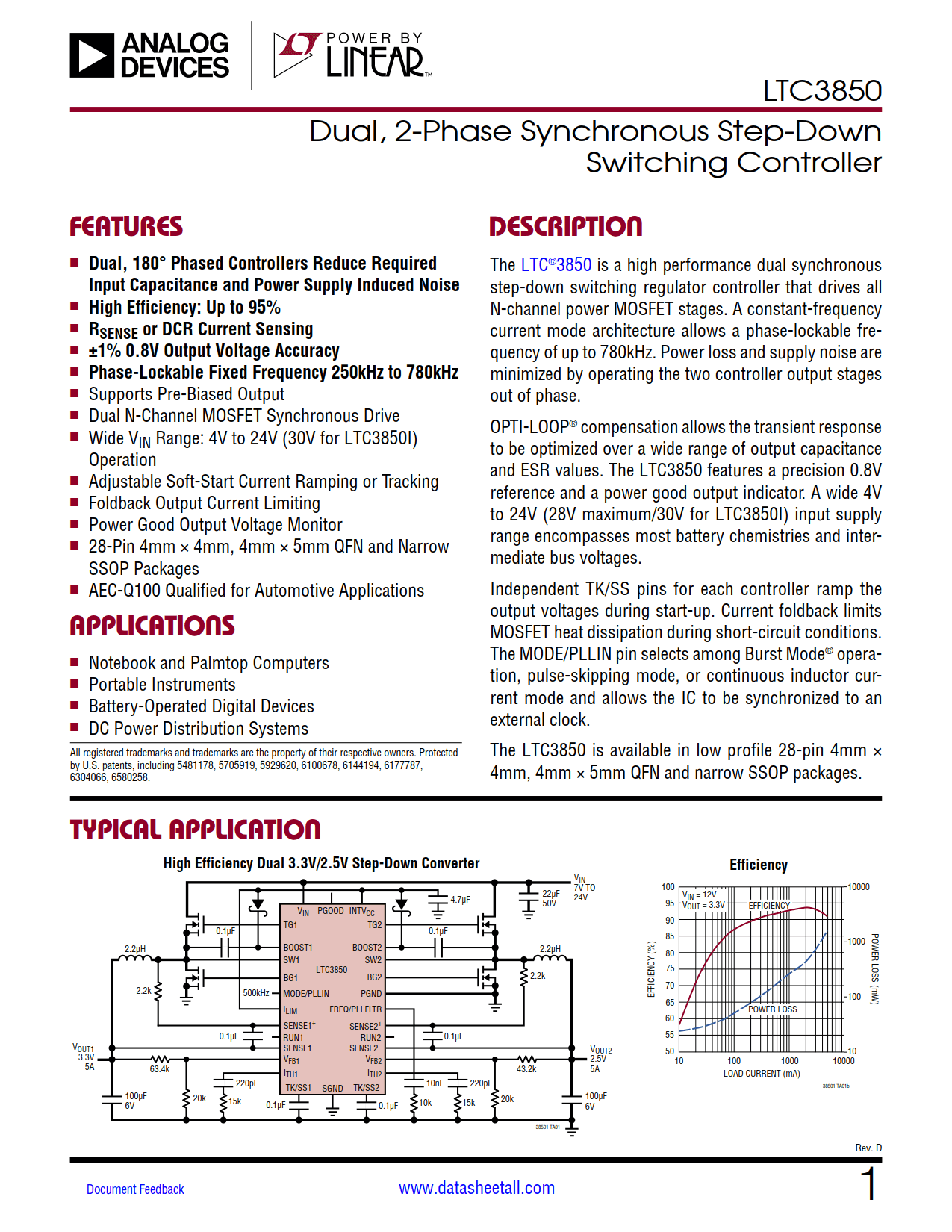

The LTC3850 is a high performance dual synchronous step-down switching regulator controller that drives all N-channel power MOSFET stages. A constant-frequency current mode architecture allows a phase-lockable frequency of up to 780kHz. Power loss and supply noise are minimized by operating the two controller output stages out of phase.
OPTI-LOOP® compensation allows the transient response to be optimized over a wide range of output capacitance and ESR values. The LTC3850 features a precision 0.8V reference and a power good output indicator. A wide 4V to 24V (28V maximum/30V for LTC3850I) input supply range encompasses most battery chemistries and intermediate bus voltages.
Independent TK/SS pins for each controller ramp the output voltages during start-up. Current foldback limits MOSFET heat dissipation during short-circuit conditions. The MODE/PLLIN pin selects among Burst Mode® operation, pulse-skipping mode, or continuous inductor current mode and allows the IC to be synchronized to an external clock.

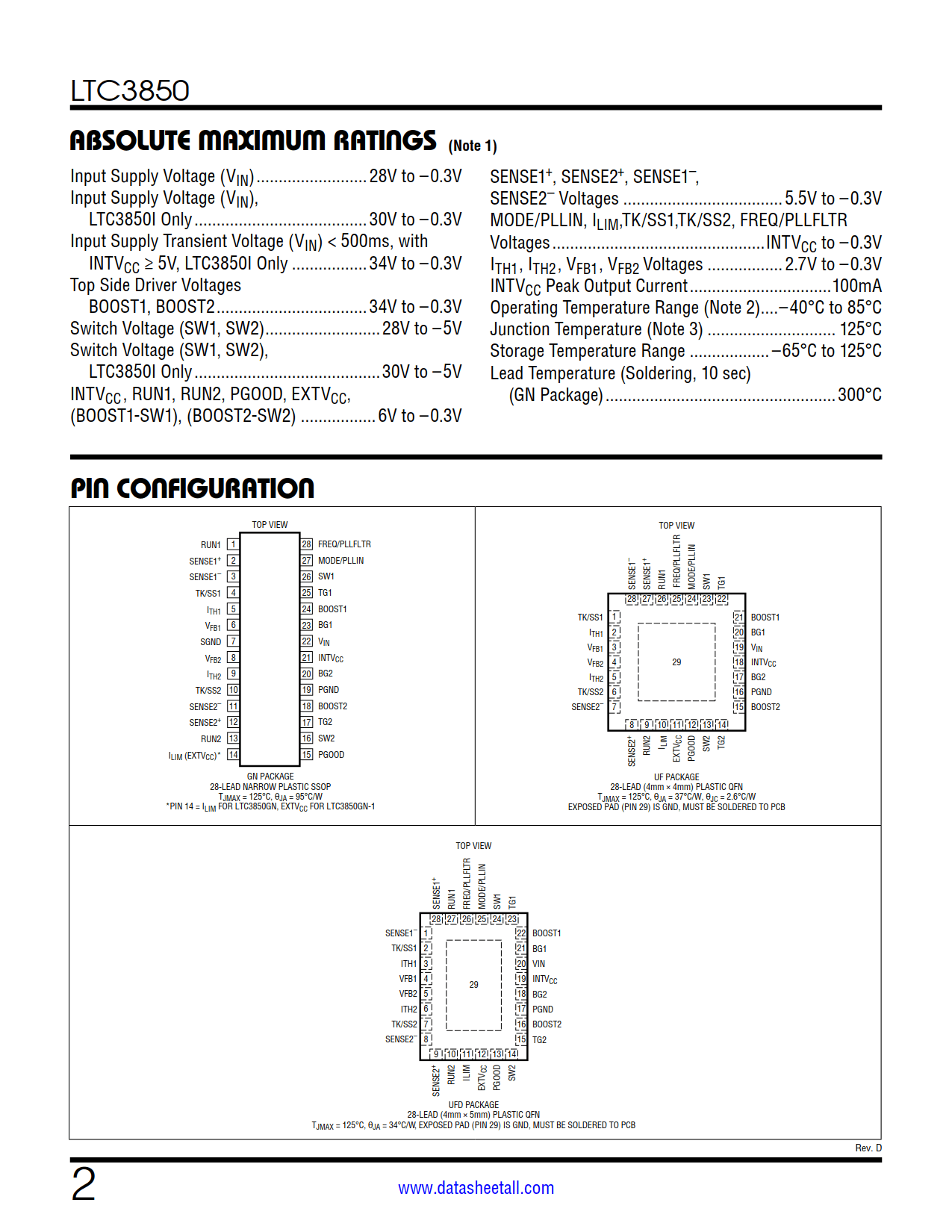

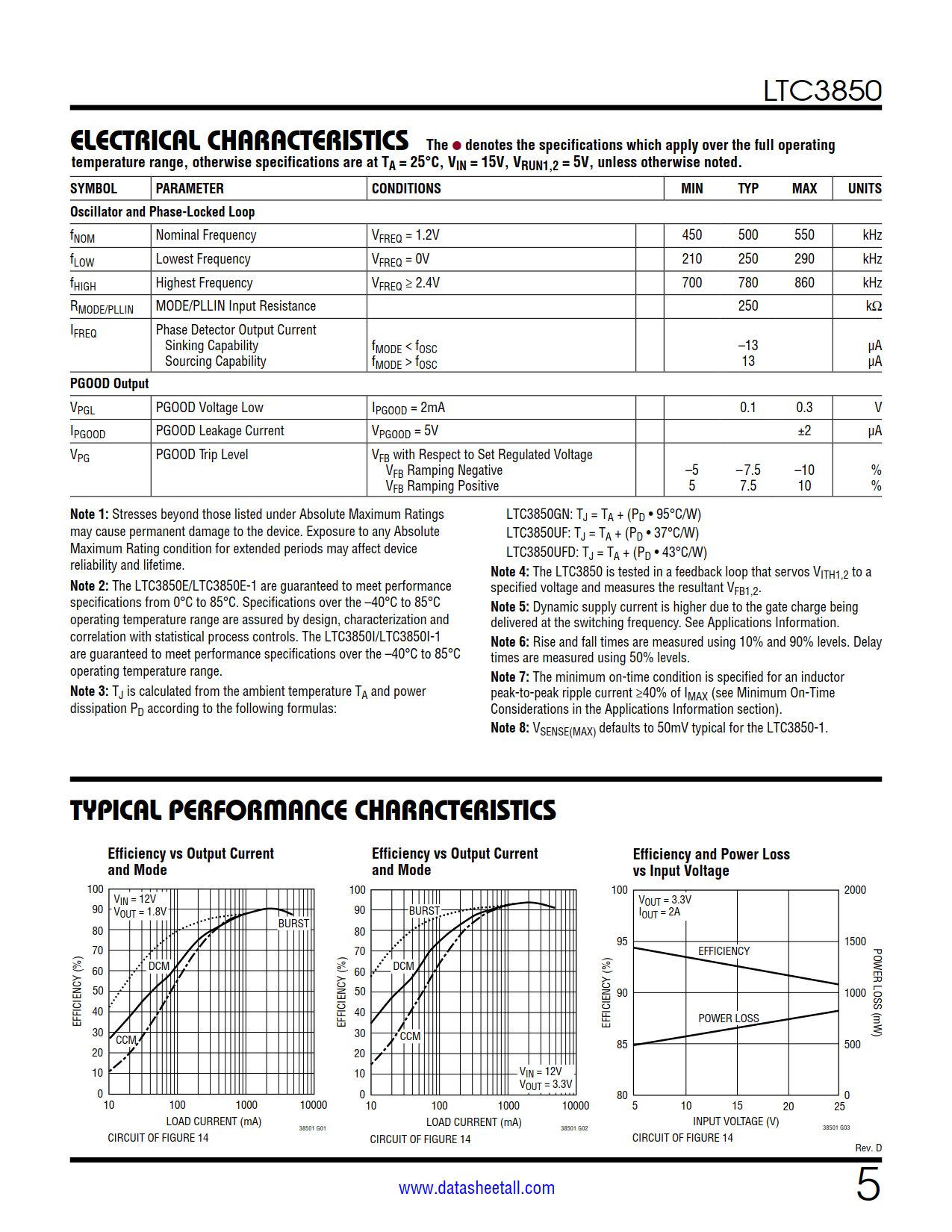

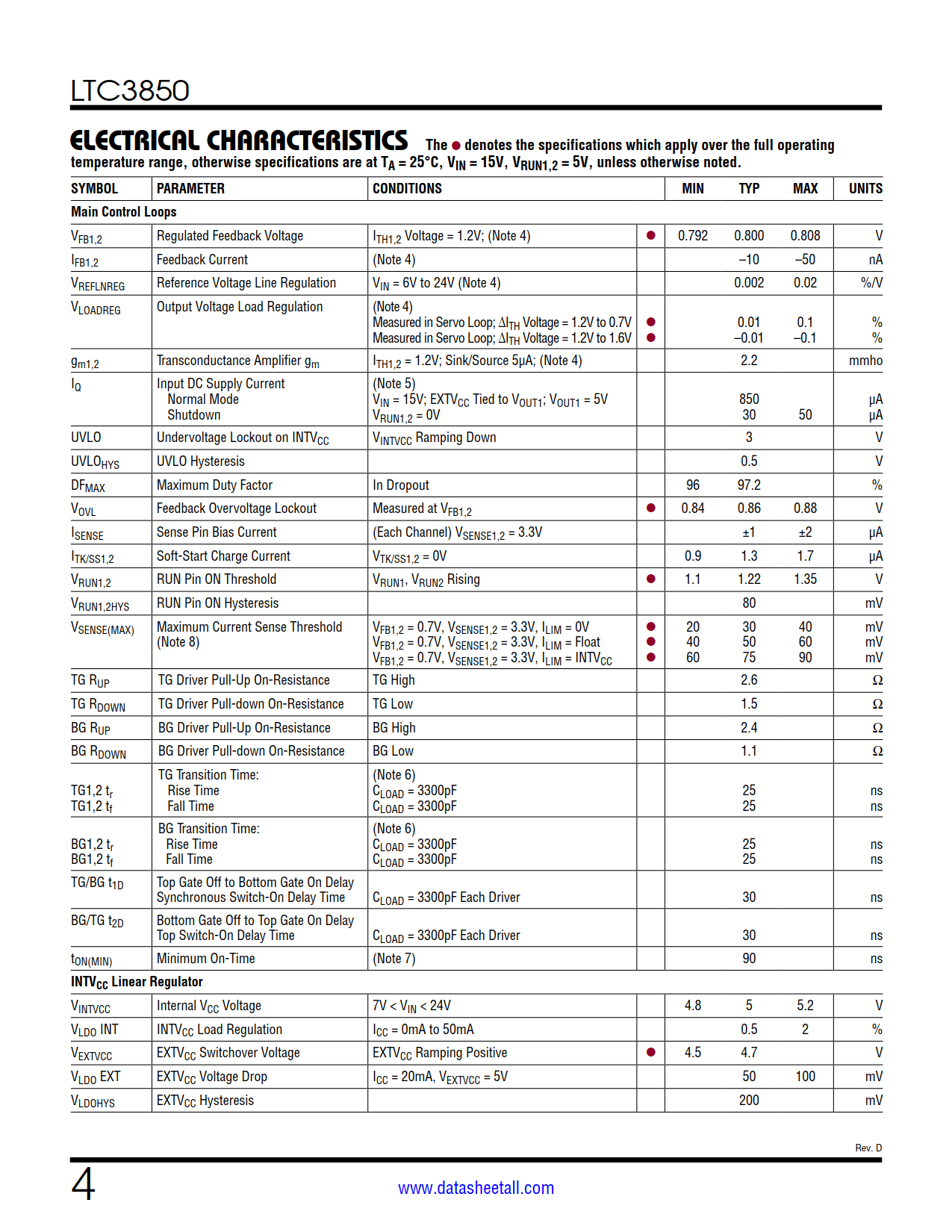

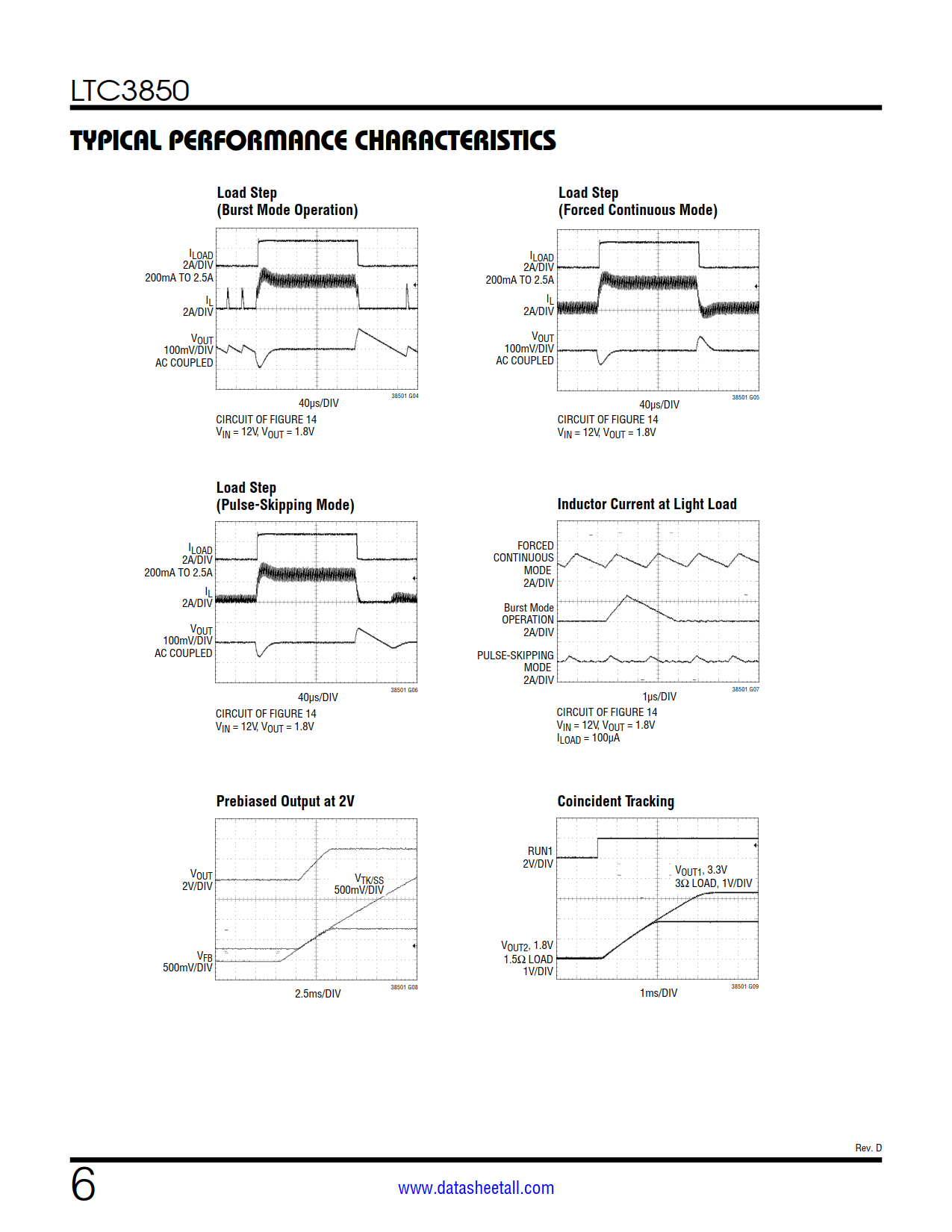

The LTC3850 is available in low profile 28-pin 4mm × 4mm, 4mm × 5mm QFN and narrow SSOP packages.
