LTC3786 Datasheet

LTC3786 Datasheet

Low IQ Synchronous Boost Controller
Part No.: LTC3786
Page: 35 Pages
Size: 1719 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-01-15 10:46:10
DataSheet: Download

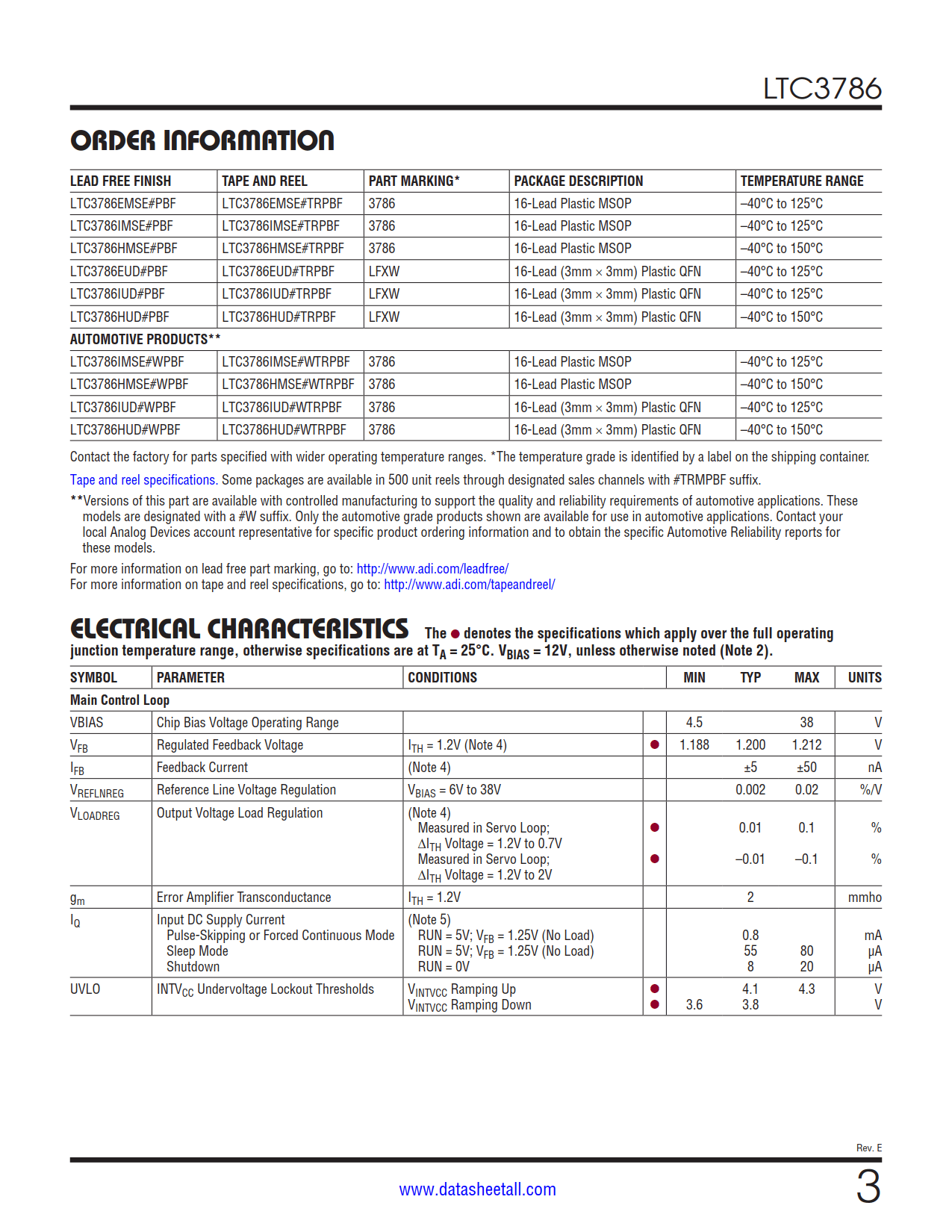

LTC3786 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC3786EMSE#PBF Tube 37 3786 1 16 -40°C ~ 125°C 16-Lead Plastic MSOP
LTC3786EMSE#TRPBF Reel 2500 3786 1 16 -40°C ~ 125°C 16-Lead Plastic MSOP
LTC3786EMSE#TRMPBF Reel 500 3786 1 16 -40°C ~ 125°C 16-Lead Plastic MSOP
LTC3786IMSE#PBF Tube 37 3786 1 16 -40°C ~ 125°C 16-Lead Plastic MSOP
LTC3786IMSE#TRPBF Reel 2500 3786 1 16 -40°C ~ 125°C 16-Lead Plastic MSOP
LTC3786IMSE#TRMPBF Reel 500 3786 1 16 -40°C ~ 125°C 16-Lead Plastic MSOP
LTC3786HMSE#PBF Tube 37 3786 1 16 -40°C ~ 150°C 16-Lead Plastic MSOP
LTC3786HMSE#TRPBF Reel 2500 3786 1 16 -40°C ~ 150°C 16-Lead Plastic MSOP
LTC3786HMSE#TRMPBF Reel 500 3786 1 16 -40°C ~ 150°C 16-Lead Plastic MSOP
LTC3786EUD#PBF Tube 121 LFXW 1 16 -40°C ~ 125°C 16-Lead (3mm × 3mm) Plastic QFN
LTC3786EUD#TRPBF Reel 2500 LFXW 1 16 -40°C ~ 125°C 16-Lead (3mm × 3mm) Plastic QFN
LTC3786EUD#TRMPBF Reel 500 LFXW 1 16 -40°C ~ 125°C 16-Lead (3mm × 3mm) Plastic QFN
LTC3786IUD#PBF Tube 121 LFXW 1 16 -40°C ~ 125°C 16-Lead (3mm × 3mm) Plastic QFN
LTC3786IUD#TRPBF Reel 2500 LFXW 1 16 -40°C ~ 125°C 16-Lead (3mm × 3mm) Plastic QFN
LTC3786IUD#TRMPBF Reel 500 LFXW 1 16 -40°C ~ 125°C 16-Lead (3mm × 3mm) Plastic QFN
LTC3786HUD#PBF Tube 121 LFXW 1 16 -40°C ~ 150°C 16-Lead (3mm × 3mm) Plastic QFN
LTC3786HUD#TRPBF Reel 2500 LFXW 1 16 -40°C ~ 150°C 16-Lead (3mm × 3mm) Plastic QFN
LTC3786HUD#TRMPBF Reel 500 LFXW 1 16 -40°C ~ 150°C 16-Lead (3mm × 3mm) Plastic QFN
LTC3786IMSE#WPBF Tube 37 3786 1 16 -40°C ~ 125°C 16-Lead Plastic MSOP
LTC3786IMSE#WTRPBF Reel 2500 3786 1 16 -40°C ~ 125°C 16-Lead Plastic MSOP
LTC3786IMSE#WTRMPBF Reel 500 3786 1 16 -40°C ~ 125°C 16-Lead Plastic MSOP
LTC3786HMSE#WPBF Tube 37 3786 1 16 -40°C ~ 150°C 16-Lead Plastic MSOP
LTC3786HMSE#WTRPBF Reel 2500 3786 1 16 -40°C ~ 150°C 16-Lead Plastic MSOP
LTC3786HMSE#WTRMPBF Reel 500 3786 1 16 -40°C ~ 150°C 16-Lead Plastic MSOP
LTC3786IUD#WPBF Tube 121 LFXW 1 16 -40°C ~ 125°C 16-Lead (3mm × 3mm) Plastic QFN
LTC3786IUD#WTRPBF Reel 2500 LFXW 1 16 -40°C ~ 125°C 16-Lead (3mm × 3mm) Plastic QFN
LTC3786IUD#WTRMPBF Reel 500 LFXW 1 16 -40°C ~ 125°C 16-Lead (3mm × 3mm) Plastic QFN
LTC3786HUD#WPBF Tube 121 LFXW 1 16 -40°C ~ 150°C 16-Lead (3mm × 3mm) Plastic QFN
LTC3786HUD#WTRPBF Reel 2500 LFXW 1 16 -40°C ~ 150°C 16-Lead (3mm × 3mm) Plastic QFN
LTC3786HUD#WTRMPBF Reel 500 LFXW 1 16 -40°C ~ 150°C 16-Lead (3mm × 3mm) Plastic QFN
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC3786 Datasheet(PDF)

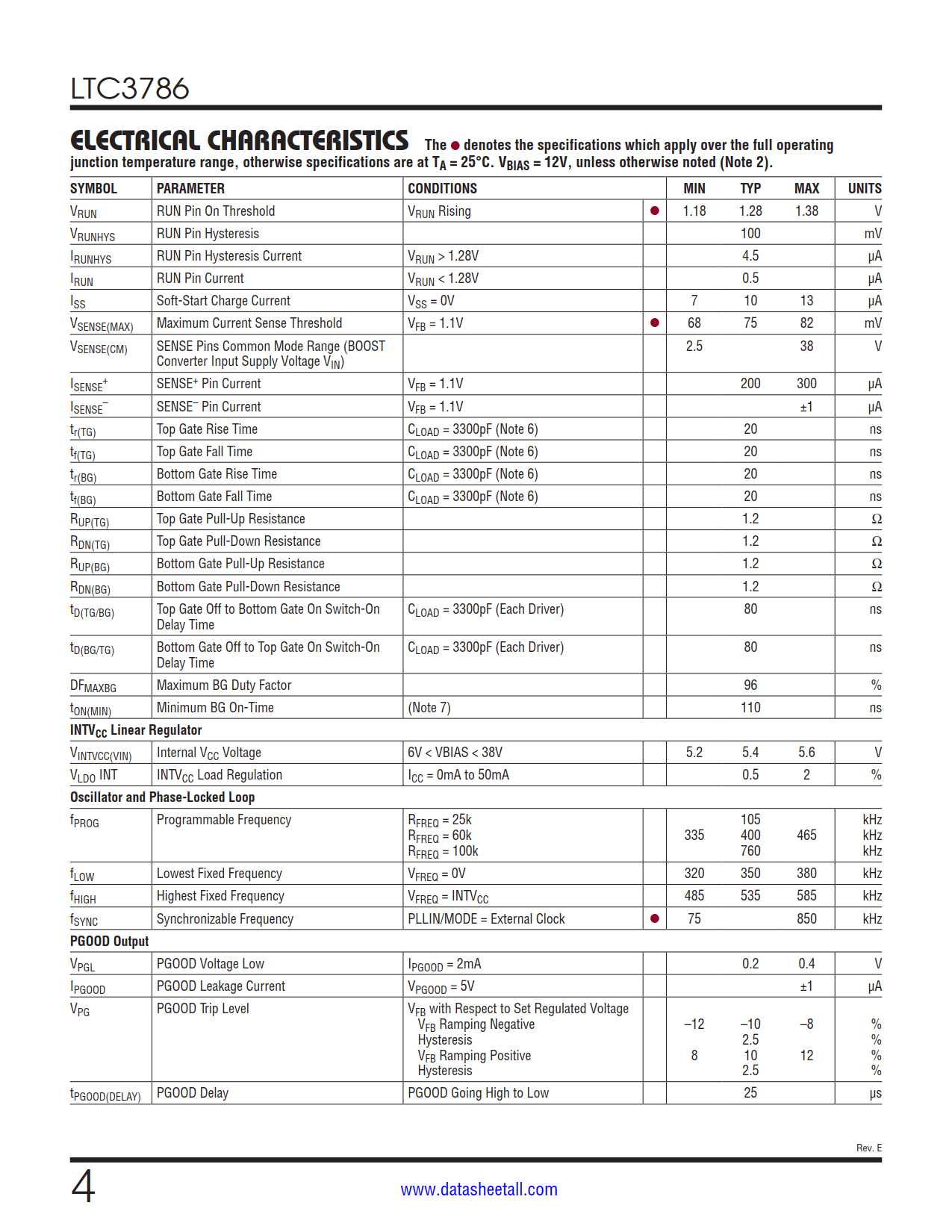

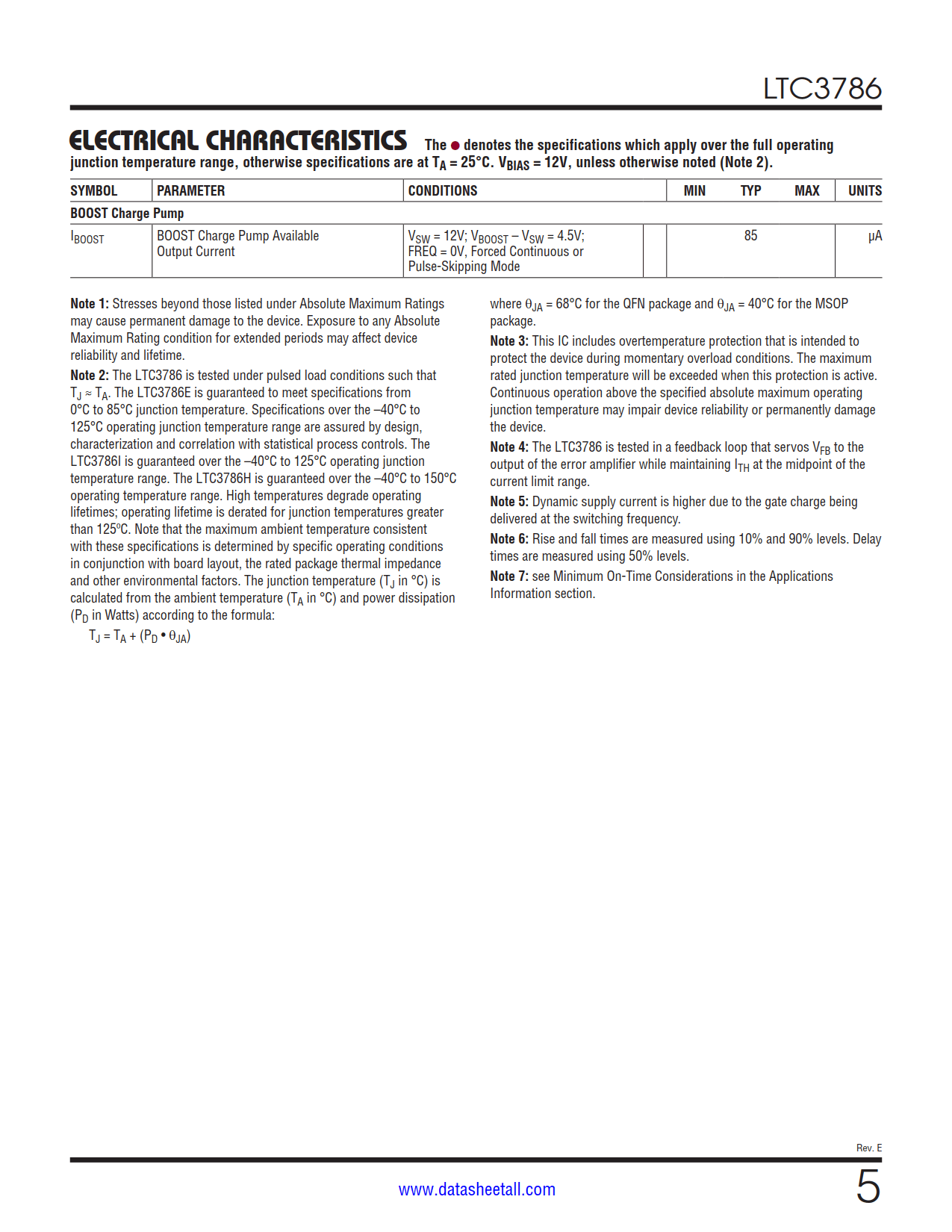

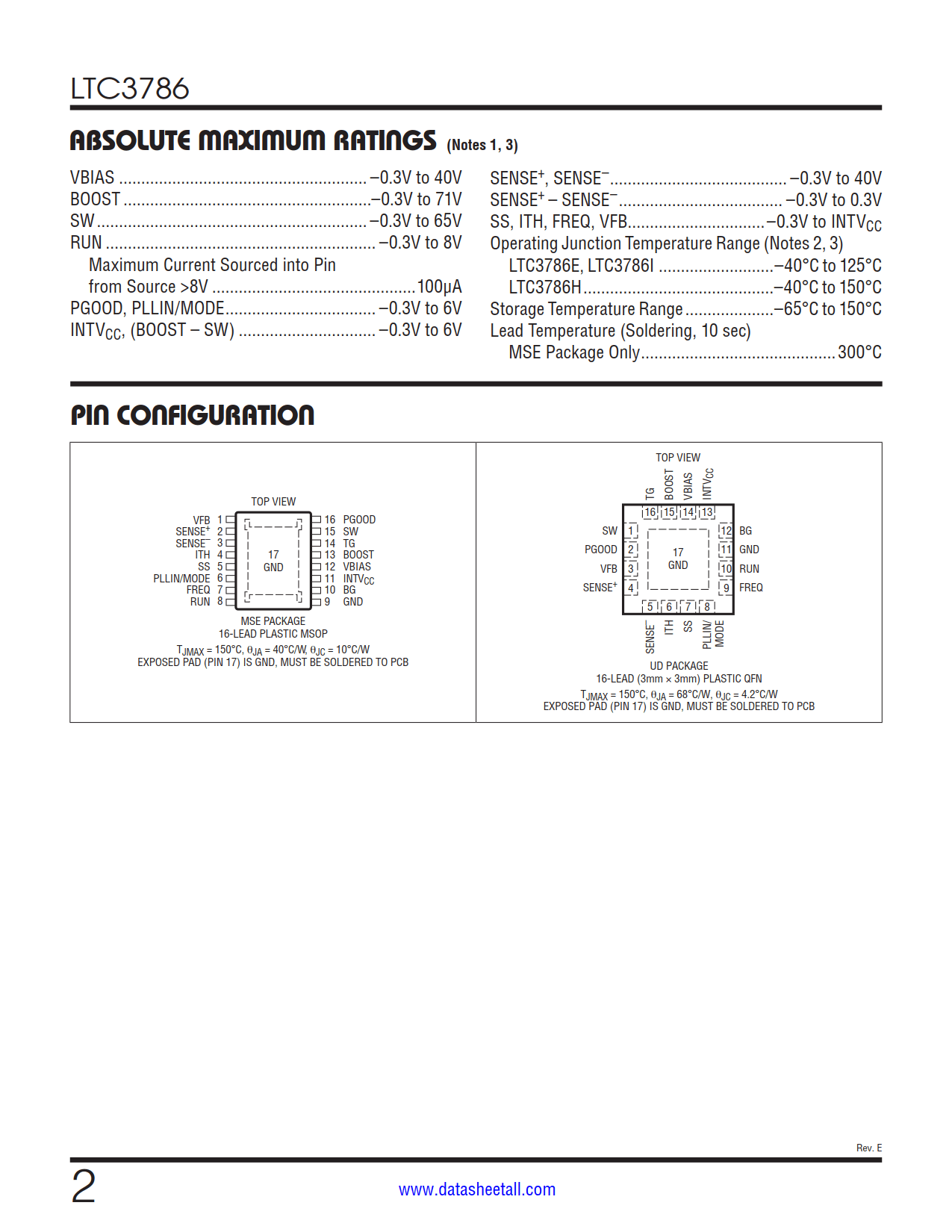

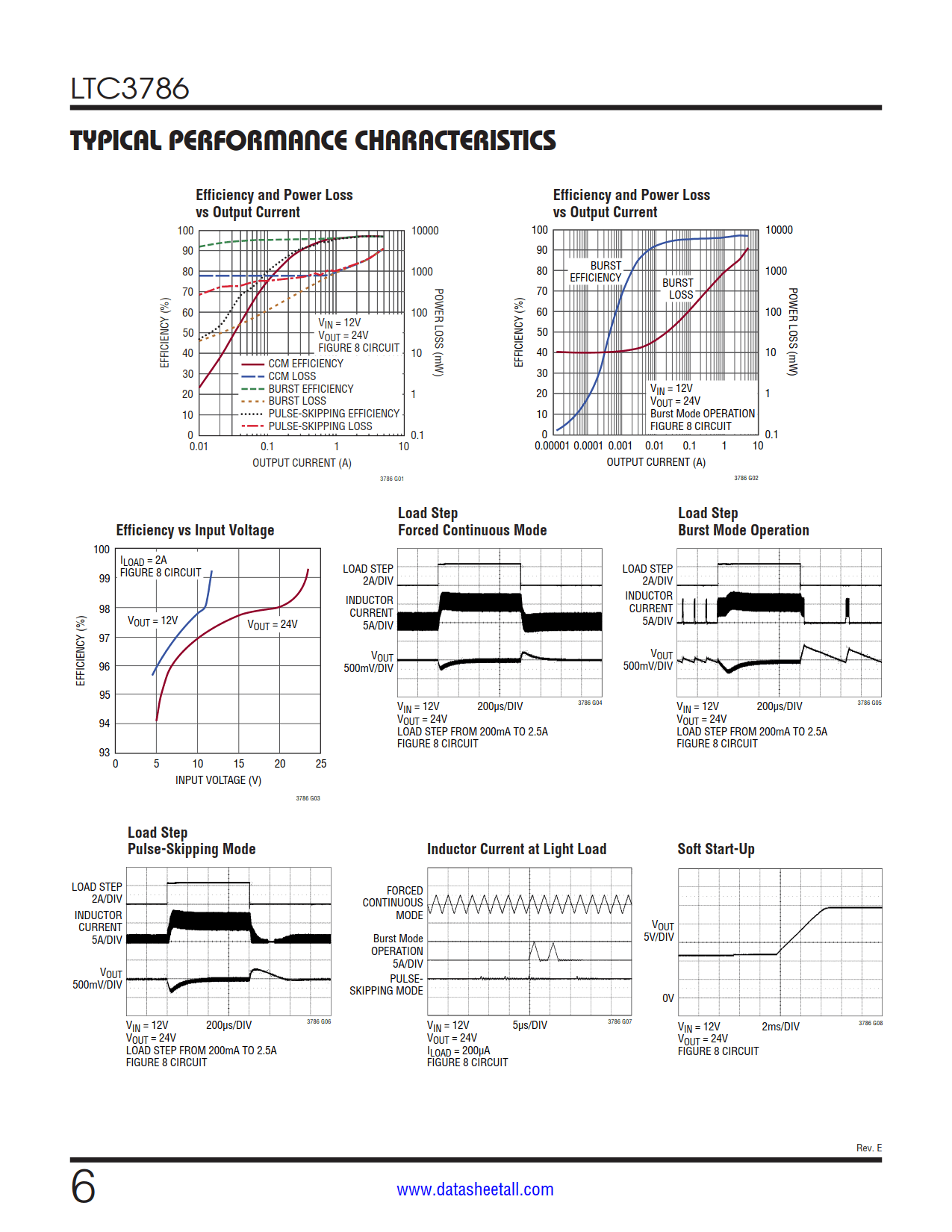

LTC3786 Datasheet(Picture)

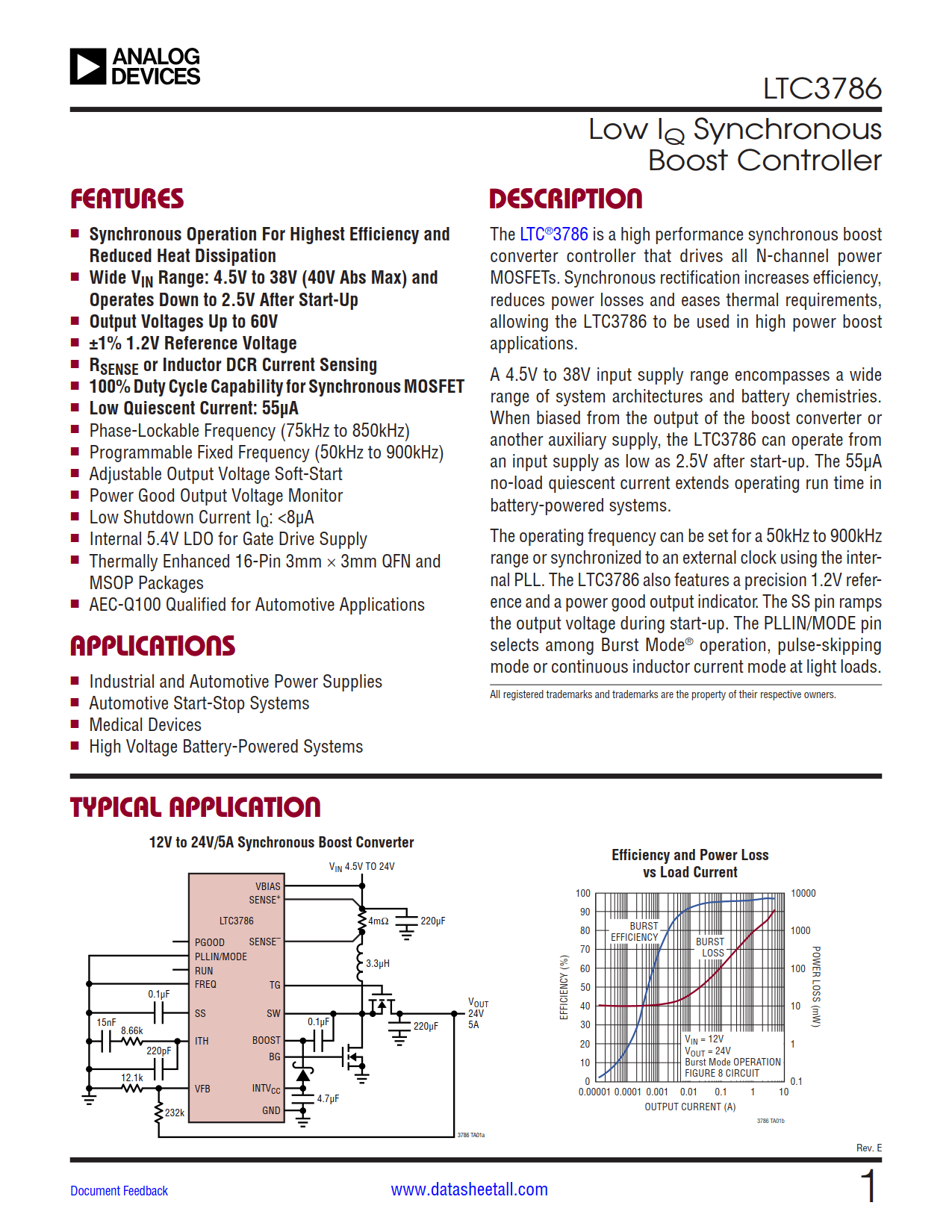

LTC3786 Features

  • Synchronous Operation For Highest Efficiency and Reduced Heat Dissipation
  • Wide VIN Range: 4.5V to 38V (40V Abs Max) and Operates Down to 2.5V After Start-Up
  • Output Voltages Up to 60V
  • ±1% 1.2V Reference Voltage
  • RSENSE or Inductor DCR Current Sensing
  • 100% Duty Cycle Capability for Synchronous MOSFET
  • Low Quiescent Current: 55μA
  • Phase-Lockable Frequency (75kHz to 850kHz)
  • Programmable Fixed Frequency (50kHz to 900kHz)
  • Adjustable Output Voltage Soft-Start
  • Power Good Output Voltage Monitor
  • Low Shutdown Current IQ: <8μA
  • Internal 5.4V LDO for Gate Drive Supply
  • Thermally Enhanced 16-Pin 3mm × 3mm QFN and MSOP Packages
  • AEC-Q100 Qualified for Automotive Applications

LTC3786 Applications

  • Industrial and Automotive Power Supplies
  • Automotive Start-Stop Systems
  • Medical Devices
  • High Voltage Battery-Powered Systems

LTC3786 Description

The LTC3786 is a high performance synchronous boost converter controller that drives all N-channel power MOSFETs. Synchronous rectification increases efficiency, reduces power losses and eases thermal requirements, allowing the LTC3786 to be used in high power boost applications.

A 4.5V to 38V input supply range encompasses a wide range of system architectures and battery chemistries. When biased from the output of the boost converter or another auxiliary supply, the LTC3786 can operate from an input supply as low as 2.5V after start-up. The 55μA no-load quiescent current extends operating run time in battery-powered systems.

The operating frequency can be set for a 50kHz to 900kHz range or synchronized to an external clock using the internal PLL. The LTC3786 also features a precision 1.2V reference and a power good output indicator. The SS pin ramps the output voltage during start-up. The PLLIN/MODE pin selects among Burst Mode® operation, pulse-skipping mode or continuous inductor current mode at light loads.
