LTC3639 Datasheet

LTC3639 Datasheet

High Efficiency, 150V 100mA Synchronous Step-Down Regulator
Part No.: LTC3639
Page: 26 Pages
Size: 3437 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2023-10-23 11:30:13
DataSheet: Download

LTC3639 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC3639EMSE#PBF Tube 37 3639 1 16 -40°C ~ 125°C 16-Lead Plastic MSOP
LTC3639EMSE#TRPBF Reel 2500 3639 1 16 -40°C ~ 125°C 16-Lead Plastic MSOP
LTC3639EMSE#TRMPBF Reel 500 3639 1 16 -40°C ~ 125°C 16-Lead Plastic MSOP
LTC3639IMSE#PBF Tube 37 3639 1 16 -40°C ~ 125°C 16-Lead Plastic MSOP
LTC3639IMSE#TRPBF Reel 2500 3639 1 16 -40°C ~ 125°C 16-Lead Plastic MSOP
LTC3639IMSE#TRMPBF Reel 500 3639 1 16 -40°C ~ 125°C 16-Lead Plastic MSOP
LTC3639HMSE#PBF Tube 37 3639 1 16 -40°C ~ 150°C 16-Lead Plastic MSOP
LTC3639HMSE#TRPBF Reel 2500 3639 1 16 -40°C ~ 150°C 16-Lead Plastic MSOP
LTC3639HMSE#TRMPBF Reel 500 3639 1 16 -40°C ~ 150°C 16-Lead Plastic MSOP
LTC3639MPMSE#PBF Tube 37 3639 1 16 -55°C ~ 150°C 16-Lead Plastic MSOP
LTC3639MPMSE#TRPBF Reel 2500 3639 1 16 -55°C ~ 150°C 16-Lead Plastic MSOP
LTC3639MPMSE#TRMPBF Reel 500 3639 1 16 -55°C ~ 150°C 16-Lead Plastic MSOP
LTC3639IMSE#WPBF Tube 37 3639 1 16 -40°C ~ 125°C 16-Lead Plastic MSOP
LTC3639IMSE#WTRPBF Reel 2500 3639 1 16 -40°C ~ 125°C 16-Lead Plastic MSOP
LTC3639IMSE#WTRMPBF Reel 500 3639 1 16 -40°C ~ 125°C 16-Lead Plastic MSOP
LTC3639HMSE#WPBF Tube 37 3639 1 16 -40°C ~ 150°C 16-Lead Plastic MSOP
LTC3639HMSE#WTRPBF Reel 2500 3639 1 16 -40°C ~ 150°C 16-Lead Plastic MSOP
LTC3639HMSE#WTRMPBF Reel 500 3639 1 16 -40°C ~ 150°C 16-Lead Plastic MSOP
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC3639 Datasheet(PDF)

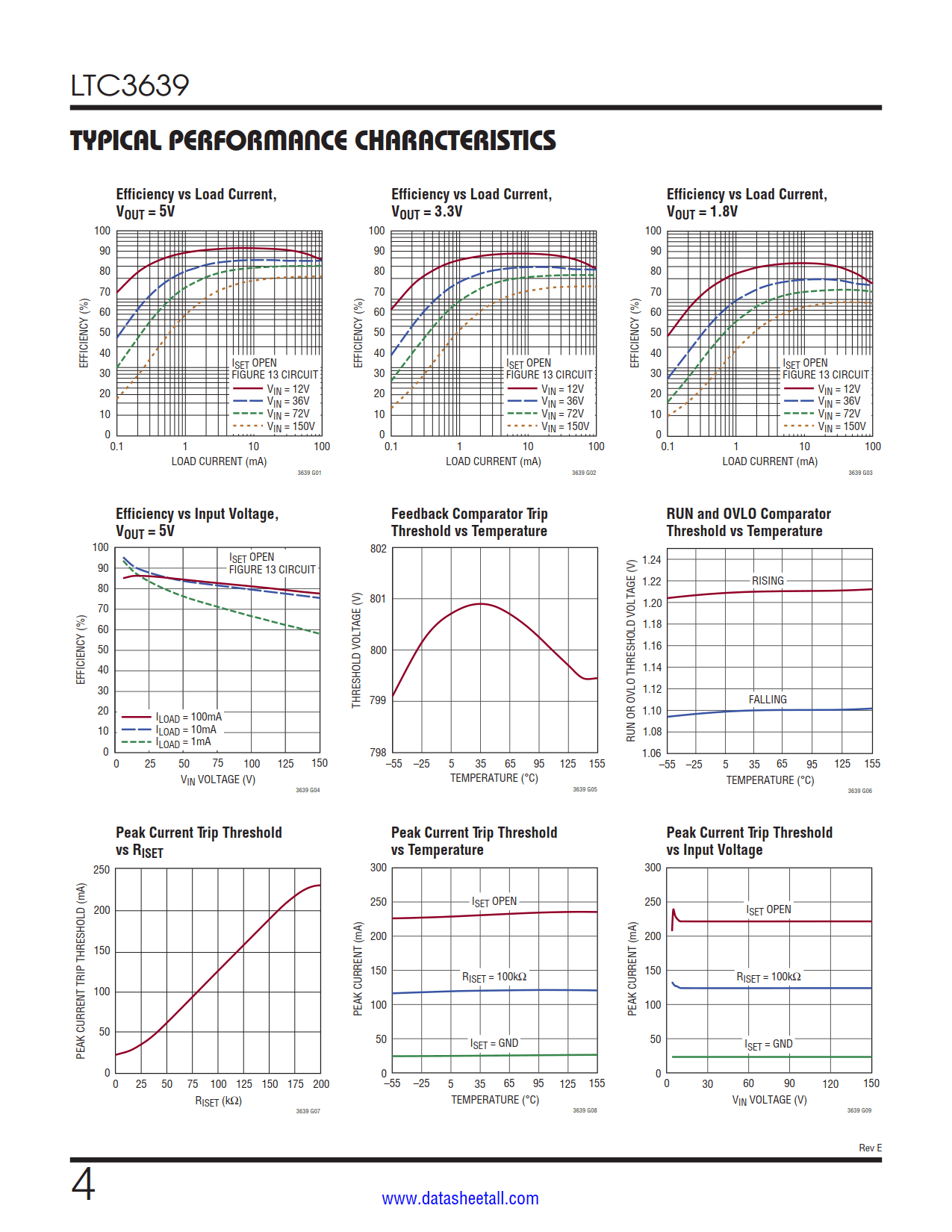

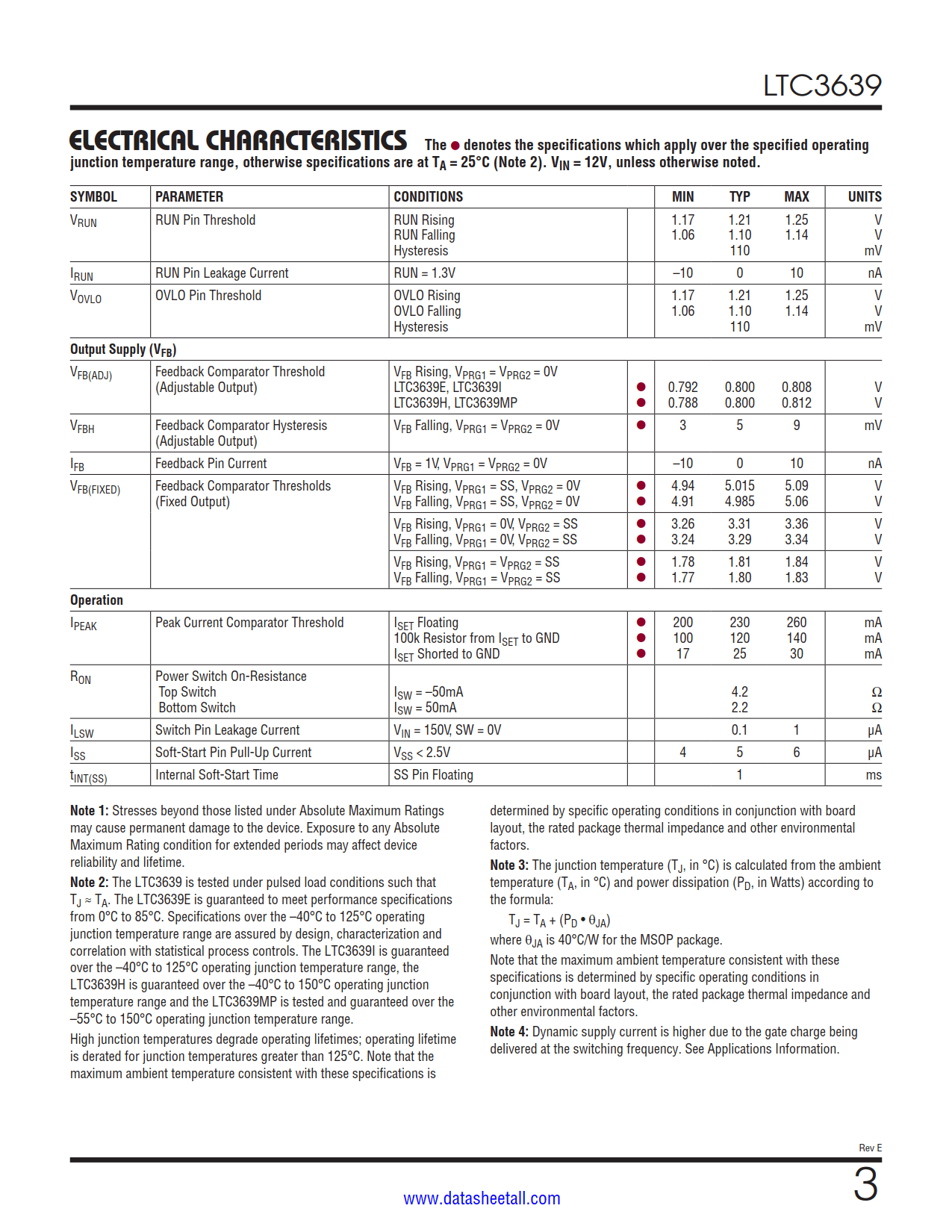

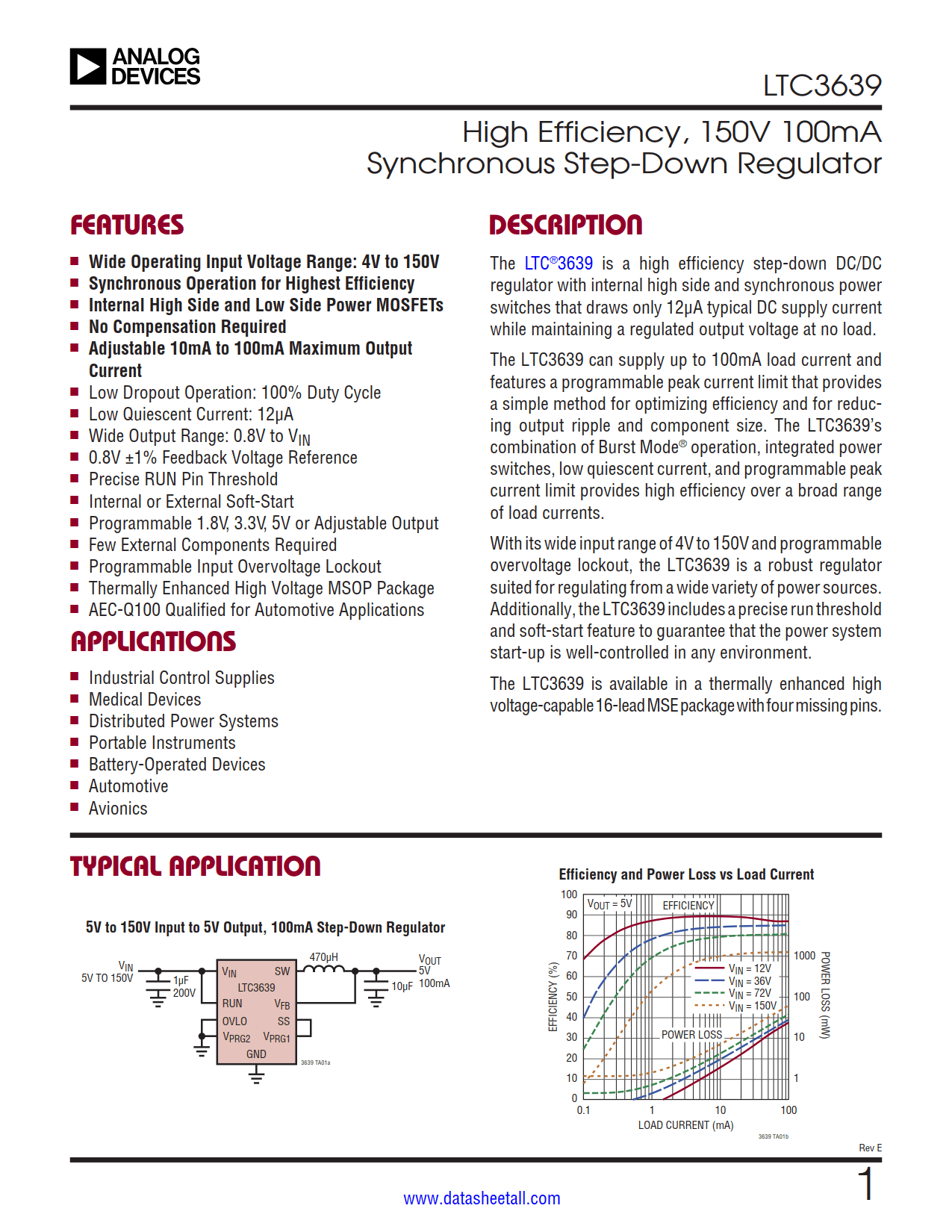

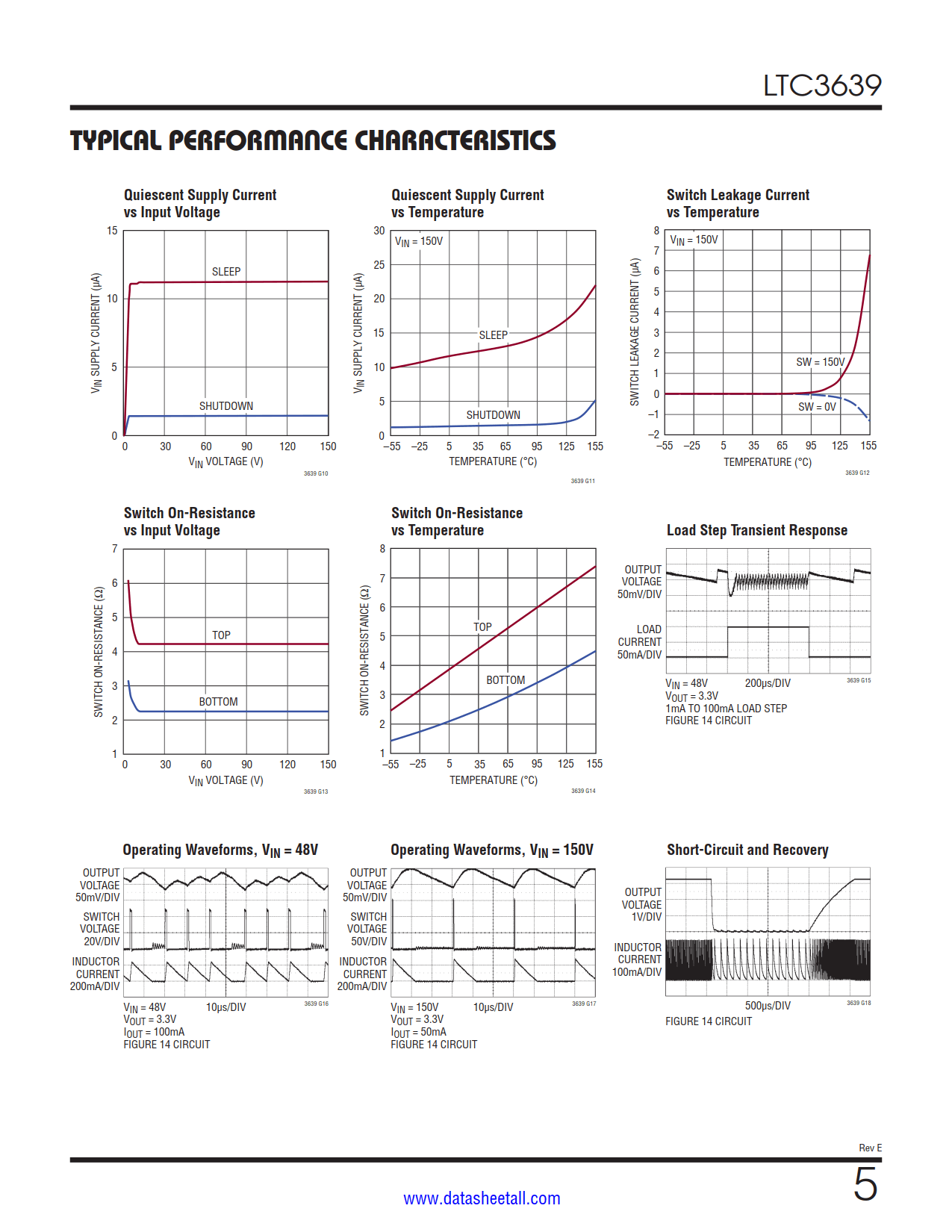

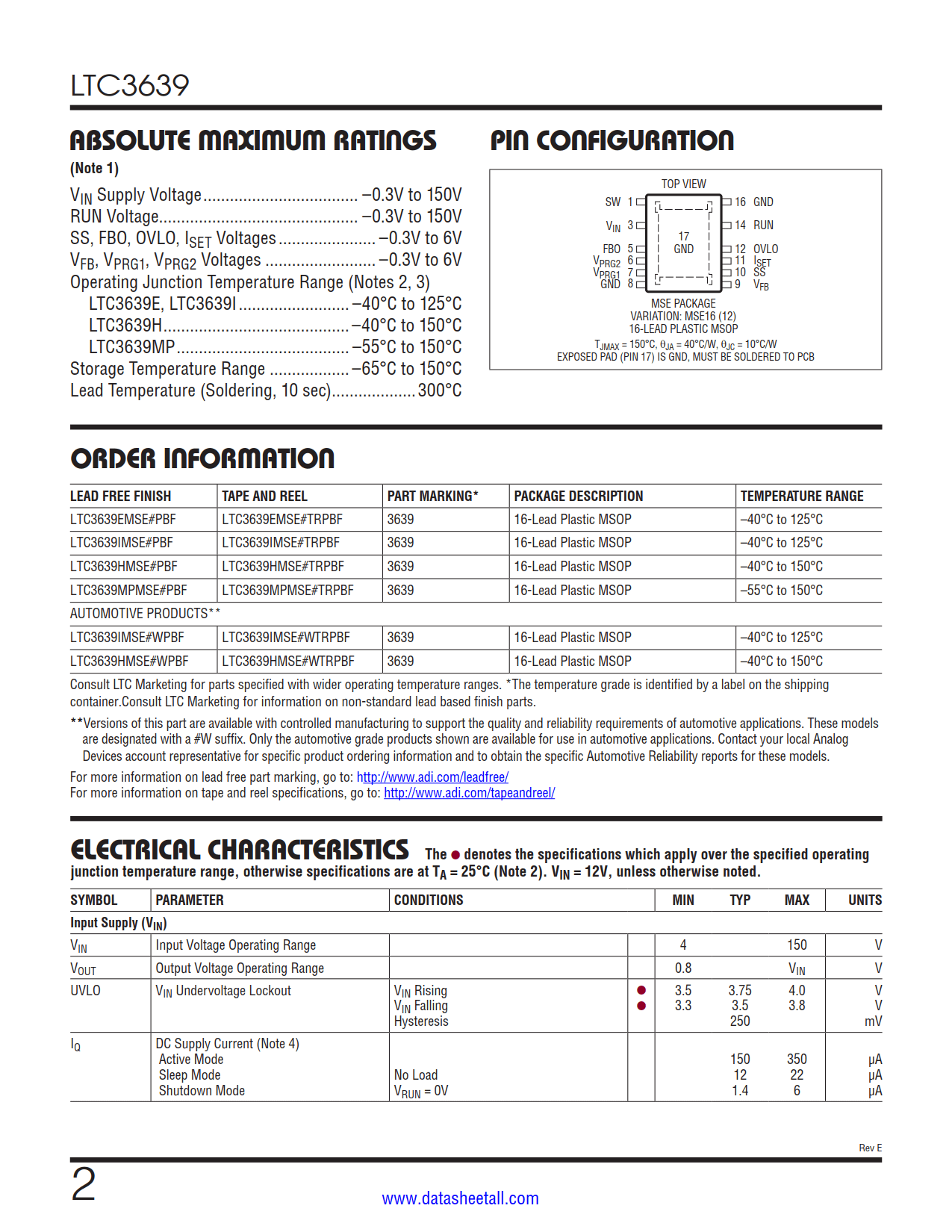

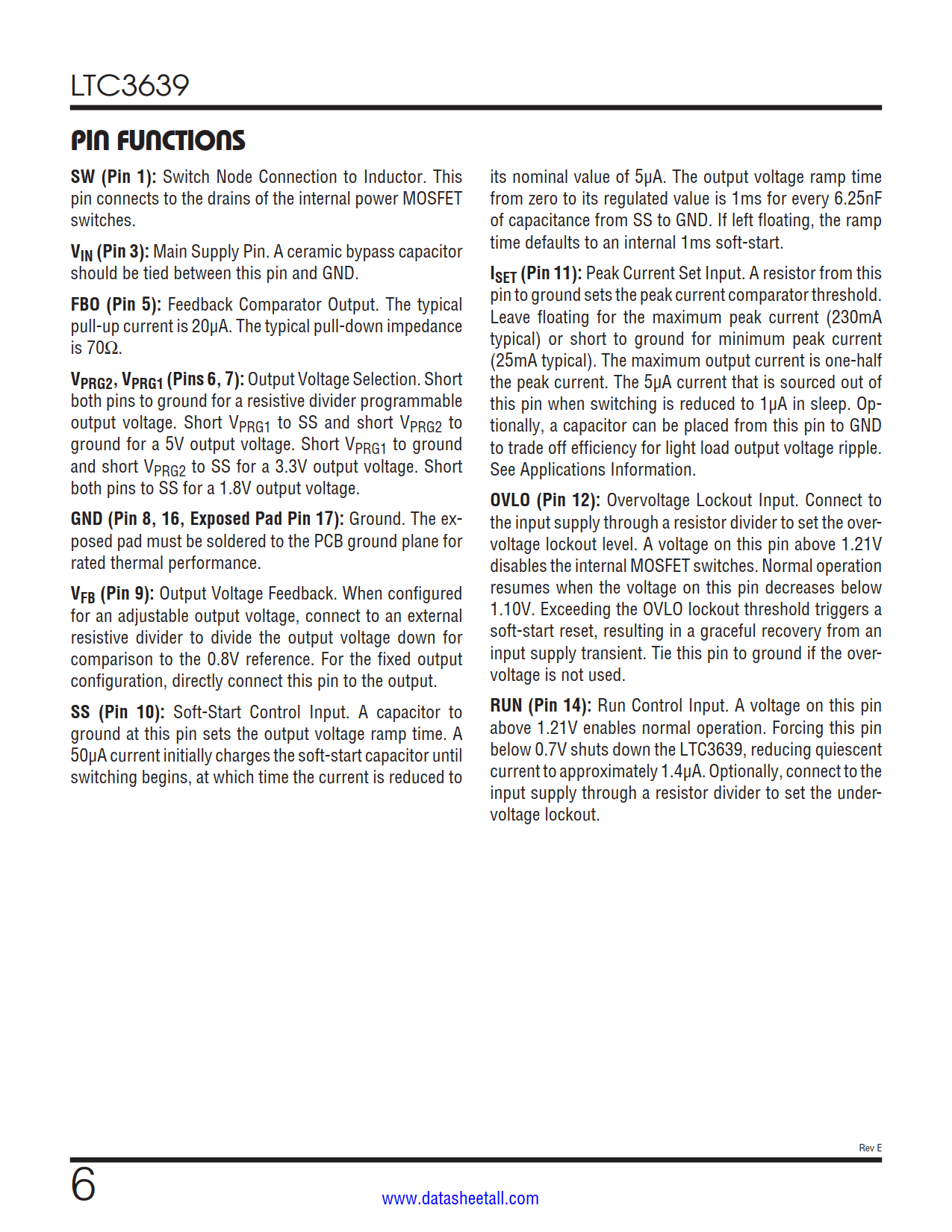

LTC3639 Datasheet(Picture)

LTC3639 Features

  • Wide Operating Input Voltage Range: 4V to 150V
  • Synchronous Operation for Highest Efficiency
  • Internal High Side and Low Side Power MOSFETs
  • No Compensation Required
  • Adjustable 10mA to 100mA Maximum Output Current
  • Low Dropout Operation: 100% Duty Cycle
  • Low Quiescent Current: 12μA
  • Wide Output Range: 0.8V to VIN
  • 0.8V ±1% Feedback Voltage Reference
  • Precise RUN Pin Threshold
  • Internal or External Soft-Start
  • Programmable 1.8V, 3.3V, 5V or Adjustable Output
  • Few External Components Required
  • Programmable Input Overvoltage Lockout
  • Thermally Enhanced High Voltage MSOP Package
  • AEC-Q100 Qualified for Automotive Applications

LTC3639 Applications

  • Industrial Control Supplies
  • Medical Devices
  • Distributed Power Systems
  • Portable Instruments
  • Battery-Operated Devices
  • Automotive
  • Avionics

LTC3639 Description

The LTC3639 is a high efficiency step-down DC/DC regulator with internal high side and synchronous power switches that draws only 12μA typical DC supply current while maintaining a regulated output voltage at no load.

The LTC3639 can supply up to 100mA load current and features a programmable peak current limit that provides a simple method for optimizing efficiency and for reducing output ripple and component size. The LTC3639’s combination of Burst Mode® operation, integrated power switches, low quiescent current, and programmable peak current limit provides high efficiency over a broad range of load currents.

With its wide input range of 4V to 150V and programmable overvoltage lockout, the LTC3639 is a robust regulator suited for regulating from a wide variety of power sources. Additionally, the LTC3639 includes a precise run threshold and soft-start feature to guarantee that the power system start-up is well-controlled in any environment.

The LTC3639 is available in a thermally enhanced high voltage-capable 16-lead MSE package with four missing pins.
