LTC3633 Datasheet

LTC3633 Datasheet

Dual Channel 3A, 15V Monolithic Synchronous Step-Down Regulator
Part No.: LTC3633
Page: 28 Pages
Size: 389 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2023-12-05 15:54:01
DataSheet: Download

LTC3633 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC3633EUFD#PBF Tube 73 3633 1 28 -40°C ~ 125°C 28-Lead (4mm × 5mm) Plastic QFN
LTC3633EUFD#TRPBF Reel 2500 3633 1 28 -40°C ~ 125°C 28-Lead (4mm × 5mm) Plastic QFN
LTC3633EUFD#TRMPBF Reel 500 3633 1 28 -40°C ~ 125°C 28-Lead (4mm × 5mm) Plastic QFN
LTC3633IUFD#PBF Tube 73 3633 1 28 -40°C ~ 125°C 28-Lead (4mm × 5mm) Plastic QFN
LTC3633IUFD#TRPBF Reel 2500 3633 1 28 -40°C ~ 125°C 28-Lead (4mm × 5mm) Plastic QFN
LTC3633IUFD#TRMPBF Reel 500 3633 1 28 -40°C ~ 125°C 28-Lead (4mm × 5mm) Plastic QFN
LTC3633EFE#PBF Tube 50 LTC3633FE 1 28 -40°C ~ 125°C 28-Lead Plastic TSSOP
LTC3633EFE#TRPBF Reel 2000 LTC3633FE 1 28 -40°C ~ 125°C 28-Lead Plastic TSSOP
LTC3633EFE#TRMPBF Reel 500 LTC3633FE 1 28 -40°C ~ 125°C 28-Lead Plastic TSSOP
LTC3633IFE#PBF Tube 50 LTC3633FE 1 28 -40°C ~ 125°C 28-Lead Plastic TSSOP
LTC3633IFE#TRPBF Reel 2000 LTC3633FE 1 28 -40°C ~ 125°C 28-Lead Plastic TSSOP
LTC3633IFE#TRMPBF Reel 500 LTC3633FE 1 28 -40°C ~ 125°C 28-Lead Plastic TSSOP
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC3633 Datasheet(PDF)

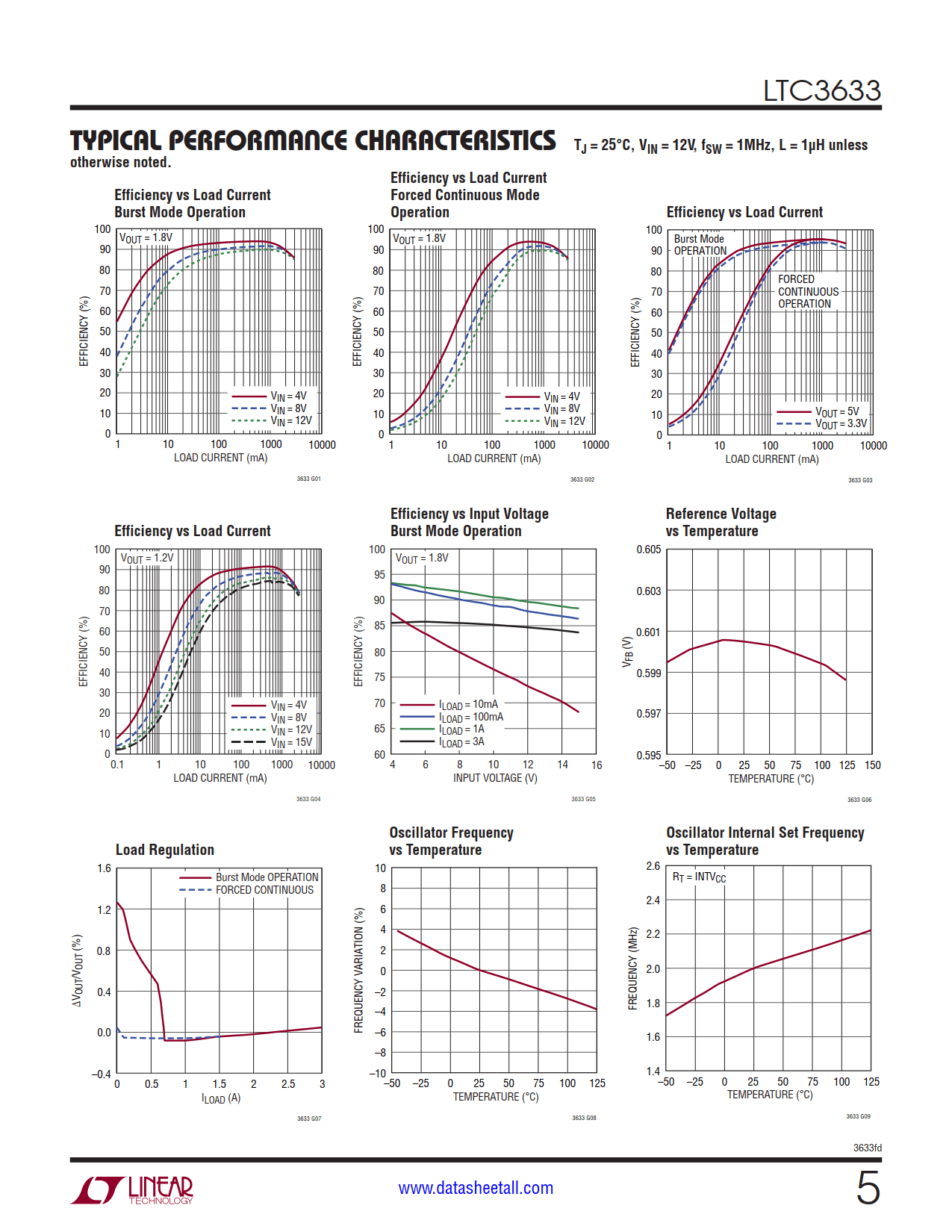

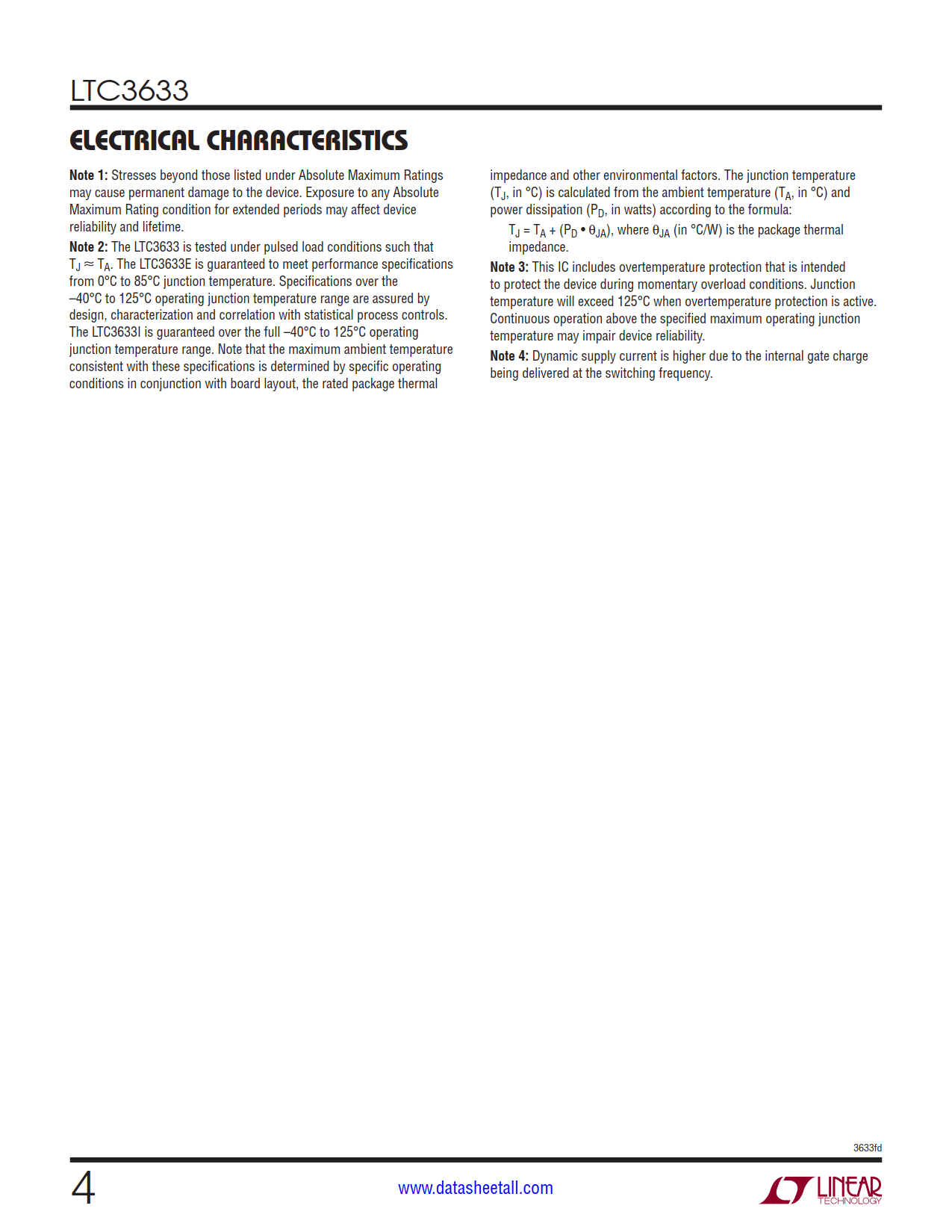

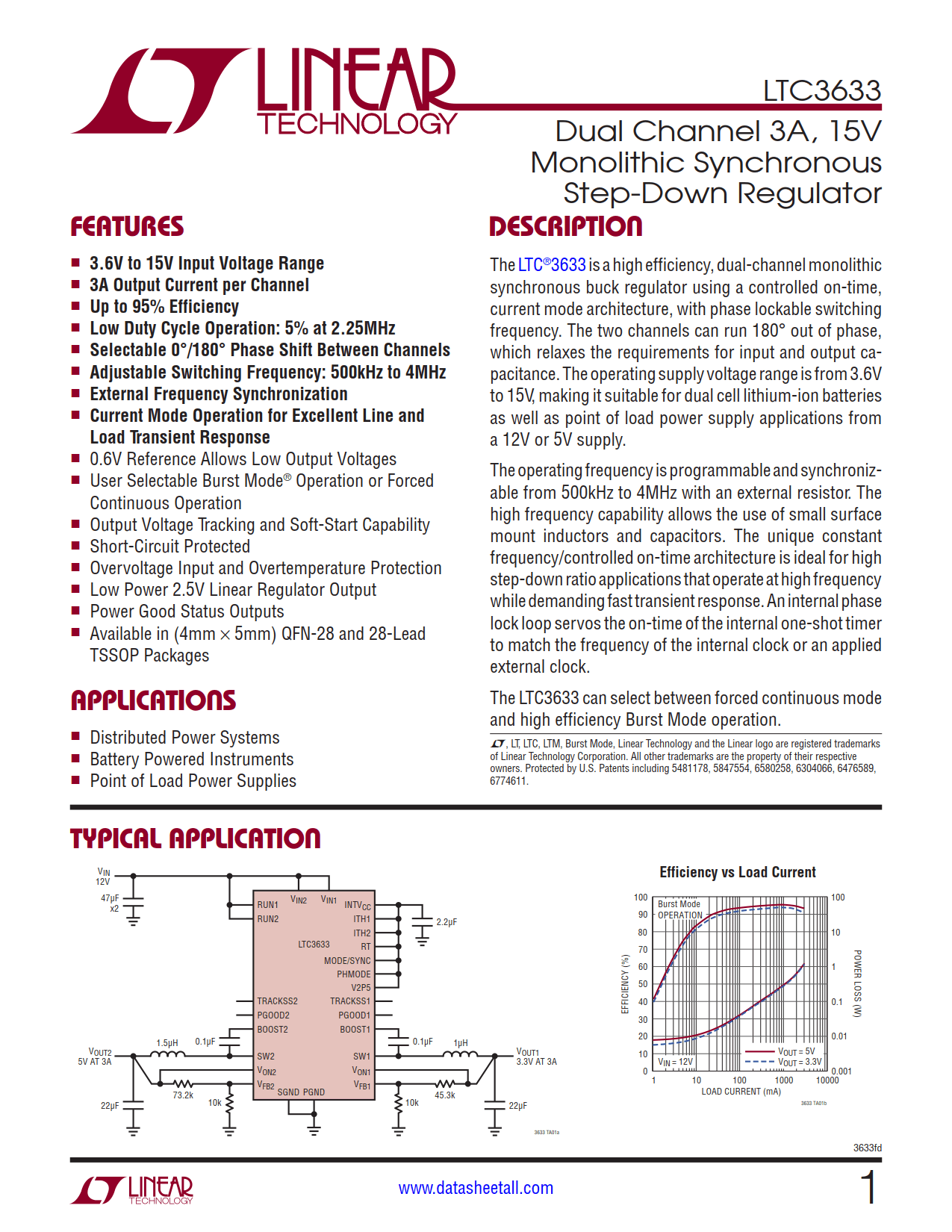

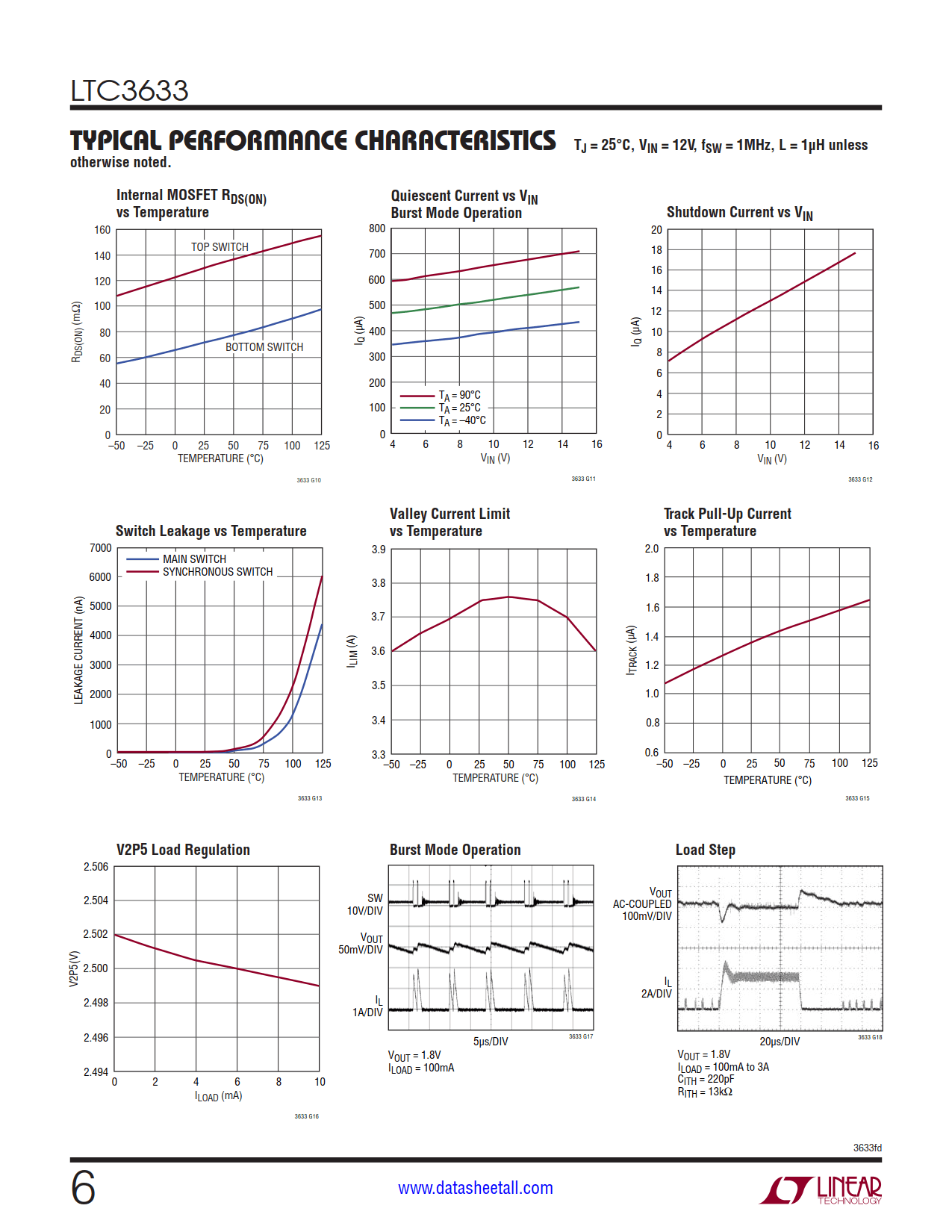

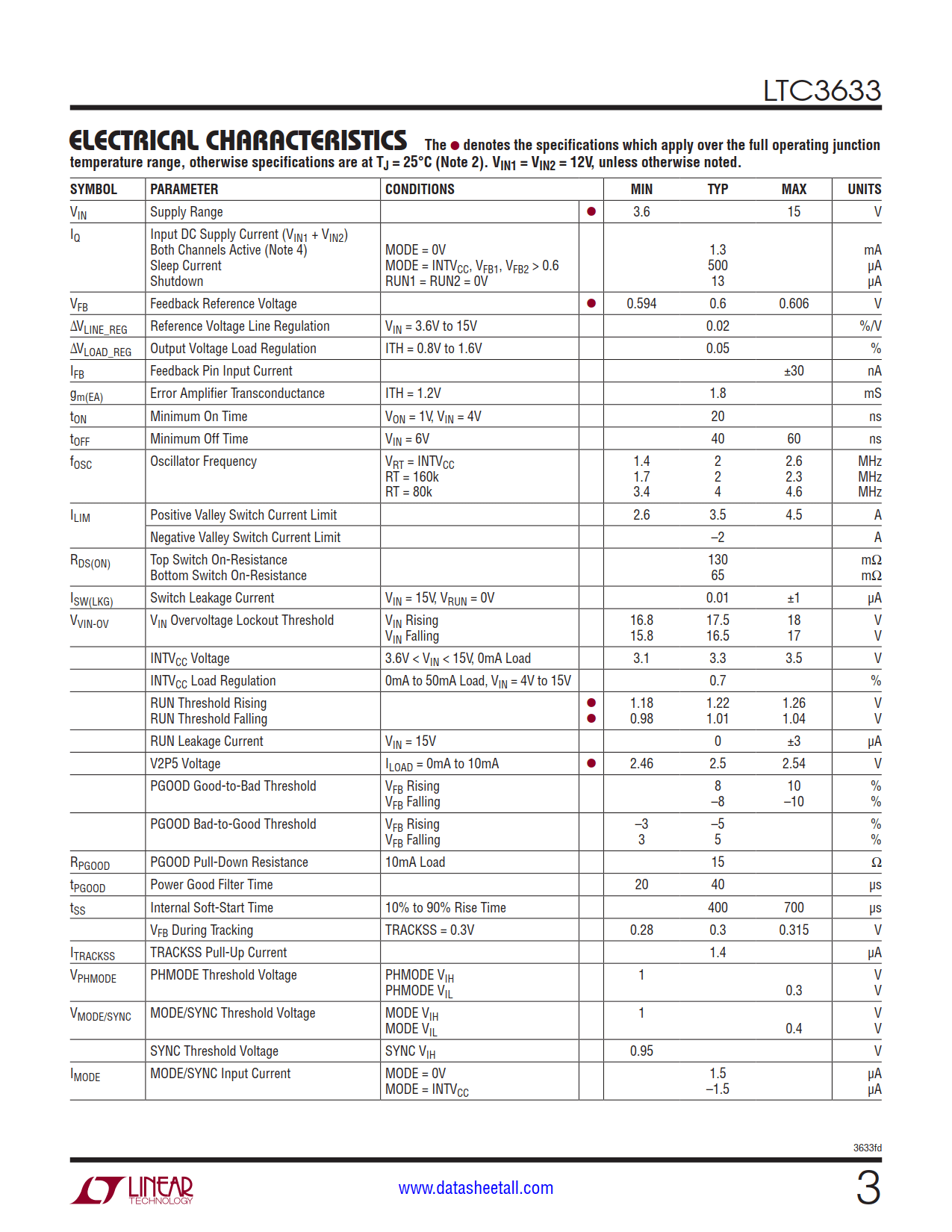

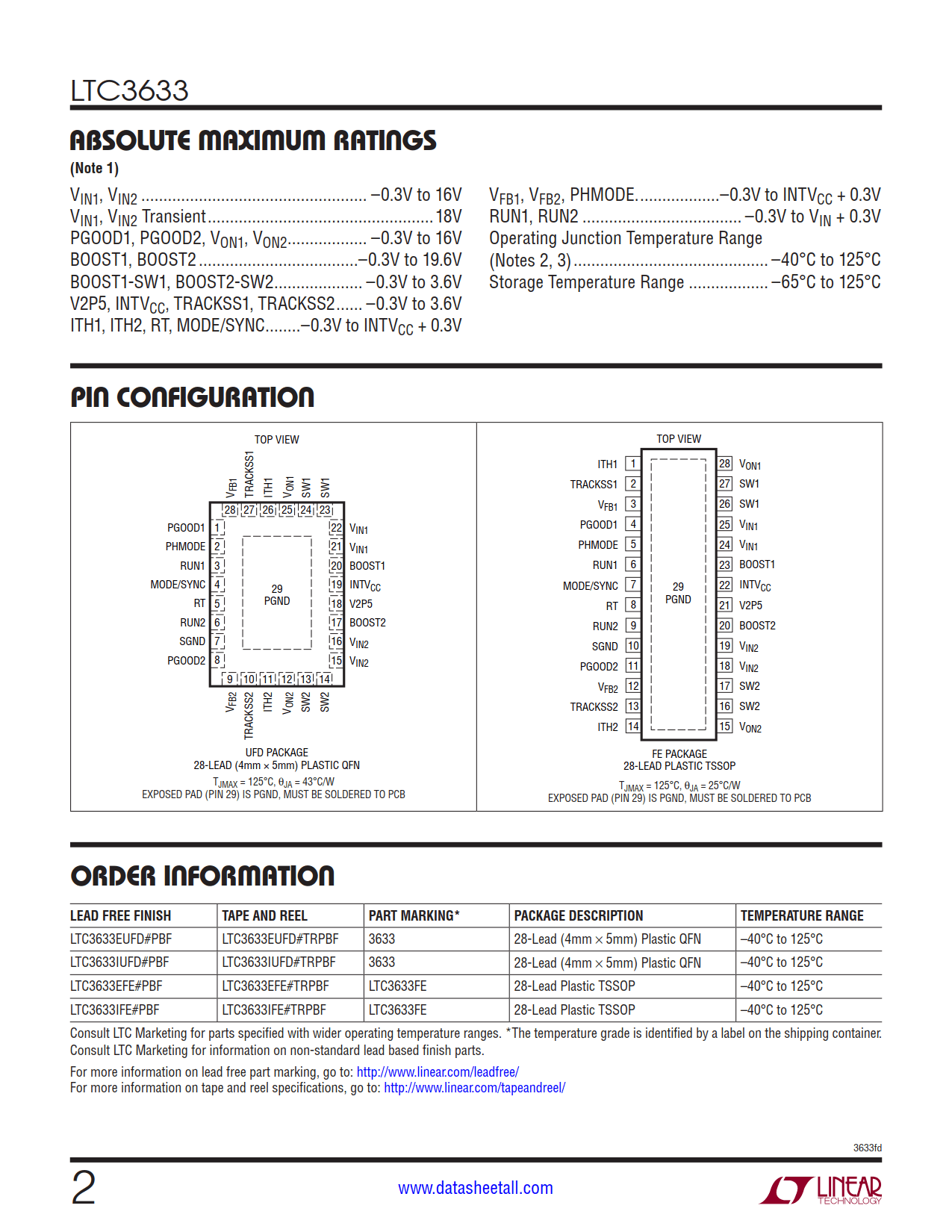

LTC3633 Datasheet(Picture)

LTC3633 Features

  • 3.6V to 15V Input Voltage Range
  • 3A Output Current per Channel
  • Up to 95% Efficiency
  • Low Duty Cycle Operation: 5% at 2.25MHz
  • Selectable 0°/180° Phase Shift Between Channels
  • Adjustable Switching Frequency: 500kHz to 4MHz
  • External Frequency Synchronization
  • Current Mode Operation for Excellent Line and Load Transient Response
  • 0.6V Reference Allows Low Output Voltages
  • User Selectable Burst Mode® Operation or Forced Continuous Operation
  • Output Voltage Tracking and Soft-Start Capability
  • Short-Circuit Protected
  • Overvoltage Input and Overtemperature Protection
  • Low Power 2.5V Linear Regulator Output
  • Power Good Status Outputs
  • Available in (4mm × 5mm) QFN-28 and 28-Lead TSSOP Packages

LTC3633 Applications

  • Distributed Power Systems
  • Battery Powered Instruments
  • Point of Load Power Supplies

LTC3633 Description

The LTC3633 is a high efficiency, dual-channel monolithic synchronous buck regulator using a controlled on-time, current mode architecture, with phase lockable switching frequency. The two channels can run 180° out of phase, which relaxes the requirements for input and output capacitance. The operating supply voltage range is from 3.6V to 15V, making it suitable for dual cell lithium-ion batteries as well as point of load power supply applications from a 12V or 5V supply.

The operating frequency is programmable and synchronizable from 500kHz to 4MHz with an external resistor. The high frequency capability allows the use of small surface mount inductors and capacitors. The unique constant frequency/controlled on-time architecture is ideal for high step-down ratio applications that operate at high frequency while demanding fast transient response. An internal phase lock loop servos the on-time of the internal one-shot timer to match the frequency of the internal clock or an applied external clock.

The LTC3633 can select between forced continuous mode and high efficiency Burst Mode operation.
