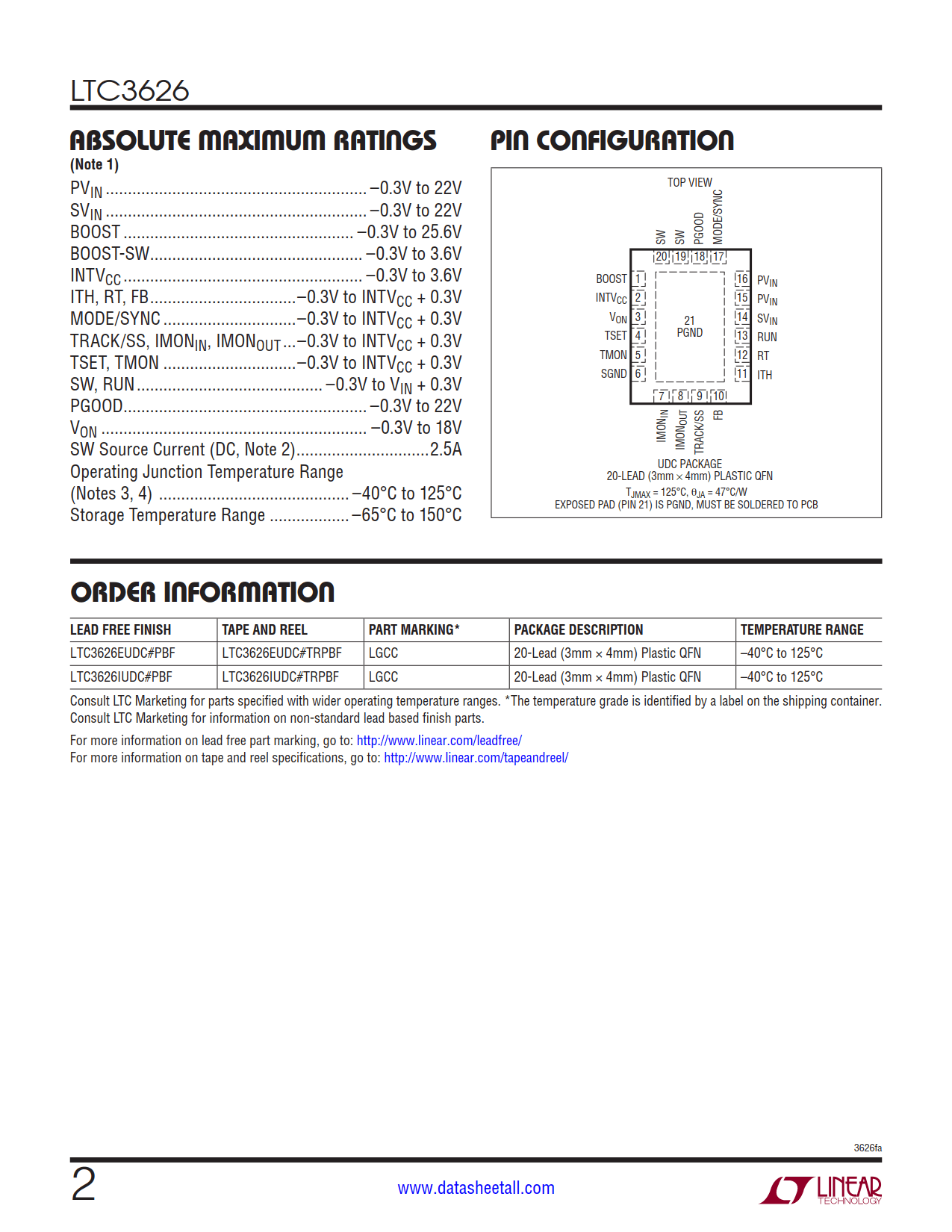

| Part No.： | LTC3626 |
| Page： | 28 Pages |
| Size： | 376 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2024-11-15 15:28:02 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC3626EUDC#PBF | Tube | 91 | LGCC | 1 | 20 | -40°C ~125°C | 20-Lead (3mm × 4mm) Plastic QFN | |
| LTC3626EUDC#TRPBF | Reel | 2500 | LGCC | 1 | 20 | -40°C ~125°C | 20-Lead (3mm × 4mm) Plastic QFN | |
| LTC3626EUDC#TRMPBF | Reel | 500 | LGCC | 1 | 20 | -40°C ~125°C | 20-Lead (3mm × 4mm) Plastic QFN | |
| LTC3626IUDC#PBF | Tube | 91 | LGCC | 1 | 20 | -40°C ~125°C | 20-Lead (3mm × 4mm) Plastic QFN | |
| LTC3626IUDC#TRPBF | Reel | 2500 | LGCC | 1 | 20 | -40°C ~125°C | 20-Lead (3mm × 4mm) Plastic QFN | |
| LTC3626IUDC#TRMPBF | Reel | 500 | LGCC | 1 | 20 | -40°C ~125°C | 20-Lead (3mm × 4mm) Plastic QFN |

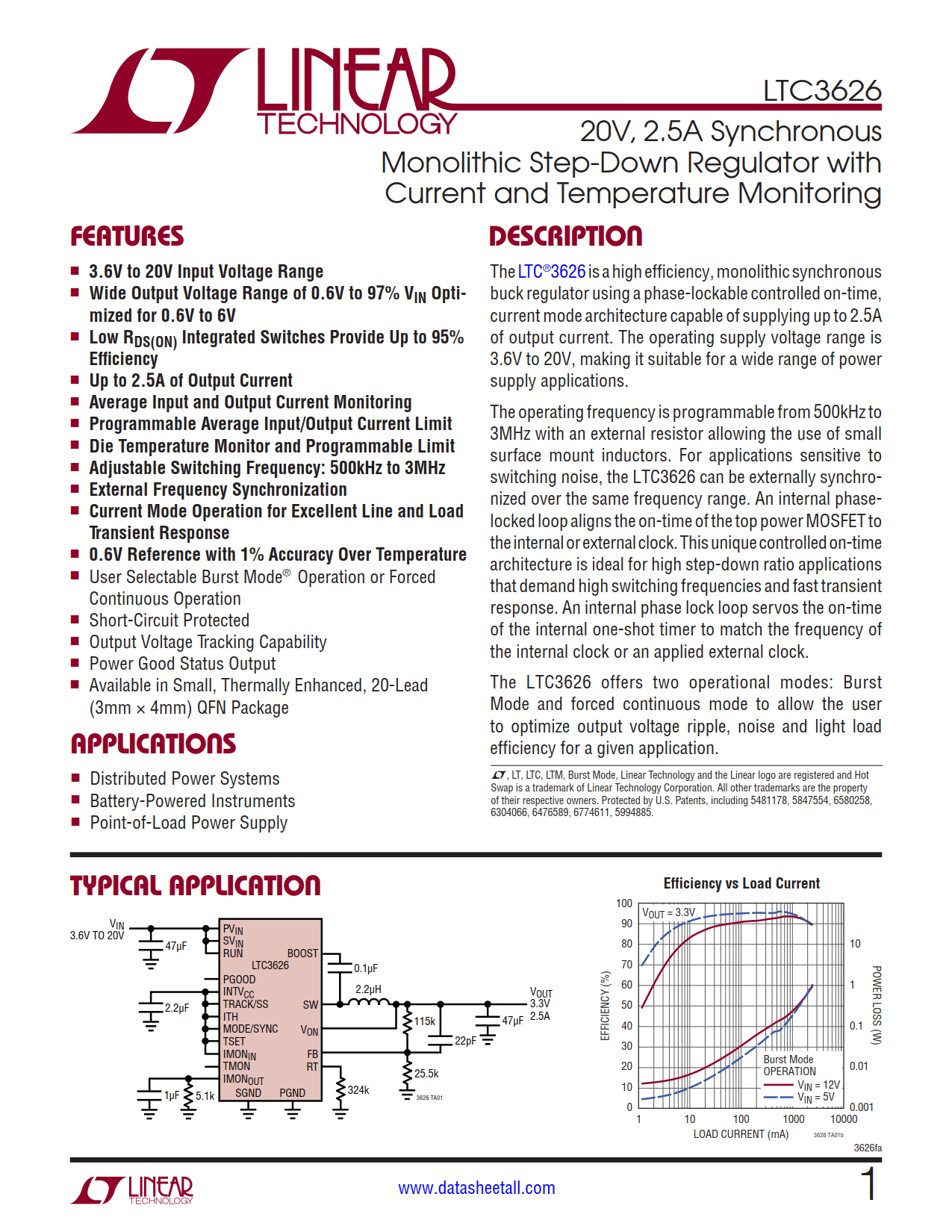

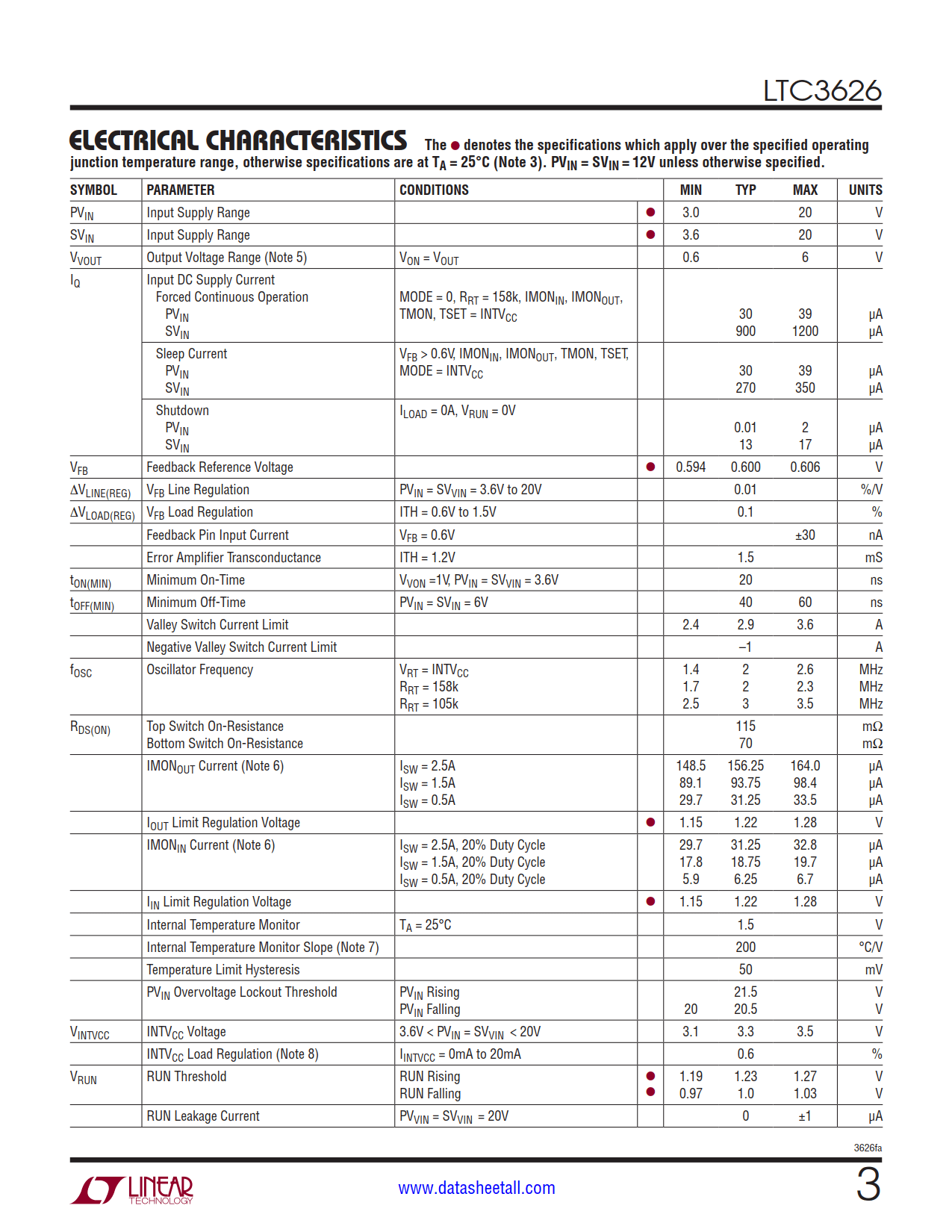

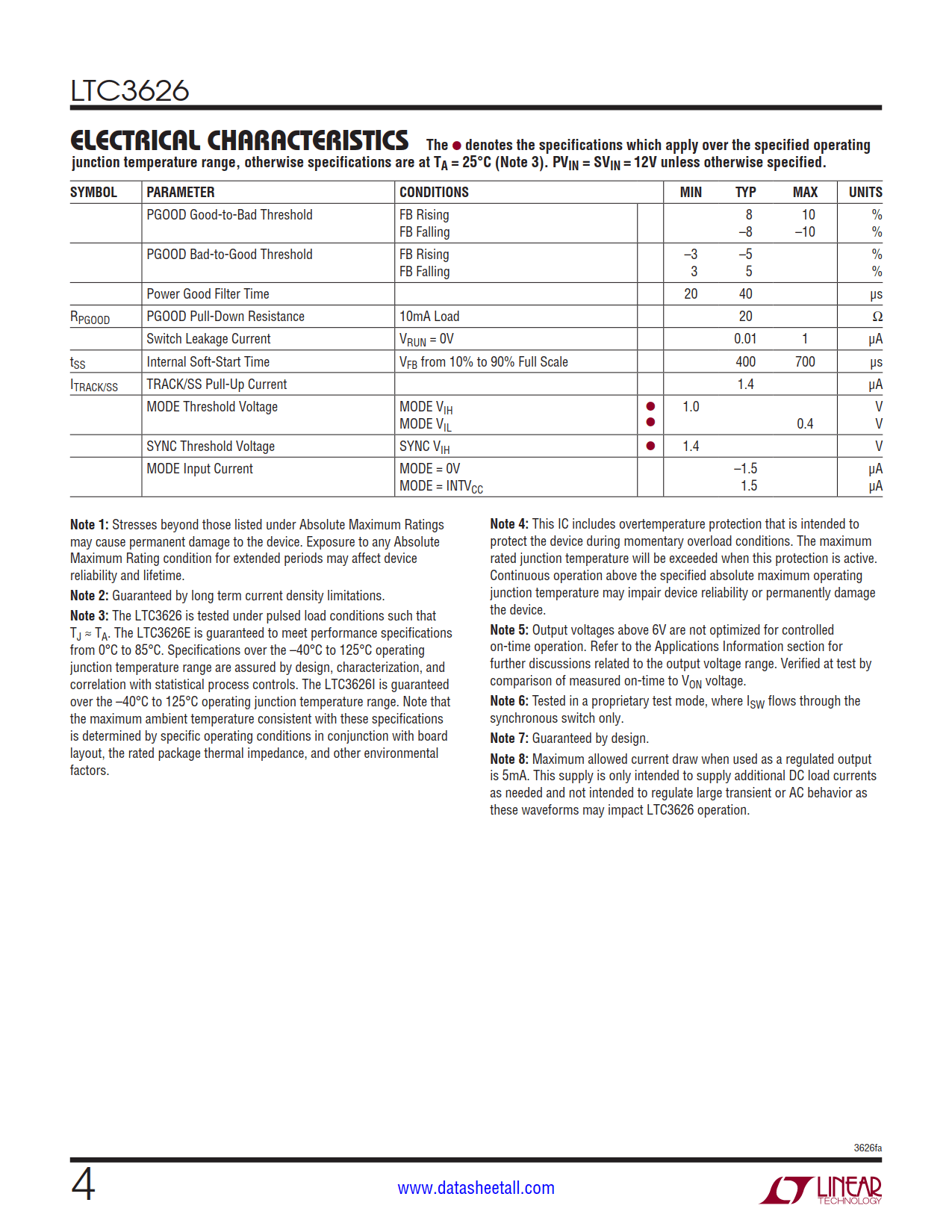

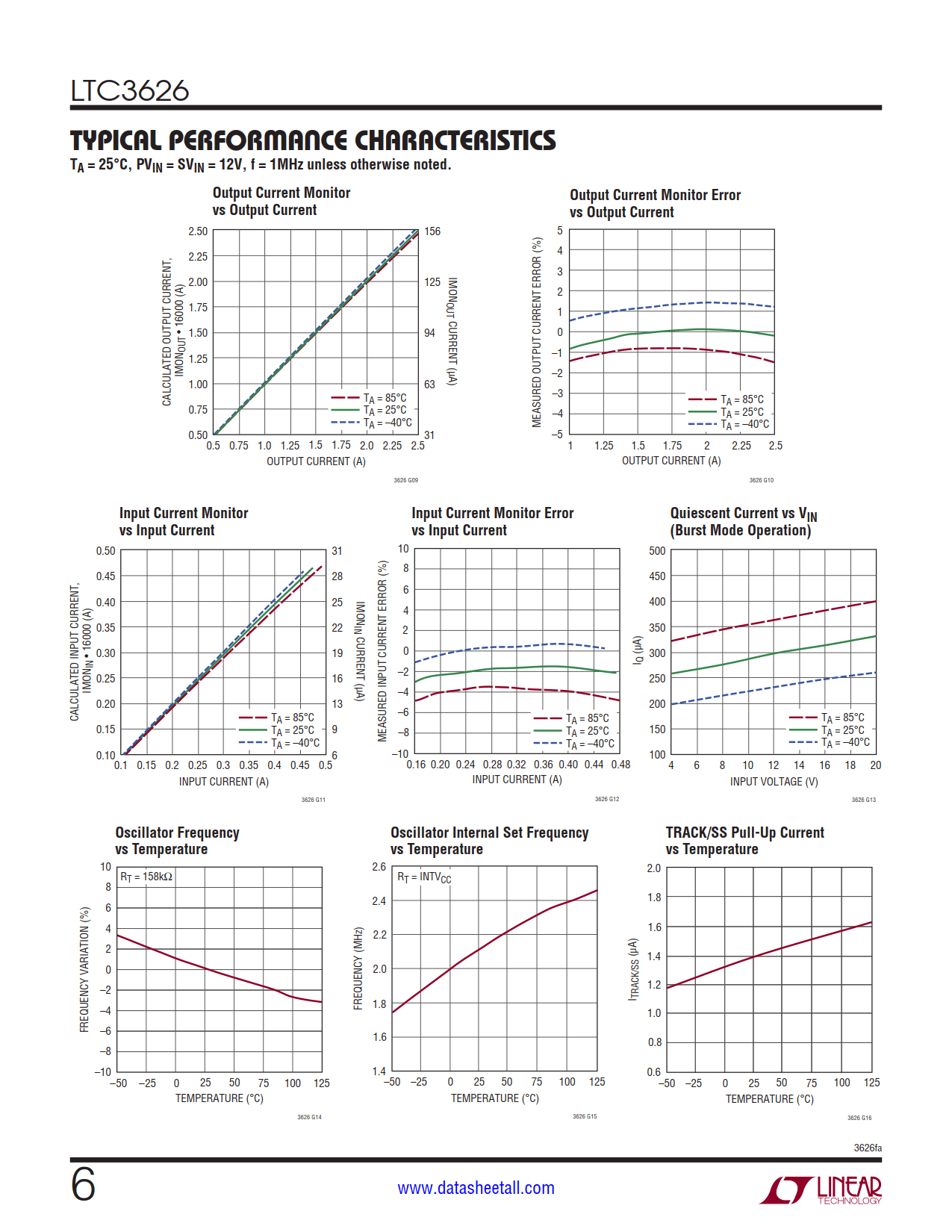

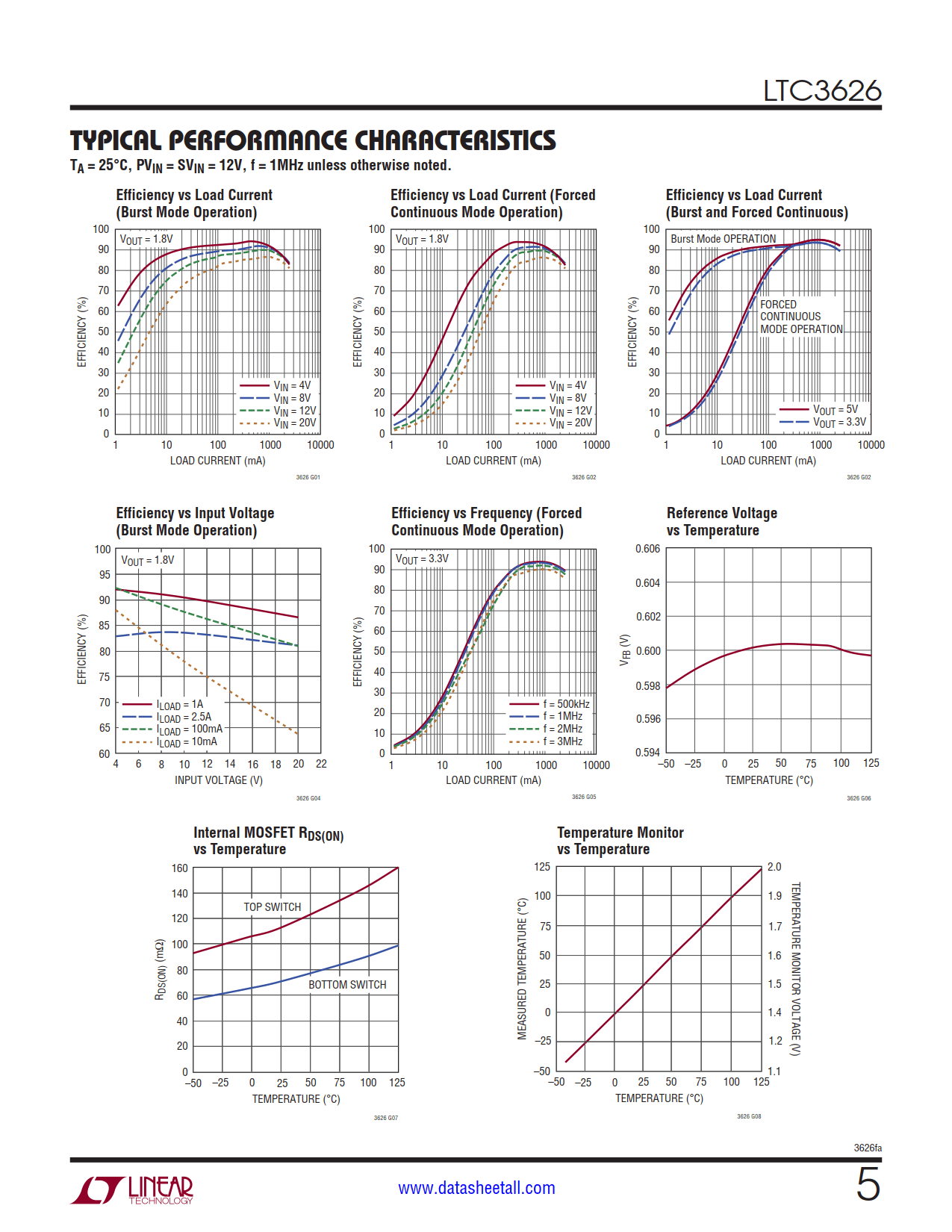

The LTC3626 is a high efficiency, monolithic synchronous buck regulator using a phase-lockable controlled on-time, current mode architecture capable of supplying up to 2.5A of output current. The operating supply voltage range is 3.6V to 20V, making it suitable for a wide range of power supply applications.
The operating frequency is programmable from 500kHz to 3MHz with an external resistor allowing the use of small surface mount inductors. For applications sensitive to switching noise, the LTC3626 can be externally synchronized over the same frequency range. An internal phase-locked loop aligns the on-time of the top power MOSFET to the internal or external clock. This unique controlled on-time architecture is ideal for high step-down ratio applications that demand high switching frequencies and fast transient response. An internal phase lock loop servos the on-time of the internal one-shot timer to match the frequency of the internal clock or an applied external clock.
The LTC3626 offers two operational modes: Burst Mode and forced continuous mode to allow the user to optimize output voltage ripple, noise and light load efficiency for a given application.
