LTC3624-2 Datasheet

LTC3624-2 Datasheet

17V, 2A Synchronous Step-Down Regulator with 3.5μA Quiescent Current
Part No.: LTC3624-2
Page: 20 Pages
Size: 341 KB
Manufacturer: Linear Technology
Logo:
Views: 0
Update Time: 2024-12-05 21:00:12
DataSheet: Download

LTC3624-2 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC3624EDD-2#PBF Tube 121 LGMN 1 8 -40°C ~ 125°C 8-Lead (3mm × 3mm) Plastic DFN
LTC3624EDD-2#TRPBF Reel 2500 LGMN 1 8 -40°C ~ 125°C 8-Lead (3mm × 3mm) Plastic DFN
LTC3624IDD-2#PBF Tube 121 LGMN 1 8 -40°C ~ 125°C 8-Lead (3mm × 3mm) Plastic DFN
LTC3624IDD-2#TRPBF Reel 2500 LGMN 1 8 -40°C ~ 125°C 8-Lead (3mm × 3mm) Plastic DFN
LTC3624EMSE-2#PBF Tube 37 36242 1 12 -40°C ~ 125°C 12-Lead Plastic MSOP
LTC3624EMSE-2#TRPBF Reel 2500 36242 1 12 -40°C ~ 125°C 12-Lead Plastic MSOP
LTC3624IMSE-2#PBF Tube 37 36242 1 12 -40°C ~ 125°C 12-Lead Plastic MSOP
LTC3624IMSE-2#TRPBF Reel 2500 36242 1 12 -40°C ~ 125°C 12-Lead Plastic MSOP
LTC3624HMSE-2#PBF Tube 37 36242 1 12 -40°C ~ 150°C 12-Lead Plastic MSOP
LTC3624HMSE-2#TRPBF Reel 2500 36242 1 12 -40°C ~ 150°C 12-Lead Plastic MSOP
LTC3624EDD-23.3#PBF Tube 121 LGRH 1 8 -40°C ~ 125°C 8-Lead (3mm × 3mm) Plastic DFN
LTC3624EDD-23.3#TRPBF Reel 2500 LGRH 1 8 -40°C ~ 125°C 8-Lead (3mm × 3mm) Plastic DFN
LTC3624IDD-23.3#PBF Tube 121 LGRH 1 8 -40°C ~ 125°C 8-Lead (3mm × 3mm) Plastic DFN
LTC3624IDD-23.3#TRPBF Reel 2500 LGRH 1 8 -40°C ~ 125°C 8-Lead (3mm × 3mm) Plastic DFN
LTC3624EMSE-23.3#PBF Tube 37 362423 1 12 -40°C ~ 125°C 12-Lead Plastic MSOP
LTC3624EMSE-23.3#TRPBF Reel 2500 362423 1 12 -40°C ~ 125°C 12-Lead Plastic MSOP
LTC3624IMSE-23.3#PBF Tube 37 362423 1 12 -40°C ~ 125°C 12-Lead Plastic MSOP
LTC3624IMSE-23.3#TRPBF Reel 2500 362423 1 12 -40°C ~ 125°C 12-Lead Plastic MSOP
LTC3624HMSE-23.3#PBF Tube 37 362423 1 12 -40°C ~ 150°C 12-Lead Plastic MSOP
LTC3624HMSE-23.3#TRPBF Reel 2500 362423 1 12 -40°C ~ 150°C 12-Lead Plastic MSOP
LTC3624EDD-25#PBF Tube 121 LGRF 1 8 -40°C ~ 125°C 8-Lead (3mm × 3mm) Plastic DFN
LTC3624EDD-25#TRPBF Reel 2500 LGRF 1 8 -40°C ~ 125°C 8-Lead (3mm × 3mm) Plastic DFN
LTC3624IDD-25#PBF Tube 121 LGRF 1 8 -40°C ~ 125°C 8-Lead (3mm × 3mm) Plastic DFN
LTC3624IDD-25#TRPBF Reel 2500 LGRF 1 8 -40°C ~ 125°C 8-Lead (3mm × 3mm) Plastic DFN
LTC3624EMSE-25#PBF Tube 37 362425 1 12 -40°C ~ 125°C 12-Lead Plastic MSOP
LTC3624EMSE-25#TRPBF Reel 2500 362425 1 12 -40°C ~ 125°C 12-Lead Plastic MSOP
LTC3624IMSE-25#PBF Tube 37 362425 1 12 -40°C ~ 125°C 12-Lead Plastic MSOP
LTC3624IMSE-25#TRPBF Reel 2500 362425 1 12 -40°C ~ 125°C 12-Lead Plastic MSOP
LTC3624HMSE-25#PBF Tube 37 362425 1 12 -40°C ~ 150°C 12-Lead Plastic MSOP
LTC3624HMSE-25#TRPBF Reel 2500 362425 1 12 -40°C ~ 150°C 12-Lead Plastic MSOP
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC3624-2 Datasheet(PDF)

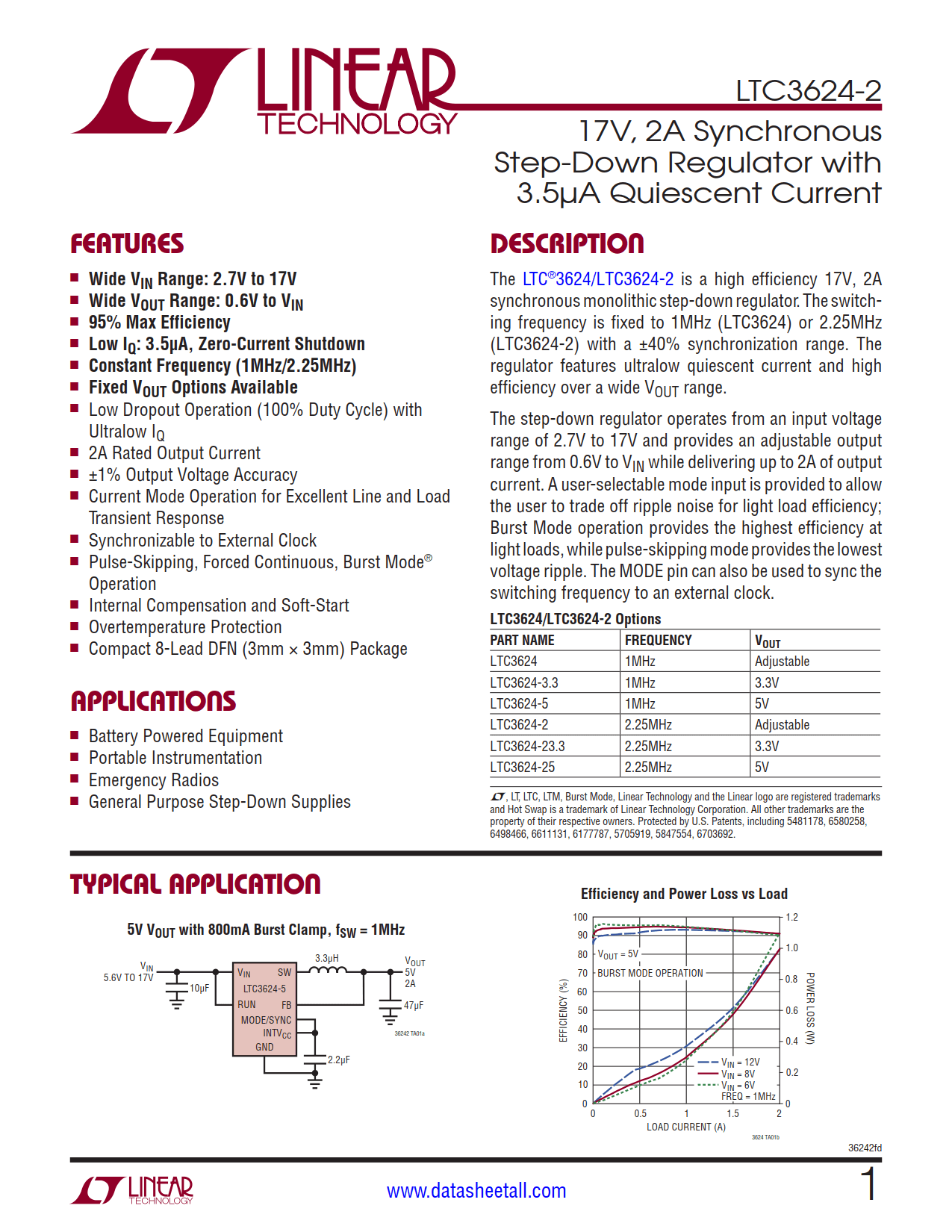

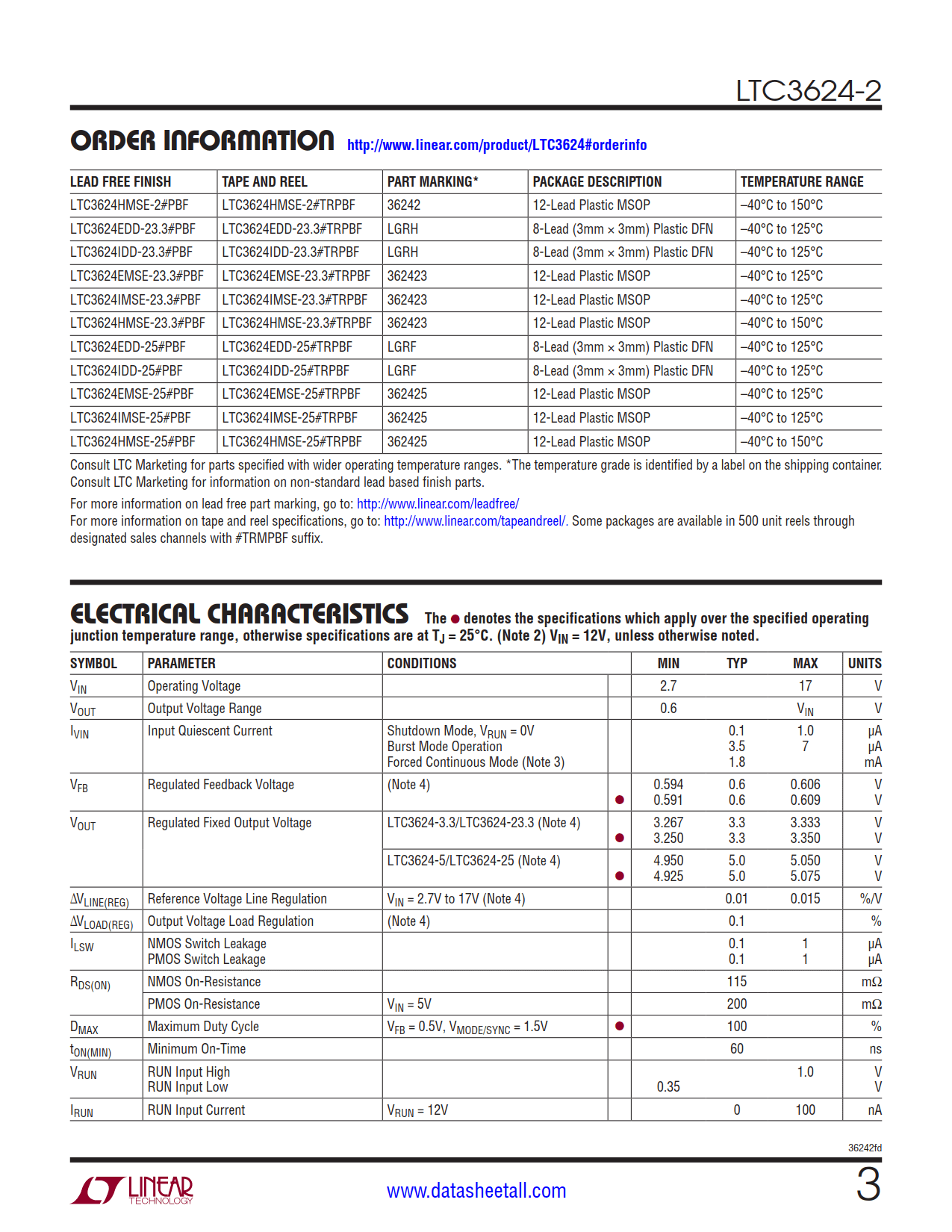

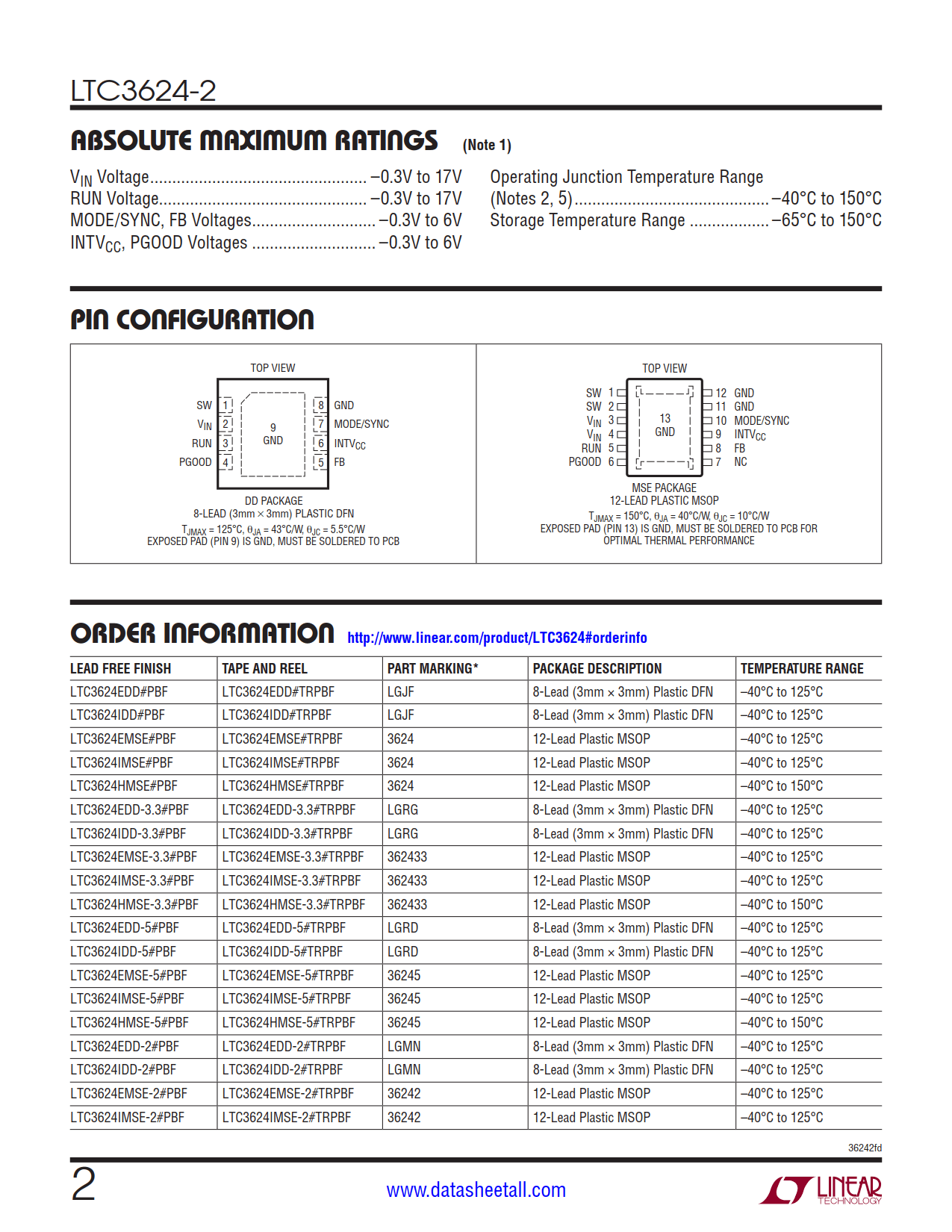

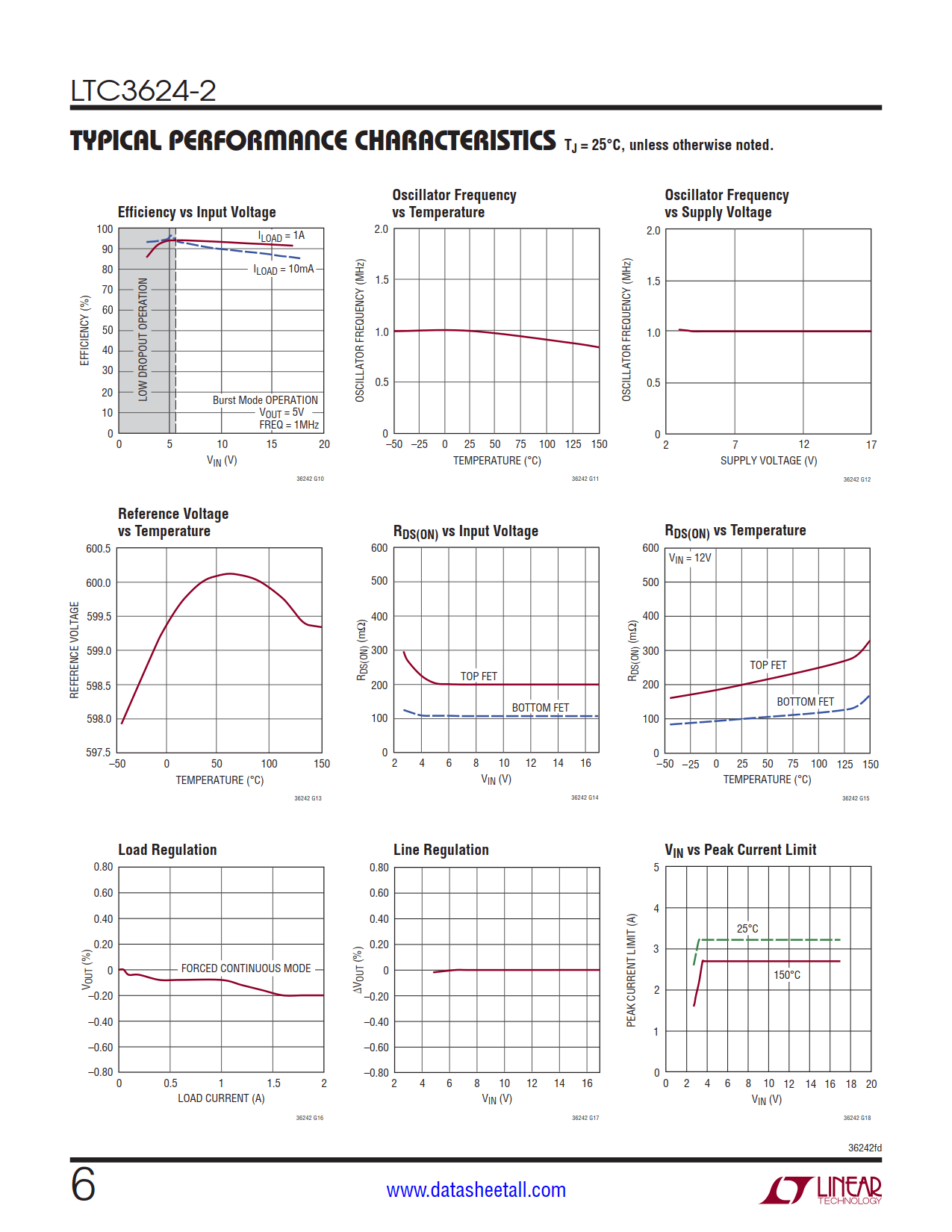

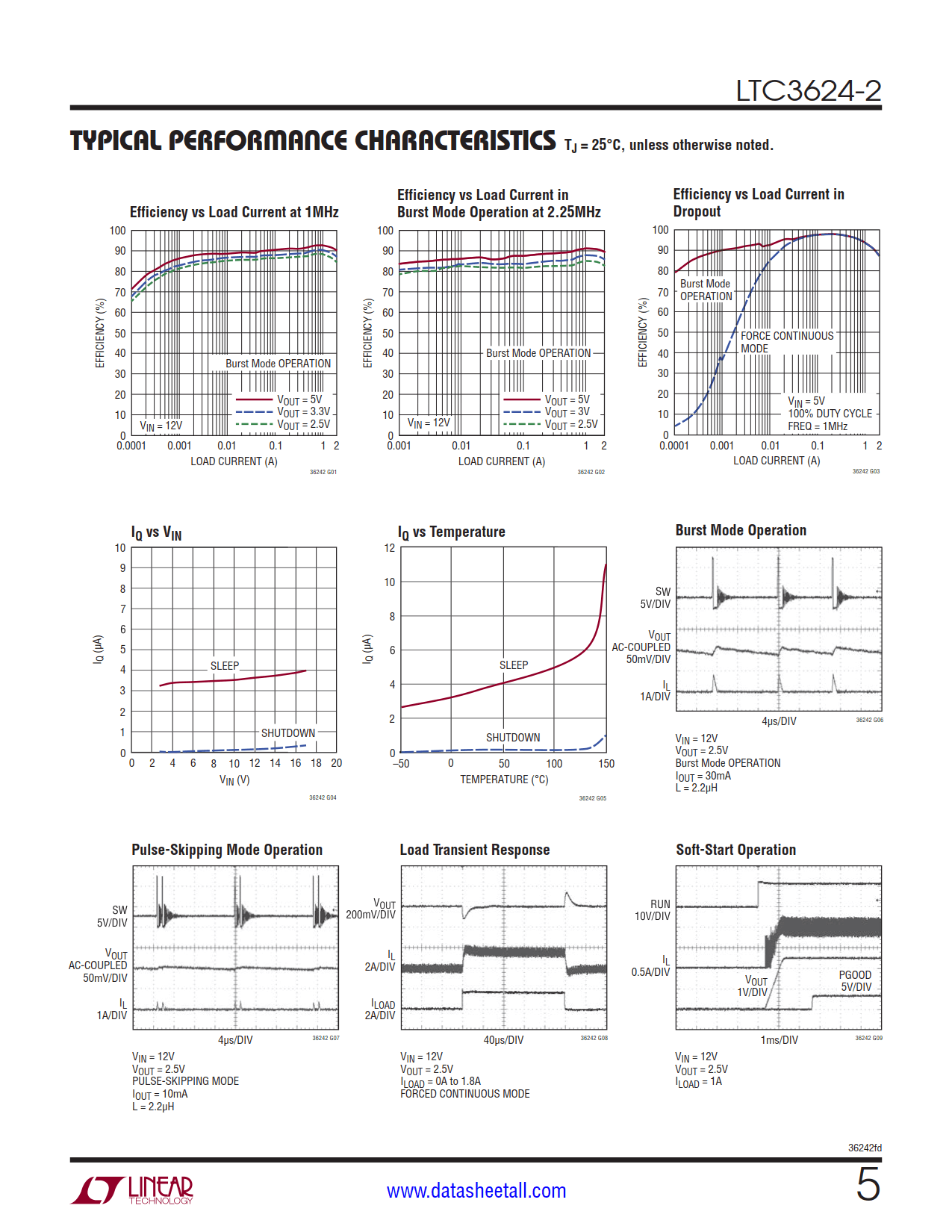

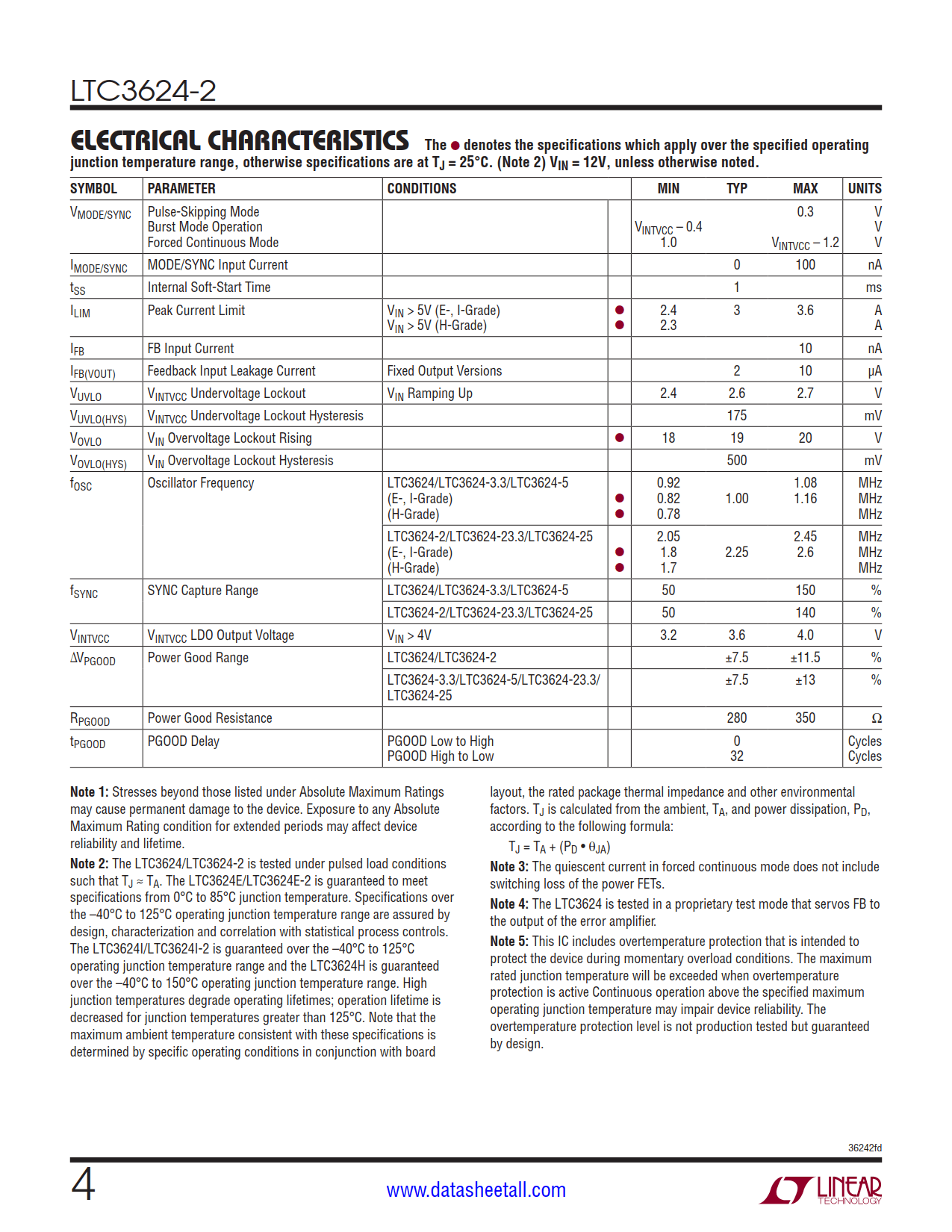

LTC3624-2 Datasheet(Picture)

LTC3624-2 Features

  • Wide VIN Range: 2.7V to 17V
  • Wide VOUT Range: 0.6V to VIN
  • 95% Max Efficiency
  • Low IQ: 3.5μA, Zero-Current Shutdown
  • Constant Frequency (1MHz/2.25MHz)
  • Fixed VOUT Options Available
  • Low Dropout Operation (100% Duty Cycle) with Ultralow IQ
  • 2A Rated Output Current
  • ±1% Output Voltage Accuracy
  • Current Mode Operation for Excellent Line and Load Transient Response
  • Synchronizable to External Clock
  • Pulse-Skipping, Forced Continuous, Burst Mode® Operation
  • Internal Compensation and Soft-Start
  • Overtemperature Protection
  • Compact 8-Lead DFN (3mm × 3mm) Package

LTC3624-2 Applications

  • Battery Powered Equipment
  • Portable Instrumentation
  • Emergency Radios
  • General Purpose Step-Down Supplies

LTC3624-2 Description

The LTC3624-2 is a high efficiency 17V, 2A synchronous monolithic step-down regulator. The switching frequency is fixed to 2.25MHz (LTC3624-2) with a ±40% synchronization range. The regulator features ultralow quiescent current and high efficiency over a wide VOUT range.

The step-down regulator operates from an input voltage range of 2.7V to 17V and provides an adjustable output range from 0.6V to VIN while delivering up to 2A of output current. A user-selectable mode input is provided to allow the user to trade off ripple noise for light load efficiency; Burst Mode operation provides the highest efficiency at light loads, while pulse-skipping mode provides the lowest voltage ripple. The MODE pin can also be used to sync the switching frequency to an external clock.
