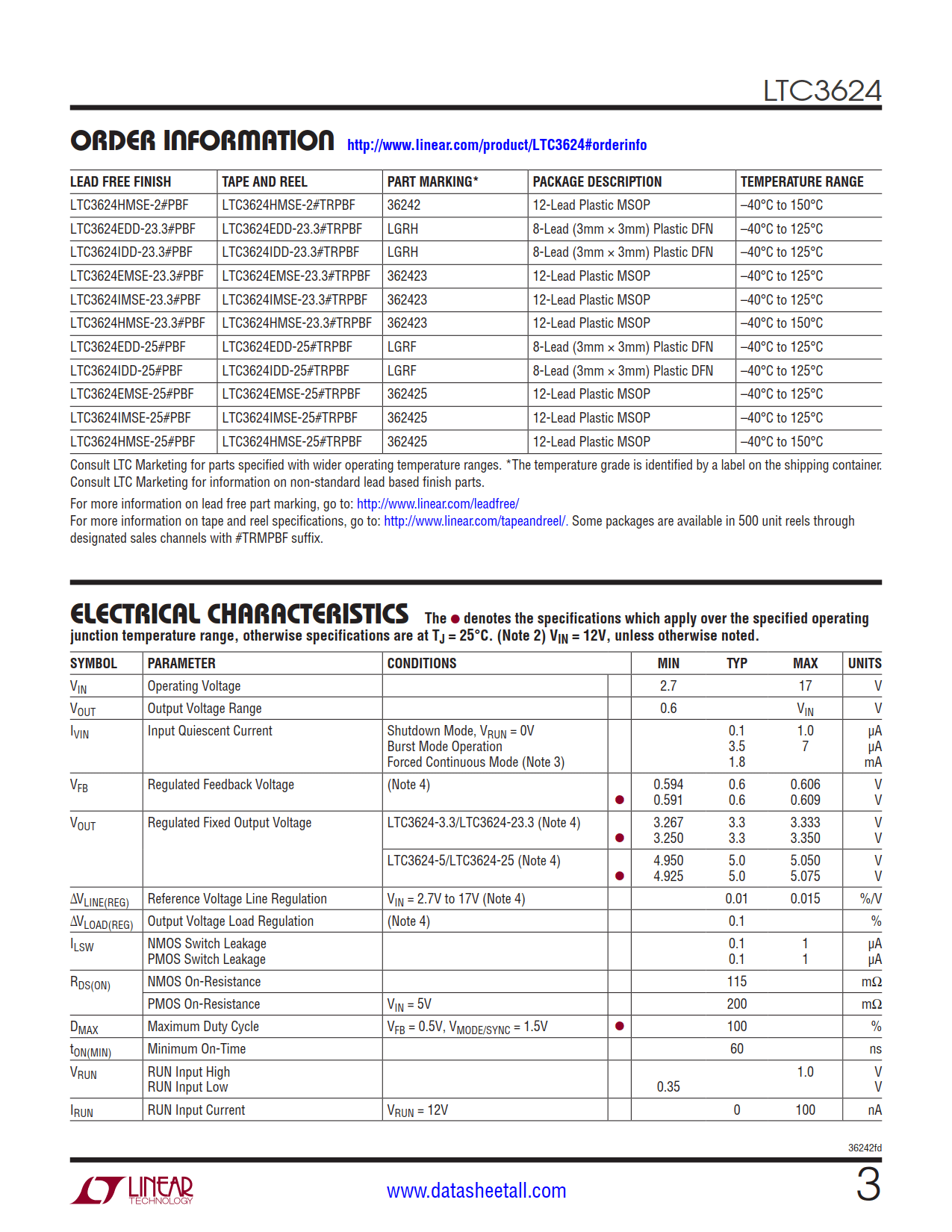

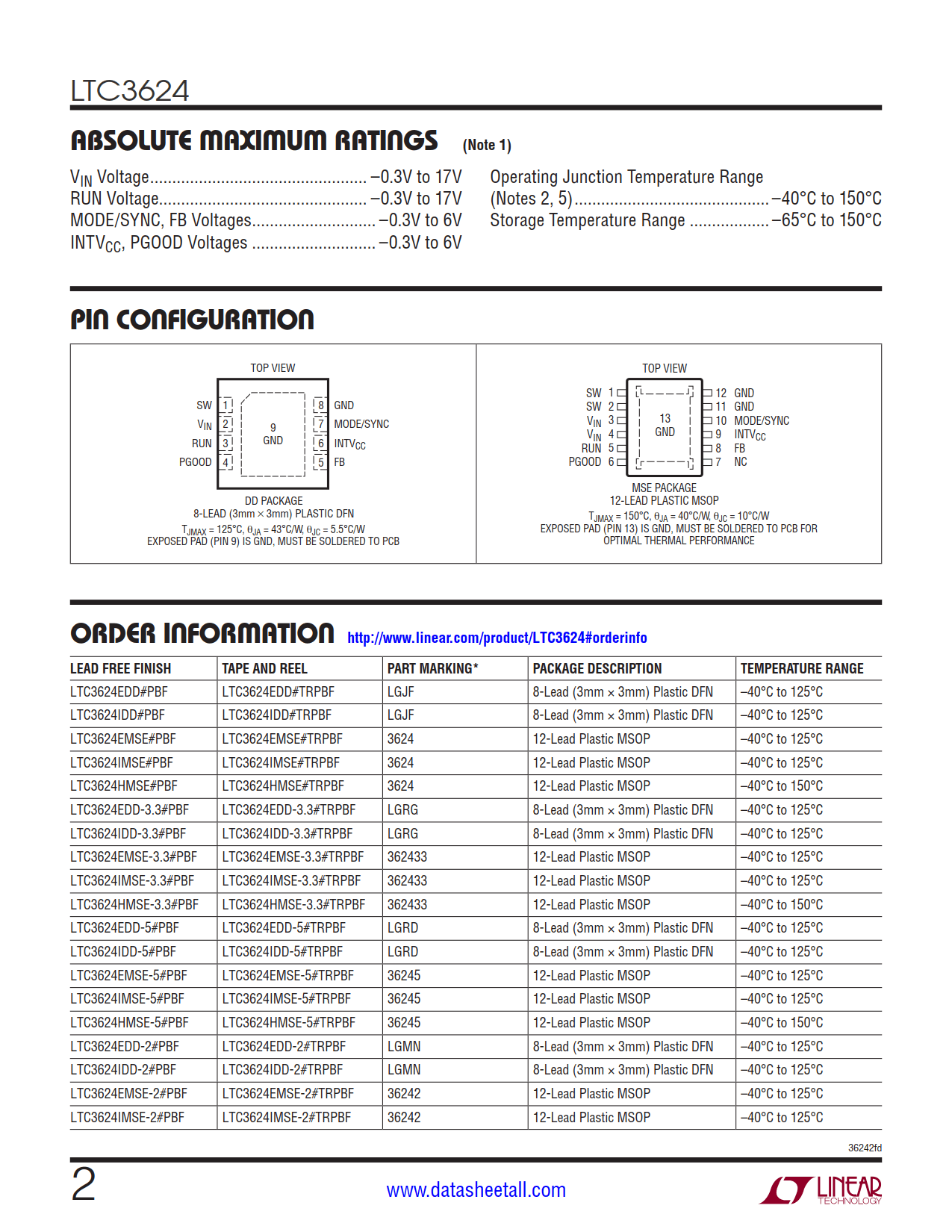

| Part No.： | LTC3624 |
| Page： | 20 Pages |
| Size： | 341 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 0 |
| Update Time： | 2024-12-05 20:58:10 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC3624EDD#PBF | Tube | 121 | LGJF | 1 | 8 | -40°C ~ 125°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LTC3624EDD#TRPBF | Reel | 2500 | LGJF | 1 | 8 | -40°C ~ 125°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LTC3624IDD#PBF | Tube | 121 | LGJF | 1 | 8 | -40°C ~ 125°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LTC3624IDD#TRPBF | Reel | 2500 | LGJF | 1 | 8 | -40°C ~ 125°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LTC3624EMSE#PBF | Tube | 37 | 3624 | 1 | 12 | -40°C ~ 125°C | 12-Lead Plastic MSOP | |
| LTC3624EMSE#TRPBF | Reel | 2500 | 3624 | 1 | 12 | -40°C ~ 125°C | 12-Lead Plastic MSOP | |
| LTC3624IMSE#PBF | Tube | 37 | 3624 | 1 | 12 | -40°C ~ 125°C | 12-Lead Plastic MSOP | |
| LTC3624IMSE#TRPBF | Reel | 2500 | 3624 | 1 | 12 | -40°C ~ 125°C | 12-Lead Plastic MSOP | |
| LTC3624HMSE#PBF | Tube | 37 | 3624 | 1 | 12 | -40°C ~ 150°C | 12-Lead Plastic MSOP | |
| LTC3624HMSE#TRPBF | Reel | 2500 | 3624 | 1 | 12 | -40°C ~ 150°C | 12-Lead Plastic MSOP | |
| LTC3624EDD-3.3#PBF | Tube | 121 | LGRG | 1 | 8 | -40°C ~ 125°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LTC3624EDD-3.3#TRPBF | Reel | 2500 | LGRG | 1 | 8 | -40°C ~ 125°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LTC3624IDD-3.3#PBF | Tube | 121 | LGRG | 1 | 8 | -40°C ~ 125°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LTC3624IDD-3.3#TRPBF | Reel | 2500 | LGRG | 1 | 8 | -40°C ~ 125°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LTC3624EMSE-3.3#PBF | Tube | 37 | 362433 | 1 | 12 | -40°C ~ 125°C | 12-Lead Plastic MSOP | |
| LTC3624EMSE-3.3#TRPBF | Reel | 2500 | 362433 | 1 | 12 | -40°C ~ 125°C | 12-Lead Plastic MSOP | |
| LTC3624IMSE-3.3#PBF | Tube | 37 | 362433 | 1 | 12 | -40°C ~ 125°C | 12-Lead Plastic MSOP | |
| LTC3624IMSE-3.3#TRPBF | Reel | 2500 | 362433 | 1 | 12 | -40°C ~ 125°C | 12-Lead Plastic MSOP | |
| LTC3624HMSE-3.3#PBF | Tube | 37 | 362433 | 1 | 12 | -40°C ~ 150°C | 12-Lead Plastic MSOP | |
| LTC3624HMSE-3.3#TRPBF | Reel | 2500 | 362433 | 1 | 12 | -40°C ~ 150°C | 12-Lead Plastic MSOP | |
| LTC3624EDD-5#PBF | Tube | 121 | LGRD | 1 | 8 | -40°C ~ 125°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LTC3624EDD-5#TRPBF | Reel | 2500 | LGRD | 1 | 8 | -40°C ~ 125°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LTC3624IDD-5#PBF | Tube | 121 | LGRD | 1 | 8 | -40°C ~ 125°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LTC3624IDD-5#TRPBF | Reel | 2500 | LGRD | 1 | 8 | -40°C ~ 125°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LTC3624EMSE-5#PBF | Tube | 37 | 36245 | 1 | 12 | -40°C ~ 125°C | 12-Lead Plastic MSOP | |
| LTC3624EMSE-5#TRPBF | Reel | 2500 | 36245 | 1 | 12 | -40°C ~ 125°C | 12-Lead Plastic MSOP | |
| LTC3624IMSE-5#PBF | Tube | 37 | 36245 | 1 | 12 | -40°C ~ 125°C | 12-Lead Plastic MSOP | |
| LTC3624IMSE-5#TRPBF | Reel | 2500 | 36245 | 1 | 12 | -40°C ~ 125°C | 12-Lead Plastic MSOP | |
| LTC3624HMSE-5#PBF | Tube | 37 | 36245 | 1 | 12 | -40°C ~ 150°C | 12-Lead Plastic MSOP | |
| LTC3624HMSE-5#TRPBF | Reel | 2500 | 36245 | 1 | 12 | -40°C ~ 150°C | 12-Lead Plastic MSOP |

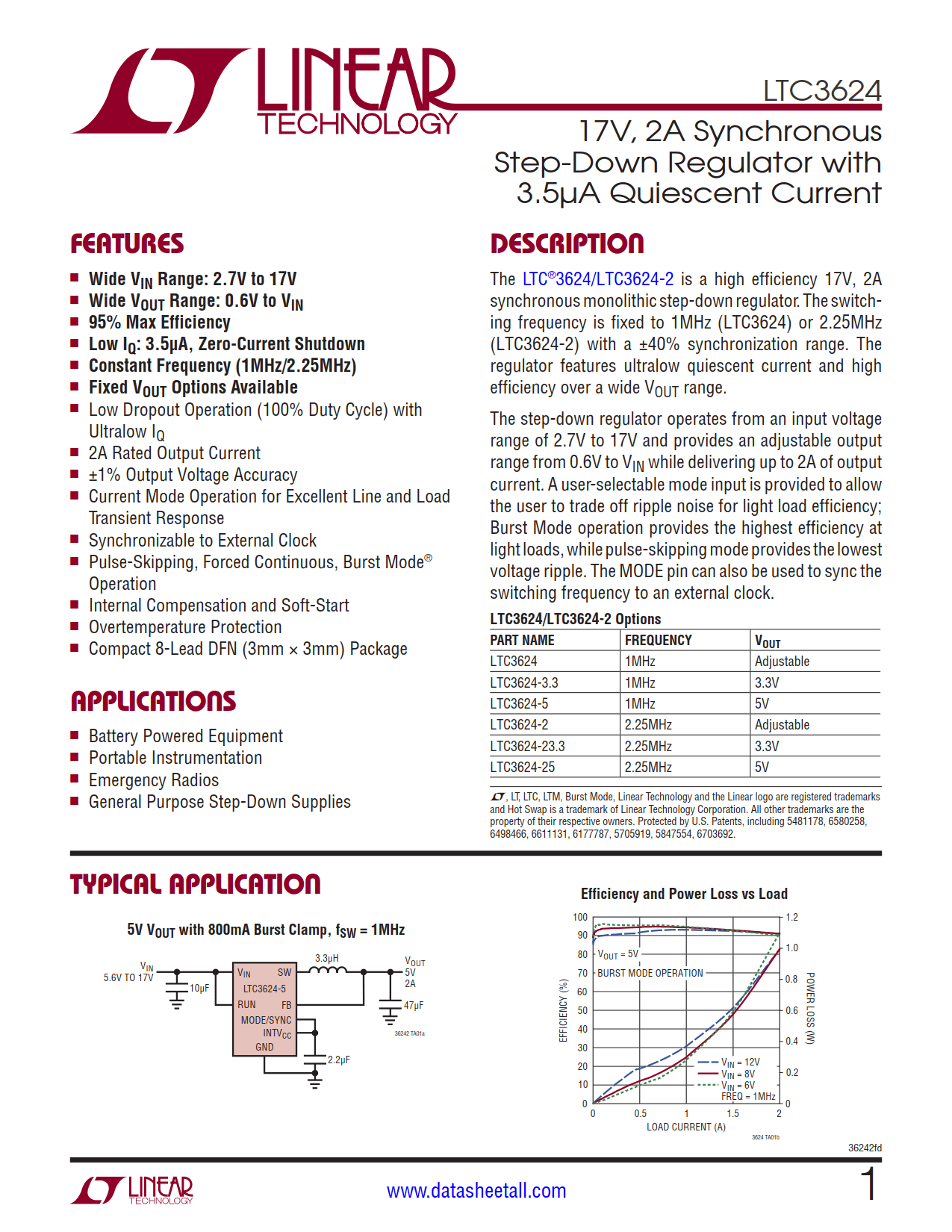

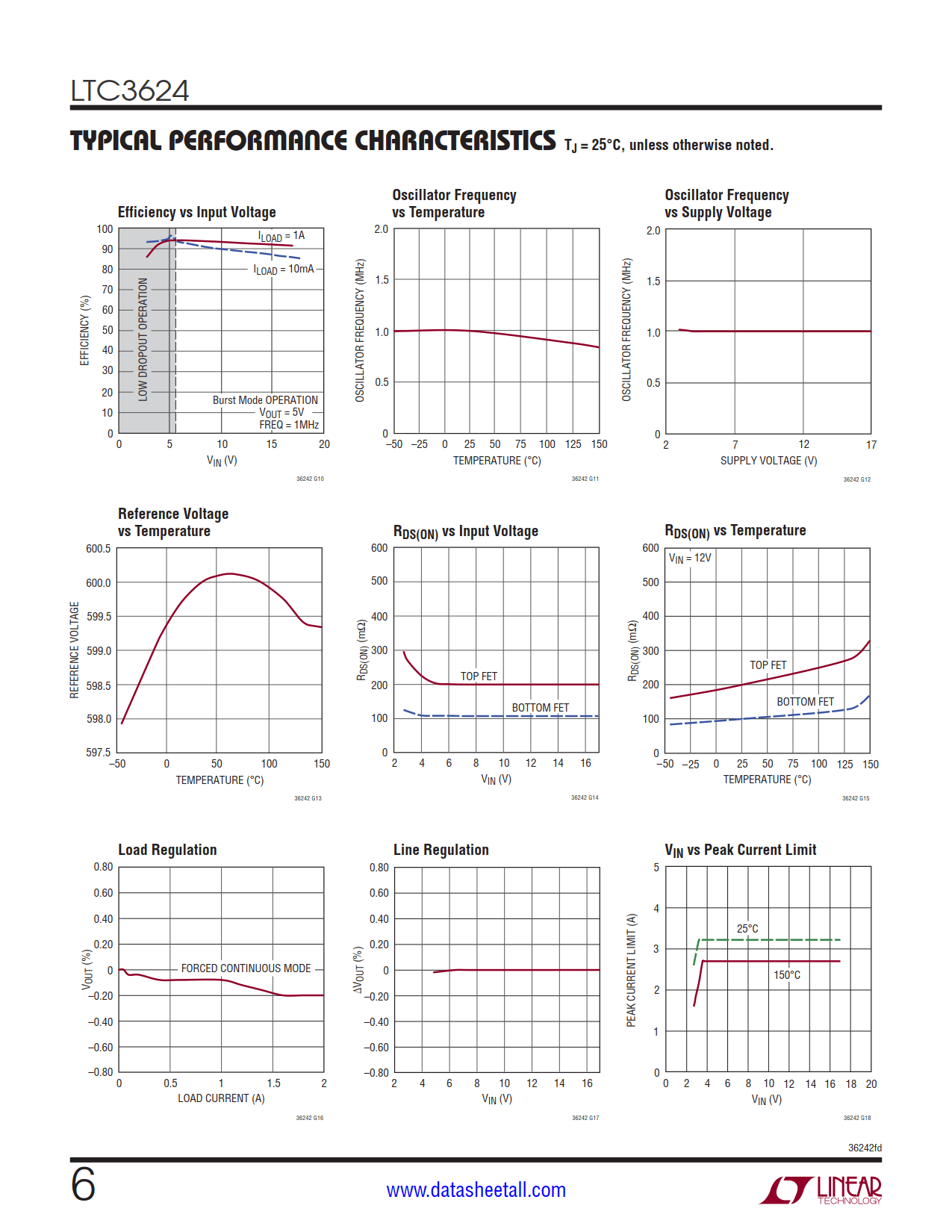

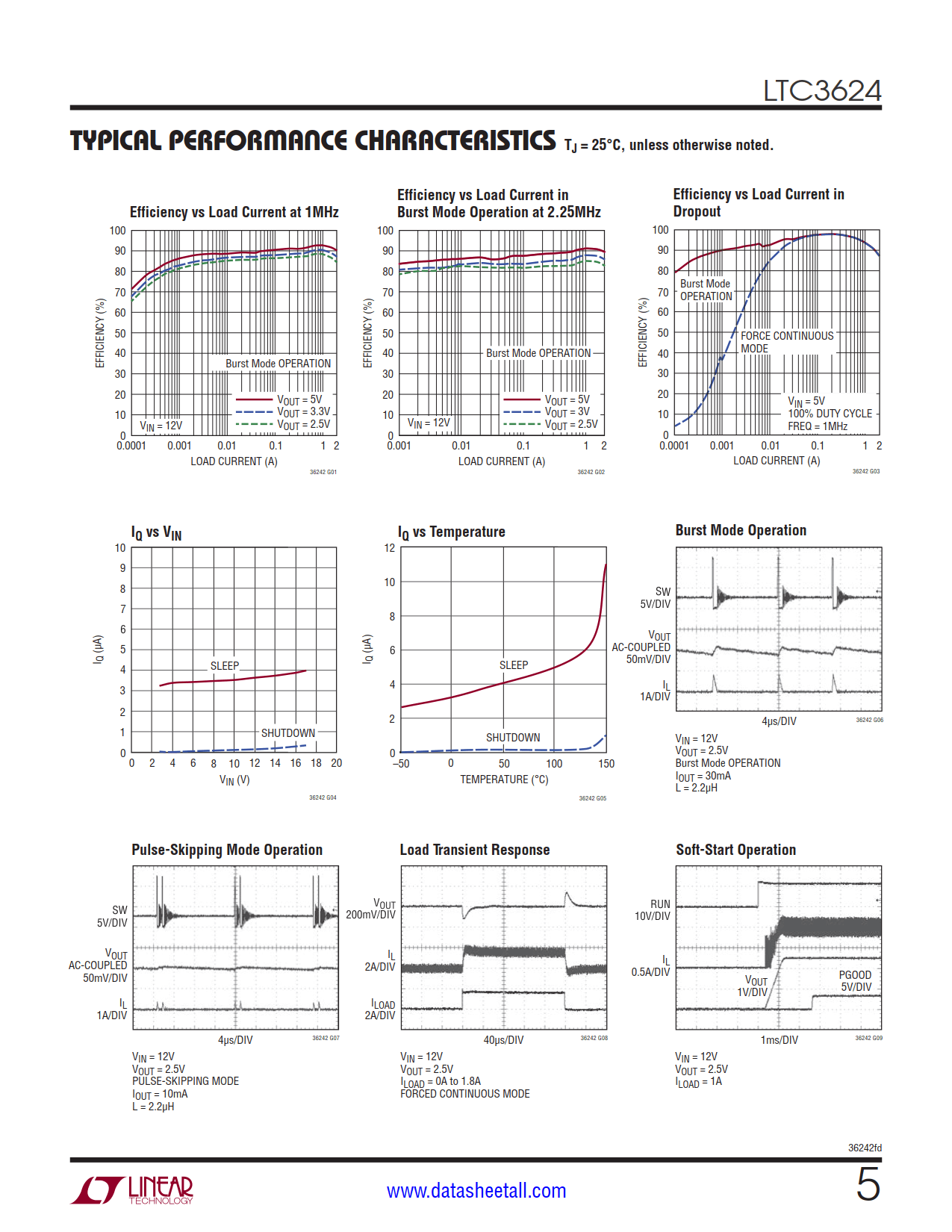

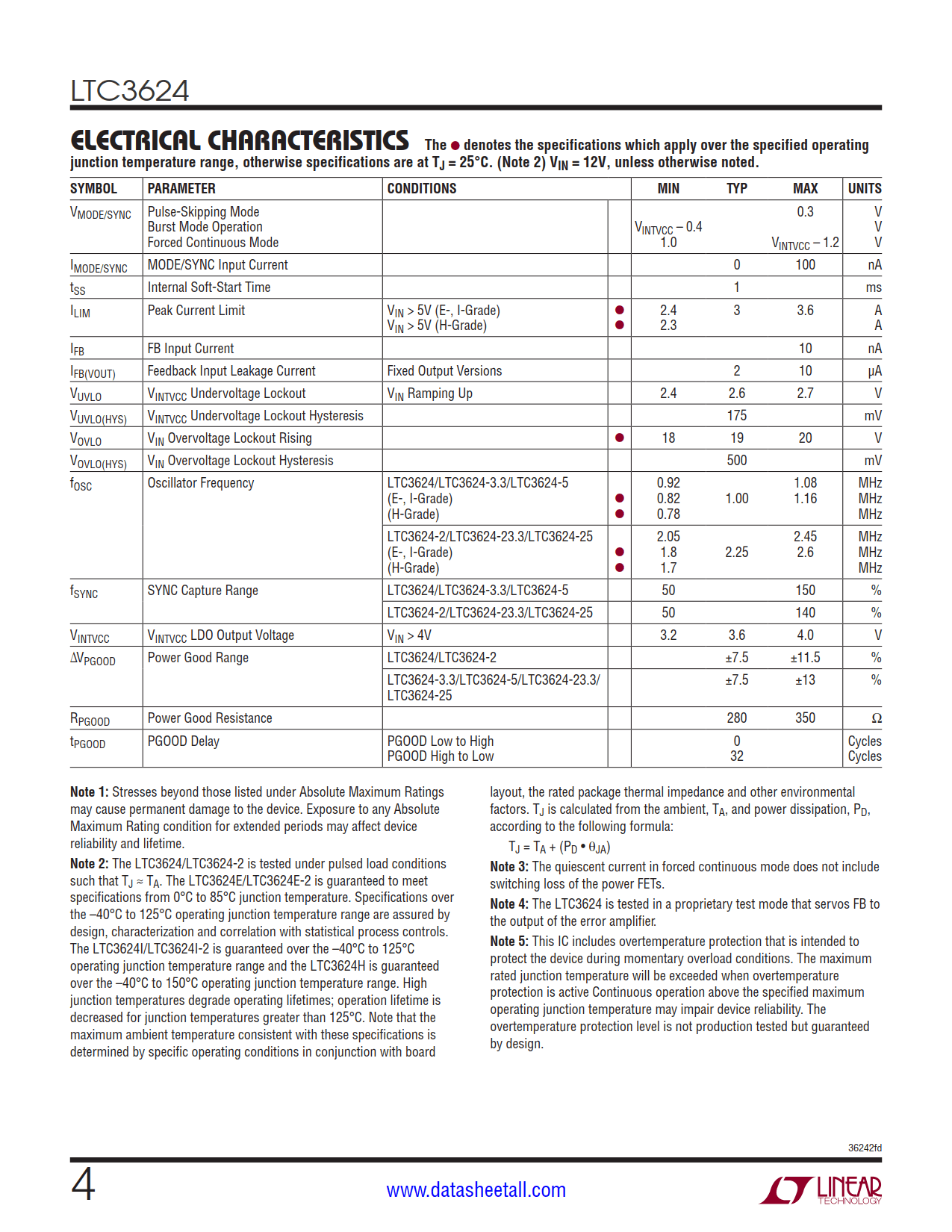

The LTC3624 is a high efficiency 17V, 2A synchronous monolithic step-down regulator. The switching frequency is fixed to 1MHz (LTC3624) with a ±40% synchronization range. The regulator features ultralow quiescent current and high efficiency over a wide VOUT range.
The step-down regulator operates from an input voltage range of 2.7V to 17V and provides an adjustable output range from 0.6V to VIN while delivering up to 2A of output current. A user-selectable mode input is provided to allow the user to trade off ripple noise for light load efficiency; Burst Mode operation provides the highest efficiency at light loads, while pulse-skipping mode provides the lowest voltage ripple. The MODE pin can also be used to sync the switching frequency to an external clock.
