| Part No.： | LTC3525-3.3 |
| Page： | 16 Pages |
| Size： | 490 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-11-03 14:45:40 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC3525ESC6-3.3#PBF | Tube | LBTG | 1 | 6 | -40°C ~ 85°C | 6-Lead Plastic SC70 | ||
| LTC3525ESC6-3.3#TRPBF | Reel | 2500 | LBTG | 1 | 6 | -40°C ~ 85°C | 6-Lead Plastic SC70 | |
| LTC3525ESC6-3.3#TRMPBF | Reel | 500 | LBTG | 1 | 6 | -40°C ~ 85°C | 6-Lead Plastic SC70 | |
| LTC3525ISC6-3.3#PBF | Tube | LBTG | 1 | 6 | -40°C ~ 125°C | 6-Lead Plastic SC70 | ||
| LTC3525ISC6-3.3#TRPBF | Reel | 2500 | LBTG | 1 | 6 | -40°C ~ 125°C | 6-Lead Plastic SC70 | |
| LTC3525ISC6-3.3#TRMPBF | Reel | 500 | LBTG | 1 | 6 | -40°C ~ 125°C | 6-Lead Plastic SC70 |

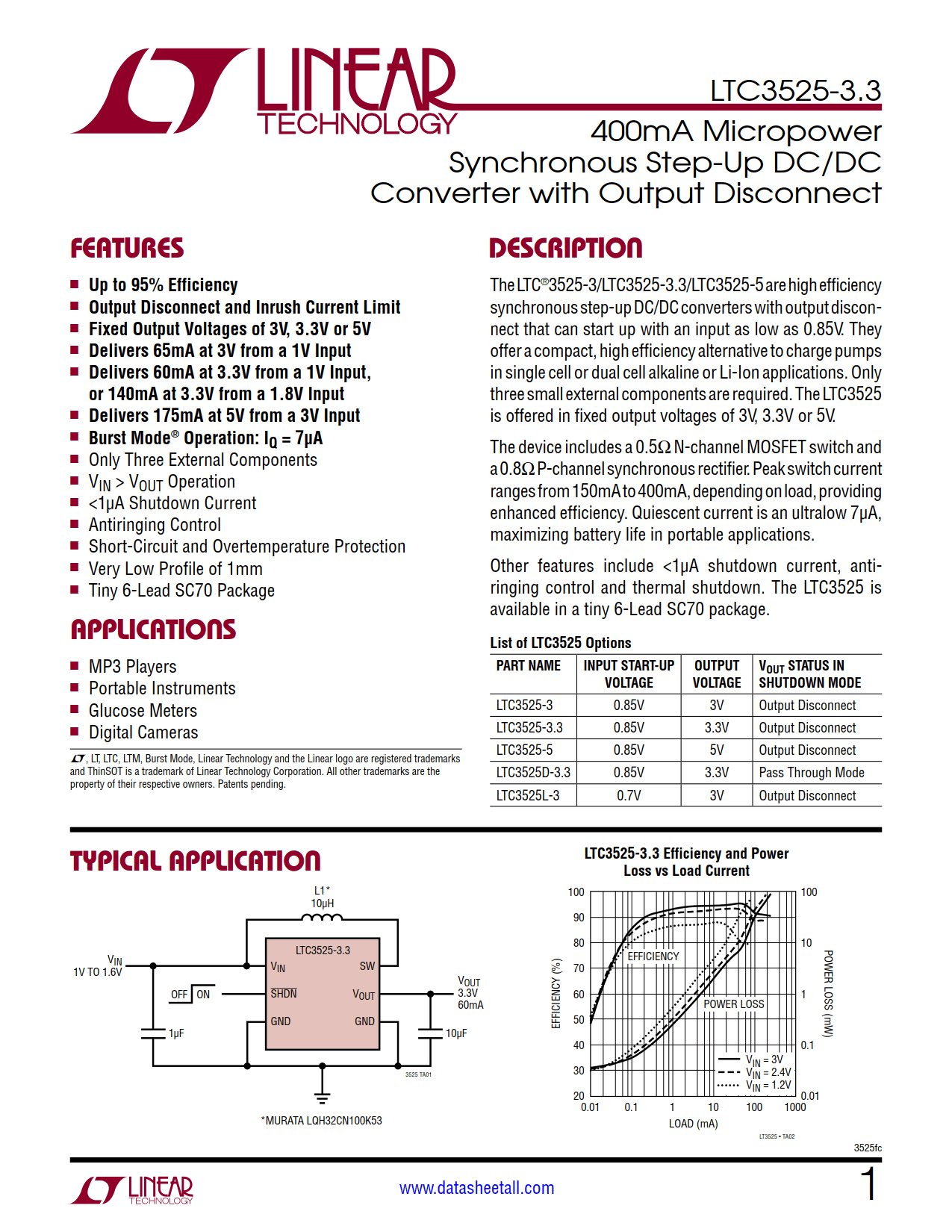

The LTC3525-3.3 are high efficiency synchronous step-up DC/DC converters with output disconnect that can start up with an input as low as 0.85V. They offer a compact, high efficiency alternative to charge pumps in single cell or dual cell alkaline or Li-Ion applications. Only three small external components are required. The LTC3525-3.3 is offered in fixed output voltages of 3.3V.
The device includes a 0.5Ω N-channel MOSFET switch and a 0.8Ω P-channel synchronous rectifier. Peak switch current ranges from 150mA to 400mA, depending on load, providing enhanced efficiency. Quiescent current is an ultralow 7μA, maximizing battery life in portable applications.
Other features include <1μA shutdown current, antiringing control and thermal shutdown. The LTC3525-3.3 is available in a tiny 6-Lead SC70 package.
