| Part No.： | LTC3424 |
| Page： | 12 Pages |
| Size： | 181 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-11-03 16:32:51 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC3424EMS#PBF | Tube | 50 | LTQN | 1 | 10 | -40°C ~ 125°C | 10-Lead MSOP | |
| LTC3424EMS#TRPBF | Reel | 2500 | LTQN | 1 | 10 | -40°C ~ 125°C | 10-Lead MSOP | |
| LTC3424EMS#TRMPBF | Reel | 500 | LTQN | 1 | 10 | -40°C ~ 125°C | 10-Lead MSOP |

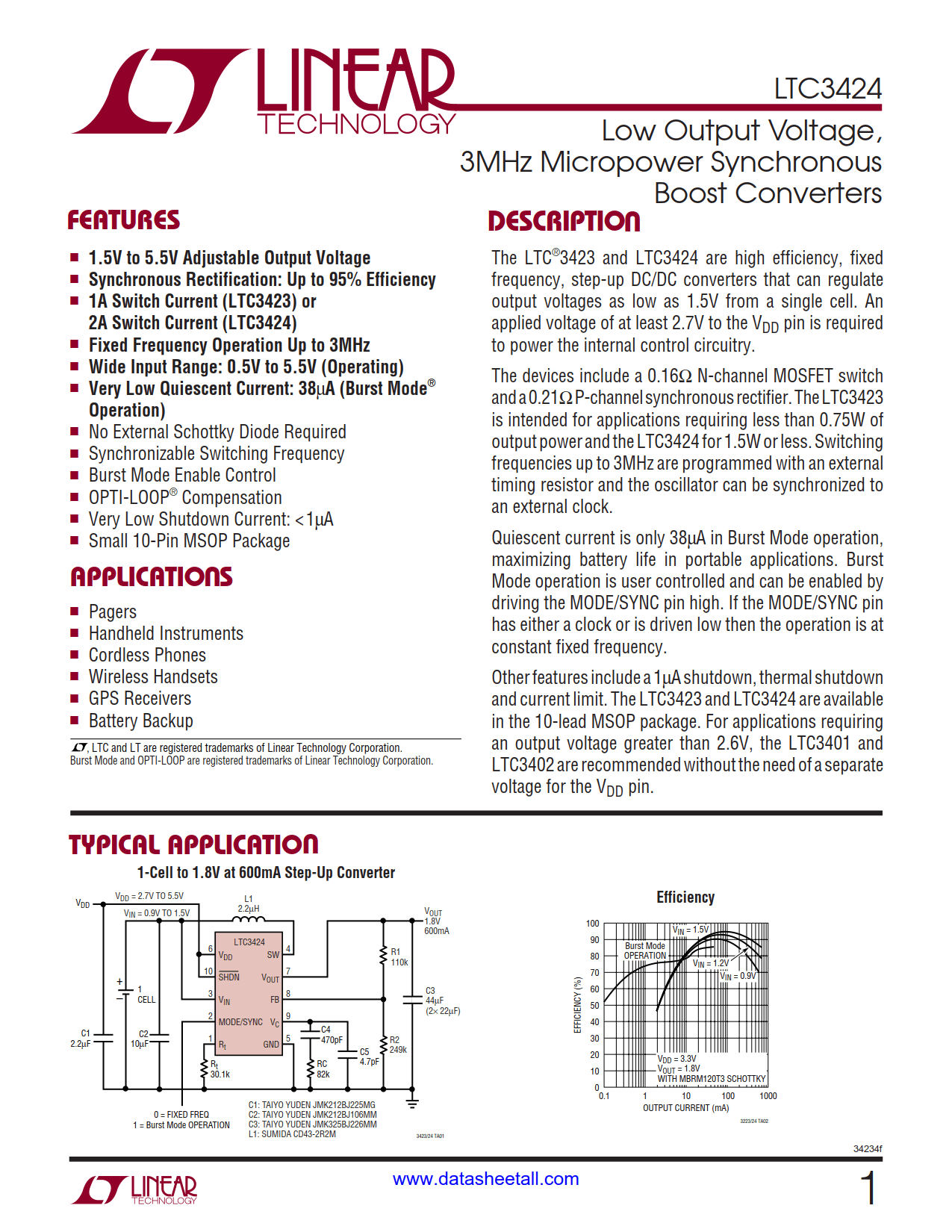

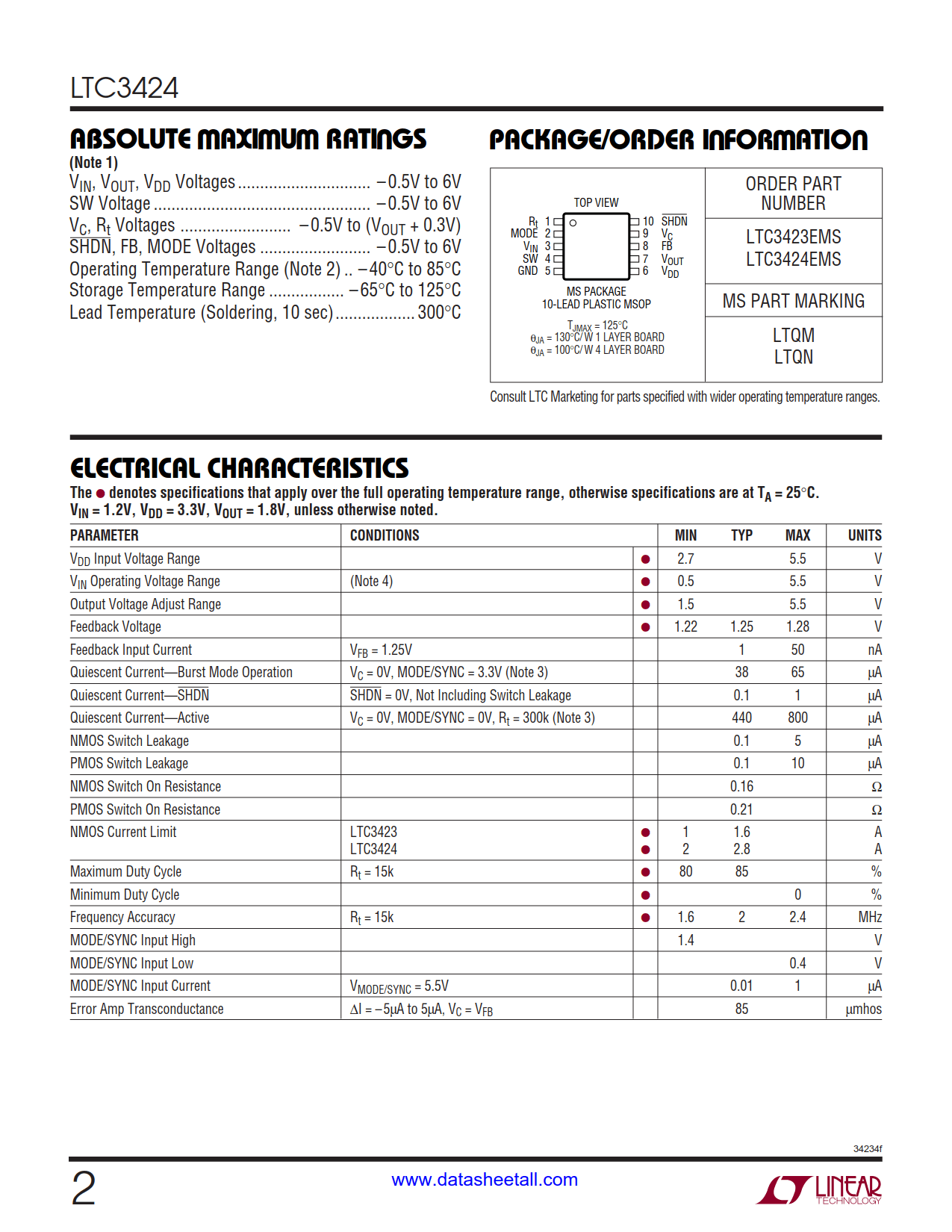

The LTC3424 are high efficiency, fixed frequency, step-up DC/DC converters that can regulate output voltages as low as 1.5V from a single cell. An applied voltage of at least 2.7V to the VDD pin is required to power the internal control circuitry.

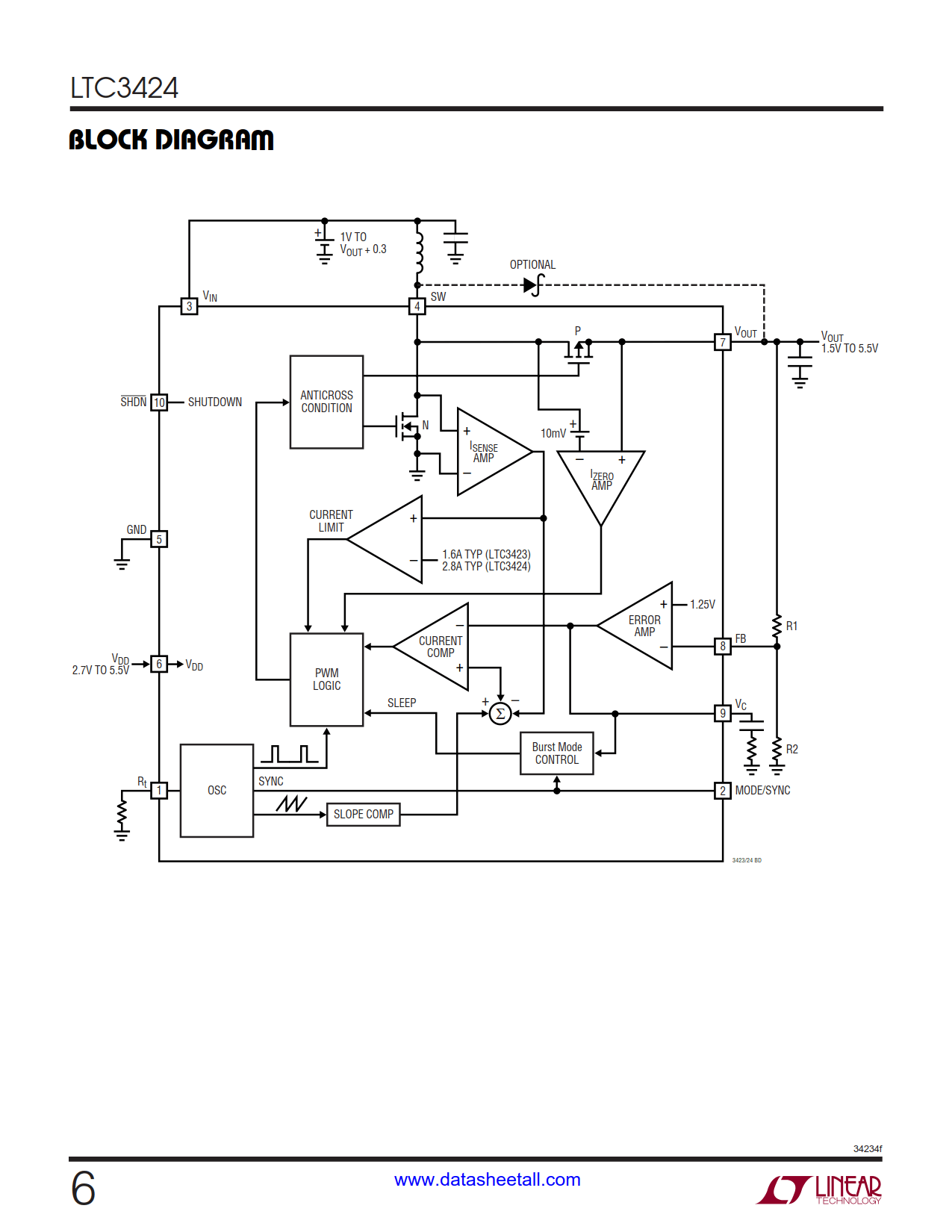

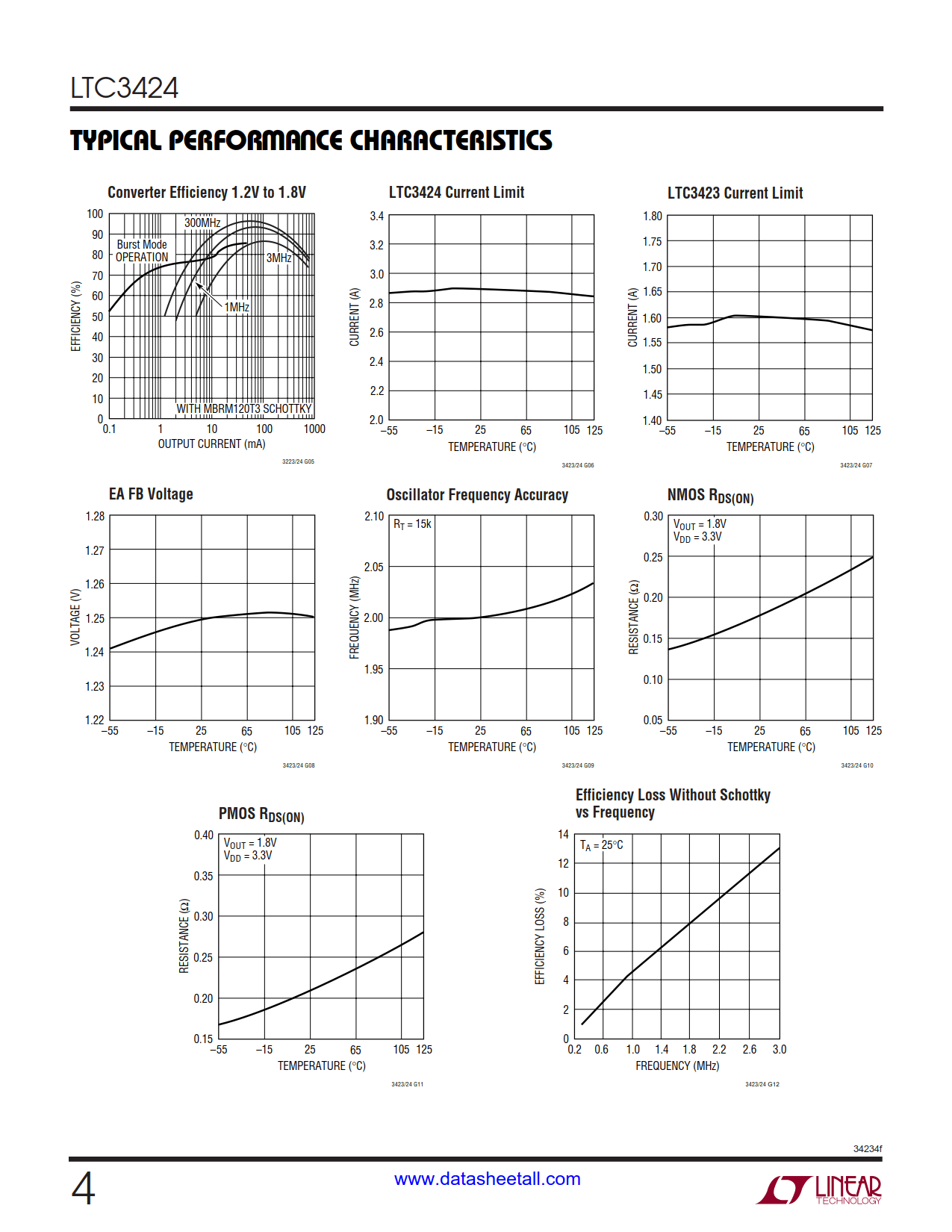

The devices include a 0.16Ω N-channel MOSFET switch and a 0.21Ω P-channel synchronous rectifier. The LTC3424 is intended for applications requiring less than 1.5W of output power. Switching frequencies up to 3MHz are programmed with an external timing resistor and the oscillator can be synchronized to an external clock.

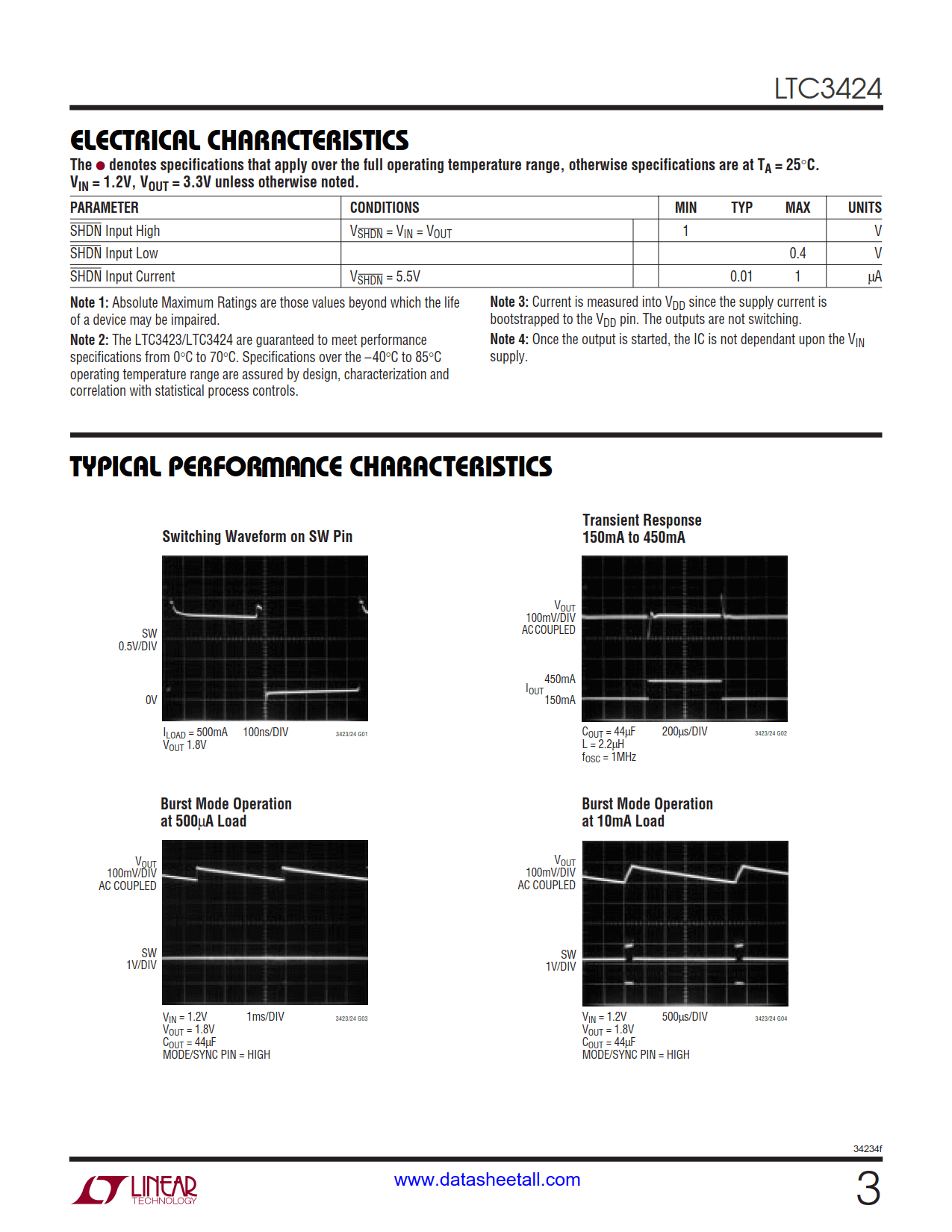

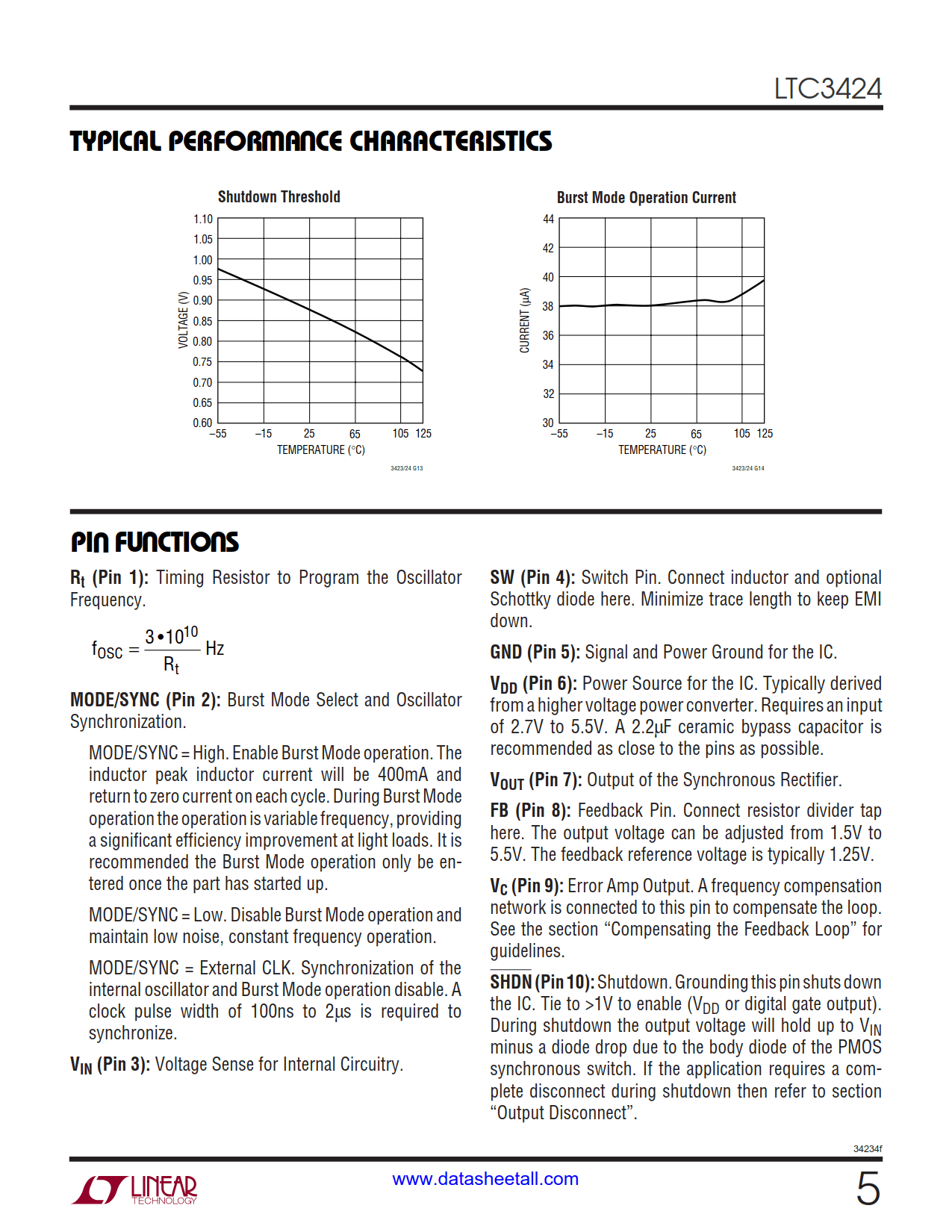

Quiescent current is only 38µA in Burst Mode operation, maximizing battery life in portable applications. Burst Mode operation is user controlled and can be enabled by driving the MODE/SYNC pin high. If the MODE/SYNC pin has either a clock or is driven low then the operation is at constant fixed frequency.
Other features include a 1µA shutdown, thermal shutdown and current limit. The LTC3424 are available in the 10-lead MSOP package. For applications requiring an output voltage greater than 2.6V, the LTC3402 are recommended without the need of a separate voltage for the VDD pin.
