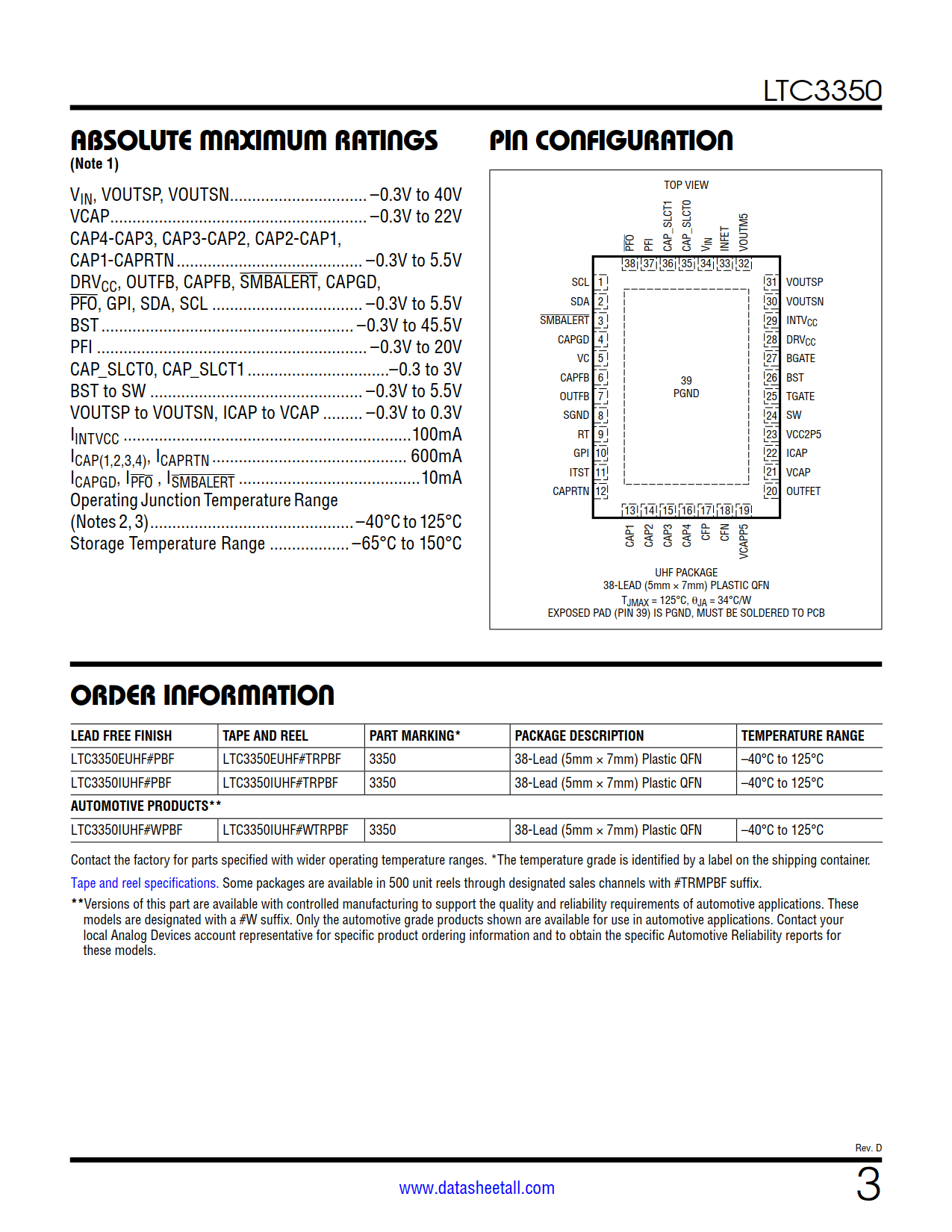

Part No.: | LTC3350 |
Page: | 46 Pages |
Size: | 1623 KB |
Manufacturer: | Linear Technology |
Logo: | |
Views: | 3 |
Update Time: | 2024-04-22 13:53:39 |
DataSheet: | Download |
Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
LTC3350EUHF#PBF | Tube | 52 | 3350 | 1 | 38 | -40°C ~125°C | 38-Lead (5mm × 7mm) Plastic QFN | |
LTC3350EUHF#TRPBF | Reel | 2000 | 3350 | 1 | 38 | -40°C ~125°C | 38-Lead (5mm × 7mm) Plastic QFN | |
LTC3350EUHF#TRMPBF | Reel | 500 | 3350 | 1 | 38 | -40°C ~125°C | 38-Lead (5mm × 7mm) Plastic QFN | |
LTC3350IUHF#PBF | Tube | 52 | 3350 | 1 | 38 | -40°C ~125°C | 38-Lead (5mm × 7mm) Plastic QFN | |
LTC3350IUHF#TRPBF | Reel | 2000 | 3350 | 1 | 38 | -40°C ~125°C | 38-Lead (5mm × 7mm) Plastic QFN | |
LTC3350IUHF#TRMPBF | Reel | 500 | 3350 | 1 | 38 | -40°C ~125°C | 38-Lead (5mm × 7mm) Plastic QFN | |
LTC3350IUHF#WPBF | Tube | 52 | 3350 | 1 | 38 | -40°C ~125°C | 38-Lead (5mm × 7mm) Plastic QFN | |
LTC3350IUHF#WTRPBF | Reel | 2000 | 3350 | 1 | 38 | -40°C ~125°C | 38-Lead (5mm × 7mm) Plastic QFN | |
LTC3350IUHF#WTRMPBF | Reel | 500 | 3350 | 1 | 38 | -40°C ~125°C | 38-Lead (5mm × 7mm) Plastic QFN |

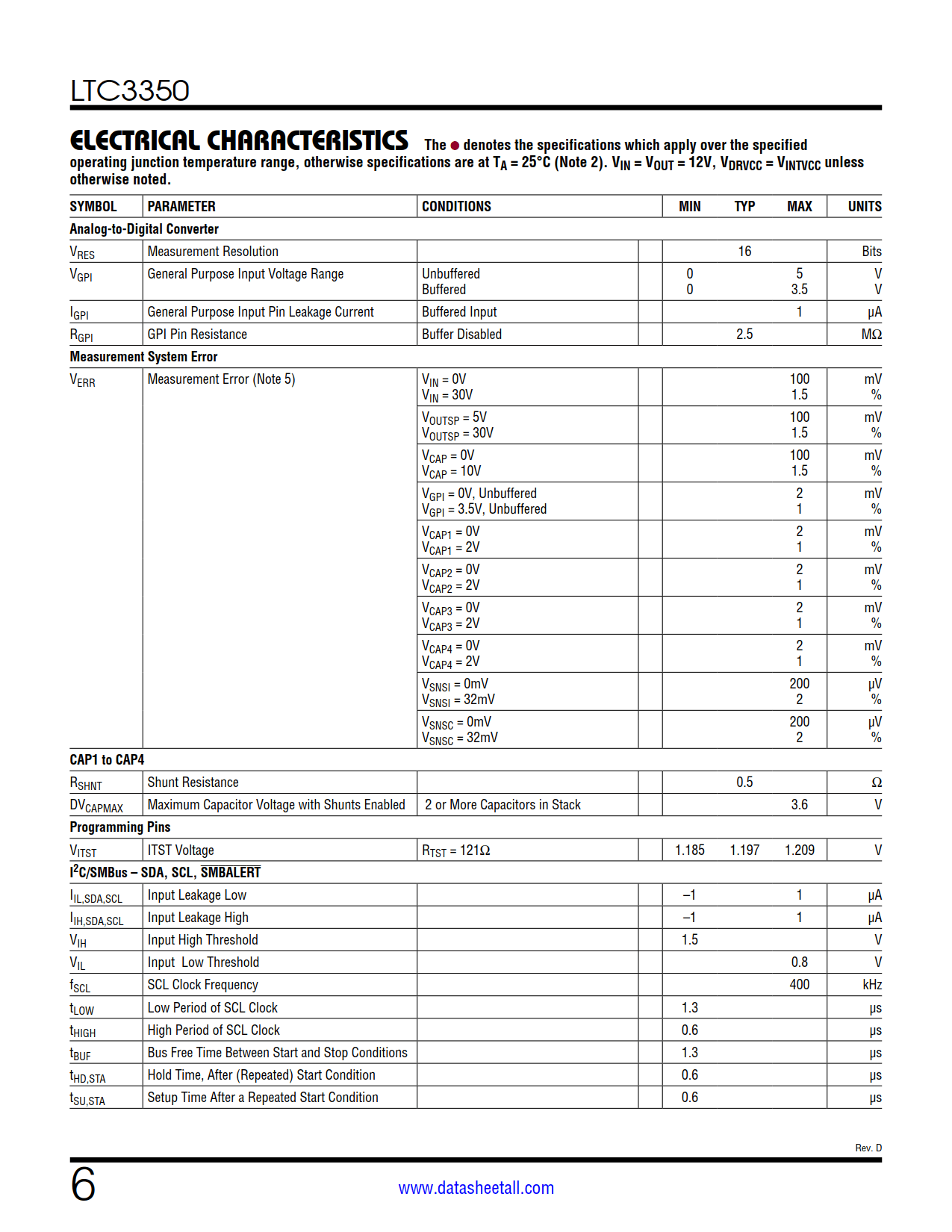

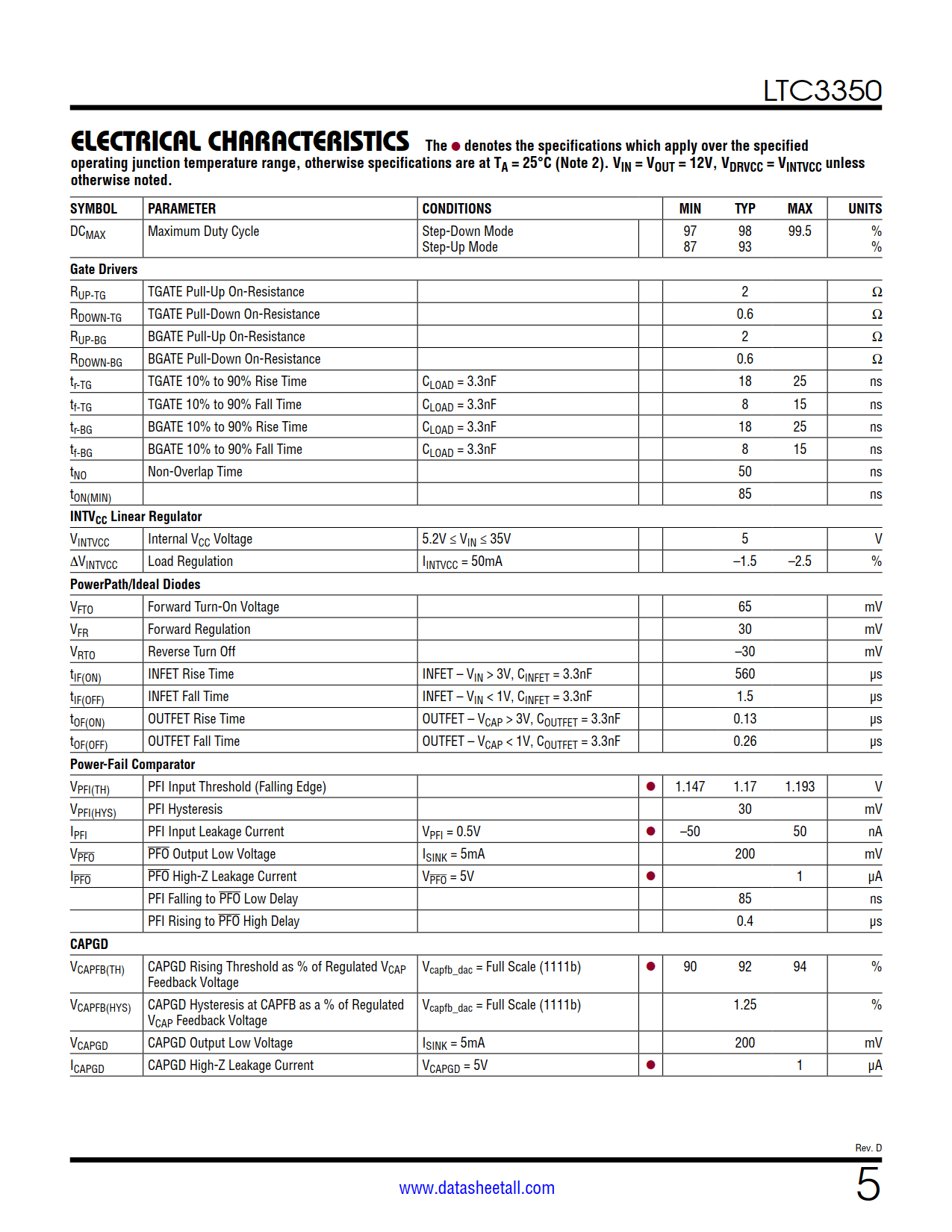

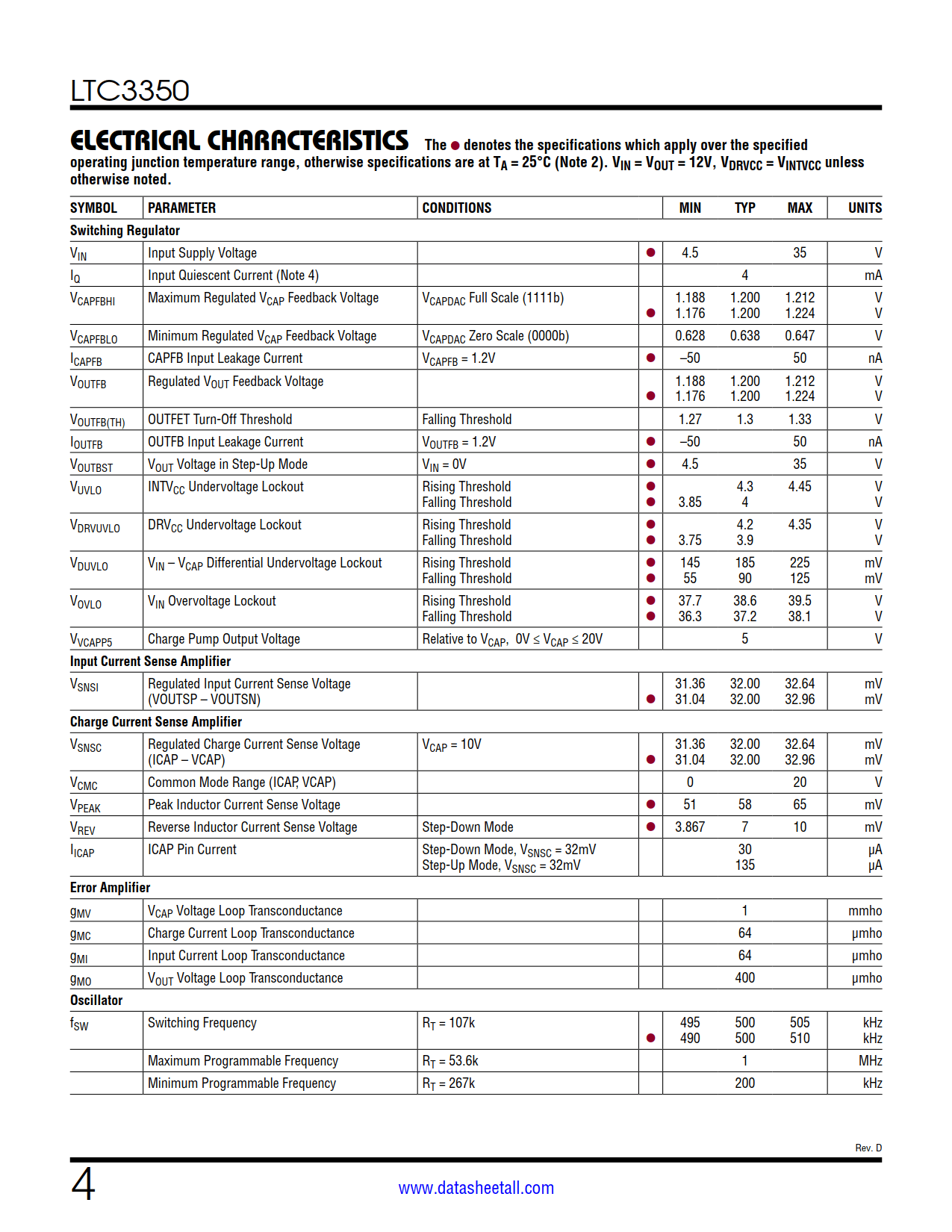

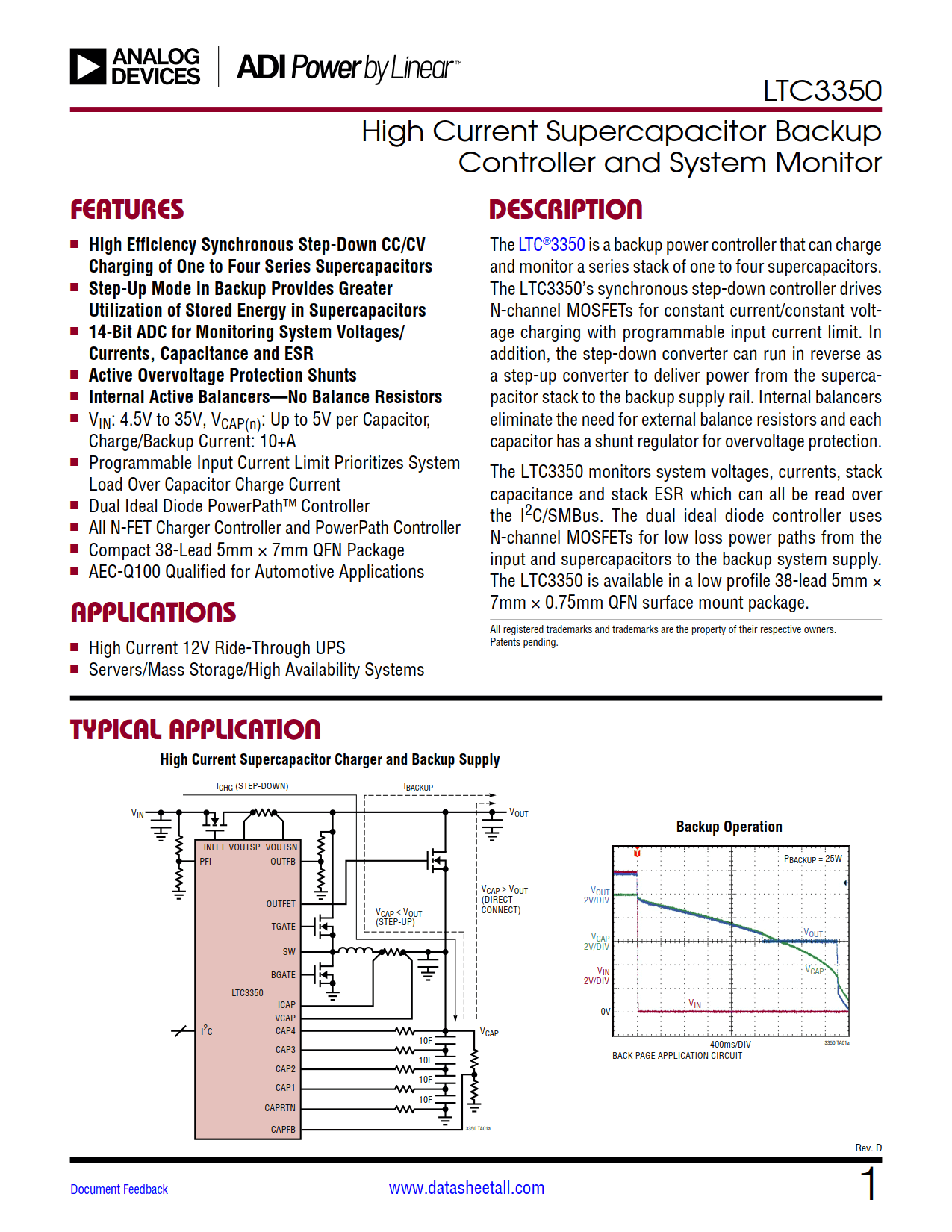

The LTC3350 is a backup power controller that can charge and monitor a series stack of one to four supercapacitors. The LTC3350’s synchronous step-down controller drives N‑channel MOSFETs for constant current/constant voltage charging with programmable input current limit. In addition, the step-down converter can run in reverse as a step-up converter to deliver power from the supercapacitor stack to the backup supply rail. Internal balancers eliminate the need for external balance resistors and each capacitor has a shunt regulator for overvoltage protection.
The LTC3350 monitors system voltages, currents, stack capacitance and stack ESR which can all be read over the I2C/SMBus. The dual ideal diode controller uses N-channel MOSFETs for low loss power paths from the input and supercapacitors to the backup system supply. The LTC3350 is available in a low profile 38-lead 5mm × 7mm × 0.75mm QFN surface mount package.
