LTC3204B-5 Datasheet

LTC3204B-5 Datasheet

Low Noise Regulated Charge Pump in 2 × 2 DFN
Part No.: LTC3204B-5
Page: 12 Pages
Size: 497 KB
Manufacturer: Linear Technology
Logo:
Views: 2
Update Time: 2024-04-29 14:18:46
DataSheet: Download

LTC3204B-5 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC3204BEDC-5#PBF Tube   LBVG 1 6 -40°C ~125°C 6-Lead DFN (2mm x 2mm)
LTC3204BEDC-5#TRPBF Reel 2500 LBVG 1 6 -40°C ~125°C 6-Lead DFN (2mm x 2mm)
LTC3204BEDC-5#TRMPBF Reel 500 LBVG 1 6 -40°C ~125°C 6-Lead DFN (2mm x 2mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC3204B-5 Datasheet(PDF)

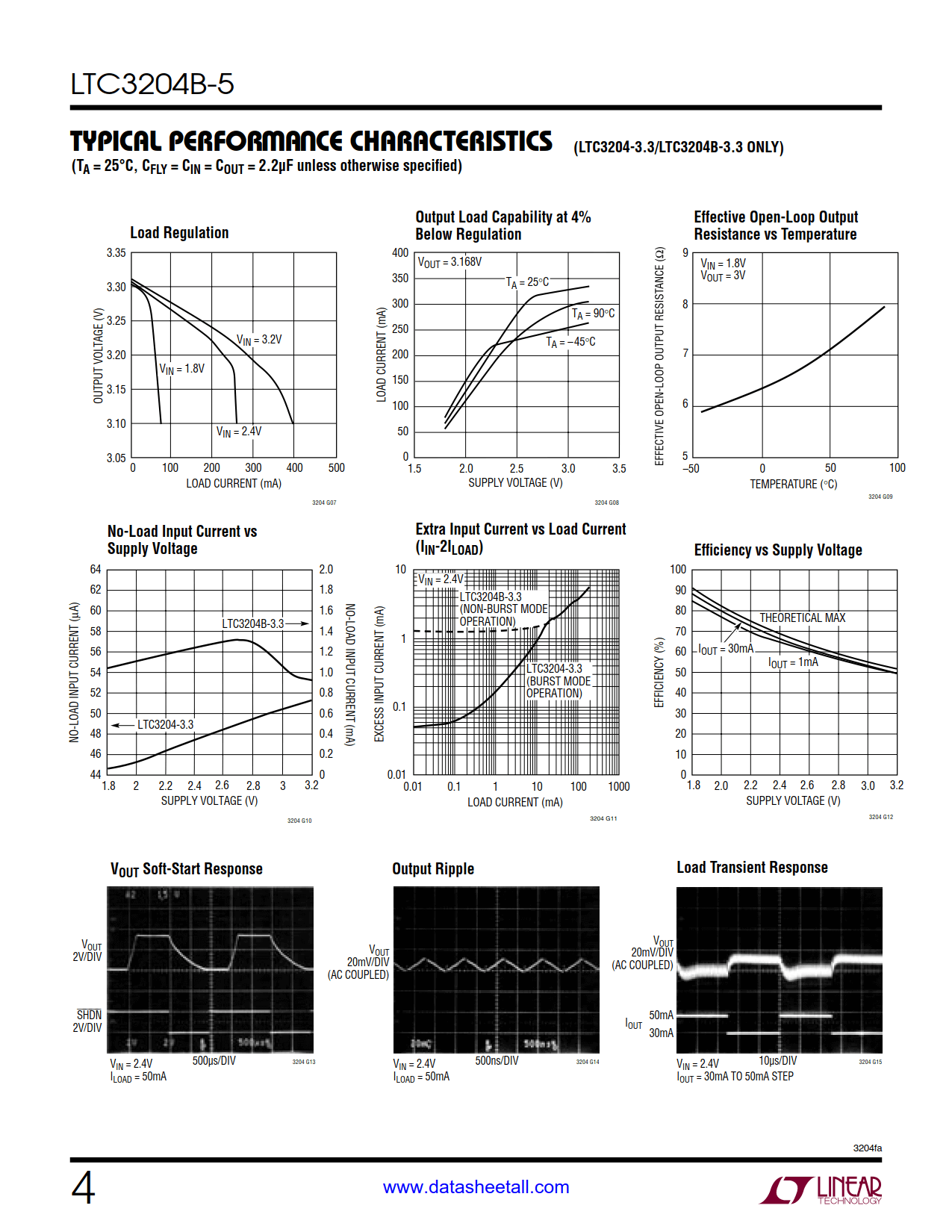

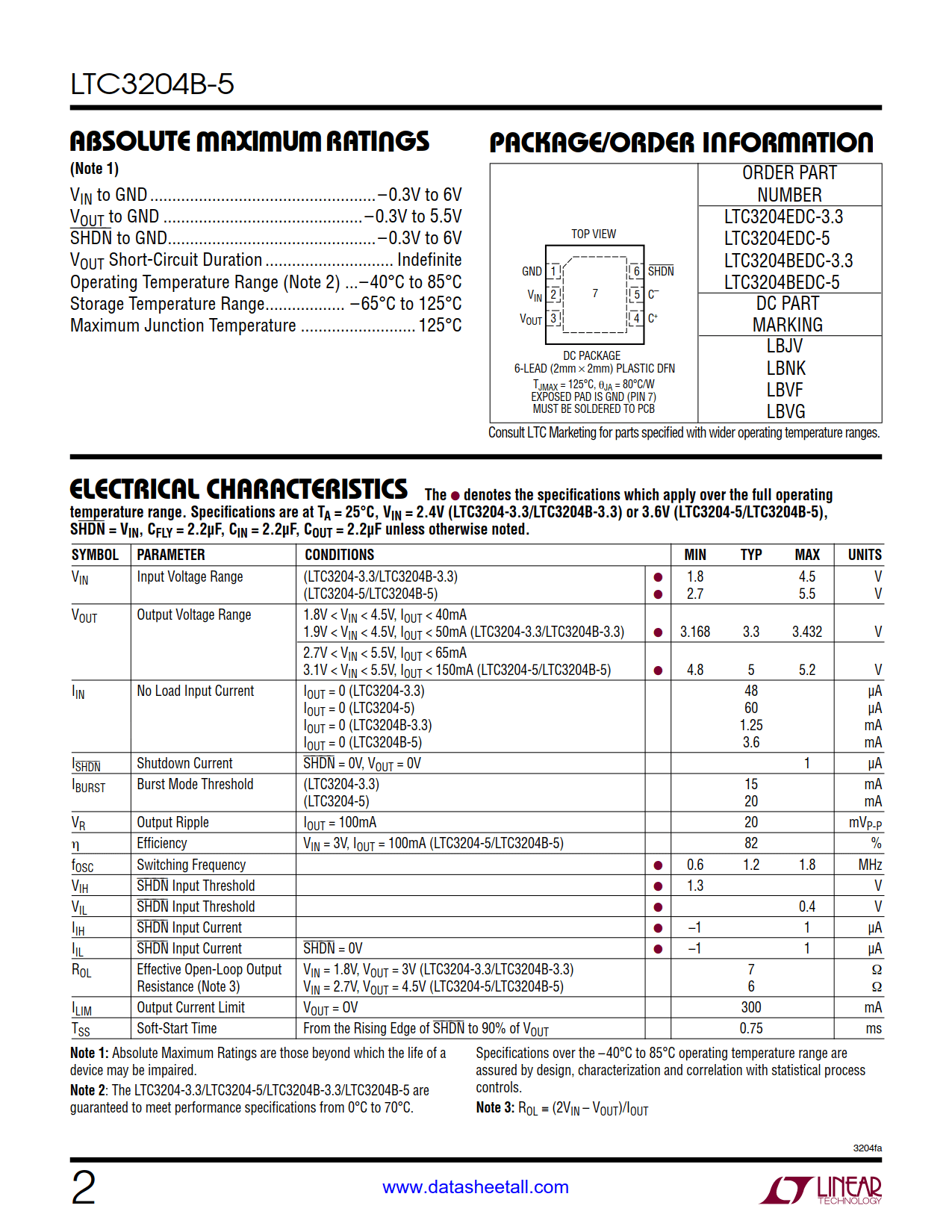

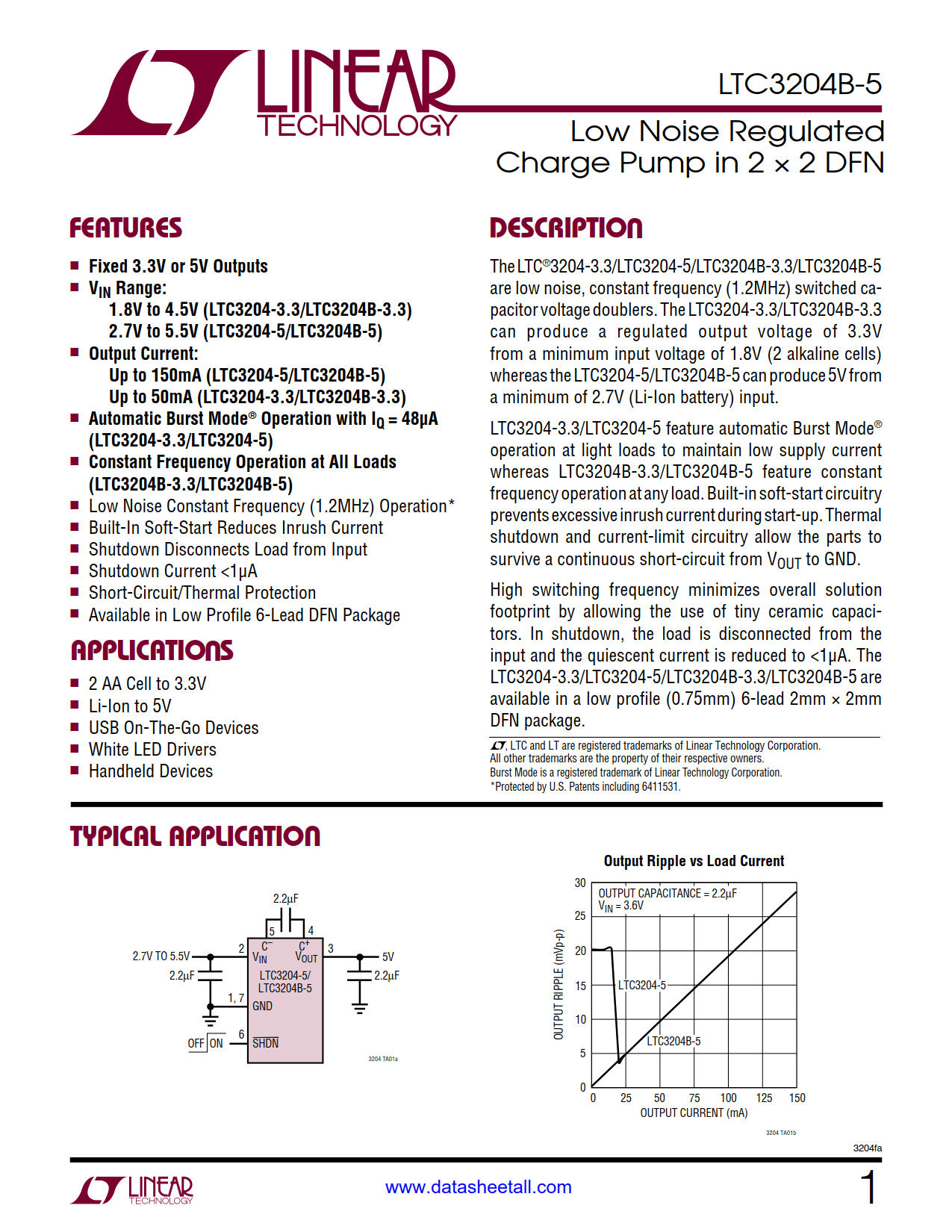

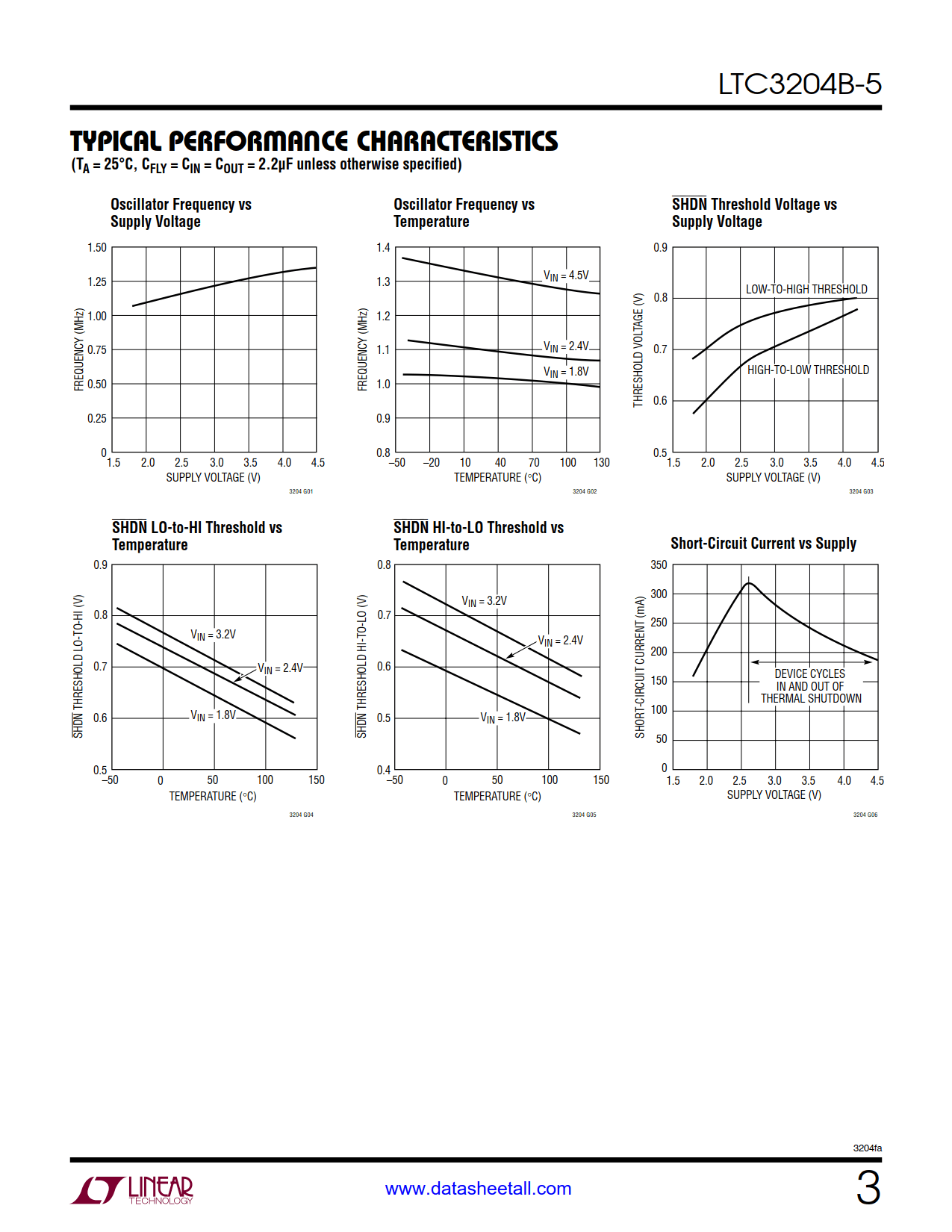

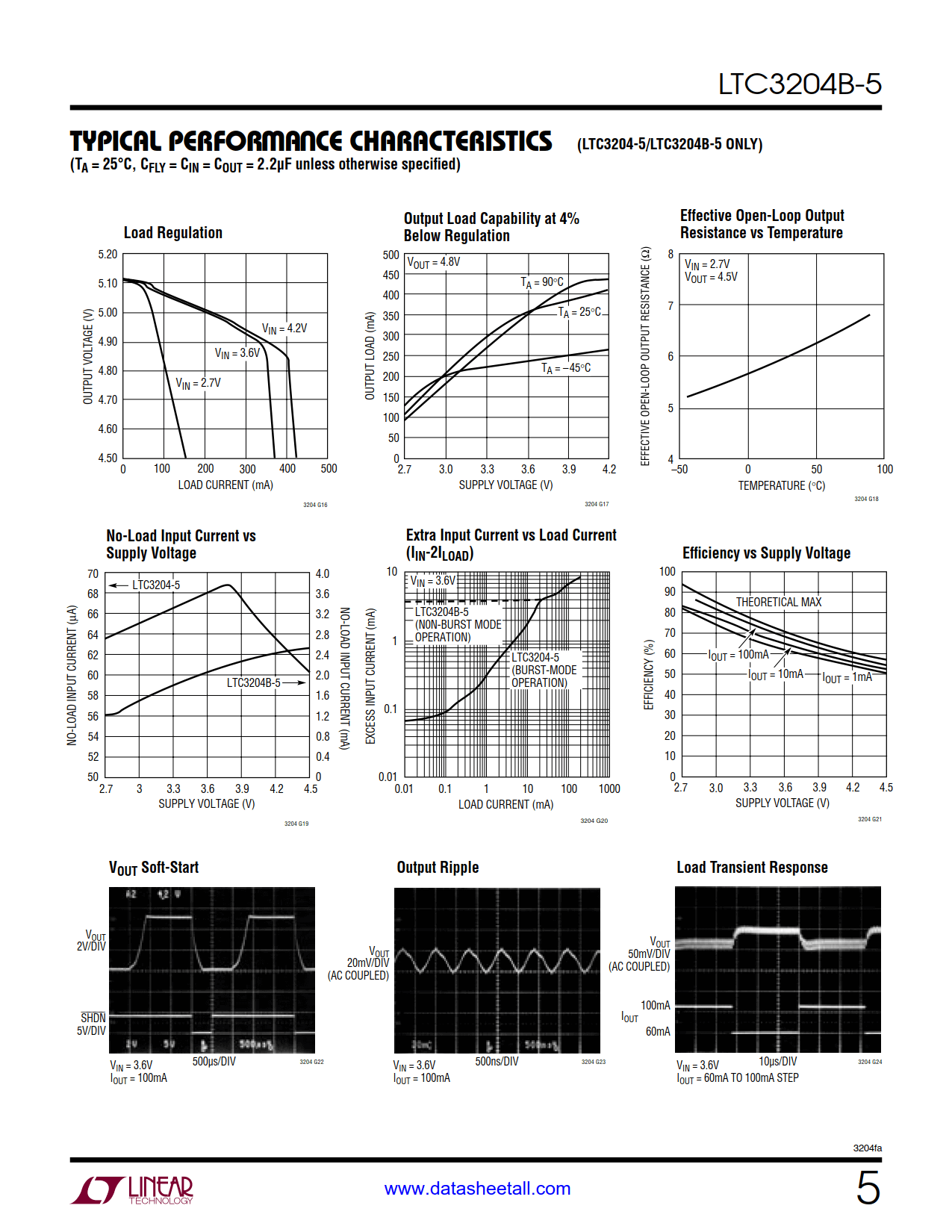

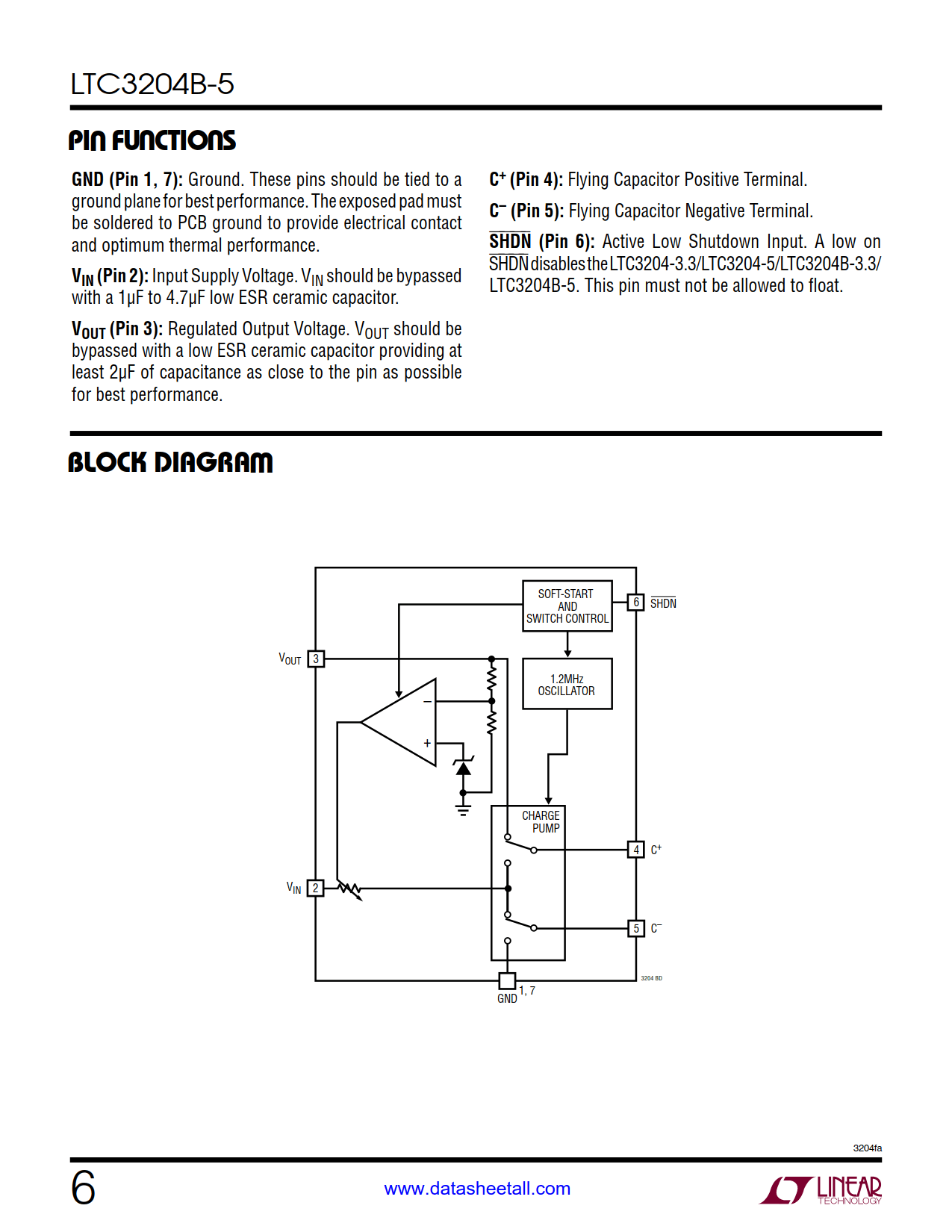

LTC3204B-5 Datasheet(Picture)

LTC3204B-5 Features

  • Fixed 3.3V or 5V Outputs
  • VIN Range:
    • 2.7V to 5.5V (LTC3204B-5)
  • Output Current:
    • Up to 150mA (LTC3204B-5)
  • Constant Frequency Operation at All Loads (LTC3204B-5)
  • Low Noise Constant Frequency (1.2MHz) Operation*
  • Built-In Soft-Start Reduces Inrush Current
  • Shutdown Disconnects Load from Input
  • Shutdown Current <1µA
  • Short-Circuit/Thermal Protection
  • Available in Low Profile 6-Lead DFN Package

LTC3204B-5 Applications

  • 2 AA Cell to 3.3V
  • Li-Ion to 5V
  • USB On-The-Go Devices
  • White LED Drivers
  • Handheld Devices

LTC3204B-5 Description

The LTC3204B-5 are low noise, constant frequency (1.2MHz) switched capacitor voltage doublers. The LTC3204B-5 can produce 5V from a minimum of 2.7V (Li-Ion battery) input.

LTC3204B-5 feature constant frequency operation at any load. Built-in soft-start circuitry prevents excessive inrush current during start-up. Thermal shutdown and current-limit circuitry allow the parts to survive a continuous short-circuit from VOUT to GND.

High switching frequency minimizes overall solution footprint by allowing the use of tiny ceramic capacitors. In shutdown, the load is disconnected from the input and the quiescent current is reduced to <1µA.

The LTC3204B-5 are available in a low profile (0.75mm) 6-lead 2mm × 2mm DFN package.
