LTC3204-3.3 Datasheet

LTC3204-3.3 Datasheet

Low Noise Regulated Charge Pump in 2 × 2 DFN
Part No.: LTC3204-3.3
Page: 12 Pages
Size: 497 KB
Manufacturer: Linear Technology
Logo:
Views: 2
Update Time: 2024-04-29 14:32:16
DataSheet: Download

LTC3204-3.3 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC3204EDC-3.3#PBF Tube   LBJV 1 6 -40°C ~125°C 6-Lead DFN (2mm x 2mm)
LTC3204EDC-3.3#TRPBF Reel 2500 LBJV 1 6 -40°C ~125°C 6-Lead DFN (2mm x 2mm)
LTC3204EDC-3.3#TRMPBF Reel 500 LBJV 1 6 -40°C ~125°C 6-Lead DFN (2mm x 2mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC3204-3.3 Datasheet(PDF)

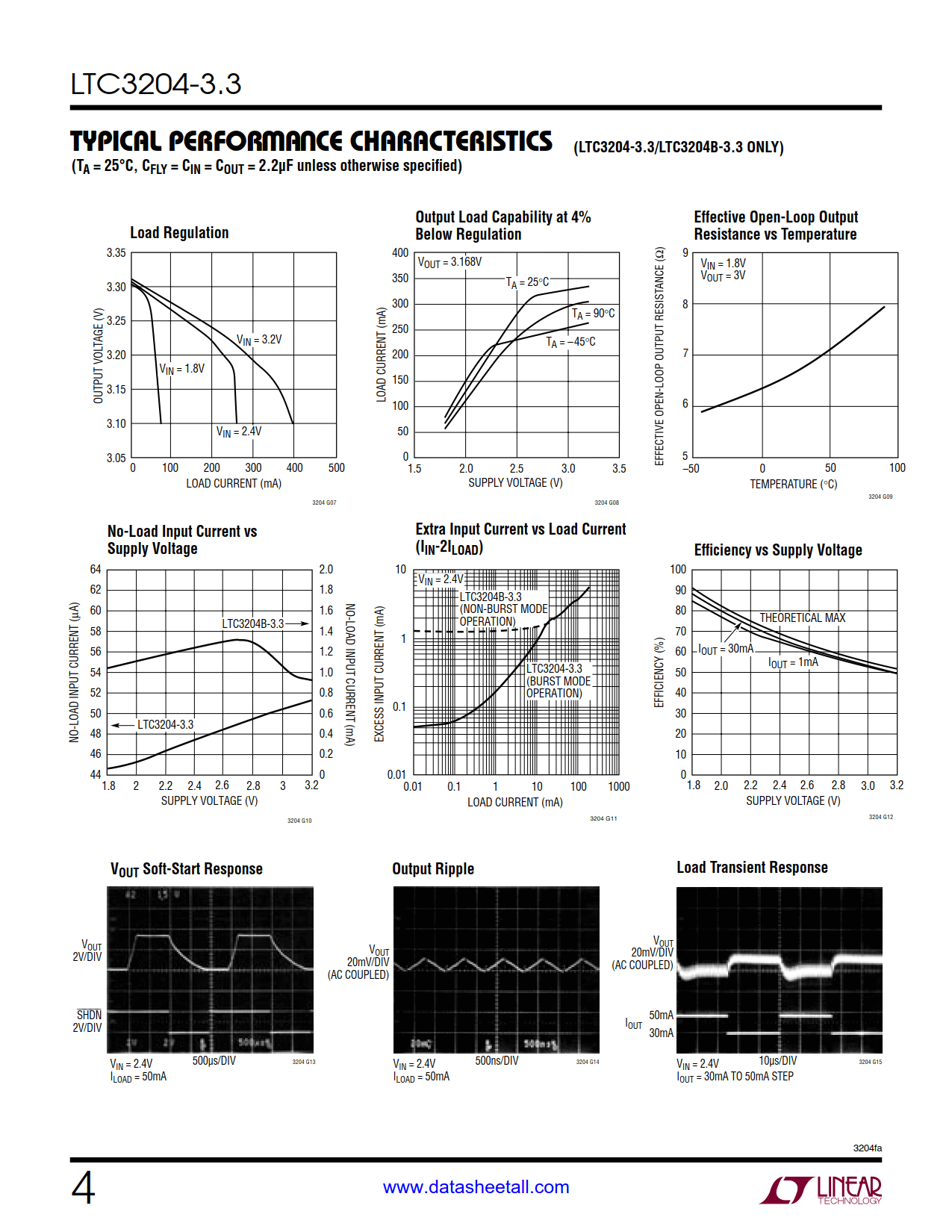

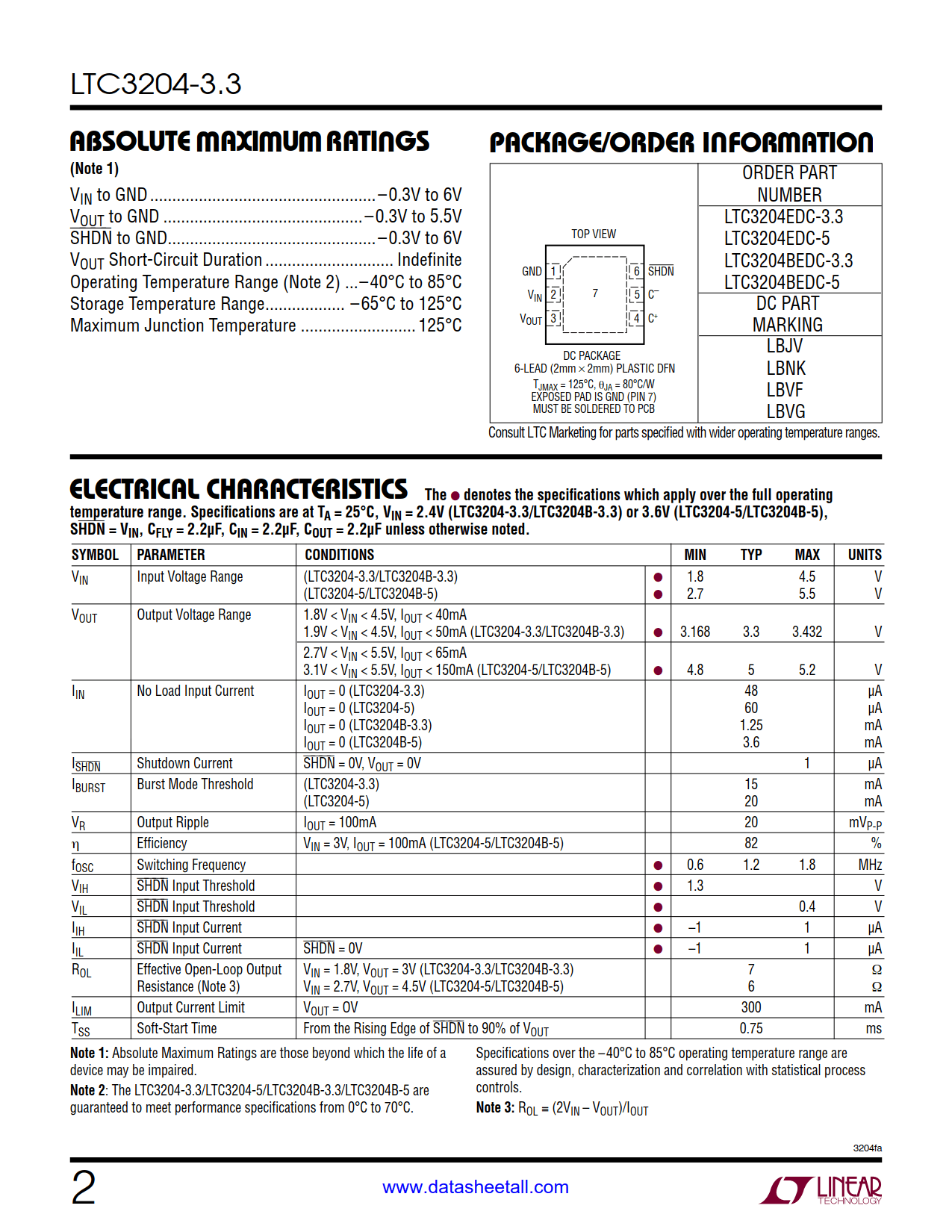

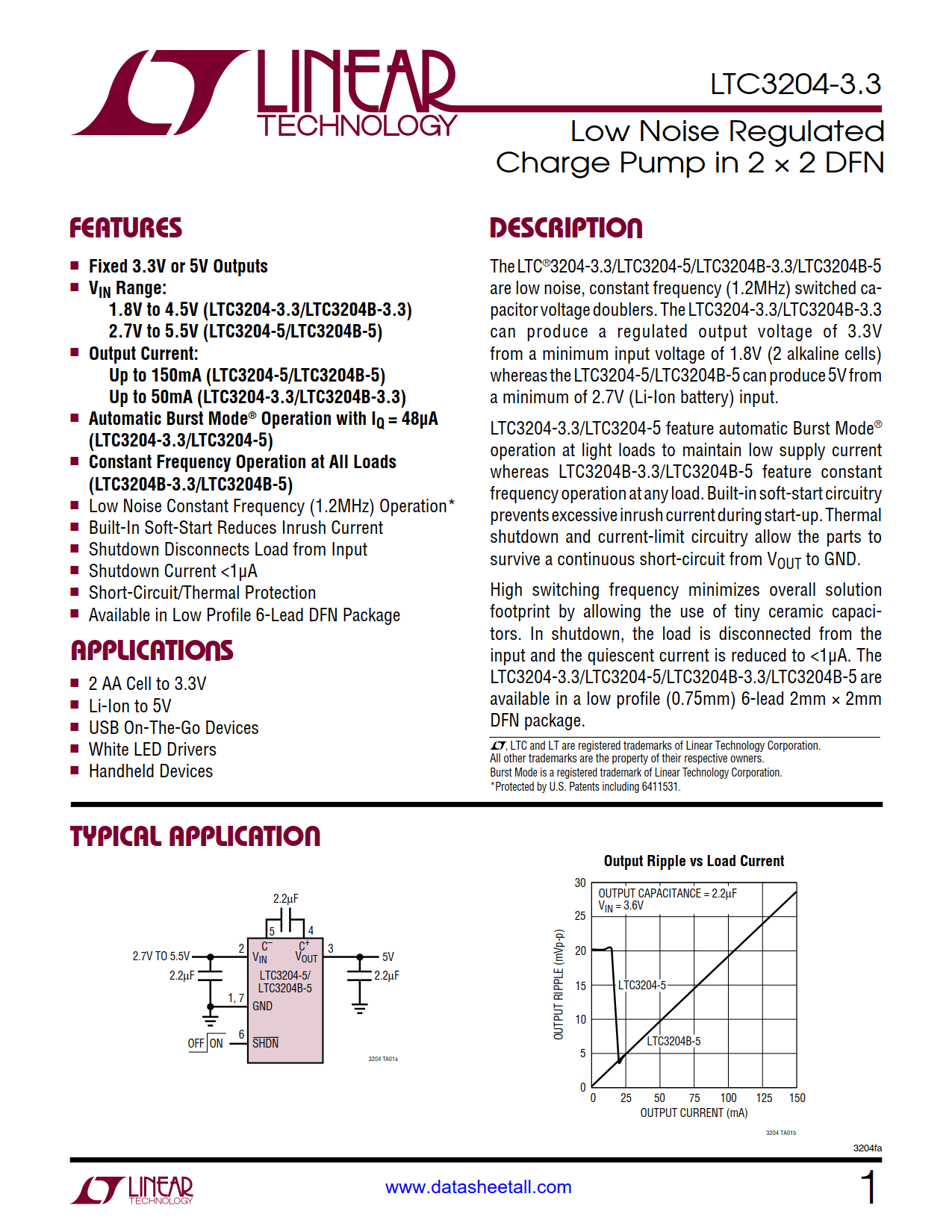

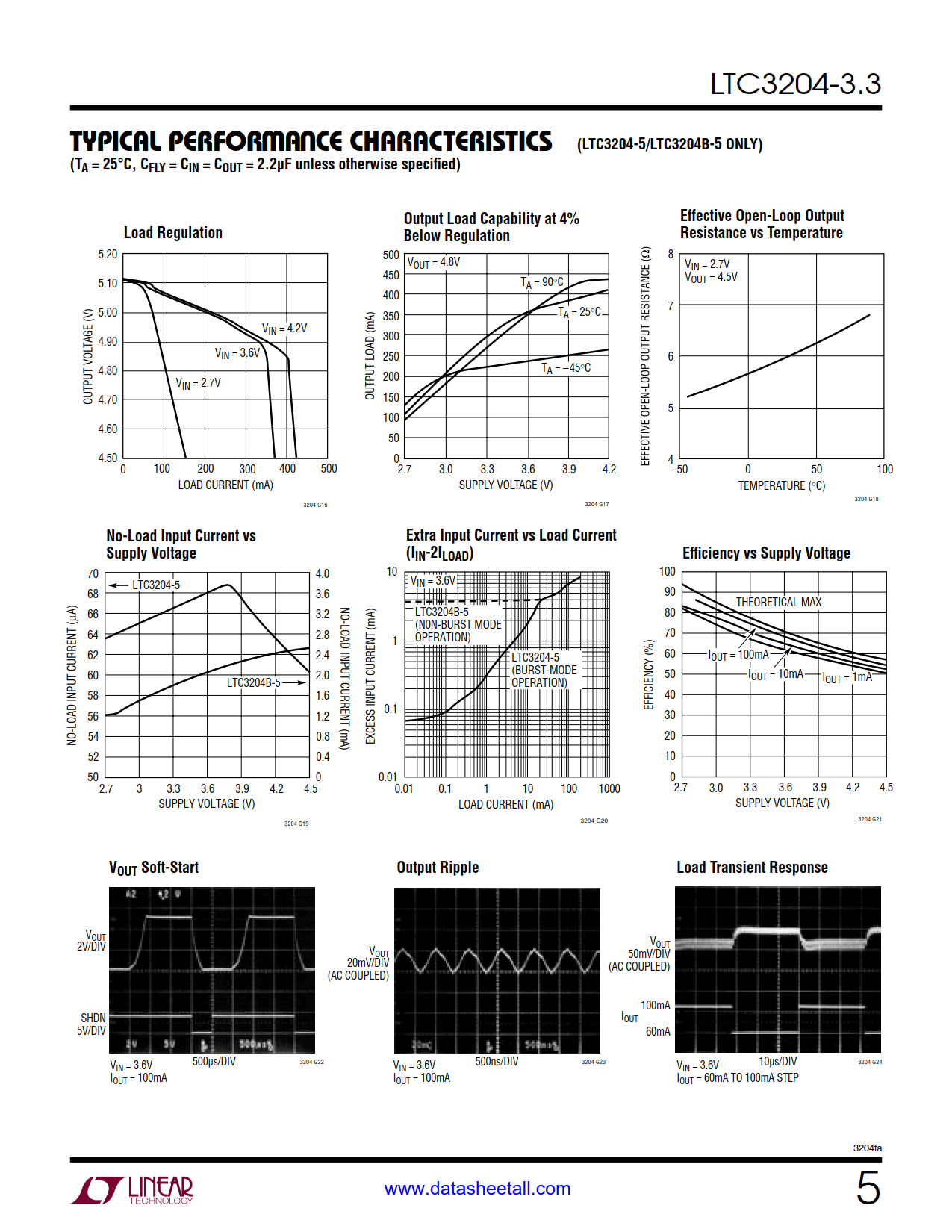

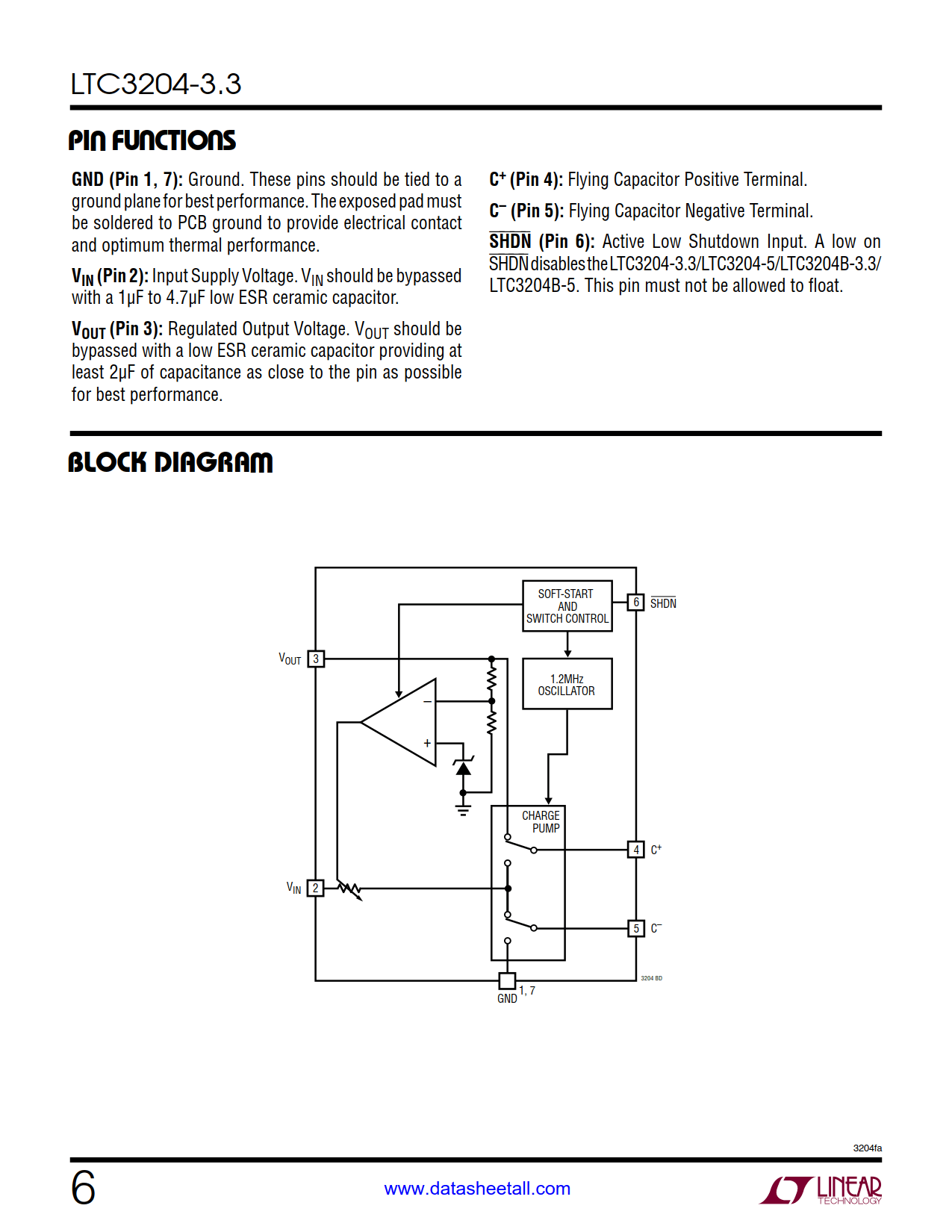

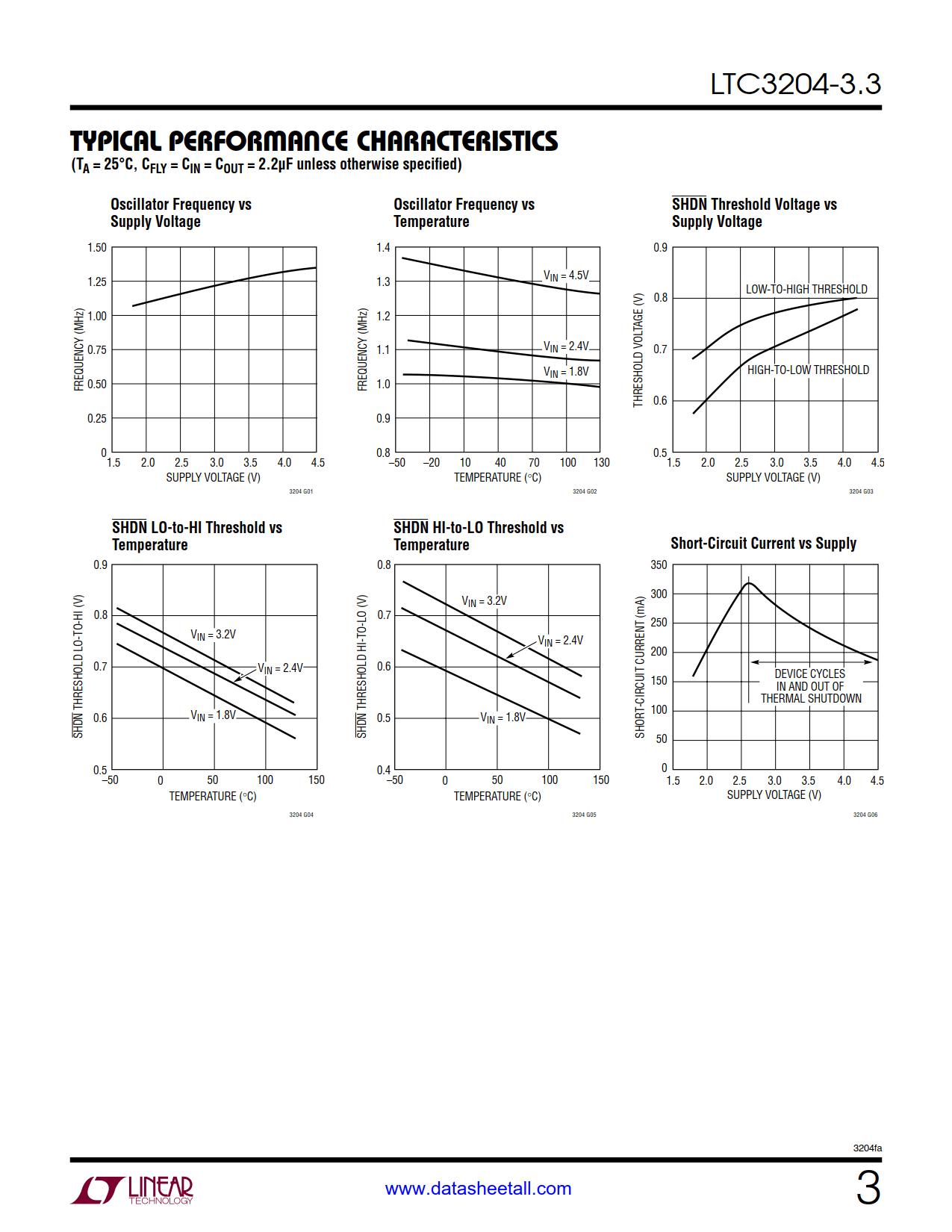

LTC3204-3.3 Datasheet(Picture)

LTC3204-3.3 Features

  • Fixed 3.3V or 5V Outputs
  • VIN Range:
    • 1.8V to 4.5V (LTC3204-3.3)
  • Output Current:
    • Up to 50mA (LTC3204-3.3)
  • Automatic Burst Mode® Operation with IQ = 48µA (LTC3204-3.3)
  • Low Noise Constant Frequency (1.2MHz) Operation*
  • Built-In Soft-Start Reduces Inrush Current
  • Shutdown Disconnects Load from Input
  • Shutdown Current <1µA
  • Short-Circuit/Thermal Protection
  • Available in Low Profile 6-Lead DFN Package

LTC3204-3.3 Applications

  • 2 AA Cell to 3.3V
  • Li-Ion to 5V
  • USB On-The-Go Devices
  • White LED Drivers
  • Handheld Devices

LTC3204-3.3 Description

The LTC3204-3.3 are low noise, constant frequency (1.2MHz) switched capacitor voltage doublers. The LTC3204-3.3 can produce a regulated output voltage of 3.3V from a minimum input voltage of 1.8V (2 alkaline cells).

LTC3204-3.3 feature automatic Burst Mode® operation at light loads to maintain low supply current. Built-in soft-start circuitry prevents excessive inrush current during start-up. Thermal shutdown and current-limit circuitry allow the parts to survive a continuous short-circuit from VOUT to GND.

High switching frequency minimizes overall solution footprint by allowing the use of tiny ceramic capacitors. In shutdown, the load is disconnected from the input and the quiescent current is reduced to <1µA.

The LTC3204-3.3 are available in a low profile (0.75mm) 6-lead 2mm × 2mm DFN package.
