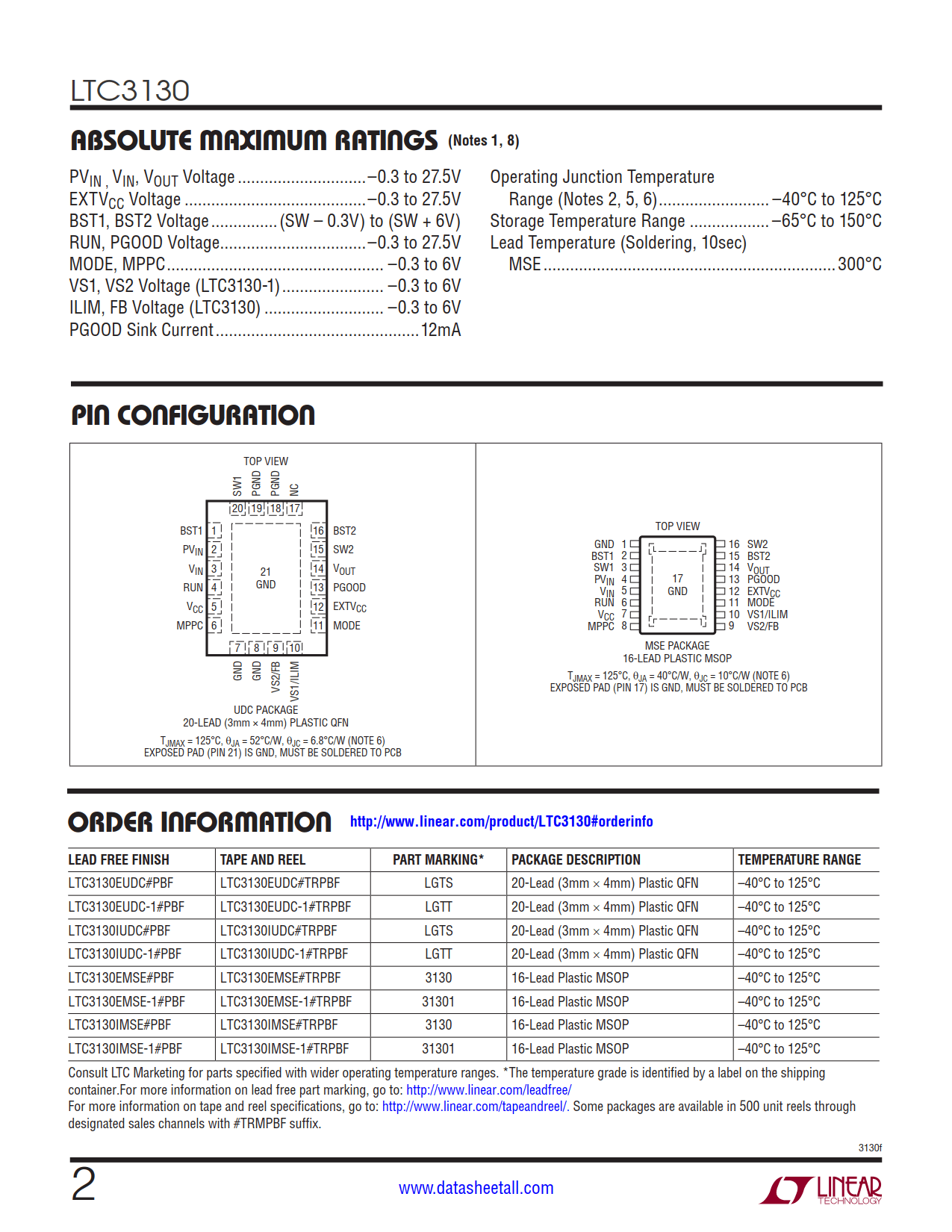

| Part No.： | LTC3130 |
| Page： | 38 Pages |
| Size： | 4983 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 2 |
| Update Time： | 2023-12-26 14:36:08 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC3130EUDC#PBF | Tube | 91 | LGTS | 1 | 20 | -40°C ~ 125°C | 20-Lead (3mm × 4mm) Plastic QFN | |
| LTC3130EUDC#TRPBF | Reel | 2500 | LGTS | 1 | 20 | -40°C ~ 125°C | 20-Lead (3mm × 4mm) Plastic QFN | |
| LTC3130EUDC#TRMPBF | Reel | 500 | LGTS | 1 | 20 | -40°C ~ 125°C | 20-Lead (3mm × 4mm) Plastic QFN | |
| LTC3130IUDC#PBF | Tube | 91 | LGTS | 1 | 20 | -40°C ~ 125°C | 20-Lead (3mm × 4mm) Plastic QFN | |
| LTC3130IUDC#TRPBF | Reel | 2500 | LGTS | 1 | 20 | -40°C ~ 125°C | 20-Lead (3mm × 4mm) Plastic QFN | |
| LTC3130IUDC#TRMPBF | Reel | 500 | LGTS | 1 | 20 | -40°C ~ 125°C | 20-Lead (3mm × 4mm) Plastic QFN | |
| LTC3130EMSE#PBF | Tube | 37 | 3130 | 1 | 16 | -40°C ~ 125°C | 16-Lead Plastic MSOP | |
| LTC3130EMSE#TRPBF | Reel | 2500 | 3130 | 1 | 16 | -40°C ~ 125°C | 16-Lead Plastic MSOP | |
| LTC3130EMSE#TRMPBF | Reel | 500 | 3130 | 1 | 16 | -40°C ~ 125°C | 16-Lead Plastic MSOP | |
| LTC3130IMSE#PBF | Tube | 37 | 3130 | 1 | 16 | -40°C ~ 125°C | 16-Lead Plastic MSOP | |
| LTC3130IMSE#TRPBF | Reel | 2500 | 3130 | 1 | 16 | -40°C ~ 125°C | 16-Lead Plastic MSOP | |
| LTC3130IMSE#TRMPBF | Reel | 500 | 3130 | 1 | 16 | -40°C ~ 125°C | 16-Lead Plastic MSOP |

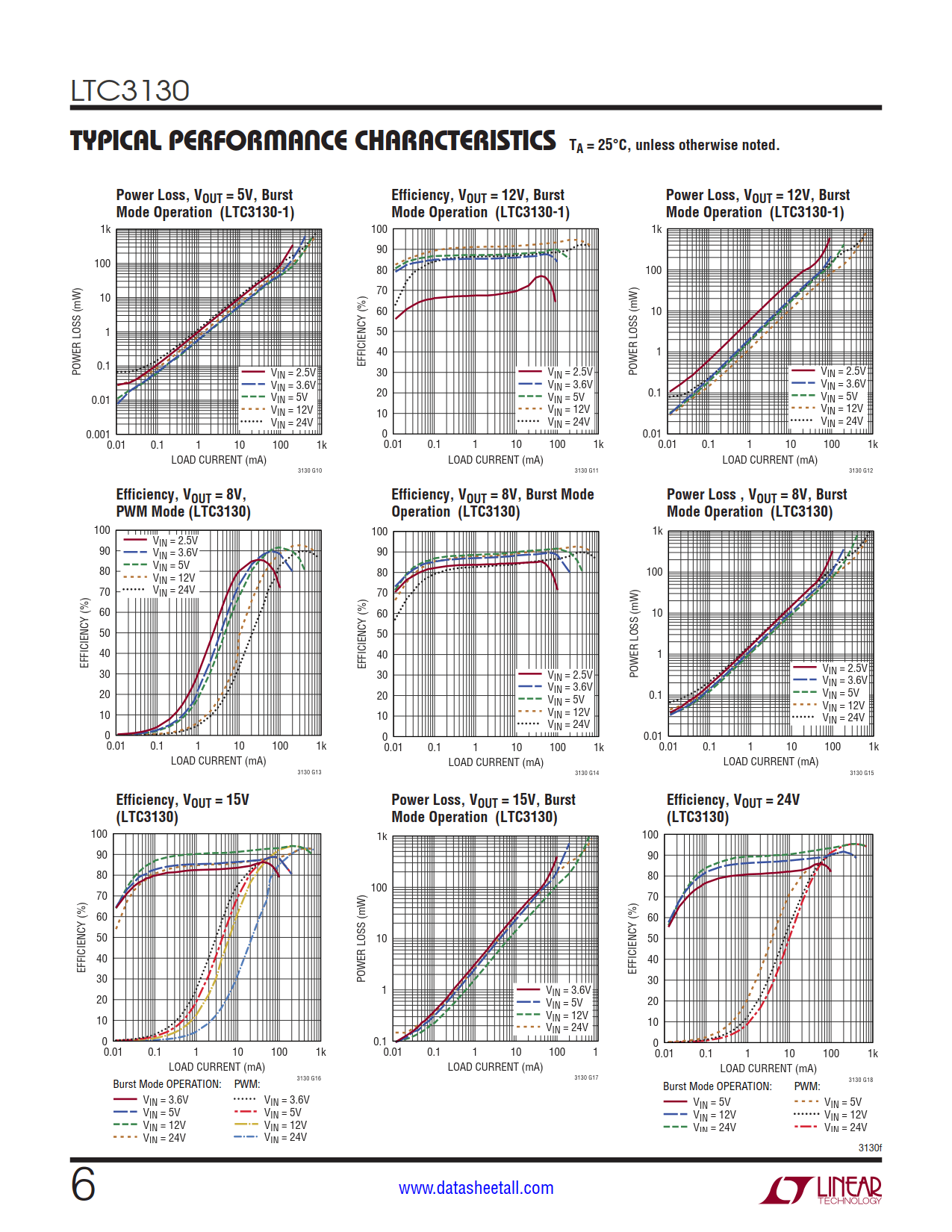

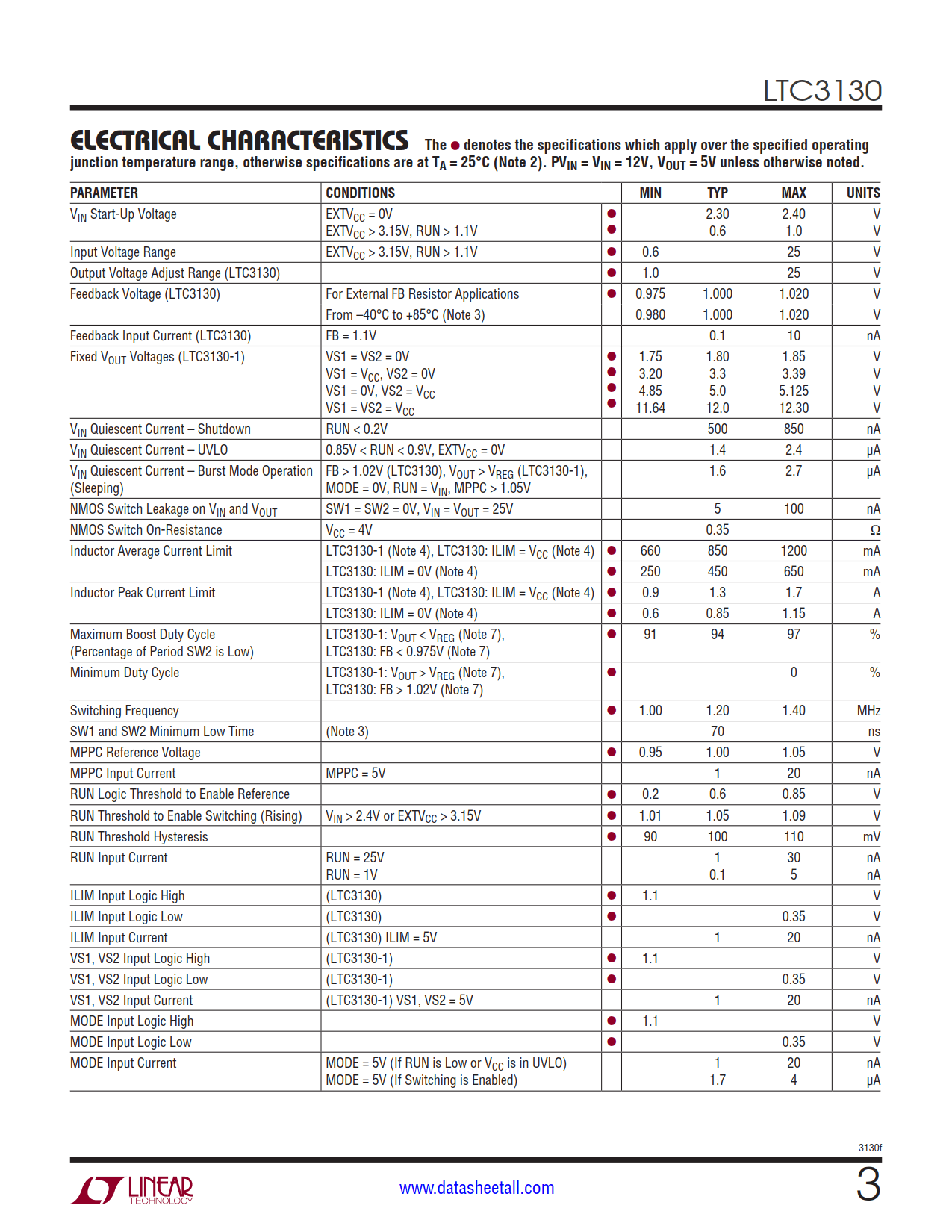

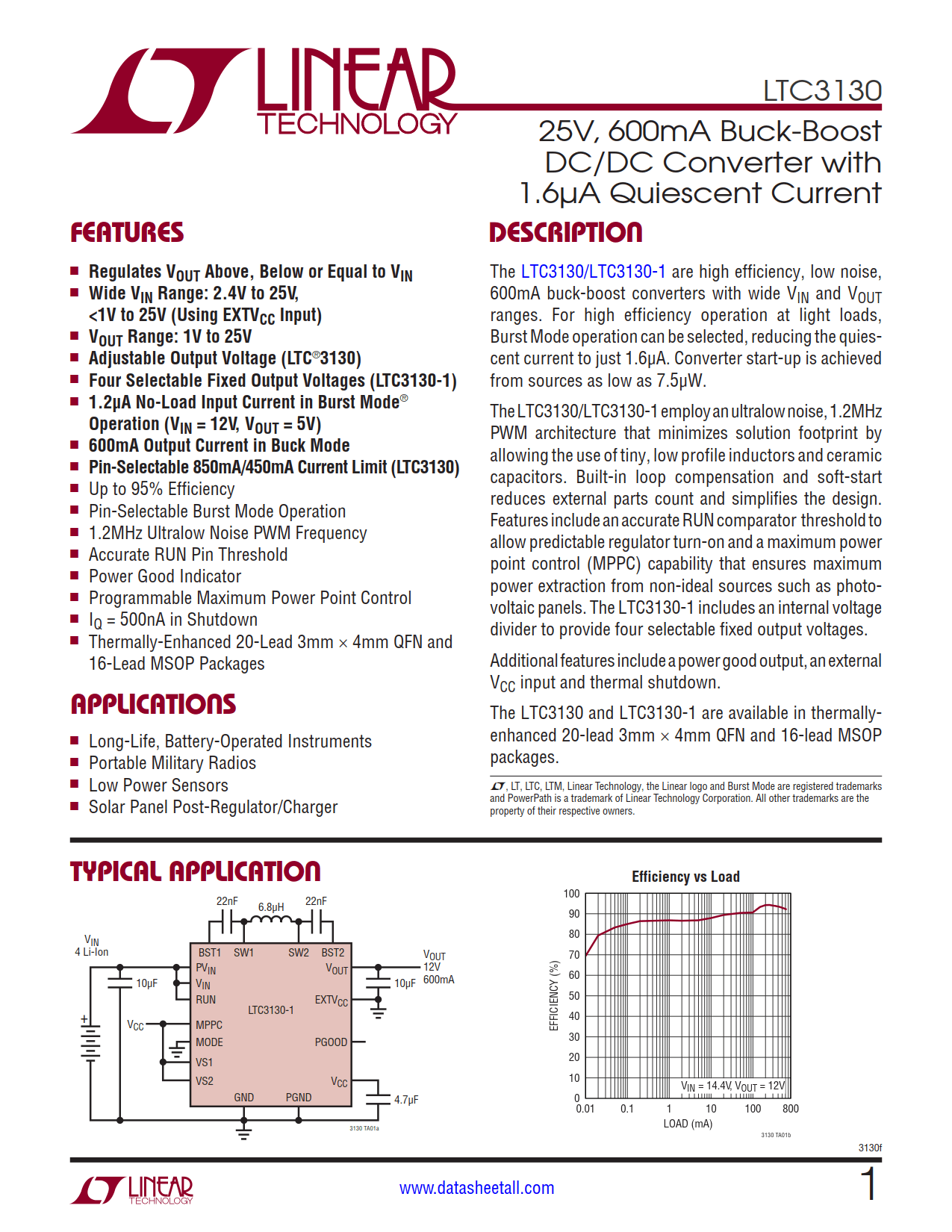

The LTC3130 are high efficiency, low noise, 600mA buck-boost converters with wide VIN and VOUT ranges. For high efficiency operation at light loads, BurstMode operation can be selected, reducing the quiescent current to just 1.6µA. Converter start-up is achieved from sources as low as 7.5µW.
TheLTC3130 employ an ultralow noise, 1.2MHz PWM architecture that minimizes solution footprint by allowing the use of tiny, low profile inductors and ceramic capacitors. Built-in loop compensation and soft-start reduces external parts count and simplifies the design. Features include an accurate RUN comparator threshold to allow predictable regulator turn-on and a maximum power point control (MPPC) capability that ensures maximum power extraction from non-ideal sources such as photovoltaic panels.
Additional features include a power good output, an external VCC input and thermal shutdown.
The LTC3130 are available in thermally-enhanced 20-lead 3mm × 4mm QFN and 16-lead MSOP packages.
