| Part No.： | LTC3122 |
| Page： | 26 Pages |
| Size： | 490 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-11-03 17:41:41 |
| DataSheet： | Download |

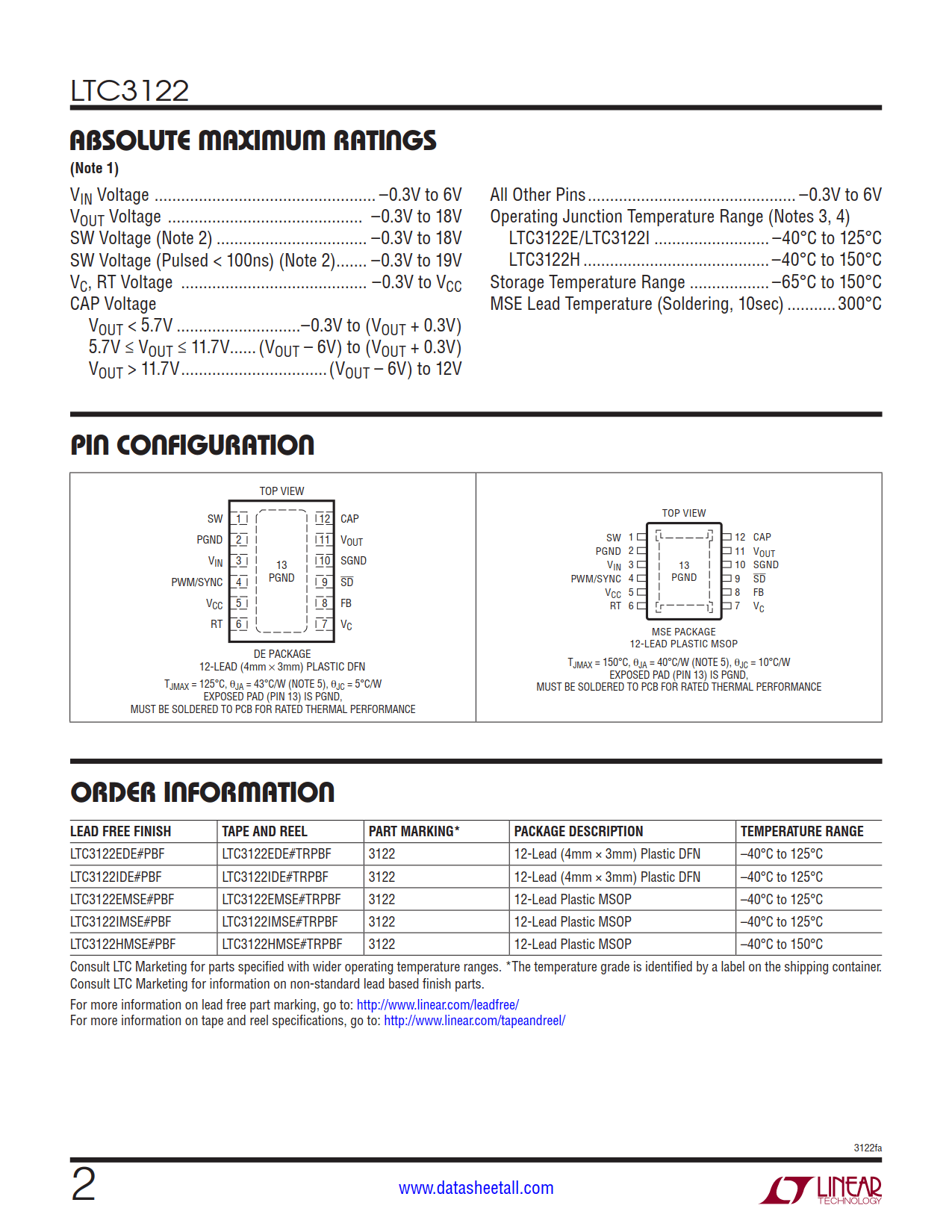

| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC3122EDE#PBF | Tube | 91 | 3122 | 1 | 12 | -40°C ~ 125°C | 12-Lead (4mm × 3mm) Plastic DFN | |
| LTC3122EDE#TRPBF | Reel | 2500 | 3122 | 1 | 12 | -40°C ~ 125°C | 12-Lead (4mm × 3mm) Plastic DFN | |
| LTC3122EDE#TRMPBF | Reel | 500 | 3122 | 1 | 12 | -40°C ~ 125°C | 12-Lead (4mm × 3mm) Plastic DFN | |
| LTC3122IDE#PBF | Tube | 91 | 3122 | 1 | 12 | -40°C ~ 125°C | 12-Lead (4mm × 3mm) Plastic DFN | |
| LTC3122IDE#TRPBF | Reel | 2500 | 3122 | 1 | 12 | -40°C ~ 125°C | 12-Lead (4mm × 3mm) Plastic DFN | |
| LTC3122IDE#TRMPBF | Reel | 500 | 3122 | 1 | 12 | -40°C ~ 125°C | 12-Lead (4mm × 3mm) Plastic DFN | |
| LTC3122EMSE#PBF | Tube | 37 | 3122 | 1 | 12 | -40°C ~ 125°C | 12-Lead Plastic MSOP | |
| LTC3122EMSE#TRPBF | Reel | 2500 | 3122 | 1 | 12 | -40°C ~ 125°C | 12-Lead Plastic MSOP | |
| LTC3122EMSE#TRMPBF | Reel | 500 | 3122 | 1 | 12 | -40°C ~ 125°C | 12-Lead Plastic MSOP | |
| LTC3122IMSE#PBF | Tray | 624 | 3122 | 1 | 12 | -40°C ~ 125°C | 12-Lead Plastic MSOP | |
| LTC3122IMSE#TRPBF | Reel | 2500 | 3122 | 1 | 12 | -40°C ~ 125°C | 12-Lead Plastic MSOP | |
| LTC3122IMSE#TRMPBF | Reel | 500 | 3122 | 1 | 12 | -40°C ~ 125°C | 12-Lead Plastic MSOP | |
| LTC3122HMSE#PBF | Tube | 37 | 3122 | 1 | 12 | -40°C ~ 150°C | 12-Lead Plastic MSOP | |
| LTC3122HMSE#TRPBF | Reel | 2500 | 3122 | 1 | 12 | -40°C ~ 150°C | 12-Lead Plastic MSOP | |
| LTC3122HMSE#TRMPBF | Reel | 500 | 3122 | 1 | 12 | -40°C ~ 150°C | 12-Lead Plastic MSOP |

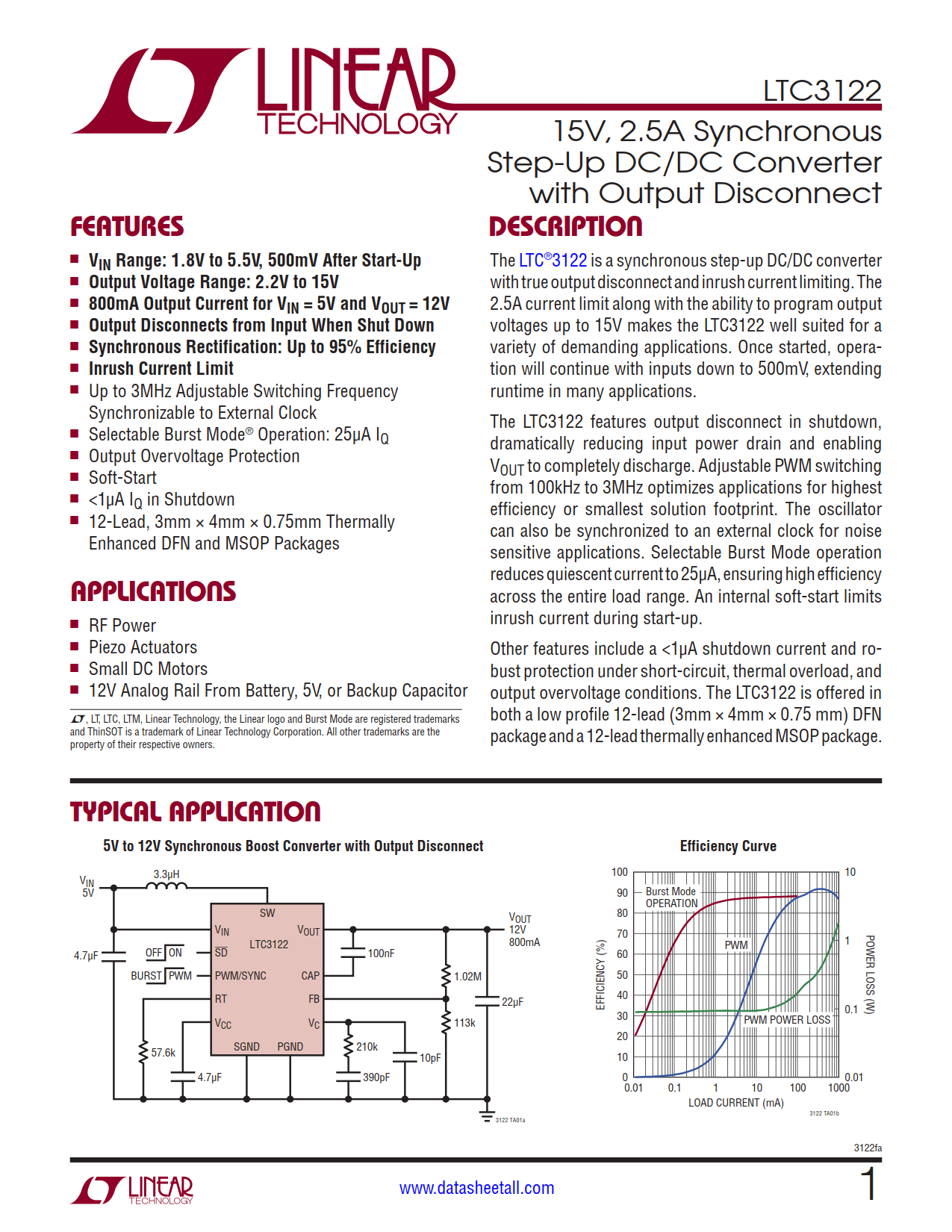

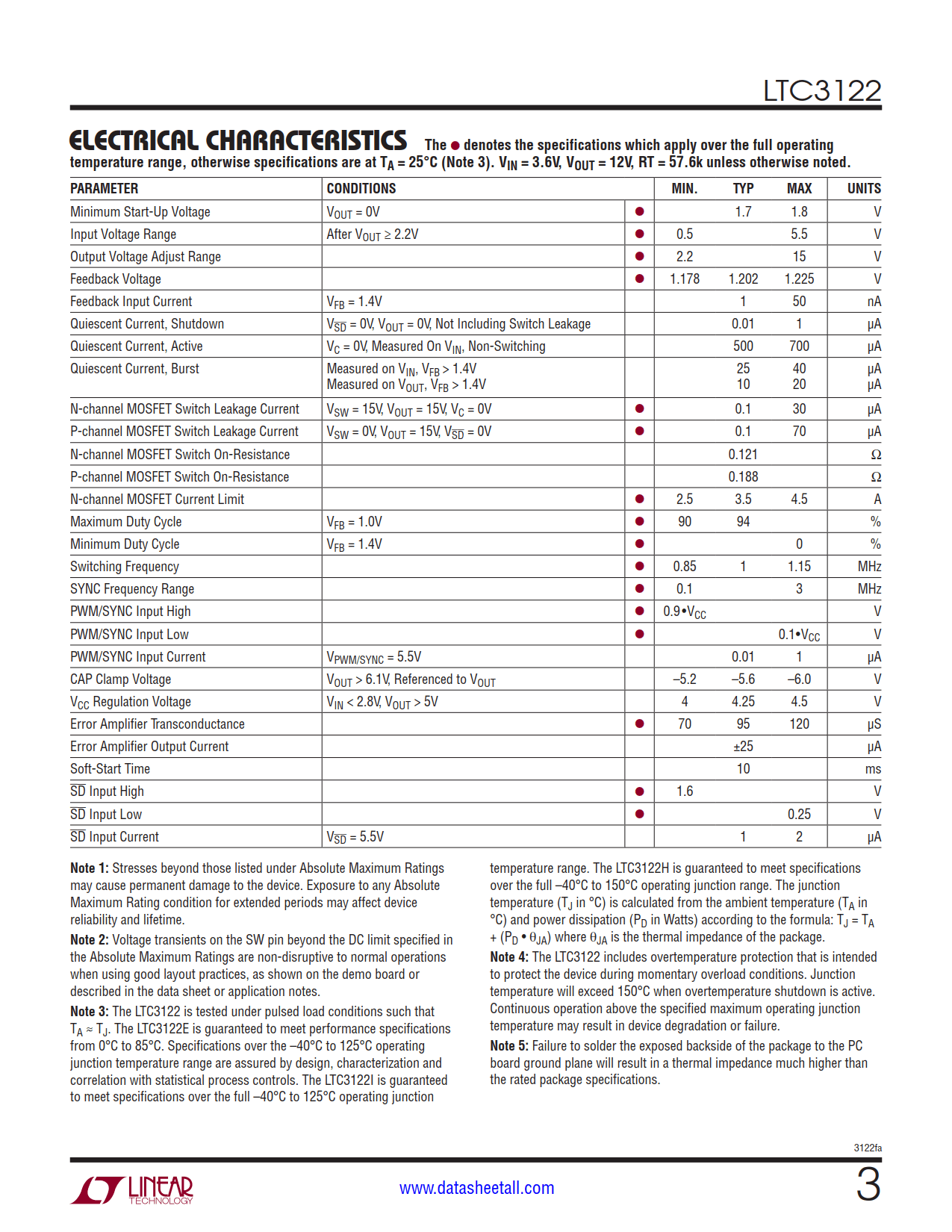

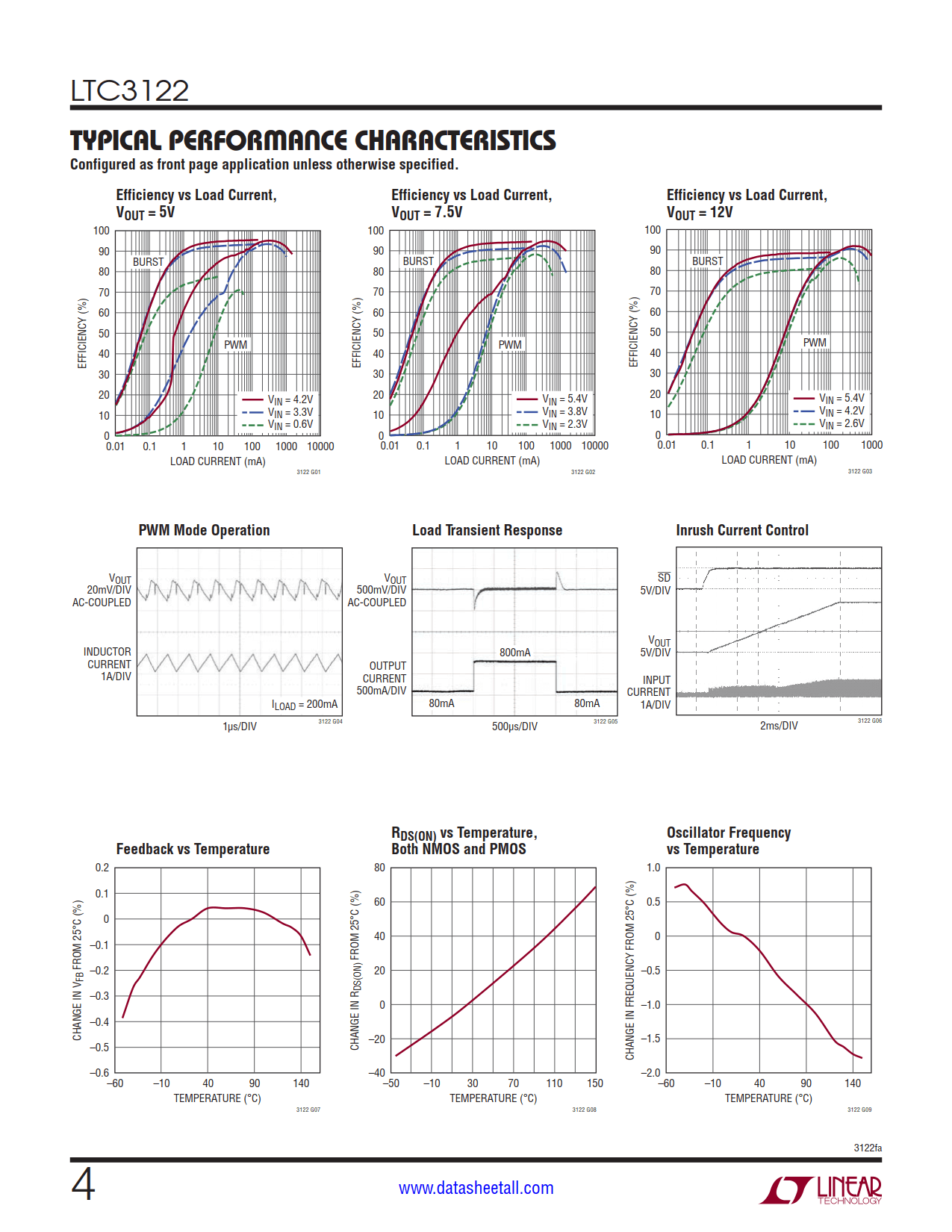

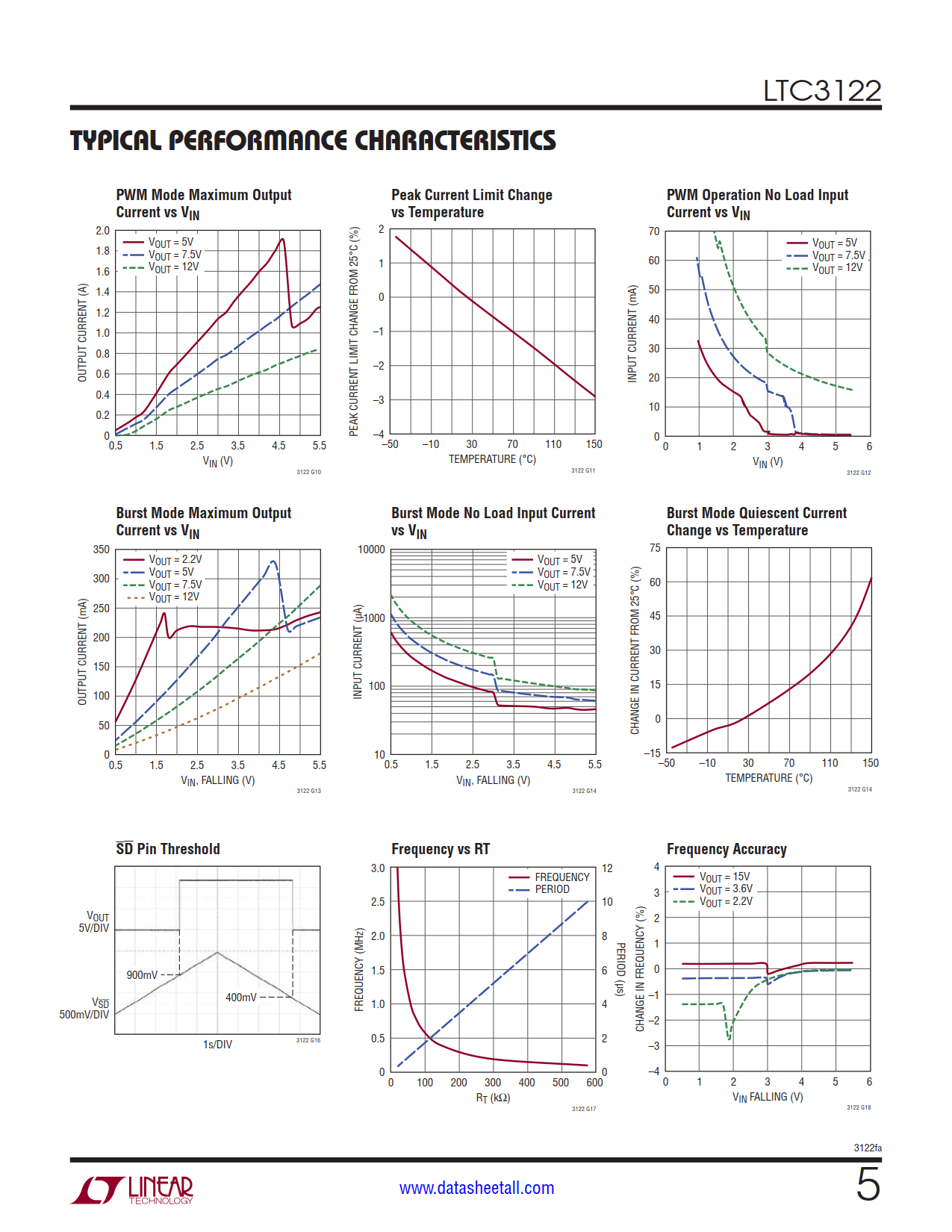

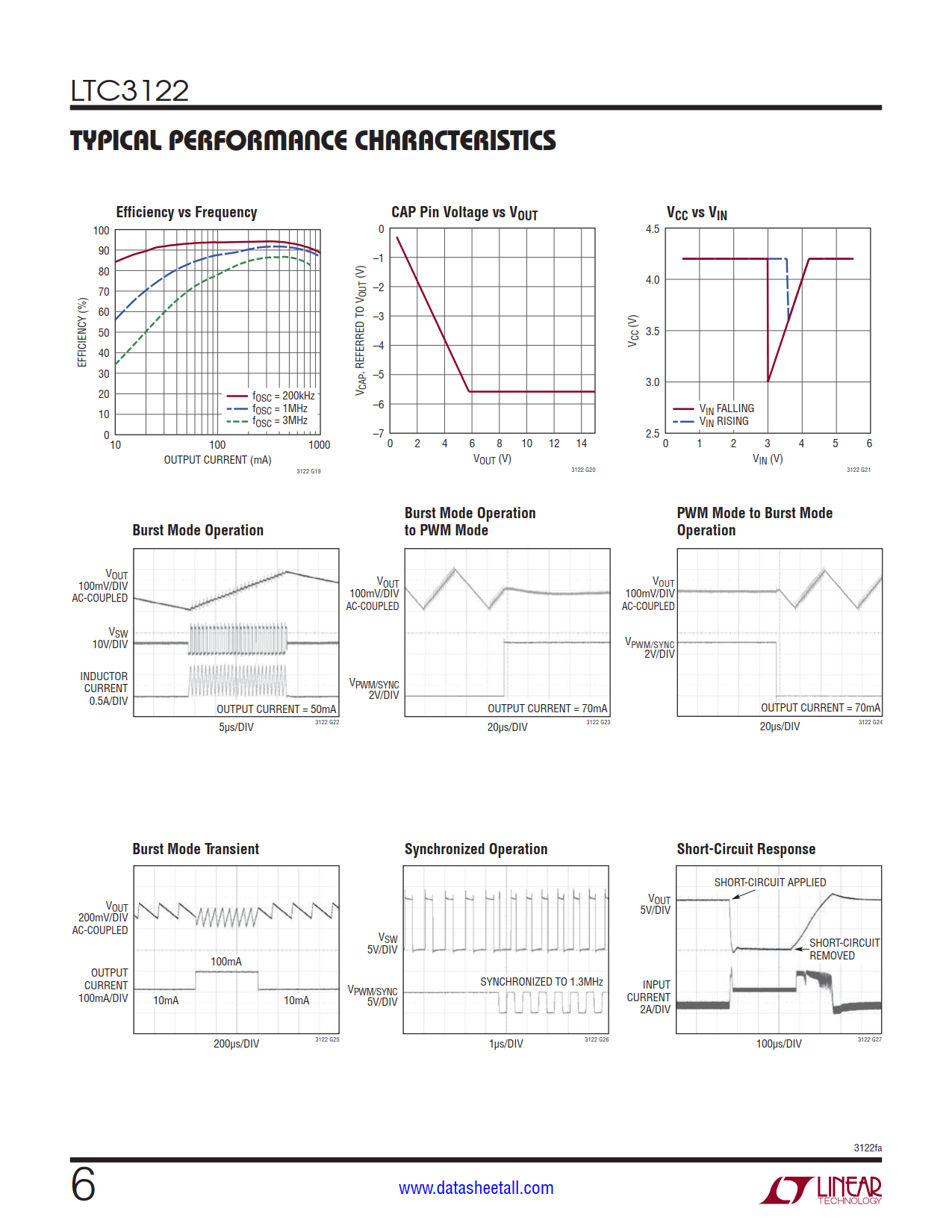

The LTC3122 is a synchronous step-up DC/DC converter with true output disconnect and inrush current limiting. The 2.5A current limit along with the ability to program output voltages up to 15V makes the LTC3122 well suited for a variety of demanding applications. Once started, operation will continue with inputs down to 500mV, extending runtime in many applications.
The LTC3122 features output disconnect in shutdown, dramatically reducing input power drain and enabling VOUT to completely discharge. Adjustable PWM switching from 100kHz to 3MHz optimizes applications for highest efficiency or smallest solution footprint. The oscillator can also be synchronized to an external clock for noise sensitive applications. Selectable Burst Mode operation reduces quiescent current to 25μA, ensuring high efficiency across the entire load range. An internal soft-start limits inrush current during start-up.
Other features include a <1μA shutdown current and robust protection under short-circuit, thermal overload, and output overvoltage conditions. The LTC3122 is offered in both a low profile 12-lead (3mm × 4mm × 0.75 mm) DFN package and a 12-lead thermally enhanced MSOP package.
