LTC2978 Datasheet

LTC2978 Datasheet

Octal Digital Power Supply Manager with EEPROM
Part No.: LTC2978
Page: 80 Pages
Size: 874 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-11-28 14:00:58
DataSheet: Download

LTC2978 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC2978CUP#PBF Tube 40 LTC2978UP 1 64 0°C ~70°C 64-Lead (9mm × 9mm) Plastic QFN
LTC2978CUP#TRPBF Reel 2000 LTC2978UP 1 64 0°C ~70°C 64-Lead (9mm × 9mm) Plastic QFN
LTC2978CUP#TRMPBF Reel 500 LTC2978UP 1 64 0°C ~70°C 64-Lead (9mm × 9mm) Plastic QFN
LTC2978IUP#PBF Tube 40 LTC2978UP 1 64 -40°C ~85°C 64-Lead (9mm × 9mm) Plastic QFN
LTC2978IUP#TRPBF Reel 2000 LTC2978UP 1 64 -40°C ~85°C 64-Lead (9mm × 9mm) Plastic QFN
LTC2978IUP#TRMPBF Reel 500 LTC2978UP 1 64 -40°C ~85°C 64-Lead (9mm × 9mm) Plastic QFN
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC2978 Datasheet(PDF)

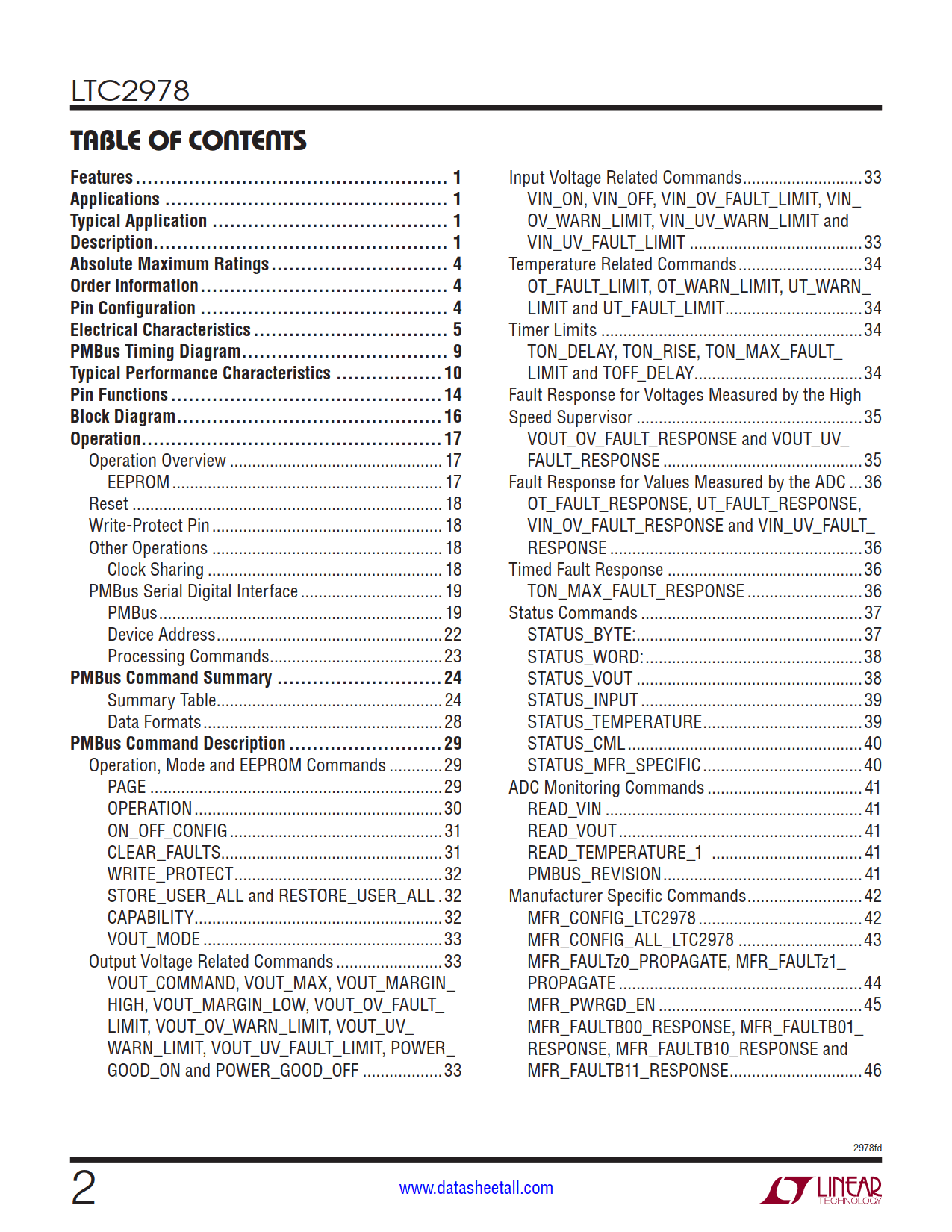

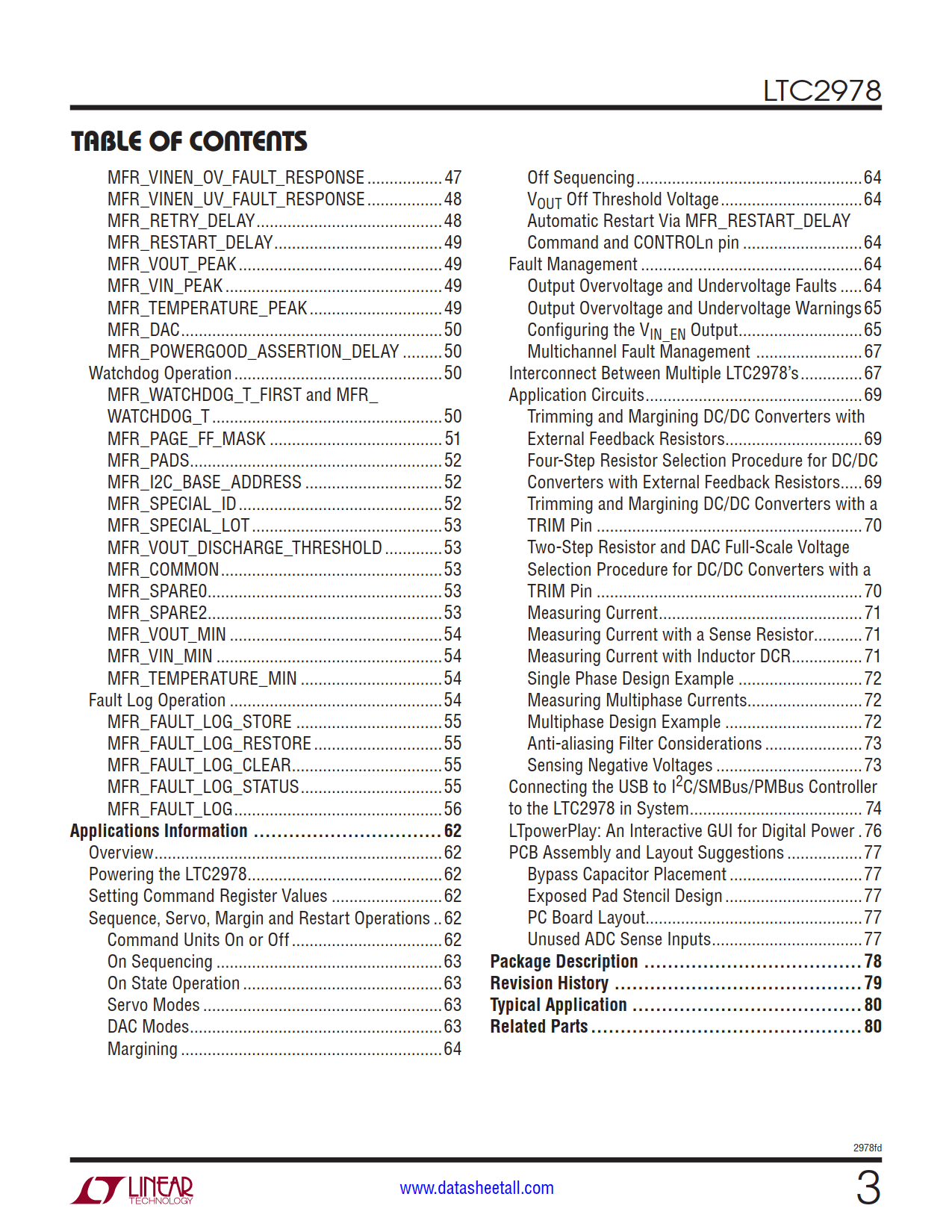

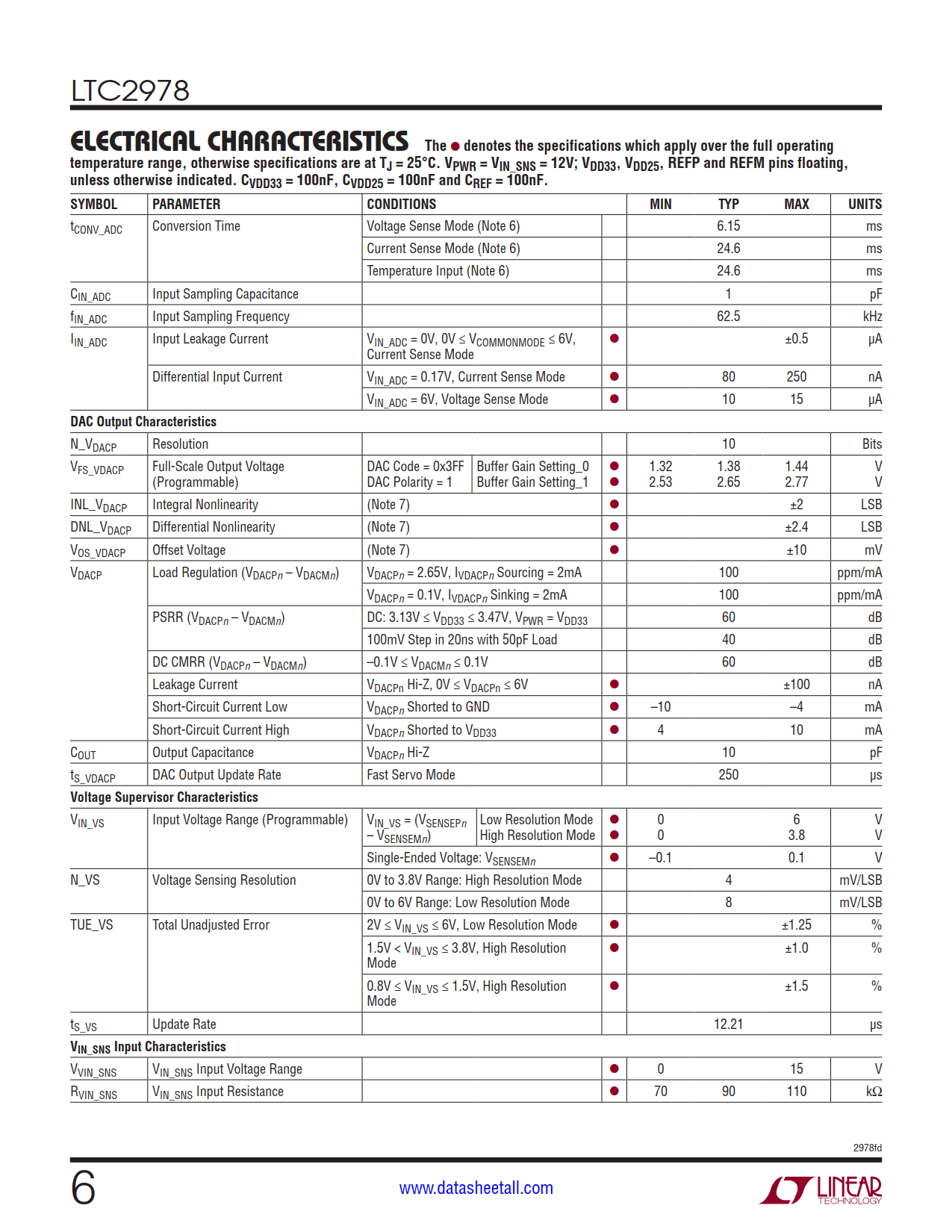

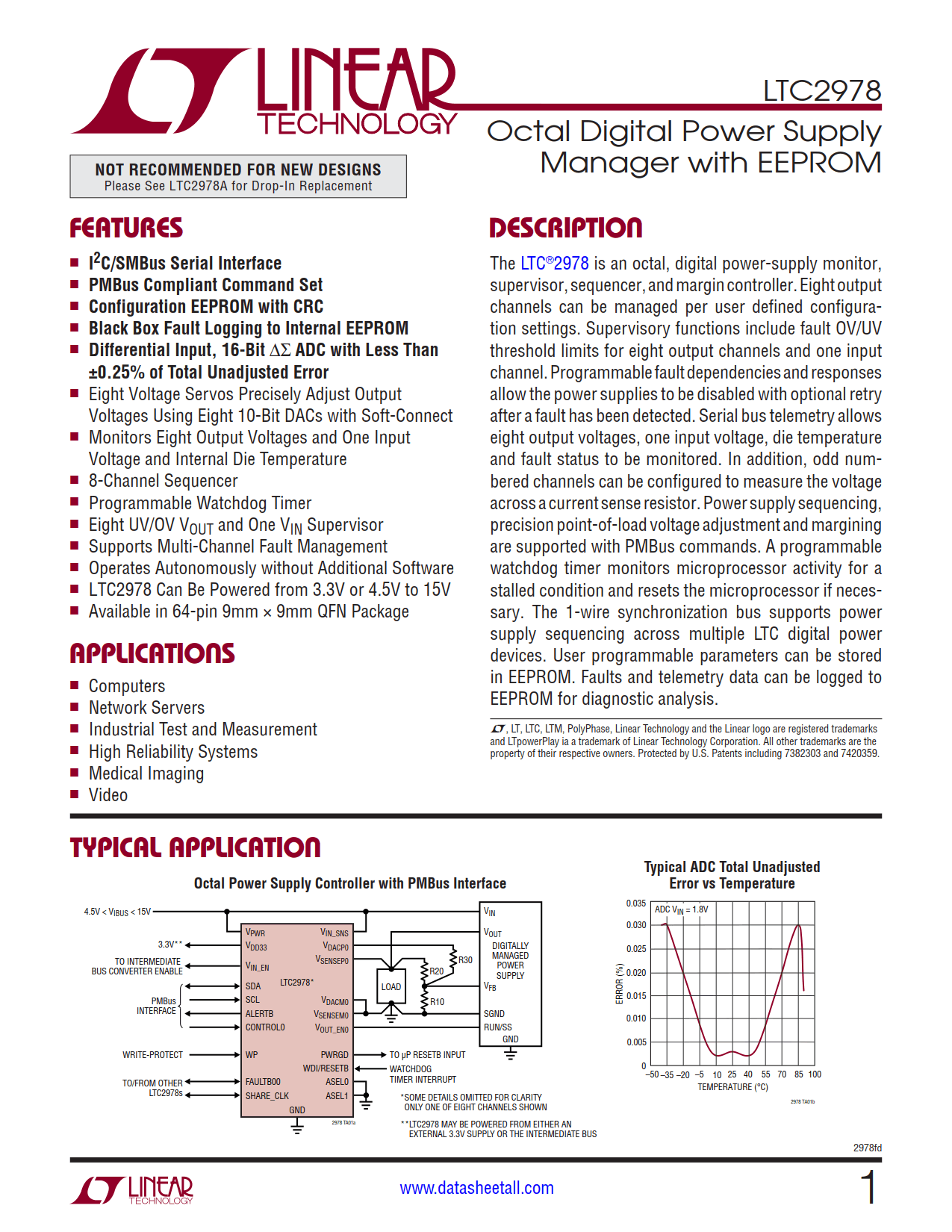

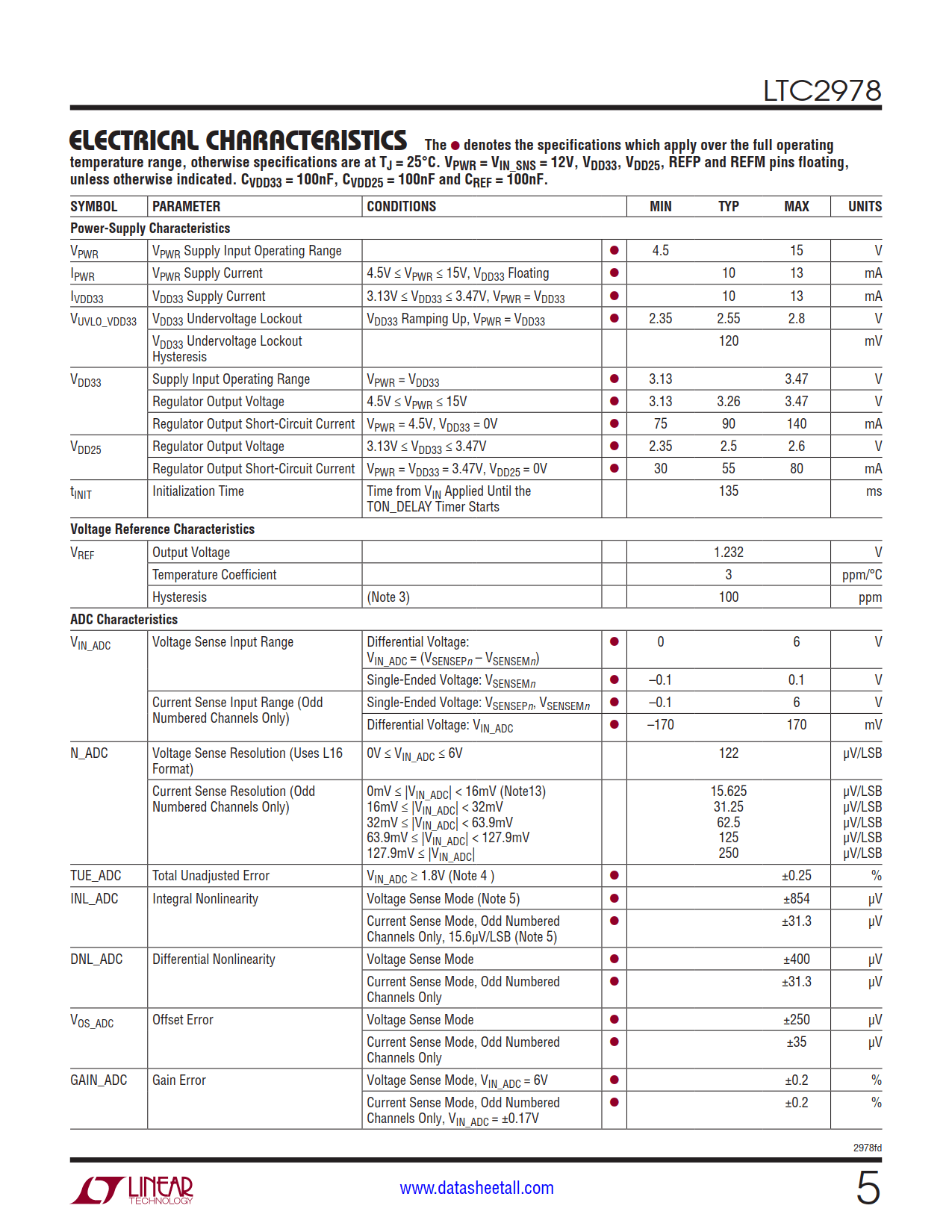

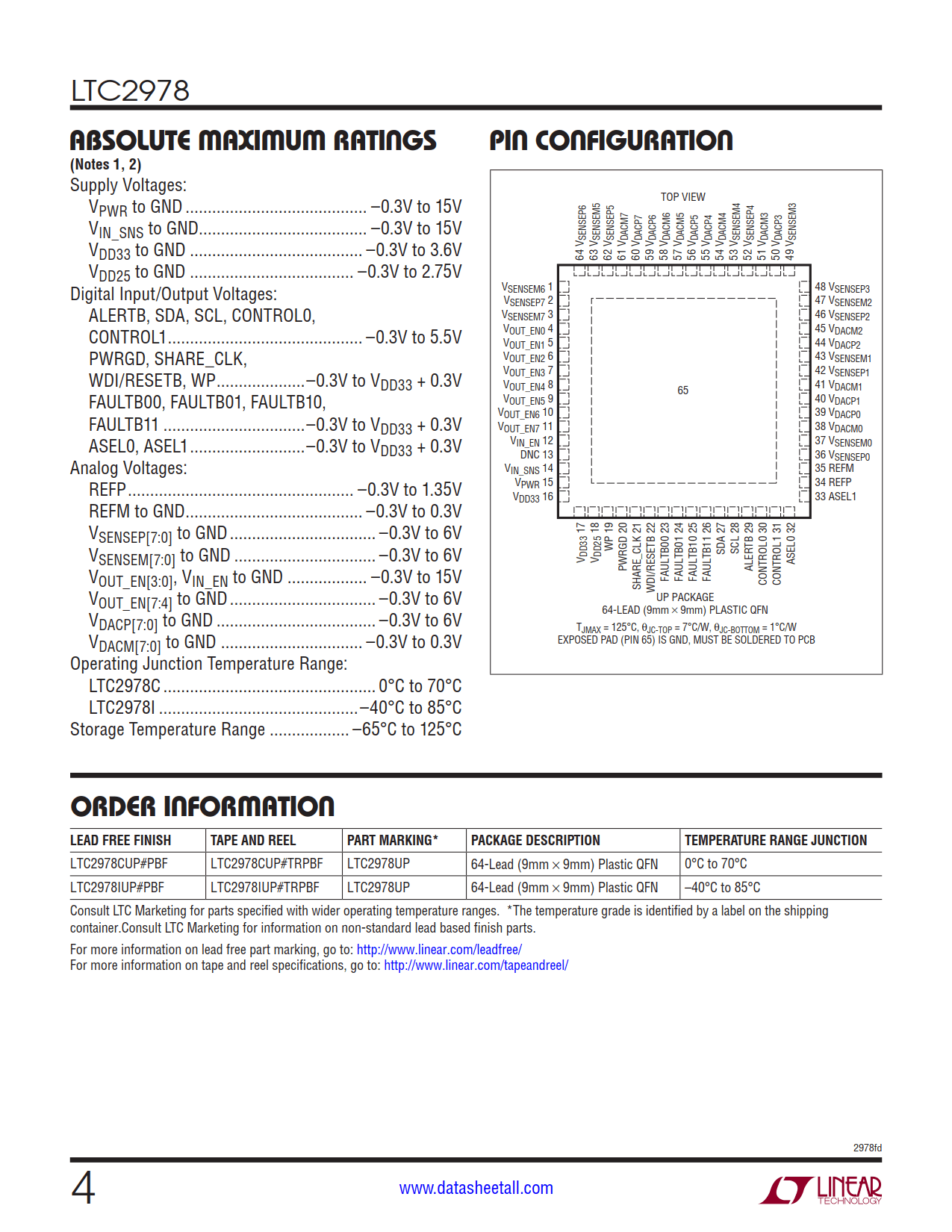

LTC2978 Datasheet(Picture)

LTC2978 Features

  • I2C/SMBus Serial Interface
  • PMBus Compliant Command Set
  • Configuration EEPROM with CRC
  • Black Box Fault Logging to Internal EEPROM
  • Differential Input, 16-Bit ΔΣ ADC with Less Than ±0.25% of Total Unadjusted Error
  • Eight Voltage Servos Precisely Adjust Output Voltages Using Eight 10-Bit DACs with Soft-Connect
  • Monitors Eight Output Voltages and One Input Voltage and Internal Die Temperature
  • 8-Channel Sequencer
  • Programmable Watchdog Timer
  • Eight UV/OV VOUT and One VIN Supervisor
  • Supports Multi-Channel Fault Management
  • Operates Autonomously without Additional Software
  • LTC2978 Can Be Powered from 3.3V or 4.5V to 15V
  • Available in 64-pin 9mm × 9mm QFN package
  • LTpowerPlay Configuration and Development Tool

LTC2978 Applications

  • Computers
  • Network Servers
  • Industrial Test and Measurement
  • High Reliability Systems
  • Medical Imaging
  • Video

LTC2978 Description

The LTC2978 is an octal, digital power-supply monitor, supervisor, sequencer, and margin controller. Eight output channels can be managed per user defined configuration settings. Supervisory functions include fault OV/UV threshold limits for eight output channels and one input channel. Programmable fault dependencies and responses allow the power supplies to be disabled with optional retry after a fault has been detected. Serial bus telemetry allows eight output voltages, one input voltage, die temperature and fault status to be monitored. In addition, odd numbered channels can be configured to measure the voltage across a current sense resistor. Power supply sequencing, precision point-of-load voltage adjustment and margining are supported with PMBus commands. A programmable watchdog timer monitors microprocessor activity for a stalled condition and resets the microprocessor if necessary. The 1-wire synchronization bus supports power supply sequencing across multiple LTC digital power devices. User programmable parameters can be stored in EEPROM. Faults and telemetry data can be logged to EEPROM for diagnostic analysis.
