LTC2955 Datasheet

LTC2955 Datasheet

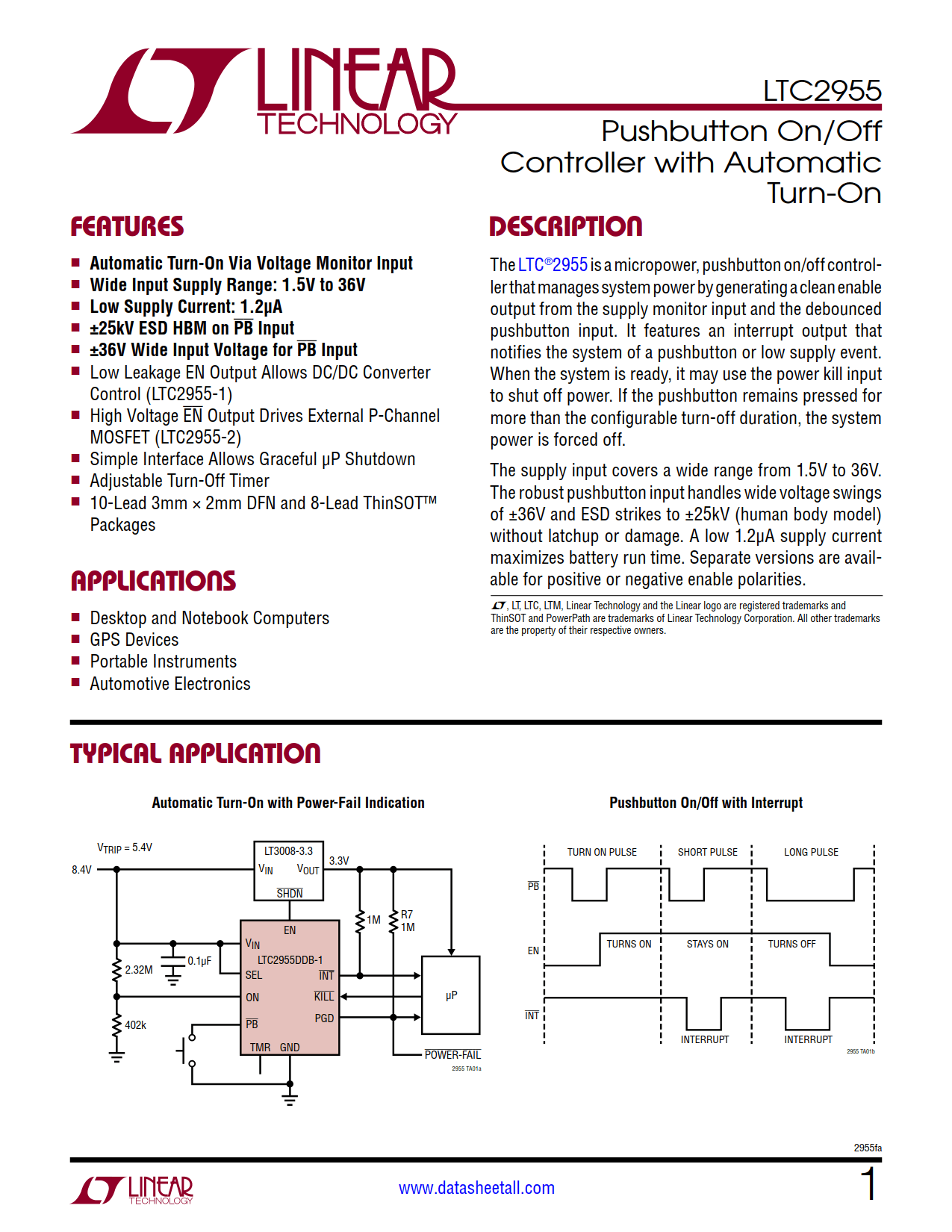

Pushbutton On/Off Controller with Automatic Turn-On
Part No.: LTC2955
Page: 22 Pages
Size: 216 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2023-12-29 13:35:37
DataSheet: Download

LTC2955 Datasheet Applicable Part

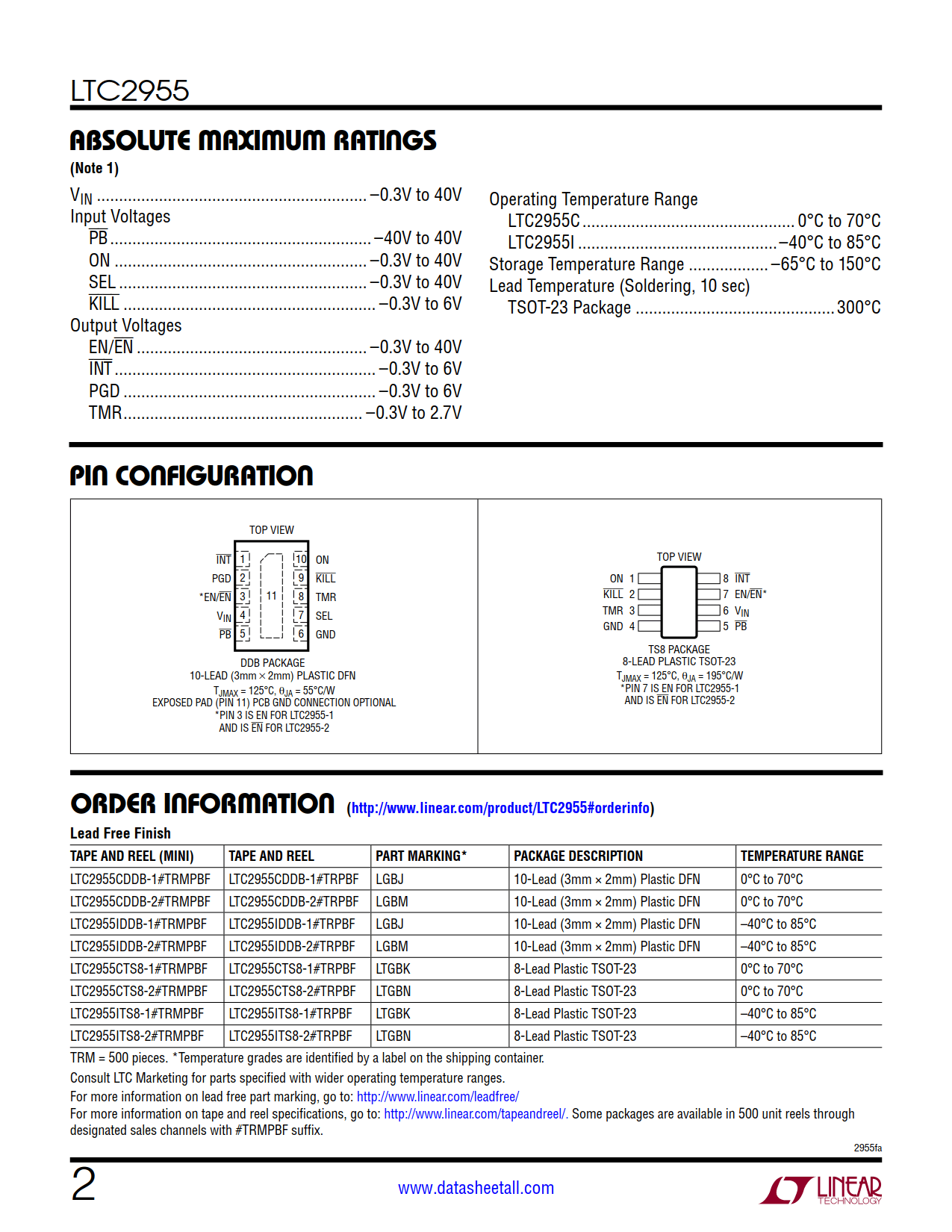

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC2955CDDB-1#PBF Tube   LGBJ 1 10 0°C ~ 70°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2955CDDB-1#TRPBF Reel 2500 LGBJ 1 10 0°C ~ 70°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2955CDDB-1#TRMPBF Reel 500 LGBJ 1 10 0°C ~ 70°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2955CDDB-2#PBF Tube   LGBM 1 10 0°C ~ 70°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2955CDDB-2#TRPBF Reel 2500 LGBM 1 10 0°C ~ 70°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2955CDDB-2#TRMPBF Reel 500 LGBM 1 10 0°C ~ 70°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2955IDDB-1#PBF Tube   LGBJ 1 10 -40°C ~ 85°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2955IDDB-1#TRPBF Reel 2500 LGBJ 1 10 -40°C ~ 85°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2955IDDB-1#TRMPBF Reel 500 LGBJ 1 10 -40°C ~ 85°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2955IDDB-2#PBF Tube   LGBM 1 10 -40°C ~ 85°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2955IDDB-2#TRPBF Reel 2500 LGBM 1 10 -40°C ~ 85°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2955IDDB-2#TRMPBF Reel 500 LGBM 1 10 -40°C ~ 85°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2955CTS8-1#PBF Tube   LTGBK 1 8 0°C ~ 70°C 8-Lead Plastic TSOT-23
LTC2955CTS8-1#TRPBF Reel 2500 LTGBK 1 8 0°C ~ 70°C 8-Lead Plastic TSOT-23
LTC2955CTS8-1#TRMPBF Reel 500 LTGBK 1 8 0°C ~ 70°C 8-Lead Plastic TSOT-23
LTC2955CTS8-2#PBF Tube   LTGBN 1 8 0°C ~ 70°C 8-Lead Plastic TSOT-23
LTC2955CTS8-2#TRPBF Reel 2500 LTGBN 1 8 0°C ~ 70°C 8-Lead Plastic TSOT-23
LTC2955CTS8-2#TRMPBF Reel 500 LTGBN 1 8 0°C ~ 70°C 8-Lead Plastic TSOT-23
LTC2955ITS8-1#PBF Tube   LTGBK 1 8 -40°C ~ 85°C 8-Lead Plastic TSOT-23
LTC2955ITS8-1#TRPBF Reel 2500 LTGBK 1 8 -40°C ~ 85°C 8-Lead Plastic TSOT-23
LTC2955ITS8-1#TRMPBF Reel 500 LTGBK 1 8 -40°C ~ 85°C 8-Lead Plastic TSOT-23
LTC2955ITS8-2#PBF Tube   LTGBN 1 8 -40°C ~ 85°C 8-Lead Plastic TSOT-23
LTC2955ITS8-2#TRPBF Reel 2500 LTGBN 1 8 -40°C ~ 85°C 8-Lead Plastic TSOT-23
LTC2955ITS8-2#TRMPBF Reel 500 LTGBN 1 8 -40°C ~ 85°C 8-Lead Plastic TSOT-23
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC2955 Datasheet(PDF)

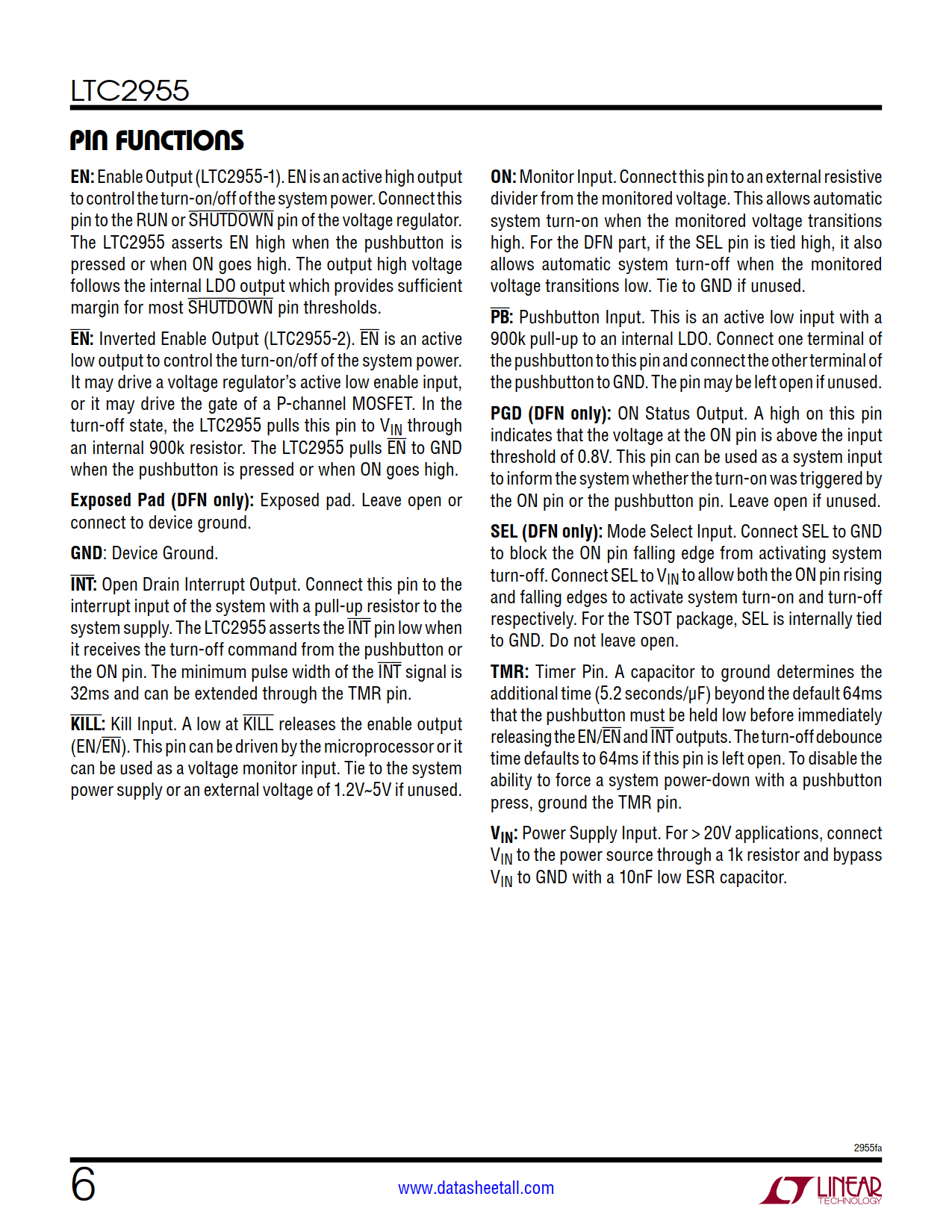

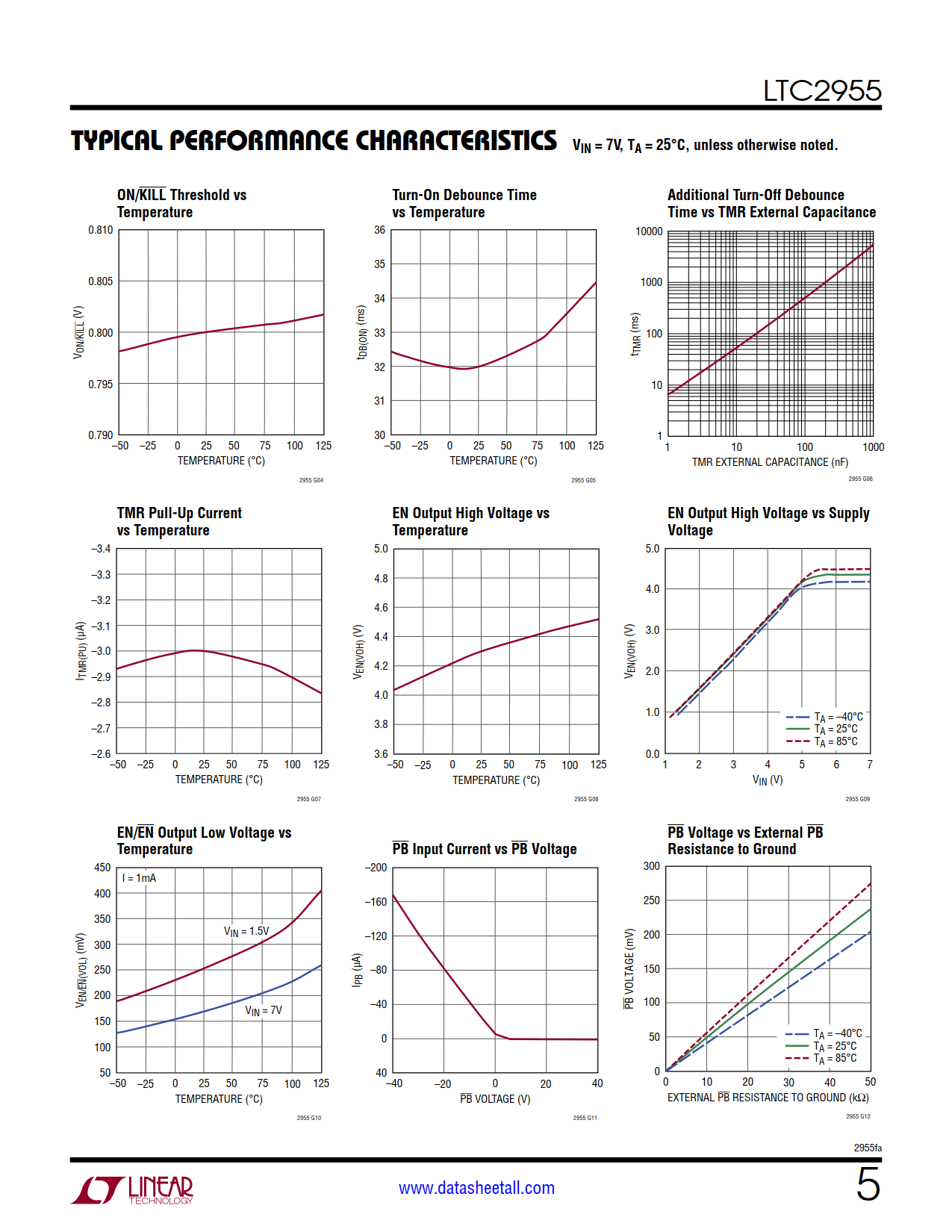

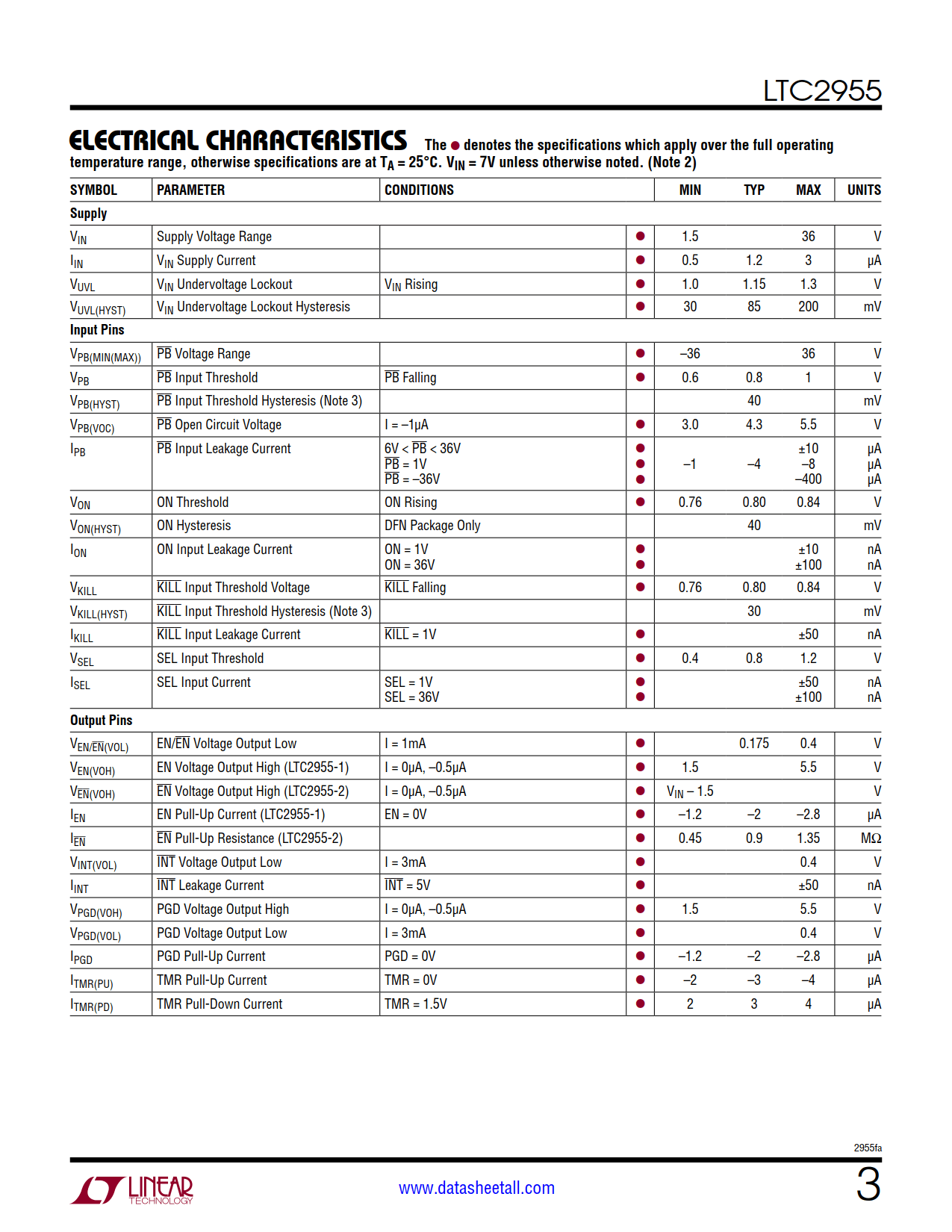

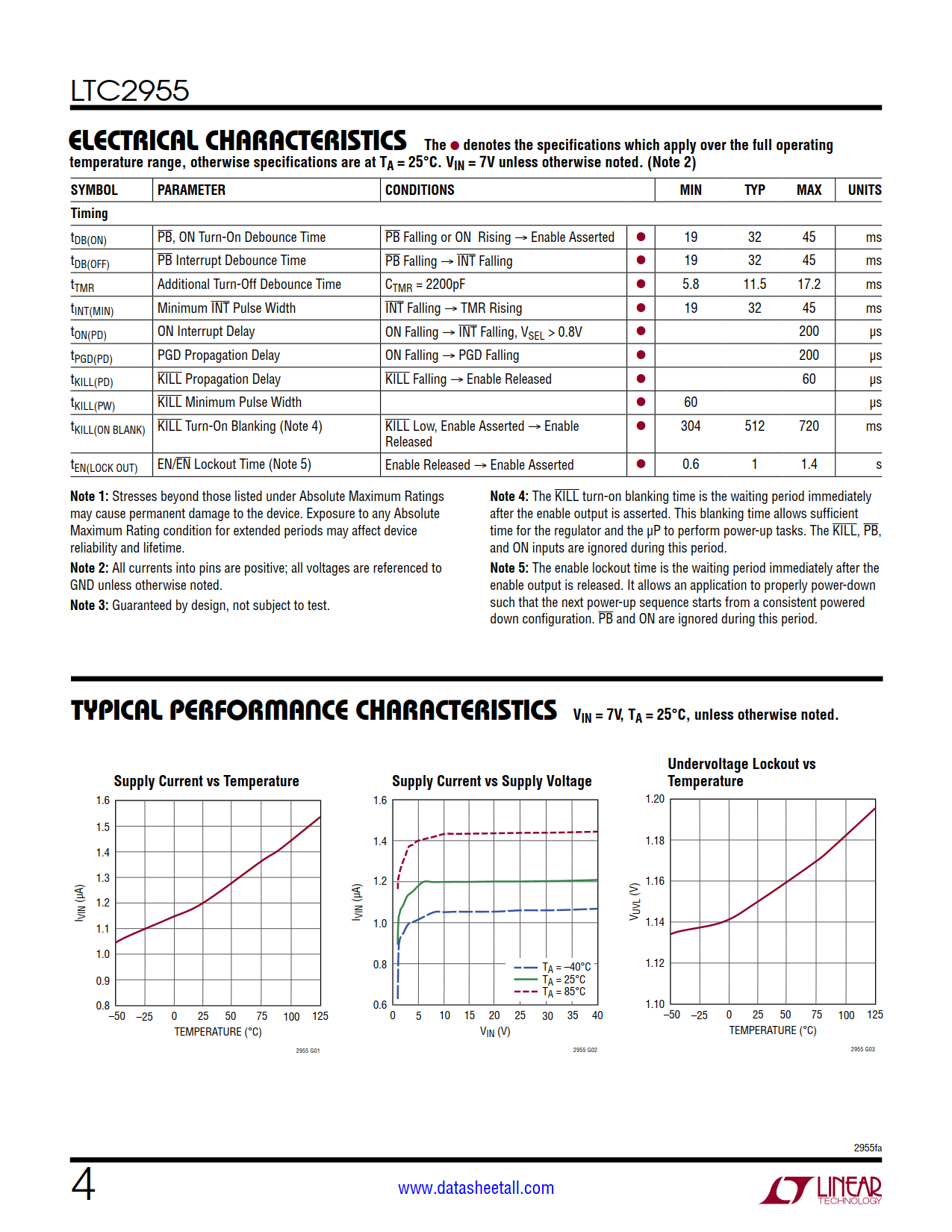

LTC2955 Datasheet(Picture)

LTC2955 Features

  • Automatic Turn-On Via Voltage Monitor Input
  • Wide Input Supply Range: 1.5V to 36V
  • Low Supply Current: 1.2μA
  • ±25kV ESD HBM on PB Input
  • ±36V Wide Input Voltage for PB Input
  • Low Leakage EN Output Allows DC/DC Converter Control (LTC2955-1)
  • High Voltage EN Output Drives External P-Channel MOSFET (LTC2955-2)
  • Simple Interface Allows Graceful μP Shutdown
  • Adjustable Turn-Off Timer
  • 10-Lead 3mm × 2mm DFN and 8-Lead ThinSOT Packages

LTC2955 Applications

  • Desktop and Notebook Computers
  • GPS Devices
  • Portable Instruments
  • Automotive Electronics

LTC2955 Description

The LTC2955 is a micropower, pushbutton on/off controller that manages system power by generating a clean enable output from the supply monitor input and the debounced pushbutton input. It features an interrupt output that notifies the system of a pushbutton or low supply event. When the system is ready, it may use the power kill input to shut off power. If the pushbutton remains pressed for more than the configurable turn-off duration, the system power is forced off.

The supply input covers a wide range from 1.5V to 36V. The robust pushbutton input handles wide voltage swings of ±36V and ESD strikes to ±25kV (human body model) without latchup or damage. A low 1.2μA supply current maximizes battery run time. Separate versions are available for positive or negative enable polarities.

LTC2955 Datasheet Related Parts
