LTC2950-1 Datasheet

LTC2950-1 Datasheet

Push Button On/Off Controller
Part No.: LTC2950-1
Page: 18 Pages
Size: 228 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2023-11-08 11:25:21
DataSheet: Download

LTC2950-1 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC2950CDDB-1#PBF Tube   LBKP 1 8 0°C ~ 70°C 8-Lead Plastic DFN
LTC2950CDDB-1#TRPBF Reel 2500 LBKP 1 8 0°C ~ 70°C 8-Lead Plastic DFN
LTC2950CDDB-1#TRMPBF Reel 500 LBKP 1 8 0°C ~ 70°C 8-Lead Plastic DFN
LTC2950IDDB-1#PBF Tube   LBKP 1 8 -40°C ~ 85°C 8-Lead Plastic DFN
LTC2950IDDB-1#TRPBF Reel 2500 LBKP 1 8 -40°C ~ 85°C 8-Lead Plastic DFN
LTC2950IDDB-1#TRMPBF Reel 500 LBKP 1 8 -40°C ~ 85°C 8-Lead Plastic DFN
LTC2950CTS8-1#PBF Tube   LTBKN 1 8 0°C ~ 70°C 8-Lead Plastic TSOT-23
LTC2950CTS8-1#TRPBF Reel 2500 LTBKN 1 8 0°C ~ 70°C 8-Lead Plastic TSOT-23
LTC2950CTS8-1#TRMPBF Reel 500 LTBKN 1 8 0°C ~ 70°C 8-Lead Plastic TSOT-23
LTC2950ITS8-1#PBF Tube   LTBKN 1 8 -40°C ~ 85°C 8-Lead Plastic TSOT-23
LTC2950ITS8-1#TRPBF Reel 2500 LTBKN 1 8 -40°C ~ 85°C 8-Lead Plastic TSOT-23
LTC2950ITS8-1#TRMPBF Reel 500 LTBKN 1 8 -40°C ~ 85°C 8-Lead Plastic TSOT-23
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC2950-1 Datasheet(PDF)

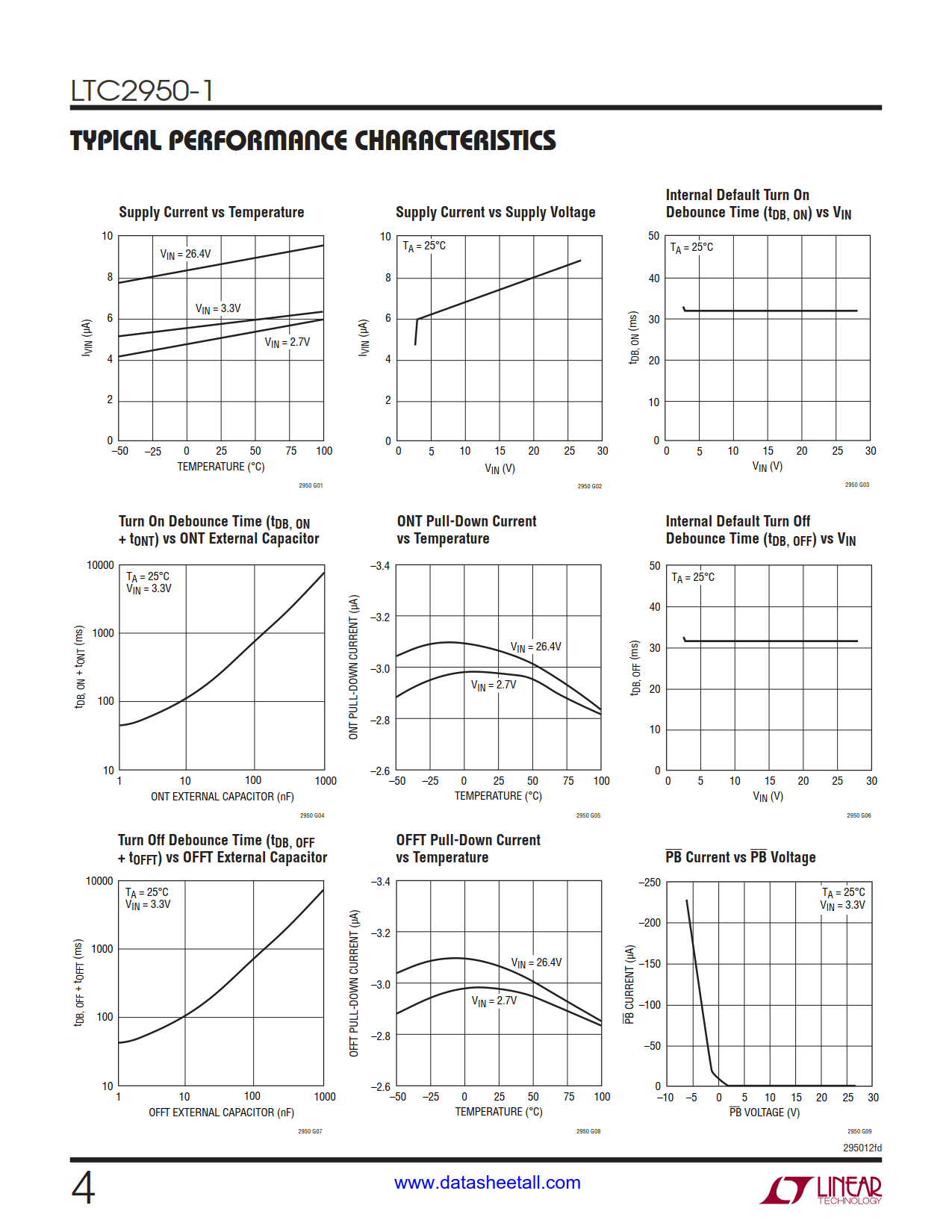

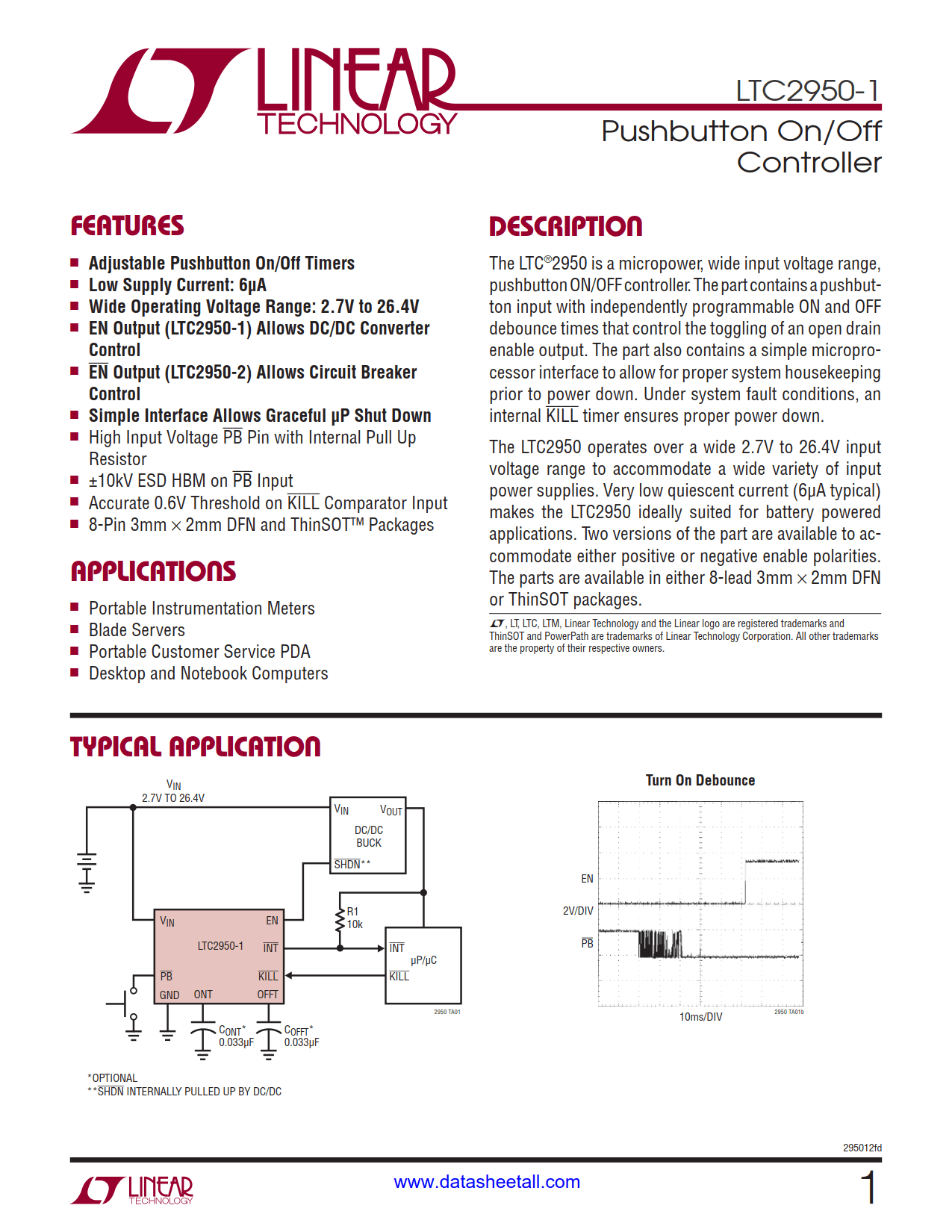

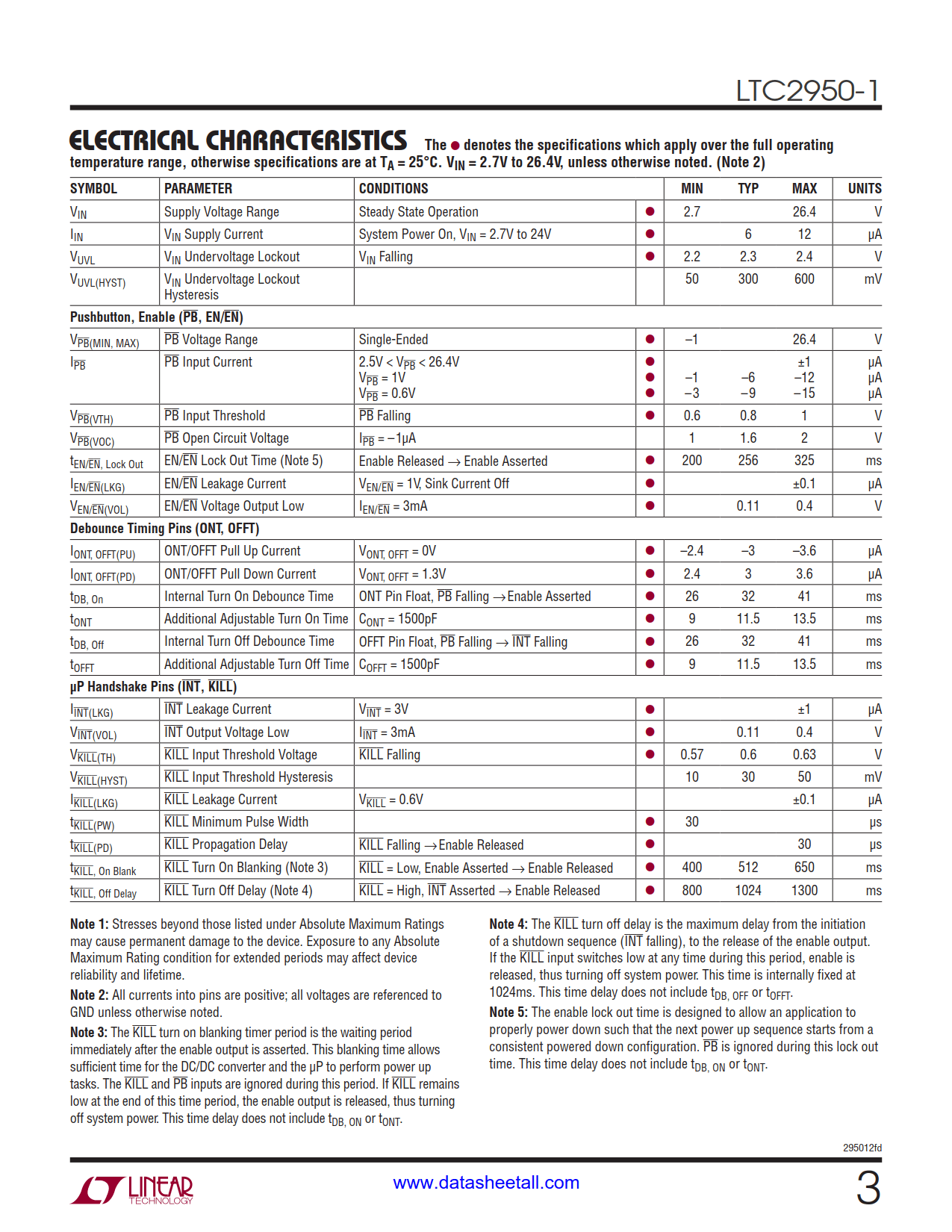

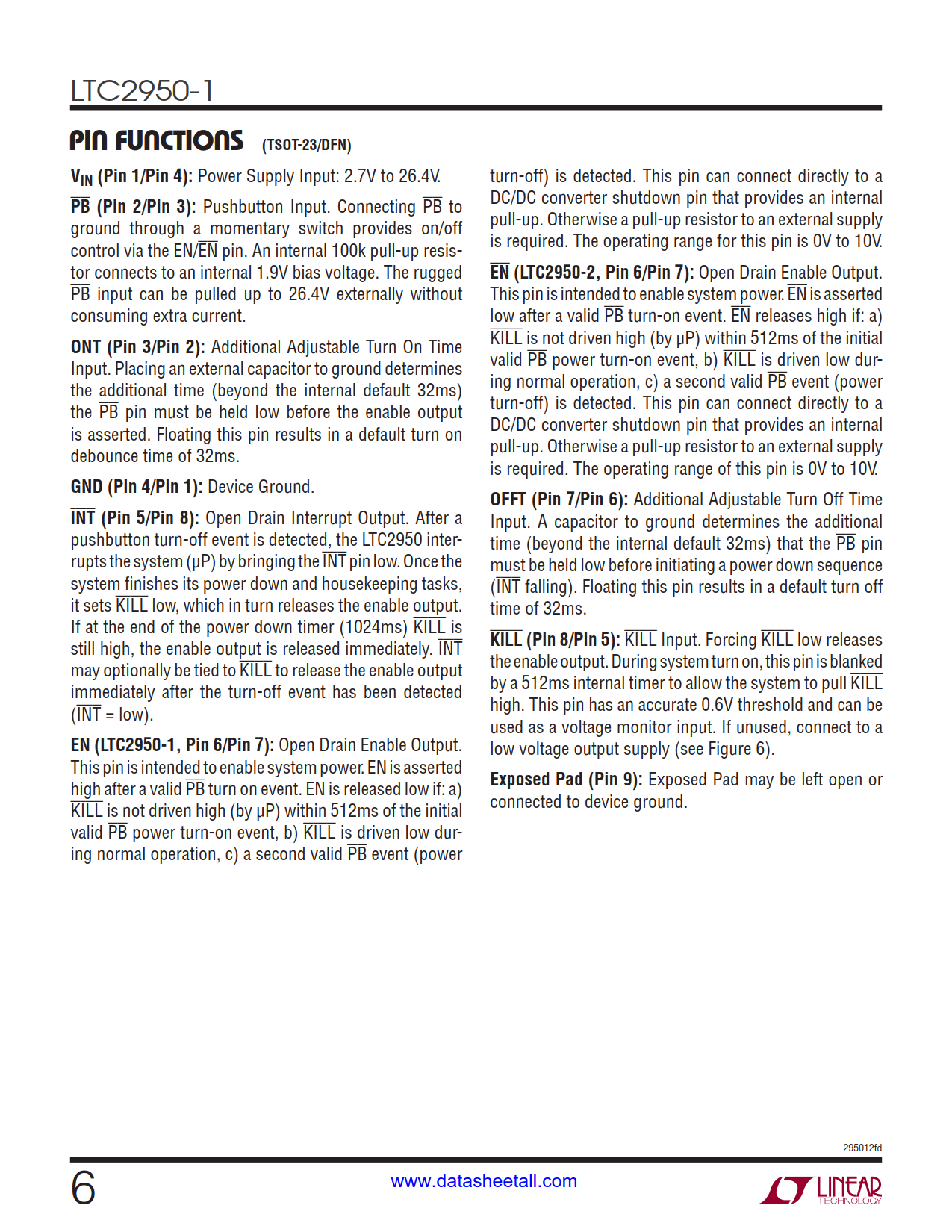

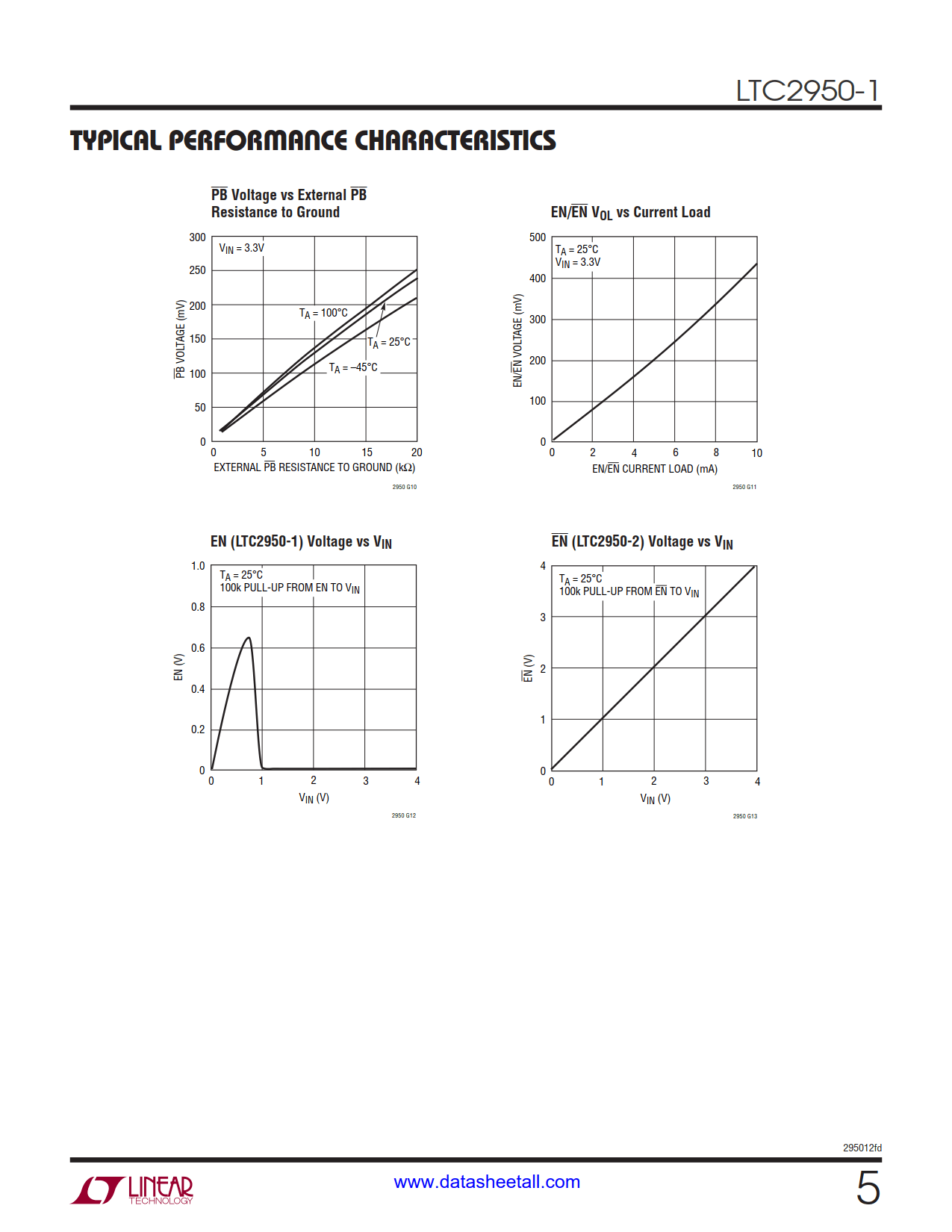

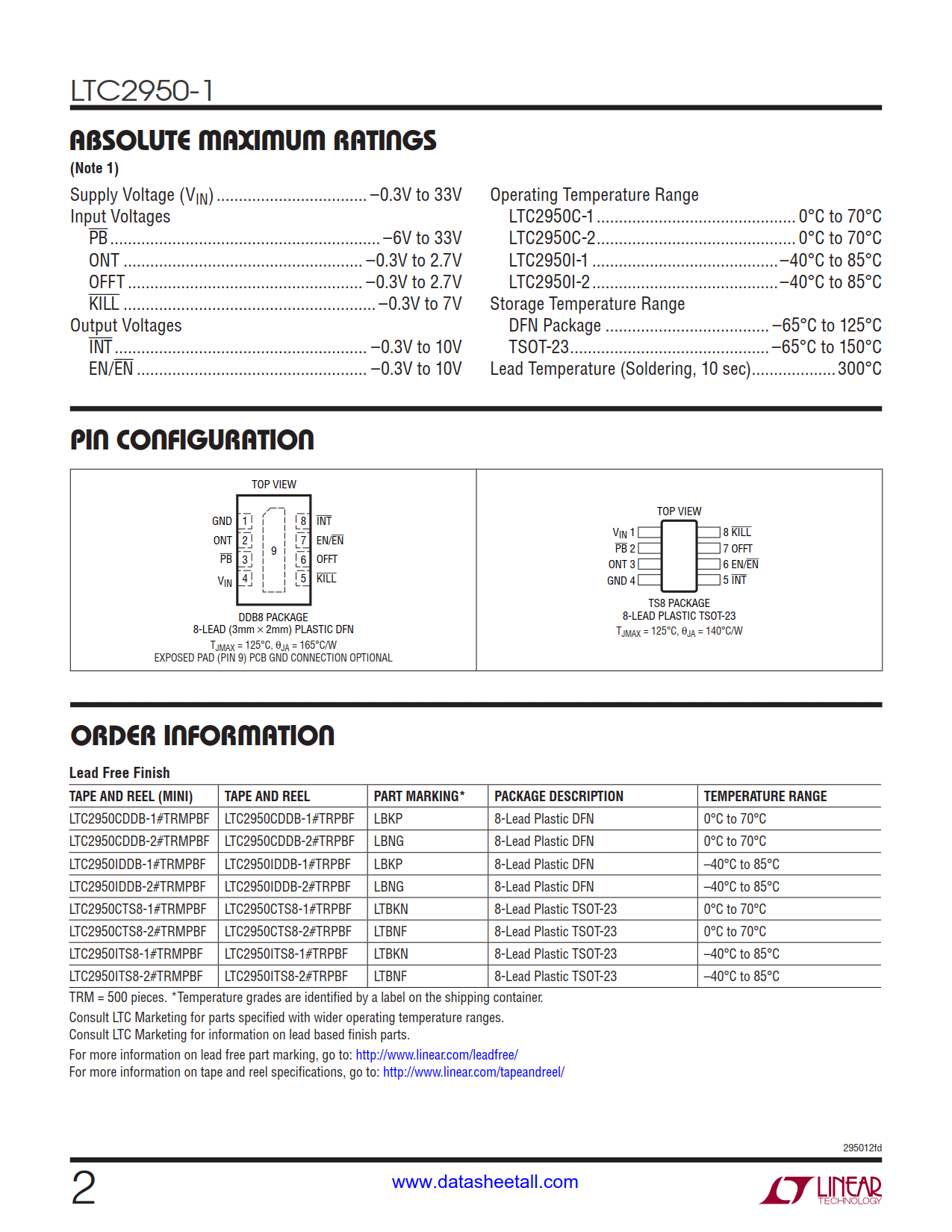

LTC2950-1 Datasheet(Picture)

LTC2950-1 Features

  • Adjustable Pushbutton On/Off Timers
  • Low Supply Current: 6μA
  • Wide Operating Voltage Range: 2.7V to 26.4V
  • EN Output (LTC2950-1) Allows DC/DC Converter Control
  • Simple Interface Allows Graceful μP Shut Down
  • High Input Voltage PB Pin with Internal Pull Up Resistor
  • ±10kV ESD HBM on PB Input
  • Accurate 0.6V Threshold on KILL Comparator Input
  • 8-Pin 3mm × 2mm DFN and ThinSOT Packages

LTC2950-1 Applications

  • Portable Instrumentation Meters
  • Blade Servers
  • Portable Customer Service PDA
  • Desktop and Notebook Computers

LTC2950-1 Description

The LTC2950-1 is a micropower, wide input voltage range, pushbutton ON/OFF controller. The part contains a pushbutton input with independently programmable ON and OFF debounce times that control the toggling of an open drain enable output. The part also contains a simple microprocessor interface to allow for proper system housekeeping prior to power down. Under system fault conditions, an internal KILL timer ensures proper power down.

The LTC2950-1 operates over a wide 2.7V to 26.4V input voltage range to accommodate a wide variety of input power supplies. Very low quiescent current (6μA typical) makes the LTC2950 ideally suited for battery powered applications. Two versions of the part are available to accommodate either positive or negative enable polarities. The parts are available in either 8-lead 3mm × 2mm DFN or ThinSOT packages.
