LTC2918 Datasheet

LTC2918 Datasheet

Voltage Supervisor with 27 Selectable Thresholds and Watchdog Timer
Part No.: LTC2918
Page: 16 Pages
Size: 176 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-01-16 13:45:30
DataSheet: Download

LTC2918 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC2918CMS-B1#PBF Tube 50 LTDCT 1 10 0°C ~70°C 10-Lead Plastic MSOP
LTC2918CMS-B1#TRPBF Reel 2500 LTDCT 1 10 0°C ~70°C 10-Lead Plastic MSOP
LTC2918CMS-B1#TRMPBF Reel 500 LTDCT 1 10 0°C ~70°C 10-Lead Plastic MSOP
LTC2918IMS-B1#PBF Tube 50 LTDCT 1 10 -40°C ~85°C 10-Lead Plastic MSOP
LTC2918IMS-B1#TRPBF Reel 2500 LTDCT 1 10 -40°C ~85°C 10-Lead Plastic MSOP
LTC2918IMS-B1#TRMPBF Reel 500 LTDCT 1 10 -40°C ~85°C 10-Lead Plastic MSOP
LTC2918HMS-B1#PBF Tube 50 LTDCT 1 10 -40°C ~125°C 10-Lead Plastic MSOP
LTC2918HMS-B1#TRPBF Reel 2500 LTDCT 1 10 -40°C ~125°C 10-Lead Plastic MSOP
LTC2918HMS-B1#TRMPBF Reel 500 LTDCT 1 10 -40°C ~125°C 10-Lead Plastic MSOP
LTC2918CMS-A1#PBF Tube 50 LTDGG 1 10 0°C ~70°C 10-Lead Plastic MSOP
LTC2918CMS-A1#TRPBF Reel 2500 LTDGG 1 10 0°C ~70°C 10-Lead Plastic MSOP
LTC2918CMS-A1#TRMPBF Reel 500 LTDGG 1 10 0°C ~70°C 10-Lead Plastic MSOP
LTC2918IMS-A1#PBF Tube 50 LTDGG 1 10 -40°C ~85°C 10-Lead Plastic MSOP
LTC2918IMS-A1#TRPBF Reel 2500 LTDGG 1 10 -40°C ~85°C 10-Lead Plastic MSOP
LTC2918IMS-A1#TRMPBF Reel 500 LTDGG 1 10 -40°C ~85°C 10-Lead Plastic MSOP
LTC2918HMS-A1#PBF Tube 50 LTDGG 1 10 -40°C ~125°C 10-Lead Plastic MSOP
LTC2918HMS-A1#TRPBF Reel 2500 LTDGG 1 10 -40°C ~125°C 10-Lead Plastic MSOP
LTC2918HMS-A1#TRMPBF Reel 500 LTDGG 1 10 -40°C ~125°C 10-Lead Plastic MSOP
LTC2918CDDB-B1#PBF Tube   LDCV 1 10 0°C ~70°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2918CDDB-B1#TRPBF Reel 2500 LDCV 1 10 0°C ~70°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2918CDDB-B1#TRMPBF Reel 500 LDCV 1 10 0°C ~70°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2918IDDB-B1#PBF Tube   LDCV 1 10 -40°C ~85°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2918IDDB-B1#TRPBF Reel 2500 LDCV 1 10 -40°C ~85°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2918IDDB-B1#TRMPBF Reel 500 LDCV 1 10 -40°C ~85°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2918HDDB-B1#PBF Tube   LDCV 1 10 -40°C ~125°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2918HDDB-B1#TRPBF Reel 2500 LDCV 1 10 -40°C ~125°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2918HDDB-B1#TRMPBF Reel 500 LDCV 1 10 -40°C ~125°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2918CDDB-A1#PBF Tube   LDGH 1 10 0°C ~70°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2918CDDB-A1#TRPBF Reel 2500 LDGH 1 10 0°C ~70°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2918CDDB-A1#TRMPBF Reel 500 LDGH 1 10 0°C ~70°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2918IDDB-A1#PBF Tube   LDGH 1 10 -40°C ~85°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2918IDDB-A1#TRPBF Reel 2500 LDGH 1 10 -40°C ~85°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2918IDDB-A1#TRMPBF Reel 500 LDGH 1 10 -40°C ~85°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2918HDDB-A1#PBF Tube   LDGH 1 10 -40°C ~125°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2918HDDB-A1#TRPBF Reel 2500 LDGH 1 10 -40°C ~125°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2918HDDB-A1#TRMPBF Reel 500 LDGH 1 10 -40°C ~125°C 10-Lead (3mm × 2mm) Plastic DFN
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC2918 Datasheet(PDF)

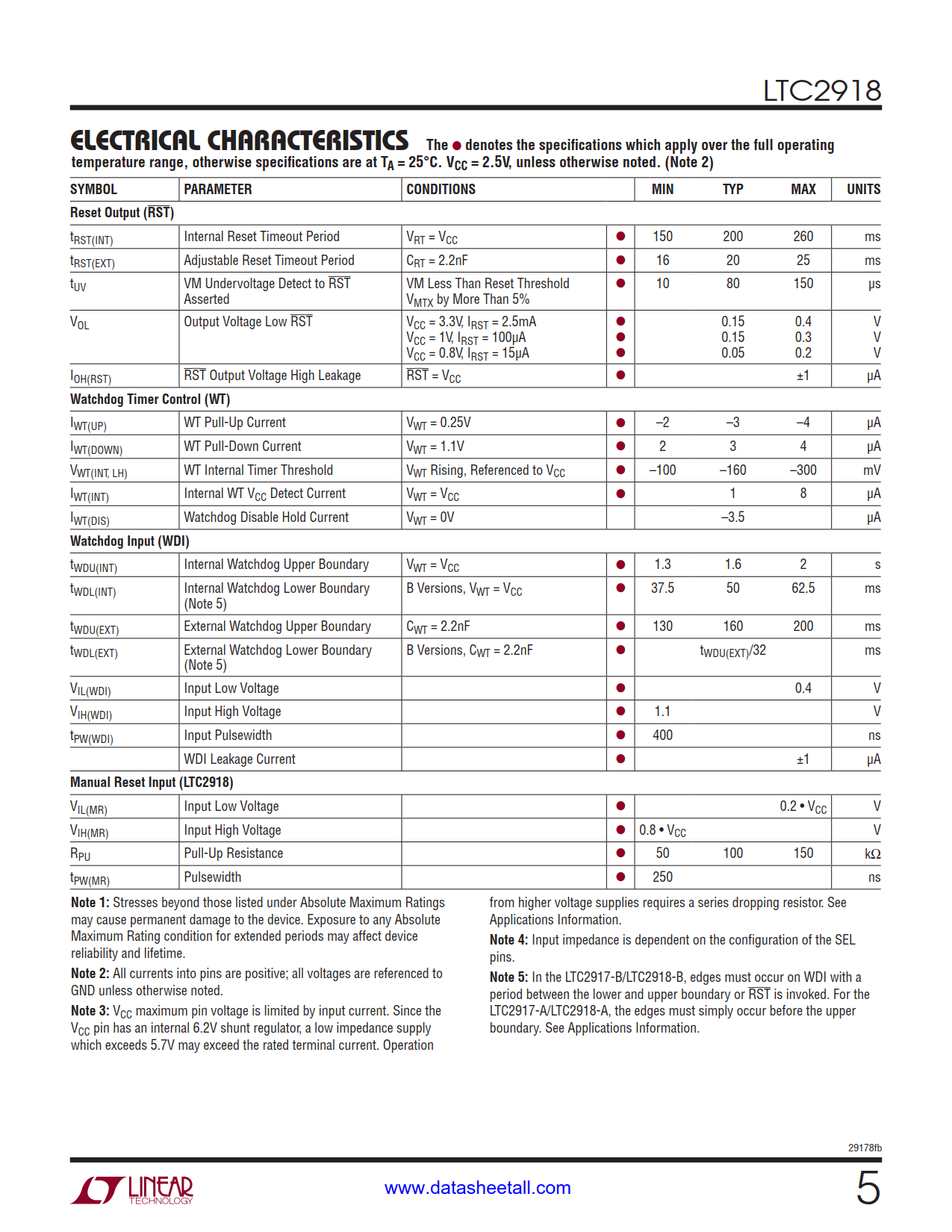

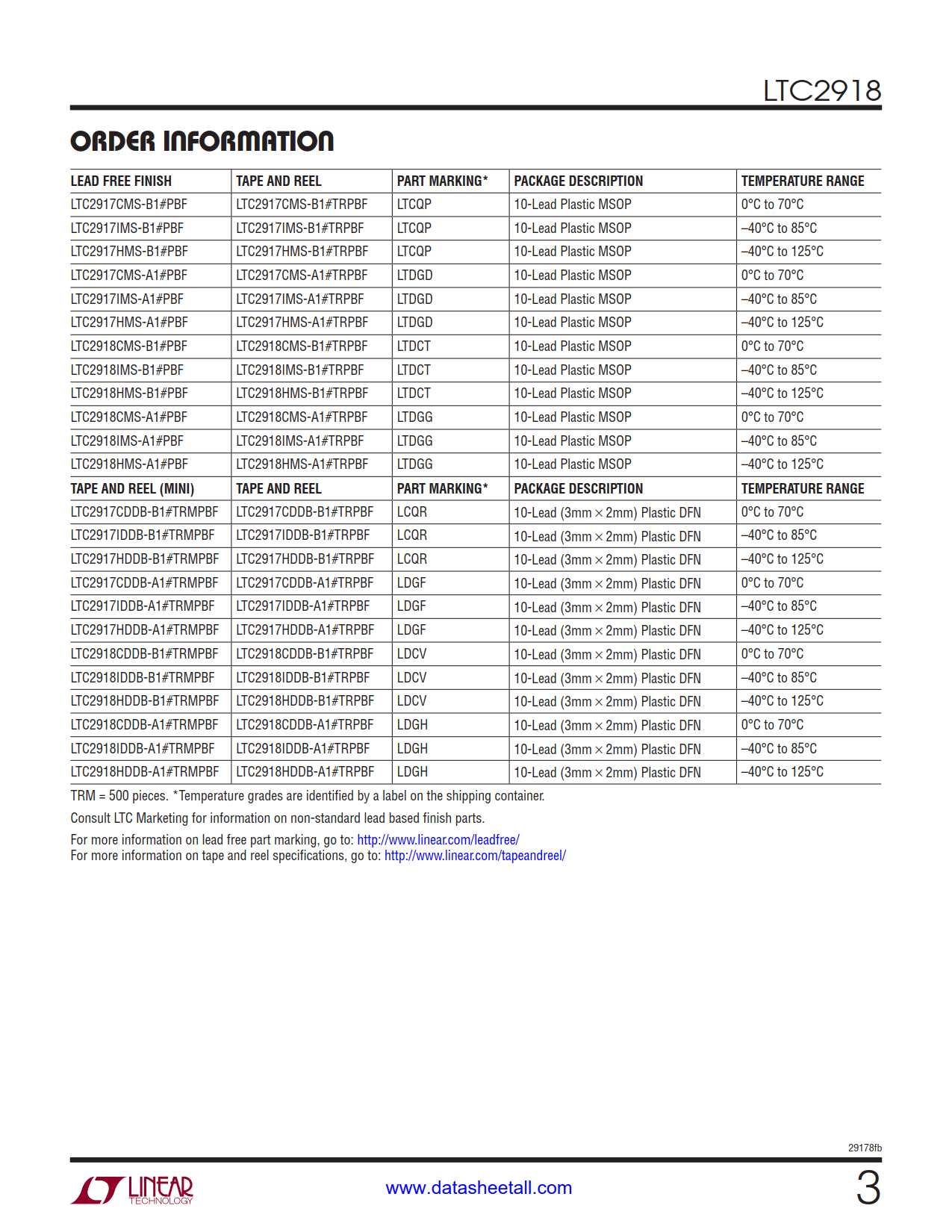

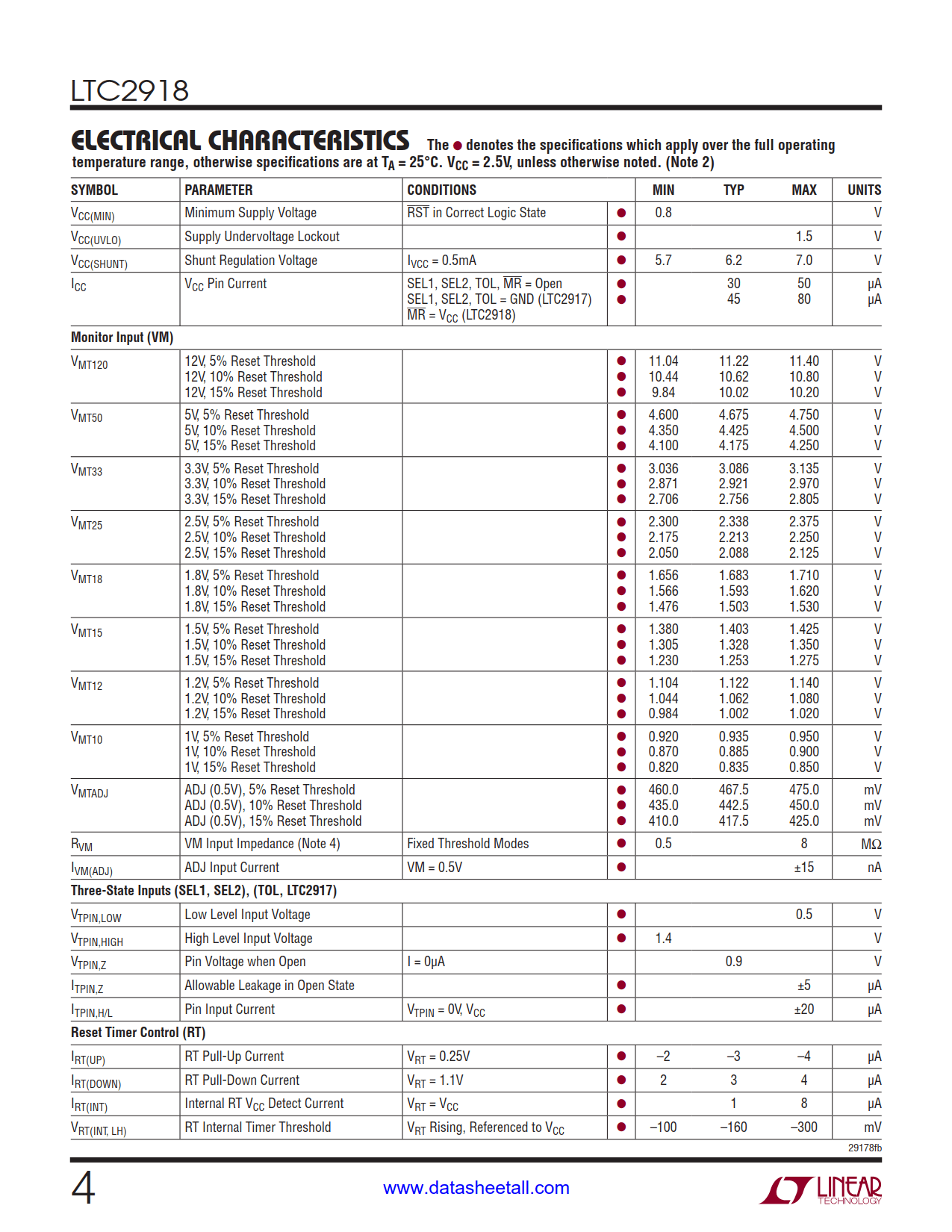

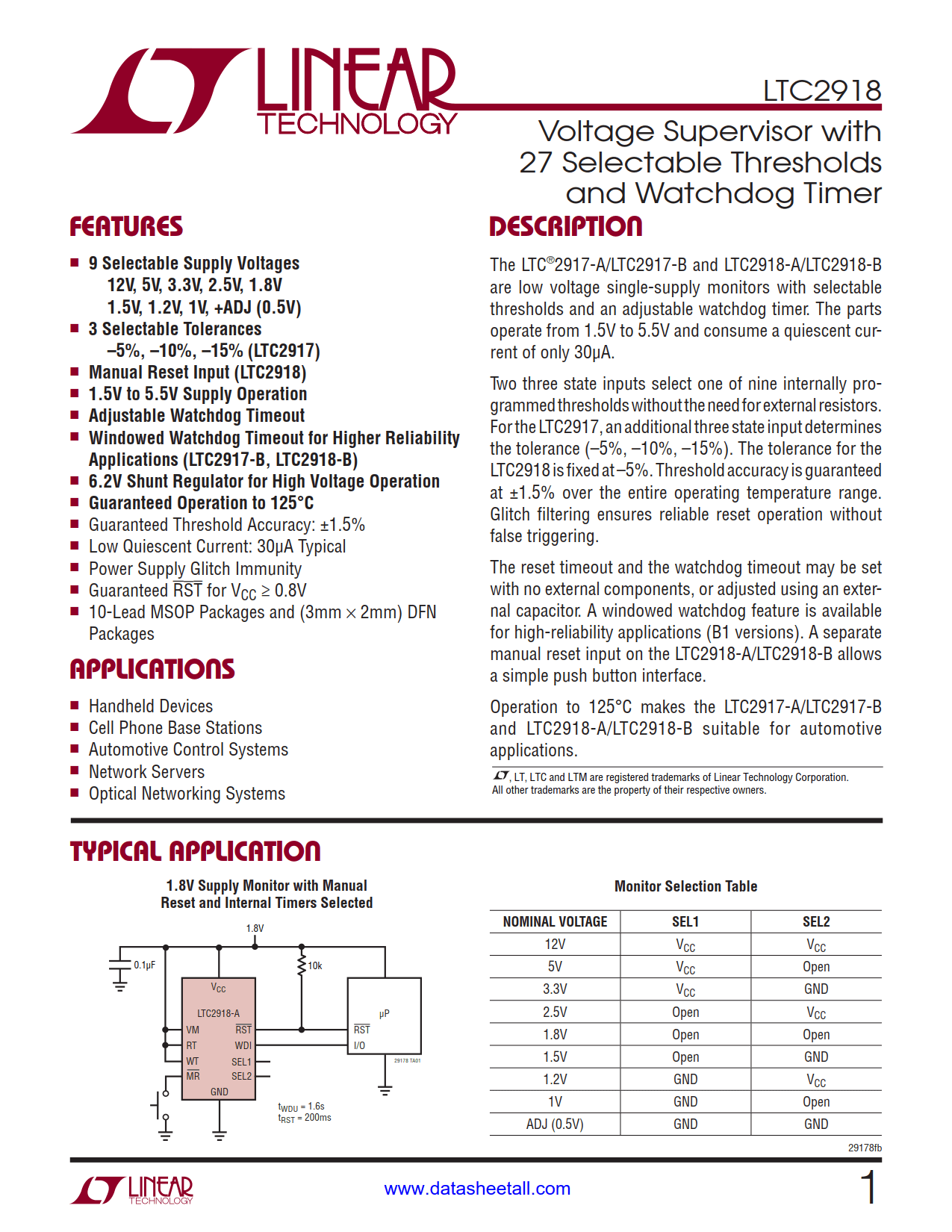

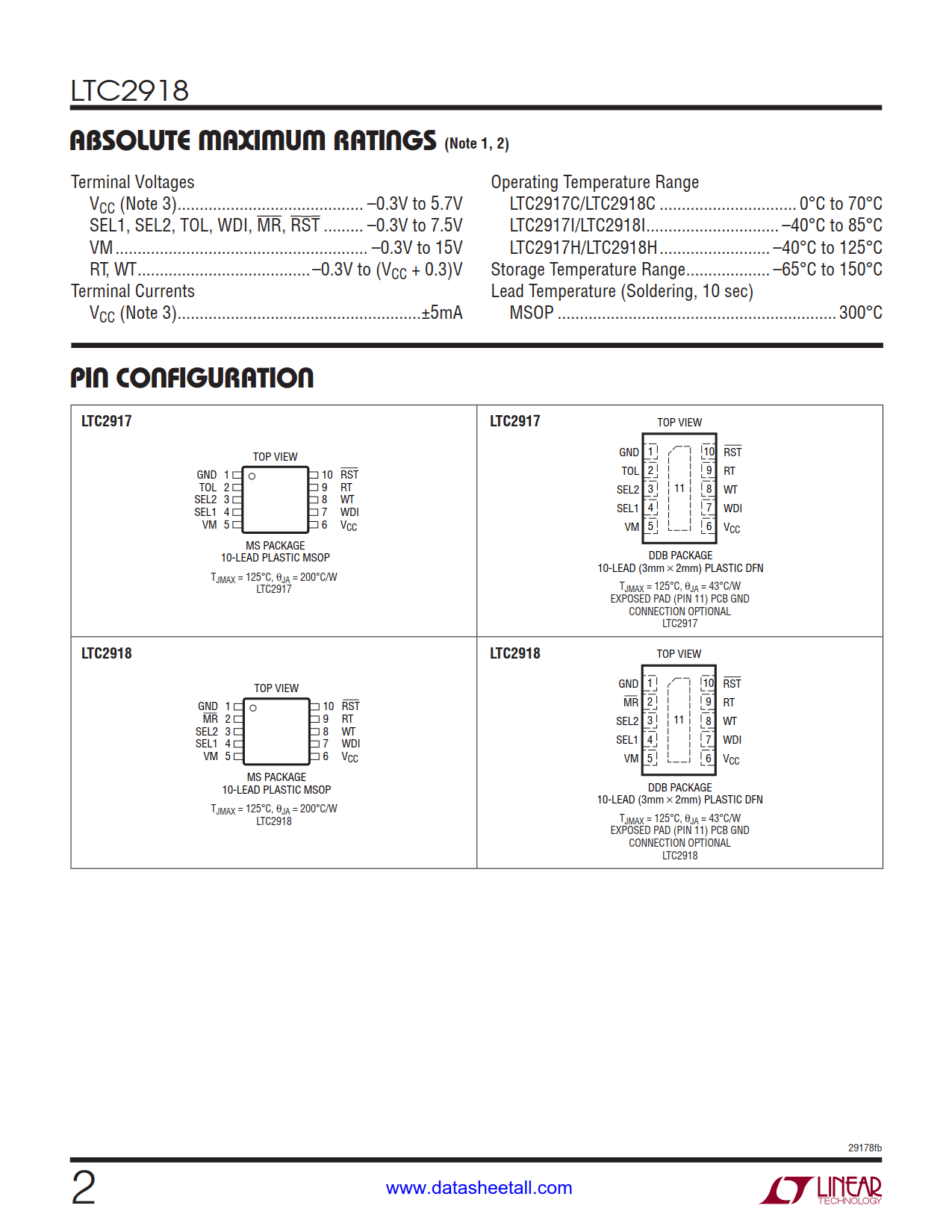

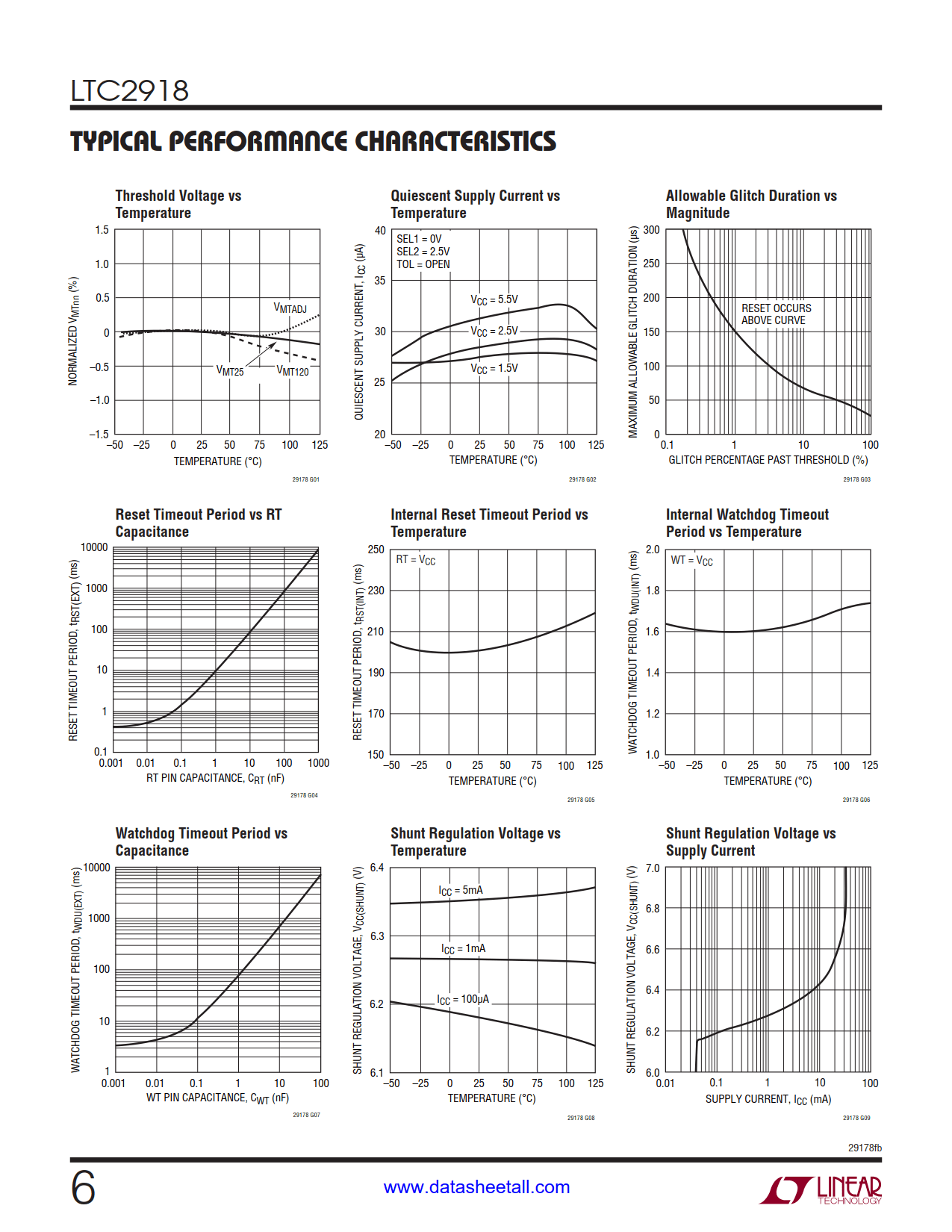

LTC2918 Datasheet(Picture)

LTC2918 Features

  • 9 Selectable Supply Voltages
    • 12V, 5V, 3.3V, 2.5V, 1.8V, 1.5V, 1.2V, 1V, +ADJ (0.5V)
  • Manual Reset Input (LTC2918)
  • 1.5V to 5.5V Supply Operation
  • Adjustable Watchdog Timeout
  • Windowed Watchdog Timeout for Higher Reliability Applications (LTC2918-B)
  • 6.2V Shunt Regulator for High Voltage Operation
  • Guaranteed Operation to 125°C
  • Guaranteed Threshold Accuracy: ±1.5%
  • Low Quiescent Current: 30µA Typical
  • Power Supply Glitch Immunity
  • Guaranteed RST for VCC ≥ 0.8V
  • 10-Lead MSOP Packages and (3mm × 2mm) DFN Packages

LTC2918 Applications

  • Handheld Devices
  • Cell Phone Base Stations
  • Automotive Control Systems
  • Network Servers
  • Optical Networking Systems

LTC2918 Description

The LTC2918-A/LTC2918-B are low voltage single-supply monitors with selectable thresholds and an adjustable watchdog timer. The parts operate from 1.5V to 5.5V and consume a quiescent current of only 30µA.

Two three state inputs select one of nine internally programmed thresholds without the need for external resistors. The tolerance for the LTC2918 is fixed at –5%. Threshold accuracy is guaranteed at ±1.5% over the entire operating temperature range. Glitch filtering ensures reliable reset operation without false triggering.

The reset timeout and the watchdog timeout may be set with no external components, or adjusted using an external capacitor. A windowed watchdog feature is available for high-reliability applications (B1 versions). A separate manual reset input on the LTC2918-B allows a simple push button interface.

Operation to 125°C makes the LTC2918-A/LTC2918-B suitable for automotive ap- plications.
