LTC2917 Datasheet

LTC2917 Datasheet

Voltage Supervisor with 27 Selectable Thresholds and Watchdog Timer
Part No.: LTC2917
Page: 16 Pages
Size: 176 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-01-16 14:40:12
DataSheet: Download

LTC2917 Datasheet Applicable Part

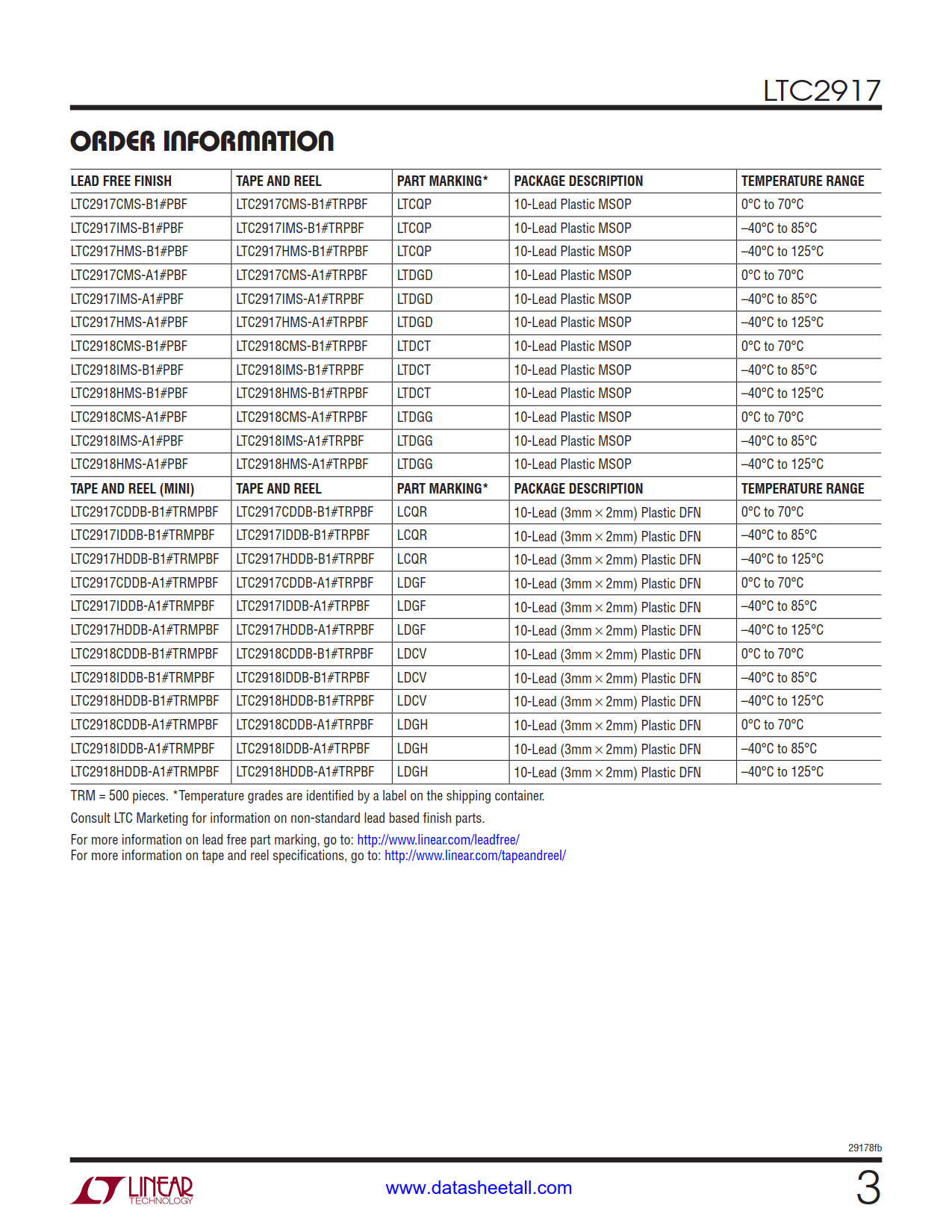

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC2917CMS-B1#PBF Tube 50 LTCQP 1 10 0°C ~70°C 10-Lead Plastic MSOP
LTC2917CMS-B1#TRPBF Reel 2500 LTCQP 1 10 0°C ~70°C 10-Lead Plastic MSOP
LTC2917CMS-B1#TRMPBF Reel 500 LTCQP 1 10 0°C ~70°C 10-Lead Plastic MSOP
LTC2917IMS-B1#PBF Tube 50 LTCQP 1 10 -40°C ~85°C 10-Lead Plastic MSOP
LTC2917IMS-B1#TRPBF Reel 2500 LTCQP 1 10 -40°C ~85°C 10-Lead Plastic MSOP
LTC2917IMS-B1#TRMPBF Reel 500 LTCQP 1 10 -40°C ~85°C 10-Lead Plastic MSOP
LTC2917HMS-B1#PBF Tube 50 LTCQP 1 10 -40°C ~125°C 10-Lead Plastic MSOP
LTC2917HMS-B1#TRPBF Reel 2500 LTCQP 1 10 -40°C ~125°C 10-Lead Plastic MSOP
LTC2917HMS-B1#TRMPBF Reel 500 LTCQP 1 10 -40°C ~125°C 10-Lead Plastic MSOP
LTC2917CMS-A1#PBF Tube 50 LTDGD 1 10 0°C ~70°C 10-Lead Plastic MSOP
LTC2917CMS-A1#TRPBF Reel 2500 LTDGD 1 10 0°C ~70°C 10-Lead Plastic MSOP
LTC2917CMS-A1#TRMPBF Reel 500 LTDGD 1 10 0°C ~70°C 10-Lead Plastic MSOP
LTC2917IMS-A1#PBF Tube 50 LTDGD 1 10 -40°C ~85°C 10-Lead Plastic MSOP
LTC2917IMS-A1#TRPBF Reel 2500 LTDGD 1 10 -40°C ~85°C 10-Lead Plastic MSOP
LTC2917IMS-A1#TRMPBF Reel 500 LTDGD 1 10 -40°C ~85°C 10-Lead Plastic MSOP
LTC2917HMS-A1#PBF Tube 50 LTDGD 1 10 -40°C ~125°C 10-Lead Plastic MSOP
LTC2917HMS-A1#TRPBF Reel 2500 LTDGD 1 10 -40°C ~125°C 10-Lead Plastic MSOP
LTC2917HMS-A1#TRMPBF Reel 500 LTDGD 1 10 -40°C ~125°C 10-Lead Plastic MSOP
LTC2917CDDB-B1#PBF Tube   LCQR 1 10 0°C ~70°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2917CDDB-B1#TRPBF Reel 2500 LCQR 1 10 0°C ~70°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2917CDDB-B1#TRMPBF Reel 500 LCQR 1 10 0°C ~70°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2917IDDB-B1#PBF Tube   LCQR 1 10 -40°C ~85°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2917IDDB-B1#TRPBF Reel 2500 LCQR 1 10 -40°C ~85°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2917IDDB-B1#TRMPBF Reel 500 LCQR 1 10 -40°C ~85°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2917HDDB-B1#PBF Tube   LCQR 1 10 -40°C ~125°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2917HDDB-B1#TRPBF Reel 2500 LCQR 1 10 -40°C ~125°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2917HDDB-B1#TRMPBF Reel 500 LCQR 1 10 -40°C ~125°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2917CDDB-A1#PBF Tube   LDGF 1 10 0°C ~70°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2917CDDB-A1#TRPBF Reel 2500 LDGF 1 10 0°C ~70°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2917CDDB-A1#TRMPBF Reel 500 LDGF 1 10 0°C ~70°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2917IDDB-A1#PBF Tube   LDGF 1 10 -40°C ~85°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2917IDDB-A1#TRPBF Reel 2500 LDGF 1 10 -40°C ~85°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2917IDDB-A1#TRMPBF Reel 500 LDGF 1 10 -40°C ~85°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2917HDDB-A1#PBF Tube   LDGF 1 10 -40°C ~125°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2917HDDB-A1#TRPBF Reel 2500 LDGF 1 10 -40°C ~125°C 10-Lead (3mm × 2mm) Plastic DFN
LTC2917HDDB-A1#TRMPBF Reel 500 LDGF 1 10 -40°C ~125°C 10-Lead (3mm × 2mm) Plastic DFN
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC2917 Datasheet(PDF)

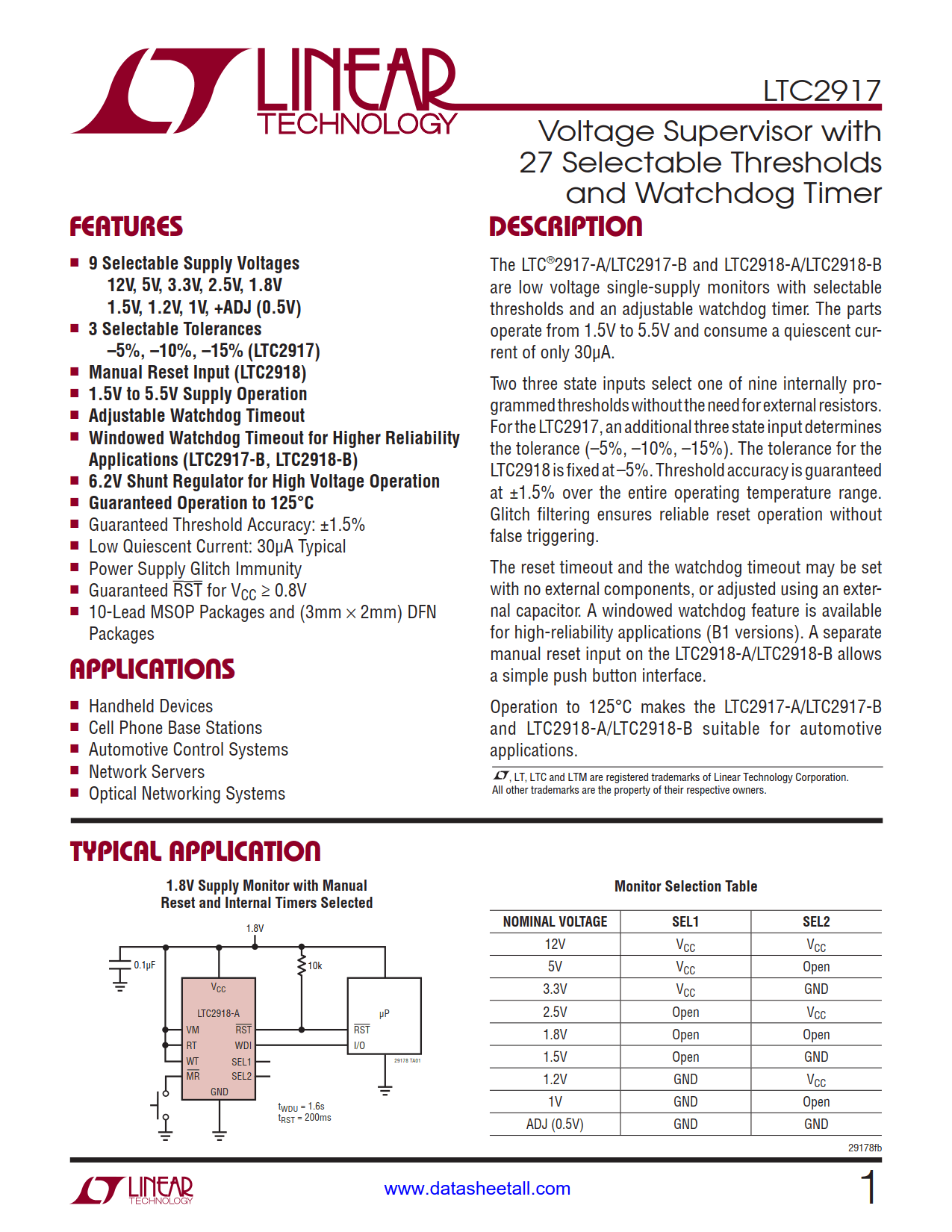

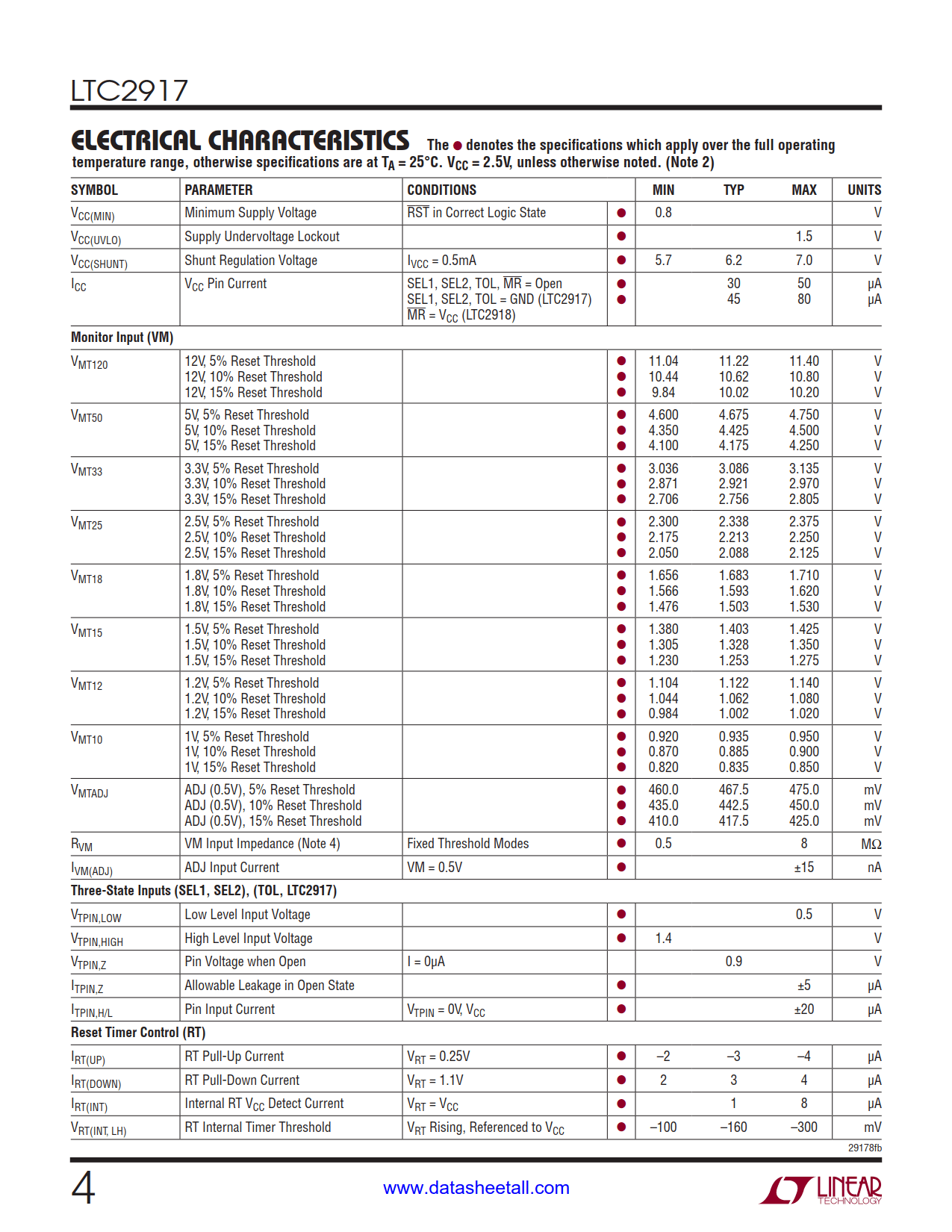

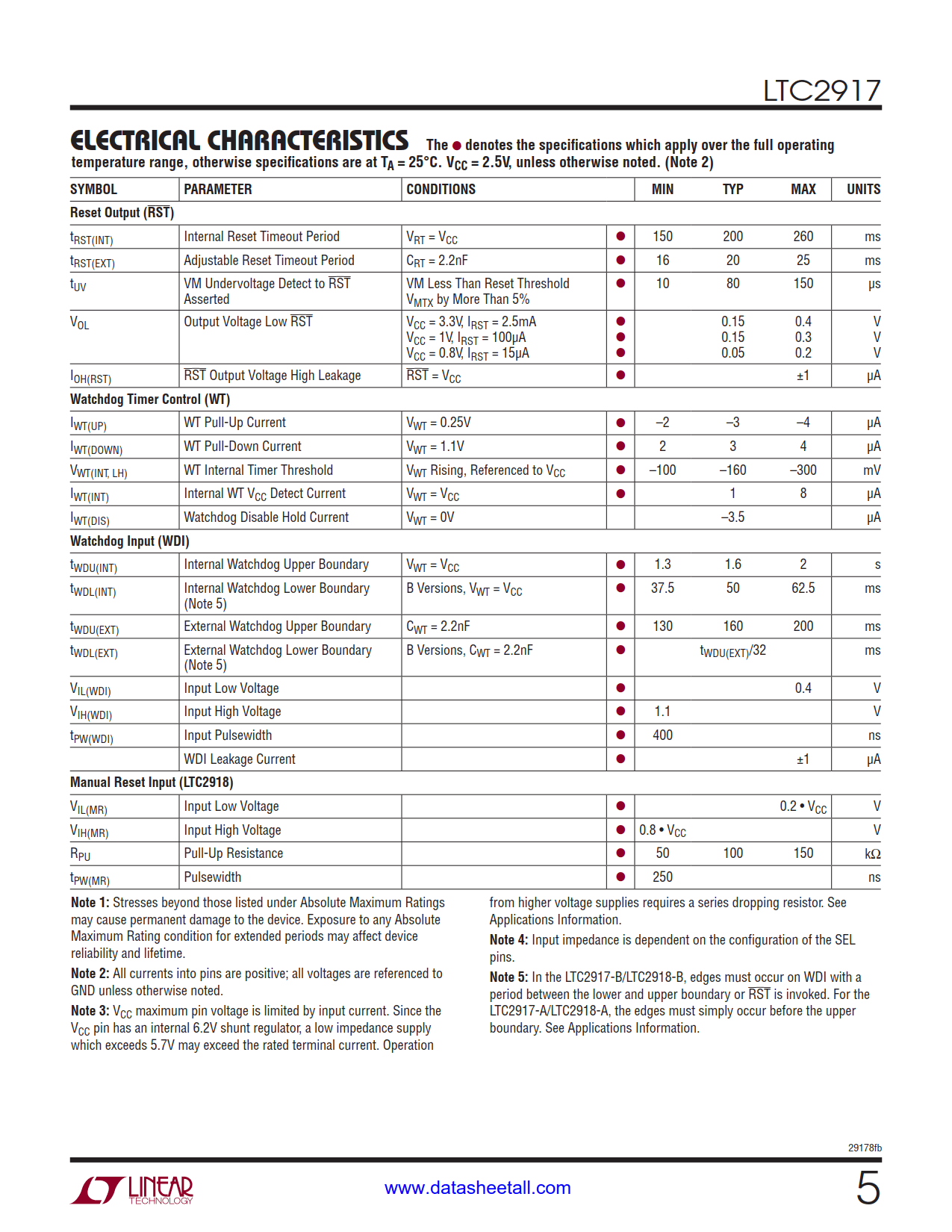

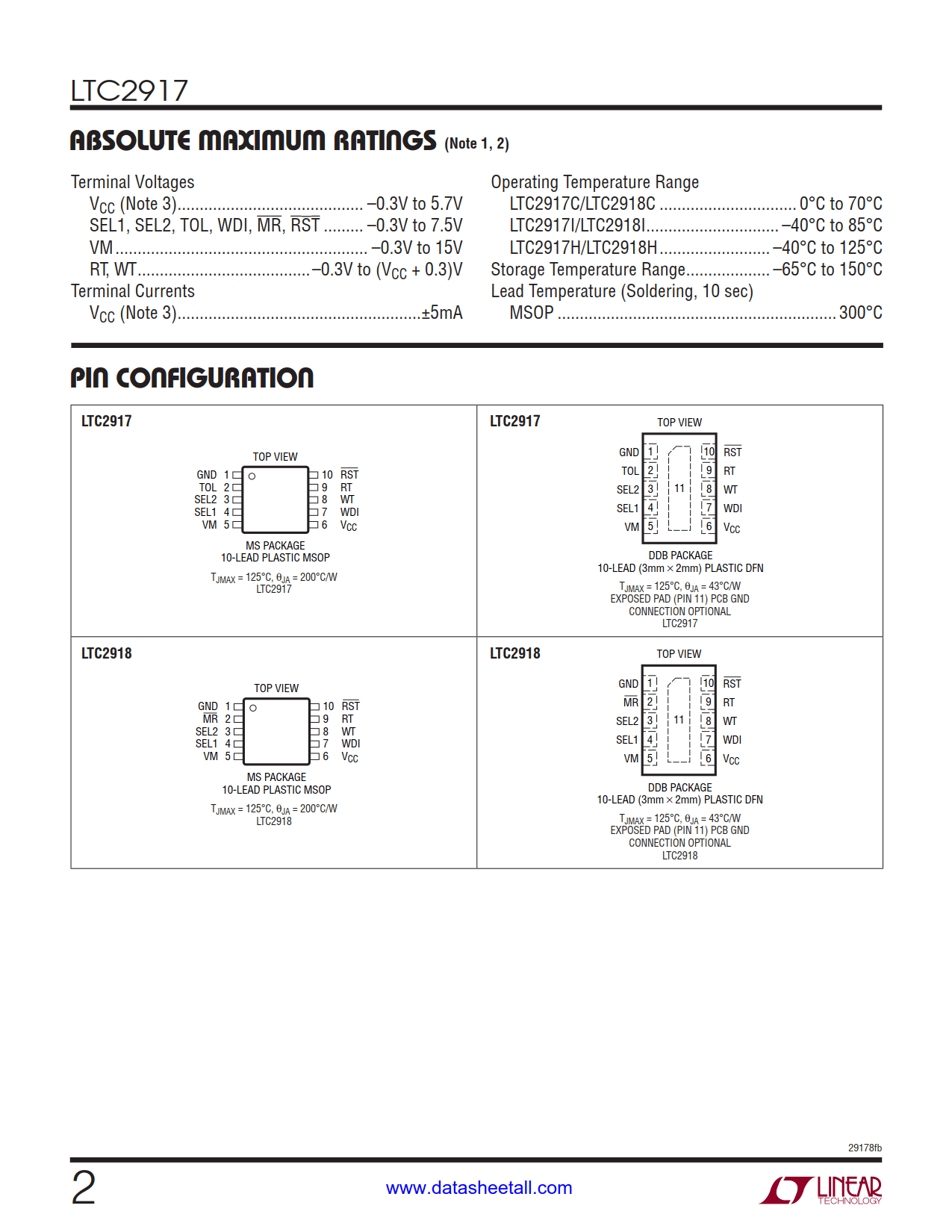

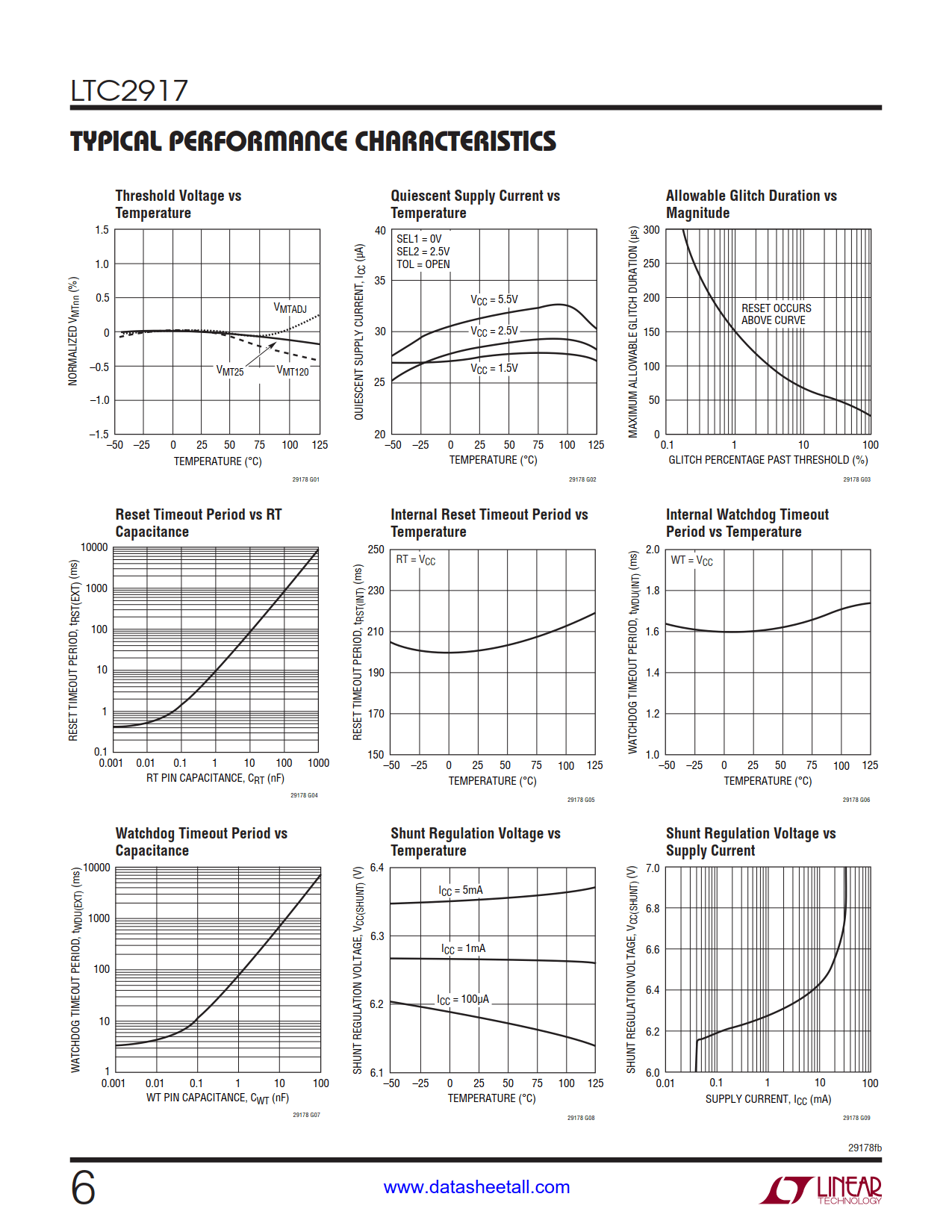

LTC2917 Datasheet(Picture)

LTC2917 Features

  • 9 Selectable Supply Voltages
    • 12V, 5V, 3.3V, 2.5V, 1.8V, 1.5V, 1.2V, 1V, +ADJ (0.5V)
  • 3 Selectable Tolerances
    • –5%, –10%, –15% (LTC2917)
  • 1.5V to 5.5V Supply Operation
  • Adjustable Watchdog Timeout
  • Windowed Watchdog Timeout for Higher Reliability Applications (LTC2917-B)
  • 6.2V Shunt Regulator for High Voltage Operation
  • Guaranteed Operation to 125°C
  • Guaranteed Threshold Accuracy: ±1.5%
  • Low Quiescent Current: 30µA Typical
  • Power Supply Glitch Immunity
  • Guaranteed RST for VCC ≥ 0.8V
  • 10-Lead MSOP Packages and (3mm × 2mm) DFN Packages

LTC2917 Applications

  • Handheld Devices
  • Cell Phone Base Stations
  • Automotive Control Systems
  • Network Servers
  • Optical Networking Systems

LTC2917 Description

The LTC2917-A/LTC2917-B are low voltage single-supply monitors with selectable thresholds and an adjustable watchdog timer. The parts operate from 1.5V to 5.5V and consume a quiescent current of only 30µA.

Two three state inputs select one of nine internally programmed thresholds without the need for external resistors. For the LTC2917, an additional three state input determines the tolerance (–5%, –10%, –15%). Threshold accuracy is guaranteed at ±1.5% over the entire operating temperature range. Glitch filtering ensures reliable reset operation without false triggering.

The reset timeout and the watchdog timeout may be set with no external components, or adjusted using an external capacitor. A windowed watchdog feature is available for high-reliability applications (B1 versions). A separate manual reset input on the LTC2918-A allows a simple push button interface.

Operation to 125°C makes the LTC2917-A/LTC2917-B suitable for automotive applications.
