LTC2916 Datasheet

LTC2916 Datasheet

Voltage Supervisor with 9 Selectable Thresholds and Manual Reset Input
Part No.: LTC2916
Page: 12 Pages
Size: 157 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-11-21 10:22:36
DataSheet: Download

LTC2916 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC2916CTS8-1#PBF Tube   LTDCW 1 8 0°C ~70°C 8-Lead TSOT-23
LTC2916CTS8-1#TRPBF Reel 2500 LTDCW 1 8 0°C ~70°C 8-Lead TSOT-23
LTC2916CTS8-1#TRMPBF Reel 500 LTDCW 1 8 0°C ~70°C 8-Lead TSOT-23
LTC2916ITS8-1#PBF Tube   LTDCW 1 8 -40°C ~85°C 8-Lead TSOT-23
LTC2916ITS8-1#TRPBF Reel 2500 LTDCW 1 8 -40°C ~85°C 8-Lead TSOT-23
LTC2916ITS8-1#TRMPBF Reel 500 LTDCW 1 8 -40°C ~85°C 8-Lead TSOT-23
LTC2916HTS8-1#PBF Tube   LTDCW 1 8 -40°C ~125°C 8-Lead TSOT-23
LTC2916HTS8-1#TRPBF Reel 2500 LTDCW 1 8 -40°C ~125°C 8-Lead TSOT-23
LTC2916HTS8-1#TRMPBF Reel 500 LTDCW 1 8 -40°C ~125°C 8-Lead TSOT-23
LTC2916CDDB-1#PBF Tube   LDCX 1 8 0°C ~70°C 8-Lead (3mm × 2mm) Plastic DFN
LTC2916CDDB-1#TRPBF Reel 2500 LDCX 1 8 0°C ~70°C 8-Lead (3mm × 2mm) Plastic DFN
LTC2916CDDB-1#TRMPBF Reel 500 LDCX 1 8 0°C ~70°C 8-Lead (3mm × 2mm) Plastic DFN
LTC2916IDDB-1#PBF Tube   LDCX 1 8 -40°C ~85°C 8-Lead (3mm × 2mm) Plastic DFN
LTC2916IDDB-1#TRPBF Reel 2500 LDCX 1 8 -40°C ~85°C 8-Lead (3mm × 2mm) Plastic DFN
LTC2916IDDB-1#TRMPBF Reel 500 LDCX 1 8 -40°C ~85°C 8-Lead (3mm × 2mm) Plastic DFN
LTC2916HDDB-1#PBF Tube   LDCX 1 8 -40°C ~125°C 8-Lead (3mm × 2mm) Plastic DFN
LTC2916HDDB-1#TRPBF Reel 2500 LDCX 1 8 -40°C ~125°C 8-Lead (3mm × 2mm) Plastic DFN
LTC2916HDDB-1#TRMPBF Reel 500 LDCX 1 8 -40°C ~125°C 8-Lead (3mm × 2mm) Plastic DFN
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC2916 Datasheet(PDF)

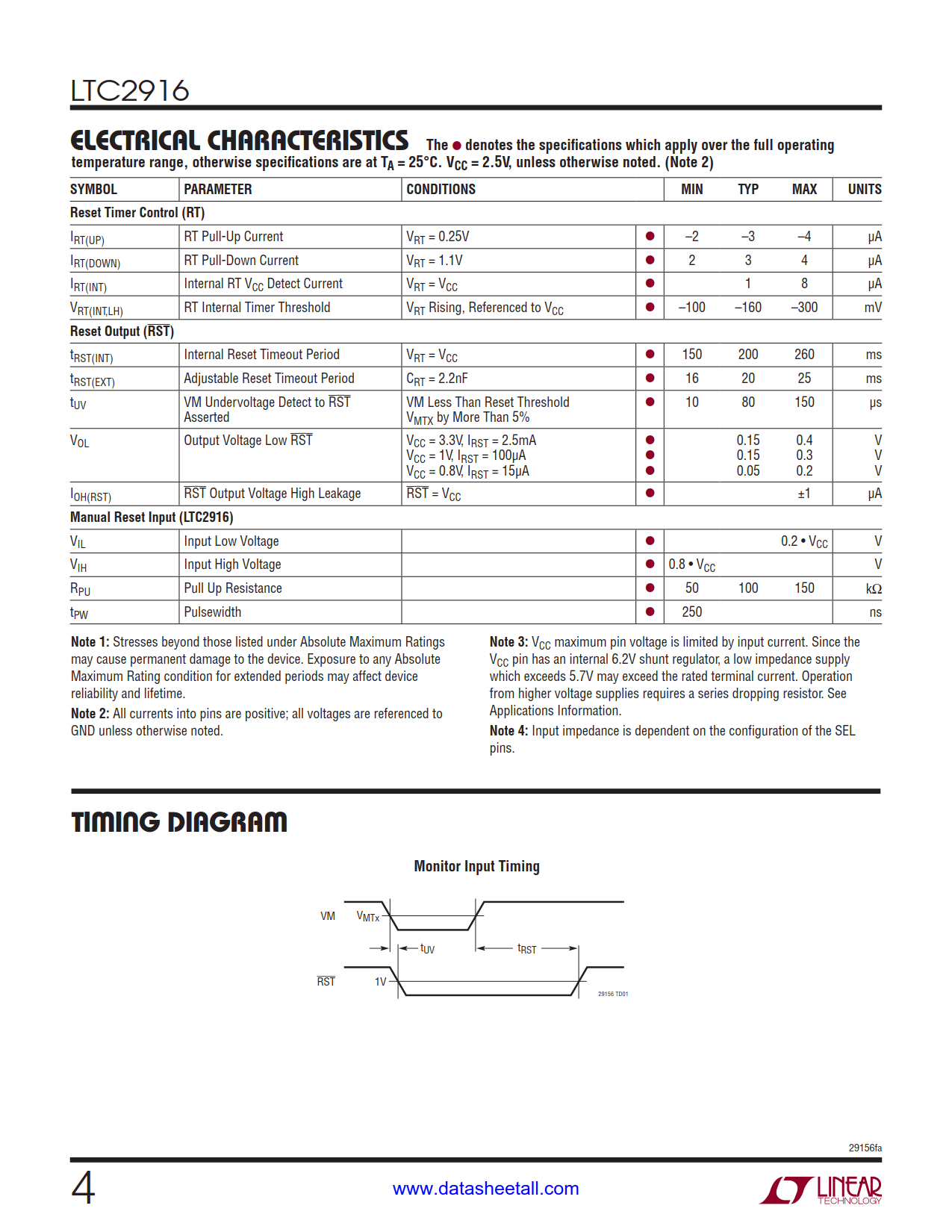

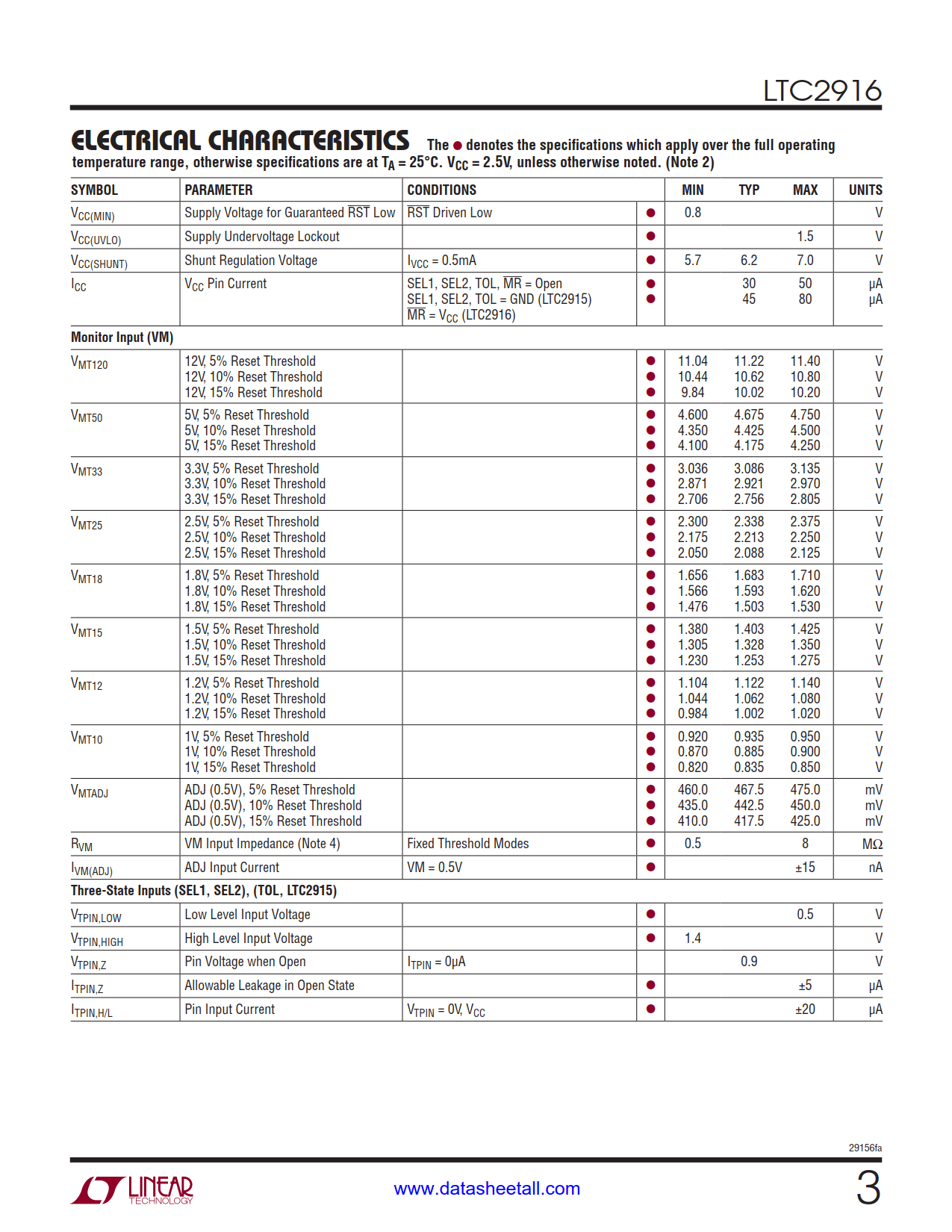

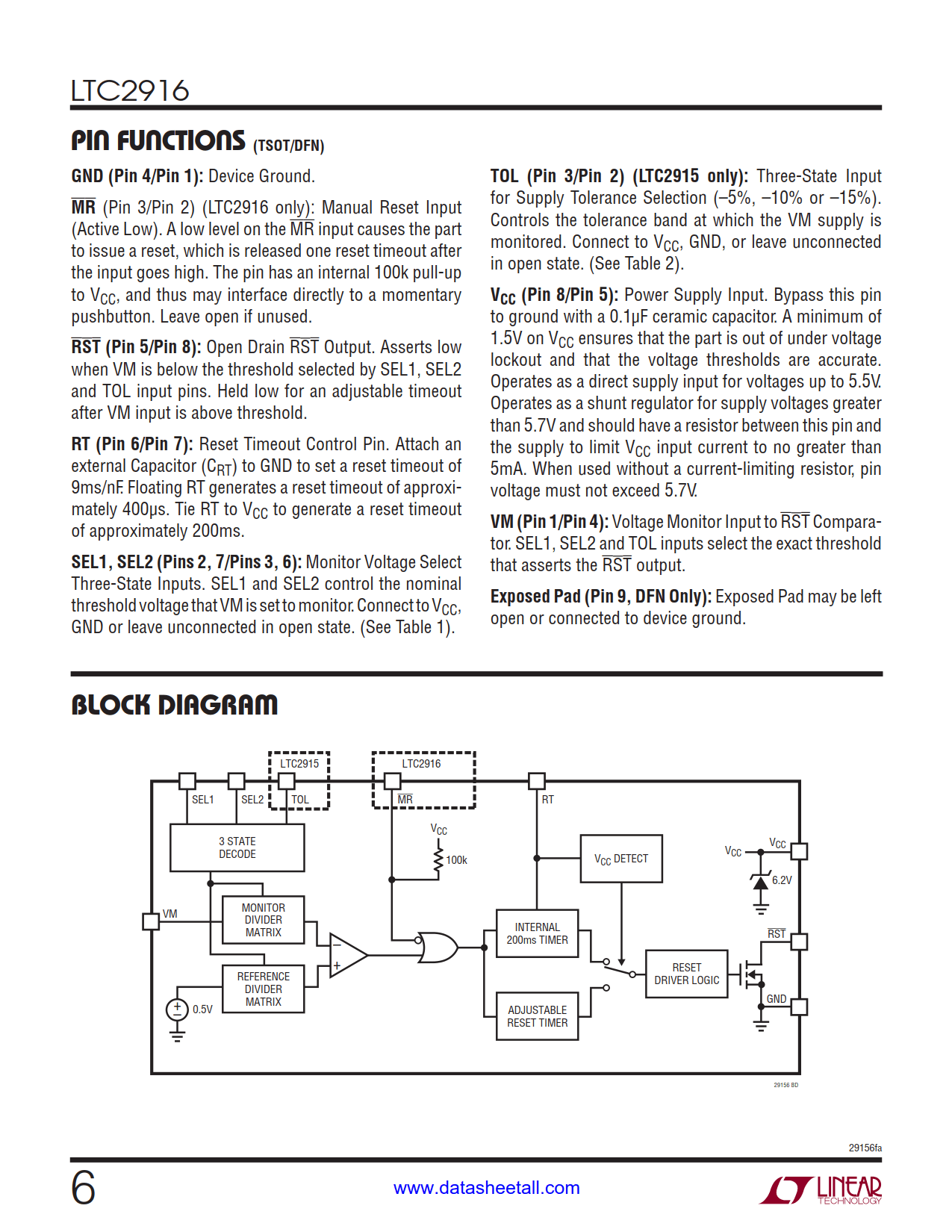

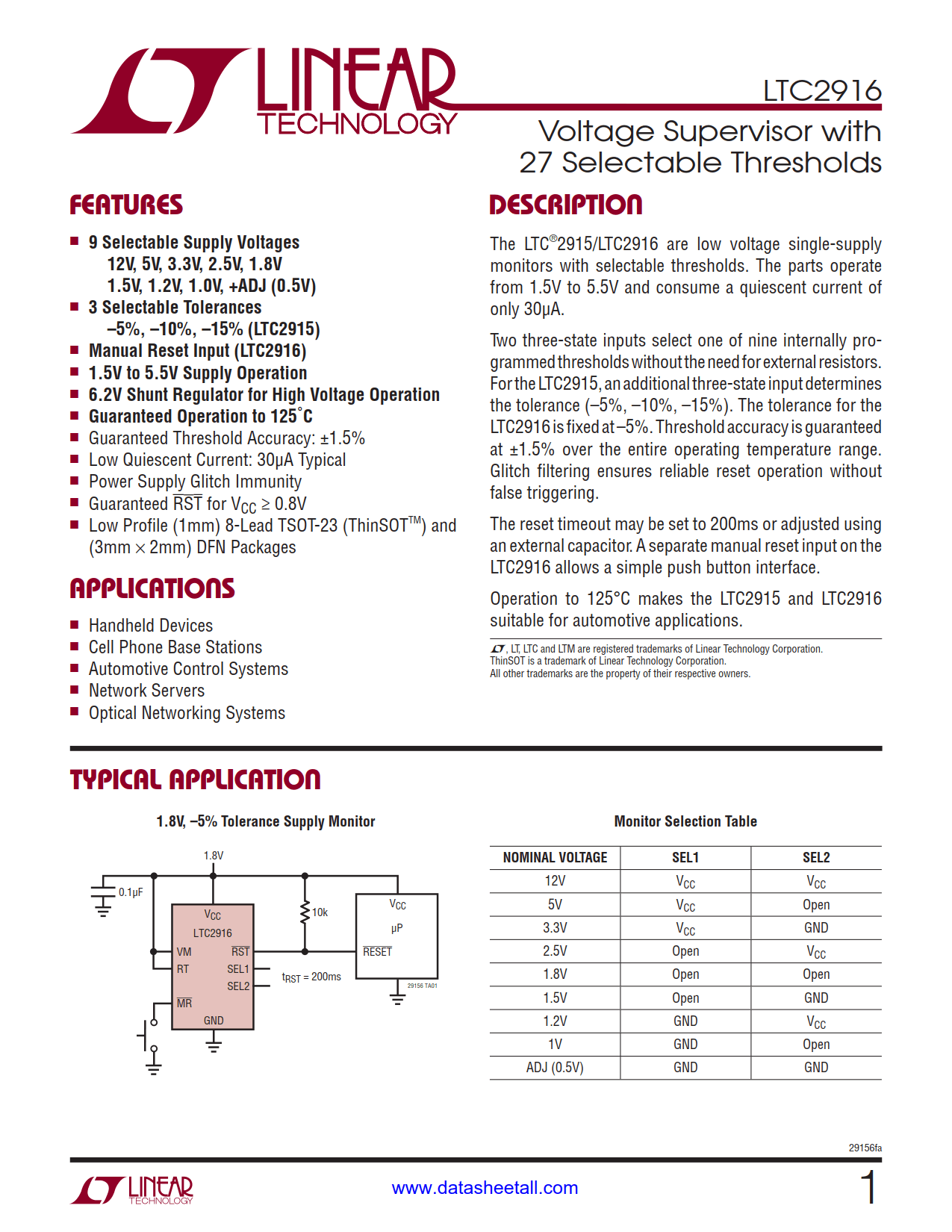

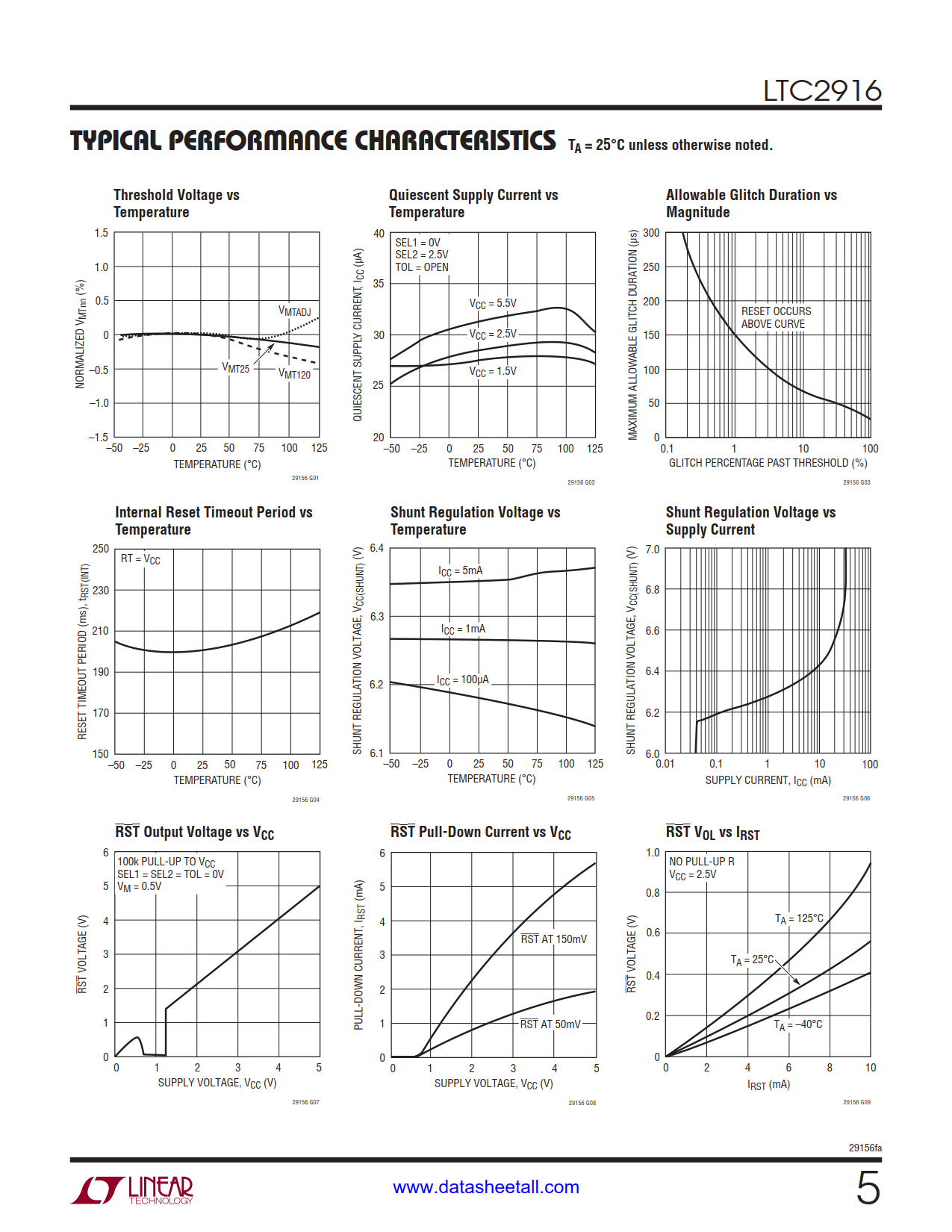

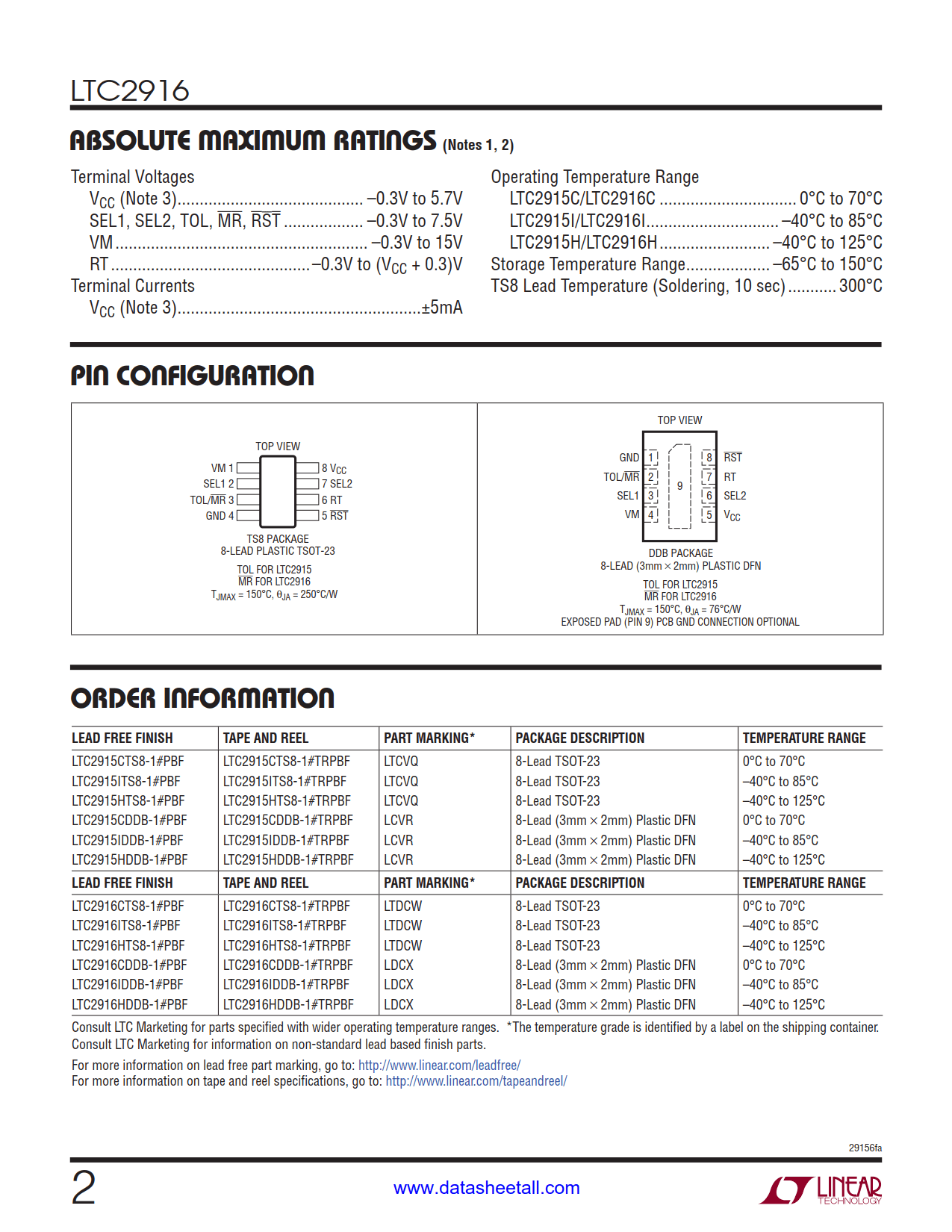

LTC2916 Datasheet(Picture)

LTC2916 Features

  • 9 Selectable Supply Voltages
    • 12V, 5V, 3.3V, 2.5V, 1.8V
    • 1.5V, 1.2V, 1.0V, +ADJ (0.5V)
  • Manual Reset Input (LTC2916)
  • 1.5V to 5.5V Supply Operation
  • 6.2V Shunt Regulator for High Voltage Operation
  • Guaranteed Operation to 125°C
  • Guaranteed Threshold Accuracy: ±1.5%
  • Low Quiescent Current: 30µA Typical
  • Power Supply Glitch Immunity
  • Guaranteed RST for VCC = 0.8V
  • Low Profile (1mm) 8-Lead TSOT-23 (ThinSOT) and(3mm × 2mm) DFN Packages

LTC2916 Applications

  • Handheld Devices
  • Cell Phone Base Stations
  • Automotive Control Systems
  • Network Servers
  • Optical Networking Systems

LTC2916 Description

The LTC2916 are low voltage single-supply monitors with selectable thresholds. The parts operate from 1.5V to 5.5V and consume a quiescent current of only 30µA.

Two three-state inputs select one of nine internally programmed thresholds without the need for external resistors.  The tolerance for the LTC2916 is fixed at –5%. Threshold accuracy is guaranteed at ±1.5% over the entire operating temperature range. Glitch filtering ensures reliable reset operation without false triggering.

The reset timeout may be set to 200ms or adjusted using an external capacitor. A separate manual reset input on the LTC2916 allows a simple push button interface.

Operation to 125°C makes the LTC2916 suitable for automotive applications.
