LTC2905 Datasheet

LTC2905 Datasheet

Precision Dual Supply Monitor with Pin-Selectable Thresholds
Part No.: LTC2905
Page: 16 Pages
Size: 167 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-01-23 14:36:55
DataSheet: Download

LTC2905 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC2905CDDB#PBF Tube   LAJF 1 8 0°C ~70°C 8-Lead (3mm × 2mm) Plastic DFN
LTC2905CDDB#TRPBF Reel 2500 LAJF 1 8 0°C ~70°C 8-Lead (3mm × 2mm) Plastic DFN
LTC2905CDDB#TRMPBF Reel 500 LAJF 1 8 0°C ~70°C 8-Lead (3mm × 2mm) Plastic DFN
LTC2905HDDB#PBF Tube   LBCY 1 8 -40°C ~125°C 8-Lead (3mm × 2mm) Plastic DFN
LTC2905HDDB#TRPBF Reel 2500 LBCY 1 8 -40°C ~125°C 8-Lead (3mm × 2mm) Plastic DFN
LTC2905HDDB#TRMPBF Reel 500 LBCY 1 8 -40°C ~125°C 8-Lead (3mm × 2mm) Plastic DFN
LTC2905IDDB#PBF Tube   LBCY 1 8 -40°C ~85°C 8-Lead (3mm × 2mm) Plastic DFN
LTC2905IDDB#TRPBF Reel 2500 LBCY 1 8 -40°C ~85°C 8-Lead (3mm × 2mm) Plastic DFN
LTC2905IDDB#TRMPBF Reel 500 LBCY 1 8 -40°C ~85°C 8-Lead (3mm × 2mm) Plastic DFN
LTC2905CTS8#PBF Tube   LTAJD 1 8 0°C ~70°C 8-Lead Plastic TSOT-23
LTC2905CTS8#TRPBF Reel 2500 LTAJD 1 8 0°C ~70°C 8-Lead Plastic TSOT-23
LTC2905CTS8#TRMPBF Reel 500 LTAJD 1 8 0°C ~70°C 8-Lead Plastic TSOT-23
LTC2905HTS8#PBF Tube   LTAJE 1 8 -40°C ~125°C 8-Lead Plastic TSOT-23
LTC2905HTS8#TRPBF Reel 2500 LTAJE 1 8 -40°C ~125°C 8-Lead Plastic TSOT-23
LTC2905HTS8#TRMPBF Reel 500 LTAJE 1 8 -40°C ~125°C 8-Lead Plastic TSOT-23
LTC2905ITS8#PBF Tube   LTAJE 1 8 -40°C ~85°C 8-Lead Plastic TSOT-23
LTC2905ITS8#TRPBF Reel 2500 LTAJE 1 8 -40°C ~85°C 8-Lead Plastic TSOT-23
LTC2905ITS8#TRMPBF Reel 500 LTAJE 1 8 -40°C ~85°C 8-Lead Plastic TSOT-23
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC2905 Datasheet(PDF)

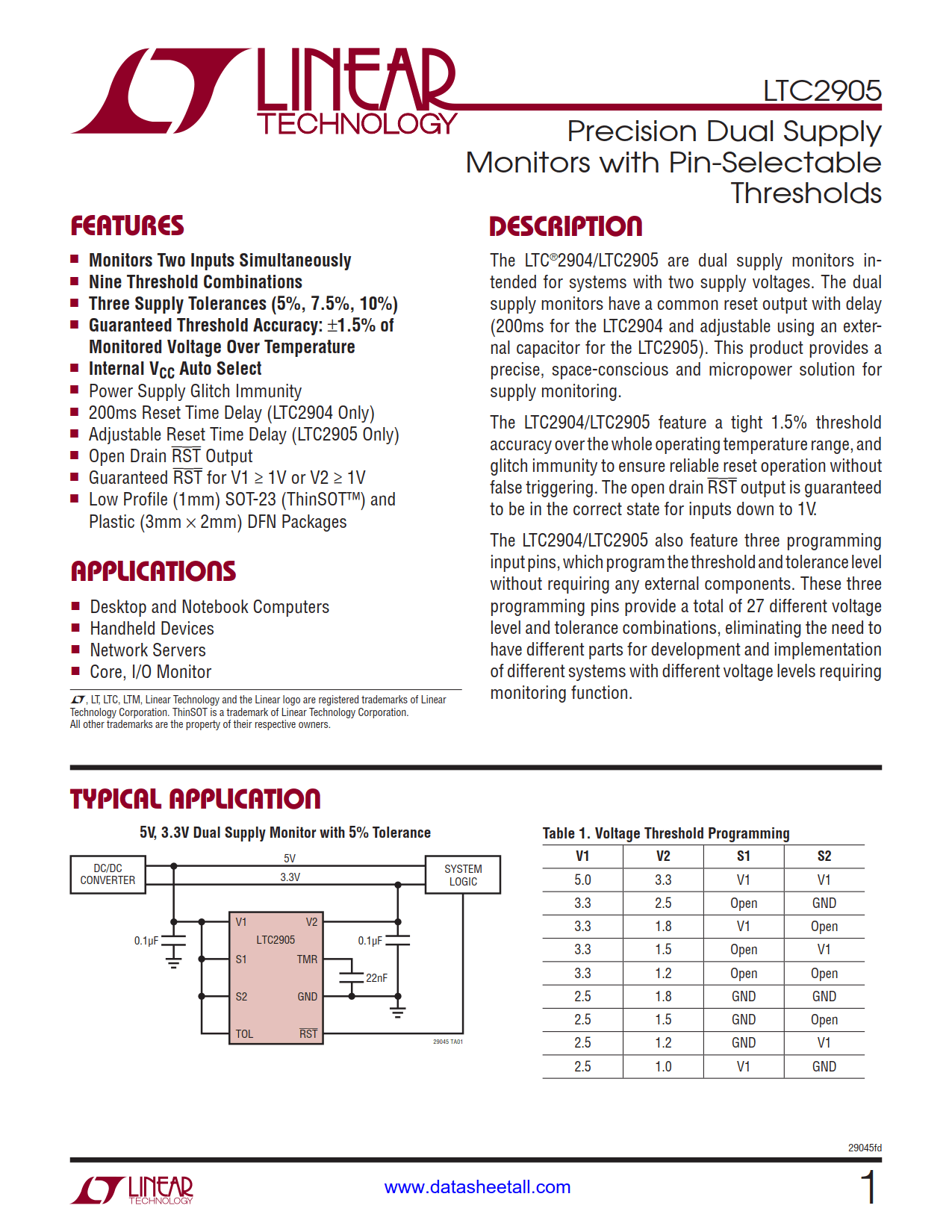

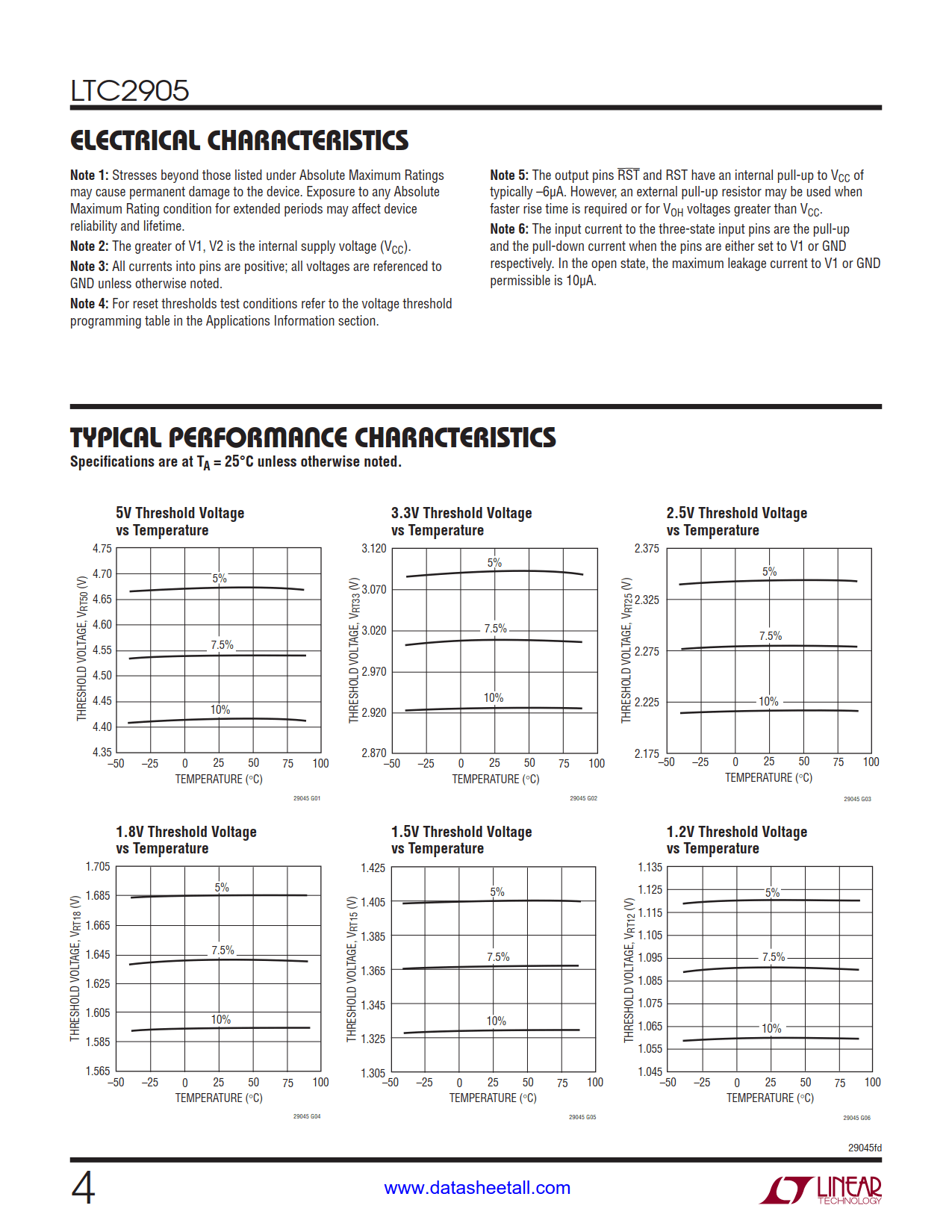

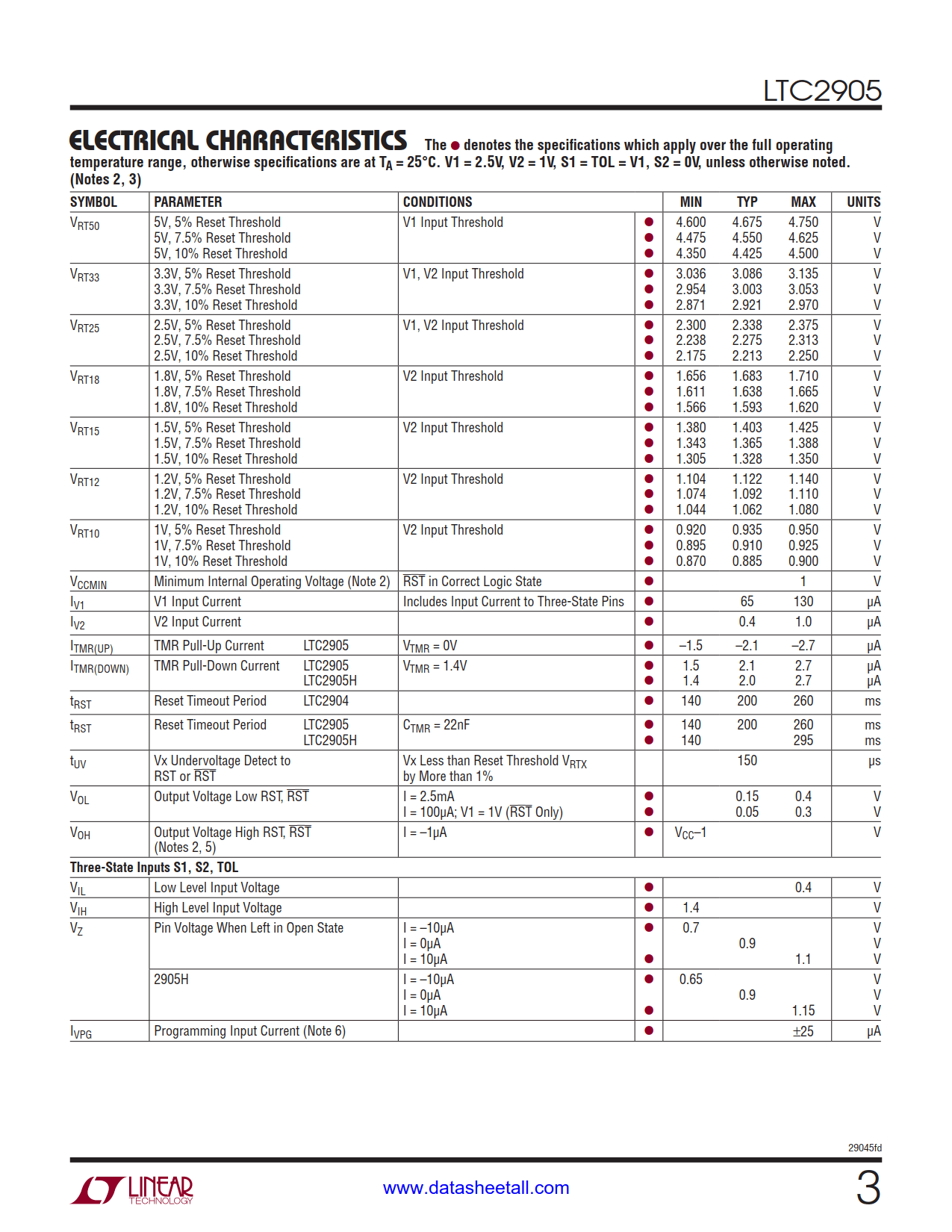

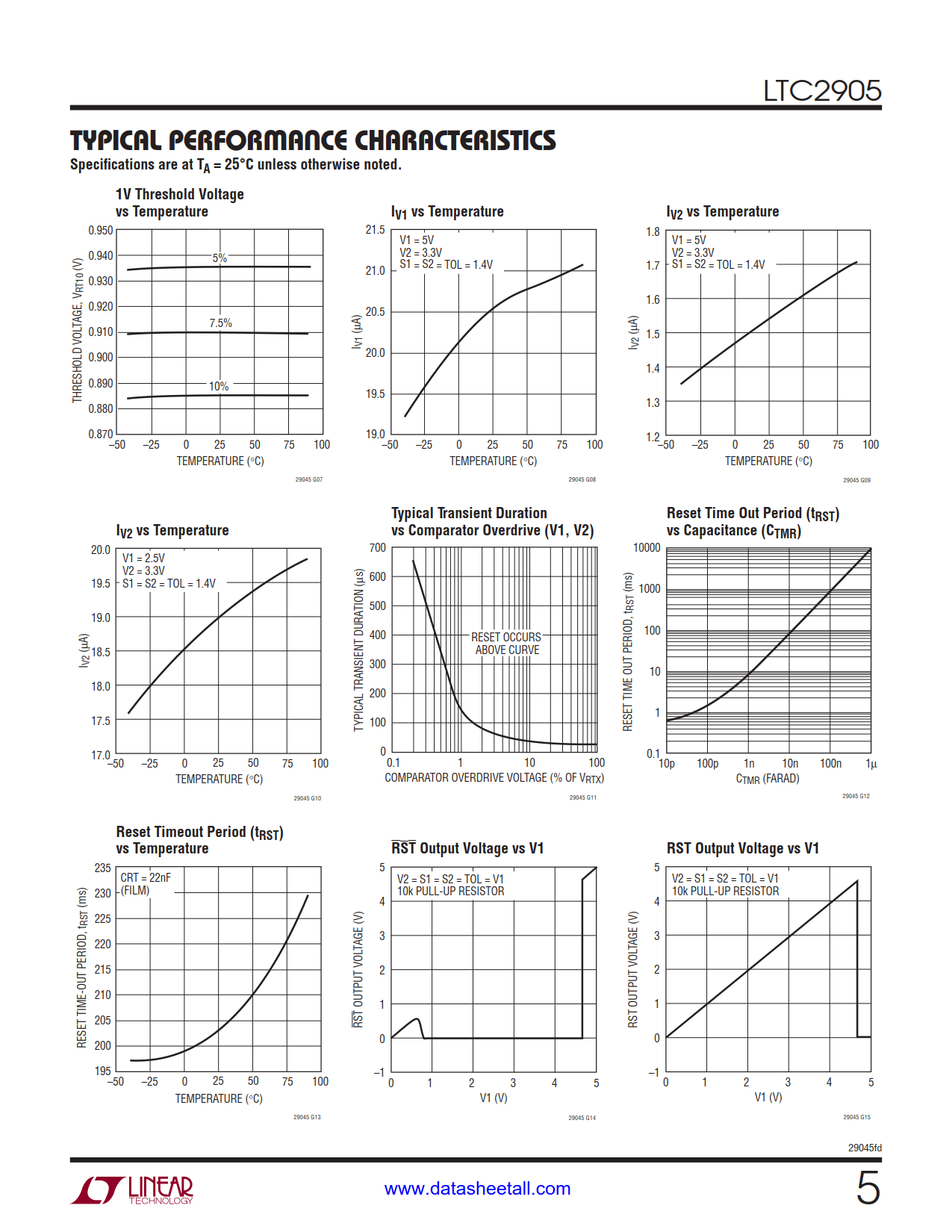

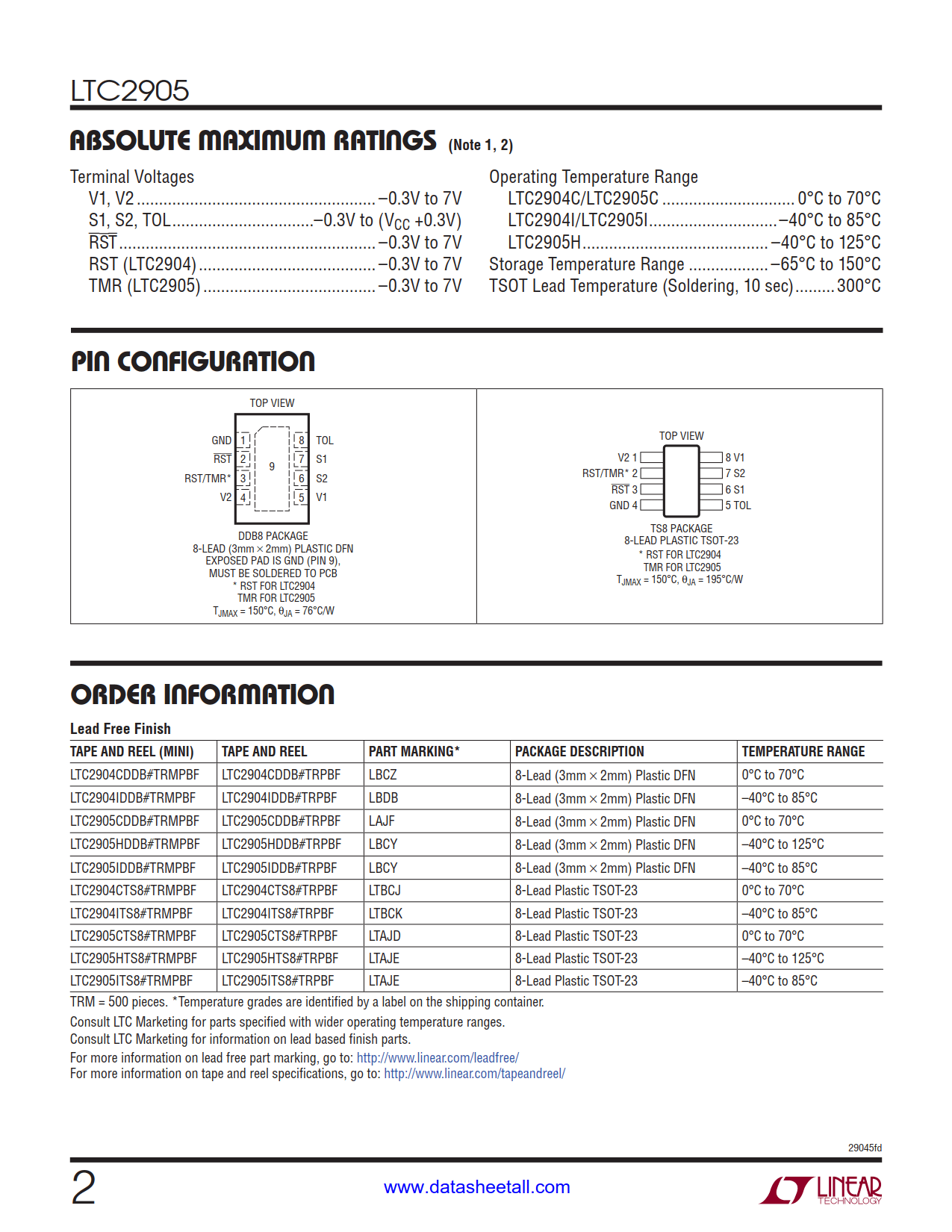

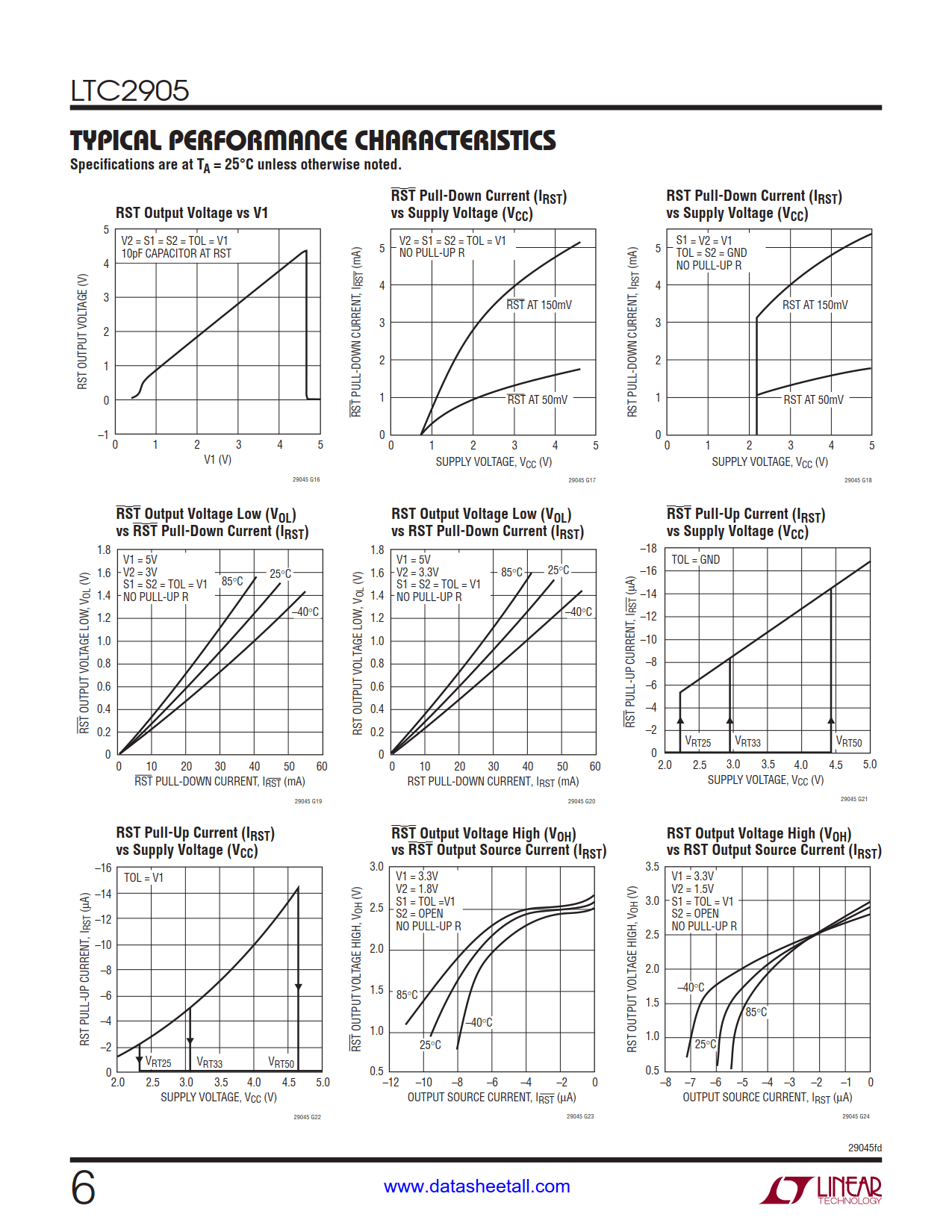

LTC2905 Datasheet(Picture)

LTC2905 Features

  • Monitors Two Inputs Simultaneously
  • Nine Threshold Combinations
  • Three Supply Tolerances (5%, 7.5%, 10%)
  • Guaranteed Threshold Accuracy: ±1.5% of Monitored Voltage Over Temperature
  • Internal VCC Auto Select
  • Power Supply Glitch Immunity
  • Adjustable Reset Time Delay (LTC2905 Only)
  • Open Drain RST Output
  • Guaranteed RST for V1 ≥ 1V or V2 ≥ 1V
  • Low Profile (1mm) SOT-23 (ThinSOT) and Plastic (3mm × 2mm) DFN Packages

LTC2905 Applications

  • Desktop and Notebook Computers
  • Handheld Devices
  • Network Servers
  • Core, I/O Monitor

LTC2905 Description

The LTC2905 are dual supply monitors intended for systems with two supply voltages. The dual supply monitors have a common reset output with delay (200ms for the LTC2904 and adjustable using an external capacitor for the LTC2905). This product provides a precise, space-conscious and micropower solution for supply monitoring.

The LTC2905 feature a tight 1.5% threshold accuracy over the whole operating temperature range, and glitch immunity to ensure reliable reset operation without false triggering. The open drain RST output is guaranteed to be in the correct state for inputs down to 1V.

The LTC2905 also feature three programming input pins, which program the threshold and tolerance level without requiring any external components. These three programming pins provide a total of 27 different voltage level and tolerance combinations, eliminating the need to have different parts for development and implementation of different systems with different voltage levels requiring monitoring function.
