LTC2904 Datasheet

LTC2904 Datasheet

Precision Dual Supply Monitor with Pin-Selectable Thresholds
Part No.: LTC2904
Page: 16 Pages
Size: 167 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-01-23 14:44:33
DataSheet: Download

LTC2904 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC2904CDDB#PBF Tube   LBCZ 1 8 0°C ~70°C 8-Lead (3mm × 2mm) Plastic DFN
LTC2904CDDB#TRPBF Reel 2500 LBCZ 1 8 0°C ~70°C 8-Lead (3mm × 2mm) Plastic DFN
LTC2904CDDB#TRMPBF Reel 500 LBCZ 1 8 0°C ~70°C 8-Lead (3mm × 2mm) Plastic DFN
LTC2904IDDB#PBF Tube   LBDB 1 8 -40°C ~85°C 8-Lead (3mm × 2mm) Plastic DFN
LTC2904IDDB#TRPBF Reel 2500 LBDB 1 8 -40°C ~85°C 8-Lead (3mm × 2mm) Plastic DFN
LTC2904IDDB#TRMPBF Reel 500 LBDB 1 8 -40°C ~85°C 8-Lead (3mm × 2mm) Plastic DFN
LTC2904CTS8#PBF Tube   LTBCJ 1 8 0°C ~70°C 8-Lead Plastic TSOT-23
LTC2904CTS8#TRPBF Reel 2500 LTBCJ 1 8 0°C ~70°C 8-Lead Plastic TSOT-23
LTC2904CTS8#TRMPBF Reel 500 LTBCJ 1 8 0°C ~70°C 8-Lead Plastic TSOT-23
LTC2904ITS8#PBF Tube   LTBCK 1 8 -40°C ~85°C 8-Lead Plastic TSOT-23
LTC2904ITS8#TRPBF Reel 2500 LTBCK 1 8 -40°C ~85°C 8-Lead Plastic TSOT-23
LTC2904ITS8#TRMPBF Reel 500 LTBCK 1 8 -40°C ~85°C 8-Lead Plastic TSOT-23
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC2904 Datasheet(PDF)

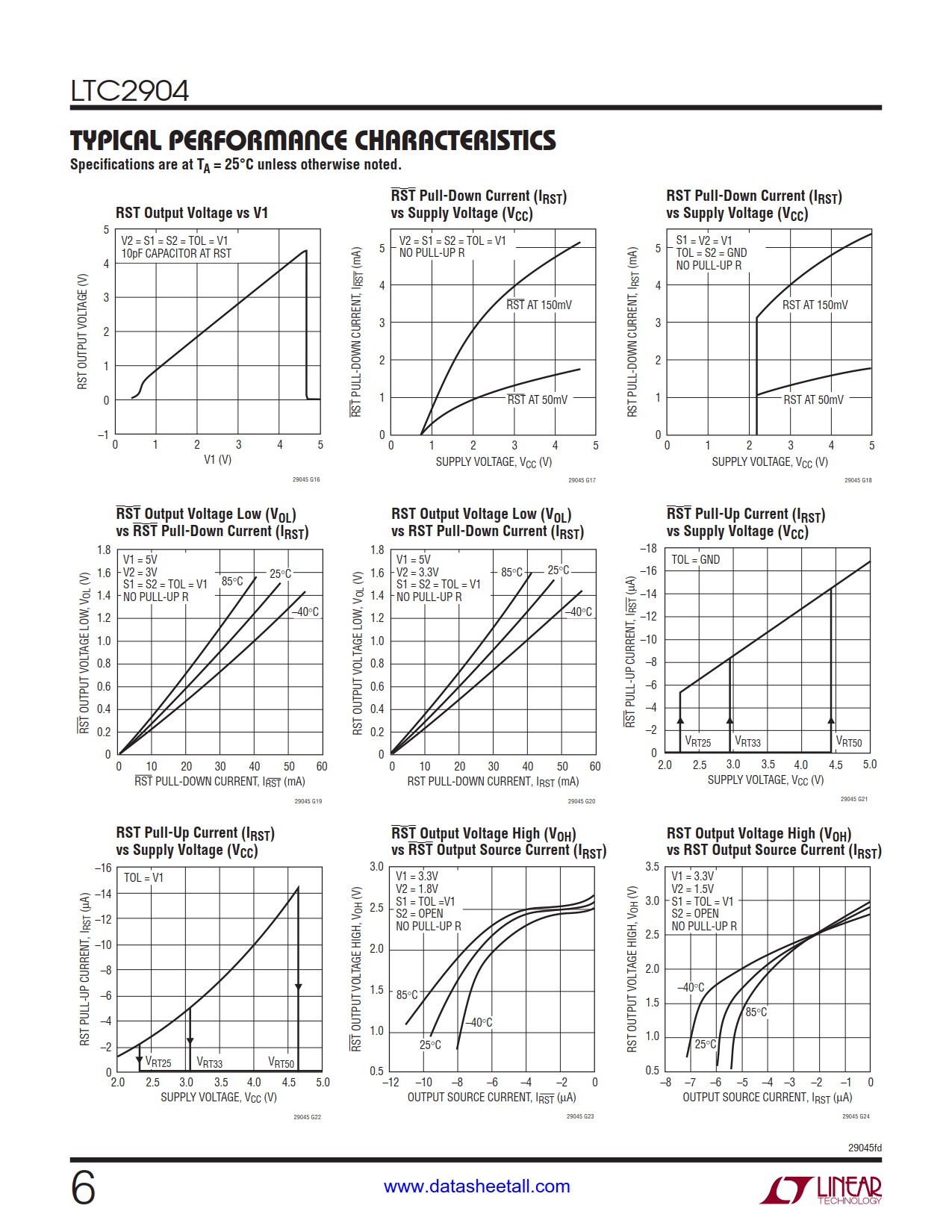

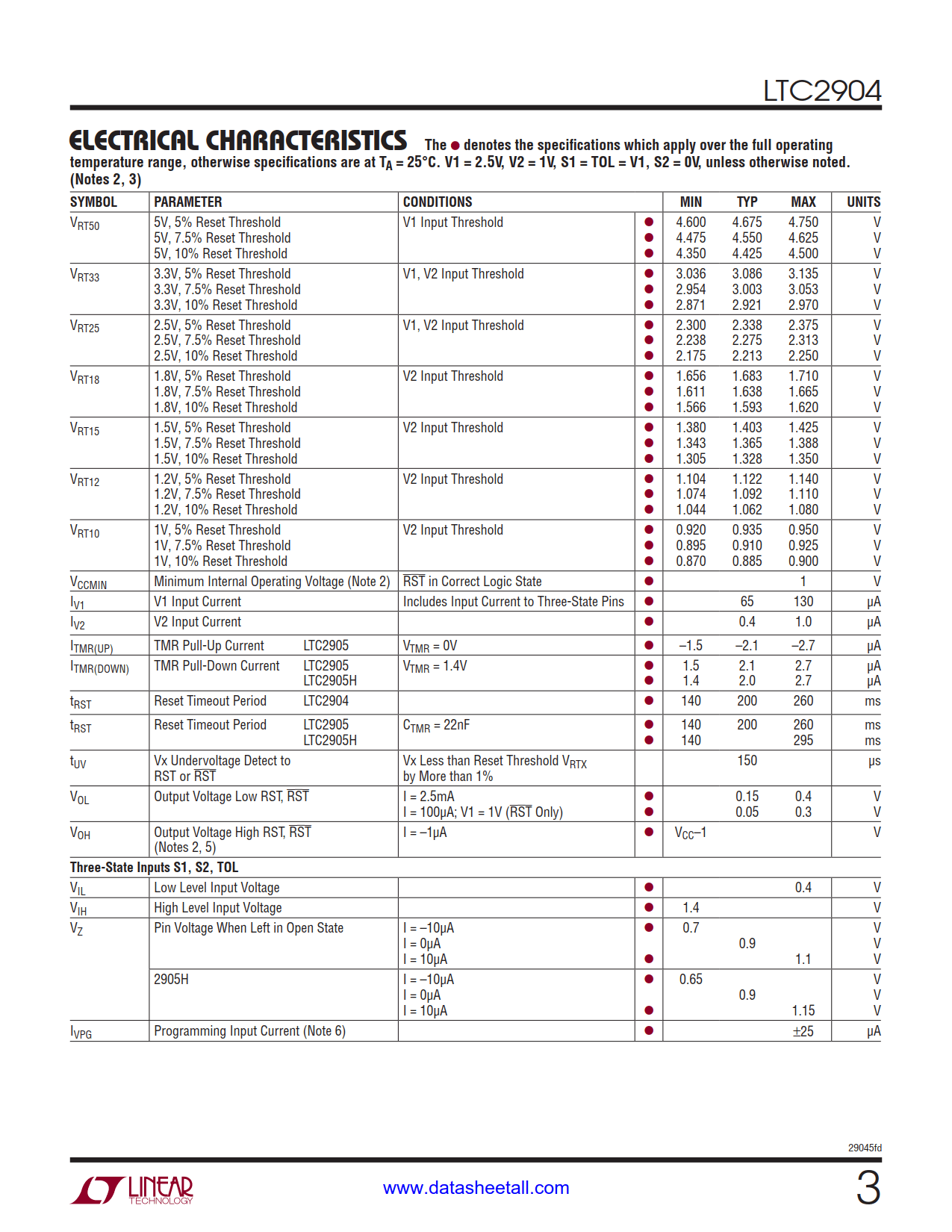

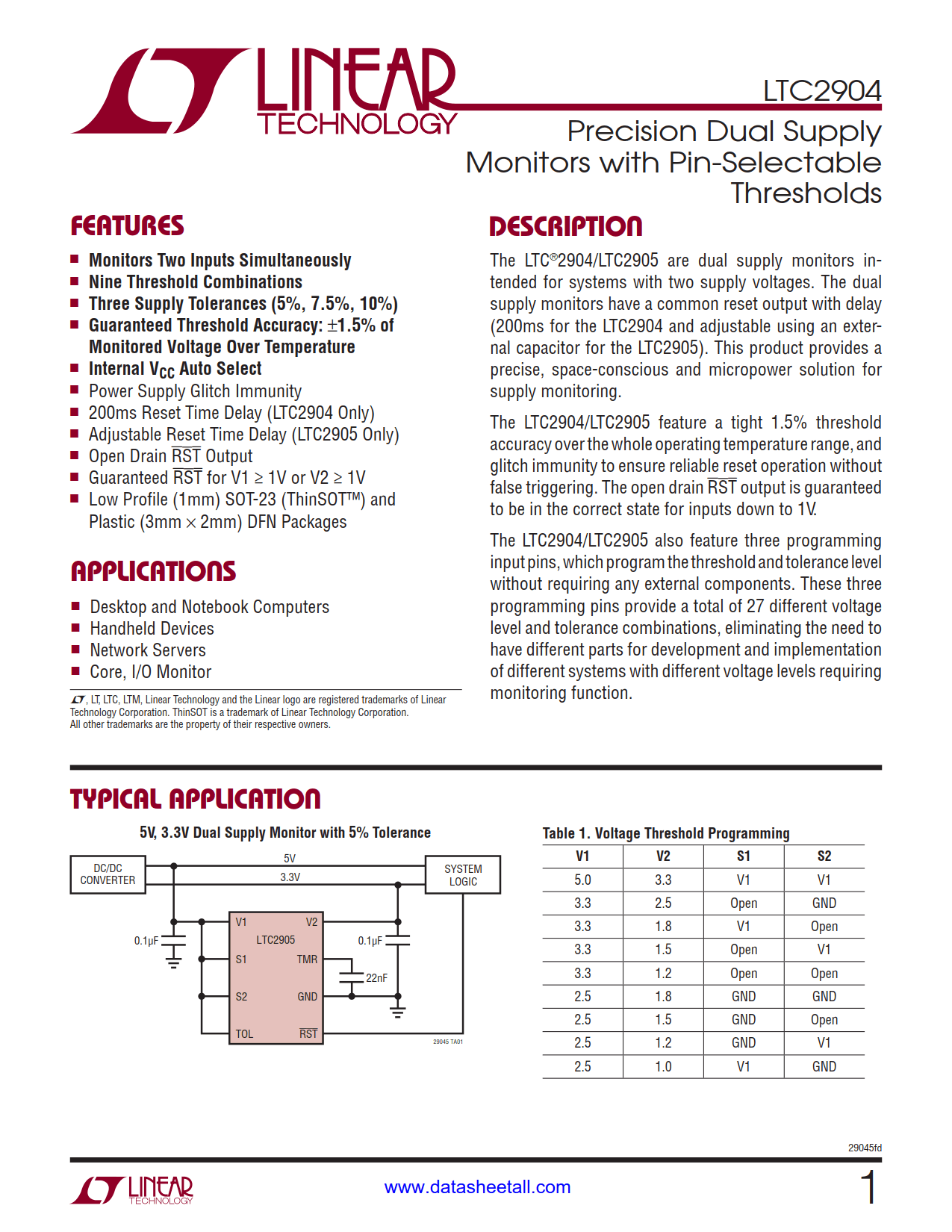

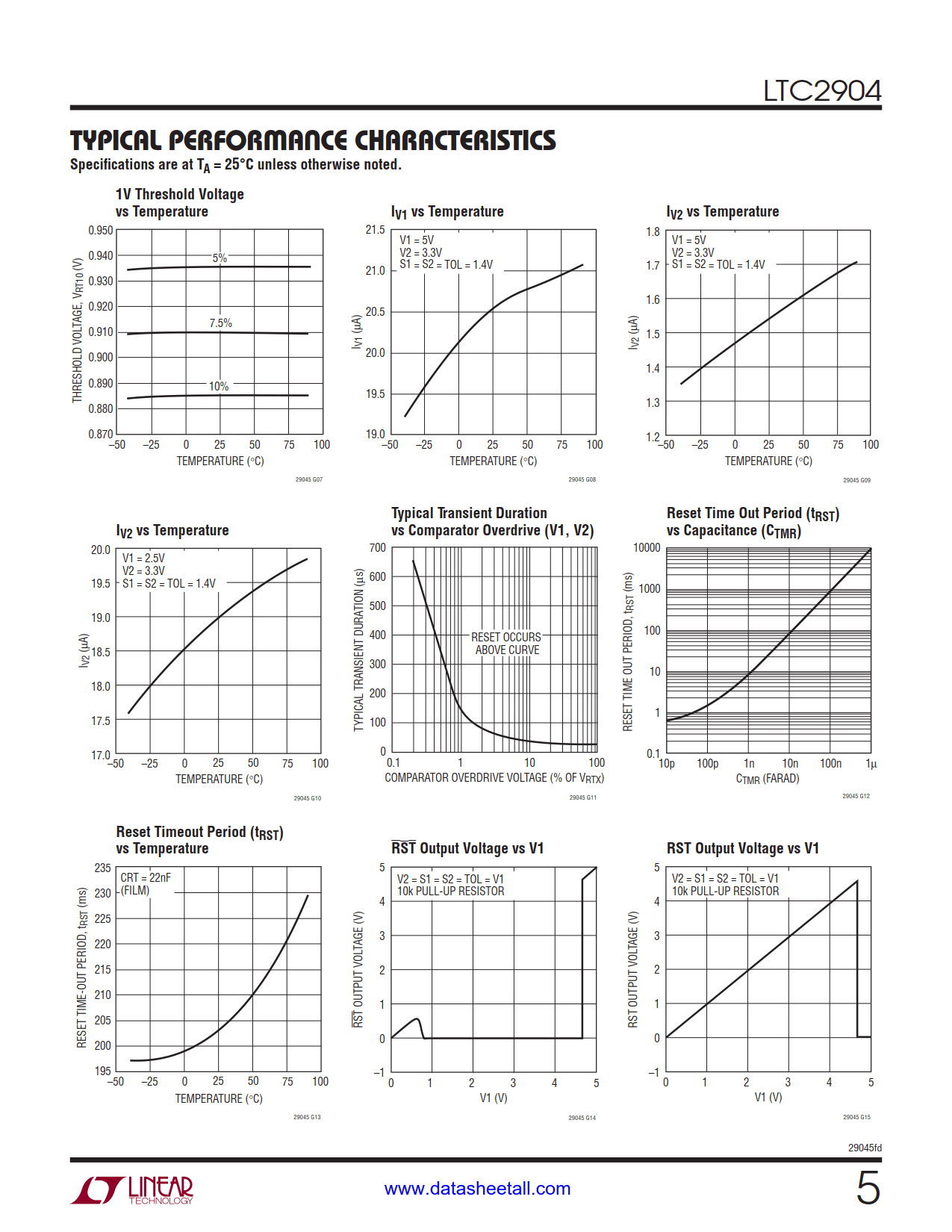

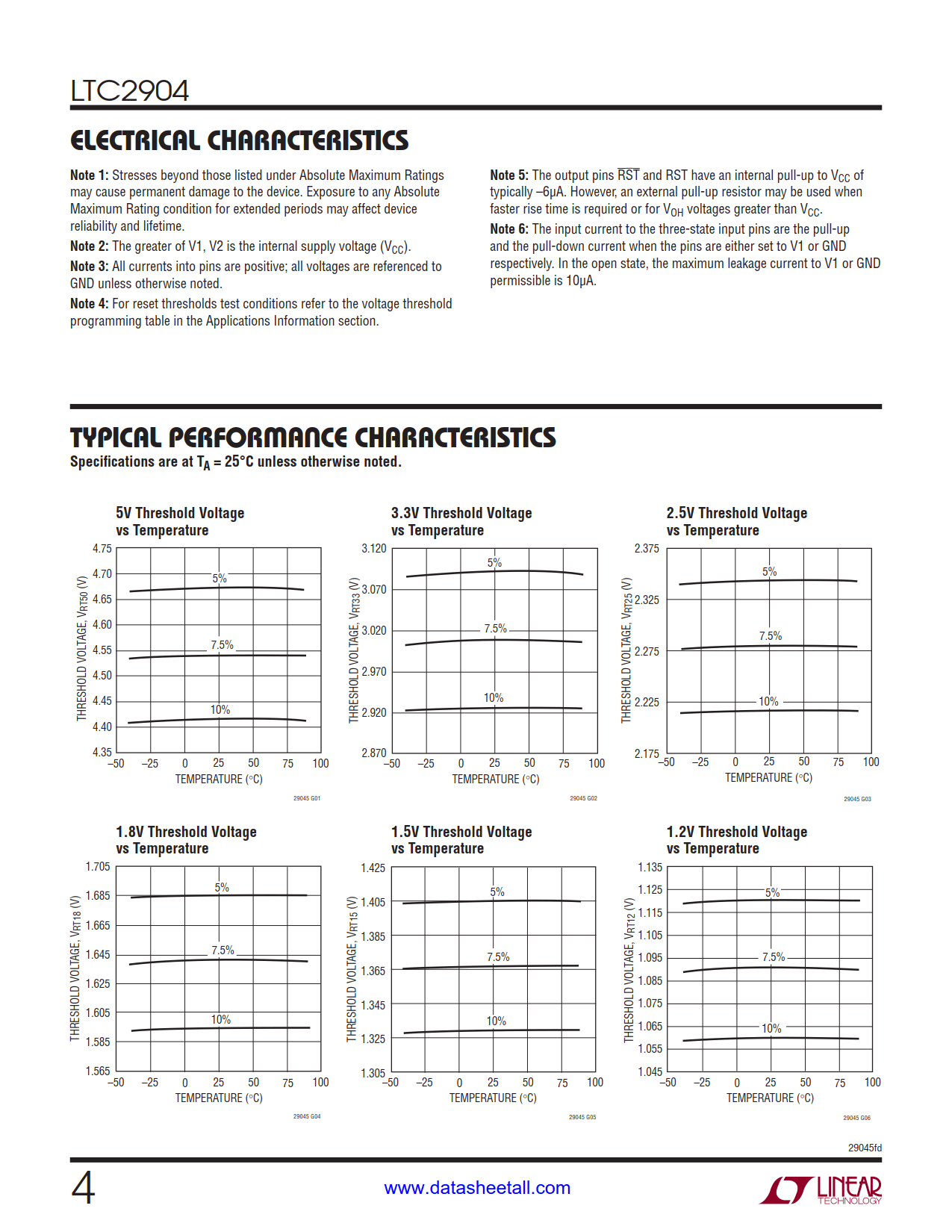

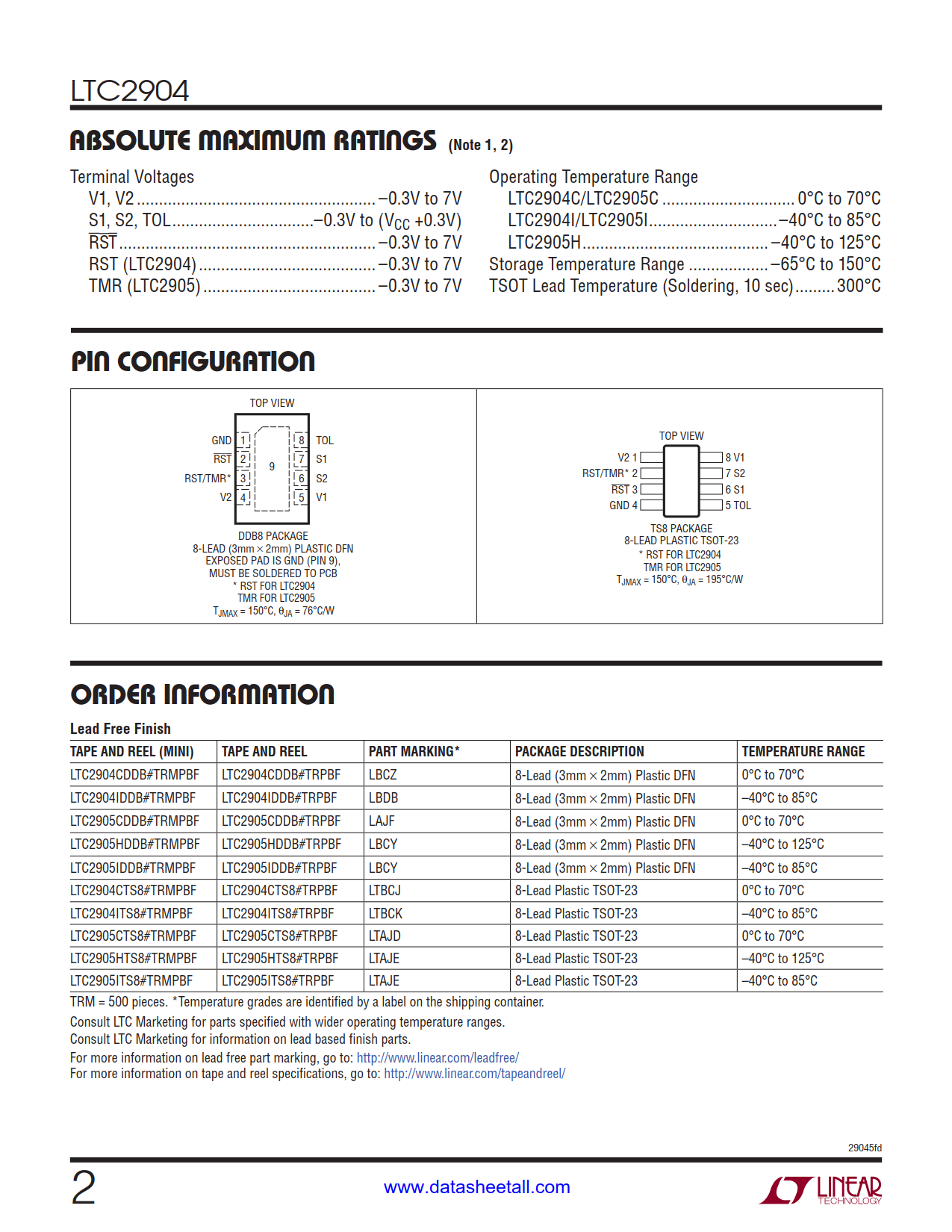

LTC2904 Datasheet(Picture)

LTC2904 Features

  • Monitors Two Inputs Simultaneously
  • Nine Threshold Combinations
  • Three Supply Tolerances (5%, 7.5%, 10%)
  • Guaranteed Threshold Accuracy: ±1.5% of Monitored Voltage Over Temperature
  • Internal VCC Auto Select
  • Power Supply Glitch Immunity
  • 200ms Reset Time Delay (LTC2904 Only)
  • Open Drain RST Output
  • Guaranteed RST for V1 ≥ 1V or V2 ≥ 1V
  • Low Profile (1mm) SOT-23 (ThinSOT) and Plastic (3mm × 2mm) DFN Packages

LTC2904 Applications

  • Desktop and Notebook Computers
  • Handheld Devices
  • Network Servers
  • Core, I/O Monitor

LTC2904 Description

The LTC2904 are dual supply monitors intended for systems with two supply voltages. The dual supply monitors have a common reset output with delay (200ms for the LTC2904 and adjustable using an external capacitor for the LTC2905). This product provides a precise, space-conscious and micropower solution for supply monitoring.

The LTC2904 feature a tight 1.5% threshold accuracy over the whole operating temperature range, and glitch immunity to ensure reliable reset operation without false triggering. The open drain RST output is guaranteed to be in the correct state for inputs down to 1V.

The LTC2904 also feature three programming input pins, which program the threshold and tolerance level without requiring any external components. These three programming pins provide a total of 27 different voltage level and tolerance combinations, eliminating the need to have different parts for development and implementation of different systems with different voltage levels requiring monitoring function.
