LTC2875 Datasheet

LTC2875 Datasheet

±60V Fault Protected 3.3V or 5V 25kV ESD High Speed CAN FD Transceiver
Part No.: LTC2875
Page: 22 Pages
Size: 787 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2023-11-08 11:35:19
DataSheet: Download

LTC2875 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC2875IDD#PBF Tube 121 LGKG 1 8 -40°C ~ 85°C 8-Lead (3mm × 3mm) Plastic DFN
LTC2875IDD#TRPBF Reel 2500 LGKG 1 8 -40°C ~ 85°C 8-Lead (3mm × 3mm) Plastic DFN
LTC2875IDD#TRMPBF Reel 500 LGKG 1 8 -40°C ~ 85°C 8-Lead (3mm × 3mm) Plastic DFN
LTC2875HDD#PBF Tube 121 LGKG 1 8 -40°C ~ 125°C 8-Lead (3mm × 3mm) Plastic DFN
LTC2875HDD#TRPBF Reel 2500 LGKG 1 8 -40°C ~ 125°C 8-Lead (3mm × 3mm) Plastic DFN
LTC2875HDD#TRMPBF Reel 500 LGKG 1 8 -40°C ~ 125°C 8-Lead (3mm × 3mm) Plastic DFN
LTC2875MPDD#PBF Tube 121 LGKG 1 8 -55°C ~ 125°C 8-Lead (3mm × 3mm) Plastic DFN
LTC2875MPDD#TRPBF Reel 2500 LGKG 1 8 -55°C ~ 125°C 8-Lead (3mm × 3mm) Plastic DFN
LTC2875MPDD#TRMPBF Reel 500 LGKG 1 8 -55°C ~ 125°C 8-Lead (3mm × 3mm) Plastic DFN
LTC2875IS8#PBF Tube 100 2875 1 8 -40°C ~ 85°C 8-Lead (150 mil) Plastic SO
LTC2875IS8#TRPBF Reel 2500 2875 1 8 -40°C ~ 85°C 8-Lead (150 mil) Plastic SO
LTC2875IS8#TRMPBF Reel 500 2875 1 8 -40°C ~ 85°C 8-Lead (150 mil) Plastic SO
LTC2875HS8#PBF Tube 100 2875 1 8 -40°C ~ 125°C 8-Lead (150 mil) Plastic SO
LTC2875HS8#TRPBF Reel 2500 2875 1 8 -40°C ~ 125°C 8-Lead (150 mil) Plastic SO
LTC2875HS8#TRMPBF Reel 500 2875 1 8 -40°C ~ 125°C 8-Lead (150 mil) Plastic SO
LTC2875MPS8#PBF Tube 100 2875 1 8 -55°C ~ 125°C 8-Lead (150 mil) Plastic SO
LTC2875MPS8#TRPBF Reel 2500 2875 1 8 -55°C ~ 125°C 8-Lead (150 mil) Plastic SO
LTC2875MPS8#TRMPBF Reel 500 2875 1 8 -55°C ~ 125°C 8-Lead (150 mil) Plastic SO
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC2875 Datasheet(PDF)

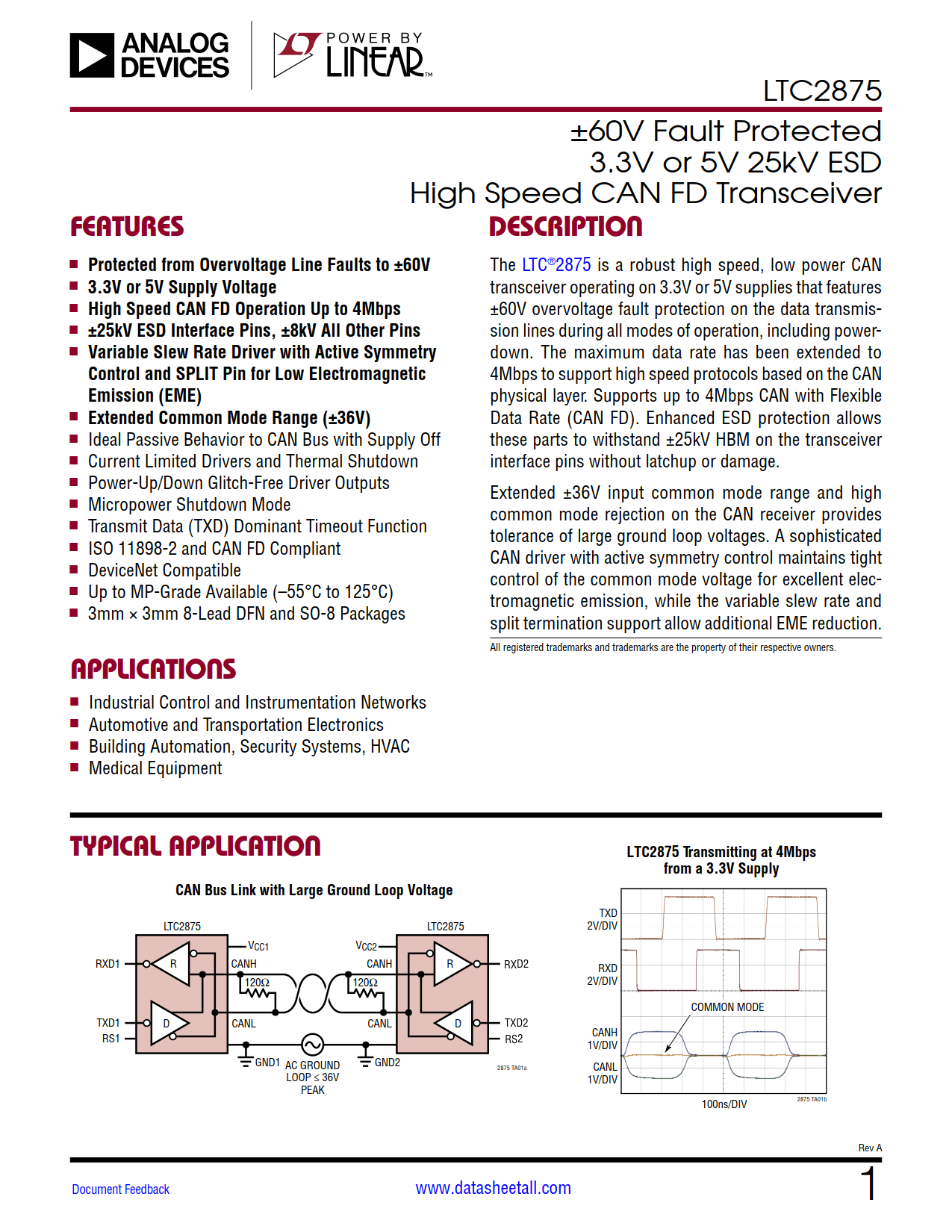

LTC2875 Datasheet(Picture)

LTC2875 Features

  • Protected from Overvoltage Line Faults to ±60V
  • 3.3V or 5V Supply Voltage
  • High Speed CAN FD Operation Up to 4Mbps
  • ±25kV ESD Interface Pins, ±8kV All Other Pins
  • Variable Slew Rate Driver with Active Symmetry Control and SPLIT Pin for Low Electromagnetic Emission (EME)
  • Extended Common Mode Range (±36V)
  • Ideal Passive Behavior to CAN Bus with Supply Off
  • Current Limited Drivers and Thermal Shutdown
  • Power-Up/Down Glitch-Free Driver Outputs
  • Micropower Shutdown Mode
  • Transmit Data (TXD) Dominant Timeout Function
  • ISO 11898-2 and CAN FD Compliant
  • DeviceNet Compatible
  • Up to MP-Grade Available (–55°C to 125°C)
  • 3mm × 3mm 8-Lead DFN and SO-8 Packages

LTC2875 Applications

  • Industrial Control and Instrumentation Networks
  • Automotive and Transportation Electronics
  • Building Automation, Security Systems, HVAC
  • Medical Equipment

LTC2875 Description

The LTC2875 is a robust high speed, low power CAN transceiver operating on 3.3V or 5V supplies that features ±60V overvoltage fault protection on the data transmission lines during all modes of operation, including powerdown. The maximum data rate has been extended to 4Mbps to support high speed protocols based on the CAN physical layer. Supports up to 4Mbps CAN with Flexible Data Rate (CAN FD). Enhanced ESD protection allows these parts to withstand ±25kV HBM on the transceiver interface pins without latchup or damage.

Extended ±36V input common mode range and high common mode rejection on the CAN receiver provides tolerance of large ground loop voltages. A sophisticated CAN driver with active symmetry control maintains tight control of the common mode voltage for excellent electromagnetic emission, while the variable slew rate and split termination support allow additional EME reduction.
