| Part No.： | LTC2870 |
| Page： | 42 Pages |
| Size： | 970 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-12-14 14:38:36 |
| DataSheet： | Download |

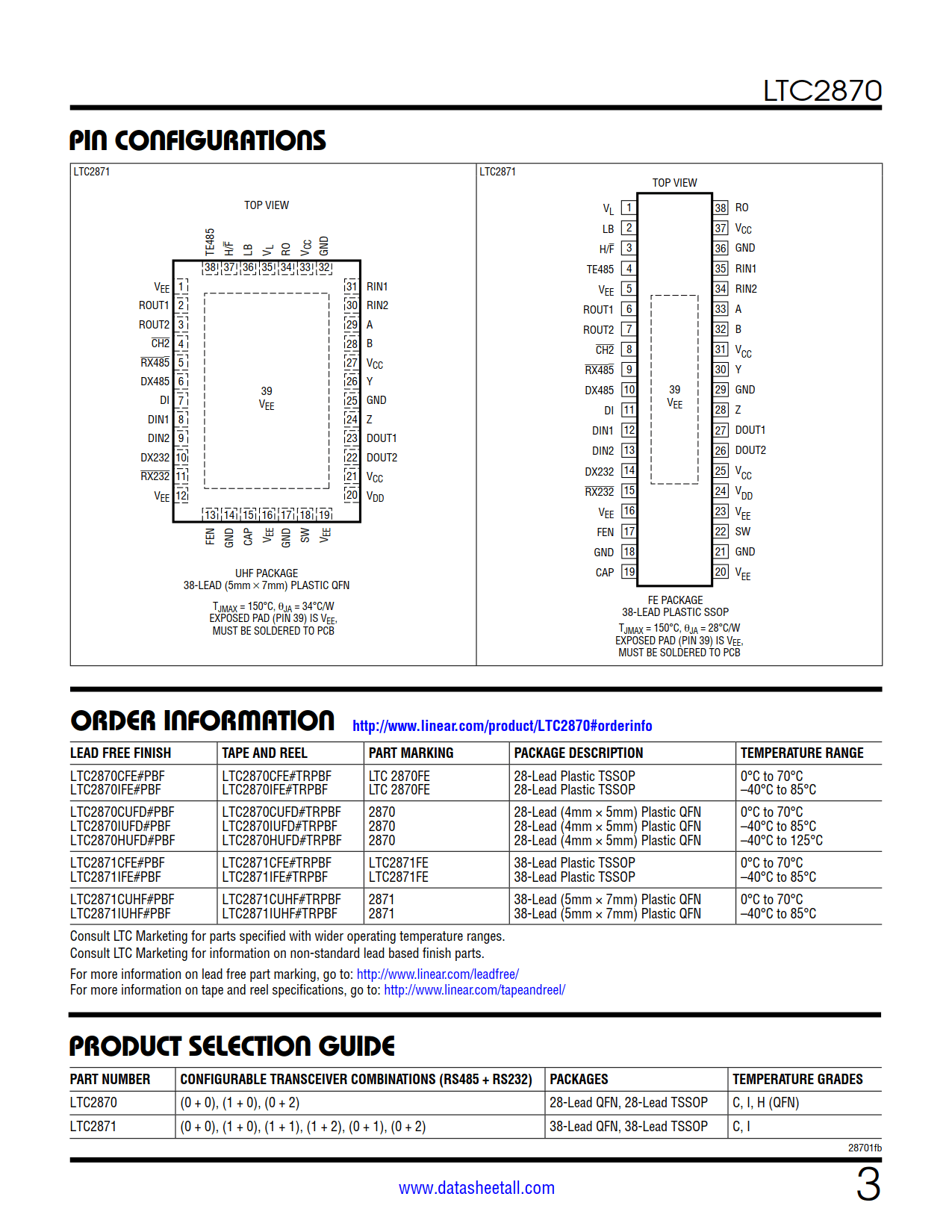

| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC2870CFE#PBF | Tube | 50 | LTC2870FE | 1 | 28 | 0°C ~ 70°C | 28-Lead Plastic TSSOP | |
| LTC2870CFE#TRPBF | Reel | 2000 | LTC2870FE | 1 | 28 | 0°C ~ 70°C | 28-Lead Plastic TSSOP | |
| LTC2870CFE#TRMPBF | Reel | 500 | LTC2870FE | 1 | 28 | 0°C ~ 70°C | 28-Lead Plastic TSSOP | |
| LTC2870IFE#PBF | Tube | 50 | LTC2870FE | 1 | 28 | -40°C ~ 85°C | 28-Lead Plastic TSSOP | |
| LTC2870IFE#TRPBF | Reel | 2000 | LTC2870FE | 1 | 28 | -40°C ~ 85°C | 28-Lead Plastic TSSOP | |
| LTC2870IFE#TRMPBF | Reel | 500 | LTC2870FE | 1 | 28 | -40°C ~ 85°C | 28-Lead Plastic TSSOP | |
| LTC2870CUFD#PBF | Tube | 73 | 2870 | 1 | 28 | 0°C ~ 70°C | 28-Lead (4mm × 5mm) Plastic QFN | |
| LTC2870CUFD#TRPBF | Reel | 2500 | 2870 | 1 | 28 | 0°C ~ 70°C | 28-Lead (4mm × 5mm) Plastic QFN | |
| LTC2870CUFD#TRMPBF | Reel | 500 | 2870 | 1 | 28 | 0°C ~ 70°C | 28-Lead (4mm × 5mm) Plastic QFN | |
| LTC2870IUFD#PBF | Tube | 73 | 2870 | 1 | 28 | -40°C ~ 85°C | 28-Lead (4mm × 5mm) Plastic QFN | |
| LTC2870IUFD#TRPBF | Reel | 2500 | 2870 | 1 | 28 | -40°C ~ 85°C | 28-Lead (4mm × 5mm) Plastic QFN | |
| LTC2870IUFD#TRMPBF | Reel | 500 | 2870 | 1 | 28 | -40°C ~ 85°C | 28-Lead (4mm × 5mm) Plastic QFN | |
| LTC2870HUFD#PBF | Tube | 73 | 2870 | 1 | 28 | -40°C ~ 125°C | 28-Lead (4mm × 5mm) Plastic QFN | |
| LTC2870HUFD#TRPBF | Reel | 2500 | 2870 | 1 | 28 | -40°C ~ 125°C | 28-Lead (4mm × 5mm) Plastic QFN | |
| LTC2870HUFD#TRMPBF | Reel | 500 | 2870 | 1 | 28 | -40°C ~ 125°C | 28-Lead (4mm × 5mm) Plastic QFN |

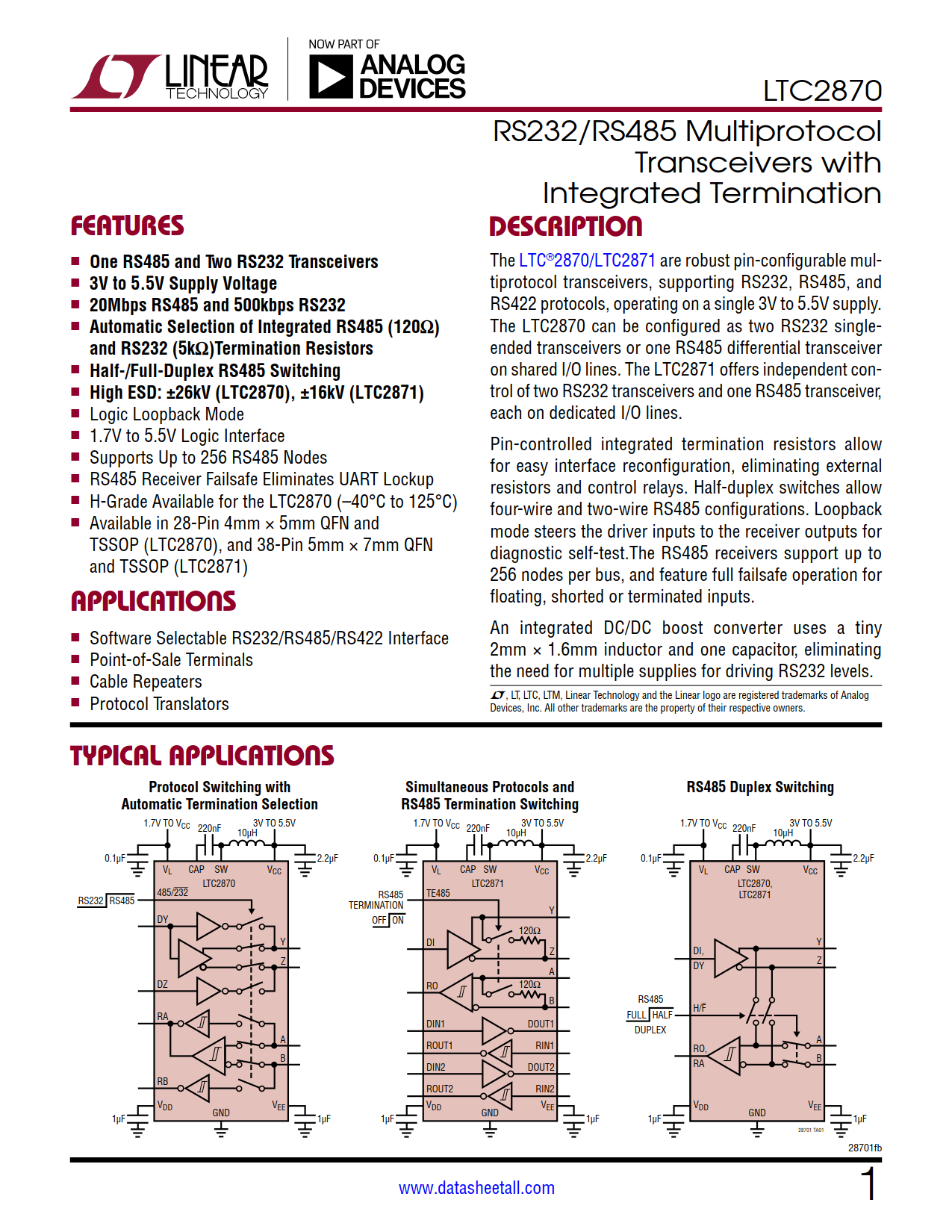

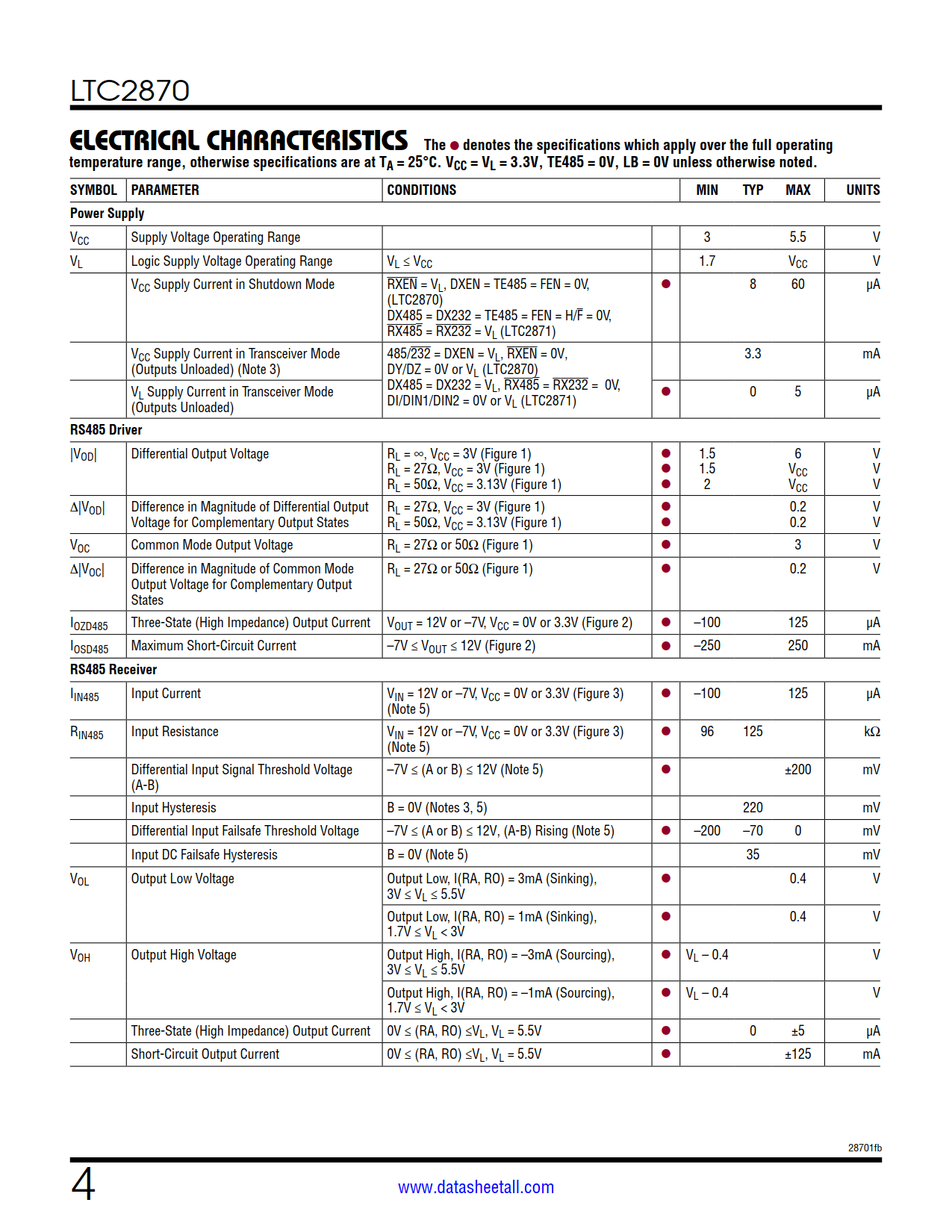

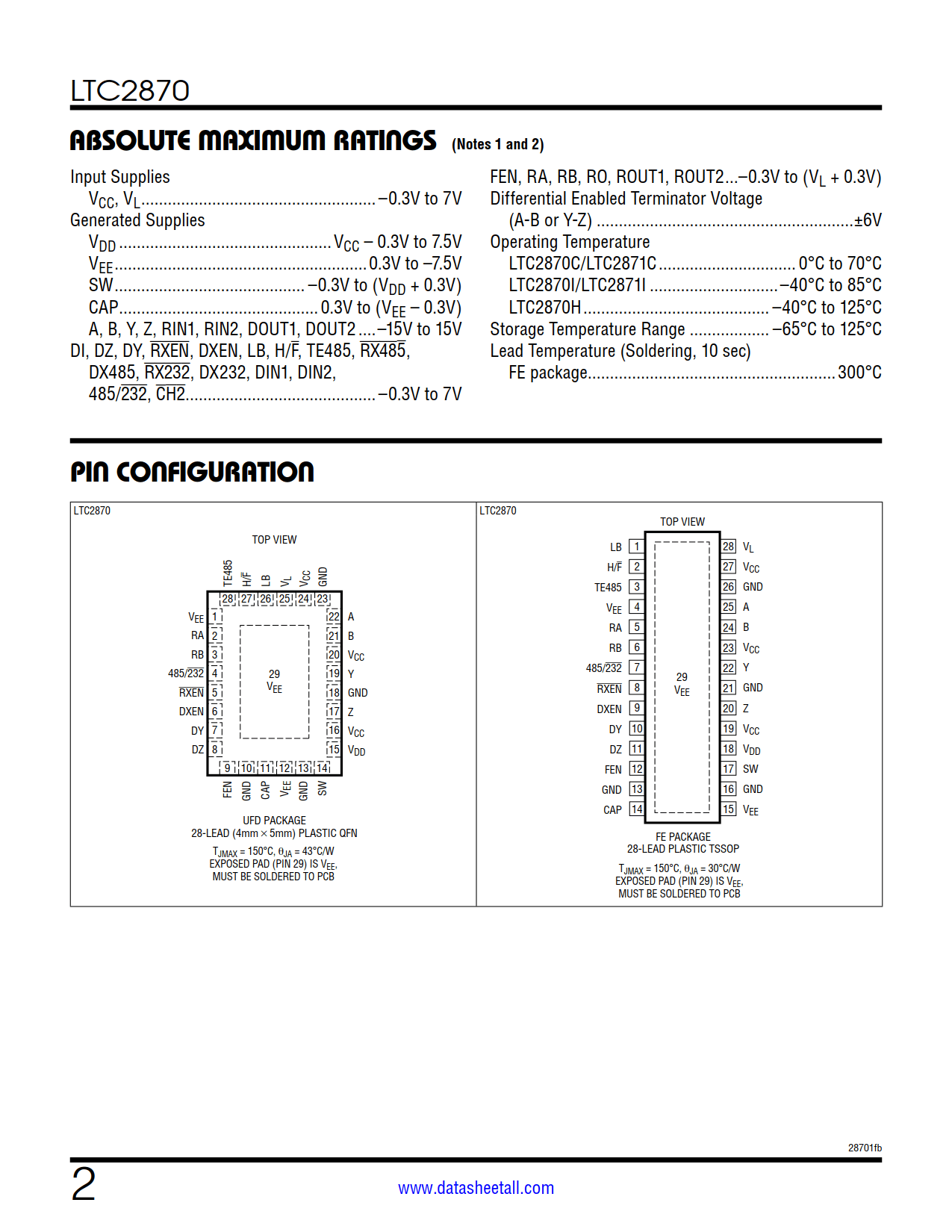

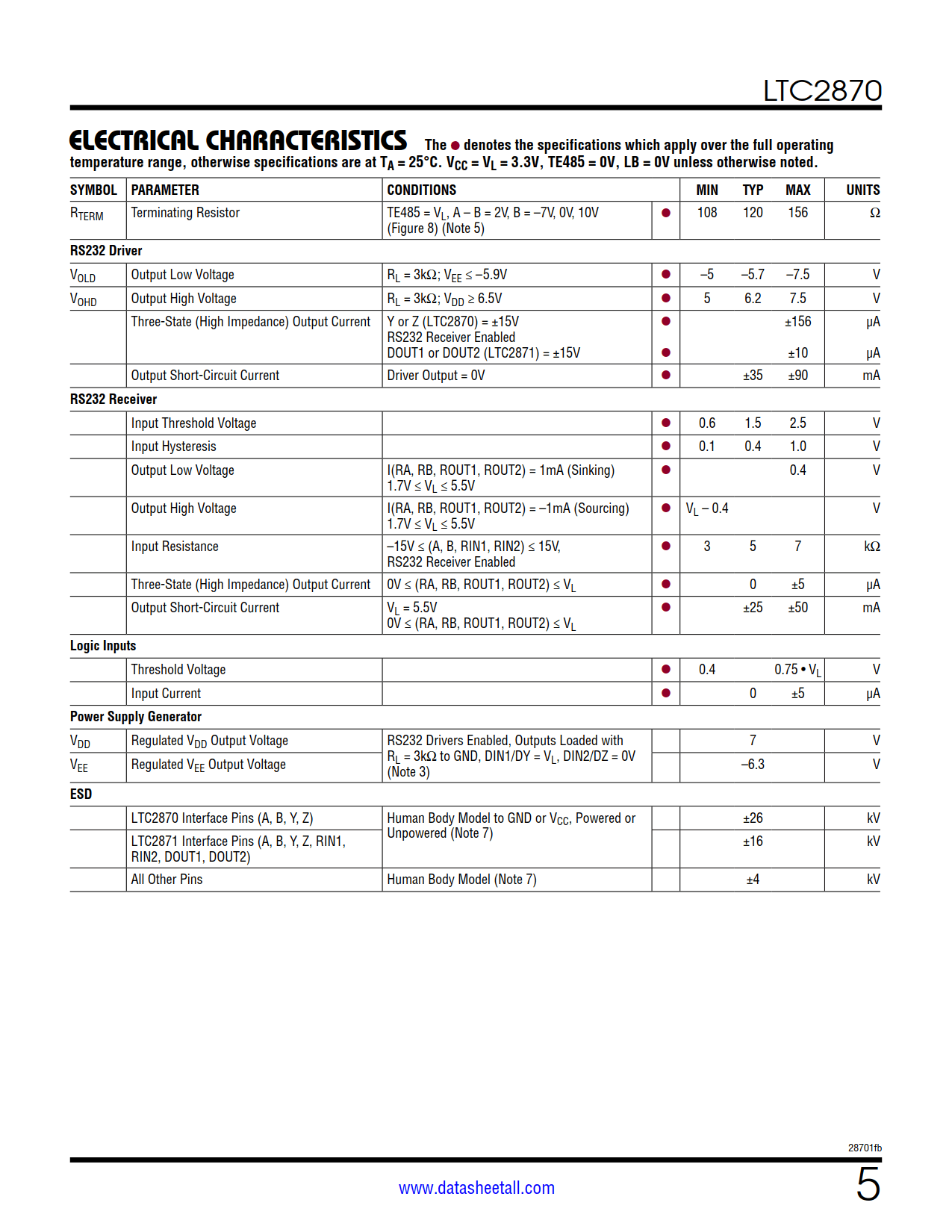

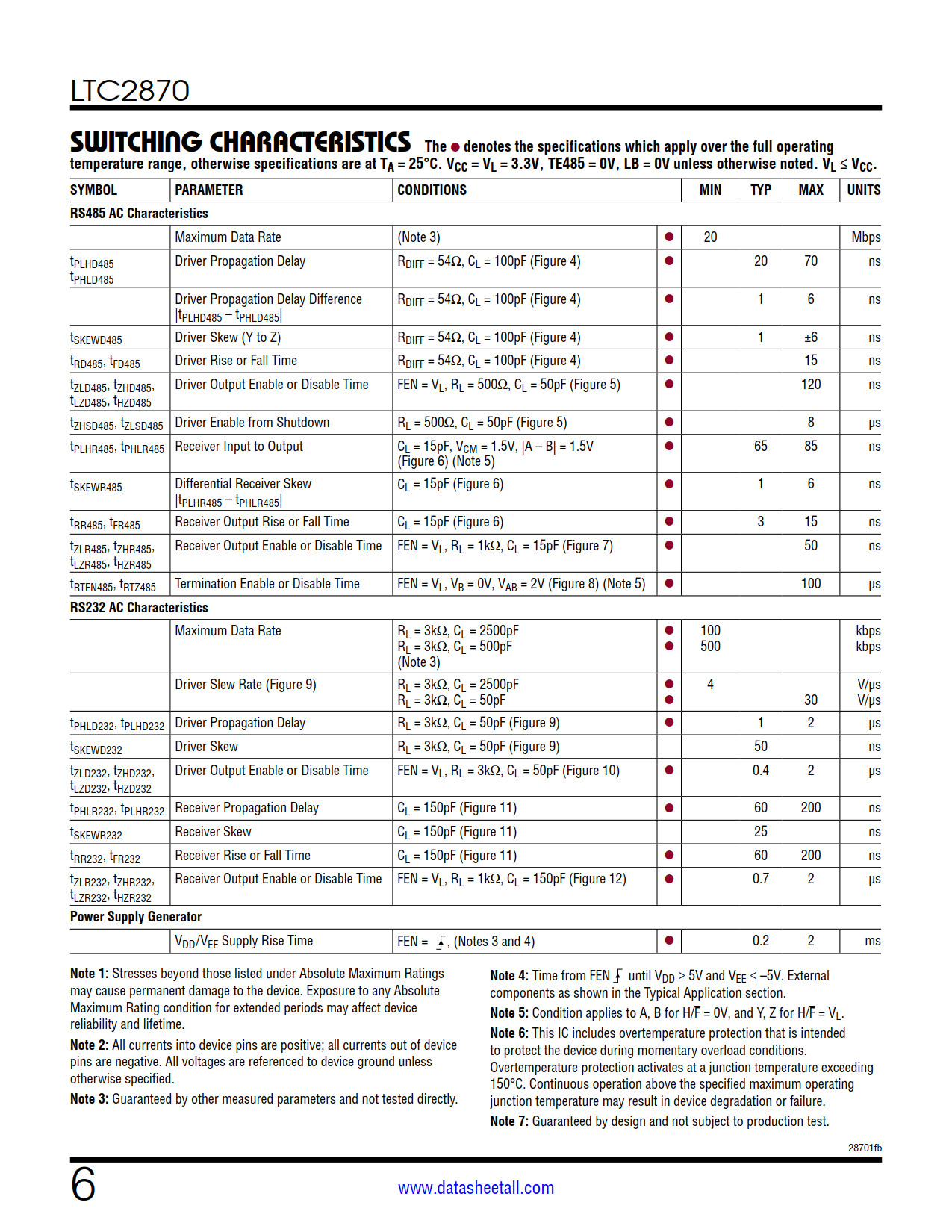

The LTC2870 are robust pin-configurable multiprotocol transceivers, supporting RS232, RS485, and RS422 protocols, operating on a single 3V to 5.5V supply. The LTC2870 can be configured as two RS232 single-ended transceivers or one RS485 differential transceiver on shared I/O lines.
Pin-controlled integrated termination resistors allow for easy interface reconfiguration, eliminating external resistors and control relays. Half-duplex switches allow four-wire and two-wire RS485 configurations. Loopback mode steers the driver inputs to the receiver outputs for diagnostic self-test.The RS485 receivers support up to 256 nodes per bus, and feature full failsafe operation for floating, shorted or terminated inputs.
An integrated DC/DC boost converter uses a tiny 2mm × 1.6mm inductor and one capacitor, eliminating the need for multiple supplies for driving RS232 levels.
