LTC2858-1 Datasheet

LTC2858-1 Datasheet

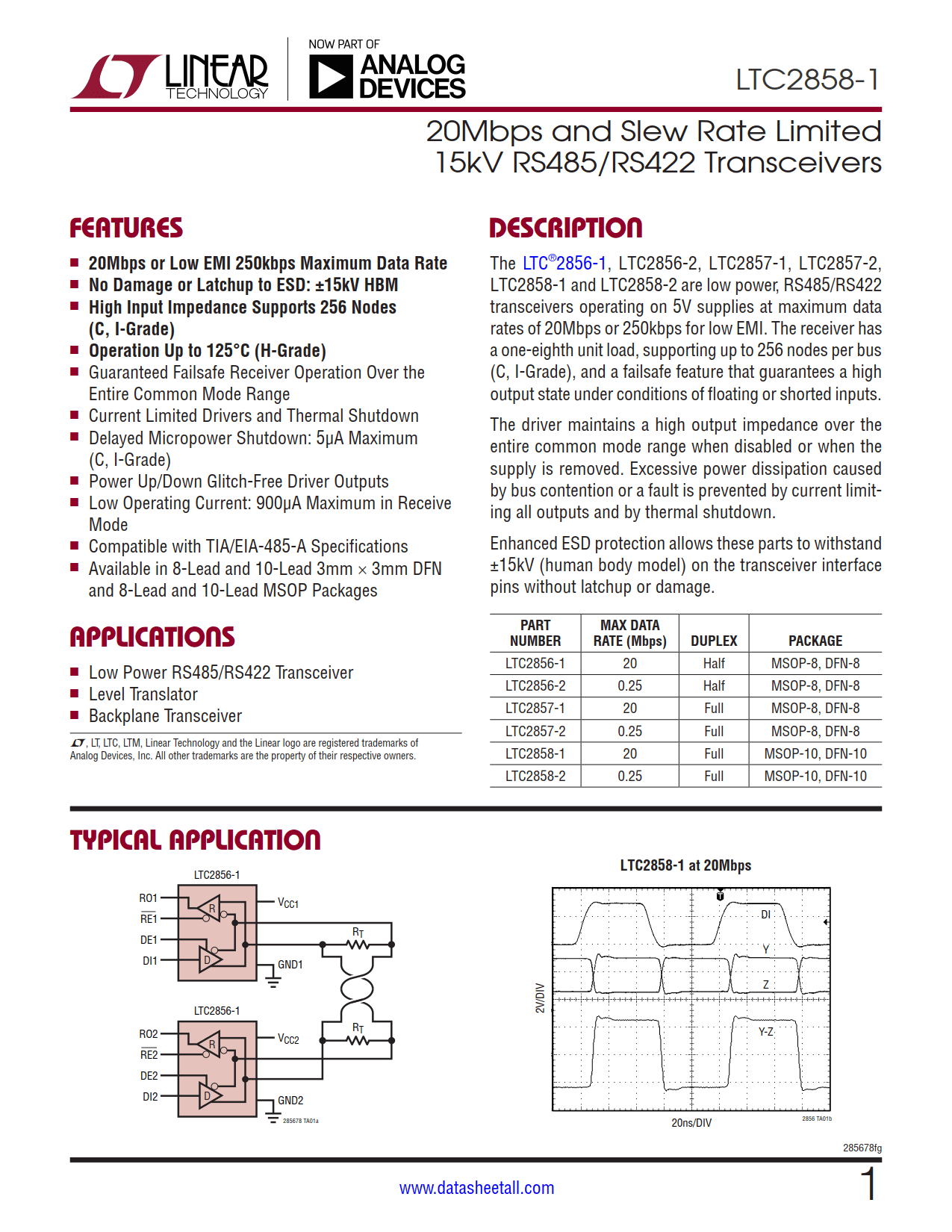

20Mbps and Slew Rate Limited 15kV RS485/RS422 Transceiver
Part No.: LTC2858-1
Page: 20 Pages
Size: 305 KB
Manufacturer: Linear Technology
Logo:
Views: 2
Update Time: 2024-04-23 17:25:20
DataSheet: Download

LTC2858-1 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC2858CDD-1#PBF Tube 121   1 10 0°C ~70°C 10-Lead DFN (3mm x 3mm)
LTC2858CDD-1#TRPBF Reel 2500   1 10 0°C ~70°C 10-Lead DFN (3mm x 3mm)
LTC2858CDD-1#TRMPBF Reel 500   1 10 0°C ~70°C 10-Lead DFN (3mm x 3mm)
LTC2858CMS-1#PBF Tube 50   1 10 0°C ~70°C 10-Lead Plastic MSOP
LTC2858CMS-1#TRPBF Reel 2500   1 10 0°C ~70°C 10-Lead Plastic MSOP
LTC2858CMS-1#TRMPBF Reel 500   1 10 0°C ~70°C 10-Lead Plastic MSOP
LTC2858IDD-1#PBF Tube 121   1 10 -40°C ~85°C 10-Lead DFN (3mm x 3mm)
LTC2858IDD-1#TRPBF Reel 2500   1 10 -40°C ~85°C 10-Lead DFN (3mm x 3mm)
LTC2858IDD-1#TRMPBF Reel 500   1 10 -40°C ~85°C 10-Lead DFN (3mm x 3mm)
LTC2858IMS-1#PBF Tube 50   1 10 -40°C ~85°C 10-Lead Plastic MSOP
LTC2858IMS-1#TRPBF Reel 2500   1 10 -40°C ~85°C 10-Lead Plastic MSOP
LTC2858IMS-1#TRMPBF Reel 500   1 10 -40°C ~85°C 10-Lead Plastic MSOP
LTC2858HDD-1#PBF Tube 121   1 10 -40°C ~125°C 10-Lead DFN (3mm x 3mm)
LTC2858HDD-1#TRPBF Reel 2500   1 10 -40°C ~125°C 10-Lead DFN (3mm x 3mm)
LTC2858HDD-1#TRMPBF Reel 500   1 10 -40°C ~125°C 10-Lead DFN (3mm x 3mm)
LTC2858HMS-1#PBF Tube 50   1 10 -40°C ~125°C 10-Lead Plastic MSOP
LTC2858HMS-1#TRPBF Reel 2500   1 10 -40°C ~125°C 10-Lead Plastic MSOP
LTC2858HMS-1#TRMPBF Reel 500   1 10 -40°C ~125°C 10-Lead Plastic MSOP
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC2858-1 Datasheet(PDF)

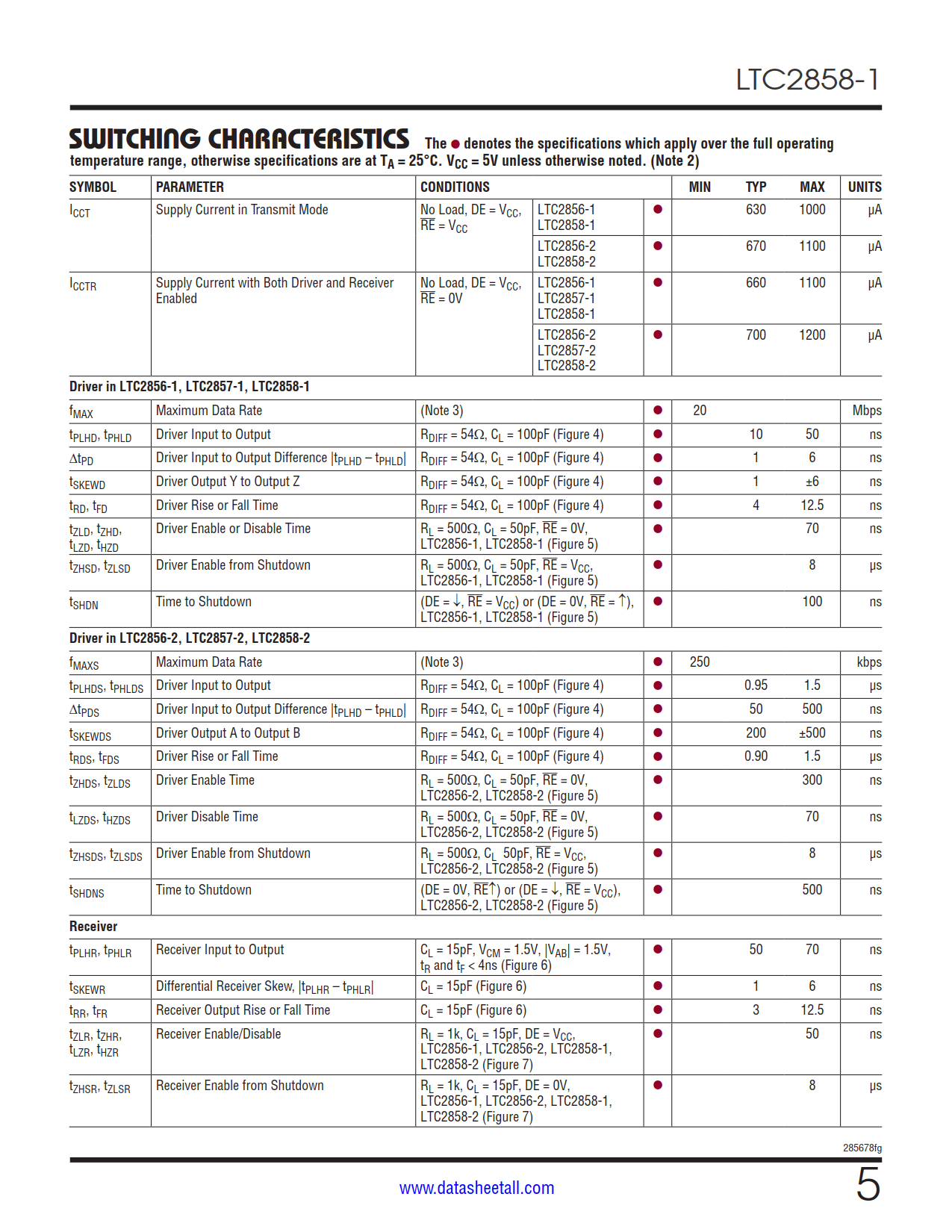

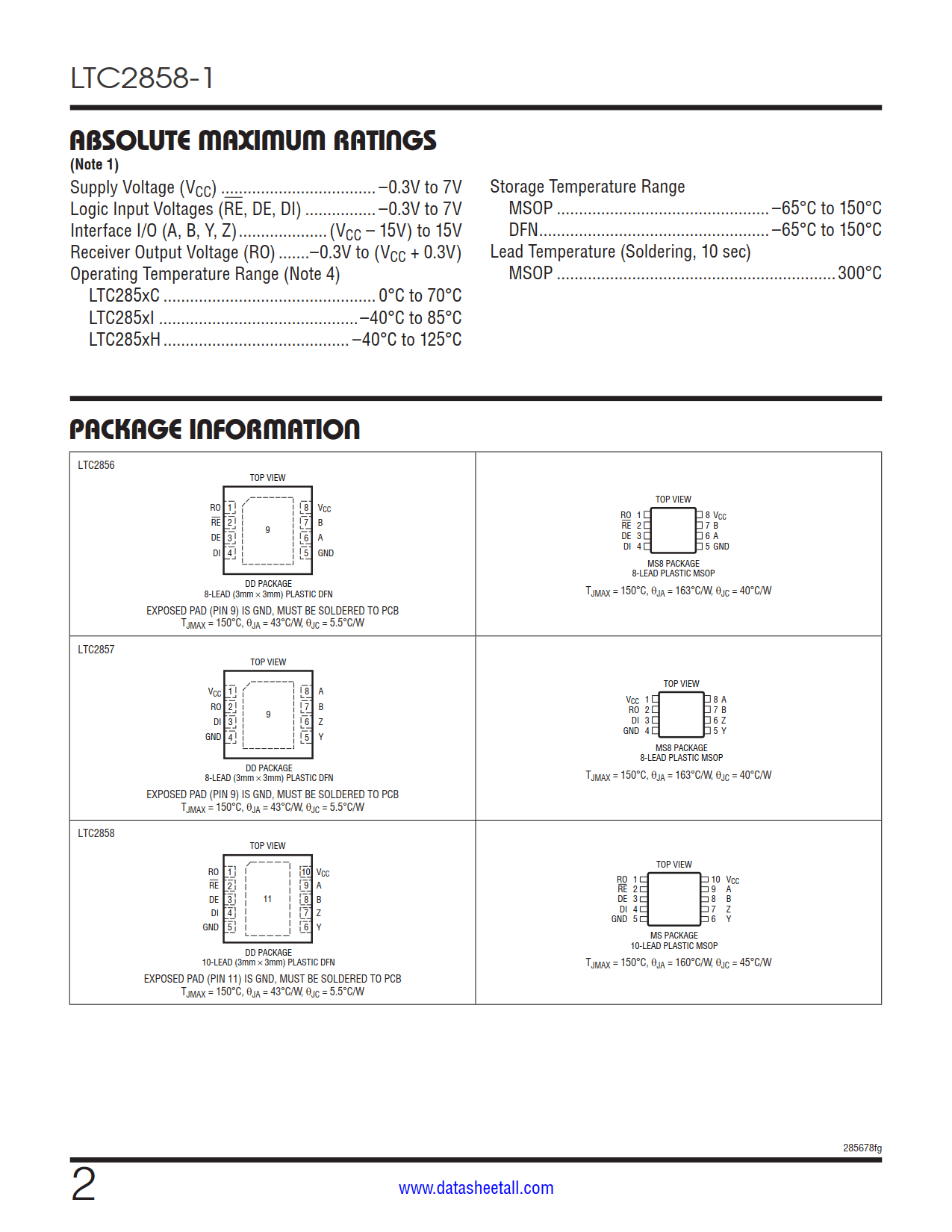

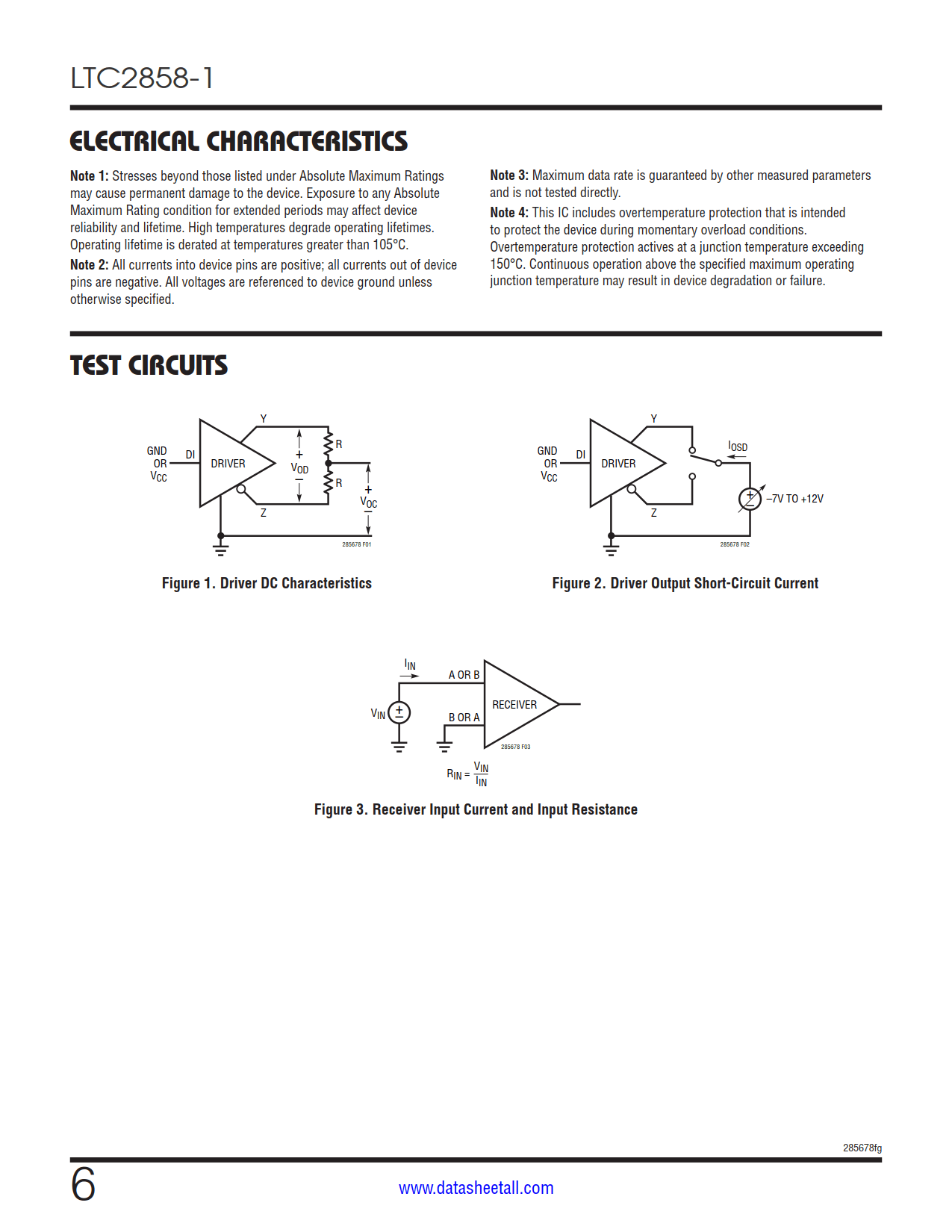

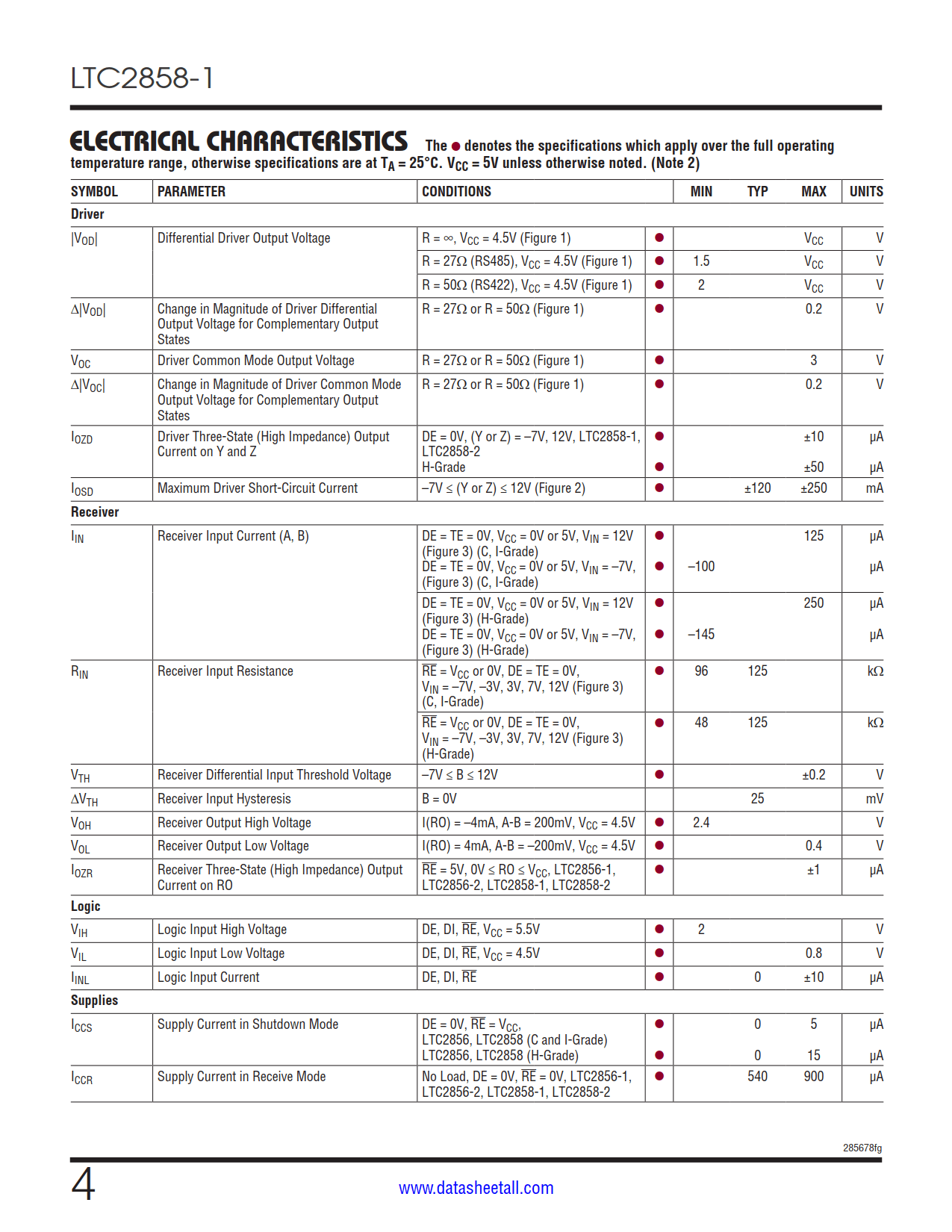

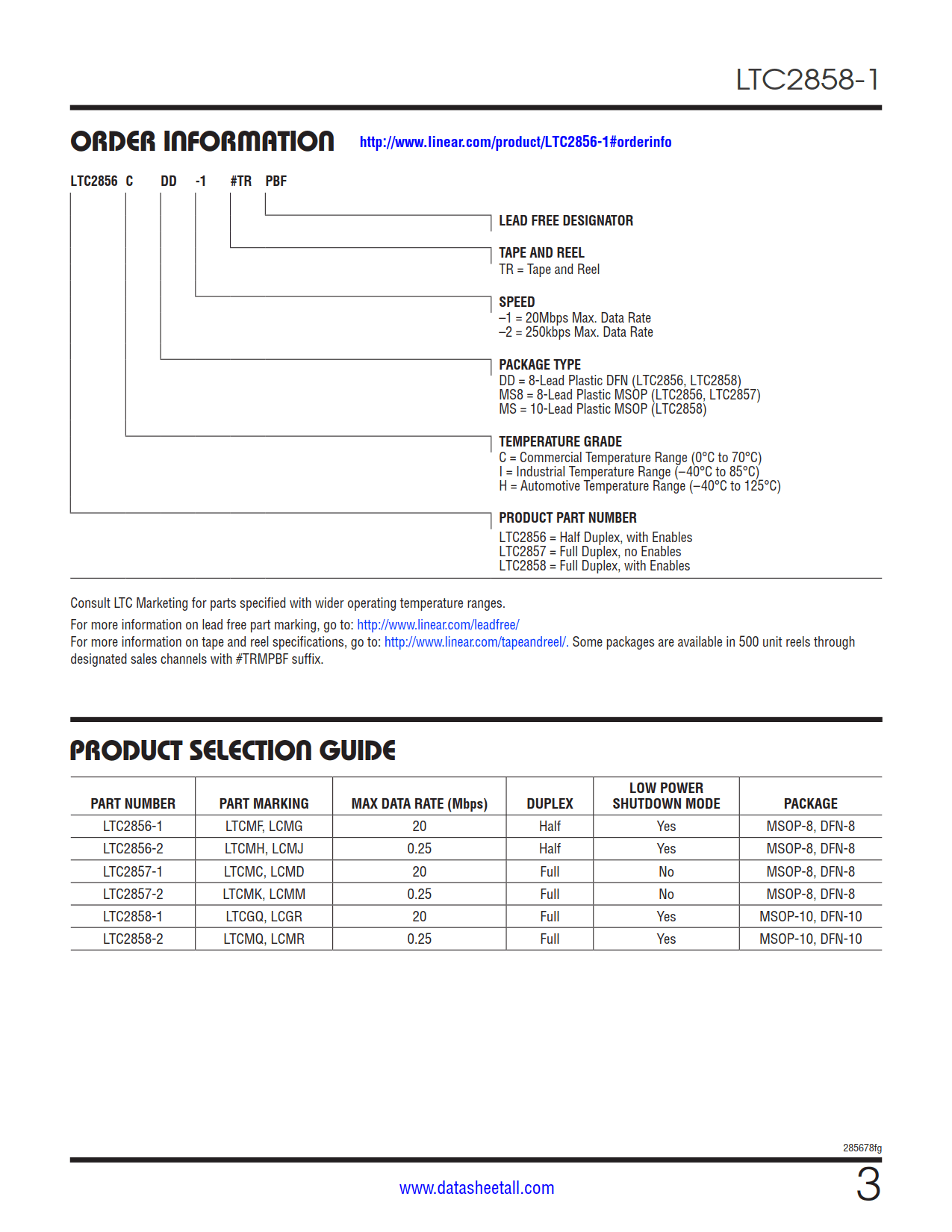

LTC2858-1 Datasheet(Picture)

LTC2858-1 Features

  • 20Mbps or Low EMI 250kbps Maximum Data Rate
  • No Damage or Latch-up to ESD: ±15kV HBM
  • High Input Impedance Supports 256 Nodes (C, I-Grade)
  • Operation Up to 125°C (H-Grade)
  • Guaranteed Fail-safe Receiver Operation Over the Entire Common Mode Range
  • Current Limited Drivers and Thermal Shutdown
  • Delayed Micropower Shutdown: 5µA Maximum (C, I-Grade)
  • Power Up/Down Glitch-Free Driver Outputs
  • Low Operating Current: 900µA Maximum in Receive Mode
  • Compatible with TIA/EIA-485-A Specifications
  • Available in 8-Lead and 10-Lead 3mm × 3mm DFN and 8-Lead and 10-Lead MSOP Packages

LTC2858-1 Applications

  • Low Power RS485/RS422 Transceiver
  • Level Translator
  • Backplane Transceiver

LTC2858-1 Description

The LTC2858-1 are low power, RS485/RS422 transceivers operating on 5V supplies at maximum data rates of 20Mbps or 250kbps for low EMI. The receiver has a one-eighth unit load, supporting up to 256 nodes per bus (C, I-Grade), and a fail-safe feature that guarantees a high output state under conditions of floating or shorted inputs.

The driver maintains a high output impedance over the entire common mode range when disabled or when the supply is removed. Excessive power dissipation caused by bus contention or a fault is prevented by current limiting all outputs and by thermal shutdown.

Enhanced ESD protection allows these parts to withstand ±15kV (human body model) on the transceiver interface pins without latch-up or damage.

Part Number MAX Data Rate (Mbps) Duplex Package
LTC2858-1 20 Full MSOP-10, DFN-10

LTC2858-1 Datasheet Related Parts
