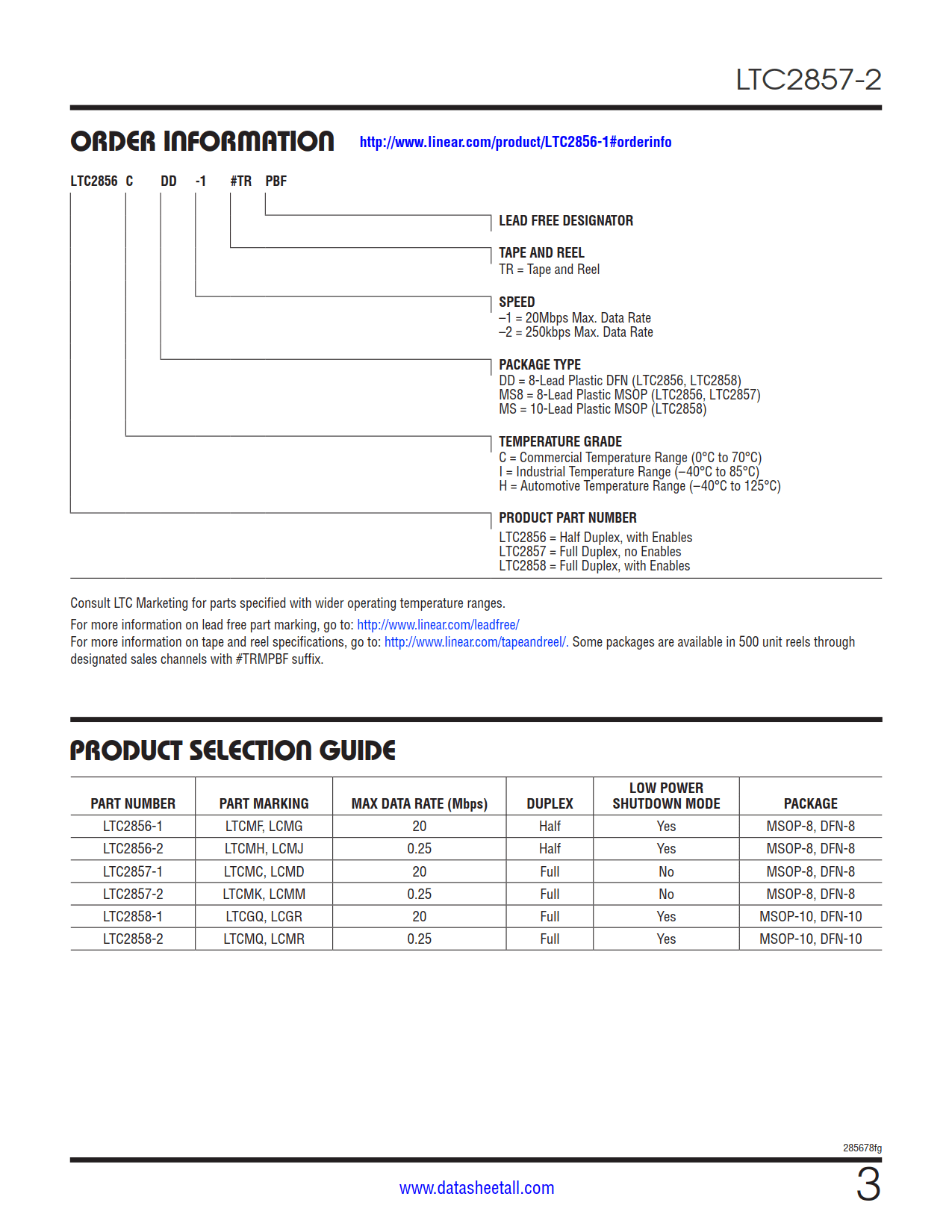

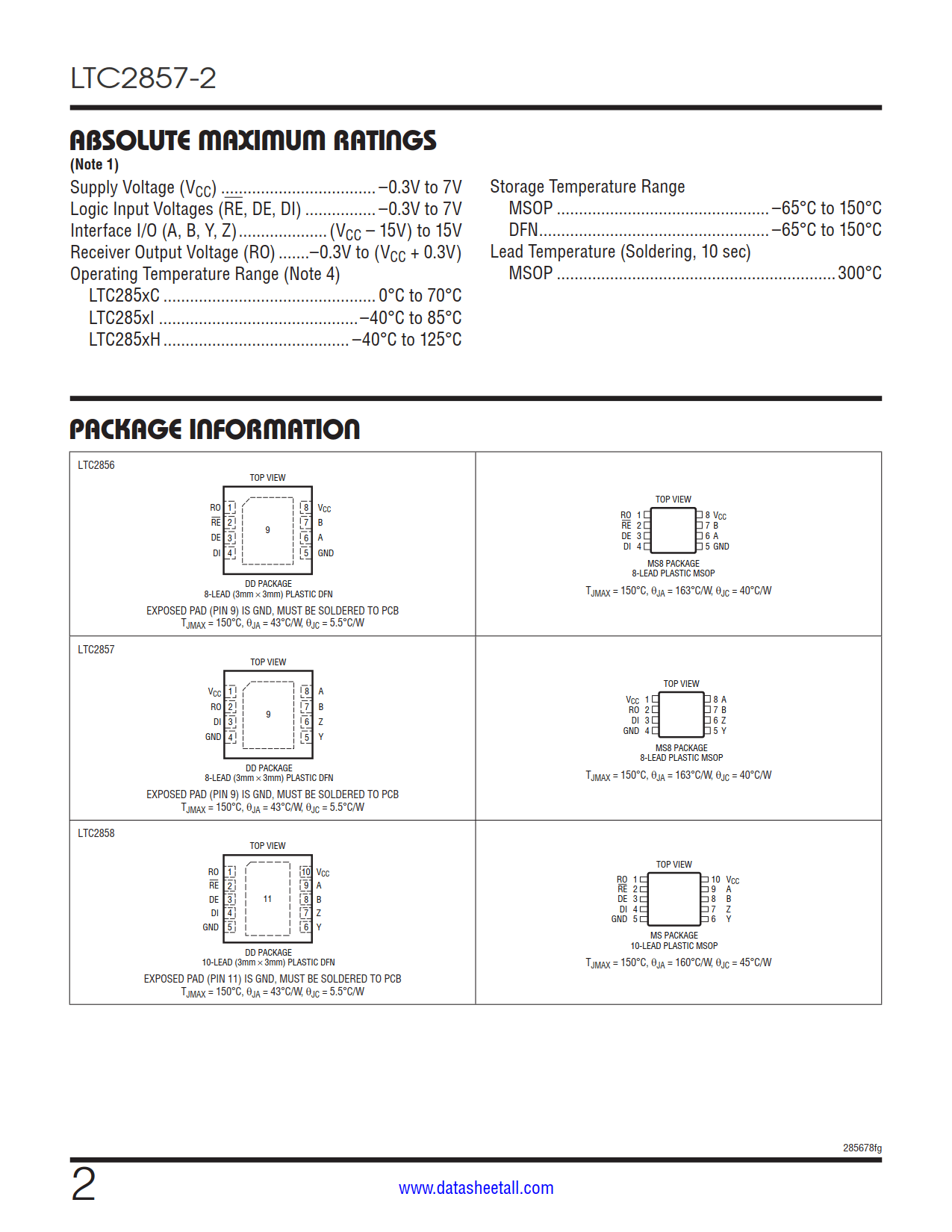

| Part No.： | LTC2857-2 |
| Page： | 20 Pages |
| Size： | 305 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 2 |
| Update Time： | 2024-04-23 17:21:46 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC2857CDD-2#PBF | Tube | 121 | 1 | 8 | 0°C ~70°C | 8-Lead DFN (3mm x 3mm x 0.75mm) | ||
| LTC2857CDD-2#TRPBF | Reel | 2500 | 1 | 8 | 0°C ~70°C | 8-Lead DFN (3mm x 3mm x 0.75mm) | ||
| LTC2857CDD-2#TRMPBF | Reel | 500 | 1 | 8 | 0°C ~70°C | 8-Lead DFN (3mm x 3mm x 0.75mm) | ||
| LTC2857CMS8-2#PBF | Tube | 50 | 1 | 8 | 0°C ~70°C | 8-Lead Plastic MSOP | ||
| LTC2857CMS8-2#TRPBF | Reel | 2500 | 1 | 8 | 0°C ~70°C | 8-Lead Plastic MSOP | ||
| LTC2857CMS8-2#TRMPBF | Reel | 500 | 1 | 8 | 0°C ~70°C | 8-Lead Plastic MSOP | ||
| LTC2857IDD-2#PBF | Tube | 121 | 1 | 8 | -40°C ~85°C | 8-Lead DFN (3mm x 3mm x 0.75mm) | ||
| LTC2857IDD-2#TRPBF | Reel | 2500 | 1 | 8 | -40°C ~85°C | 8-Lead DFN (3mm x 3mm x 0.75mm) | ||
| LTC2857IDD-2#TRMPBF | Reel | 500 | 1 | 8 | -40°C ~85°C | 8-Lead DFN (3mm x 3mm x 0.75mm) | ||
| LTC2857IMS8-2#PBF | Tube | 50 | 1 | 8 | -40°C ~85°C | 8-Lead Plastic MSOP | ||
| LTC2857IMS8-2#TRPBF | Reel | 2500 | 1 | 8 | -40°C ~85°C | 8-Lead Plastic MSOP | ||
| LTC2857IMS8-2#TRMPBF | Reel | 500 | 1 | 8 | -40°C ~85°C | 8-Lead Plastic MSOP | ||
| LTC2857HDD-2#PBF | Tube | 121 | 1 | 8 | -40°C ~125°C | 8-Lead DFN (3mm x 3mm x 0.75mm) | ||
| LTC2857HDD-2#TRPBF | Reel | 2500 | 1 | 8 | -40°C ~125°C | 8-Lead DFN (3mm x 3mm x 0.75mm) | ||
| LTC2857HDD-2#TRMPBF | Reel | 500 | 1 | 8 | -40°C ~125°C | 8-Lead DFN (3mm x 3mm x 0.75mm) | ||
| LTC2857HMS8-2#PBF | Tube | 50 | 1 | 8 | -40°C ~125°C | 8-Lead Plastic MSOP | ||
| LTC2857HMS8-2#TRPBF | Reel | 2500 | 1 | 8 | -40°C ~125°C | 8-Lead Plastic MSOP | ||
| LTC2857HMS8-2#TRMPBF | Reel | 500 | 1 | 8 | -40°C ~125°C | 8-Lead Plastic MSOP |

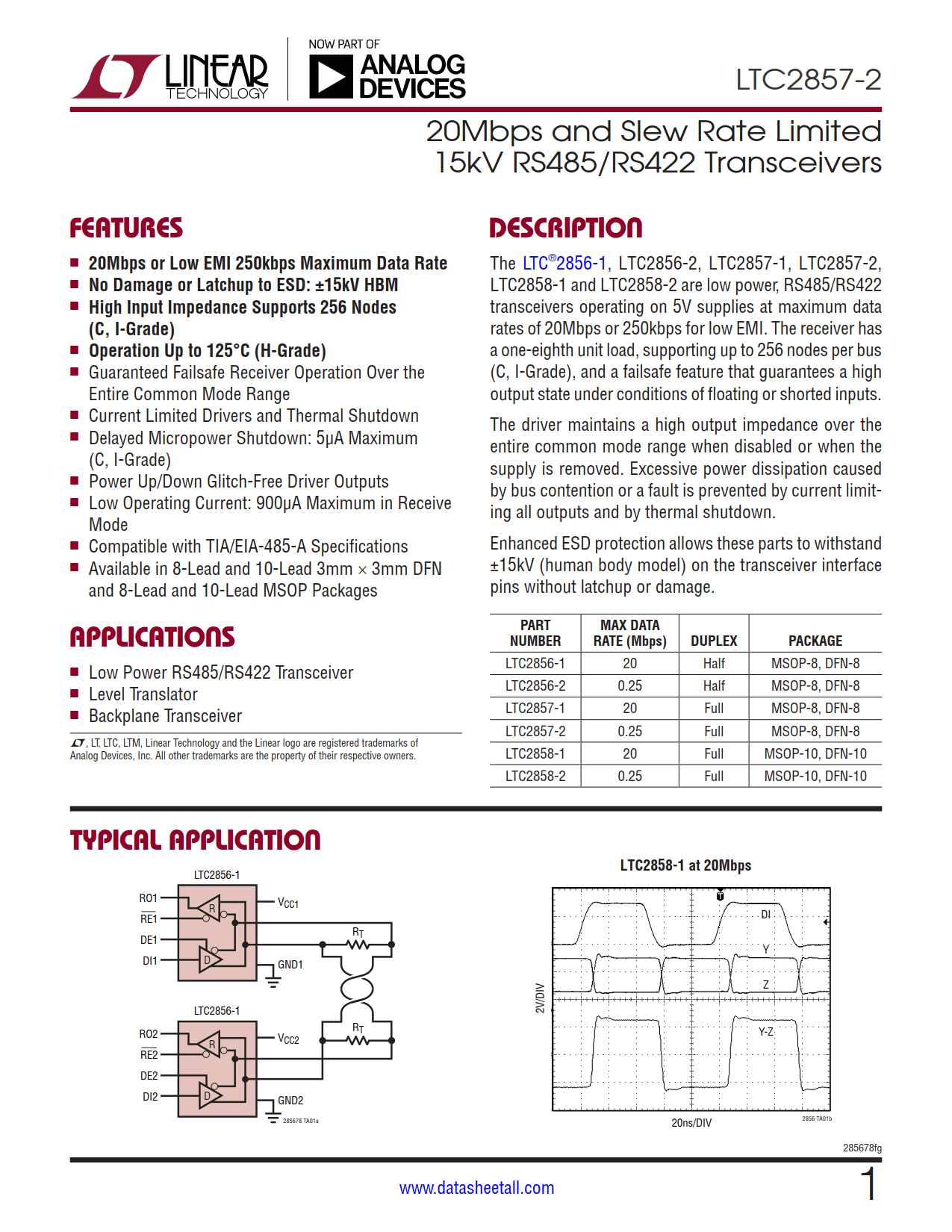

The LTC2857-2 are low power, RS485/RS422 transceivers operating on 5V supplies at maximum data rates of 20Mbps or 250kbps for low EMI. The receiver has a one-eighth unit load, supporting up to 256 nodes per bus (C, I-Grade), and a fail-safe feature that guarantees a high output state under conditions of floating or shorted inputs.
The driver maintains a high output impedance over the entire common mode range when disabled or when the supply is removed. Excessive power dissipation caused by bus contention or a fault is prevented by current limiting all outputs and by thermal shutdown.
Enhanced ESD protection allows these parts to withstand ±15kV (human body model) on the transceiver interface pins without latch-up or damage.

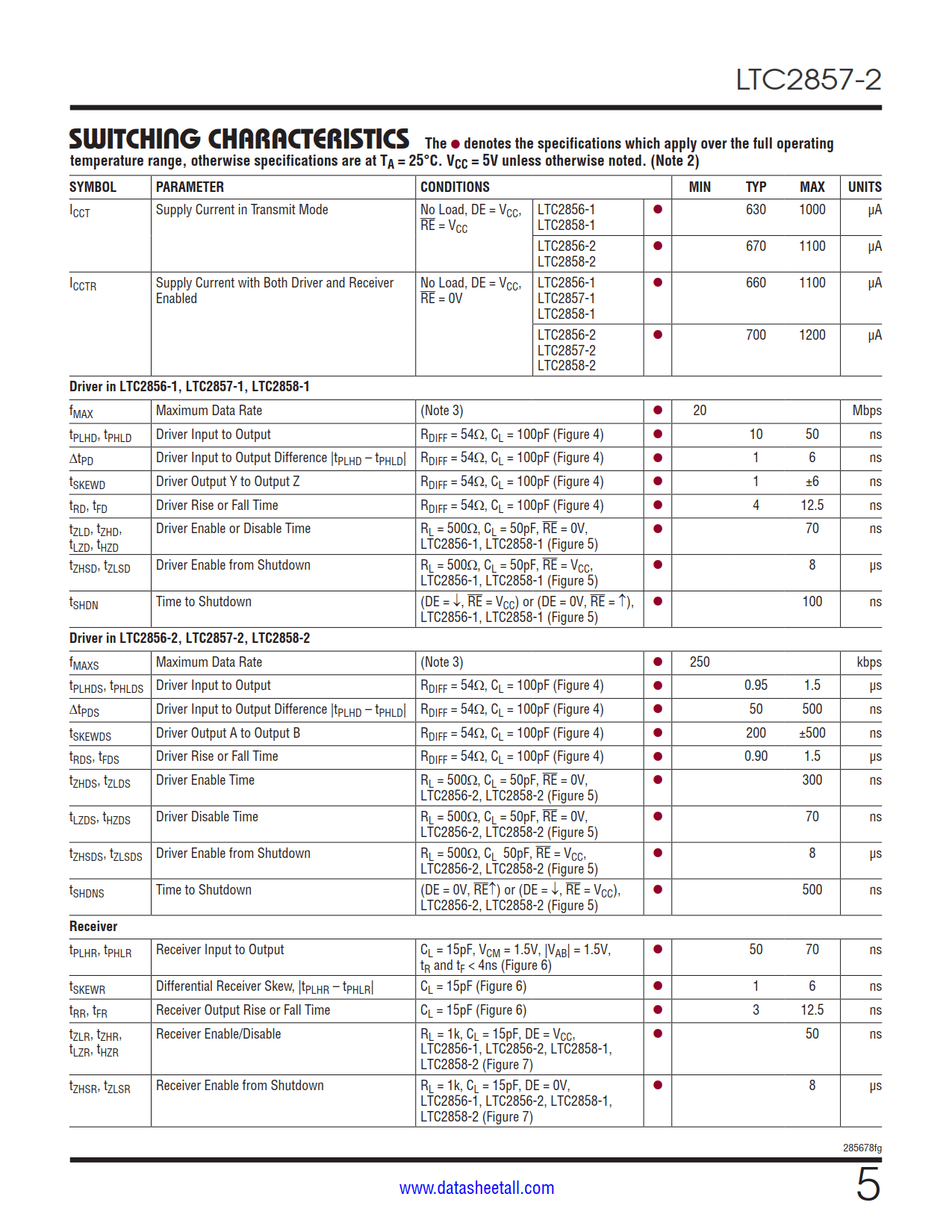

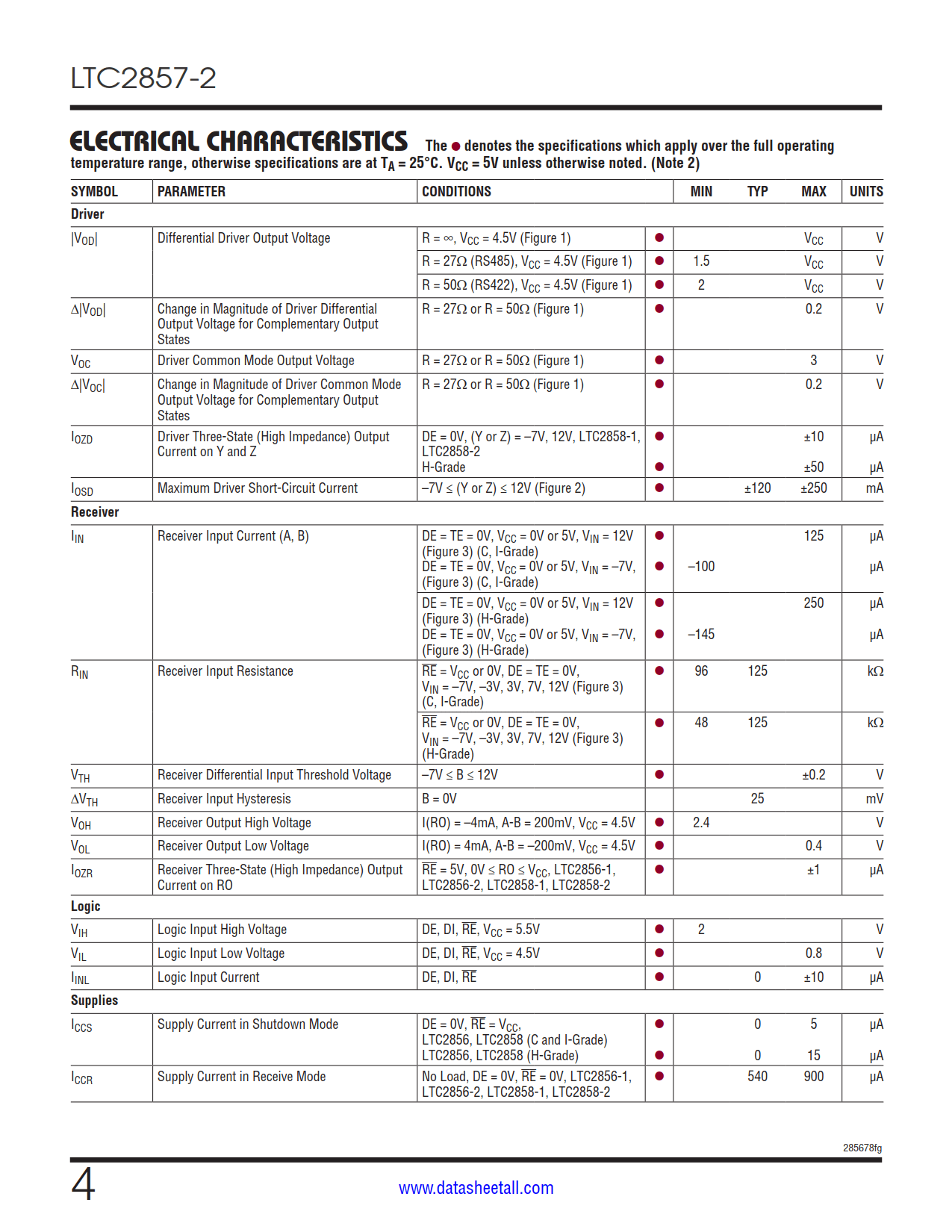

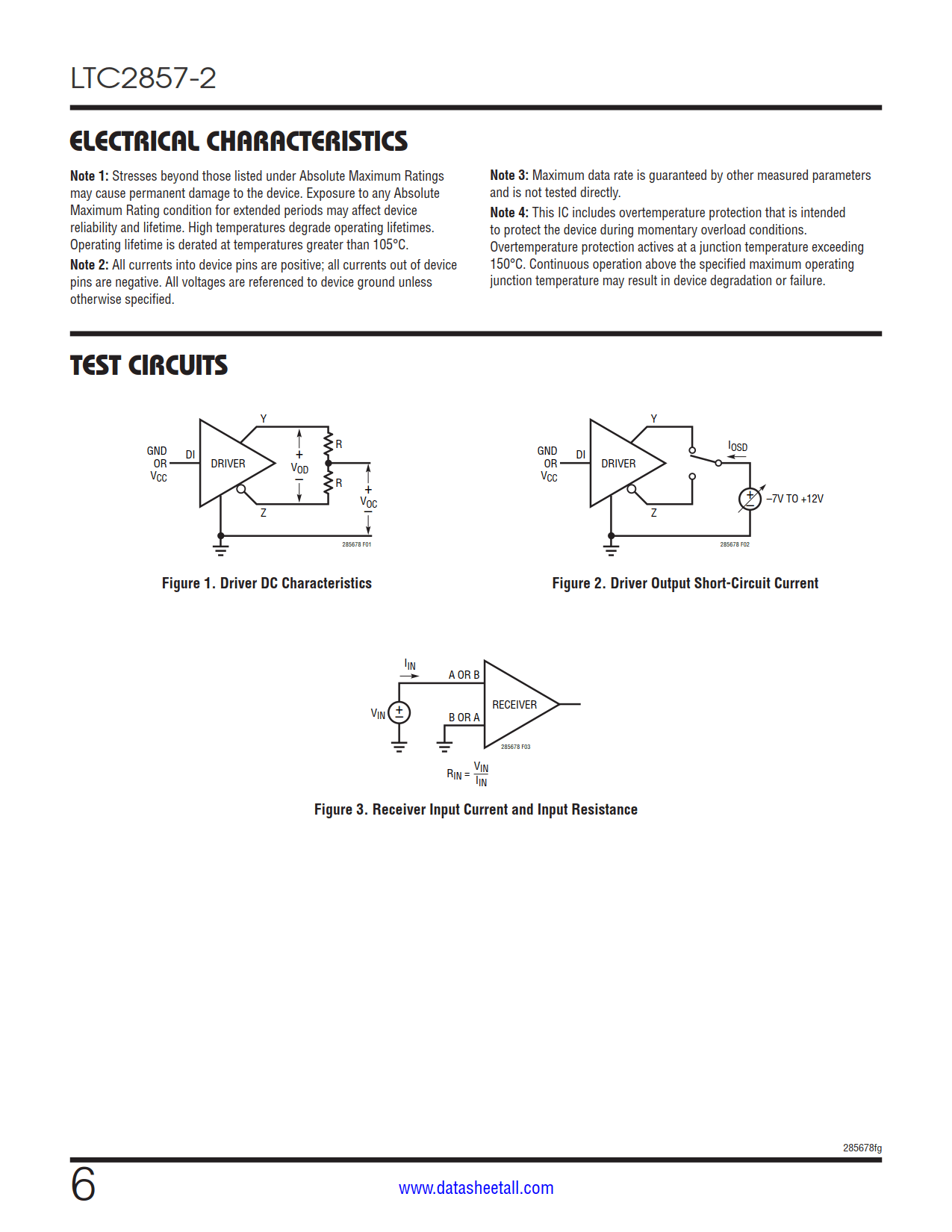

| Part Number | MAX Data Rate (Mbps) | Duplex | Package |
| LTC2857-2 | 0.25 | Full | MSOP-8, DFN-8 |
