LTC2855 Datasheet

LTC2855 Datasheet

3.3V 20Mbps RS485/RS422 Transceiver with Integrated Switchable Termination
Part No.: LTC2855
Page: 18 Pages
Size: 427 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-01-26 14:58:29
DataSheet: Download

LTC2855 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC2855CDE#PBF Tube 91 2855 1 12 0°C ~70°C 12-Lead (4mm × 3mm) Plastic DFN
LTC2855CDE#TRPBF Reel 2500 2855 1 12 0°C ~70°C 12-Lead (4mm × 3mm) Plastic DFN
LTC2855CDE#TRMPBF Reel 500 2855 1 12 0°C ~70°C 12-Lead (4mm × 3mm) Plastic DFN
LTC2855IDE#PBF Tube 91 2855 1 12 -40°C ~85°C 12-Lead (4mm × 3mm) Plastic DFN
LTC2855IDE#TRPBF Reel 2500 2855 1 12 -40°C ~85°C 12-Lead (4mm × 3mm) Plastic DFN
LTC2855IDE#TRMPBF Reel 500 2855 1 12 -40°C ~85°C 12-Lead (4mm × 3mm) Plastic DFN
LTC2855HDE#PBF Tube 91 2855 1 12 -40°C ~125°C 12-Lead (4mm × 3mm) Plastic DFN
LTC2855HDE#TRPBF Reel 2500 2855 1 12 -40°C ~125°C 12-Lead (4mm × 3mm) Plastic DFN
LTC2855HDE#TRMPBF Reel 500 2855 1 12 -40°C ~125°C 12-Lead (4mm × 3mm) Plastic DFN
LTC2855CGN#PBF Tube 100 2855 1 16 0°C ~70°C 16-Lead (Narrow 0.150) Plastic SSOP
LTC2855CGN#TRPBF Reel 2500 2855 1 16 0°C ~70°C 16-Lead (Narrow 0.150) Plastic SSOP
LTC2855CGN#TRMPBF Reel 500 2855 1 16 0°C ~70°C 16-Lead (Narrow 0.150) Plastic SSOP
LTC2855IGN#PBF Tube 100 2855I 1 16 -40°C ~85°C 16-Lead (Narrow 0.150) Plastic SSOP
LTC2855IGN#TRPBF Reel 2500 2855I 1 16 -40°C ~85°C 16-Lead (Narrow 0.150) Plastic SSOP
LTC2855IGN#TRMPBF Reel 500 2855I 1 16 -40°C ~85°C 16-Lead (Narrow 0.150) Plastic SSOP
LTC2855HGN#PBF Tube 100 2855H 1 16 -40°C ~125°C 16-Lead (Narrow 0.150) Plastic SSOP
LTC2855HGN#TRPBF Reel 2500 2855H 1 16 -40°C ~125°C 16-Lead (Narrow 0.150) Plastic SSOP
LTC2855HGN#TRMPBF Reel 500 2855H 1 16 -40°C ~125°C 16-Lead (Narrow 0.150) Plastic SSOP
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC2855 Datasheet(PDF)

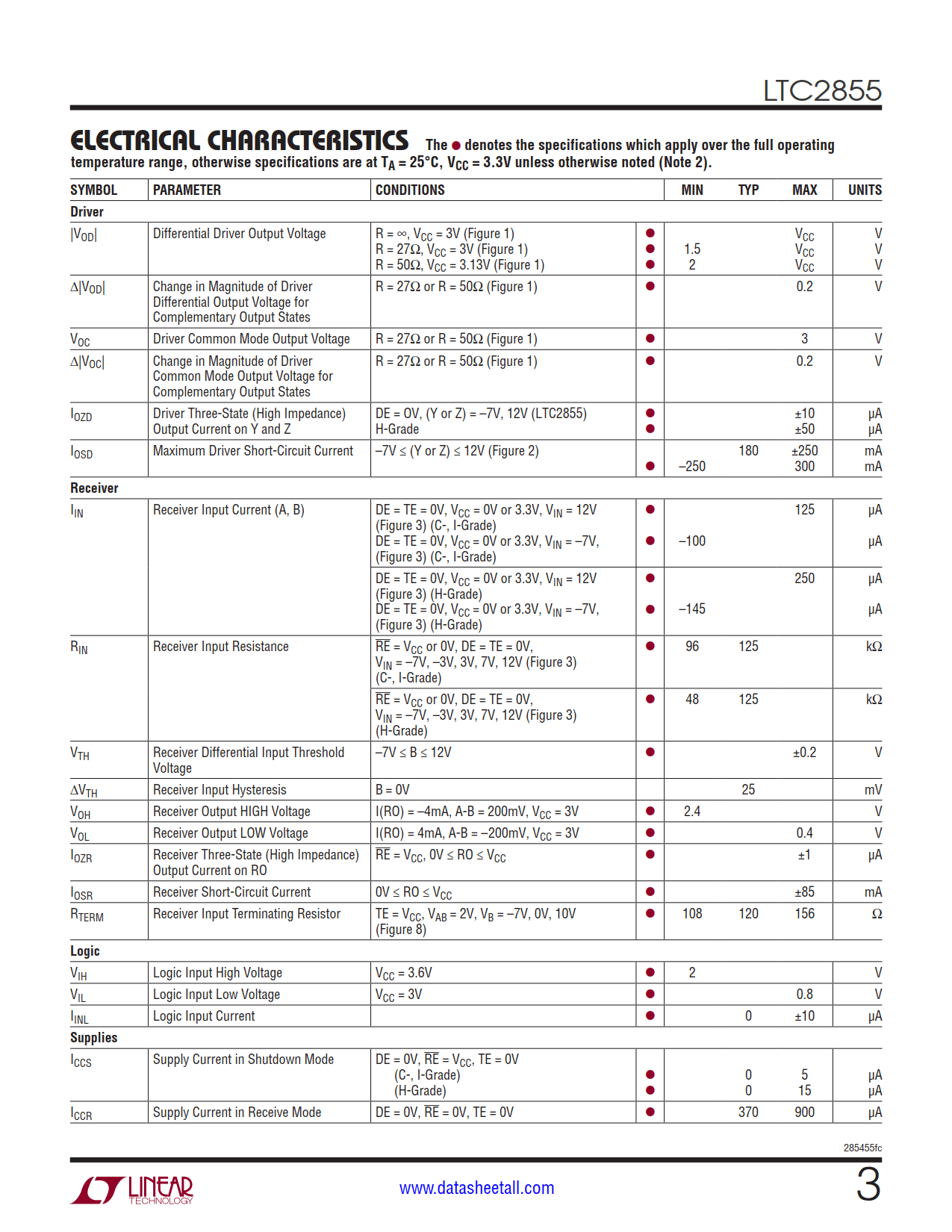

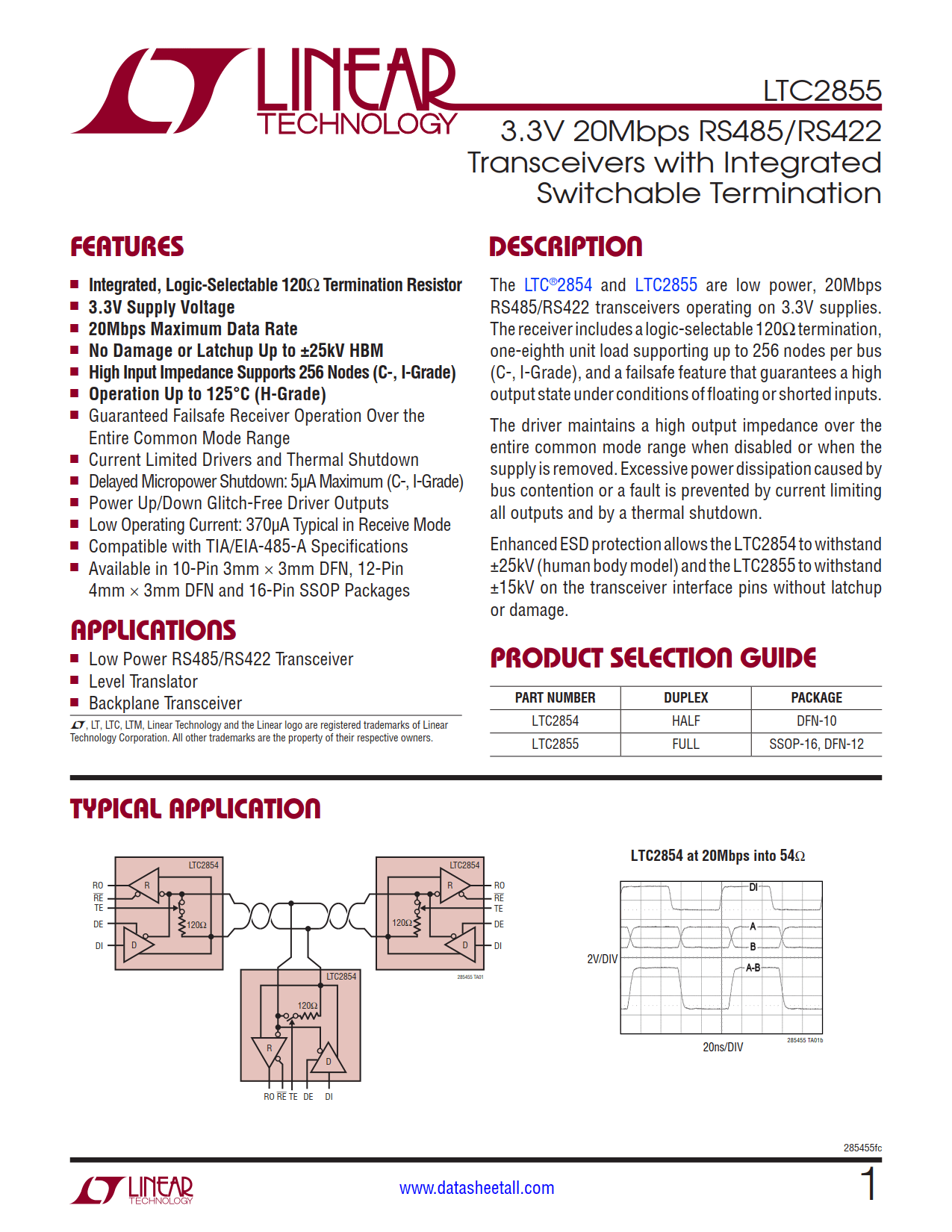

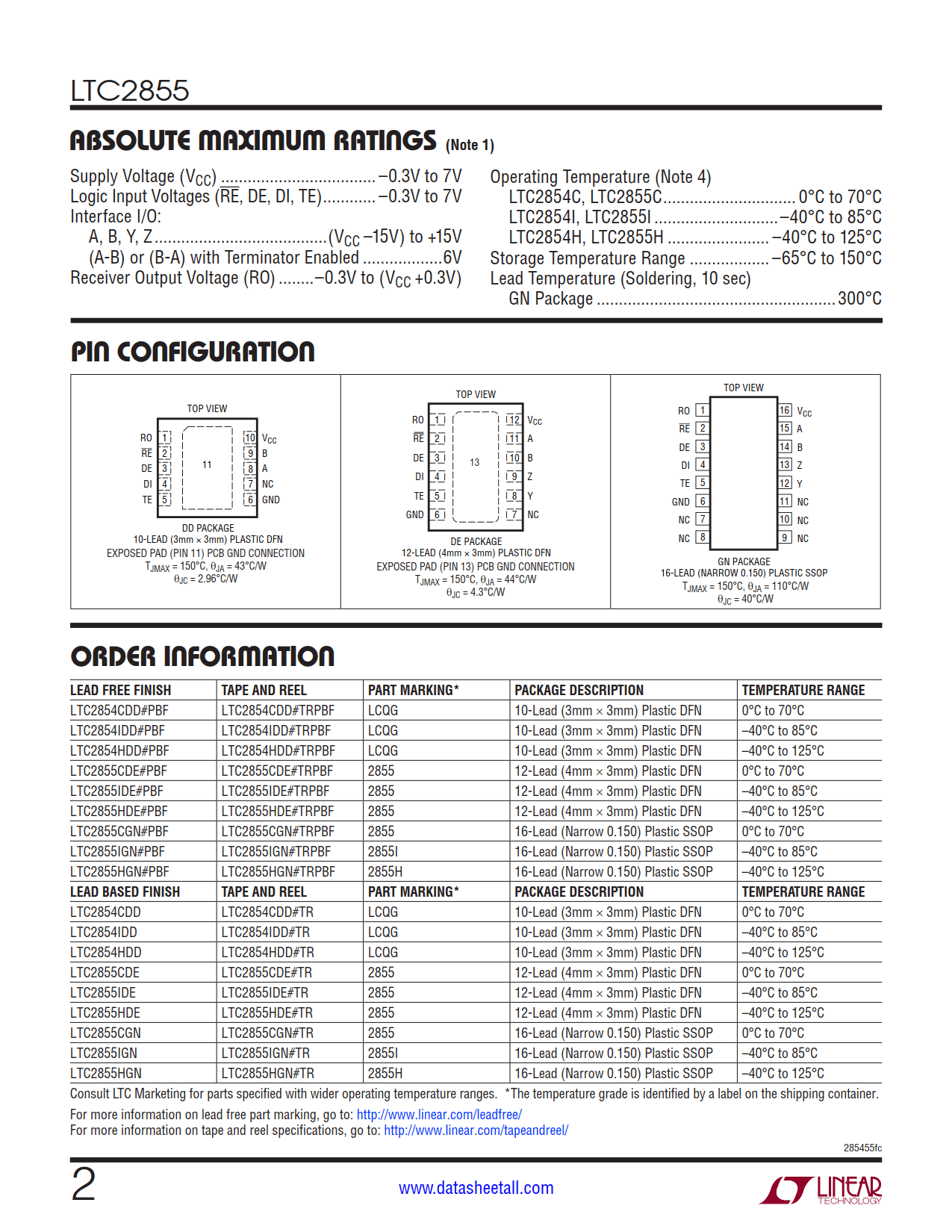

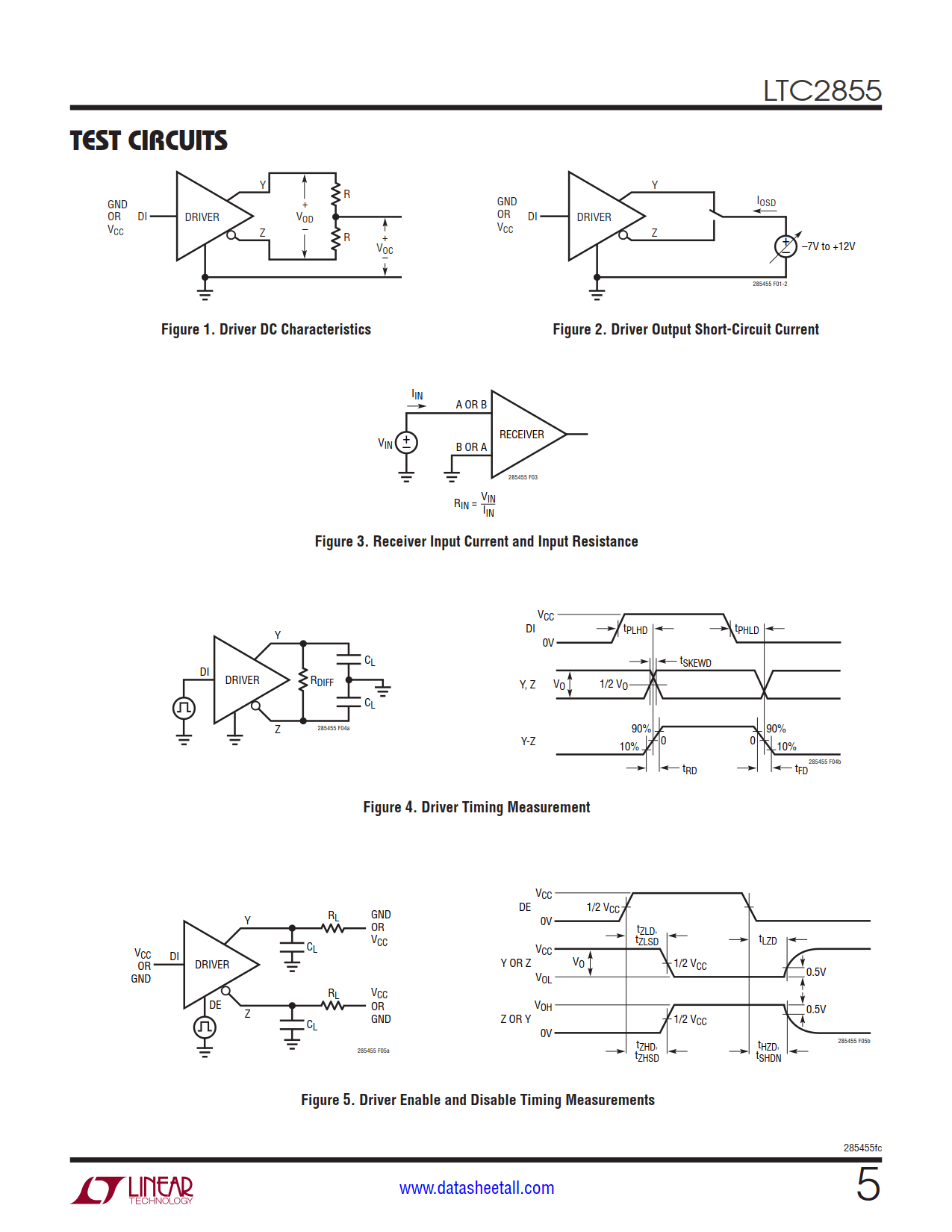

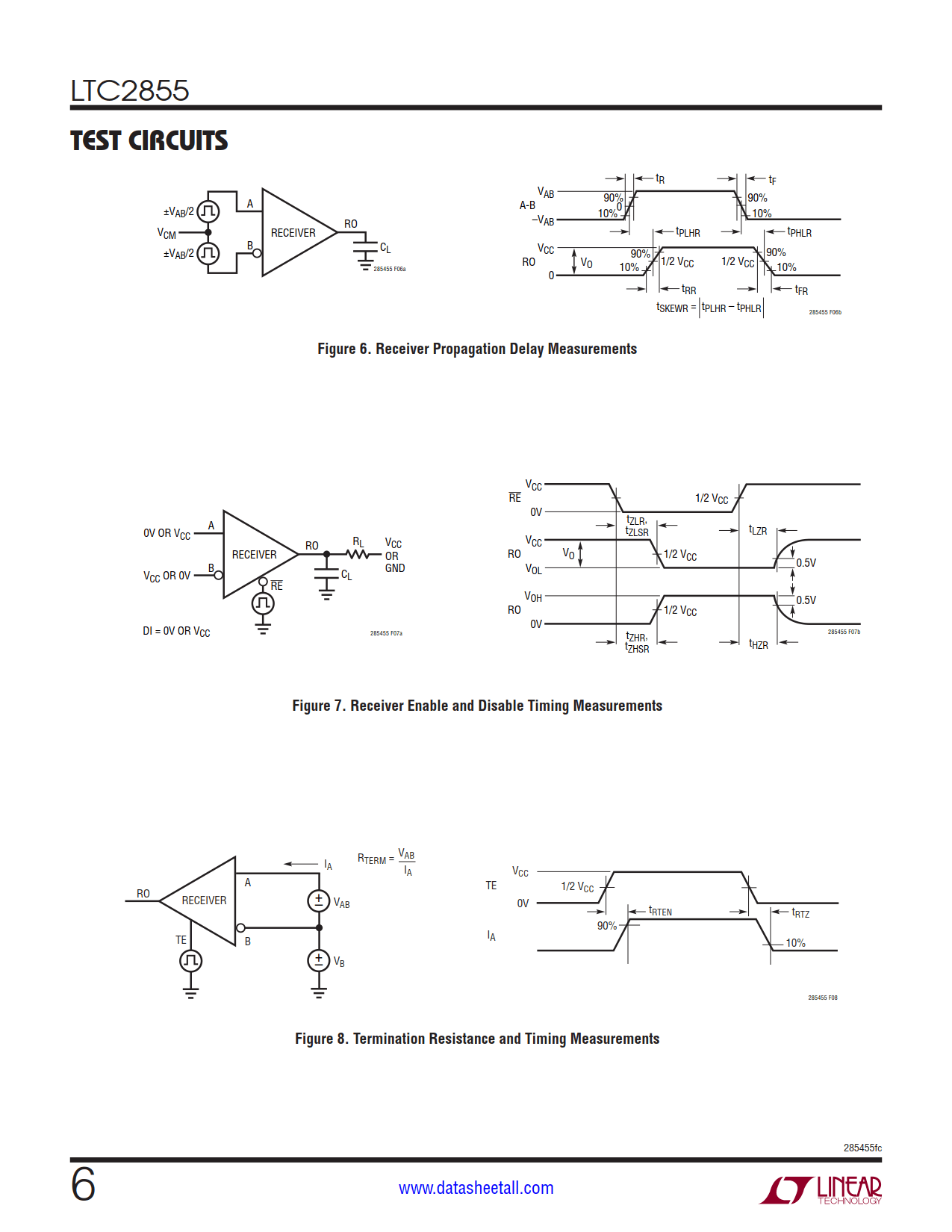

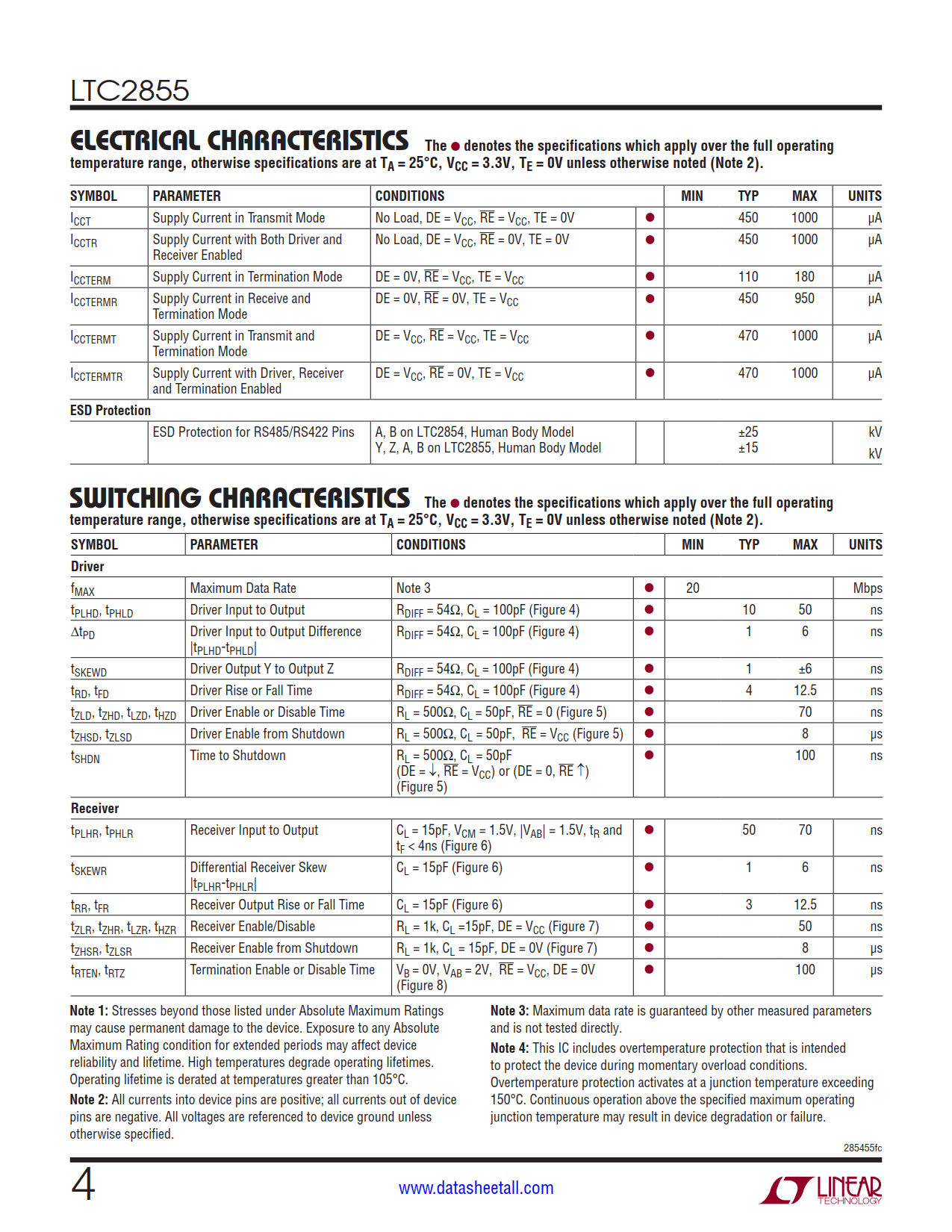

LTC2855 Datasheet(Picture)

LTC2855 Features

  • Integrated, Logic-Selectable 120Ω Termination Resistor
  • 3.3V Supply Voltage
  • 20Mbps Maximum Data Rate
  • No Damage or Latchup Up to ±25kV HBM
  • High Input Impedance Supports 256 Nodes (C-, I‑Grade)
  • Operation Up to 125°C (H-Grade)
  • Guaranteed Fail-safe Receiver Operation Over the Entire Common Mode Range
  • Current Limited Drivers and Thermal Shutdown
  • Delayed Micropower Shutdown: 5μA Maximum (C-, I-Grade)
  • Power Up/Down Glitch-Free Driver Outputs
  • Low Operating Current: 370μA Typical in Receive Mode
  • Compatible with TIA/EIA-485-A Specifications
  • Available in 10-Pin 3mm × 3mm DFN, 12-Pin 4mm × 3mm DFN and 16-Pin SSOP Packages

LTC2855 Applications

  • Low Power RS485/RS422 Transceiver
  • Level Translator
  • Backplane Transceiver

LTC2855 Description

The LTC2855 are low power, 20Mbps RS485/RS422 transceivers operating on 3.3V supplies. The receiver includes a logic-selectable 120Ω termination, one-eighth unit load supporting up to 256 nodes per bus (C-, I-Grade), and a fail-safe feature that guarantees a high output state under conditions of floating or shorted inputs.

The driver maintains a high output impedance over the entire common mode range when disabled or when the supply is removed. Excessive power dissipation caused by bus contention or a fault is prevented by current limiting all outputs and by a thermal shutdown.

Enhanced ESD protection allows the LTC2855 to withstand ±15kV on the transceiver interface pins without latchup or damage.

LTC2855 Datasheet Related Parts
