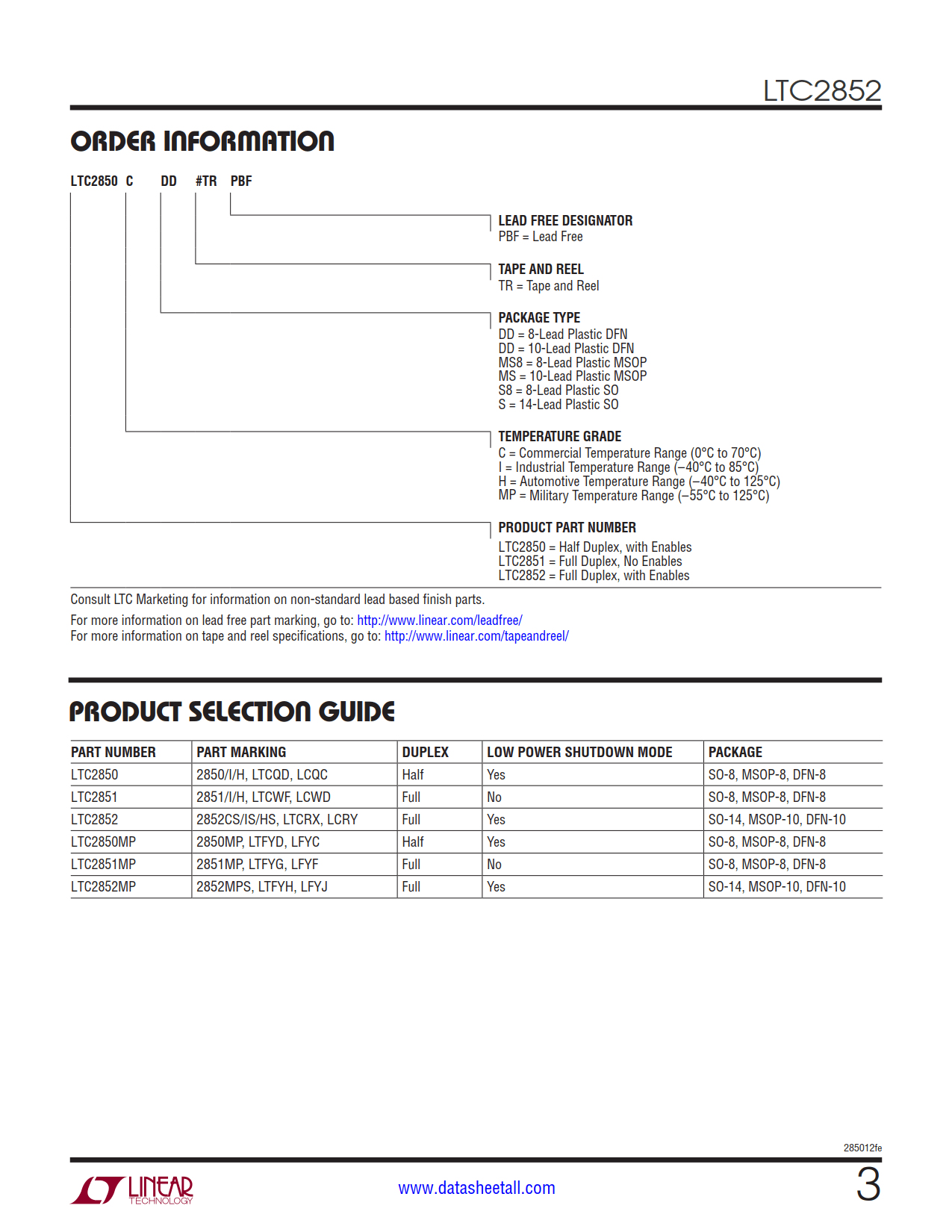

Part No.: | LTC2852 |
Page: | 18 Pages |
Size: | 268 KB |
Manufacturer: | Linear Technology |
Logo: | |
Views: | 1 |
Update Time: | 2023-10-26 10:22:41 |
DataSheet: | Download |
Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
LTC2852CDD#PBF | Tube | 121 | LCRY | 1 | 10 | 0°C ~ 70°C | 10-Lead DFN | |
LTC2852CDD#TRPBF | Reel | 2500 | LCRY | 1 | 10 | 0°C ~ 70°C | 10-Lead DFN | |
LTC2852CDD#TRMPBF | Reel | 500 | LCRY | 1 | 10 | 0°C ~ 70°C | 10-Lead DFN | |
LTC2852IDD#PBF | Tube | 121 | LCRY | 1 | 10 | -40°C ~ 85°C | 10-Lead DFN | |
LTC2852IDD#TRPBF | Reel | 2500 | LCRY | 1 | 10 | -40°C ~ 85°C | 10-Lead DFN | |
LTC2852IDD#TRMPBF | Reel | 500 | LCRY | 1 | 10 | -40°C ~ 85°C | 10-Lead DFN | |
LTC2852HDD#PBF | Tube | 121 | LCRY | 1 | 10 | -40°C ~ 125°C | 10-Lead DFN | |
LTC2852HDD#TRPBF | Reel | 2500 | LCRY | 1 | 10 | -40°C ~ 125°C | 10-Lead DFN | |
LTC2852HDD#TRMPBF | Reel | 500 | LCRY | 1 | 10 | -40°C ~ 125°C | 10-Lead DFN | |
LTC2852MPDD#PBF | Tube | 121 | LFYJ | 1 | 10 | -55°C ~ 125°C | 10-Lead DFN | |
LTC2852MPDD#TRPBF | Reel | 2500 | LFYJ | 1 | 10 | -55°C ~ 125°C | 10-Lead DFN | |
LTC2852MPDD#TRMPBF | Reel | 500 | LFYJ | 1 | 10 | -55°C ~ 125°C | 10-Lead DFN | |
LTC2852CMS#PBF | Tube | 50 | LTCRX | 1 | 10 | 0°C ~ 70°C | 10-Lead MSOP | |
LTC2852CMS#TRPBF | Reel | 2500 | LTCRX | 1 | 10 | 0°C ~ 70°C | 10-Lead MSOP | |
LTC2852CMS#TRMPBF | Reel | 500 | LTCRX | 1 | 10 | 0°C ~ 70°C | 10-Lead MSOP | |
LTC2852IMS#PBF | Tube | 50 | LTCRX | 1 | 10 | -40°C ~ 85°C | 10-Lead MSOP | |
LTC2852IMS#TRPBF | Reel | 2500 | LTCRX | 1 | 10 | -40°C ~ 85°C | 10-Lead MSOP | |
LTC2852IMS#TRMPBF | Reel | 500 | LTCRX | 1 | 10 | -40°C ~ 85°C | 10-Lead MSOP | |
LTC2852HMS#PBF | Tube | 50 | LTCRX | 1 | 10 | -40°C ~ 125°C | 10-Lead MSOP | |
LTC2852HMS#TRPBF | Reel | 2500 | LTCRX | 1 | 10 | -40°C ~ 125°C | 10-Lead MSOP | |
LTC2852HMS#TRMPBF | Reel | 2500 | LTCRX | 1 | 10 | -40°C ~ 125°C | 10-Lead MSOP | |
LTC2852MPMS#PBF | Tube | 50 | LTFYH | 1 | 10 | -55°C ~ 125°C | 10-Lead MSOP | |
LTC2852MPMS#TRPBF | Reel | 2500 | LTFYH | 1 | 10 | -55°C ~ 125°C | 10-Lead MSOP | |
LTC2852MPMS#TRMPBF | Reel | 500 | LTFYH | 1 | 10 | -55°C ~ 125°C | 10-Lead MSOP | |
LTC2852CS#PBF | Tube | 55 | 2852CS | 1 | 14 | 0°C ~ 70°C | 14-Lead SOIC | |
LTC2852CS#TRPBF | Reel | 2500 | 2852CS | 1 | 14 | 0°C ~ 70°C | 14-Lead SOIC | |
LTC2852CS#TRMPBF | Reel | 500 | 2852CS | 1 | 14 | 0°C ~ 70°C | 14-Lead SOIC | |
LTC2852IS#PBF | Tube | 55 | 2852IS | 1 | 14 | -40°C ~ 85°C | 14-Lead SOIC | |
LTC2852IS#TRPBF | Reel | 2500 | 2852IS | 1 | 14 | -40°C ~ 85°C | 14-Lead SOIC | |
LTC2852IS#TRMPBF | Reel | 500 | 2852IS | 1 | 14 | -40°C ~ 85°C | 14-Lead SOIC | |
LTC2852HS#PBF | Tube | 55 | 2852HS | 1 | 14 | -40°C ~ 125°C | 14-Lead SOIC | |
LTC2852HS#TRPBF | Reel | 2500 | 2852HS | 1 | 14 | -40°C ~ 125°C | 14-Lead SOIC | |
LTC2852HS#TRMPBF | Reel | 500 | 2852HS | 1 | 14 | -40°C ~ 125°C | 14-Lead SOIC | |
LTC2852MPS#PBF | Tube | 55 | 2852MPS | 1 | 14 | -55°C ~ 125°C | 14-Lead SOIC | |
LTC2852MPS#TRPBF | Reel | 2500 | 2852MPS | 1 | 14 | -55°C ~ 125°C | 14-Lead SOIC | |
LTC2852MPS#TRMPBF | Reel | 500 | 2852MPS | 1 | 14 | -55°C ~ 125°C | 14-Lead SOIC |

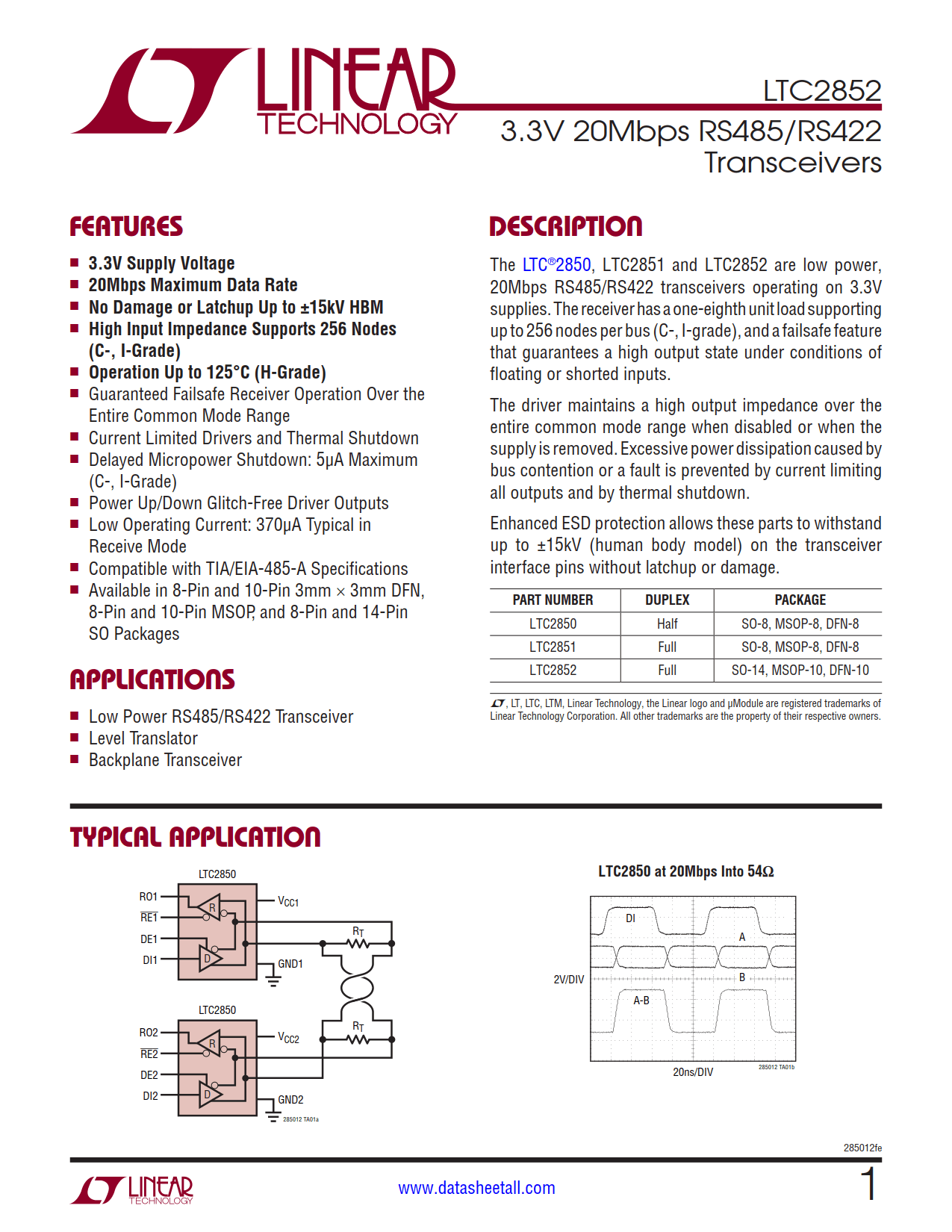

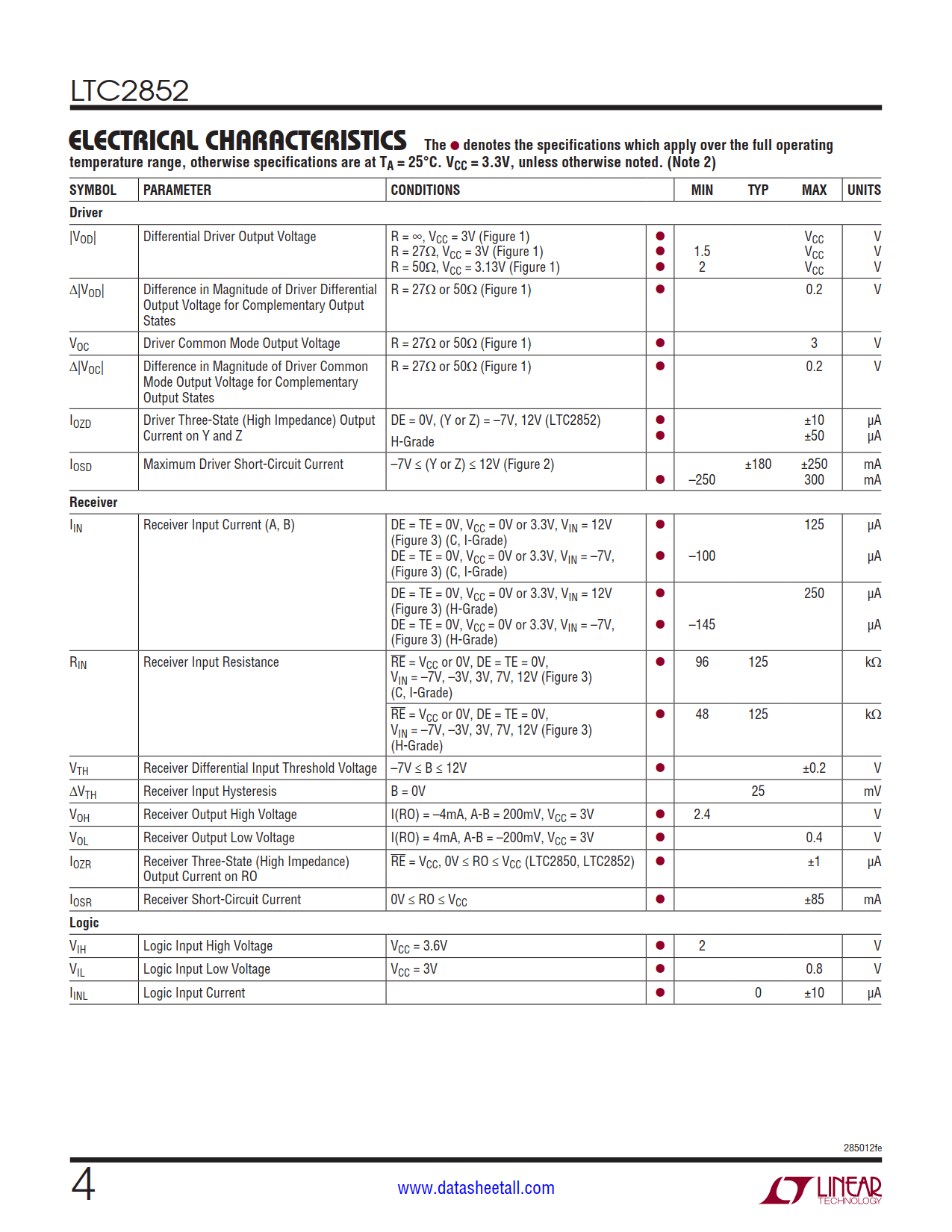

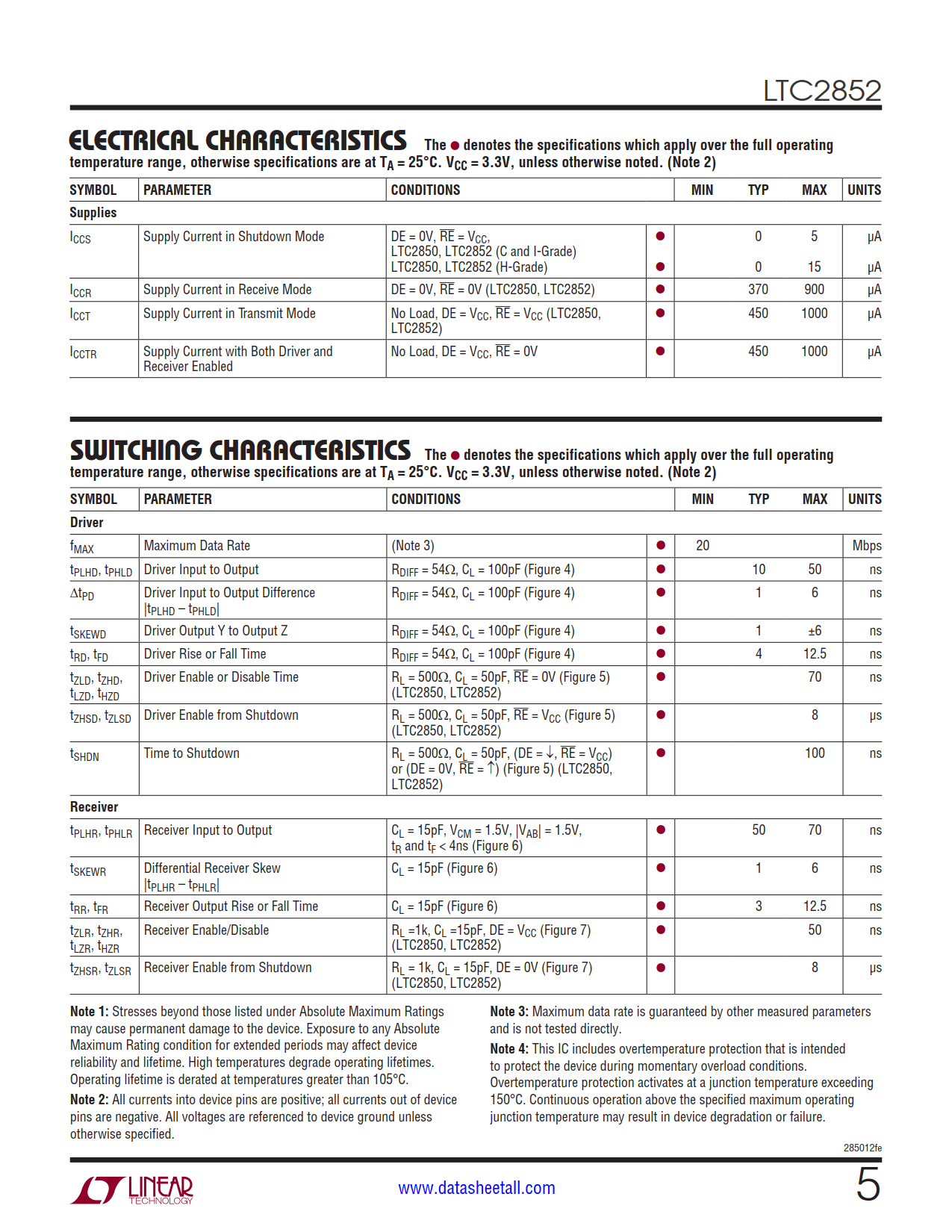

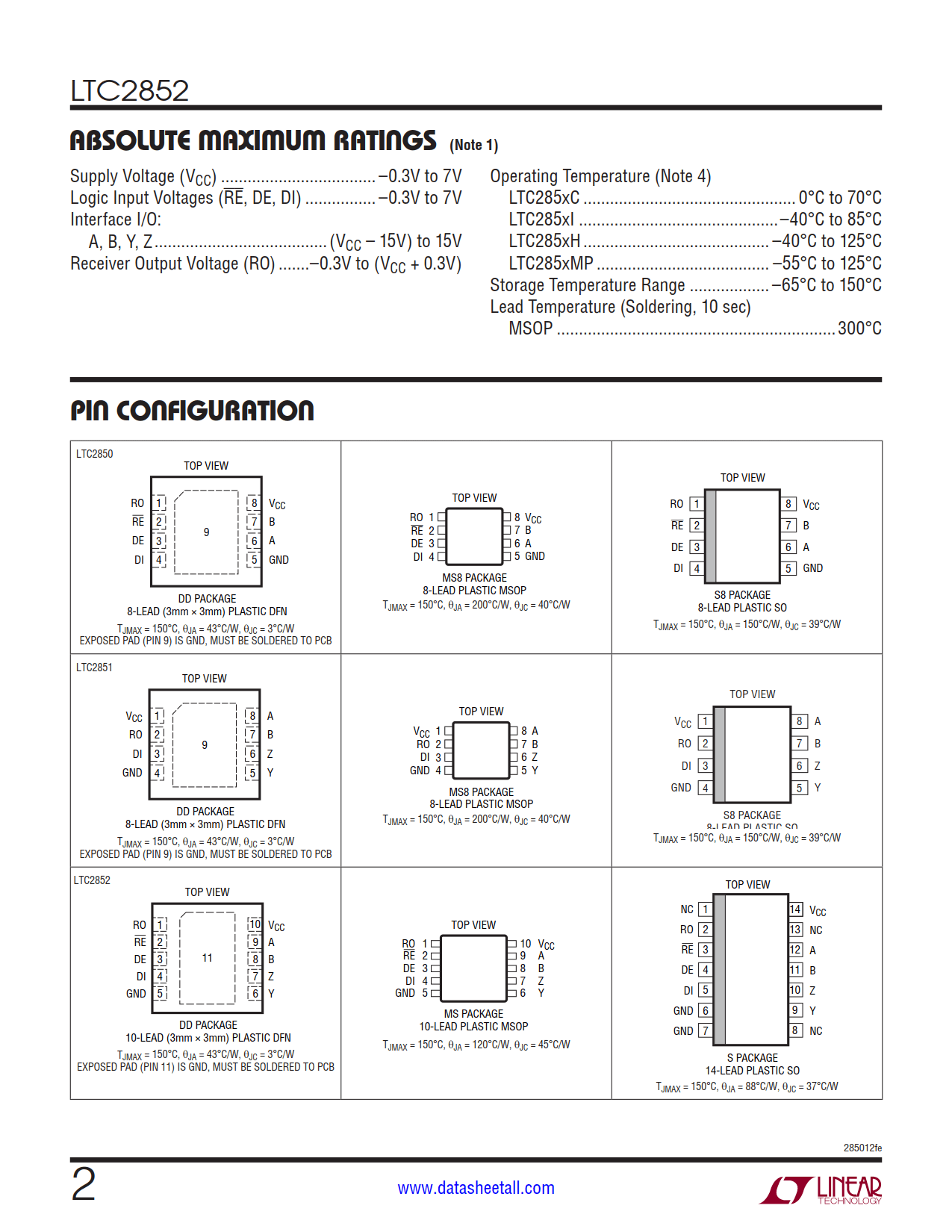

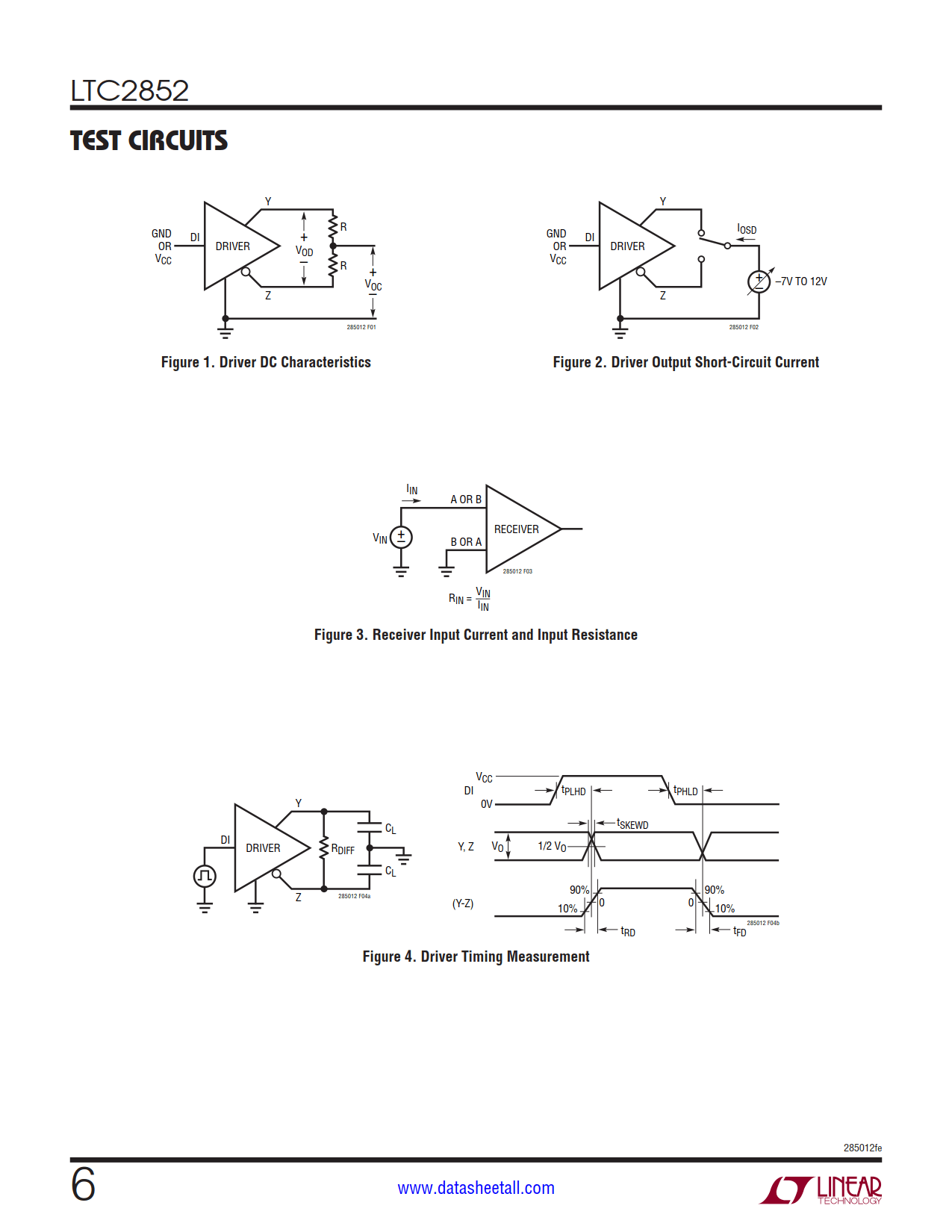

The LTC2852 are low power, 20Mbps RS485/RS422 transceivers operating on 3.3V supplies. The receiver has a one-eighth unit load supporting up to 256 nodes per bus (C, I-grade), and a failsafe feature that guarantees a high output state under conditions of floating or shorted inputs.
The driver maintains a high output impedance over the entire common mode range when disabled or when the supply is removed. Excessive power dissipation caused by bus contention or a fault is prevented by current limiting all outputs and by thermal shutdown.
Enhanced ESD protection allows these parts to withstand up to ±15kV (human body model) on the transceiver interface pins without latchup or damage.
