LTC2850 Datasheet

LTC2850 Datasheet

3.3V 20Mbps RS485/RS422 Transceiver
Part No.: LTC2850
Page: 18 Pages
Size: 268 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2023-10-26 10:17:21
DataSheet: Download

LTC2850 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC2850CDD#PBF Tube 121 LCQC 1 8 0°C ~ 70°C 8-Lead DFN
LTC2850CDD#TRPBF Reel 2500 LCQC 1 8 0°C ~ 70°C 8-Lead DFN
LTC2850CDD#TRMPBF Reel 500 LCQC 1 8 0°C ~ 70°C 8-Lead DFN
LTC2850IDD#PBF Tube 121 LCQC 1 8 -40°C ~ 85°C 8-Lead DFN
LTC2850IDD#TRPBF Reel 2500 LCQC 1 8 -40°C ~ 85°C 8-Lead DFN
LTC2850IDD#TRMPBF Reel 500 LCQC 1 8 -40°C ~ 85°C 8-Lead DFN
LTC2850HDD#PBF Tube 121 LCQC 1 8 -40°C ~ 125°C 8-Lead DFN
LTC2850HDD#TRPBF Reel 2500 LCQC 1 8 -40°C ~ 125°C 8-Lead DFN
LTC2850HDD#TRMPBF Reel 500 LCQC 1 8 -40°C ~ 125°C 8-Lead DFN
LTC2850MPDD#PBF Tube 121 LFYC 1 8 -55°C ~ 125°C 8-Lead DFN
LTC2850MPDD#TRPBF Reel 2500 LFYC 1 8 -55°C ~ 125°C 8-Lead DFN
LTC2850MPDD#TRMPBF Reel 500 LFYC 1 8 -55°C ~ 125°C 8-Lead DFN
LTC2850CMS8#PBF Tube 50 LTCQD 1 8 0°C ~ 70°C 8-Lead MSOP
LTC2850CMS8#TRPBF Reel 2500 LTCQD 1 8 0°C ~ 70°C 8-Lead MSOP
LTC2850CMS8#TRMPBF Reel 500 LTCQD 1 8 0°C ~ 70°C 8-Lead MSOP
LTC2850IMS8#PBF Tube 50 LTCQD 1 8 -40°C ~ 85°C 8-Lead MSOP
LTC2850IMS8#TRPBF Reel 2500 LTCQD 1 8 -40°C ~ 85°C 8-Lead MSOP
LTC2850IMS8#TRMPBF Reel 500 LTCQD 1 8 -40°C ~ 85°C 8-Lead MSOP
LTC2850HMS8#PBF Tube 50 LTCQD 1 8 -40°C ~ 125°C 8-Lead MSOP
LTC2850HMS8#TRPBF Reel 2500 LTCQD 1 8 -40°C ~ 125°C 8-Lead MSOP
LTC2850HMS8#TRMPBF Reel 2500 LTCQD 1 8 -40°C ~ 125°C 8-Lead MSOP
LTC2850MPMS8#PBF Tube 50 LTFYD 1 8 -55°C ~ 125°C 8-Lead MSOP
LTC2850MPMS8#TRPBF Reel 2500 LTFYD 1 8 -55°C ~ 125°C 8-Lead MSOP
LTC2850MPMS8#TRMPBF Reel 500 LTFYD 1 8 -55°C ~ 125°C 8-Lead MSOP
LTC2850CS8#PBF Tube 100 2850 1 8 0°C ~ 70°C 8-Lead SOIC
LTC2850CS8#TRPBF Reel 2500 2850 1 8 0°C ~ 70°C 8-Lead SOIC
LTC2850CS8#TRMPBF Reel 500 2850 1 8 0°C ~ 70°C 8-Lead SOIC
LTC2850IS8#PBF Tube 100 2850I 1 8 -40°C ~ 85°C 8-Lead SOIC
LTC2850IS8#TRPBF Reel 2500 2850I 1 8 -40°C ~ 85°C 8-Lead SOIC
LTC2850IS8#TRMPBF Reel 500 2850I 1 8 -40°C ~ 85°C 8-Lead SOIC
LTC2850HS8#PBF Tube 100 2850H 1 8 -40°C ~ 125°C 8-Lead SOIC
LTC2850HS8#TRPBF Reel 2500 2850H 1 8 -40°C ~ 125°C 8-Lead SOIC
LTC2850HS8#TRMPBF Reel 500 2850H 1 8 -40°C ~ 125°C 8-Lead SOIC
LTC2850MPS8#PBF Tube 100 2850MP 1 8 -55°C ~ 125°C 8-Lead SOIC
LTC2850MPS8#TRPBF Reel 2500 2850MP 1 8 -55°C ~ 125°C 8-Lead SOIC
LTC2850MPS8#TRMPBF Reel 500 2850MP 1 8 -55°C ~ 125°C 8-Lead SOIC
LTC2850MPMS8 Tube 50 2850MP 1 8 -55°C ~ 125°C 8-Lead MSOP
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC2850 Datasheet(PDF)

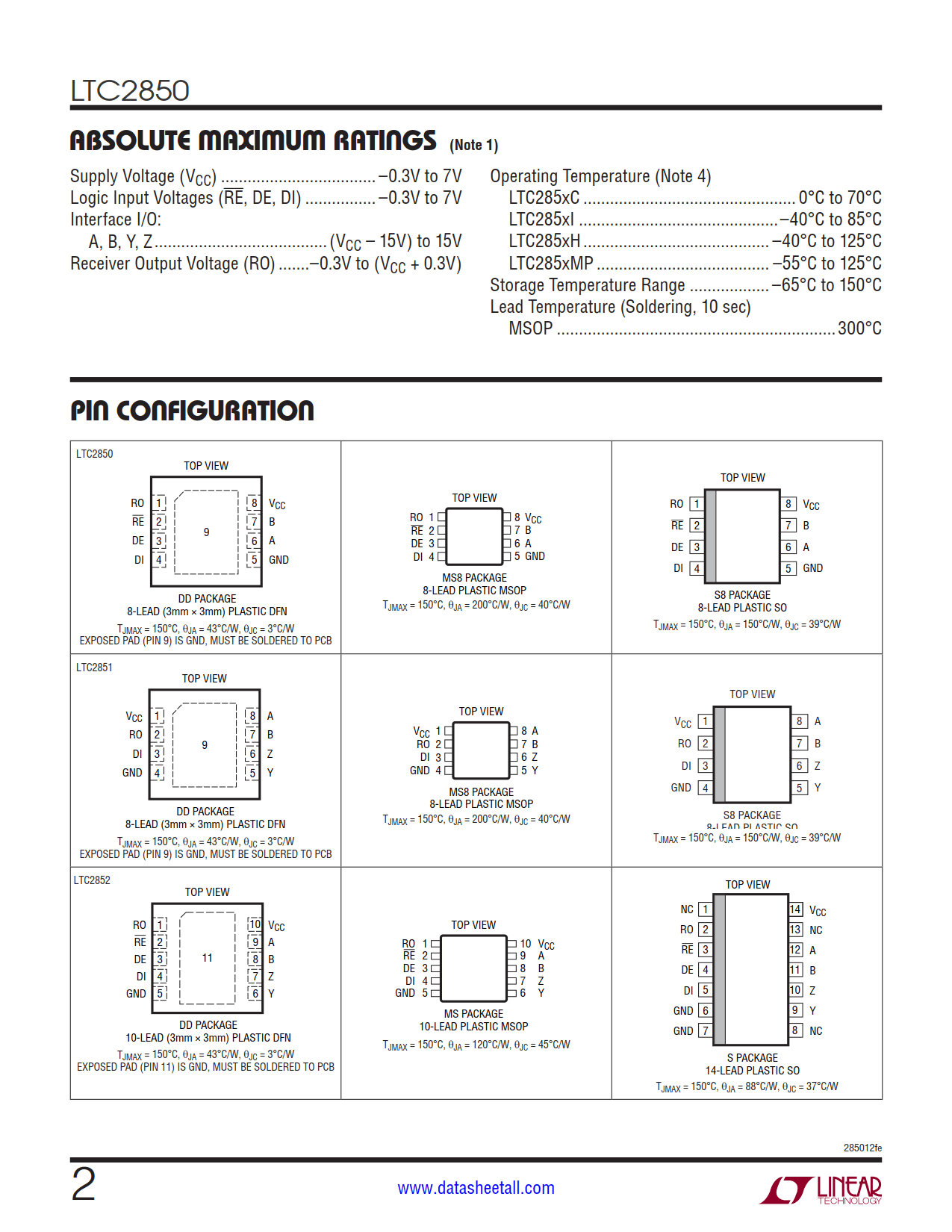

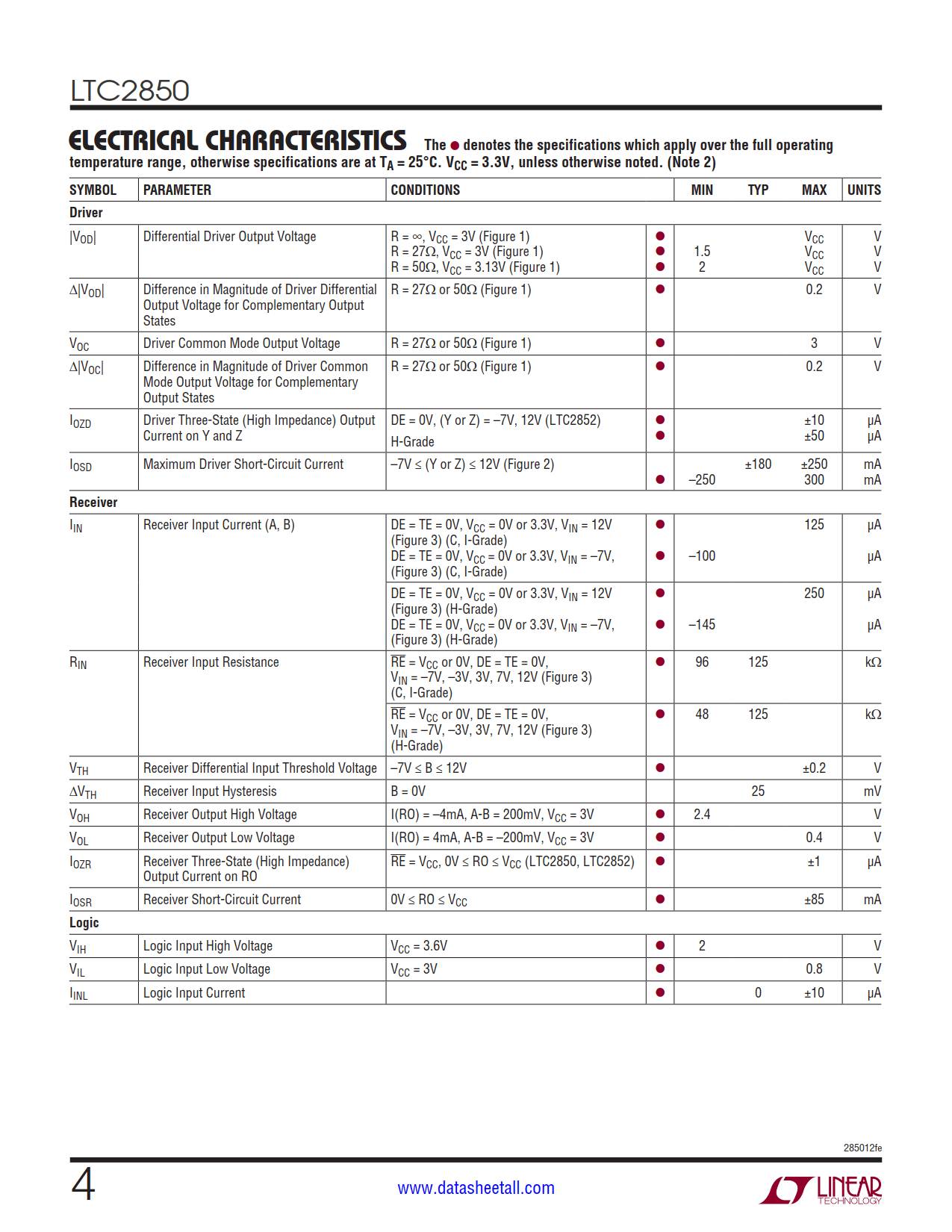

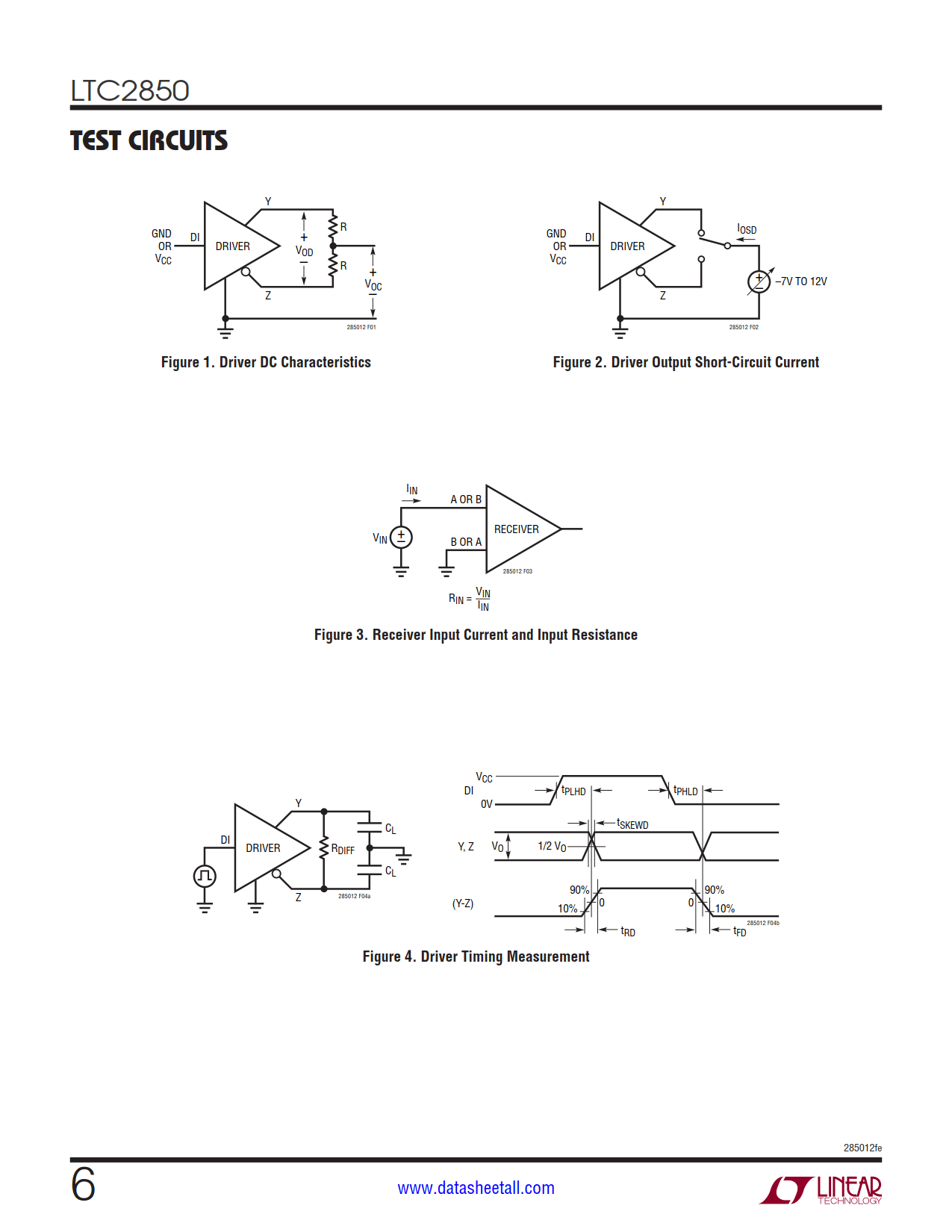

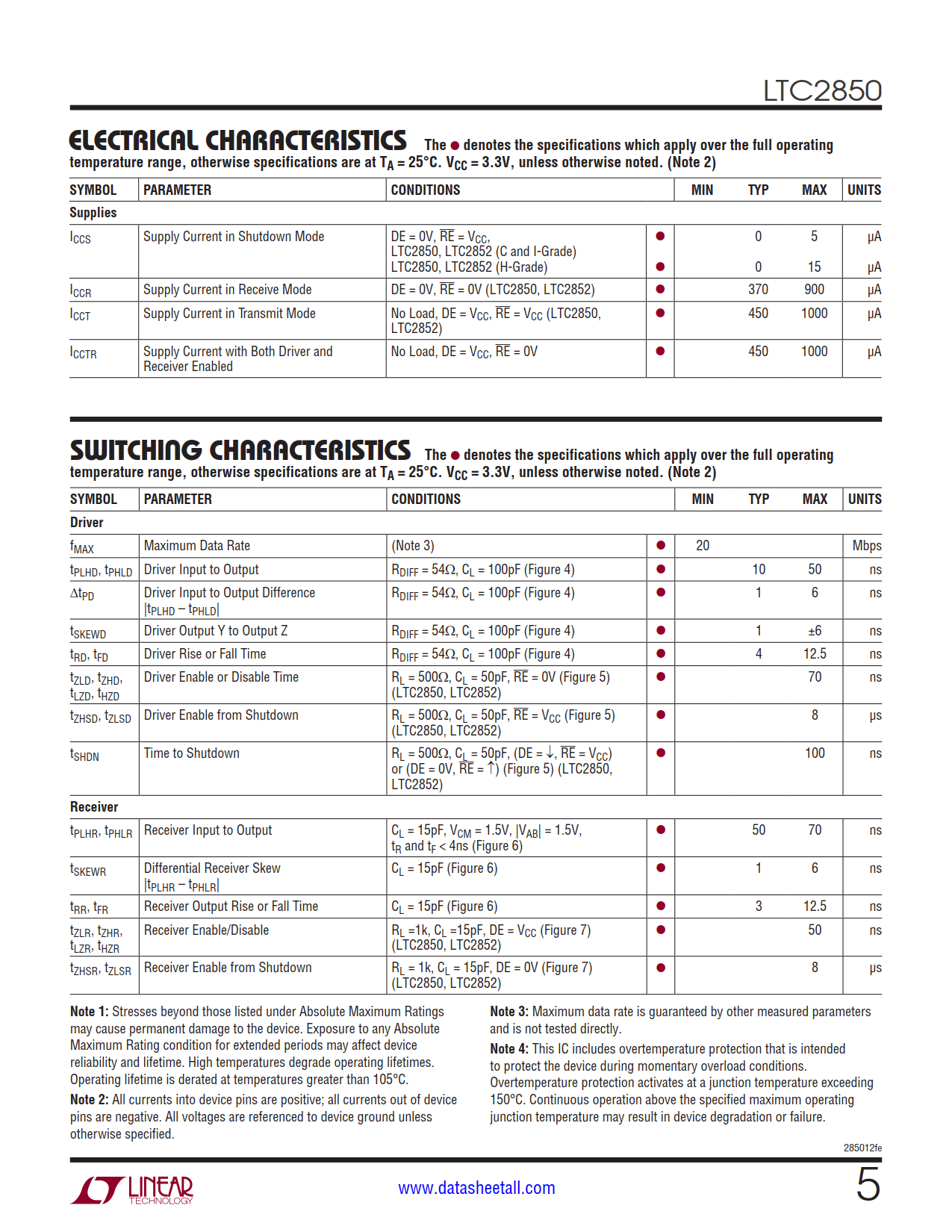

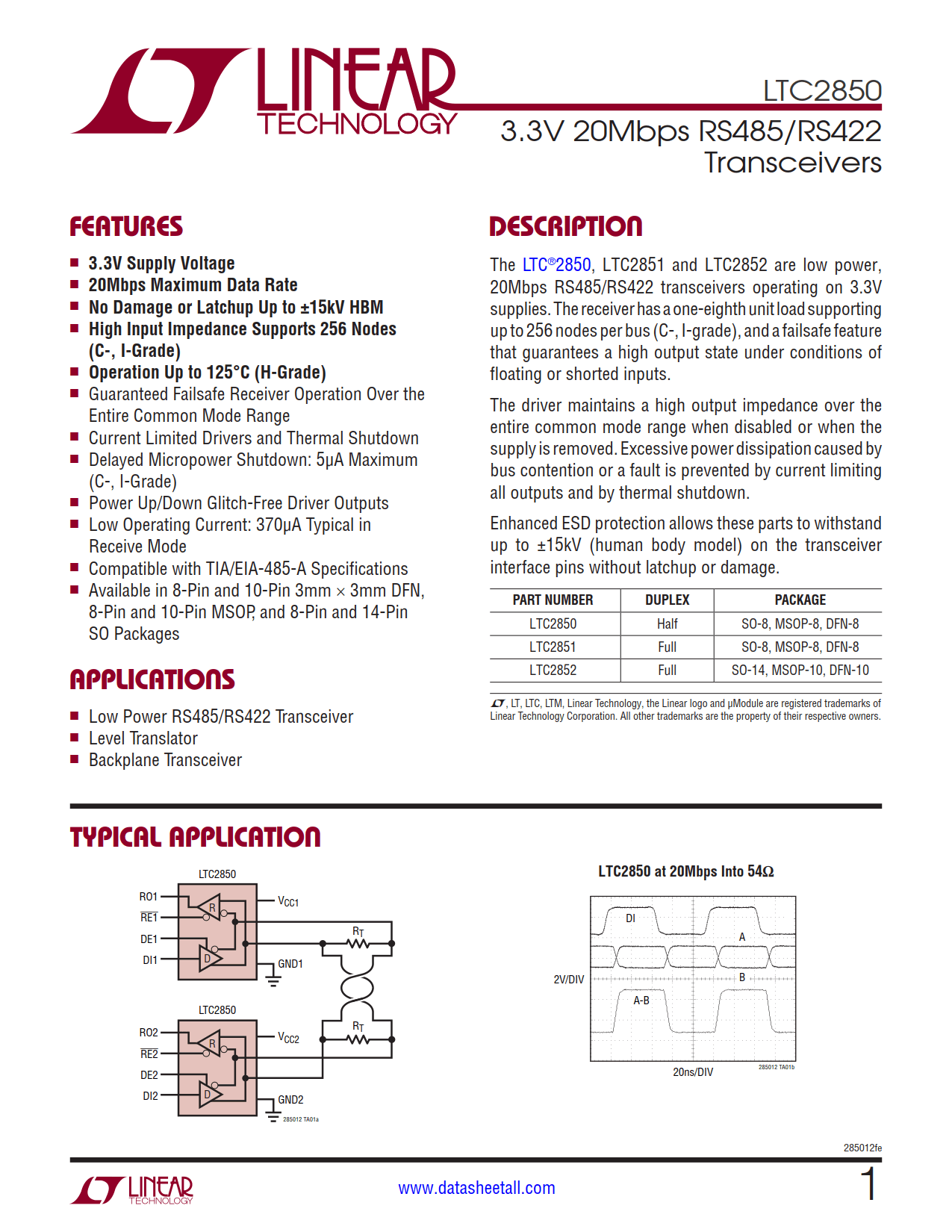

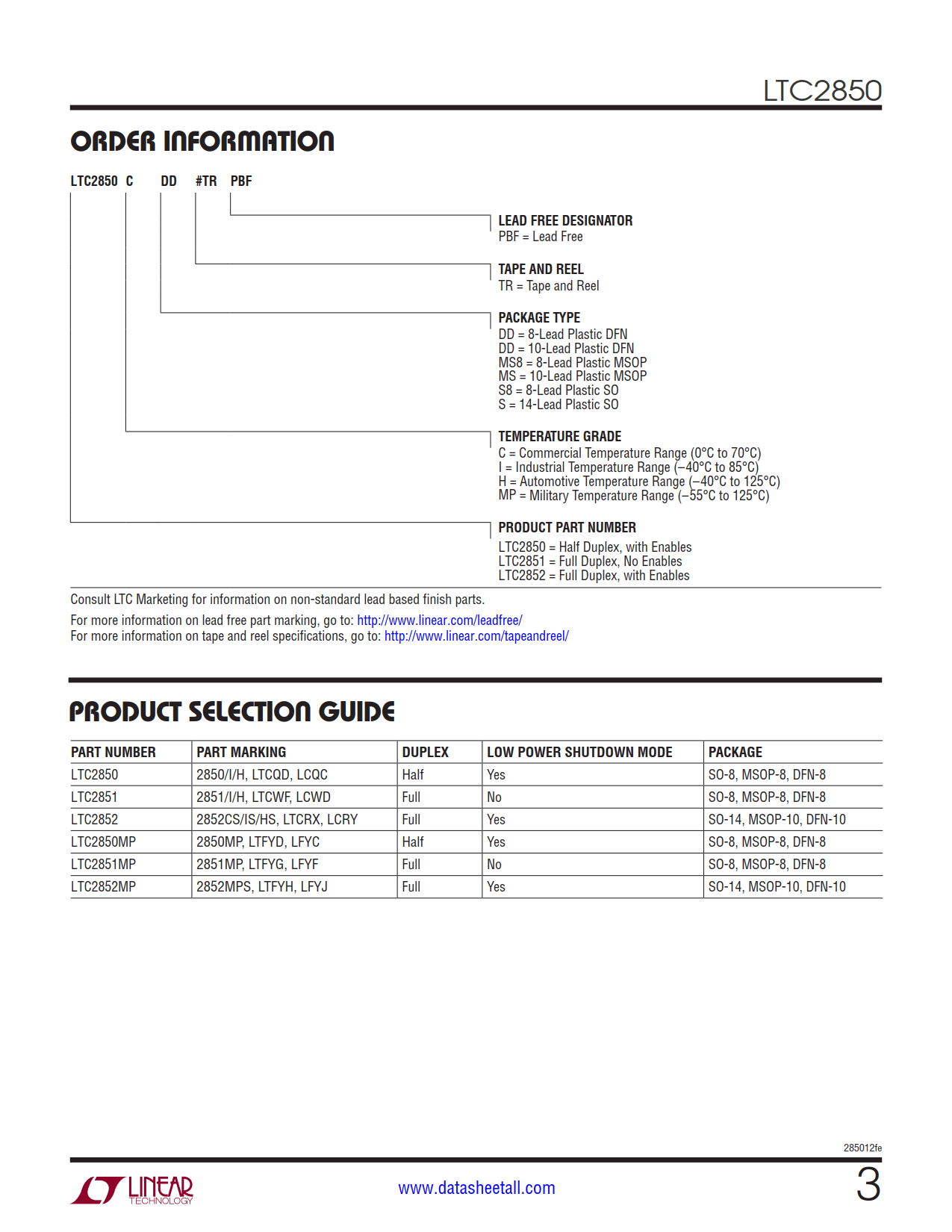

LTC2850 Datasheet(Picture)

LTC2850 Features

  • 3.3V Supply Voltage
  • 20Mbps Maximum Data Rate
  • No Damage or Latchup Up to ±15kV HBM
  • High Input Impedance Supports 256 Nodes (C, I‑Grade)
  • Operation Up to 125°C (H-Grade)
  • Guaranteed Failsafe Receiver Operation Over the Entire Common Mode Range
  • Current Limited Drivers and Thermal Shutdown
  • Delayed Micropower Shutdown: 5μA Maximum
    (C, I-Grade)
  • Power Up/Down Glitch-Free Driver Outputs
  • Low Operating Current: 370μA Typical in Receive Mode
  • Compatible with TIA/EIA-485-A Specifications
  • Available in 8-Pin and 10-Pin 3mm × 3mm DFN, 8-Pin and 10-Pin MSOP, and 8-Pin and 14-Pin SO Packages

LTC2850 Applications

  • Low Power RS485/RS422 Transceiver
  • Level Translator
  • Backplane Transceiver

LTC2850 Description

The LTC2850 are low power, 20Mbps RS485/RS422 transceivers operating on 3.3V supplies. The receiver has a one-eighth unit load supporting up to 256 nodes per bus (C, I-grade), and a failsafe feature that guarantees a high output state under conditions of floating or shorted inputs.

The driver maintains a high output impedance over the entire common mode range when disabled or when the supply is removed. Excessive power dissipation caused by bus contention or a fault is prevented by current limiting all outputs and by thermal shutdown.

Enhanced ESD protection allows these parts to withstand up to ±15kV (human body model) on the transceiver interface pins without latchup or damage.

LTC2850 Datasheet Related Parts
