LTC2642 Datasheet

LTC2642 Datasheet

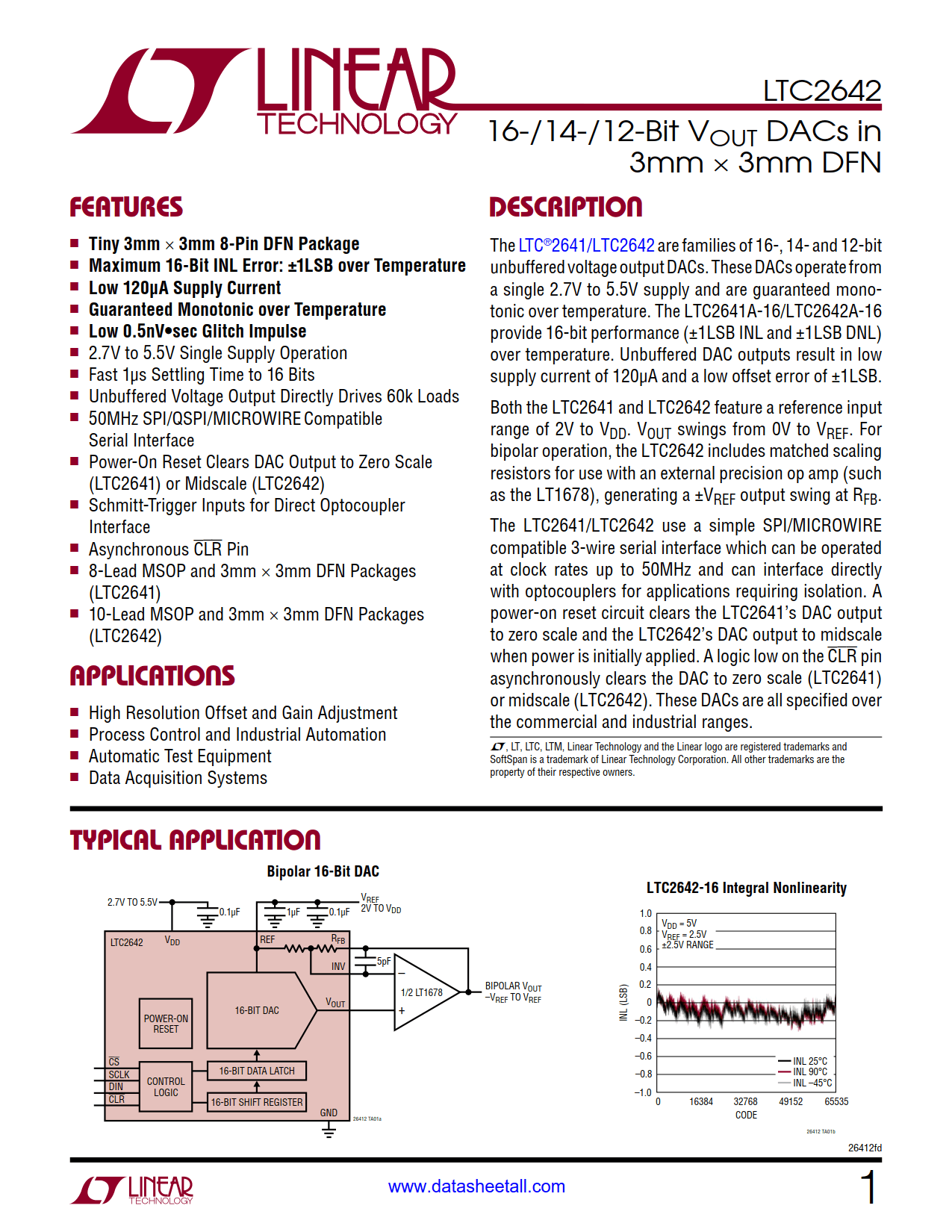

16-/14-/12-Bit VOUT DACs in 3mm × 3mm DFN
Part No.: LTC2642
Page: 24 Pages
Size: 326 KB
Manufacturer: Linear Technology
Logo:
Views: 3
Update Time: 2023-10-25 14:16:17
DataSheet: Download

LTC2642 Datasheet Applicable Part

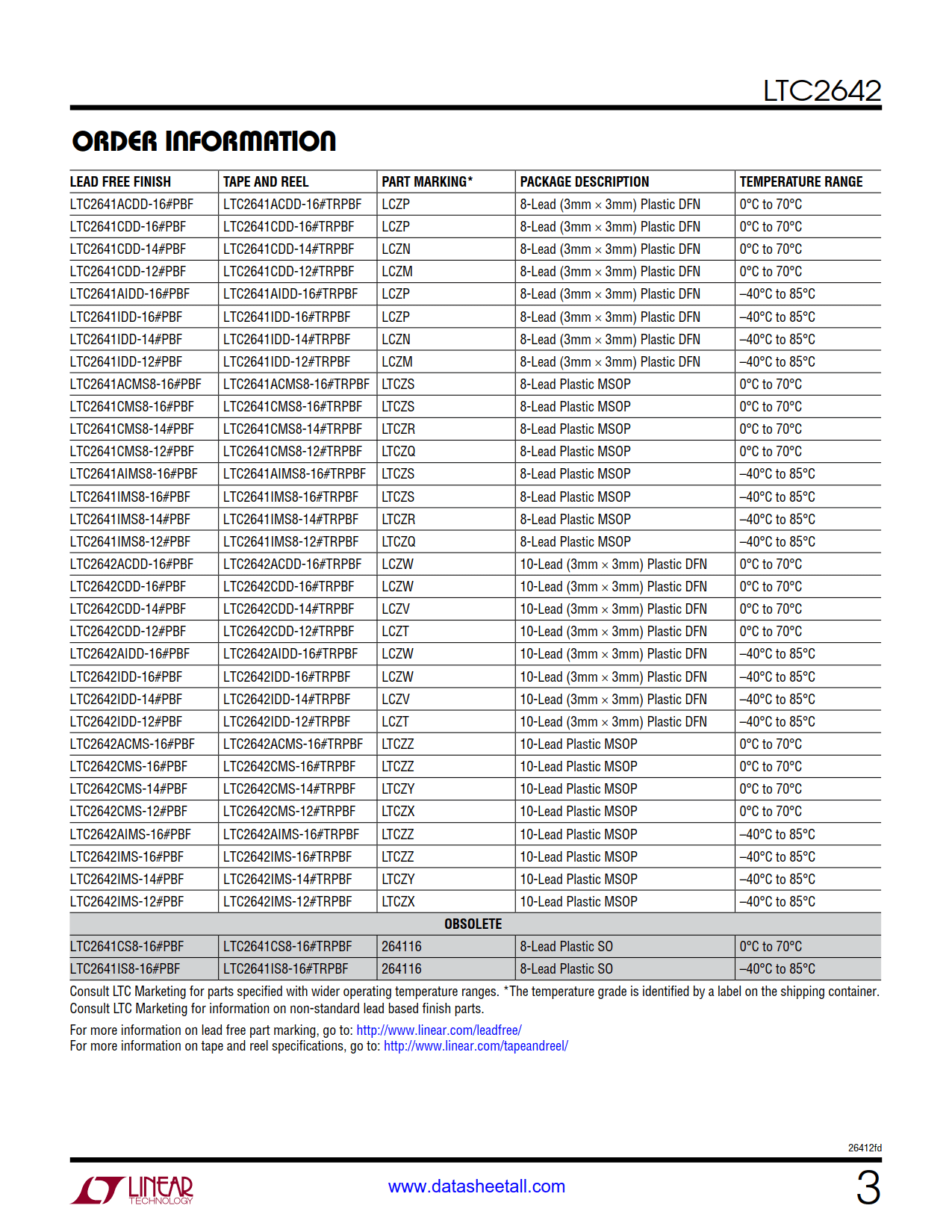

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC2642ACDD-16#PBF Tube 121 LCZW 1 10 0°C ~ 70°C 10-Lead (3mm × 3mm) Plastic DFN
LTC2642ACDD-16#TRPBF Reel 2500 LCZW 1 10 0°C ~ 70°C 10-Lead (3mm × 3mm) Plastic DFN
LTC2642ACDD-16#TRMPBF Reel 500 LCZW 1 10 0°C ~ 70°C 10-Lead (3mm × 3mm) Plastic DFN
LTC2642CDD-16#PBF Tube 121 LCZW 1 10 0°C ~ 70°C 10-Lead (3mm × 3mm) Plastic DFN
LTC2642CDD-16#TRPBF Reel 2500 LCZW 1 10 0°C ~ 70°C 10-Lead (3mm × 3mm) Plastic DFN
LTC2642CDD-16#TRMPBF Reel 500 LCZW 1 10 0°C ~ 70°C 10-Lead (3mm × 3mm) Plastic DFN
LTC2642CDD-14#PBF Tube 121 LCZV 1 10 0°C ~ 70°C 10-Lead (3mm × 3mm) Plastic DFN
LTC2642CDD-14#TRPBF Reel 2500 LCZV 1 10 0°C ~ 70°C 10-Lead (3mm × 3mm) Plastic DFN
LTC2642CDD-14#TRMPBF Reel 500 LCZV 1 10 0°C ~ 70°C 10-Lead (3mm × 3mm) Plastic DFN
LTC2642CDD-12#PBF Tube 121 LCZT 1 10 0°C ~ 70°C 10-Lead (3mm × 3mm) Plastic DFN
LTC2642CDD-12#TRPBF Reel 2500 LCZT 1 10 0°C ~ 70°C 10-Lead (3mm × 3mm) Plastic DFN
LTC2642CDD-12#TRMPBF Reel 500 LCZT 1 10 0°C ~ 70°C 10-Lead (3mm × 3mm) Plastic DFN
LTC2642AIDD-16#PBF Tube 121 LCZW 1 10 -40°C ~ 85°C 10-Lead (3mm × 3mm) Plastic DFN
LTC2642AIDD-16#TRPBF Reel 2500 LCZW 1 10 -40°C ~ 85°C 10-Lead (3mm × 3mm) Plastic DFN
LTC2642AIDD-16#TRMPBF Reel 500 LCZW 1 10 -40°C ~ 85°C 10-Lead (3mm × 3mm) Plastic DFN
LTC2642IDD-16#PBF Tube 121 LCZW 1 10 -40°C ~ 85°C 10-Lead (3mm × 3mm) Plastic DFN
LTC2642IDD-16#TRPBF Reel 2500 LCZW 1 10 -40°C ~ 85°C 10-Lead (3mm × 3mm) Plastic DFN
LTC2642IDD-16#TRMPBF Reel 500 LCZW 1 10 -40°C ~ 85°C 10-Lead (3mm × 3mm) Plastic DFN
LTC2642IDD-14#PBF Tube 121 LCZV 1 10 -40°C ~ 85°C 10-Lead (3mm × 3mm) Plastic DFN
LTC2642IDD-14#TRPBF Reel 2500 LCZV 1 10 -40°C ~ 85°C 10-Lead (3mm × 3mm) Plastic DFN
LTC2642IDD-14#TRMPBF Reel 500 LCZV 1 10 -40°C ~ 85°C 10-Lead (3mm × 3mm) Plastic DFN
LTC2642IDD-12#PBF Tube 121 LCZT 1 10 -40°C ~ 85°C 10-Lead (3mm × 3mm) Plastic DFN
LTC2642IDD-12#TRPBF Reel 2500 LCZT 1 10 -40°C ~ 85°C 10-Lead (3mm × 3mm) Plastic DFN
LTC2642IDD-12#TRMPBF Reel 500 LCZT 1 10 -40°C ~ 85°C 10-Lead (3mm × 3mm) Plastic DFN
LTC2642ACMS-16#PBF Tube 50 LTCZZ 1 10 0°C ~ 70°C 10-Lead Plastic MSOP
LTC2642ACMS-16#TRPBF Reel 2500 LTCZZ 1 10 0°C ~ 70°C 10-Lead Plastic MSOP
LTC2642ACMS-16#TRMPBF Reel 500 LTCZZ 1 10 0°C ~ 70°C 10-Lead Plastic MSOP
LTC2642CMS-16#PBF Tube 50 LTCZZ 1 10 0°C ~ 70°C 10-Lead Plastic MSOP
LTC2642CMS-16#TRPBF Reel 2500 LTCZZ 1 10 0°C ~ 70°C 10-Lead Plastic MSOP
LTC2642CMS-16#TRMPBF Reel 500 LTCZZ 1 10 0°C ~ 70°C 10-Lead Plastic MSOP
LTC2642CMS-14#PBF Tube 50 LTCZY 1 10 0°C ~ 70°C 10-Lead Plastic MSOP
LTC2642CMS-14#TRPBF Reel 2500 LTCZY 1 10 0°C ~ 70°C 10-Lead Plastic MSOP
LTC2642CMS-14#TRMPBF Reel 500 LTCZY 1 10 0°C ~ 70°C 10-Lead Plastic MSOP
LTC2642CMS-12#PBF Tube 50 LTCZX 1 10 0°C ~ 70°C 10-Lead Plastic MSOP
LTC2642CMS-12#TRPBF Reel 2500 LTCZX 1 10 0°C ~ 70°C 10-Lead Plastic MSOP
LTC2642CMS-12#TRMPBF Reel 500 LTCZX 1 10 0°C ~ 70°C 10-Lead Plastic MSOP
LTC2642AIMS-16#PBF Tube 50 LTCZZ 1 10 -40°C ~ 85°C 10-Lead Plastic MSOP
LTC2642AIMS-16#TRPBF Reel 2500 LTCZZ 1 10 -40°C ~ 85°C 10-Lead Plastic MSOP
LTC2642AIMS-16#TRMPBF Reel 500 LTCZZ 1 10 -40°C ~ 85°C 10-Lead Plastic MSOP
LTC2642IMS-16#PBF Tube 50 LTCZZ 1 10 -40°C ~ 85°C 10-Lead Plastic MSOP
LTC2642IMS-16#TRPBF Reel 2500 LTCZZ 1 10 -40°C ~ 85°C 10-Lead Plastic MSOP
LTC2642IMS-16#TRMPBF Reel 500 LTCZZ 1 10 -40°C ~ 85°C 10-Lead Plastic MSOP
LTC2642IMS-14#PBF Tube 50 LTCZY 1 10 -40°C ~ 85°C 10-Lead Plastic MSOP
LTC2642IMS-14#TRPBF Reel 2500 LTCZY 1 10 -40°C ~ 85°C 10-Lead Plastic MSOP
LTC2642IMS-14#TRMPBF Reel 500 LTCZY 1 10 -40°C ~ 85°C 10-Lead Plastic MSOP
LTC2642IMS-12#PBF Tube 50 LTCZX 1 10 -40°C ~ 85°C 10-Lead Plastic MSOP
LTC2642IMS-12#TRPBF Reel 2500 LTCZX 1 10 -40°C ~ 85°C 10-Lead Plastic MSOP
LTC2642IMS-12#TRMPBF Reel 500 LTCZX 1 10 -40°C ~ 85°C 10-Lead Plastic MSOP
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC2642 Datasheet(PDF)

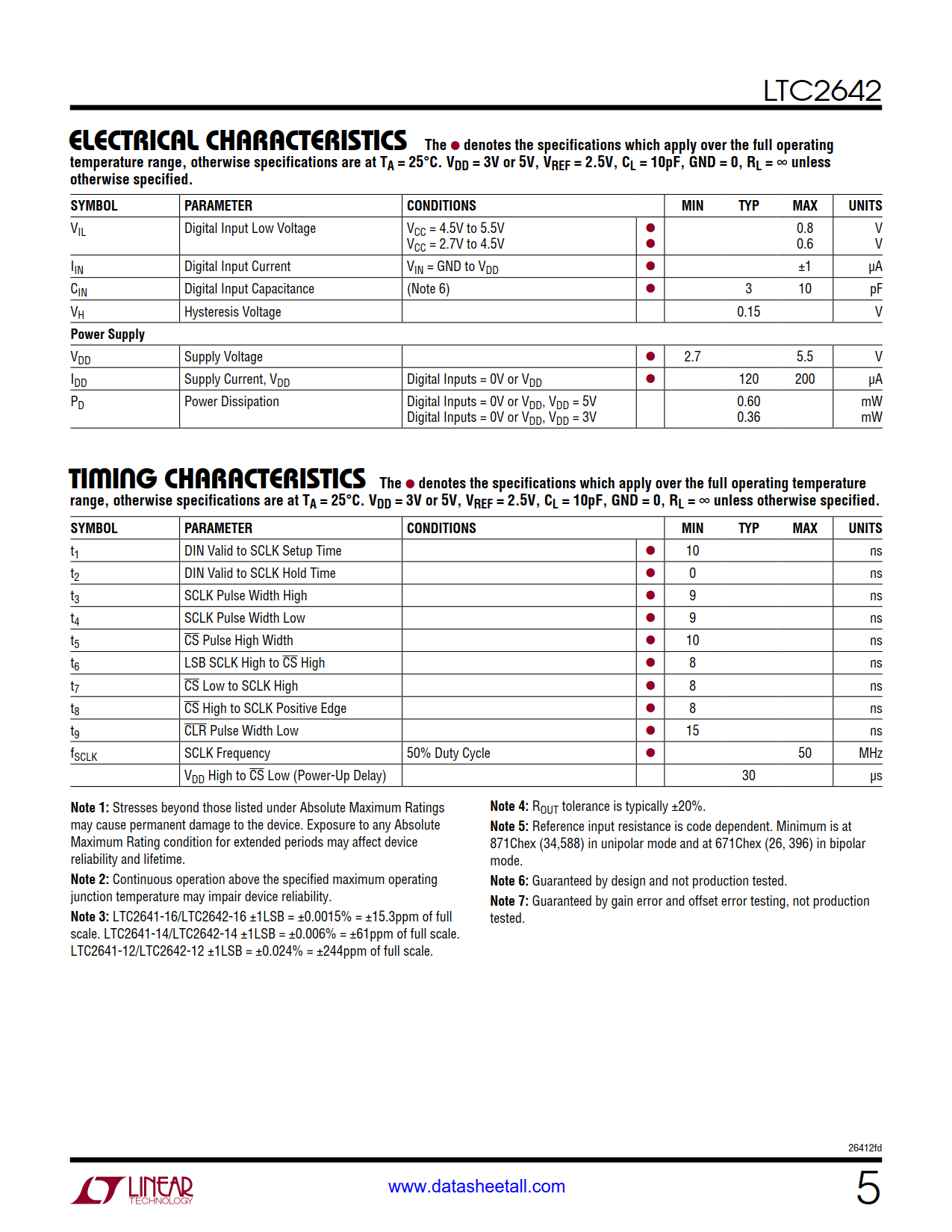

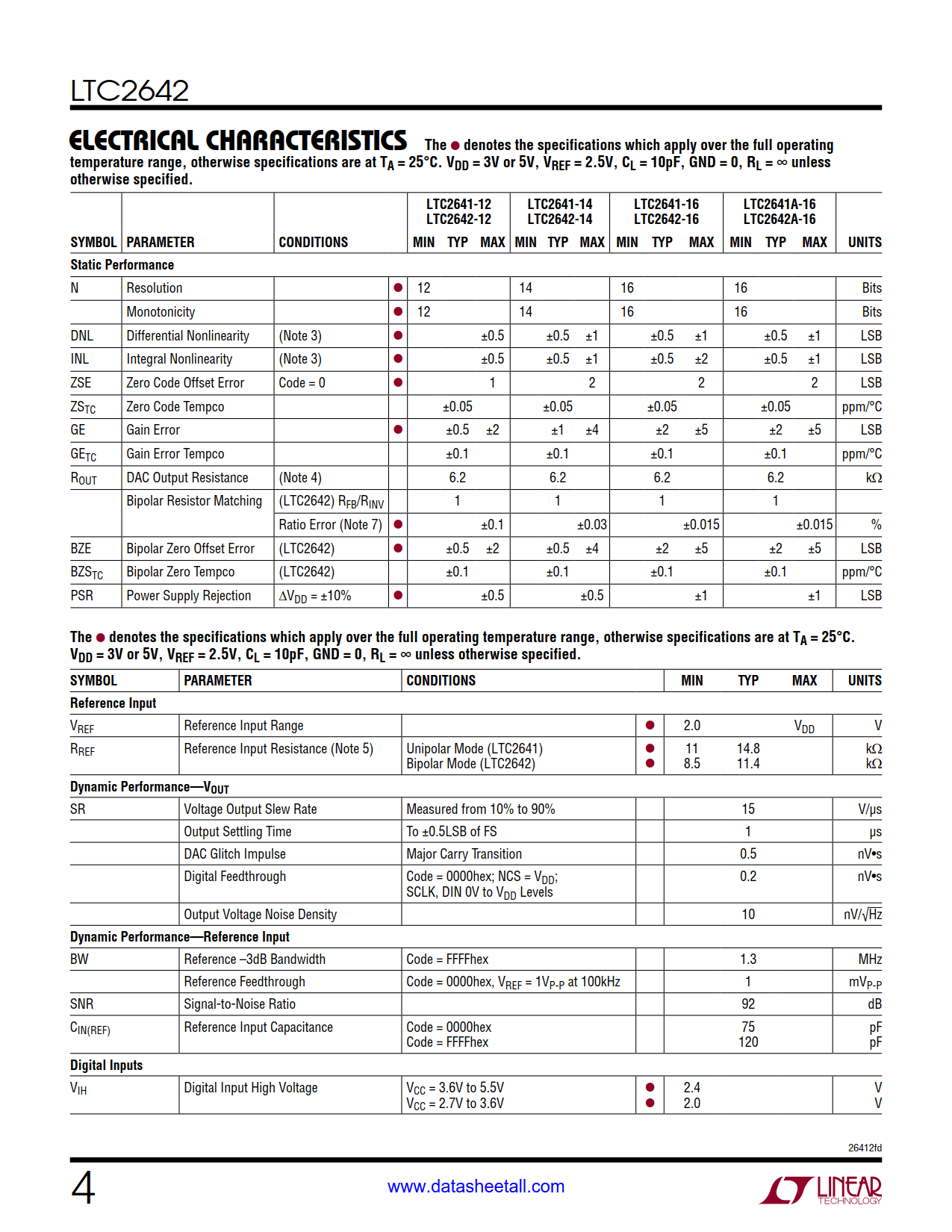

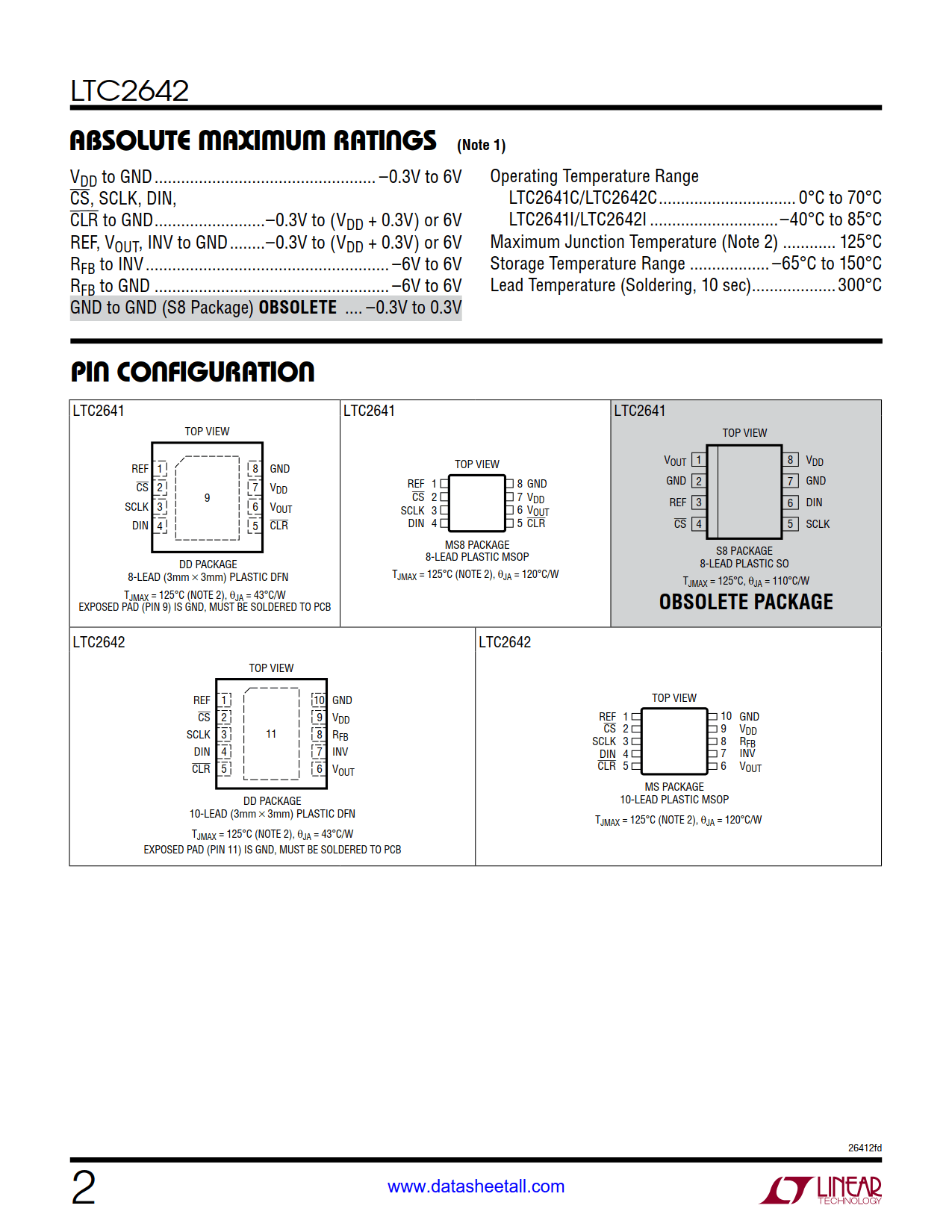

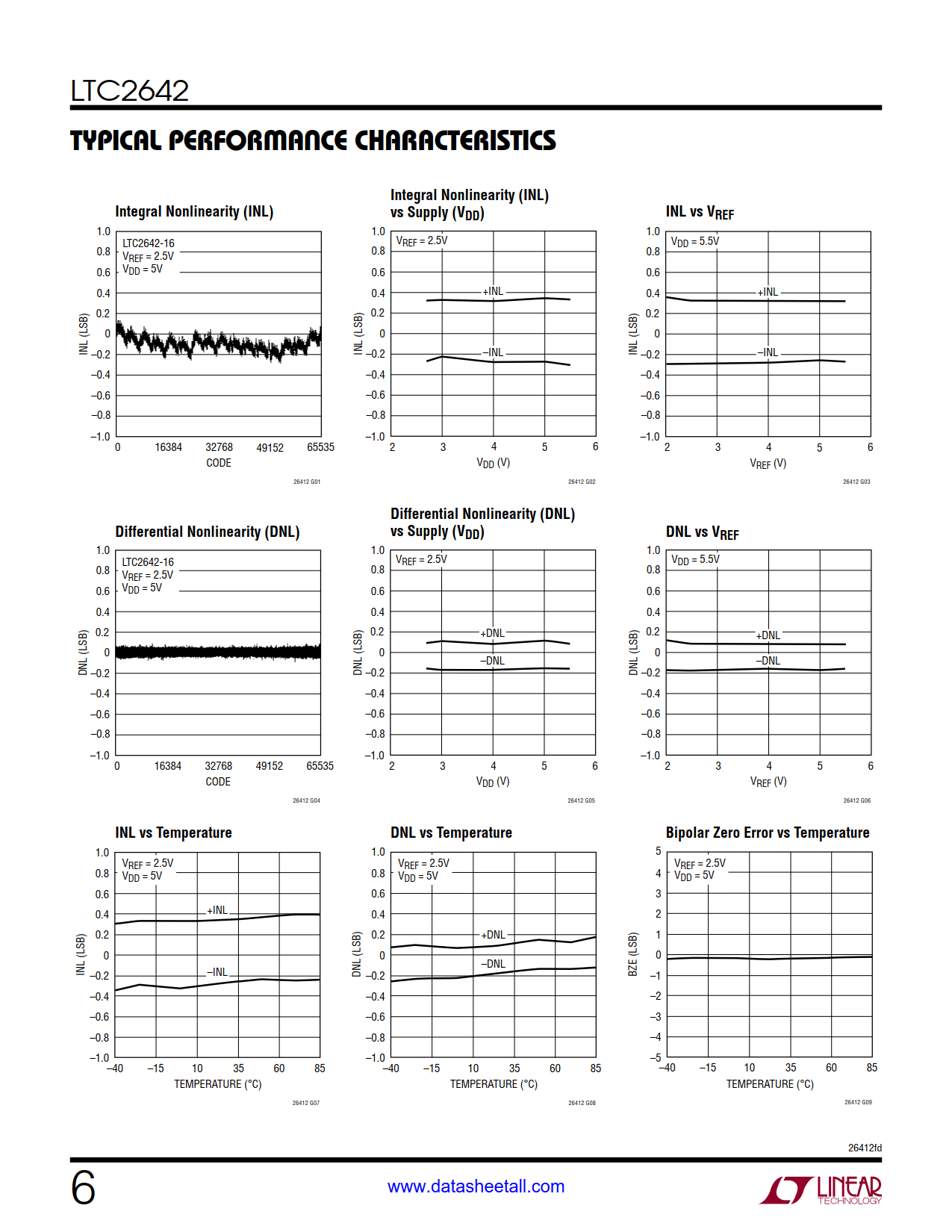

LTC2642 Datasheet(Picture)

LTC2642 Features

  • Tiny 3mm × 3mm 8-Pin DFN Package
  • Maximum 16-Bit INL Error: ±1LSB over Temperature
  • Low 120µA Supply Current
  • Guaranteed Monotonic over Temperature
  • Low 0.5nV•sec Glitch Impulse
  • 2.7V to 5.5V Single Supply Operation
  • Fast 1µs Settling Time to 16 Bits
  • Unbuffered Voltage Output Directly Drives 60k Loads
  • 50MHz SPI™/QSPI™/MICROWIRE™ Compatible Serial Interface
  • Power-On Reset Clears DAC Output to Midscale (LTC2642)
  • Schmitt-Trigger Inputs for Direct Optocoupler Interface
  • Asynchronous CLR Pin
  • 10-Lead MSOP and 3mm × 3mm DFN Packages

LTC2642 Applications

  • High Resolution Offset and Gain Adjustment
  • Process Control and Industrial Automation
  • Automatic Test Equipment
  • Data Aquisition Systems

LTC2642 Description

The LTC2642 are families of 16-, 14- and 12-bit unbuffered voltage output DACs. These DACs operate from a single 2.7V to 5.5V supply and are guaranteed monotonic over temperature. The LTC2642A-16 provide 16-bit performance (±1LSB INL and ±1LSB DNL) over temperature. Unbuffered DAC outputs result in low supply current of 120µA and a low offset error of ±1LSB.

The LTC2642 feature a reference input range of 2V to VDD. VOUT swings from 0V to VREF. For bipolar operation, the LTC2642 includes matched scaling resistors for use with an external precision op amp (such as the LT1678), generating a ±VREF output swing at RFB.

The LTC2642 use a simple SPI/MICROWIRE compatible 3-wire serial interface which can be operated at clock rates up to 50MHz and can interface directly with optocouplers for applications requiring isolation. A power-on reset circuit clears the LTC2641’s DAC output to zero scale and the LTC2642’s DAC output to midscale when power is initially applied. A logic low on the CLR pin asynchronously clears the DAC to midscale (LTC2642). These DACs are all specified over the commercial and industrial ranges.
