| Part No.： | LTC2614 |
| Page： | 16 Pages |
| Size： | 315 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2024-03-20 09:38:01 |
| DataSheet： | Download |

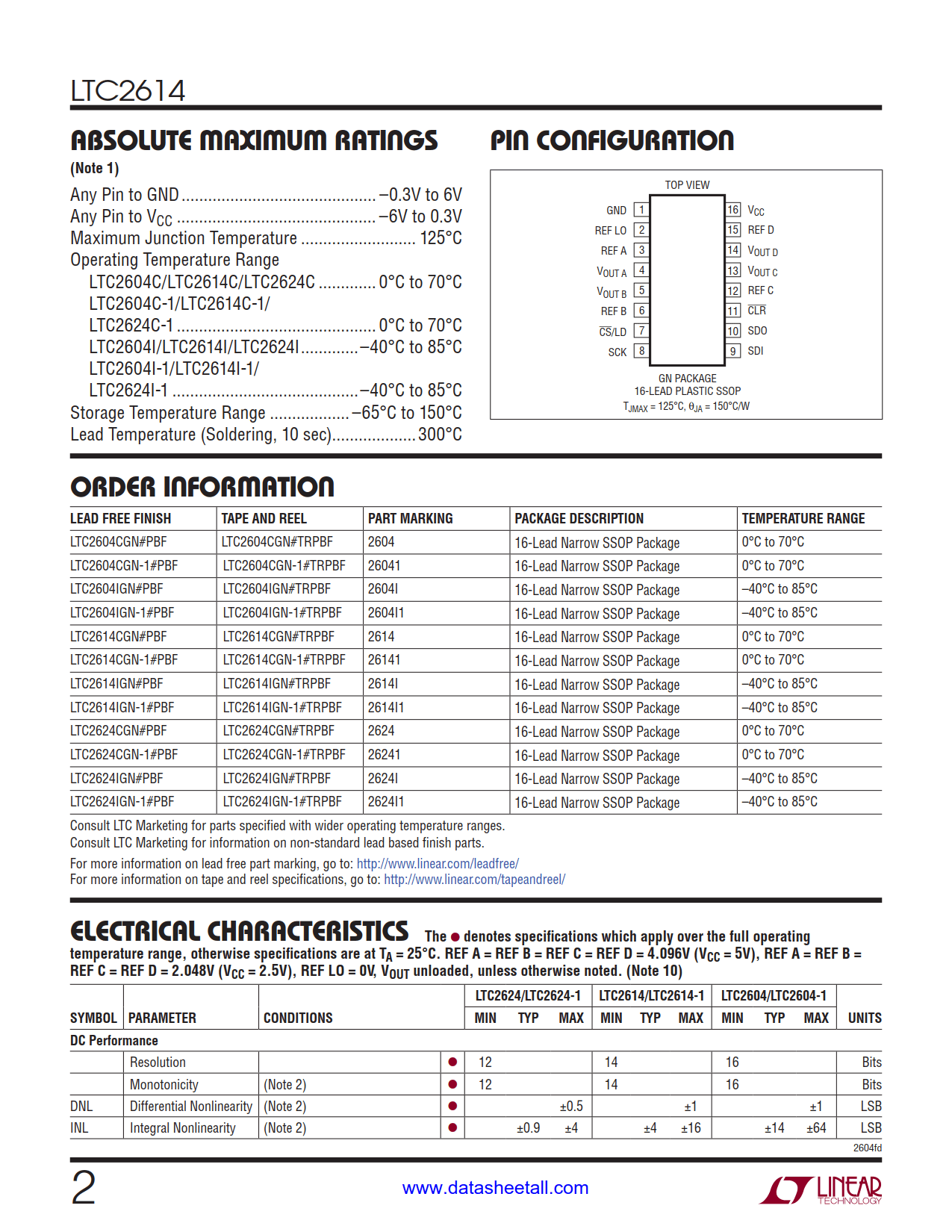

| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC2614CGN#PBF | Tube | 100 | 2614 | 1 | 16 | 0°C ~70°C | 16-Lead Narrow SSOP Package | |
| LTC2614CGN#TRPBF | Reel | 2500 | 2614 | 1 | 16 | 0°C ~70°C | 16-Lead Narrow SSOP Package | |
| LTC2614CGN#TRMPBF | Reel | 500 | 2614 | 1 | 16 | 0°C ~70°C | 16-Lead Narrow SSOP Package | |
| LTC2614CGN-1#PBF | Tube | 100 | 26141 | 1 | 16 | 0°C ~70°C | 16-Lead Narrow SSOP Package | |
| LTC2614CGN-1#TRPBF | Reel | 2500 | 26141 | 1 | 16 | 0°C ~70°C | 16-Lead Narrow SSOP Package | |
| LTC2614CGN-1#TRMPBF | Reel | 500 | 26141 | 1 | 16 | 0°C ~70°C | 16-Lead Narrow SSOP Package | |
| LTC2614IGN#PBF | Tube | 100 | 2614I | 1 | 16 | -45°C ~85°C | 16-Lead Narrow SSOP Package | |
| LTC2614IGN#TRPBF | Reel | 2500 | 2614I | 1 | 16 | -45°C ~85°C | 16-Lead Narrow SSOP Package | |
| LTC2614IGN#TRMPBF | Reel | 500 | 2614I | 1 | 16 | -45°C ~85°C | 16-Lead Narrow SSOP Package | |
| LTC2614IGN-1#PBF | Tube | 100 | 2614I1 | 1 | 16 | -45°C ~85°C | 16-Lead Narrow SSOP Package | |
| LTC2614IGN-1#TRPBF | Reel | 2500 | 2614I1 | 1 | 16 | -45°C ~85°C | 16-Lead Narrow SSOP Package | |
| LTC2614IGN-1#TRMPBF | Reel | 500 | 2614I1 | 1 | 16 | -45°C ~85°C | 16-Lead Narrow SSOP Package |

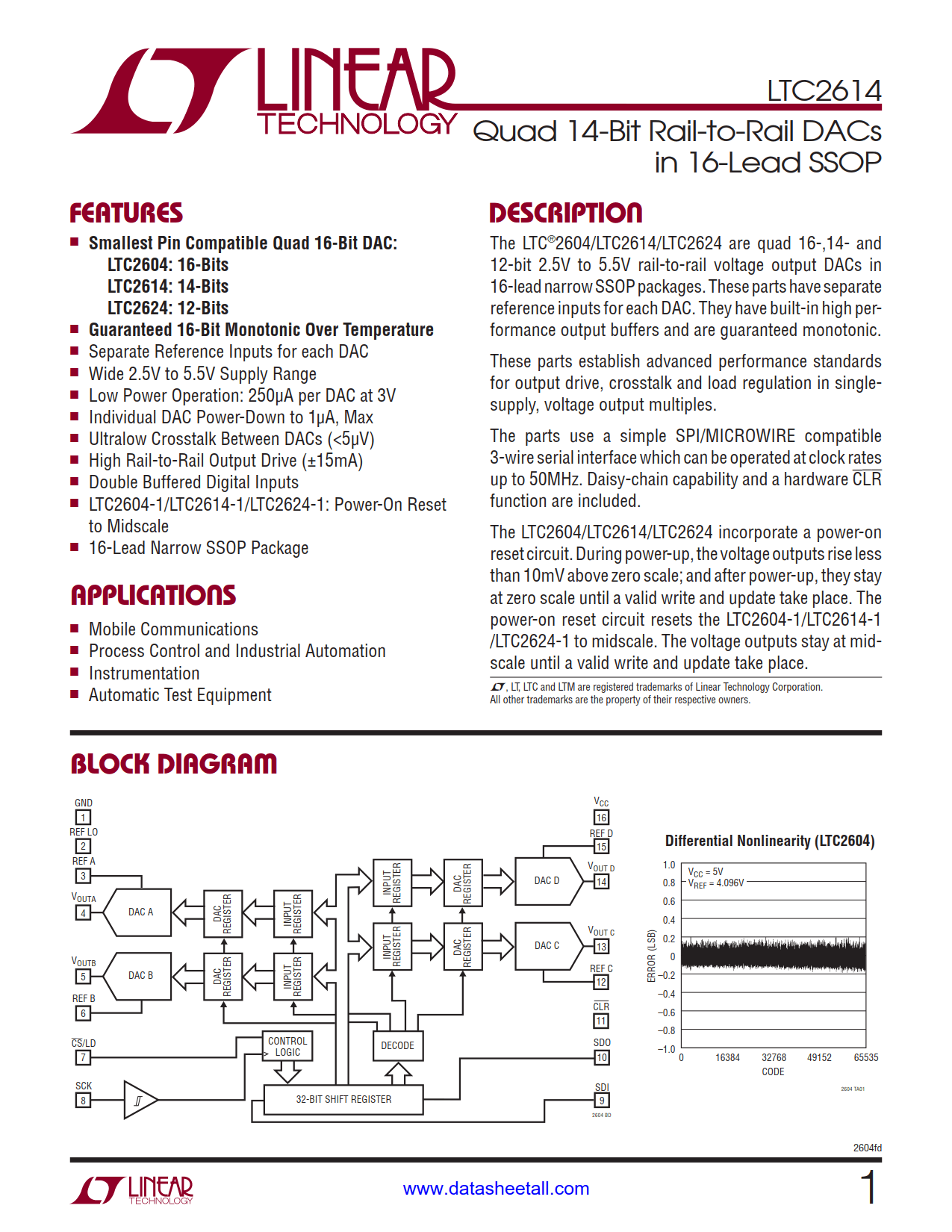

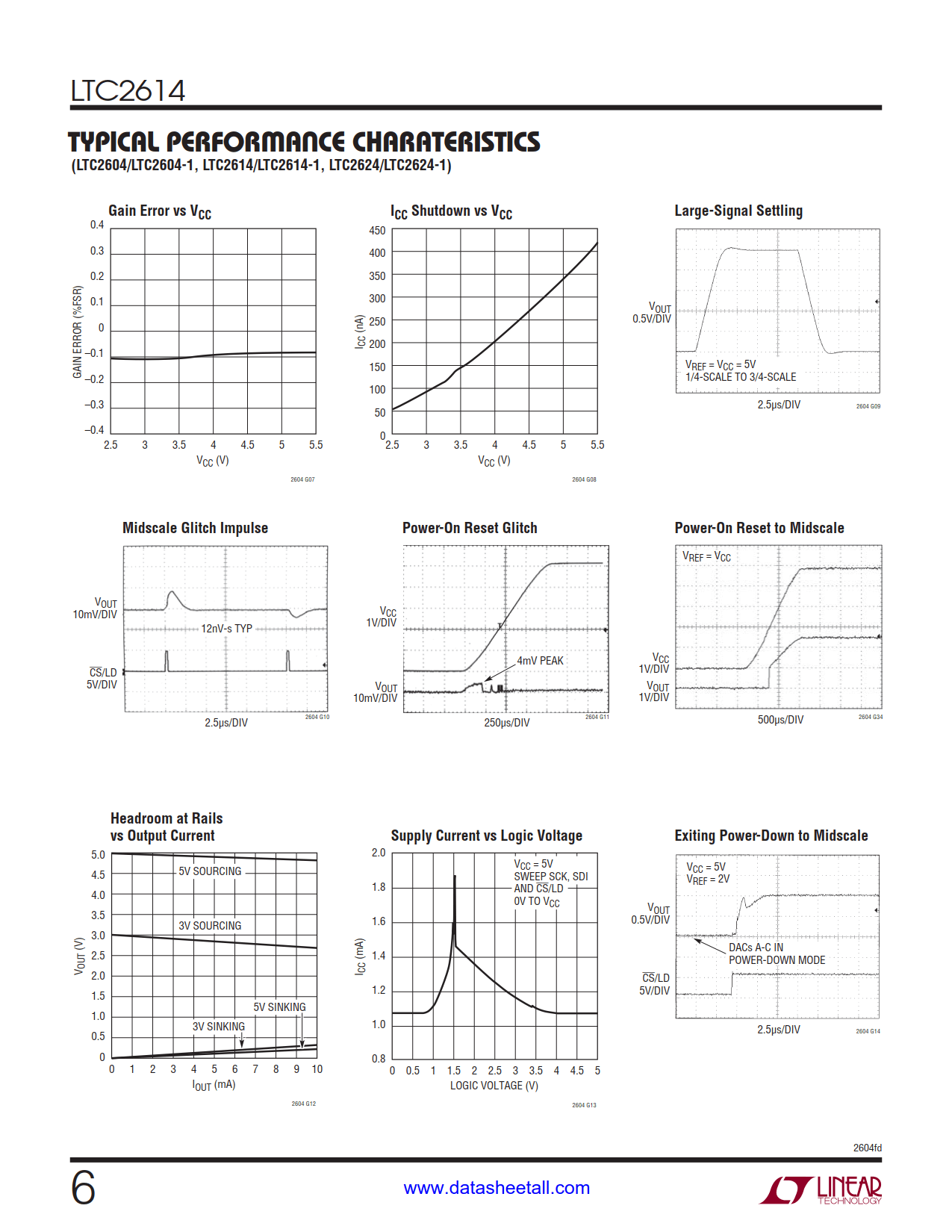

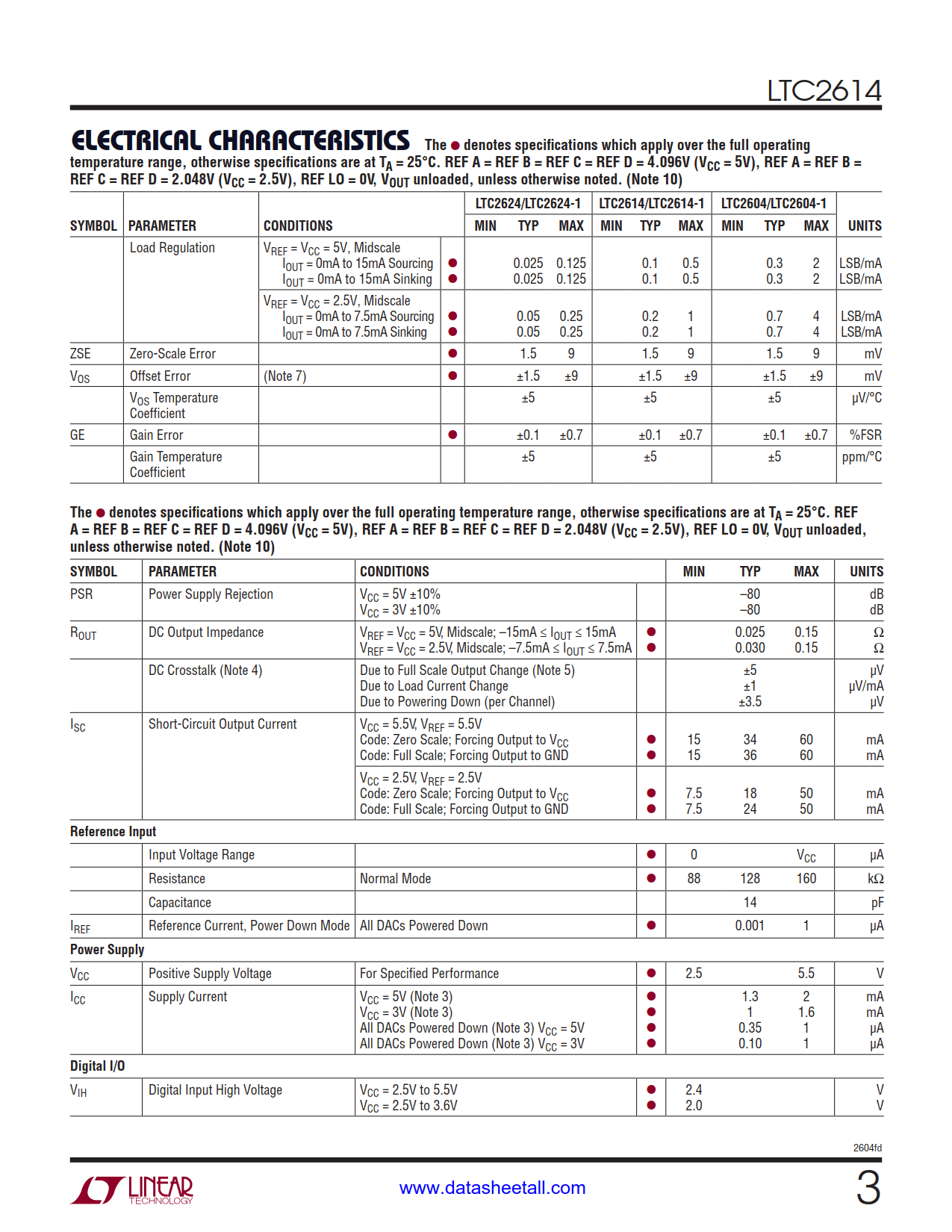

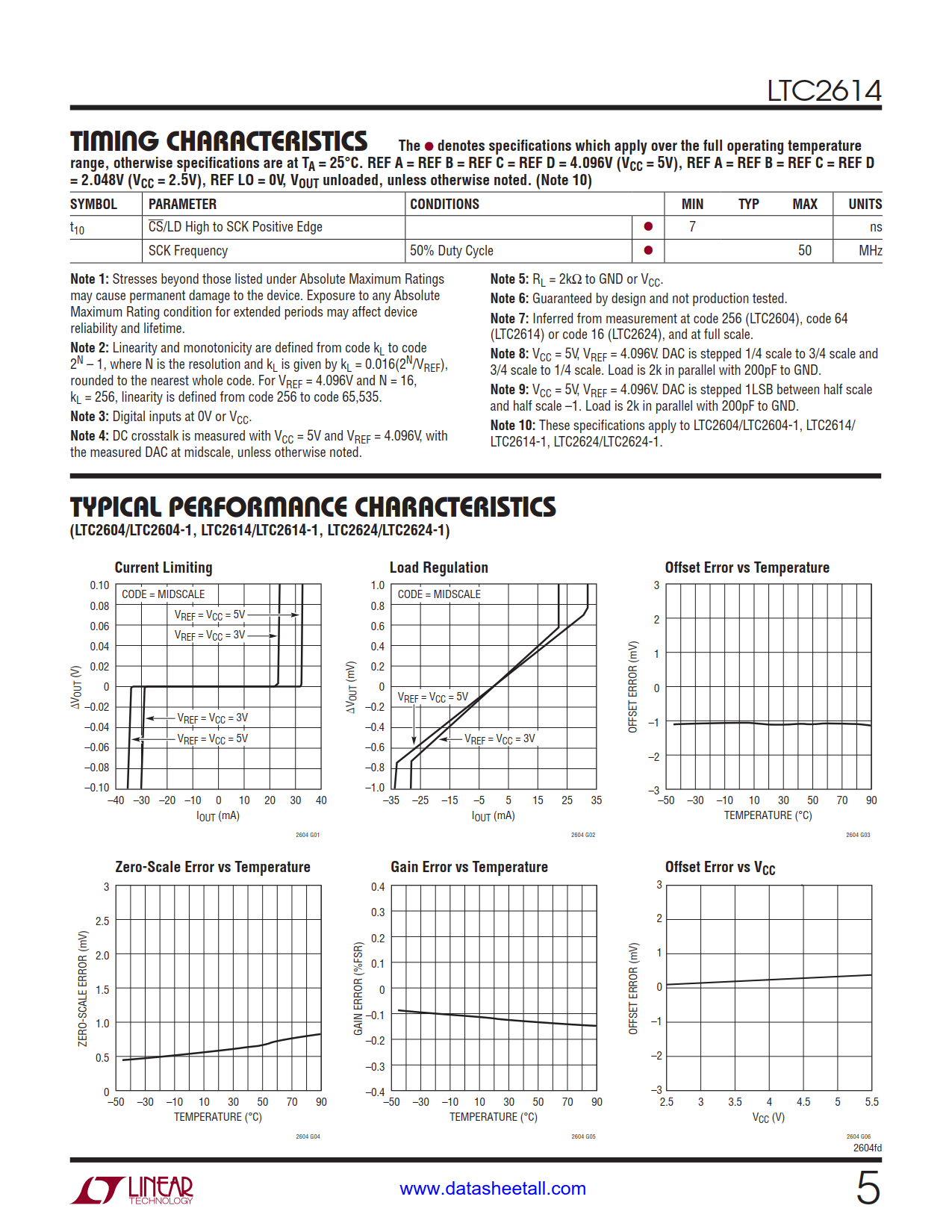

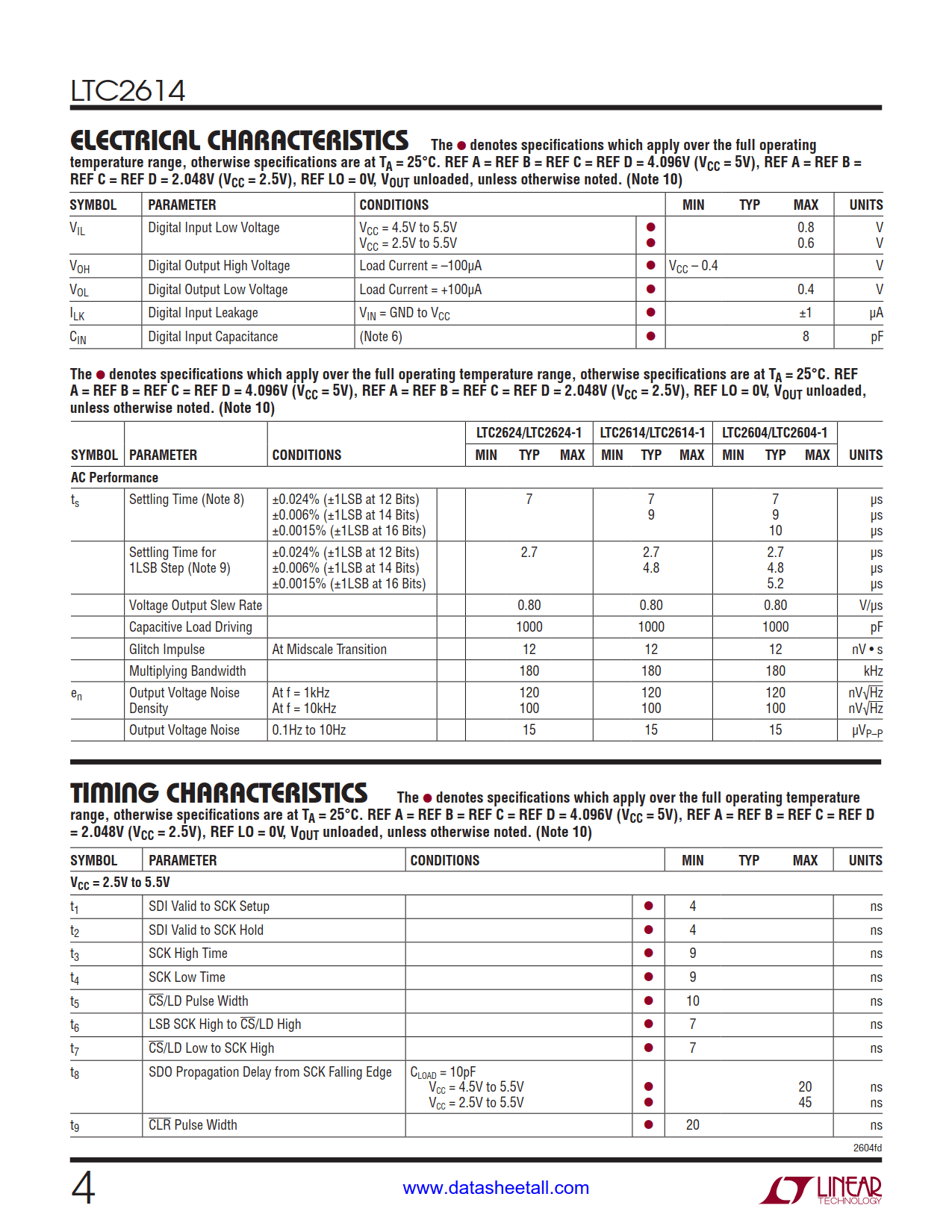

The LTC2614 are quad 14-bit 2.5V to 5.5V rail-to-rail voltage output DACs in 16-lead narrow SSOP packages. These parts have separate reference inputs for each DAC. They have built-in high performance output buffers and are guaranteed monotonic.
These parts establish advanced performance standards for output drive, crosstalk and load regulation in single supply, voltage output multiples.
The parts use a simple SPI/MICROWIRE compatible 3-wire serial interface which can be operated at clock rates up to 50MHz. Daisy-chain capability and a hardware CLR function are included.
The LTC2614 incorporate a poweron reset circuit. During power-up, the voltage outputs rise less than 10mV above zero scale; and after power-up, they stay at zero scale until a valid write and update take place. The power-on reset circuit resets the LTC2614-1 to midscale. The voltage outputs stay at midscale until a valid write and update take place.
