| Part No.： | LTC2602 |
| Page： | 16 Pages |
| Size： | 259 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-11-08 11:44:16 |
| DataSheet： | Download |

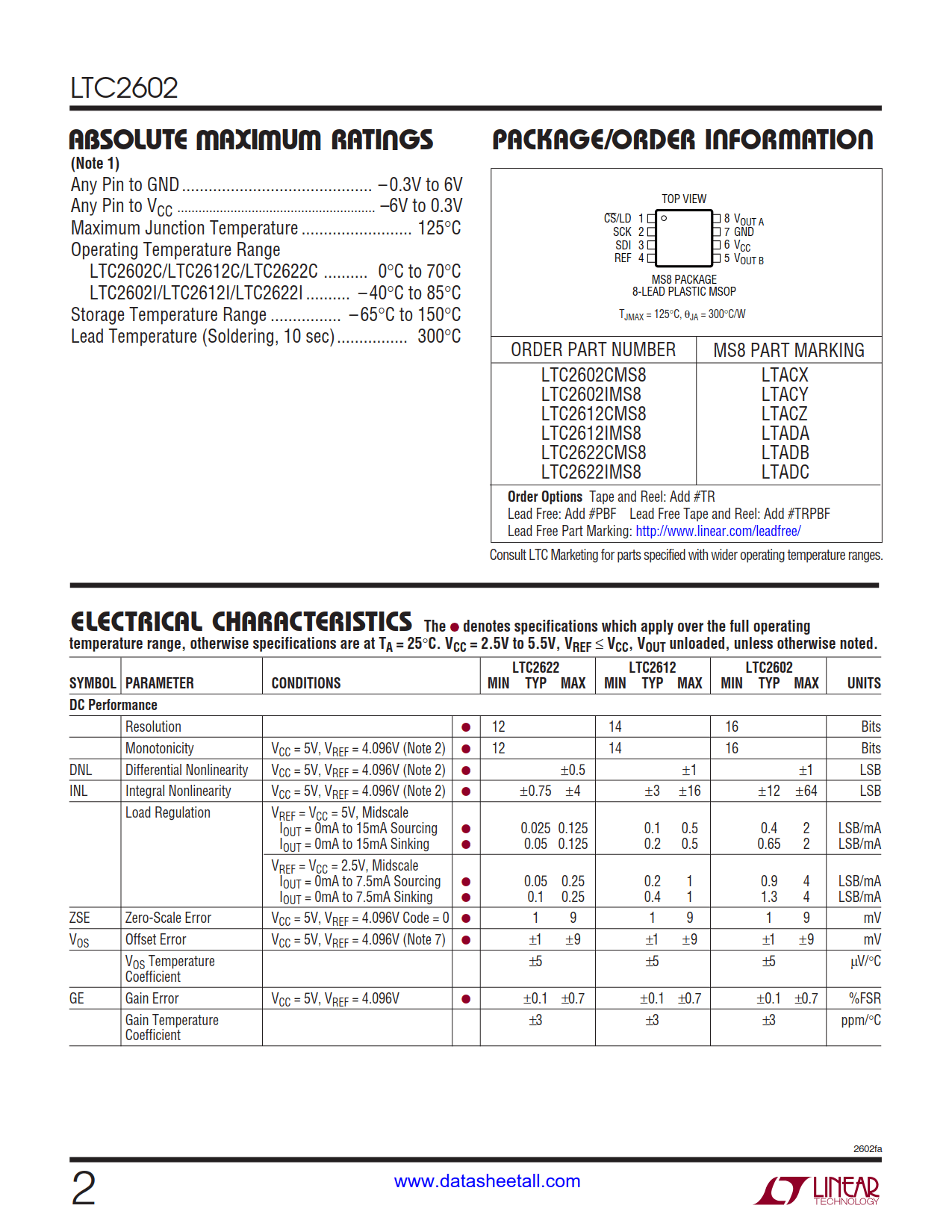

| Part No. | Packaging | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC2602CMS8#PBF | Tube | 50 | LTACX | 1 | 8 | 0°C ~ 70°C | 8-Lead MSOP | |
| LTC2602CMS8#TRPBF | Reel | 2500 | LTACX | 1 | 8 | 0°C ~ 70°C | 8-Lead MSOP | |
| LTC2602CMS8#TRMPBF | Reel | 500 | LTACX | 1 | 8 | 0°C ~ 70°C | 8-Lead MSOP | |
| LTC2602IMS8#PBF | Tube | 50 | LTACY | 1 | 8 | -40°C ~ 85°C | 8-Lead MSOP | |
| LTC2602IMS8#TRPBF | Reel | 2500 | LTACY | 1 | 8 | -40°C ~ 85°C | 8-Lead MSOP | |
| LTC2602IMS8#TRMPBF | Reel | 500 | LTACY | 1 | 8 | -40°C ~ 85°C | 8-Lead MSOP |

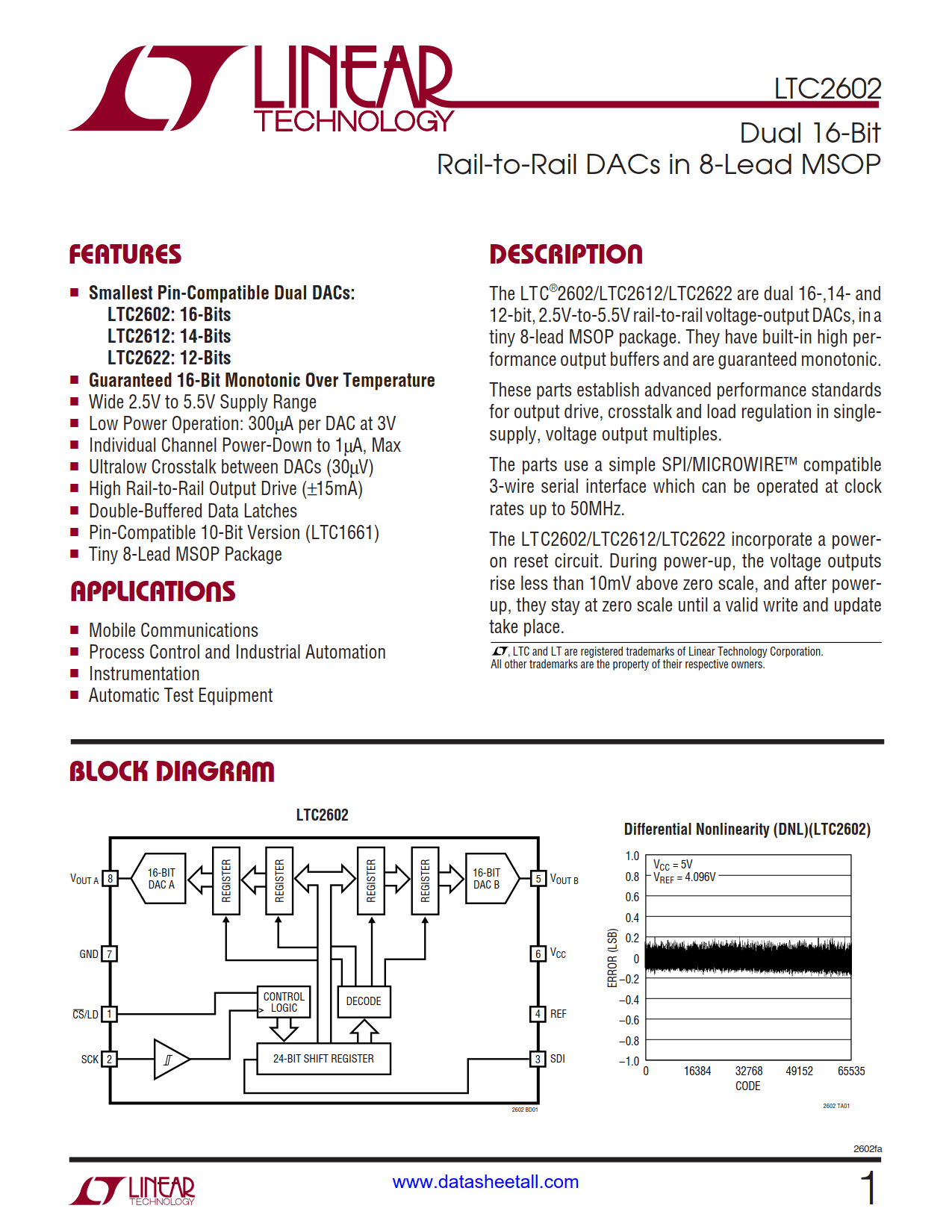

The LTC2602 are dual 16-bit, 2.5V-to-5.5V rail-to-rail voltage-output DACs, in a tiny 8-lead MSOP package. They have built-in high performance output buffers and are guaranteed monotonic.
These parts establish advanced performance standards for output drive, crosstalk and load regulation in single-supply, voltage output multiples.
The parts use a simple SPI/MICROWIRE™ compatible 3-wire serial interface which can be operated at clock rates up to 50MHz.
The LTC2602 incorporate a power-on reset circuit. During power-up, the voltage outputs rise less than 10mV above zero scale, and after power-up, they stay at zero scale until a valid write and update take place.
