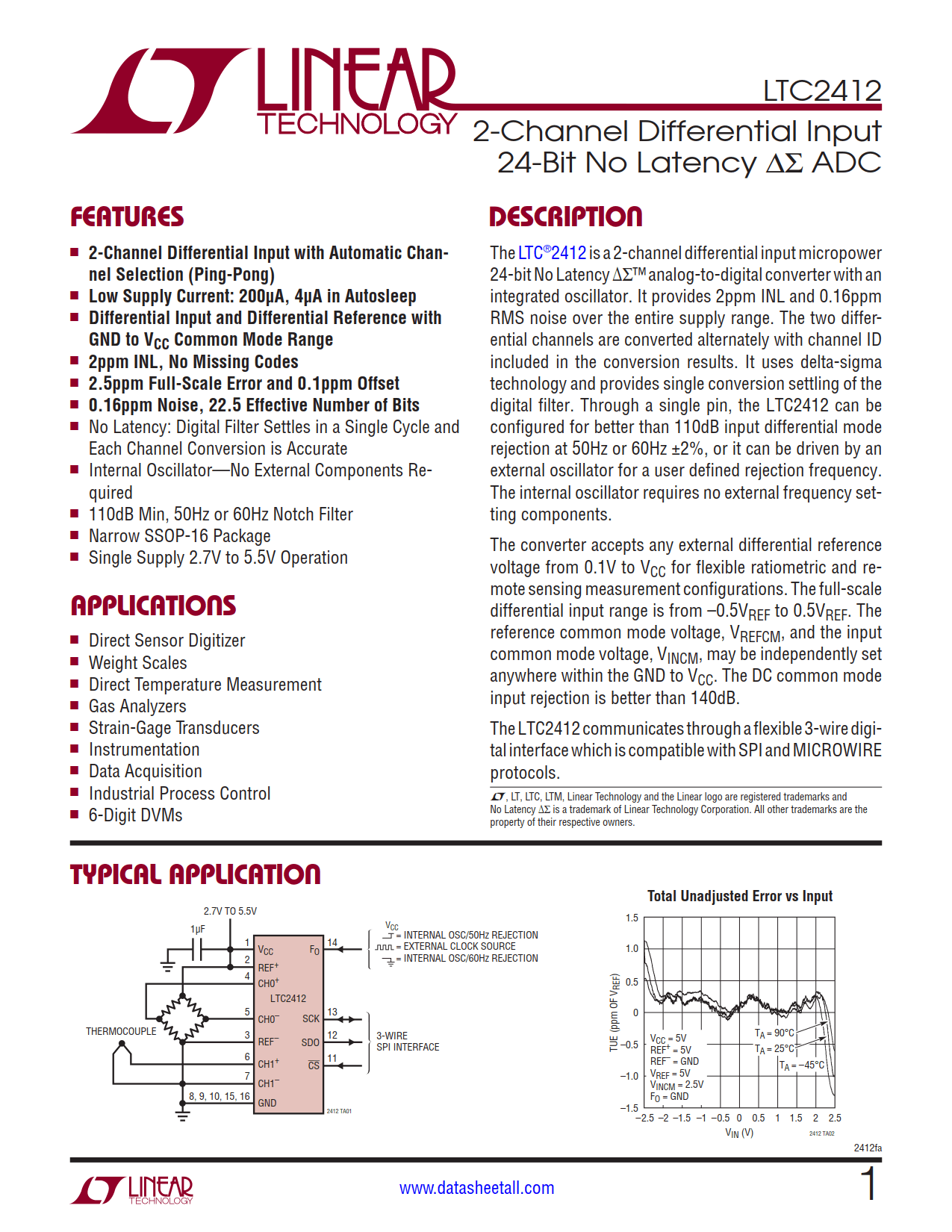

LTC2412 Datasheet

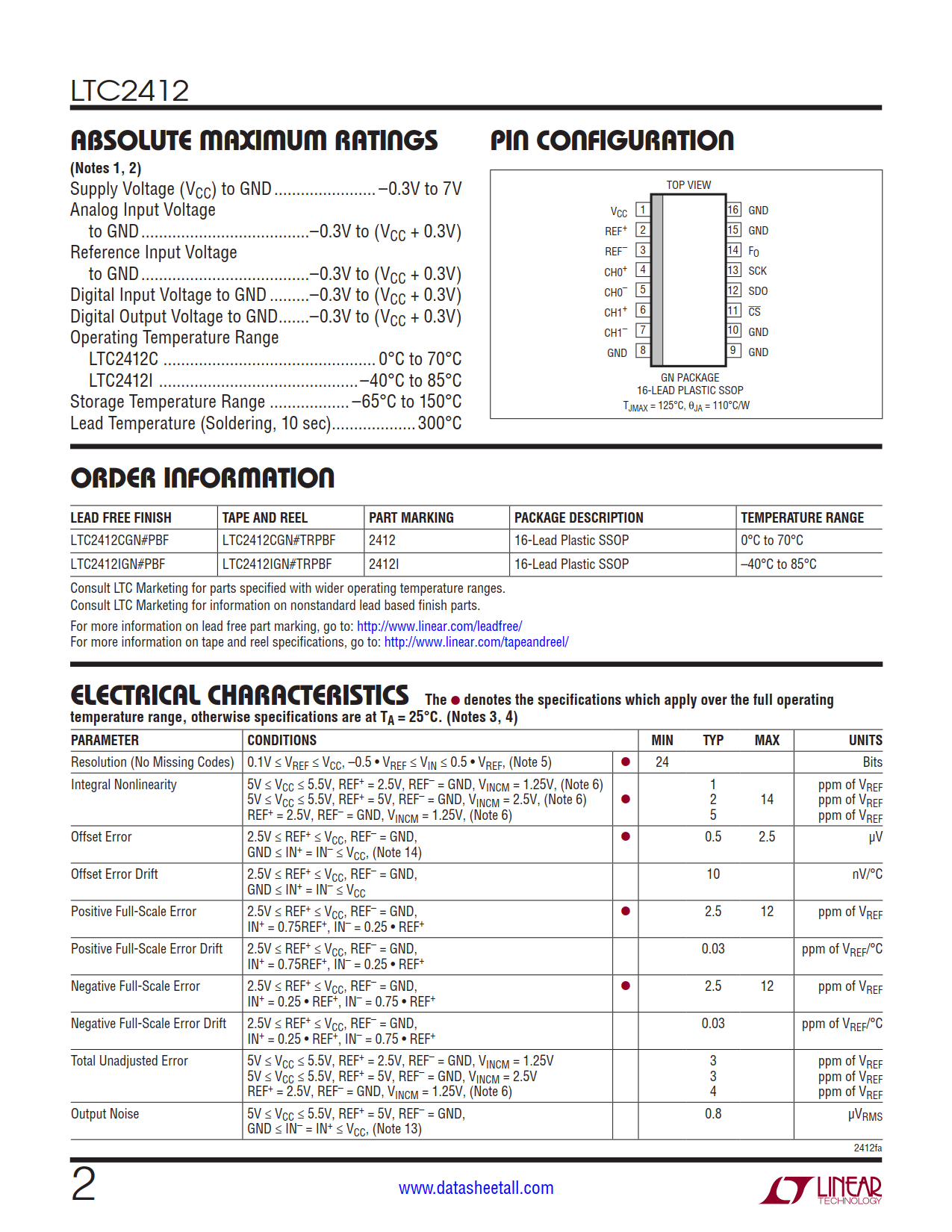

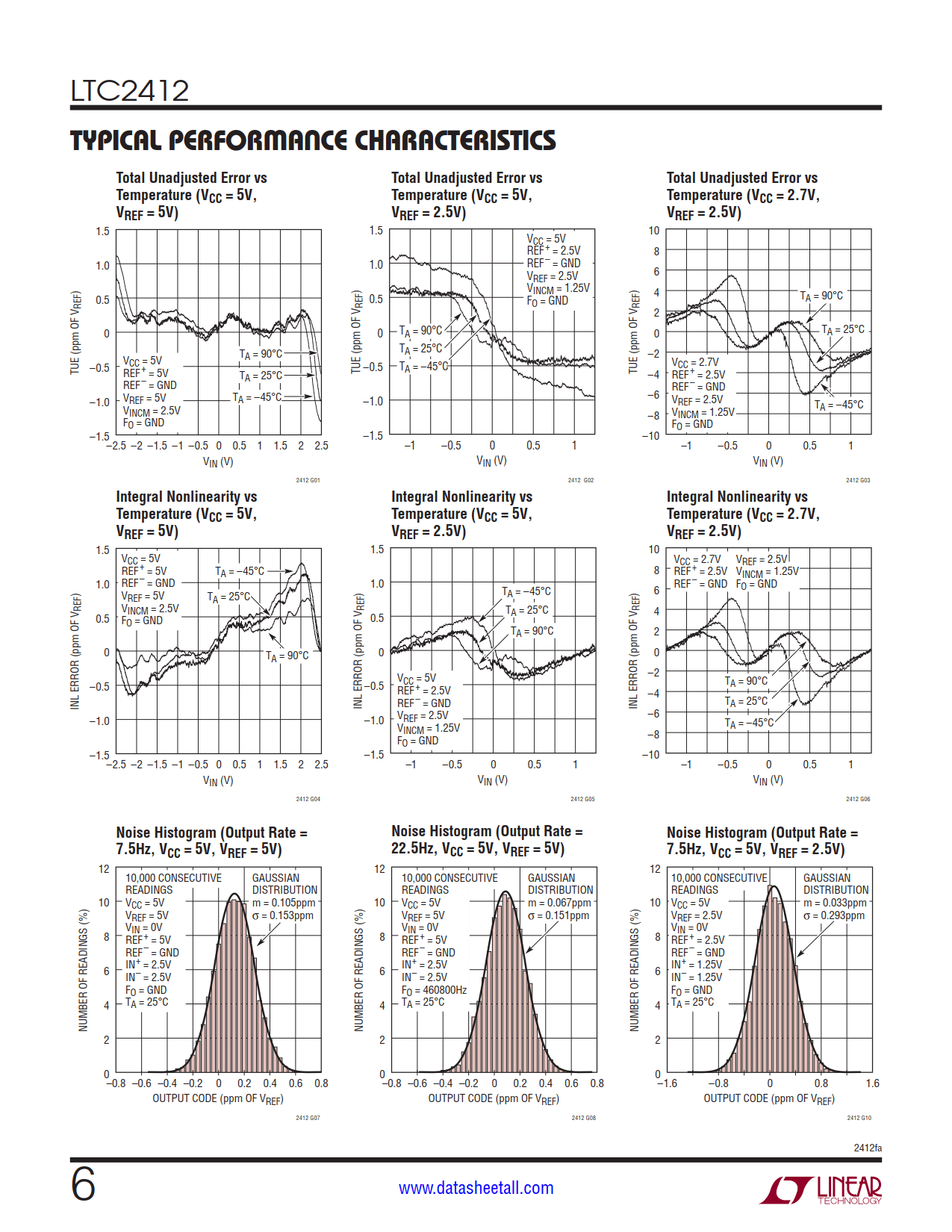

The LTC2412 is a 2-channel differential input micropower 24-bit No Latency ∆Σ^™ analog-to-digital converter with an integrated oscillator. It provides 2ppm INL and 0.16ppm RMS noise over the entire supply range. The two differential channels are converted alternately with channel ID included in the conversion results. It uses delta-sigma technology and provides single conversion settling of the digital filter. Through a single pin, the LTC2412 can be configured for better than 110dB input differential mode rejection at 50Hz or 60Hz ±2%, or it can be driven by an external oscillator for a user defined rejection frequency. The internal oscillator requires no external frequency setting components.

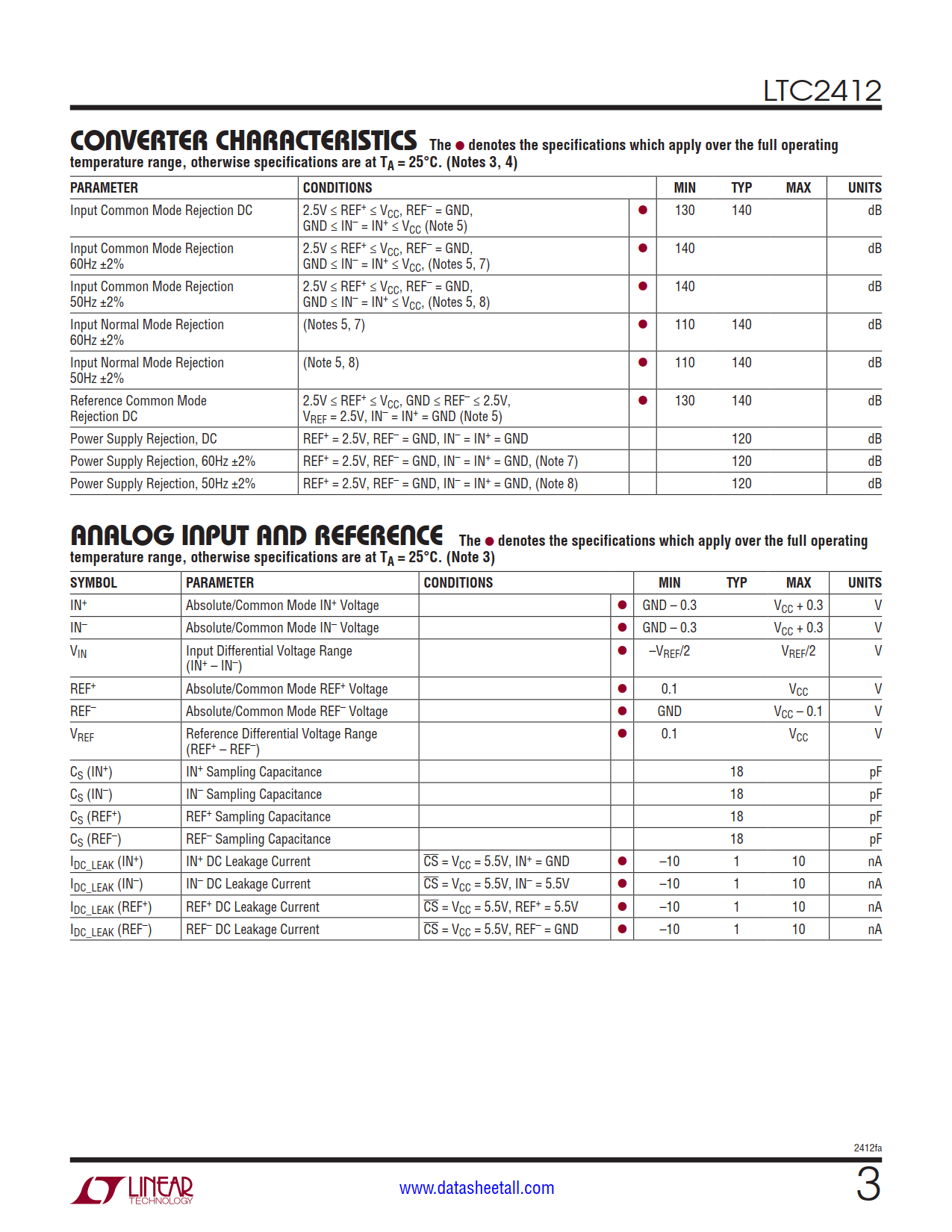

The converter accepts any external differential reference voltage from 0.1V to V_CC for flexible ratiometric and remote sensing measurement configurations. The full-scale differential input range is from –0.5V_REF to 0.5V_REF. The reference common mode voltage, V_REFCM, and the input common mode voltage, V_INCM, may be independently set anywhere within the GND to V_CC. The DC common mode input rejection is better than 140dB.

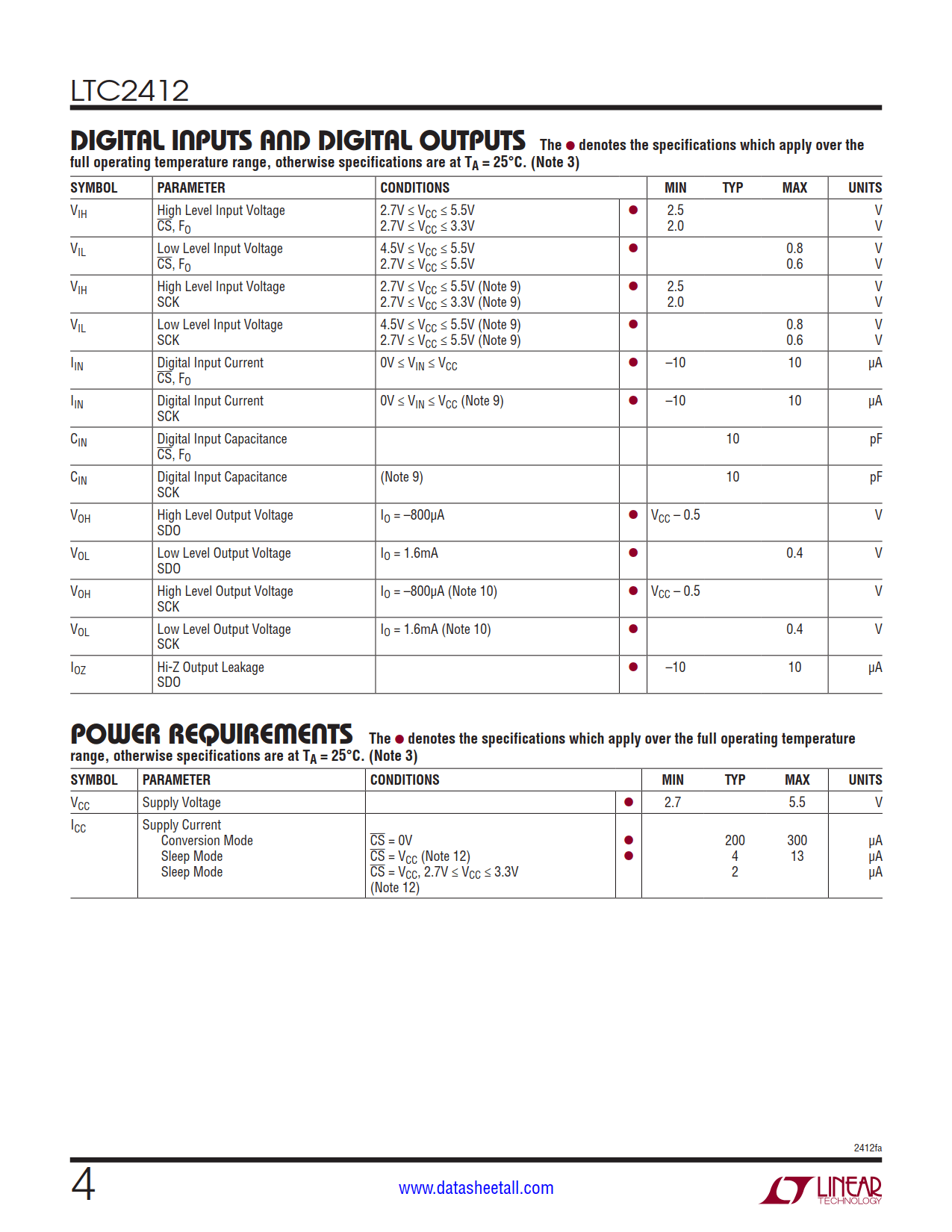

The LTC2412 communicates through a flexible 3-wire digital interface which is compatible with SPI and MICROWIRE protocols.
