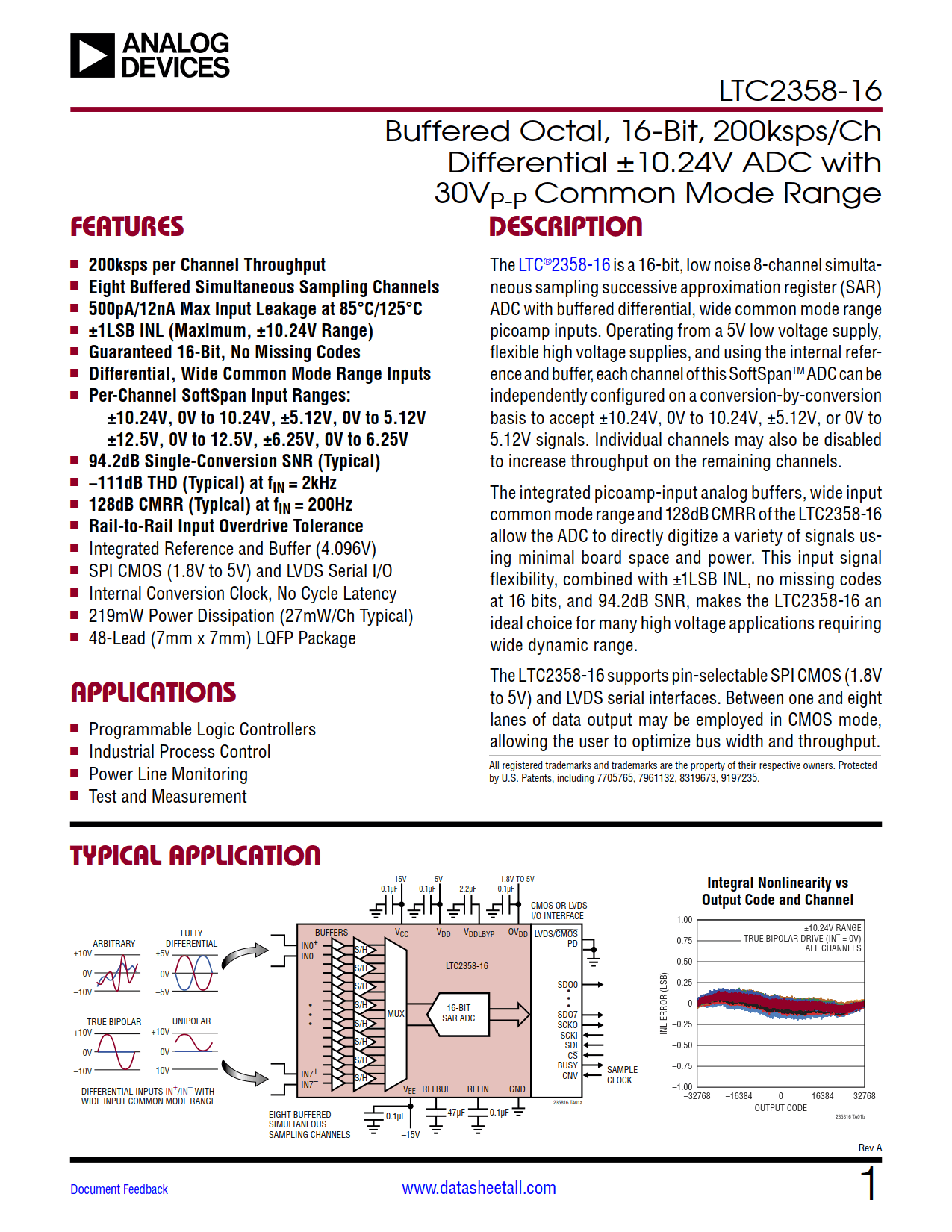

LTC2358-16 Datasheet

LTC2358-16 Datasheet

Buffered Octal, 16-Bit, 200ksps/Ch Differential ±10.24V ADC with 30VP-P Common Mode Range
Part No.: LTC2358-16
Page: 40 Pages
Size: 2222 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-11-29 10:54:25
DataSheet: Download

LTC2358-16 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC2358CLX-16#PBF Tray 250 LTC2358LX-16 1 48 0°C ~70°C 48-Lead (7mm × 7mm) Plastic LQFP
LTC2358ILX-16#PBF Tray 250 LTC2358LX-16 1 48 -40°C ~85°C 48-Lead (7mm × 7mm) Plastic LQFP
LTC2358HLX-16#PBF Tray 250 LTC2358LX-16 1 48 -40°C ~125°C 48-Lead (7mm × 7mm) Plastic LQFP
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC2358-16 Datasheet(PDF)

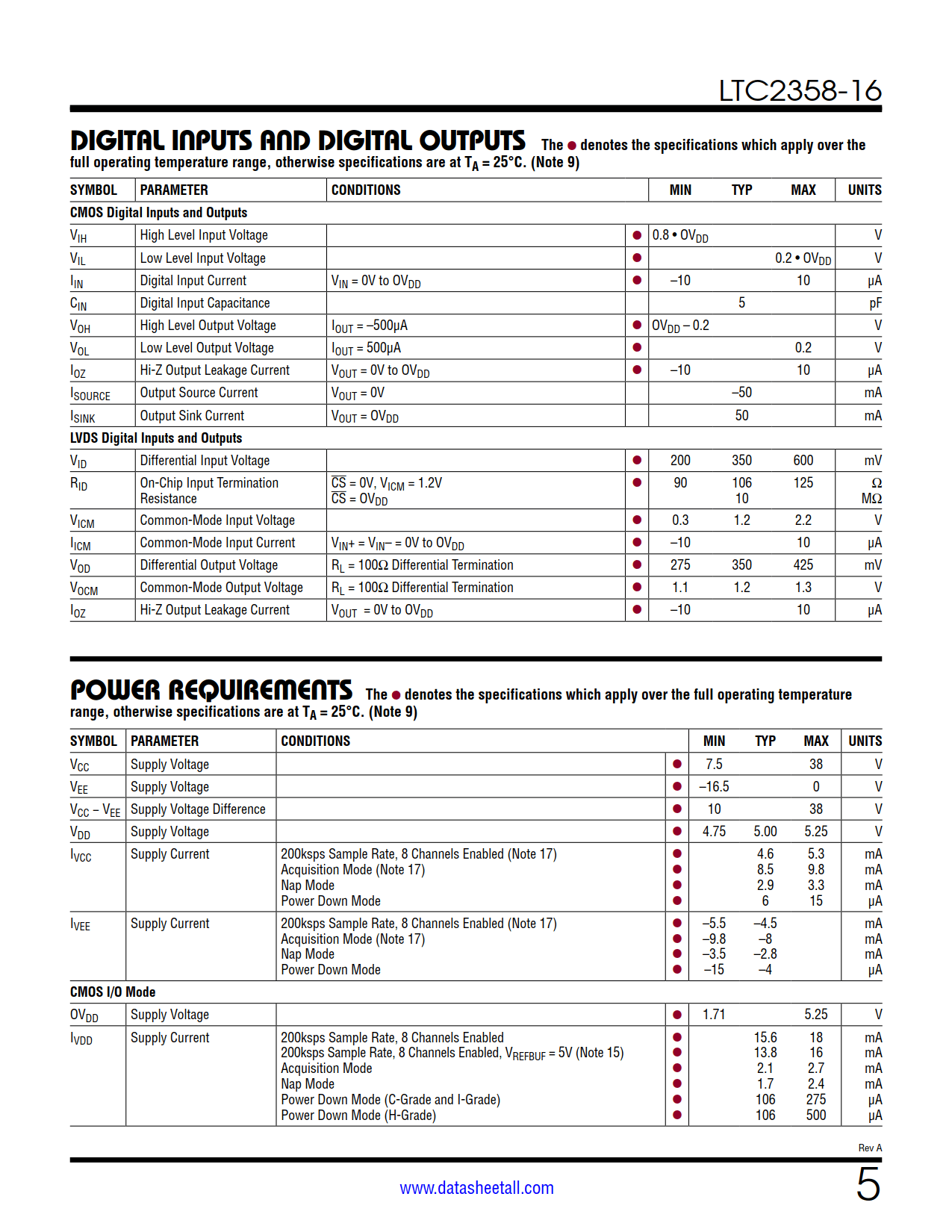

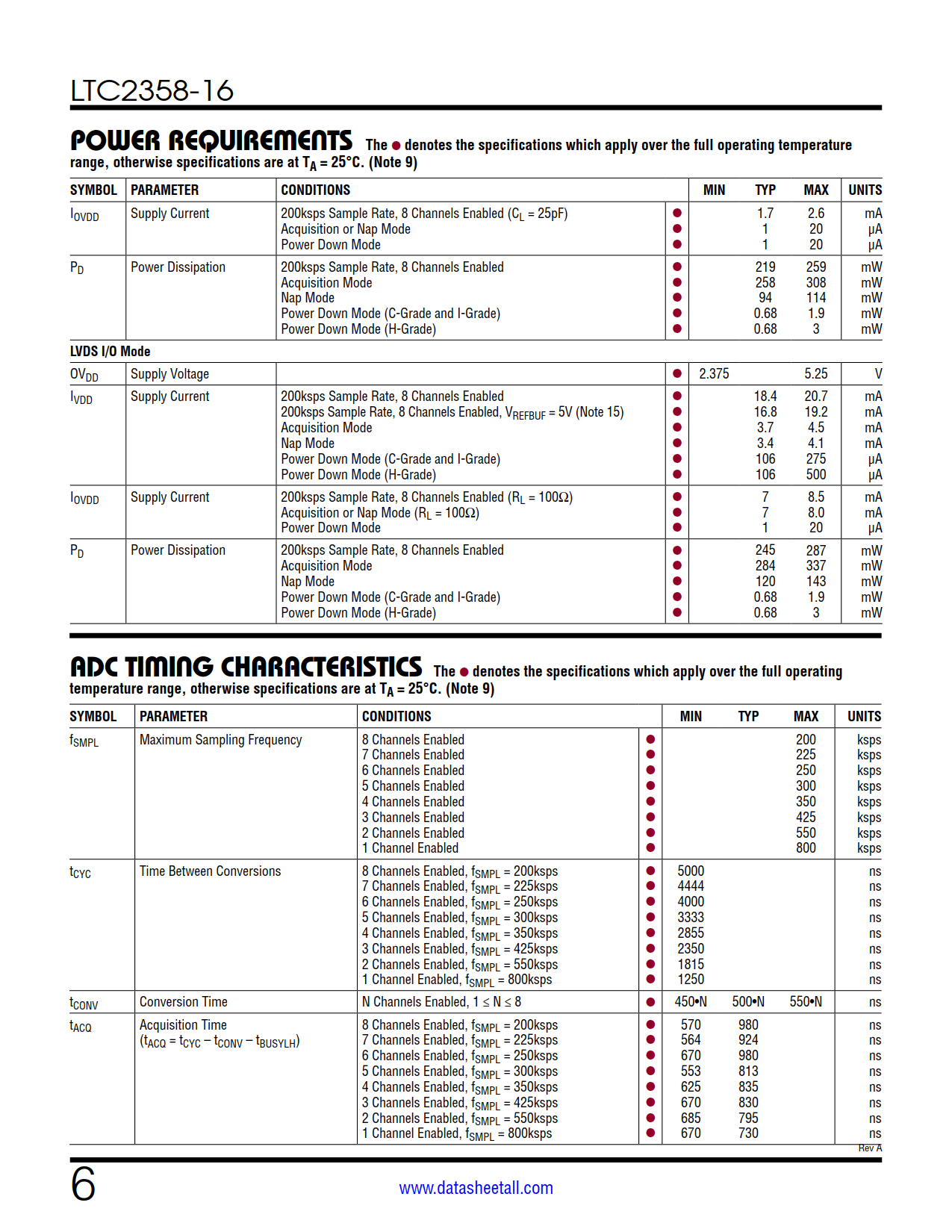

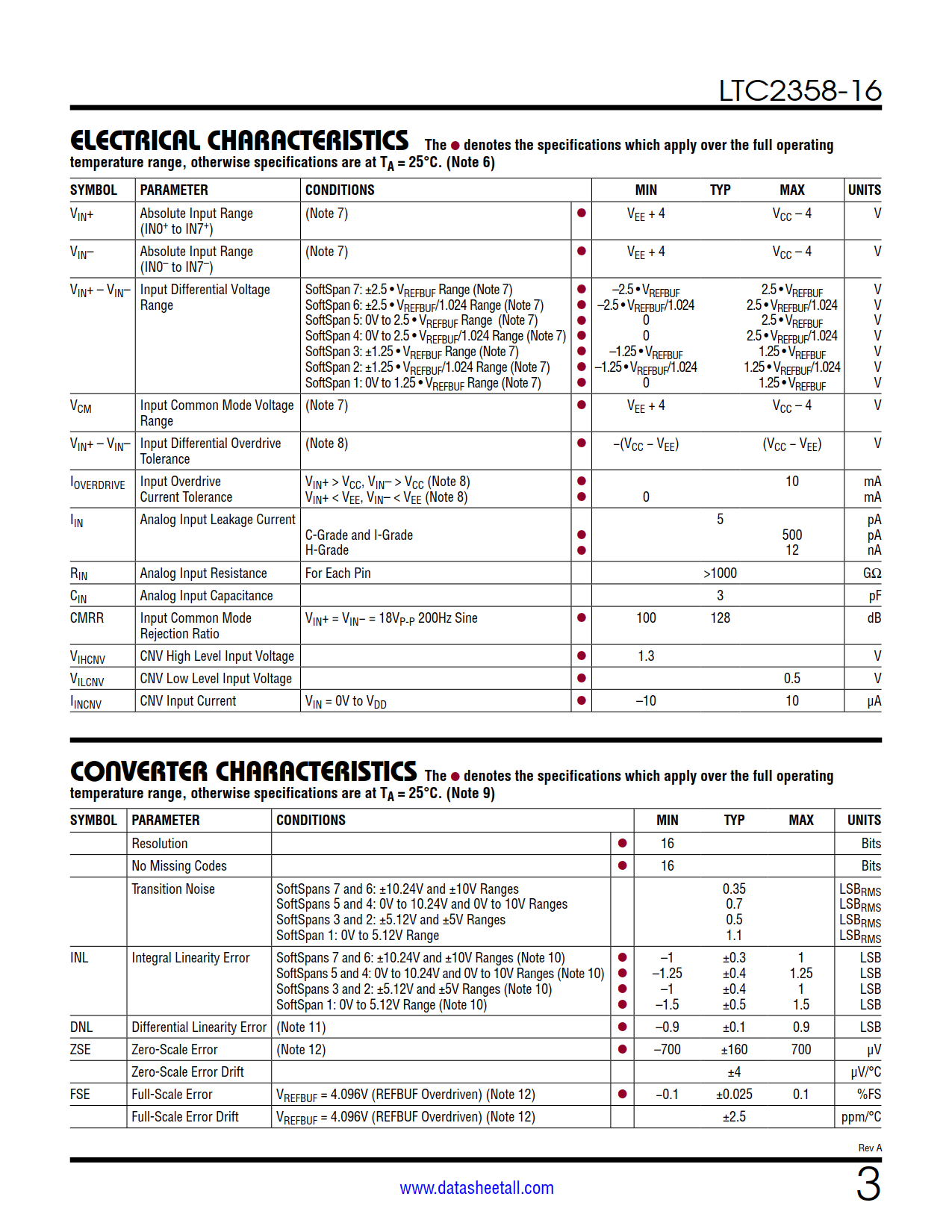

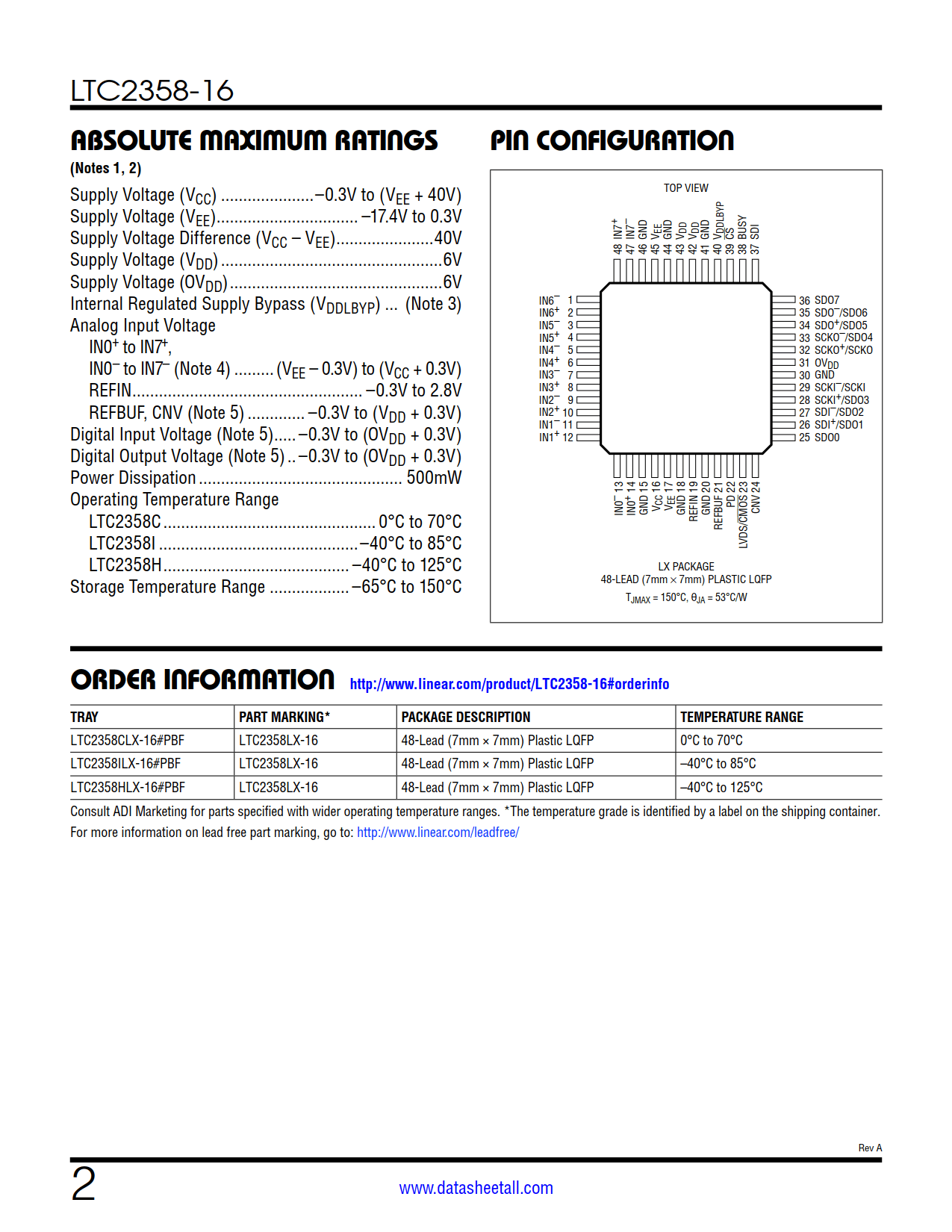

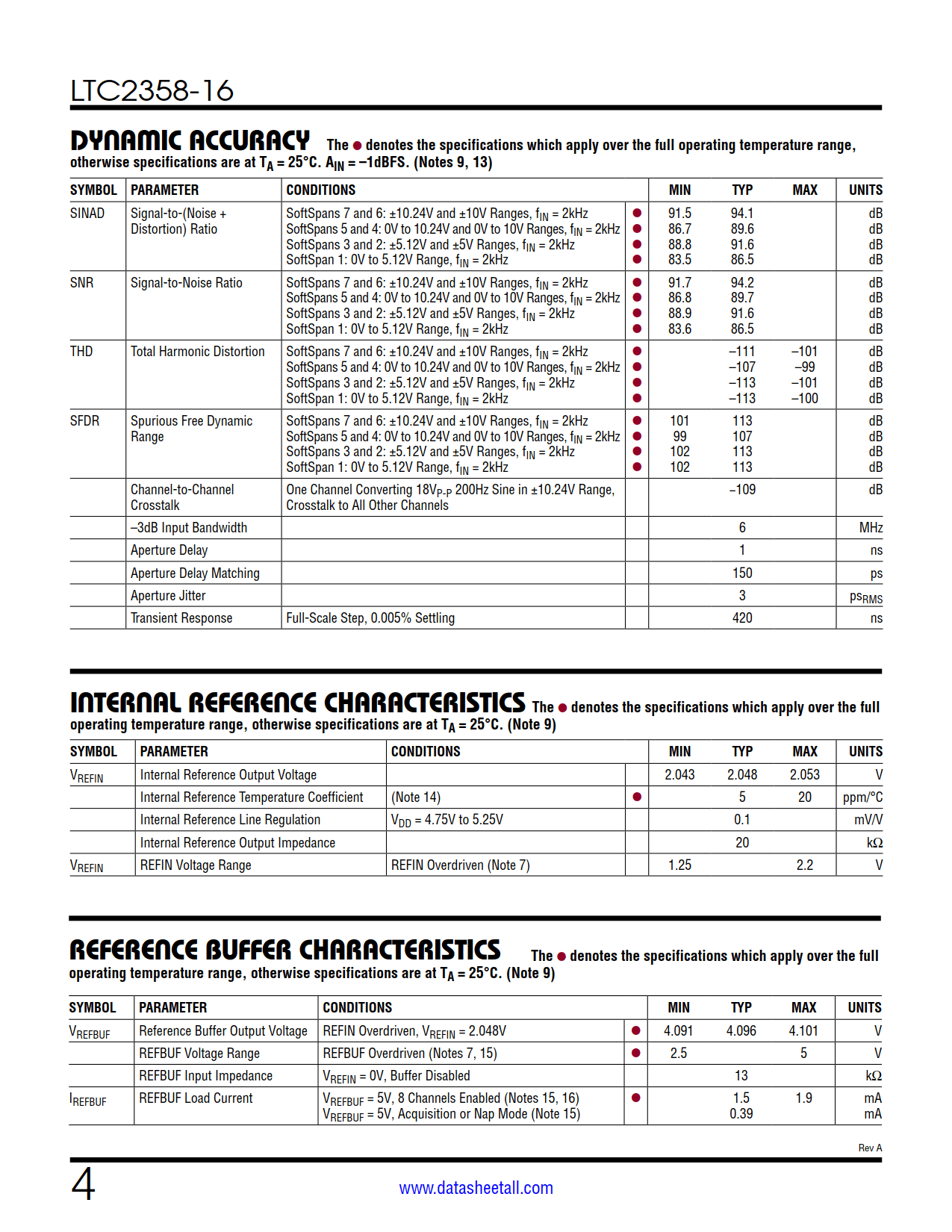

LTC2358-16 Datasheet(Picture)

LTC2358-16 Features

  • 200ksps per Channel Throughput
  • Eight Buffered Simultaneous Sampling Channels
  • 400pA/4nA Max Input Leakage at 85°C/125°C
  • ±1LSB INL (Maximum, ±10.24V Range)
  • Guaranteed 16-Bit, No Missing Codes
  • Differential, Wide Common Mode Range Inputs
  • Per-Channel SoftSpan Input Ranges:
    • ±10.24V, 0V to 10.24V, ±5.12V, 0V to 5.12V
    •±12.5V, 0V to 12.5V, ±6.25V, 0V to 6.25V
  • 94.2dB Single-Conversion SNR (Typical)
  • −111dB THD (Typical) at fIN = 2kHz
  • 128dB CMRR (Typical) at fIN = 200Hz
  • Rail-to-Rail Input Overdrive Tolerance
  • Integrated Reference and Buffer (4.096V)
  • SPI CMOS (1.8V to 5V) and LVDS Serial I/O
  • Internal Conversion Clock, No Cycle Latency
  • 219mW Power Dissipation (27mW/Ch Typical)
  • 48-Lead (7mm × 7mm) LQFP Package

LTC2358-16 Applications

  • Programmable Logic Controllers
  • Industrial Process Control
  • Power Line Monitoring
  • Test and Measurement

LTC2358-16 Description

The LTC2358-16 is a 16-bit, low noise 8-channel simultaneous sampling successive approximation register (SAR) ADC with buffered differential, wide common mode range picoamp inputs. Operating from a 5V low voltage supply, flexible high voltage supplies, and using the internal reference and buffer, each channel of this SoftSpan ADC can be independently configured on a conversion-by-conversion basis to accept ±10.24V, 0V to 10.24V, ±5.12V, or 0V to 5.12V signals. Individual channels may also be disabled to increase throughput on the remaining channels.

The integrated picoamp-input analog buffers, wide input common mode range and 128dB CMRR of the LTC2358-16 allow the ADC to directly digitize a variety of signals using minimal board space and power. This input signal flexibility, combined with ±1LSB INL, no missing codes at 16 bits, and 94.2dB SNR, makes the LTC2358-16 an ideal choice for many high voltage applications requiring wide dynamic range.

The LTC2358-16 supports pin-selectable SPI CMOS (1.8V to 5V) and LVDS serial interfaces. Between one and eight lanes of data output may be employed in CMOS mode, allowing the user to optimize bus width and throughput.
