LTC2323-16 Datasheet

LTC2323-16 Datasheet

Dual, 16-Bit, 5Msps Differential Input ADC with Wide Input Common Mode Range
Part No.: LTC2323-16
Page: 26 Pages
Size: 1104 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-12-17 21:12:12
DataSheet: Download

LTC2323-16 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC2323CUFD-16#PBF Tube 73 23236 1 28 0°C ~ 70°C 28-Lead (4mm × 5mm) Plastic QFN
LTC2323CUFD-16#TRPBF Reel 2500 23236 1 28 0°C ~ 70°C 28-Lead (4mm × 5mm) Plastic QFN
LTC2323IUFD-16#PBF Tube 73 23236 1 28 -40°C ~ 85°C 28-Lead (4mm × 5mm) Plastic QFN
LTC2323IUFD-16#TRPBF Reel 2500 23236 1 28 -40°C ~ 85°C 28-Lead (4mm × 5mm) Plastic QFN
LTC2323HUFD-16#PBF Tube 73 23236 1 28 -40°C ~ 125°C 28-Lead (4mm × 5mm) Plastic QFN
LTC2323HUFD-16#TRPBF Reel 2500 23236 1 28 -40°C ~ 125°C 28-Lead (4mm × 5mm) Plastic QFN
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC2323-16 Datasheet(PDF)

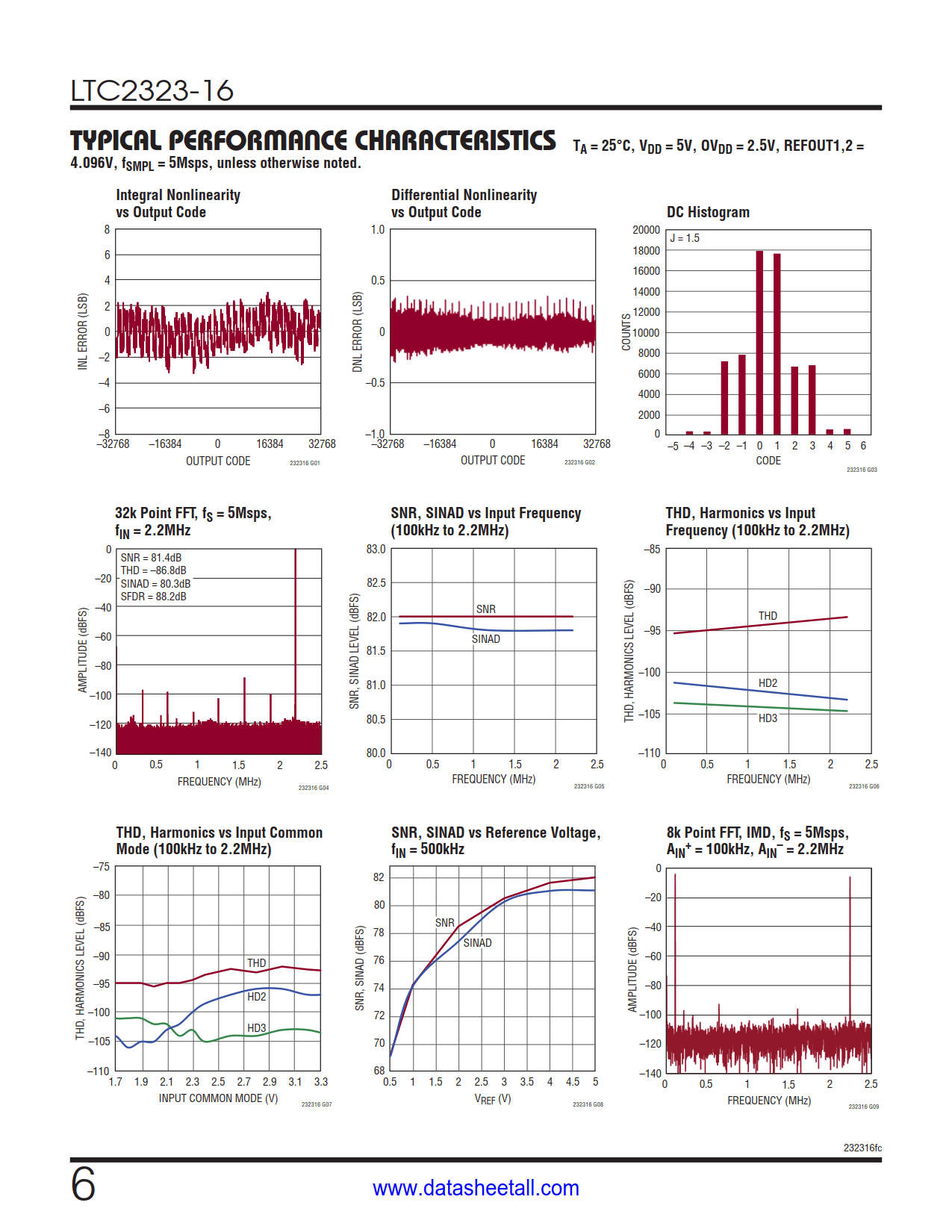

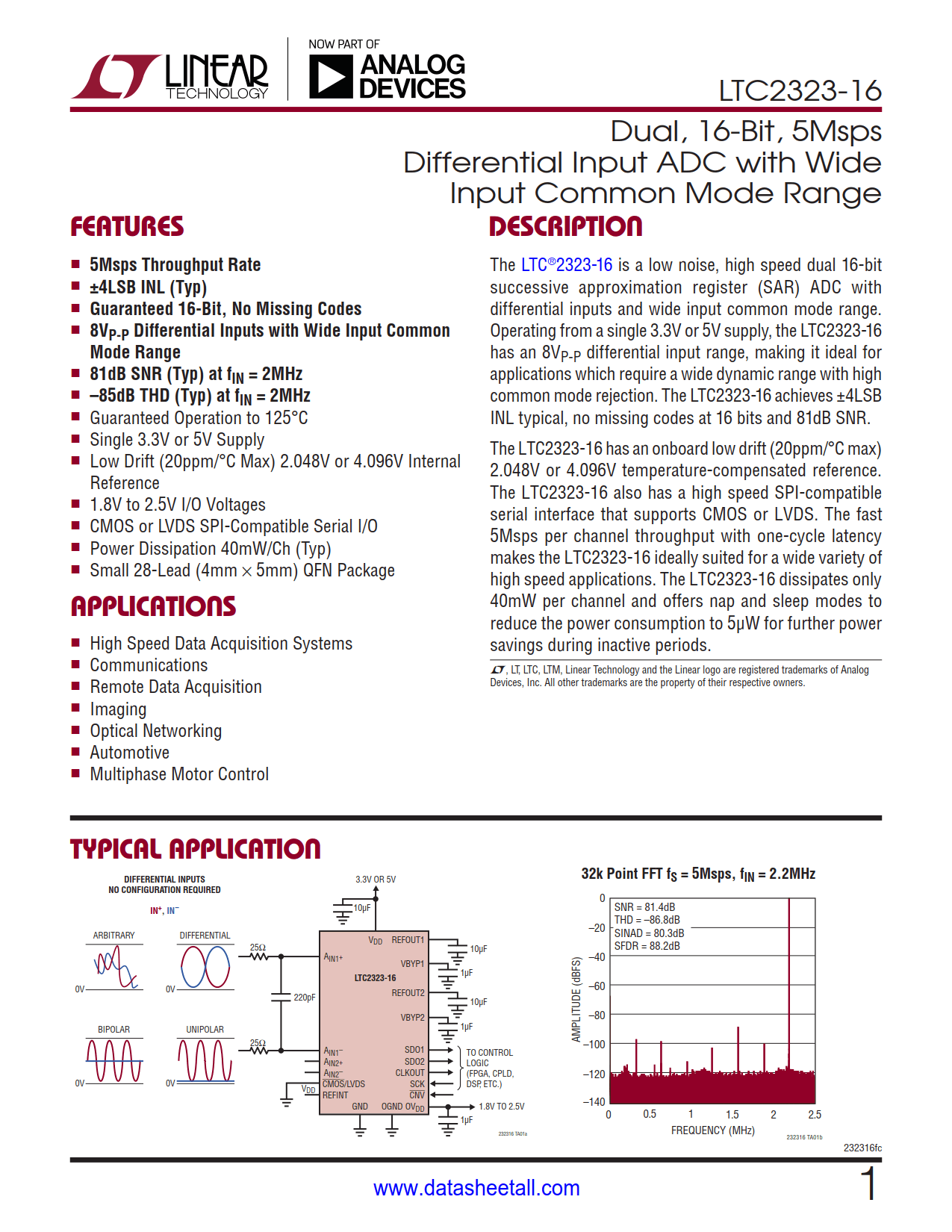

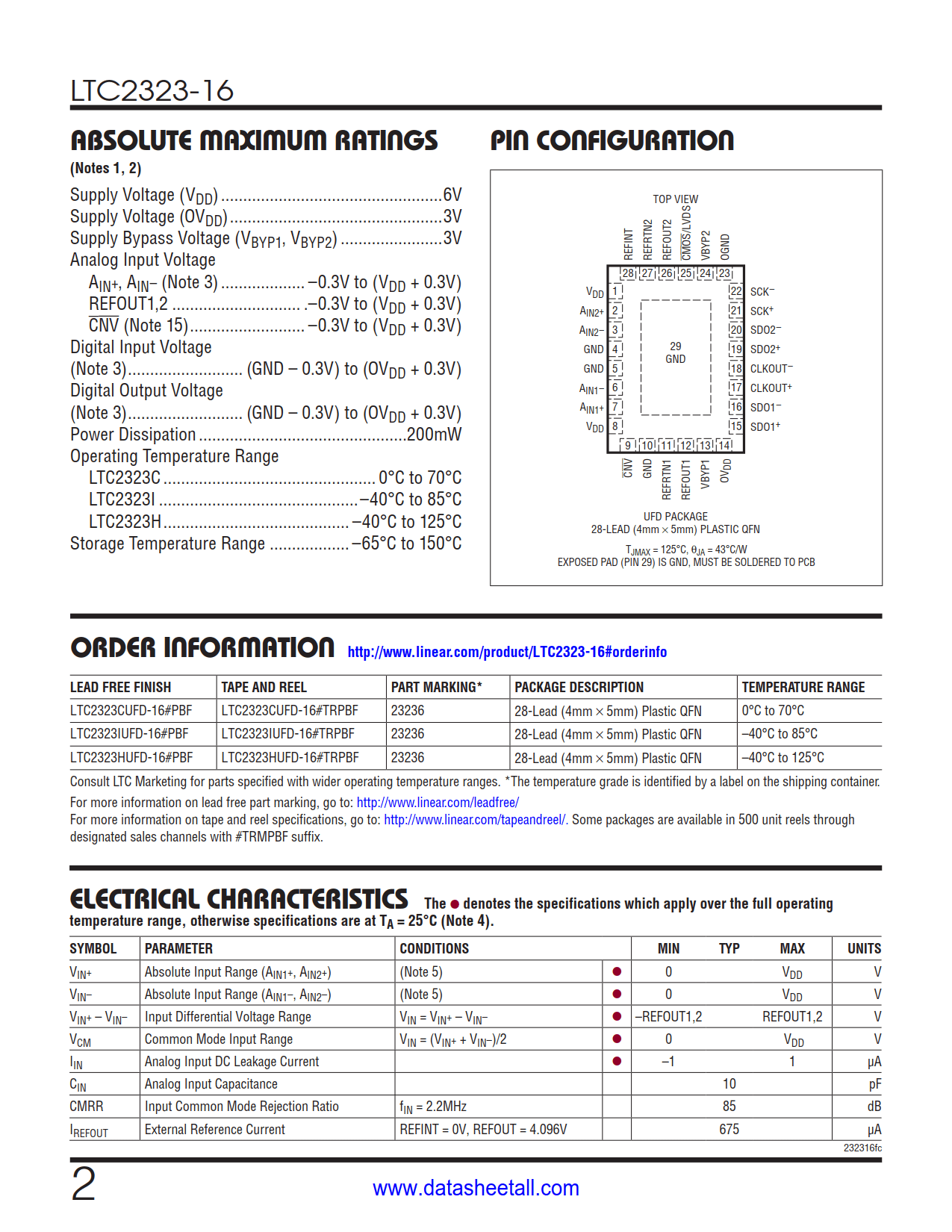

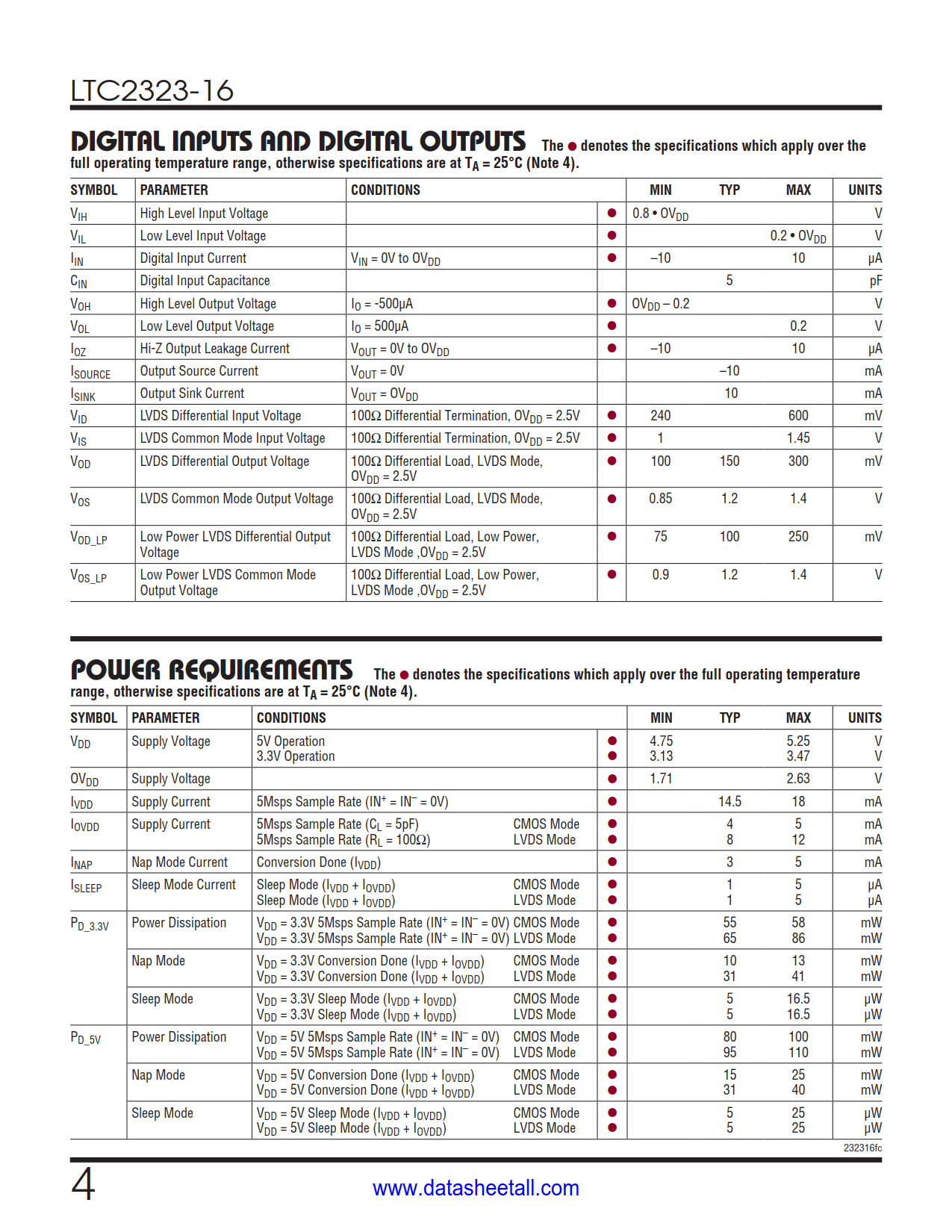

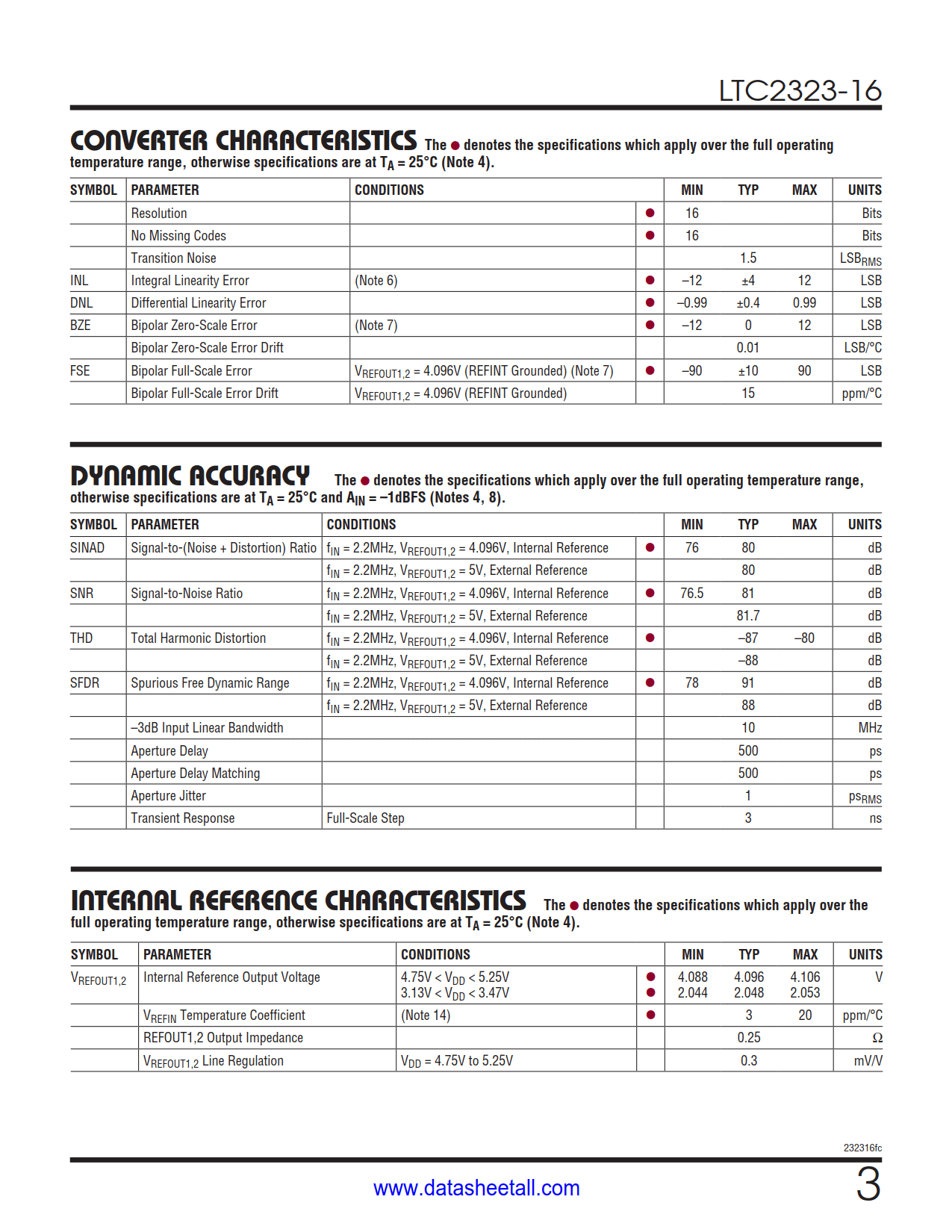

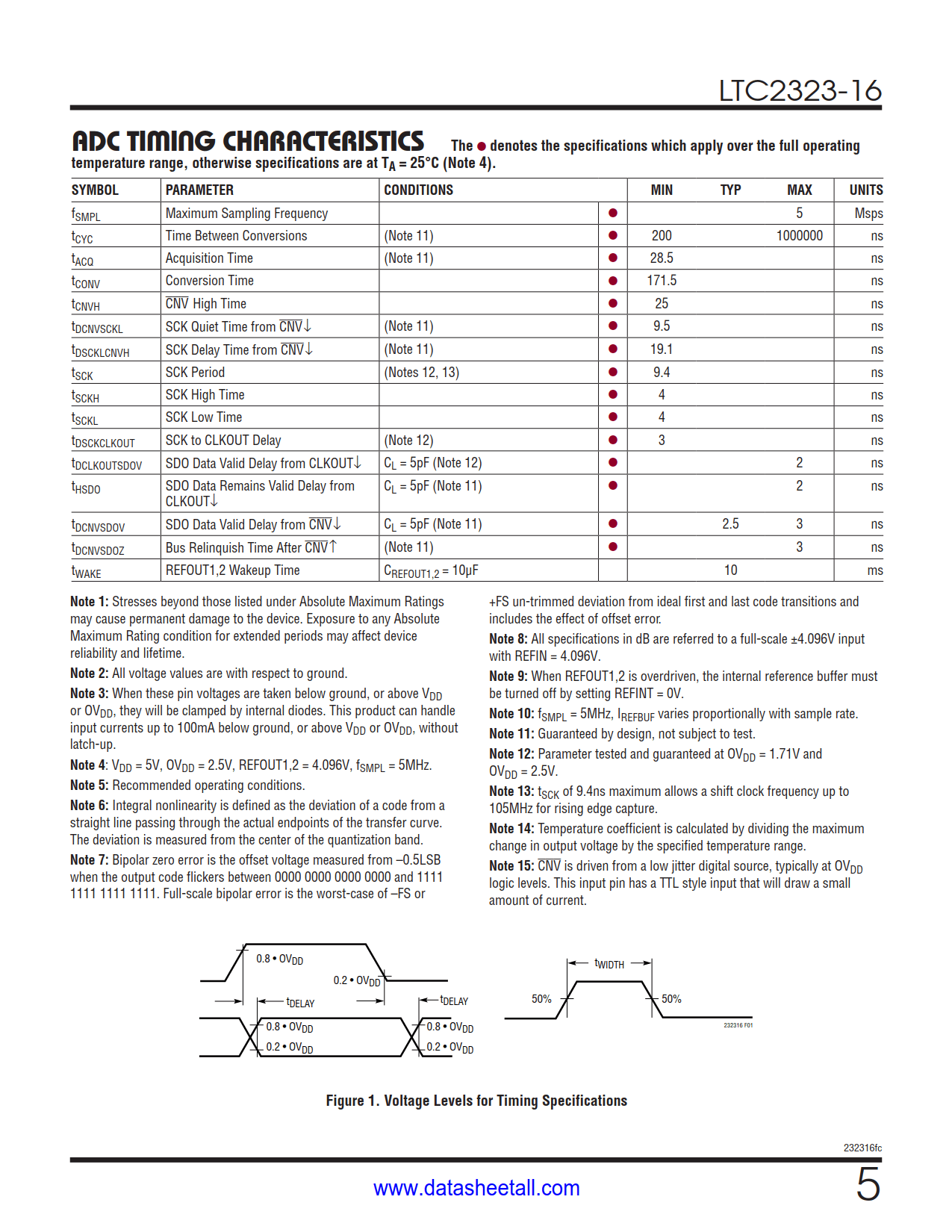

LTC2323-16 Datasheet(Picture)

LTC2323-16 Features

  • 5Msps Throughput Rate
  • ±4LSB INL (Typ)
  • Guaranteed 16-Bit, No Missing Codes
  • 8VP-P Differential Inputs with Wide Input Common Mode Range
  • 81dB SNR (Typ) at fIN = 2MHz
  • –85dB THD (Typ) at fIN = 2MHz
  • Guaranteed Operation to 125°C
  • Single 3.3V or 5V Supply
  • Low Drift (20ppm/°C Max) 2.048V or 4.096V Internal Reference
  • 1.8V to 2.5V I/O Voltages
  • CMOS or LVDS SPI-Compatible Serial I/O
  • Power Dissipation 40mW/Ch (Typ)
  • Small 28-Lead (4mm × 5mm) QFN Package

LTC2323-16 Applications

  • High Speed Data Acquisition Systems
  • Communications
  • Remote Data Acquisition
  • Imaging
  • Optical Networking
  • Automotive
  • Multiphase Motor Control

LTC2323-16 Description

The LTC2323-16 is a low noise, high speed dual 16- bit successive approximation register (SAR) ADC with differential inputs and wide input common mode range. Operating from a single 3.3V or 5V supply, the LTC2323-16 has an 8VP-P differential input range, making it ideal for applications which require a wide dynamic range with high common mode rejection. The LTC2323-16 achieves ±4LSB INL typical, no missing codes at 16 bits and 81dB SNR.

The LTC2323-16 has an onboard low drift (20ppm/°C max) 2.048V or 4.096V temperature-compensated reference. The LTC2323-16 also has a high speed SPI-compatible serial interface that supports CMOS or LVDS. The fast 5Msps per channel throughput with one-cycle latency makes the LTC2323-16 ideally suited for a wide variety of high speed applications. The LTC2323-16 dissipates only 40mW per channel and offers nap and sleep modes to reduce the power consumption to 5μW for further power savings during inactive periods.
