| Part No.： | LTC2323-12 |
| Page： | 31 Pages |
| Size： | 1903 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 0 |
| Update Time： | 2024-12-17 21:06:40 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC2323CUFD-12#PBF | Tube | 73 | 1 | 28 | 0°C ~ 70°C | 28-Lead QFN (4mm x 5mm x 0.75mm) | ||
| LTC2323CUFD-12#TRPBF | Reel | 2500 | 1 | 28 | 0°C ~ 70°C | 28-Lead QFN (4mm x 5mm x 0.75mm) | ||
| LTC2323IUFD-12#PBF | Tube | 73 | 1 | 28 | -40°C ~ 85°C | 28-Lead QFN (4mm x 5mm x 0.75mm) | ||
| LTC2323IUFD-12#TRPBF | Reel | 2500 | 1 | 28 | -40°C ~ 85°C | 28-Lead QFN (4mm x 5mm x 0.75mm) | ||
| LTC2323HUFD-12#PBF | Tube | 73 | 1 | 28 | -40°C ~ 125°C | 28-Lead QFN (4mm x 5mm x 0.75mm) | ||
| LTC2323HUFD-12#TRPBF | Reel | 2500 | 1 | 28 | -40°C ~ 125°C | 28-Lead QFN (4mm x 5mm x 0.75mm) |

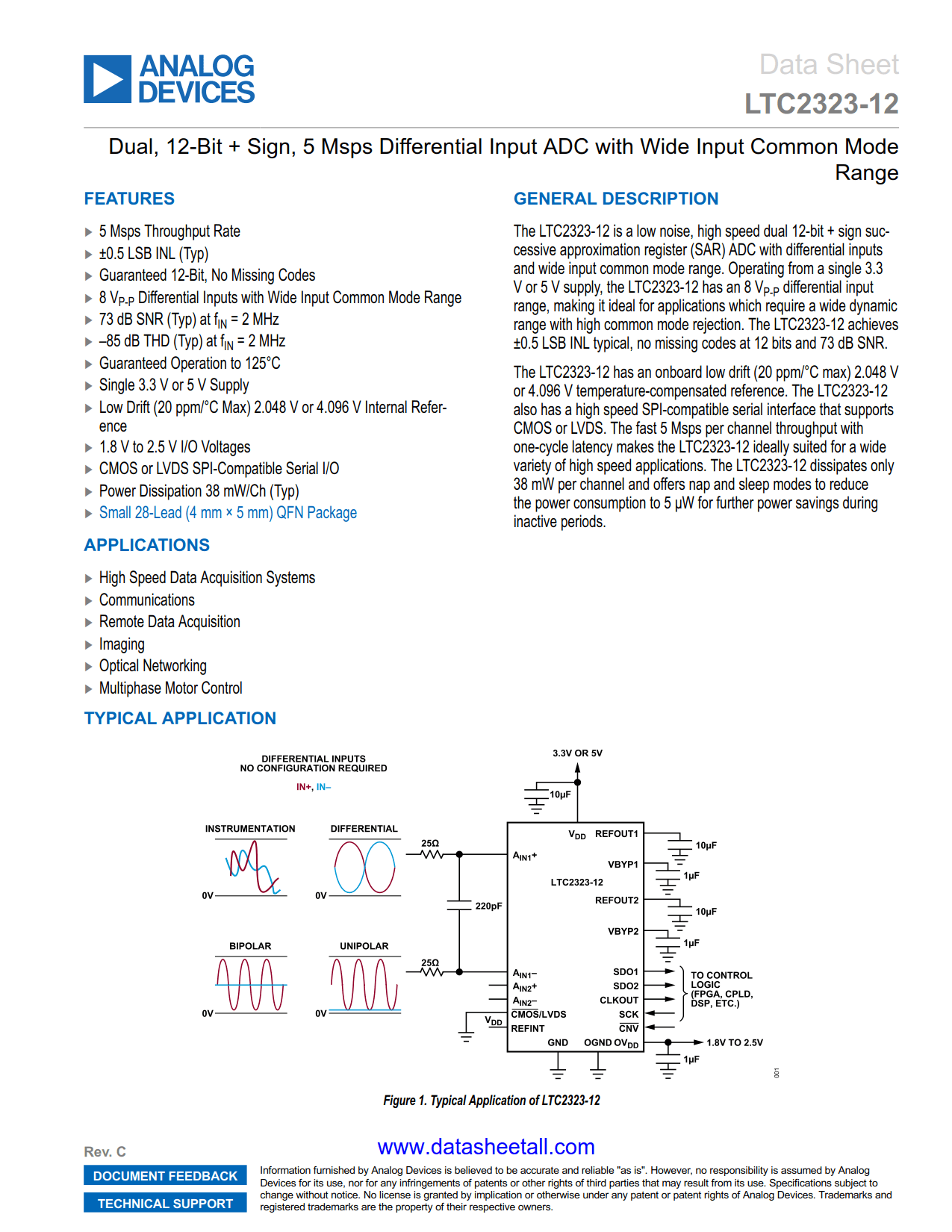

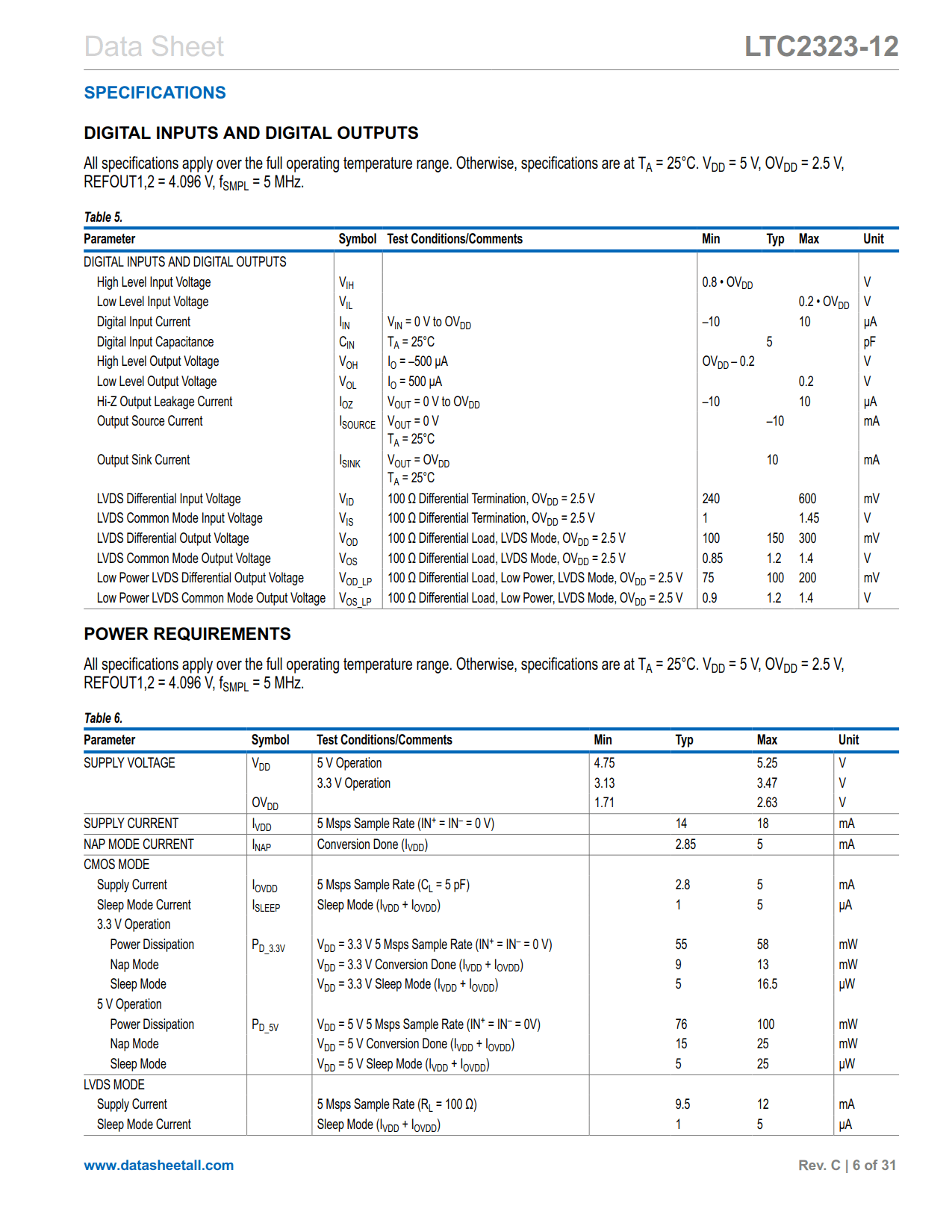

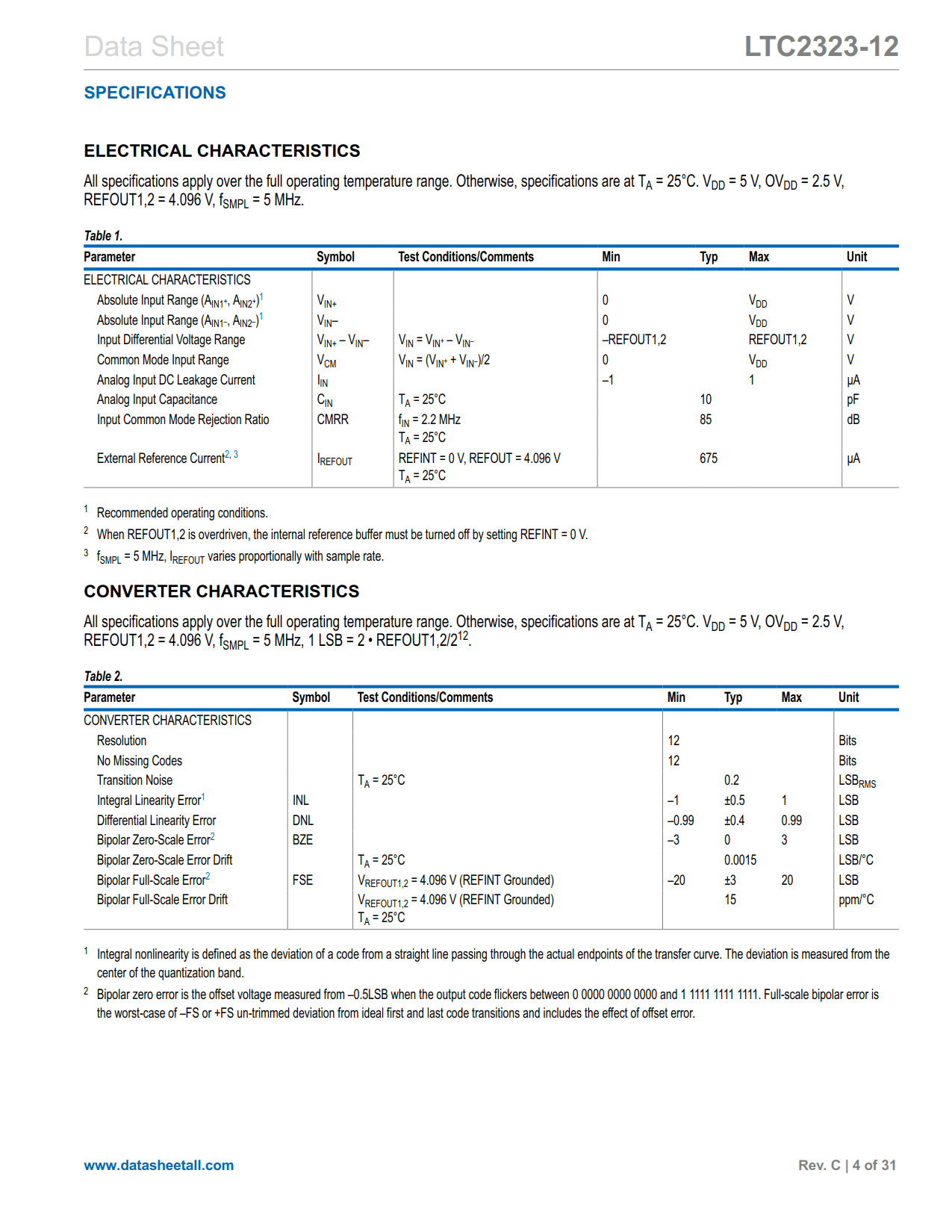

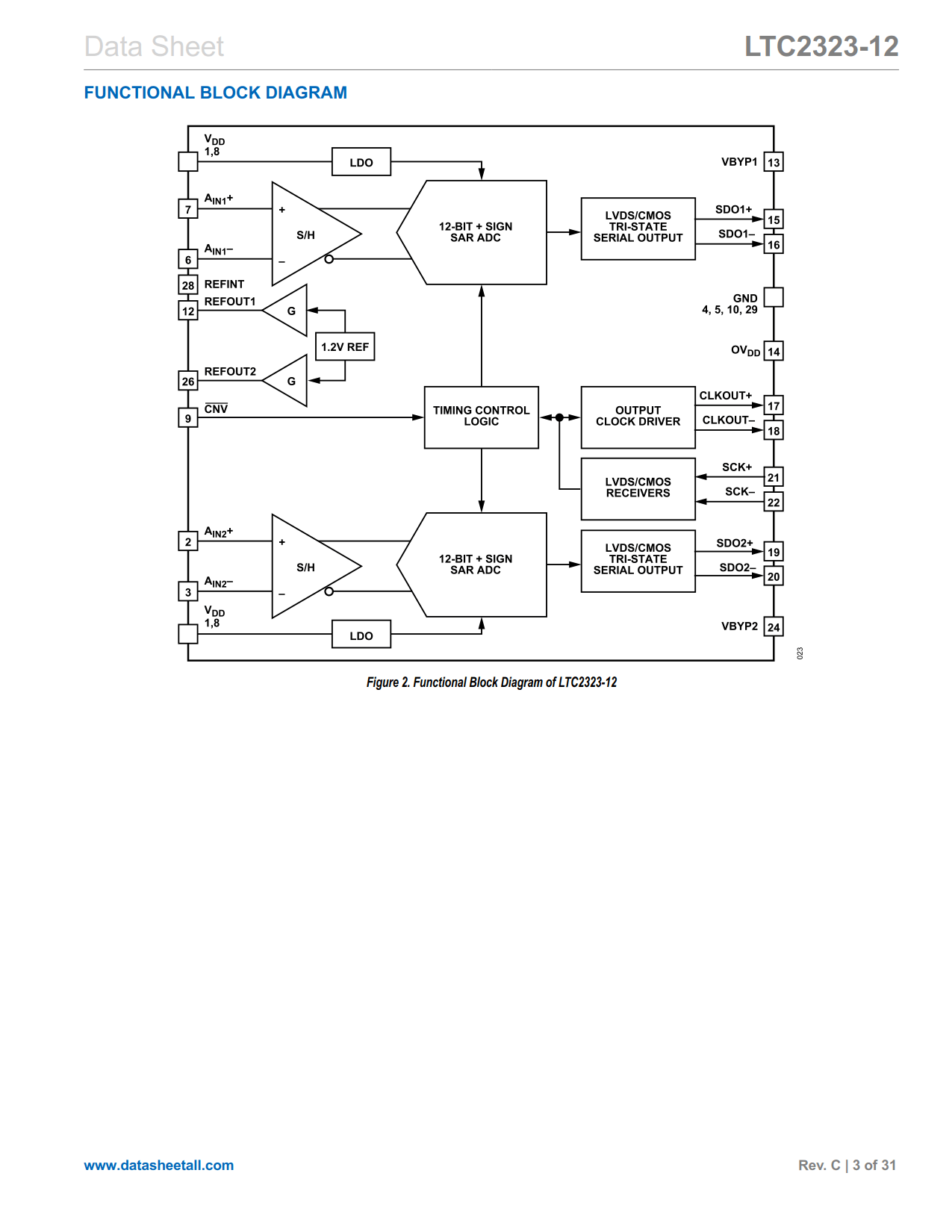

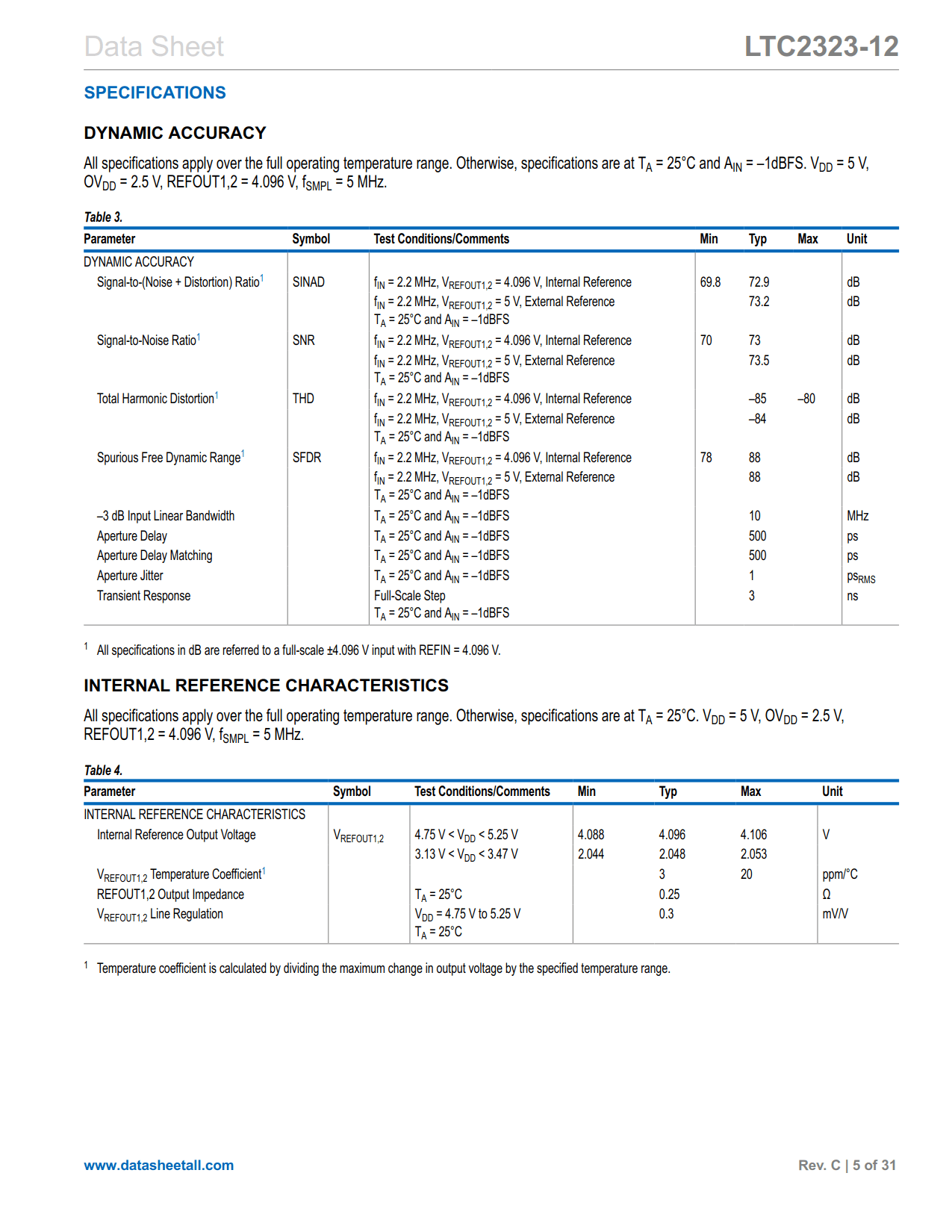

The LTC2323-12 is a low noise, high speed dual 12-bit + sign successive approximation register (SAR) ADC with differential inputs and wide input common mode range. Operating from a single 3.3V or 5V supply, the LTC2323-12 has an 8VP-P differential input range, making it ideal for applications which require a wide dynamic range with high common mode rejection. The LTC2323-12 achieves ±0.5LSB INL typical, no missing codes at 12 bits and 73dB SNR.
The LTC2323-12 has an on-board low drift (20ppm/°C max) 2.048V or 4.096V temperature-compensated reference. The LTC2323-12 also has a high speed SPI-compatible serial interface that supports CMOS or LVDS. The fast 5Msps per channel throughput with one-cycle latency makes the LTC2323-12 ideally suited for a wide variety of high speed applications. The LTC2323-12 dissipates only 38mW per channel and offers nap and sleep modes to reduce the power consumption to 5μW for further power savings during inactive periods.
