| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC2301CDE#PBF | Tube | 91 | 2301 | 1 | 12 | 0°C ~ 70°C | 12-Lead (3mm × 4mm) Plastic DFN | |
| LTC2301CDE#TRPBF | Reel | 2500 | 2301 | 1 | 12 | 0°C ~ 70°C | 12-Lead (3mm × 4mm) Plastic DFN | |
| LTC2301CDE#TRMPBF | Reel | 500 | 2301 | 1 | 12 | 0°C ~ 70°C | 12-Lead (3mm × 4mm) Plastic DFN | |
| LTC2301IDE#PBF | Tube | 91 | 2301 | 1 | 12 | -40°C ~ 85°C | 12-Lead (3mm × 4mm) Plastic DFN | |
| LTC2301IDE#TRPBF | Reel | 2500 | 2301 | 1 | 12 | -40°C ~ 85°C | 12-Lead (3mm × 4mm) Plastic DFN | |
| LTC2301IDE#TRMPBF | Reel | 500 | 2301 | 1 | 12 | -40°C ~ 85°C | 12-Lead (3mm × 4mm) Plastic DFN | |
| LTC2301CMS#PBF | Tube | 37 | 2301 | 1 | 12 | 0°C ~ 70°C | 12-Lead Plastic MSOP | |
| LTC2301CMS#TRPBF | Reel | 2500 | 2301 | 1 | 12 | 0°C ~ 70°C | 12-Lead Plastic MSOP | |
| LTC2301CMS#TRMPBF | Reel | 500 | 2301 | 1 | 12 | 0°C ~ 70°C | 12-Lead Plastic MSOP | |
| LTC2301IMS#PBF | Tube | 37 | 2301 | 1 | 12 | -40°C ~ 85°C | 12-Lead Plastic MSOP | |
| LTC2301IMS#TRPBF | Reel | 2500 | 2301 | 1 | 12 | -40°C ~ 85°C | 12-Lead Plastic MSOP | |
| LTC2301IMS#TRMPBF | Reel | 500 | 2301 | 1 | 12 | -40°C ~ 85°C | 12-Lead Plastic MSOP | |
| LTC2301HMS#PBF | Tube | 37 | 2301 | 1 | 12 | -40°C ~ 125°C | 12-Lead Plastic MSOP | |
| LTC2301HMS#TRPBF | Reel | 2500 | 2301 | 1 | 12 | -40°C ~ 125°C | 12-Lead Plastic MSOP | |
| LTC2301HMS#TRMPBF | Reel | 500 | 2301 | 1 | 12 | -40°C ~ 125°C | 12-Lead Plastic MSOP |

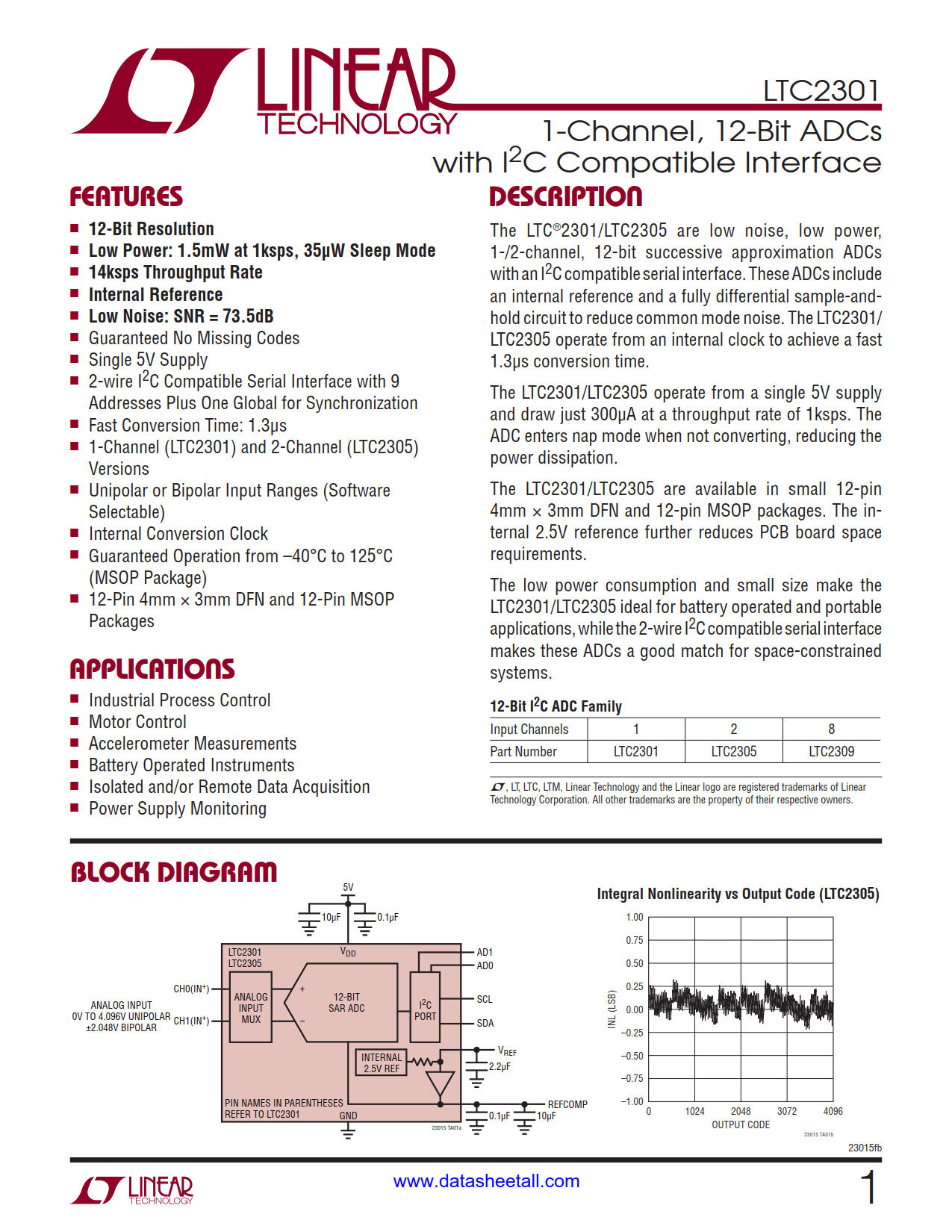

The LTC2301 are low noise, low power, 1-channel, 12-bit successive approximation ADCs with an I2C compatible serial interface. These ADCs include an internal reference and a fully differential sample-andhold circuit to reduce common mode noise. The LTC2301 operate from an internal clock to achieve a fast 1.3μs conversion time.
The LTC2301 operate from a single 5V supply and draw just 300μA at a throughput rate of 1ksps. The ADC enters nap mode when not converting, reducing the power dissipation.
The LTC2301 are available in small 12-pin 4mm × 3mm DFN and 12-pin MSOP packages. The internal 2.5V reference further reduces PCB board space requirements.
The low power consumption and small size make the LTC2301 ideal for battery operated and portable applications, while the 2-wire I2C compatible serial interface makes these ADCs a good match for space-constrained systems.
