LTC2289 Datasheet

LTC2289 Datasheet

Dual 10-Bit, 80Msps Low Noise 3V ADC
Part No.: LTC2289
Page: 24 Pages
Size: 632 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2023-11-23 10:16:31
DataSheet: Download

LTC2289 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC2289CUP#PBF Tube 40 LTC2289UP 1 64 0°C ~ 70°C 64-Lead QFN (9mm x 9mm x 0.75mm)
LTC2289CUP#TRPBF Reel 2000 LTC2289UP 1 64 0°C ~ 70°C 64-Lead QFN (9mm x 9mm x 0.75mm)
LTC2289CUP#TRMPBF Reel 500 LTC2289UP 1 64 0°C ~ 70°C 64-Lead QFN (9mm x 9mm x 0.75mm)
LTC2289IUP#PBF Tube 40 LTC2289UP 1 64 -40°C ~ 85°C 64-Lead QFN (9mm x 9mm x 0.75mm)
LTC2289IUP#TRPBF Reel 2000 LTC2289UP 1 64 -40°C ~ 85°C 64-Lead QFN (9mm x 9mm x 0.75mm)
LTC2289IUP#TRMPBF Reel 500 LTC2289UP 1 64 -40°C ~ 85°C 64-Lead QFN (9mm x 9mm x 0.75mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC2289 Datasheet(PDF)

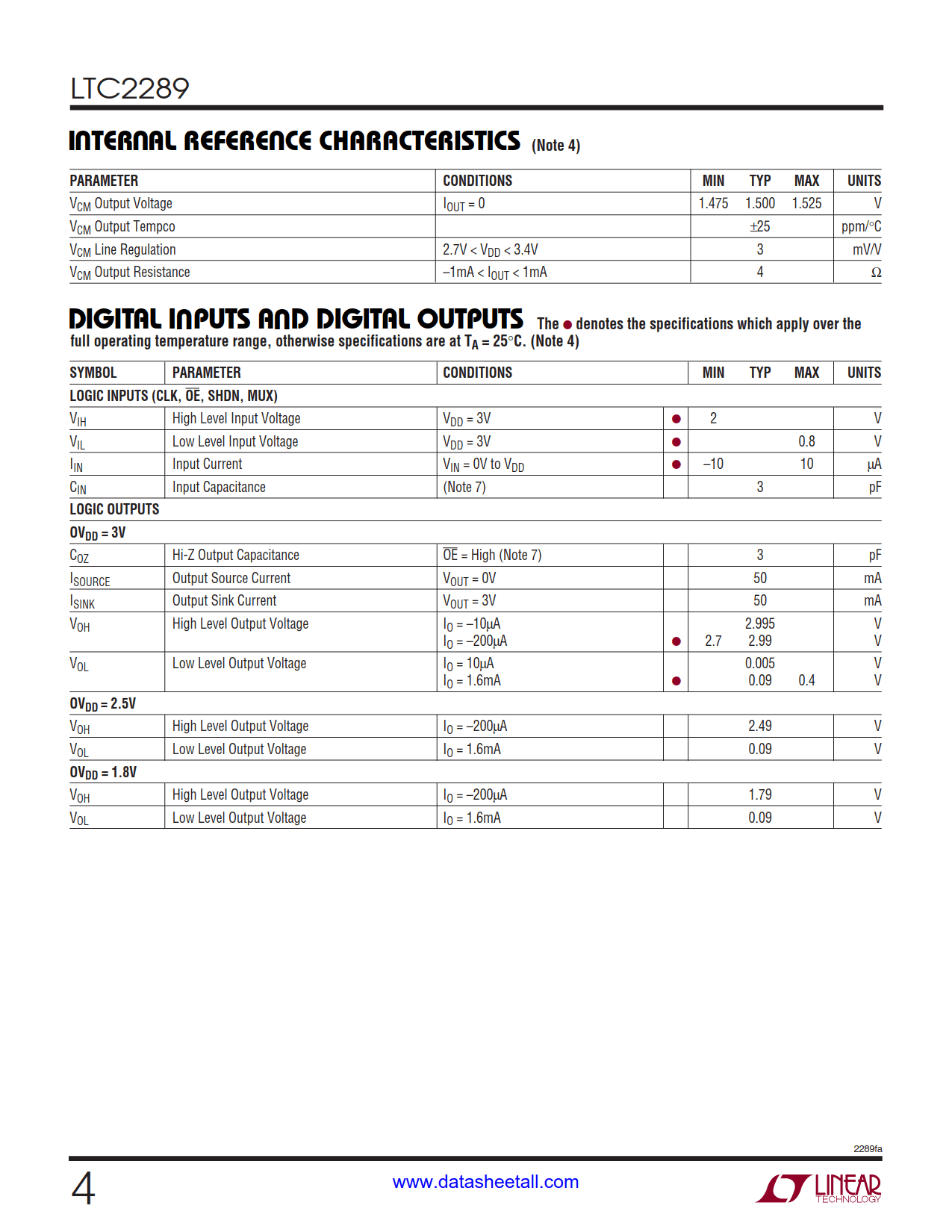

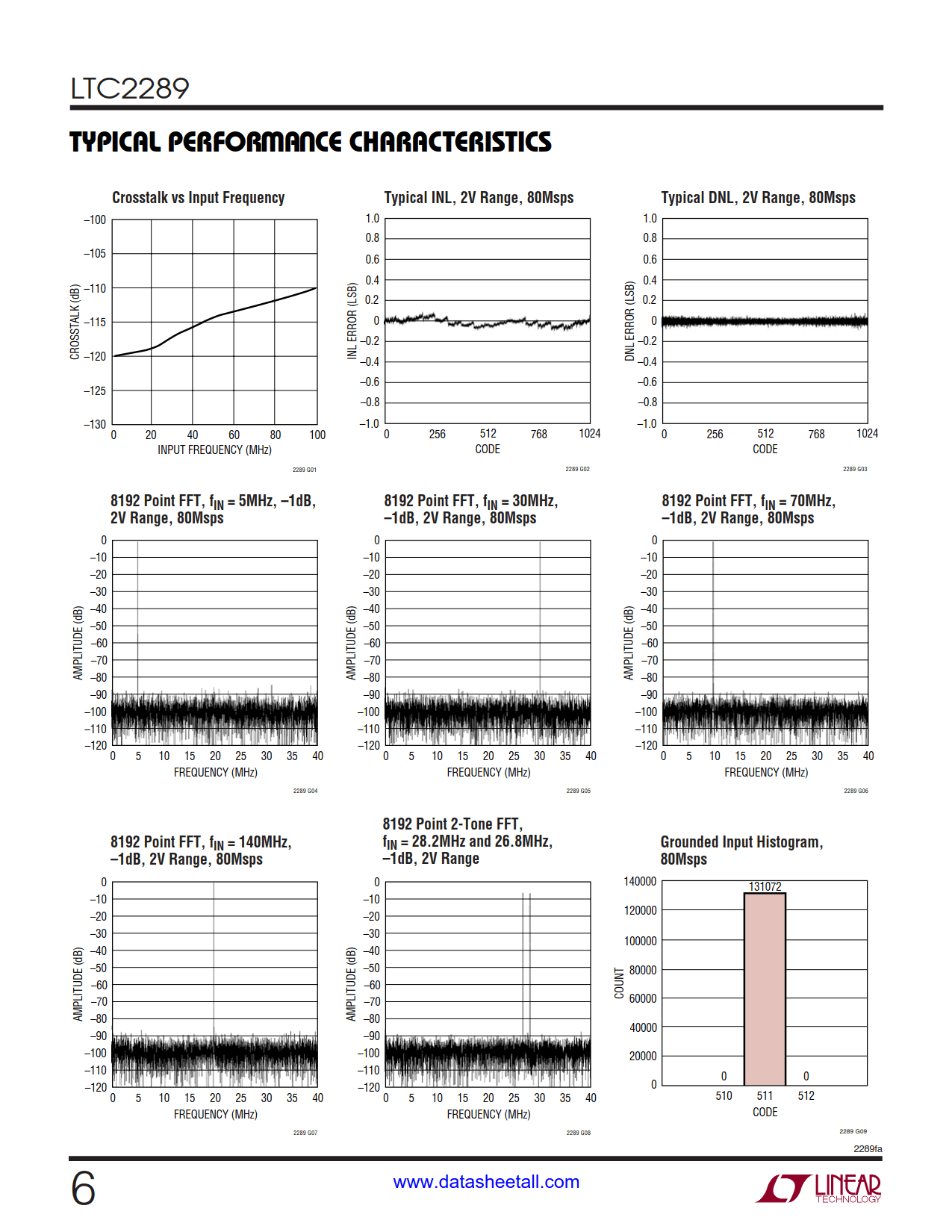

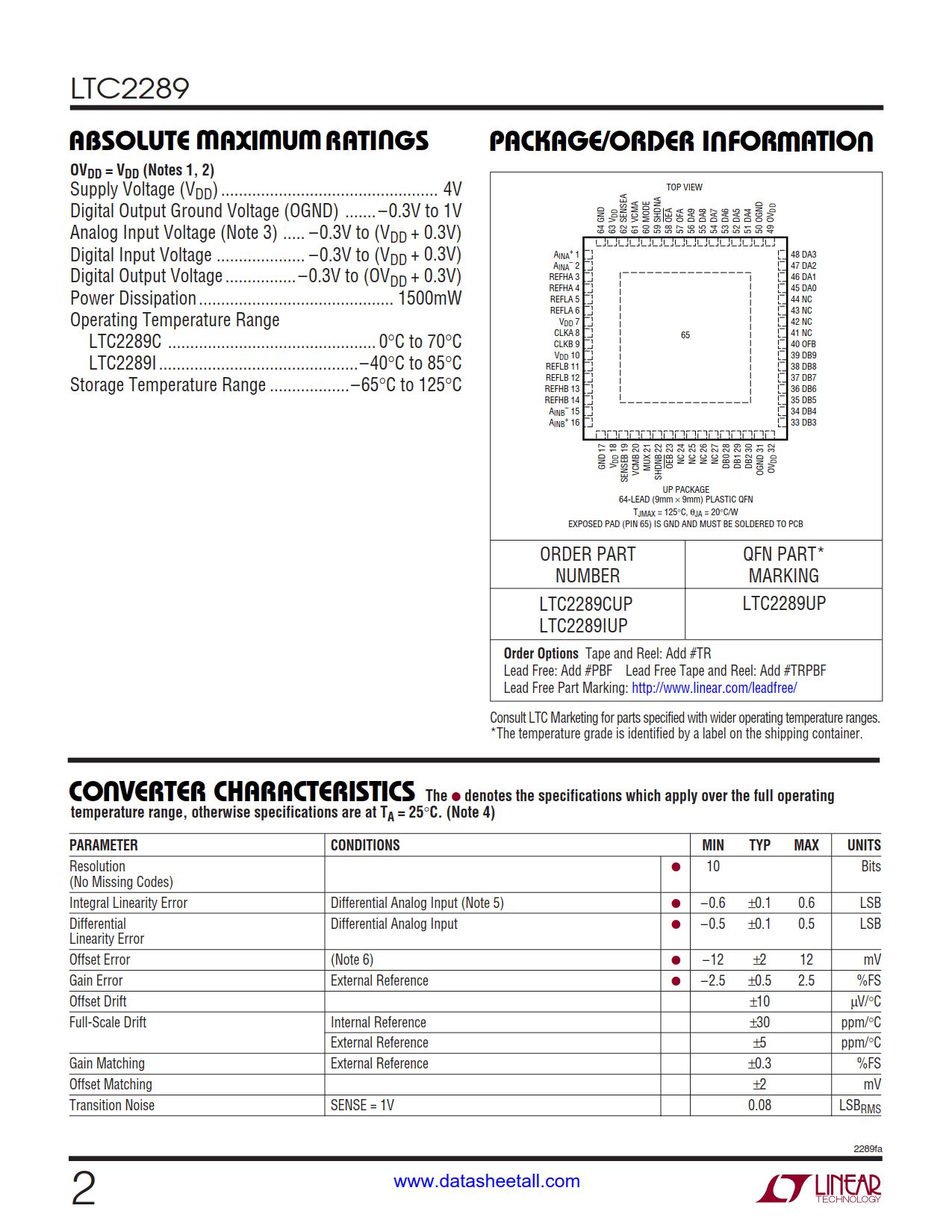

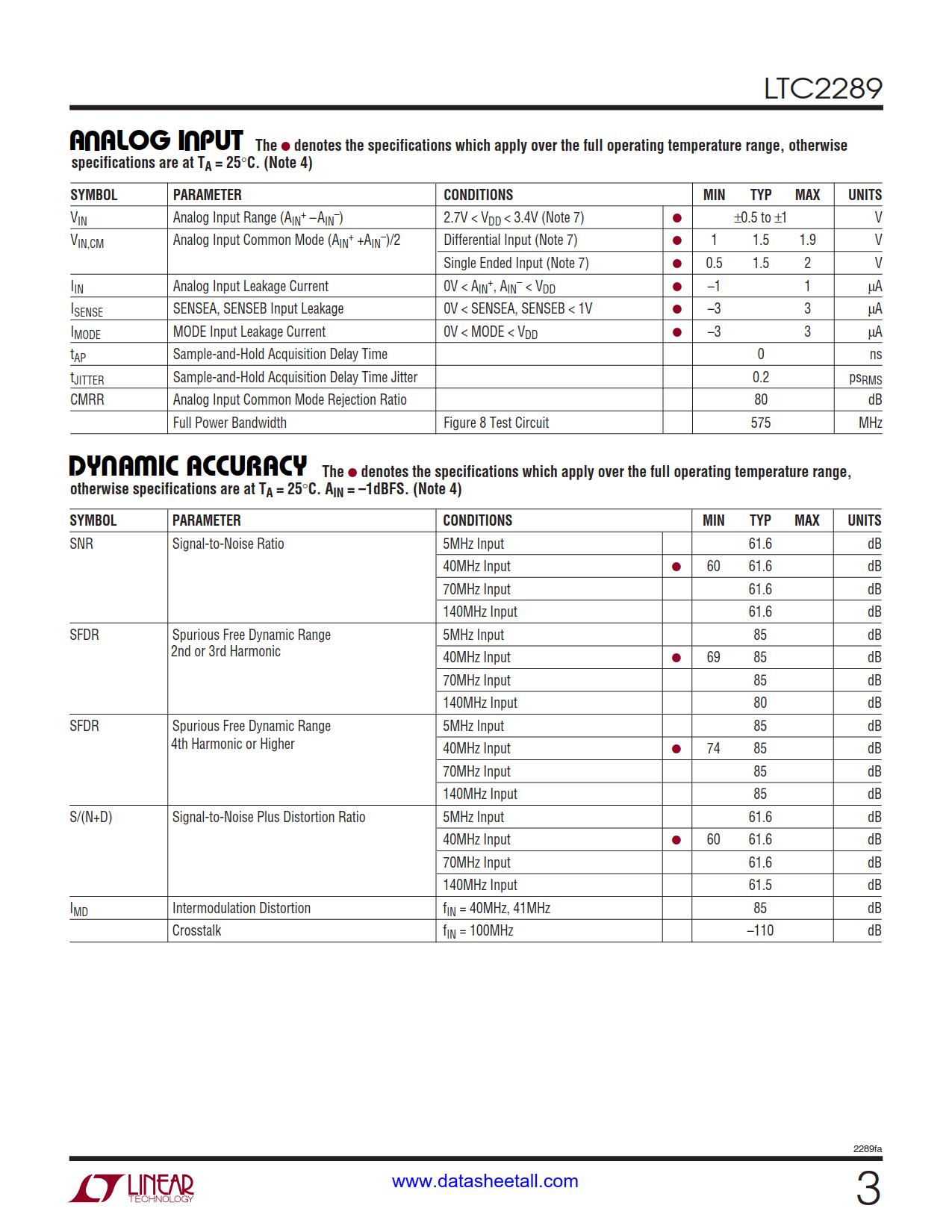

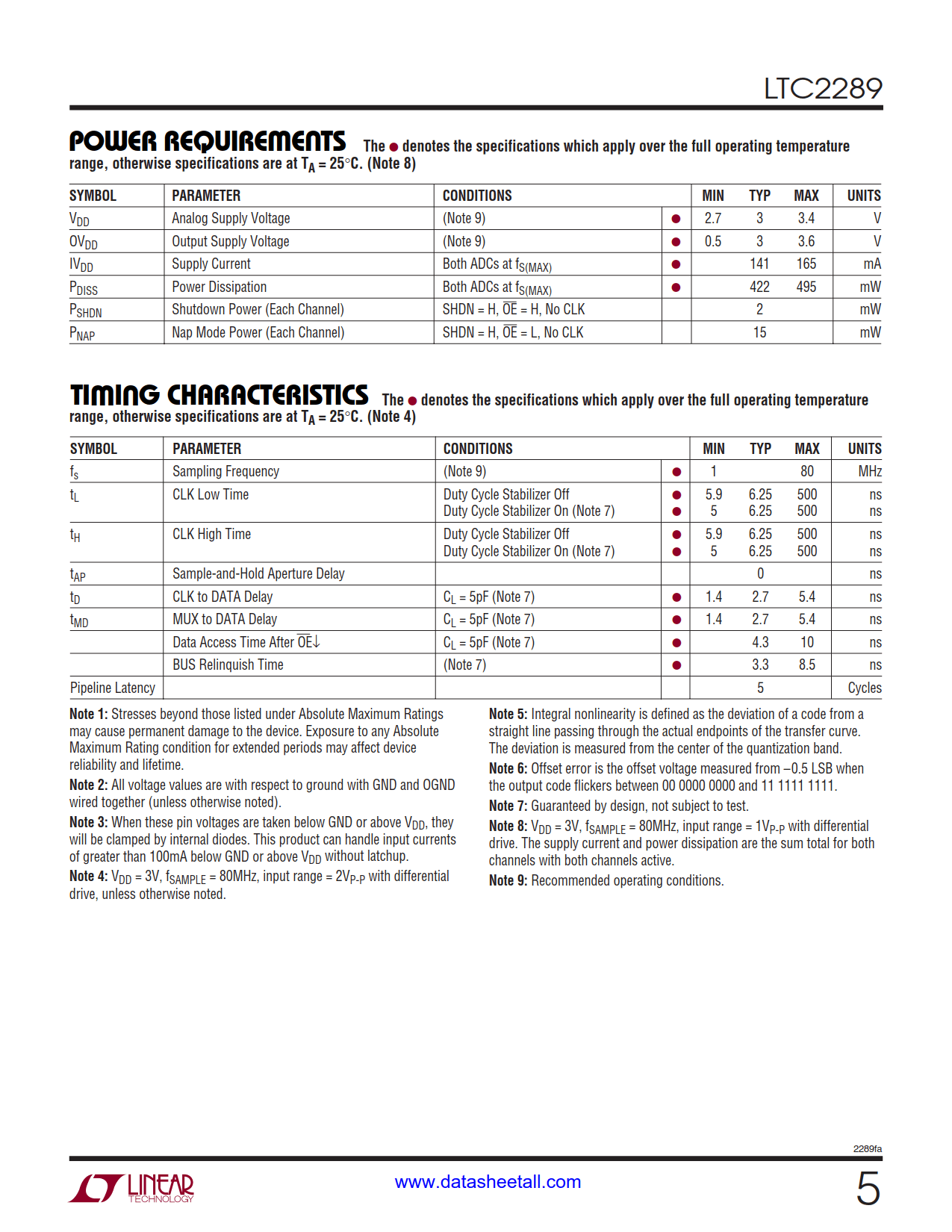

LTC2289 Datasheet(Picture)

LTC2289 Features

  • Integrated Dual 10-Bit ADCs
  • Sample Rate: 80Msps
  • Single 3V Supply (2.7V to 3.4V)
  • Low Power: 422mW
  • 61.6dB SNR at 70MHz Input
  • 85dB SFDR at 70MHz Input
  • 110dB Channel Isolation at 100MHz
  • Multiplexed or Separate Data Bus
  • Flexible Input: 1VP-P to 2VP-P Range
  • 575MHz Full Power Bandwidth S/H
  • Clock Duty Cycle Stabilizer
  • Shutdown and Nap Modes
  • Pin Compatible Family
  • 64-Pin (9mm × 9mm) QFN Package

LTC2289 Applications

  • Wireless and Wired Broadband Communication
  • Imaging Systems
  • Spectral Analysis
  • Portable Instrumentation

LTC2289 Description

The LTC2289 is a 10-bit 80Msps, low noise 3V dual A/D converter designed for digitizing high frequency, wide dynamic range signals. The LTC2289 is perfect for demanding imaging and communications applications with AC performance that includes 61.6dB SNR and 85dB SFDR for signals well beyond the Nyquist frequency.

DC specs include ±0.1LSB INL (typ), ±0.1LSB DNL (typ) and ±0.6LSB INL, ±0.5LSB DNL over temperature. The transition noise is a low 0.08LSBRMS.

A single 3V supply allows low power operation. A separate output supply allows the outputs to drive 0.5V to 3.6V logic. An optional multiplexer allows both channels to share a digital output bus.

A single-ended CLK input controls converter operation. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.
