| Part No.： | LTC2288 |
| Page： | 28 Pages |
| Size： | 857 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-11-23 10:12:13 |
| DataSheet： | Download |

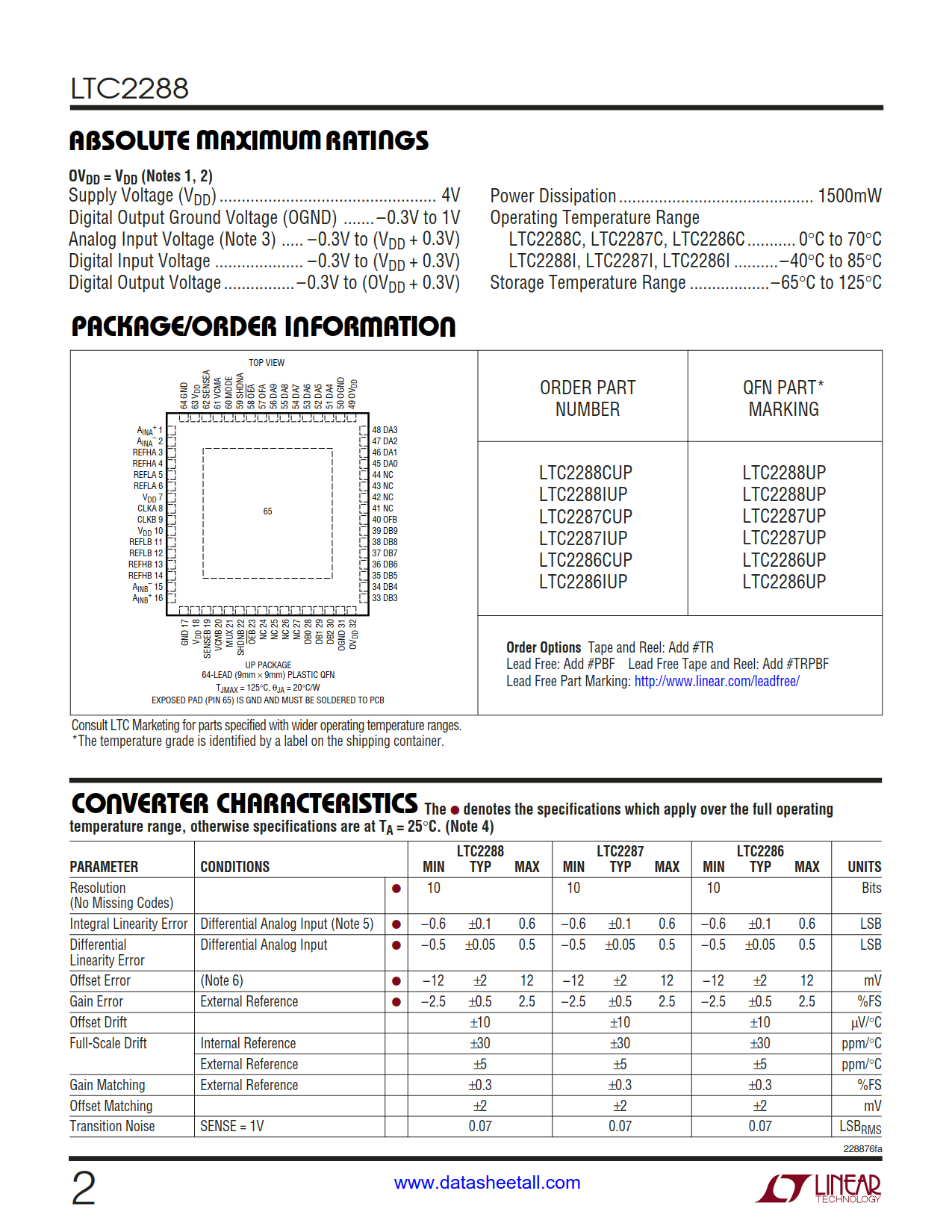

| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC2288CUP#PBF | Tube | 40 | LTC2288UP | 1 | 64 | 0°C ~ 70°C | 64-Lead QFN (9mm x 9mm x 0.75mm) | |
| LTC2288CUP#TRPBF | Reel | 2000 | LTC2288UP | 1 | 64 | 0°C ~ 70°C | 64-Lead QFN (9mm x 9mm x 0.75mm) | |
| LTC2288CUP#TRMPBF | Reel | 500 | LTC2288UP | 1 | 64 | 0°C ~ 70°C | 64-Lead QFN (9mm x 9mm x 0.75mm) | |
| LTC2288IUP#PBF | Tube | 40 | LTC2288UP | 1 | 64 | -40°C ~ 85°C | 64-Lead QFN (9mm x 9mm x 0.75mm) | |
| LTC2288IUP#TRPBF | Reel | 2000 | LTC2288UP | 1 | 64 | -40°C ~ 85°C | 64-Lead QFN (9mm x 9mm x 0.75mm) | |
| LTC2288IUP#TRMPBF | Reel | 500 | LTC2288UP | 1 | 64 | -40°C ~ 85°C | 64-Lead QFN (9mm x 9mm x 0.75mm) |

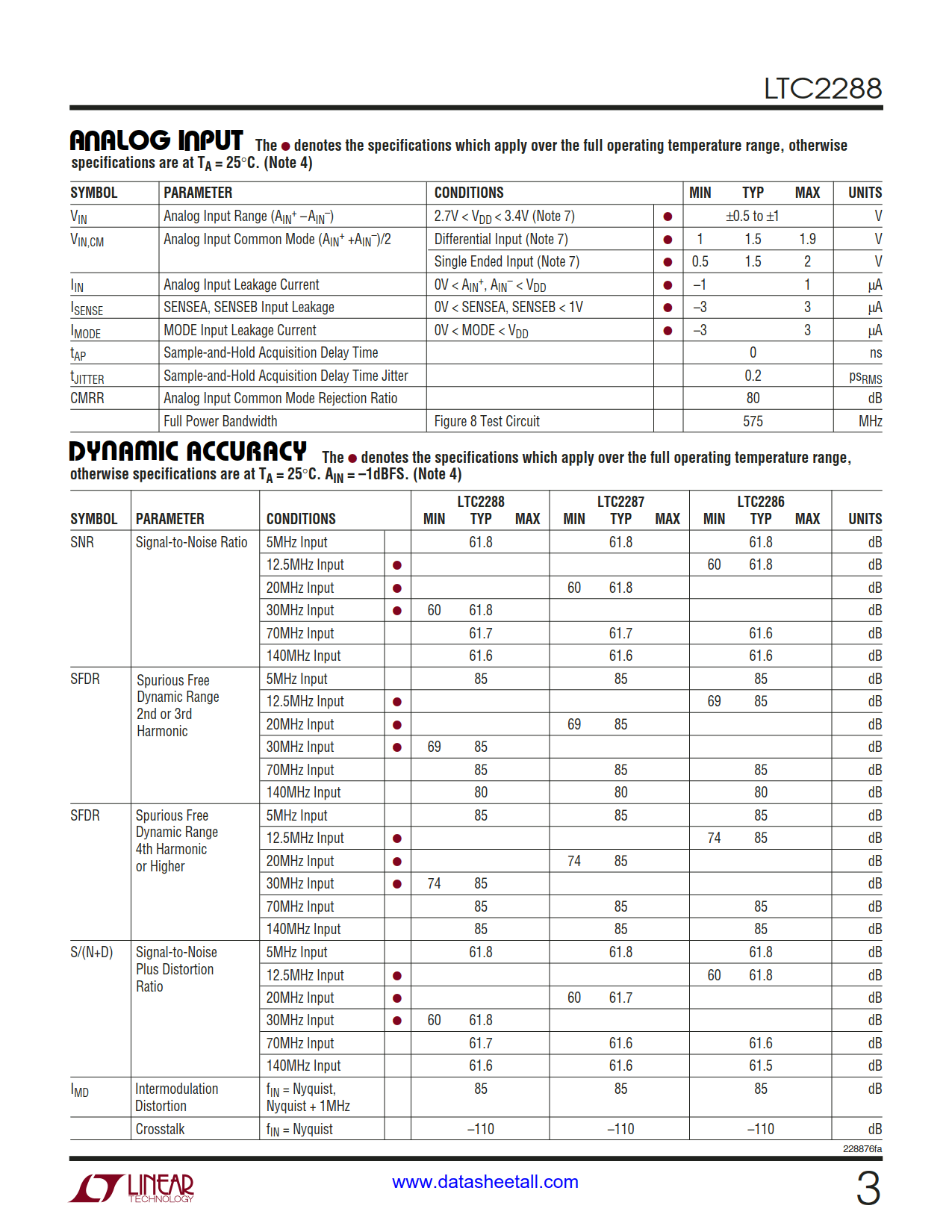

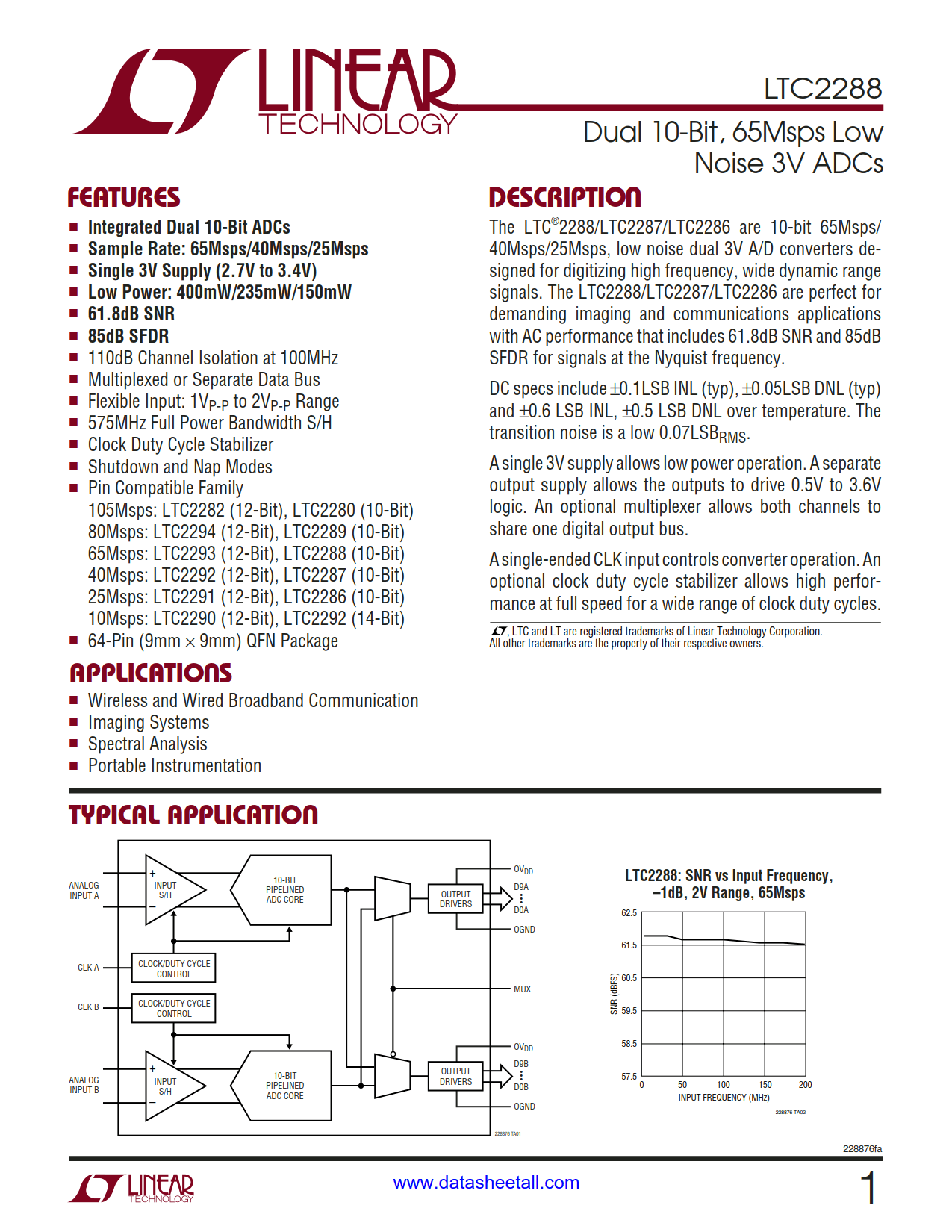

The LTC2288 are 10-bit 65Msps, low noise dual 3V A/D converters designed for digitizing high frequency, wide dynamic range signals. The LTC2288 are perfect for demanding imaging and communications applications with AC performance that includes 61.8dB SNR and 85dB SFDR for signals at the Nyquist frequency.

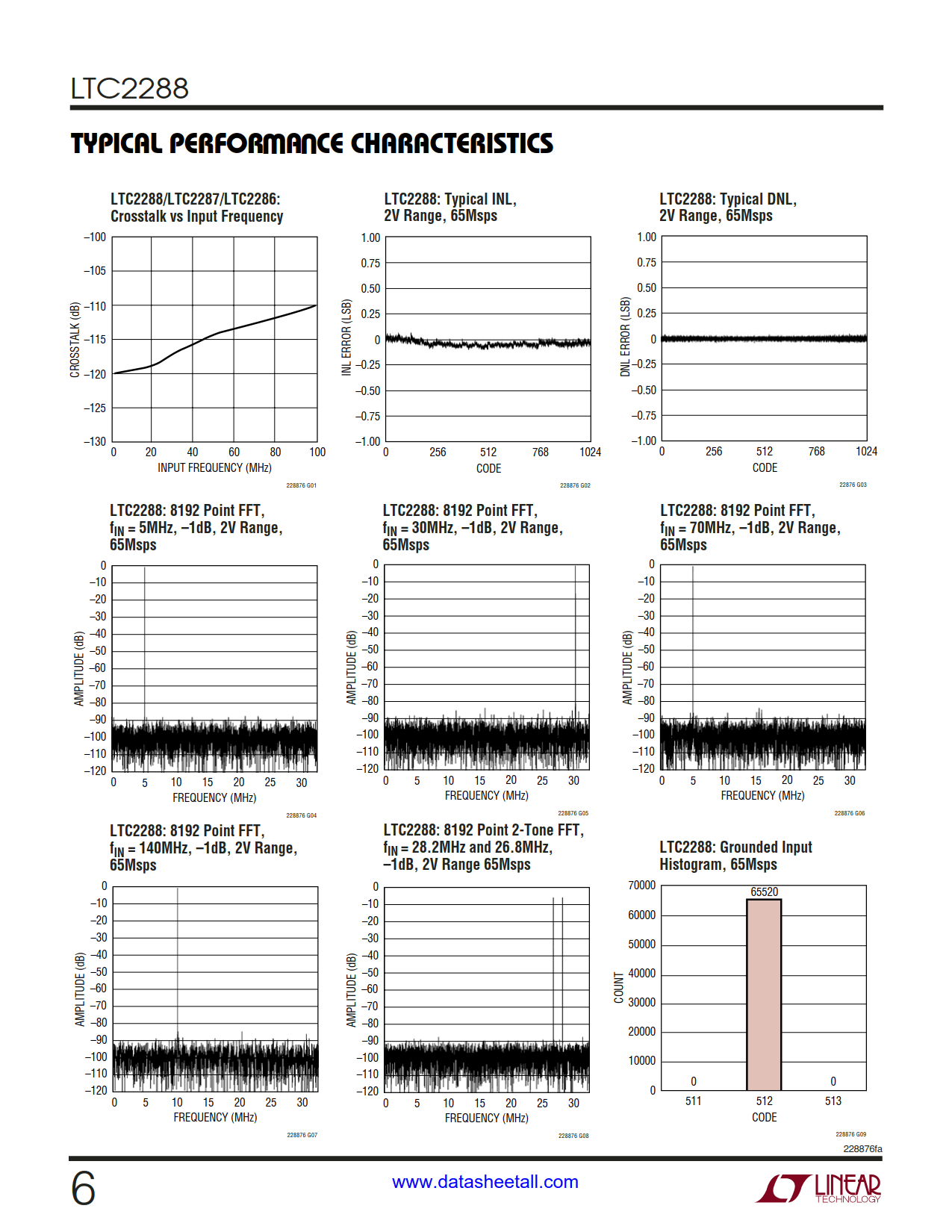

DC specs include ±0.1LSB INL (typ), ±0.05LSB DNL (typ) and ±0.6 LSB INL, ±0.5 LSB DNL over temperature. The transition noise is a low 0.07LSBRMS.

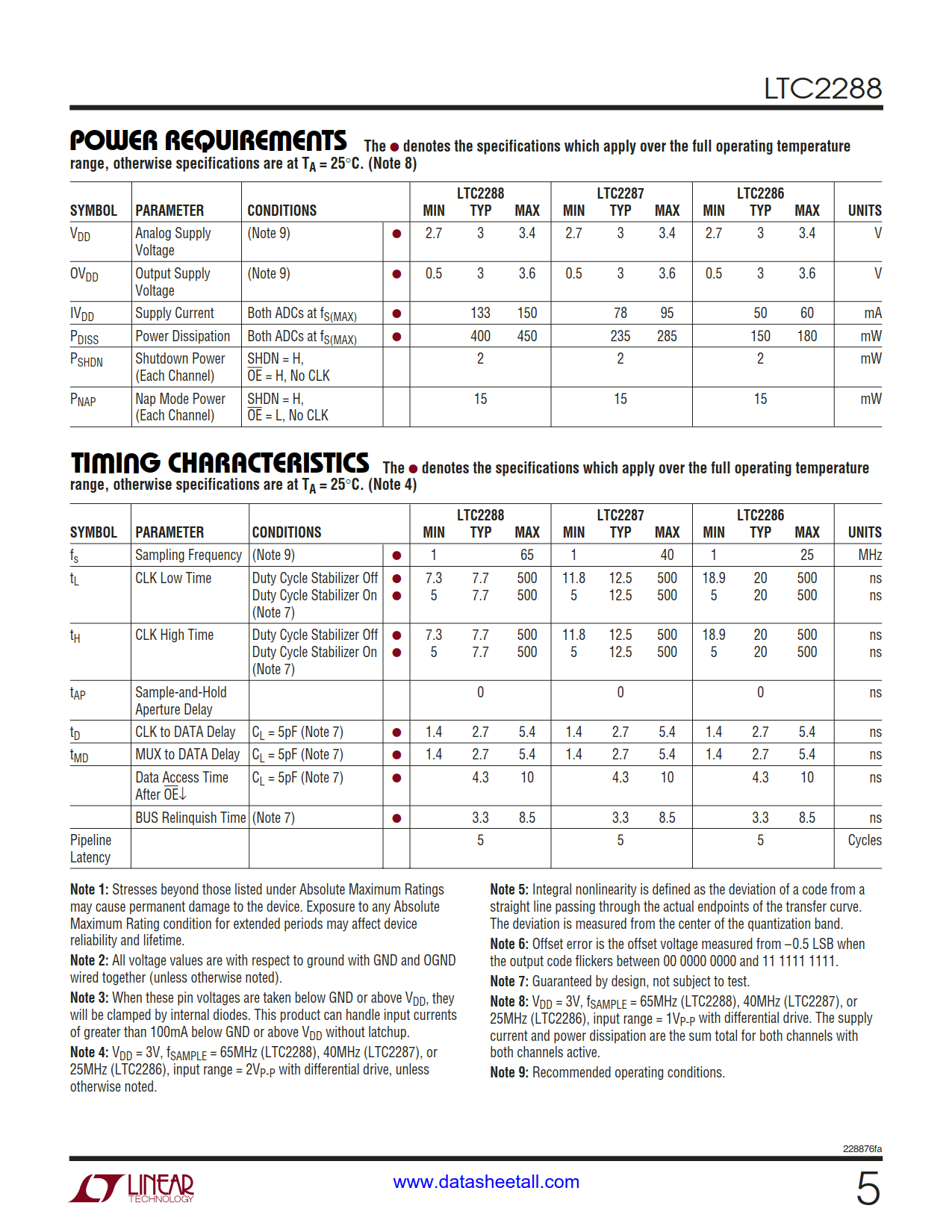

A single 3V supply allows low power operation. A separate output supply allows the outputs to drive 0.5V to 3.6V logic. An optional multiplexer allows both channels to share one digital output bus.
A single-ended CLK input controls converter operation. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.
