| Part No.： | LTC2253 |
| Page： | 24 Pages |
| Size： | 541 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-11-16 11:34:00 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC2253CUH#PBF | Tube | 73 | 2253 | 1 | 32 | 0°C ~ 70°C | 32-Lead QFN (5mm x 5mm x 0.75mm) | |
| LTC2253CUH#TRPBF | Reel | 2500 | 2253 | 1 | 32 | 0°C ~ 70°C | 32-Lead QFN (5mm x 5mm x 0.75mm) | |
| LTC2253CUH#TRMPBF | Reel | 500 | 2253 | 1 | 32 | 0°C ~ 70°C | 32-Lead QFN (5mm x 5mm x 0.75mm) | |
| LTC2253IUH#PBF | Tube | 73 | 2253 | 1 | 32 | -40°C ~ 85°C | 32-Lead QFN (5mm x 5mm x 0.75mm) | |
| LTC2253IUH#TRPBF | Reel | 2500 | 2253 | 1 | 32 | -40°C ~ 85°C | 32-Lead QFN (5mm x 5mm x 0.75mm) | |
| LTC2253IUH#TRMPBF | Reel | 500 | 2253 | 1 | 32 | -40°C ~ 85°C | 32-Lead QFN (5mm x 5mm x 0.75mm) |

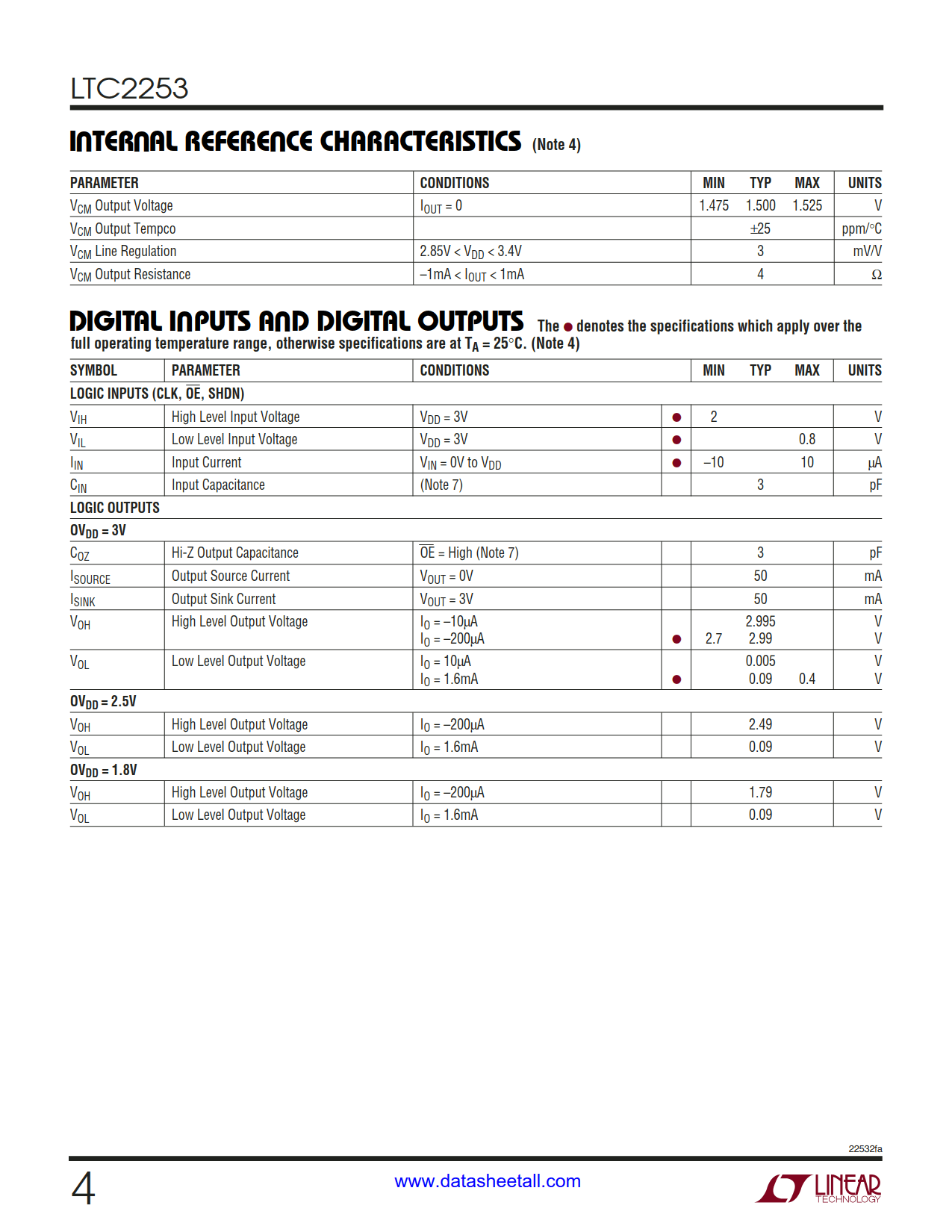

The LTC2253 are 12-bit 125Msps, low power 3V A/D converters designed for digitizing high frequency, wide dynamic range signals. The LTC2253 are perfect for demanding imaging and communications applications with AC performance that includes 70.1dB SNR and 85dB SFDR for signals at the Nyquist frequency.
DC specs include ±0.3LSB INL (typ), ±0.15LSB DNL (typ) and no missing codes over temperature. The transition noise is a low 0.32LSBRMS.
A single 3V supply allows low power operation. A separate output supply allows the outputs to drive 0.5V to 3.3V logic.
A single-ended CLK input controls converter operation. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.
